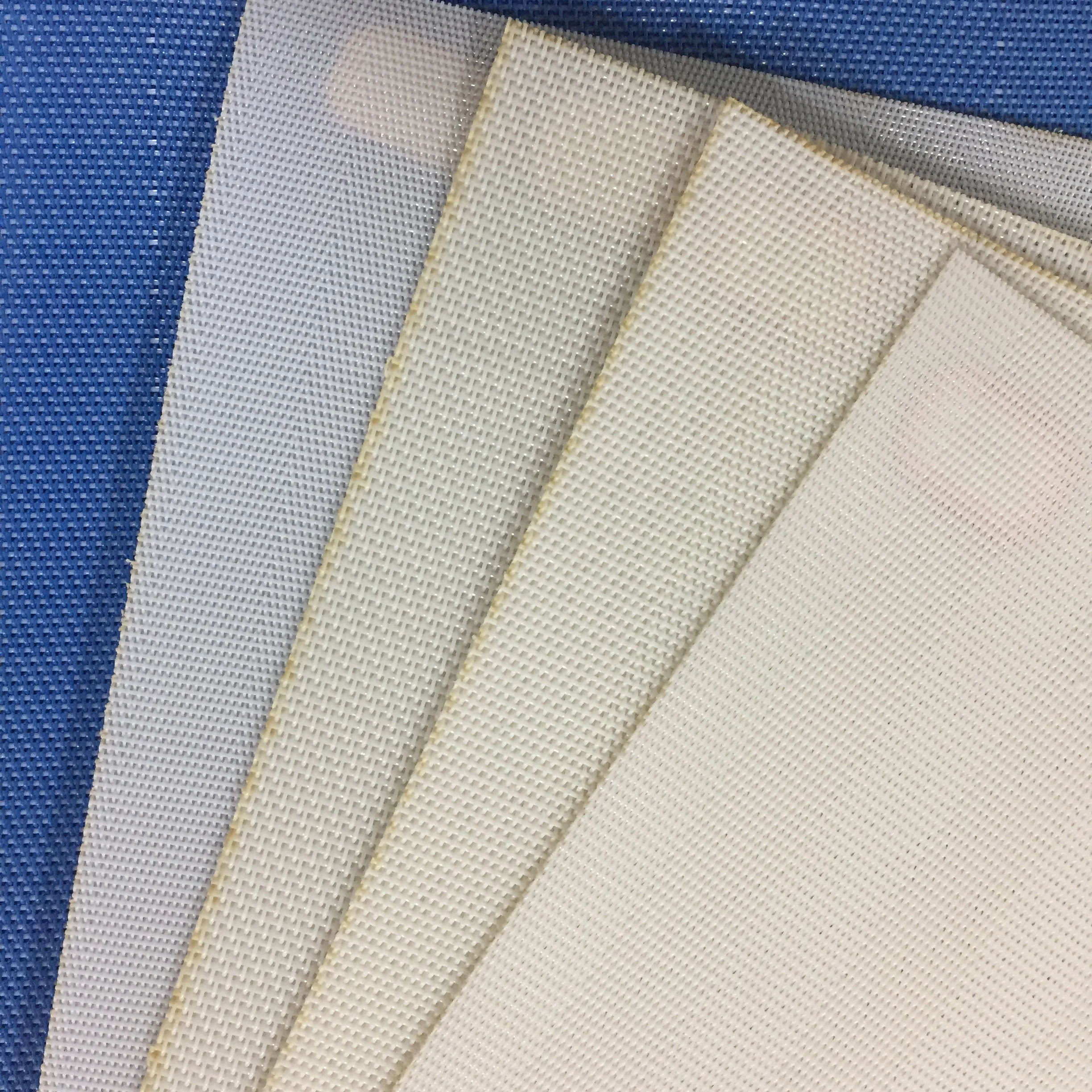

Municipal belt press filter good mechanical strength, stable size press cloth filtration fabric

Share on (1600425807013):


Price:

Quantity:


Product Overview

Description



Product Description


Product Name
Polyester filter screen filter press belt for Pharmaceutical filter
Color
Diameter of Warp Yarns (mm) / Material
0.50/PET

Diameter of Weft Yarns

(mm) / Material

0.90/PET

Air Permeability at 127 Pa

3100~3250 L/m2.S

610~640 CFM

Air Permeability at 200 Pa

4000~4200 L/m2.S

790~830 CFM

Thickness
1.84 mm
Tensile strengths
2000 N/cm
Elongation rate                  (warp direction)
22.8 %
Elongation rate (500kg/m)
0.3%
Weight
1160 g/m2
Interception accuracy
450~500 μm
Using range/ application
Compatible with belt press filter; It is suitable for the sludge dewatering.


ProductsShow




Our Service


Our technilogy department can do the test according to your data or samples to give you the best suggestion or design the most suitable belt for you.





Our Company


Company information.


1.\tXiamen Citius Environment Technologies Co., Ltd specializes in the engineering, design, and manufacturing of industrial  filter fabrics. We have a professional technical team and specialized laboratory to customize products for clients.

2.\tCitius products have been divided into four applications: Sludge dewatering, Vacuum filter, Paper-making, and Refined. The products are widely applied in dewatering equipment including belt presses, horizontal, vacuum belt presse, paper machines, plate and frame filter presses, disc filters, drum filters, and continuous filter presses.



Citius makes many different industry specific fabrics and filters. All fabrics are woven with monofilament wire or a combination of monofilament and multifilament wires from virgin high viscosity PET, PP, PA, PPS chips. After heat-setting or calendaring the fabric has the following advantages:



1. Shape stability: The fabrics will maintain their shape under proper temperature and tensile strength settings.

2. Chemical stability: Citius fabrics are acid proof, alkali proof, and anti-corrosive. They also are able to withstand high         temperatures.

3. Long life-span: Citius fabrics are anti-abrasive and have a strong tensile strength.

4. Can meet different filtration requirement (2-100um).

5. Strips easily.

6. Strong seam strength: Citius fabrics combine high quality materials and advanced manufacturing procedures to increase the life of their products.


Our products are also exported to Australia, America, South Africa, Brazil, Europe, southeast Asia and other countries and regions, and have been successfully applied to the filtration equipment of dwt-engineering LTD of Finland, DELKOR of the UK, BELLMER of Germany, etc., which has been highly praised by users.



company


certificate








Packing & Delivery

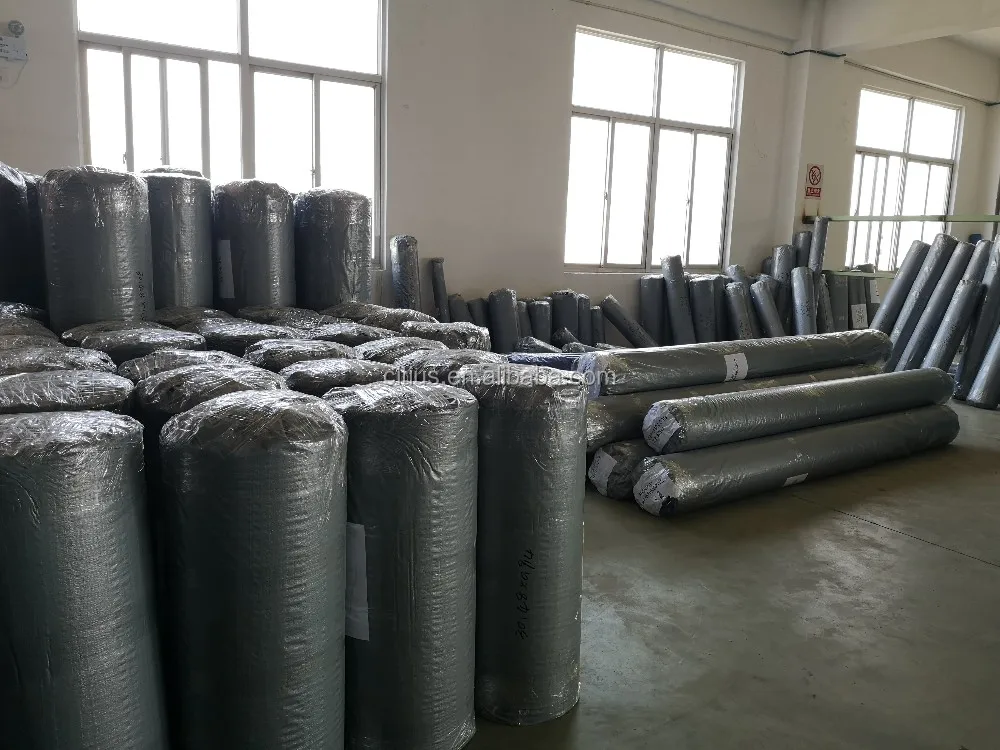

Packing Details : Wooden packing, ordinary packing with waste fabric or leader cloth around the whole roll.
Delivery Details : 20 days
