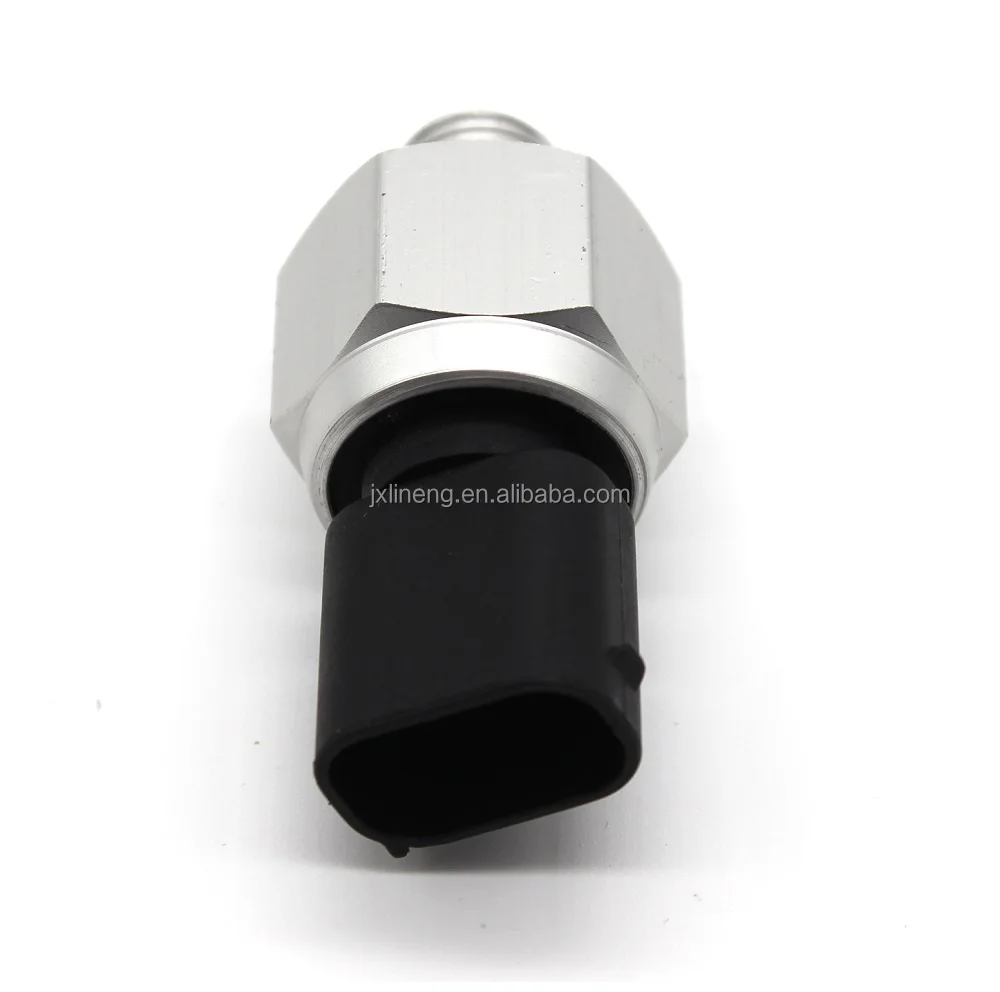

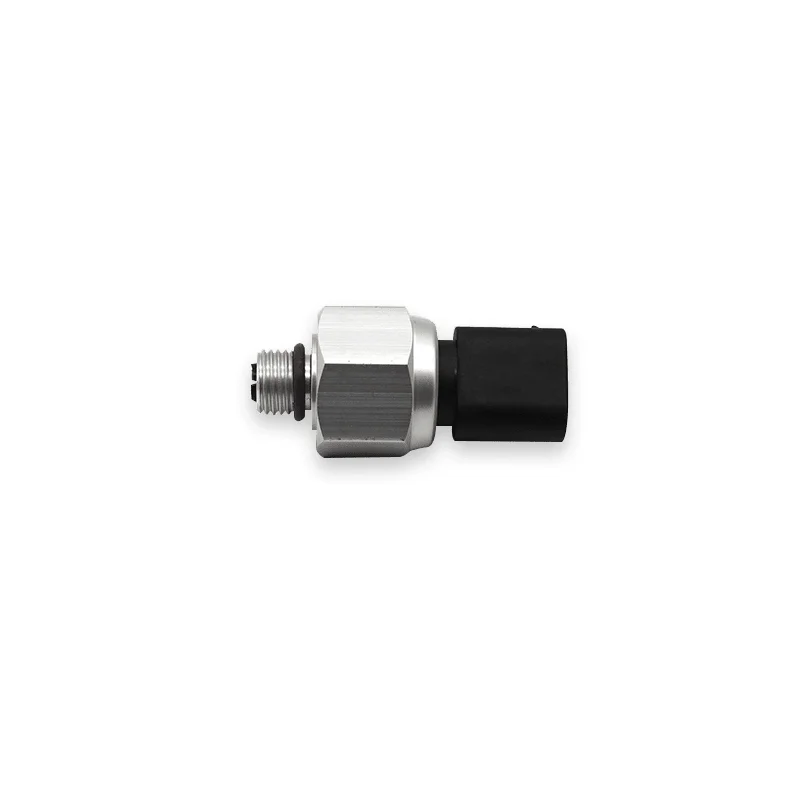

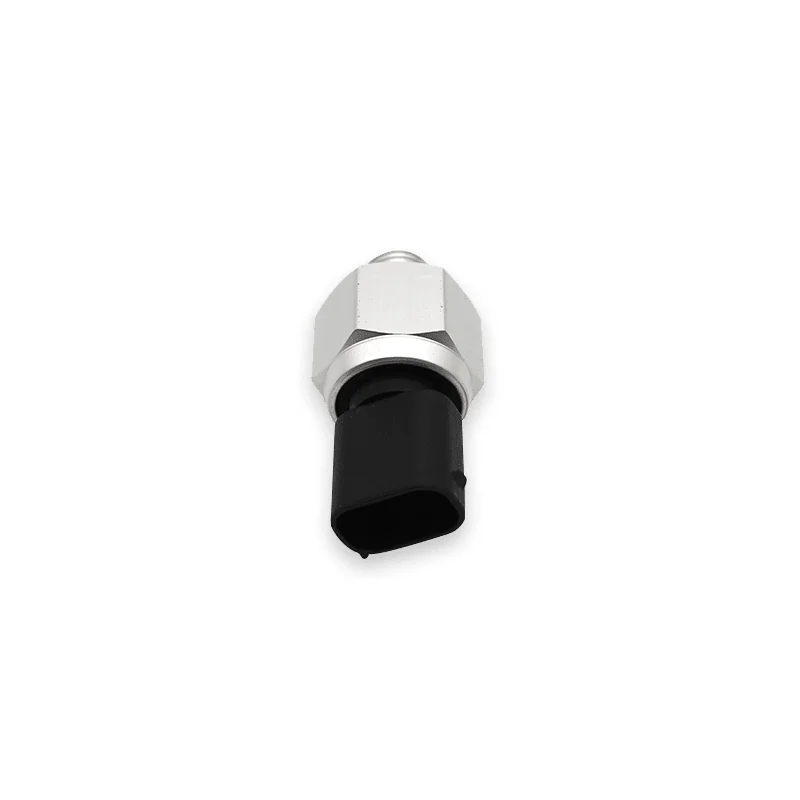

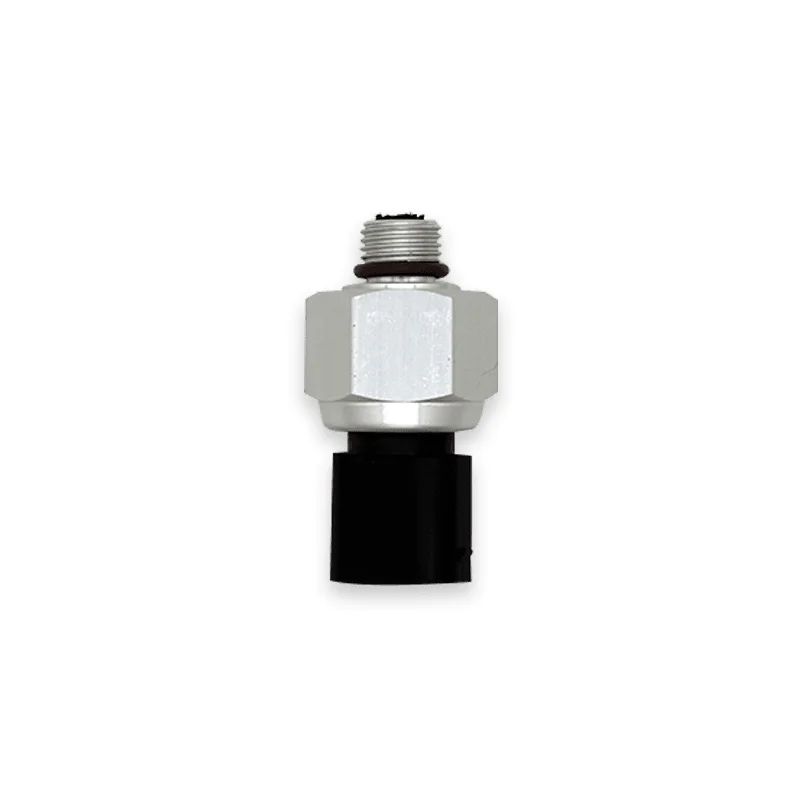

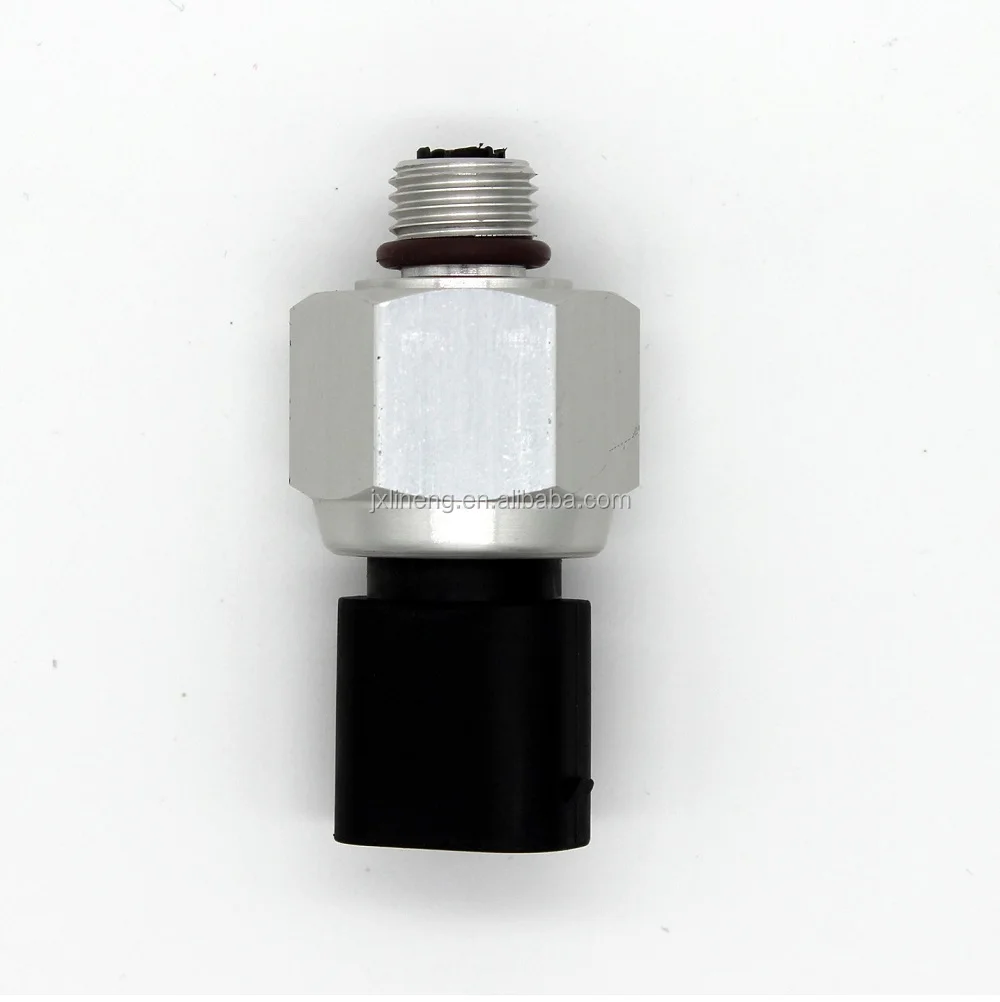

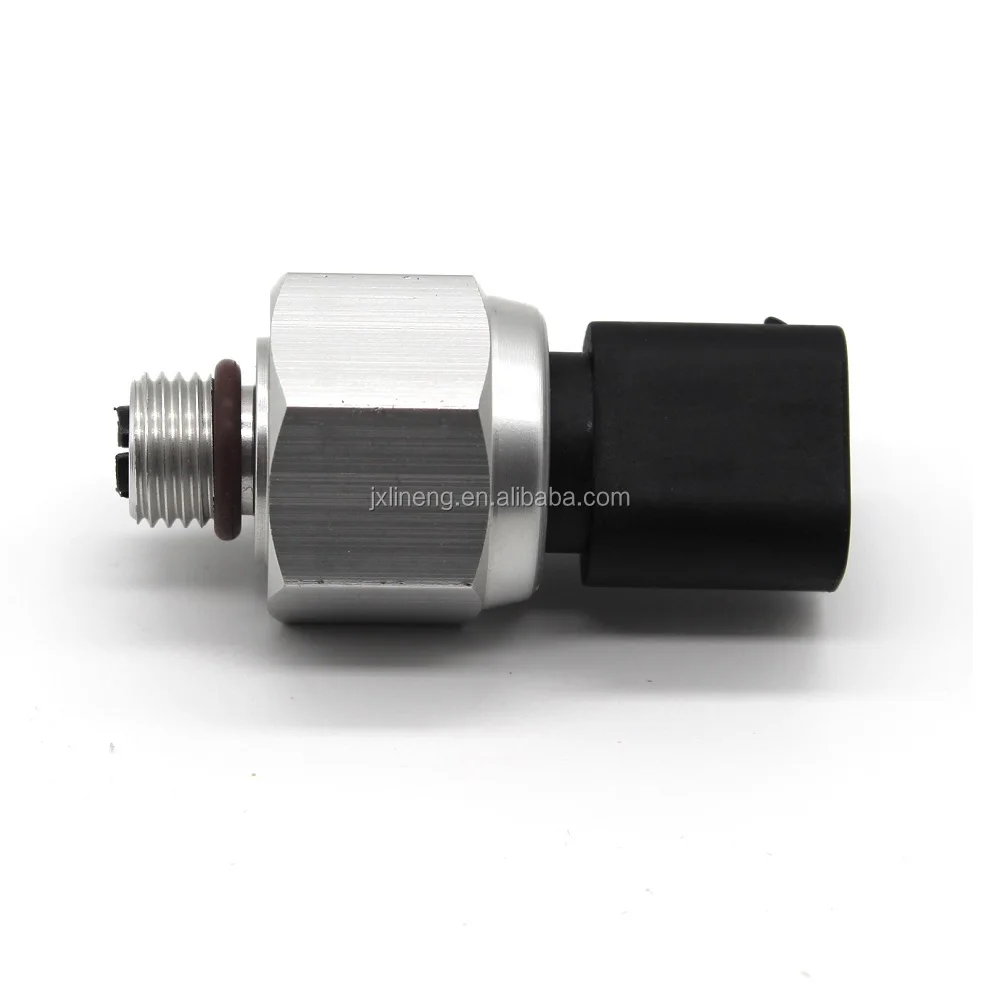

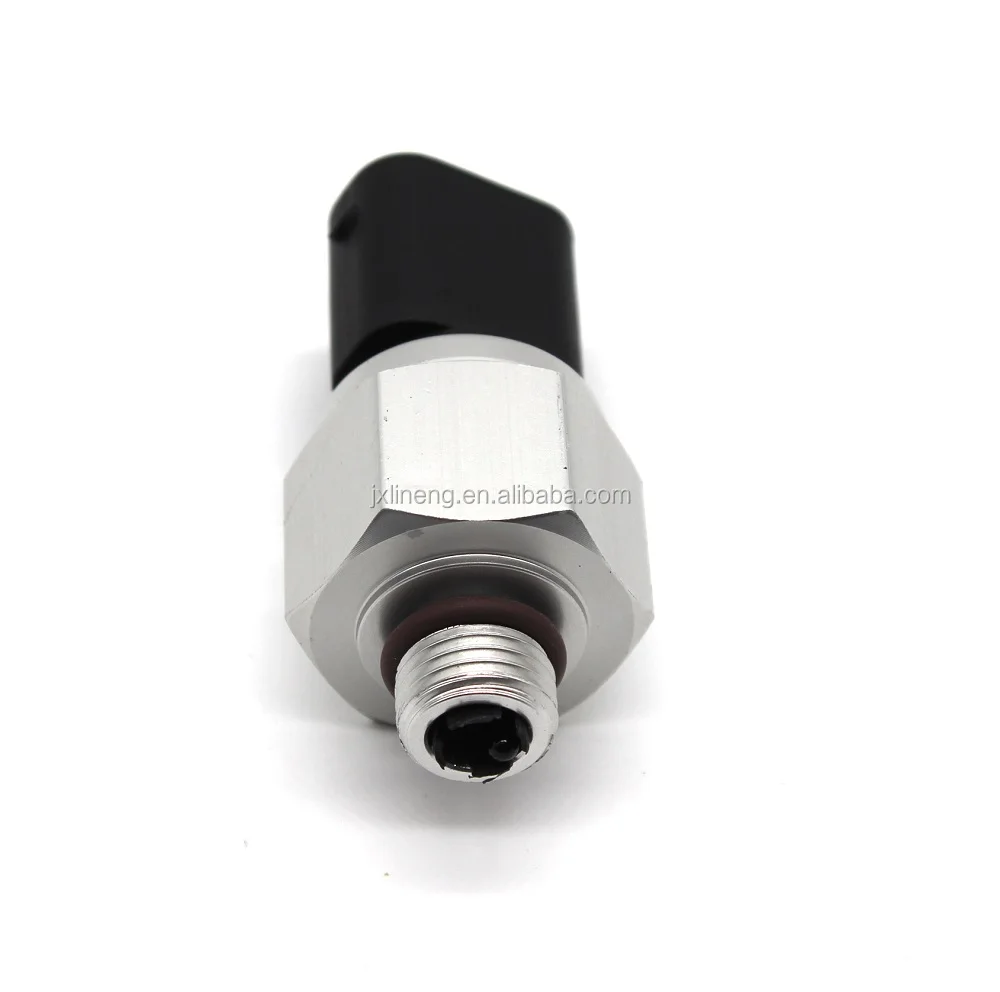

Cng Low Pressure Lpg Conversion Temperature Sensor For Autogas Kit
- Category: >>>
- Supplier: Jiaxing Lineng Autogas Equipment Co. Ltd.
Share on (1600425809992):
Product Overview
Description
Cng Low Pressure Lpg Conversion Temperature Sensor For Autogas Kit
Specifications: | ||
Application | CNG, LPG, LNG, AIR | |
Body Material | Aluminium | |
Pressure (absolute) | 0~250kPa or 400kPa | |
Accuracy | 1% for pres. & temp. | |
Thermal compensation | Yes | |
Pressure response time | 1ms | |
Temperature sensor | NTC 10KΩ (B25/50=3950) | |
Temperature response time | 2s | |
Working Temp | -40~120℃ | |
Socket Thread | 1/8"BSP / 6mm pipe | |
Connector type | N4 | |
Mate Connector | DELPHI 12065287 | |
Burst Pressure | 1600kPa | |
Protection | IP67 | |
Output Specifications: | ||||||
Signal Type | Input Volt | Output Formular | Output Description | |||
250kPa | 5V | Vout=Vin(5v)*(0.0040*P(kPa)-0.040) | 20kPa=0.2v, 100kPa=1.80v, 250kPa=4.80v | |||
400kPa | 5V | Vout=Vin(5v)*(0.002421*P(kPa)-0.00842) | 20kPa=0.2v, 200kPa=2.38v, 400kPa=4.80v | |||
Q1:What information need to be provided to choose the suitable model?
Please provide us: application field, measuring range , accuracy, connection and other related parameters.
So we can choose model and quote for you quickly.
Q2: Are you a trade company or a manufacturer?
We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
Q3: What is your MOQ?
To start our cooperation, sample order is acceptable.
Q4: What is your delivery date?
The delivery date is about 3-15 working days after receipt of payment.
Q5: What is your payment terms?
We support T/T, PayPal LC and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q6: Do you have a warranty?
Yes, we have the warranty of 12 months.
Q2: Are you a trade company or a manufacturer?
We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
Q3: What is your MOQ?
To start our cooperation, sample order is acceptable.
Q4: What is your delivery date?
The delivery date is about 3-15 working days after receipt of payment.
Q5: What is your payment terms?
We support T/T, PayPal LC and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q6: Do you have a warranty?
Yes, we have the warranty of 12 months.
