High Quality New Design Multimeter Phase Sequence Non Contact Voltage Tester Pen Type Electric Detector
- Category: Other Electrical Instruments >>>
- Supplier: Dongguan,Hongtu,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
High Quality New Design Multimeter Phase Sequence Non-Contact Voltage Tester Pen Type Electric Detectorr
Feature
T 02A is an intelligent measuring pen, which can not only sense the electric field at a long distance, but also distinguish the live line / zero line at a short distance. The rate pen design is easy to carry.
The Technical Specifications
| Voltage detection range | 12~1000V,50/60Hz |
| Boot key | yes |
| Shutdown key | yes,After about 5 minutes without induction signal or any operation, the measuring pen will turn off automatically |
| Measurement alarm | The yellow light is on when the signal is weak, and the red light is on when the signal is strong. The beep tone will also increase or decrease with the signal strength. |
| lighting/Red light pointing light | Tap to turn on the light, then tap to turn off the light. Press and hold for 2s to turn on the red light pointing light |
| sensitivity modulation | yes |
| Sensitivity setting | yes |
| Fire line discrimination | The zero line or weak electric field can only trigger the yellow light, and only the live line can trigger the red light. |
| body color | Orange red + iron gray |
| Net weight of fuselage | About 40g |
| Fuselage size | 165.5*24.5*28.1mm |
| Color card, blister / color box size | 167*35*30mm |
| Battery Specification | 2*1.5V AAA Battery |
| Standard packaging and accessories | Manual + Battery + color box |
| Including packing weight | About 67.5g |
| Standard package quantity | 100 |
| Outer box size | 360*335*210mm |
| Net weight | About 6.8KG |
| Gross weight | About 7.6kg |

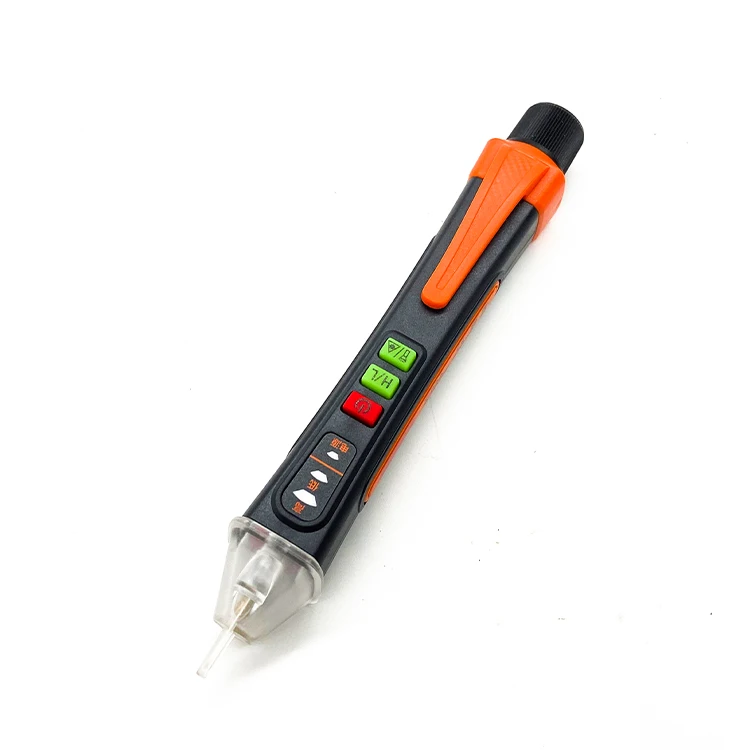

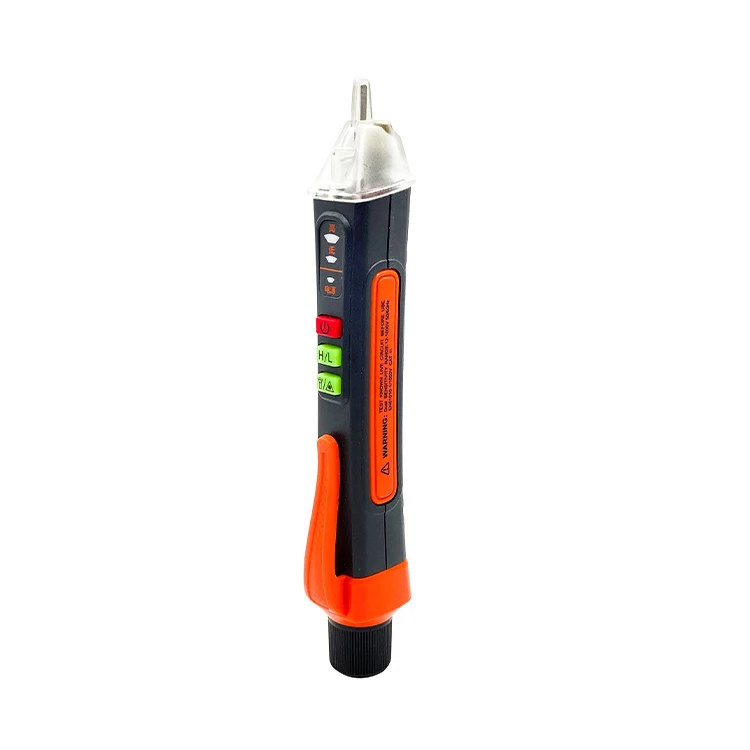

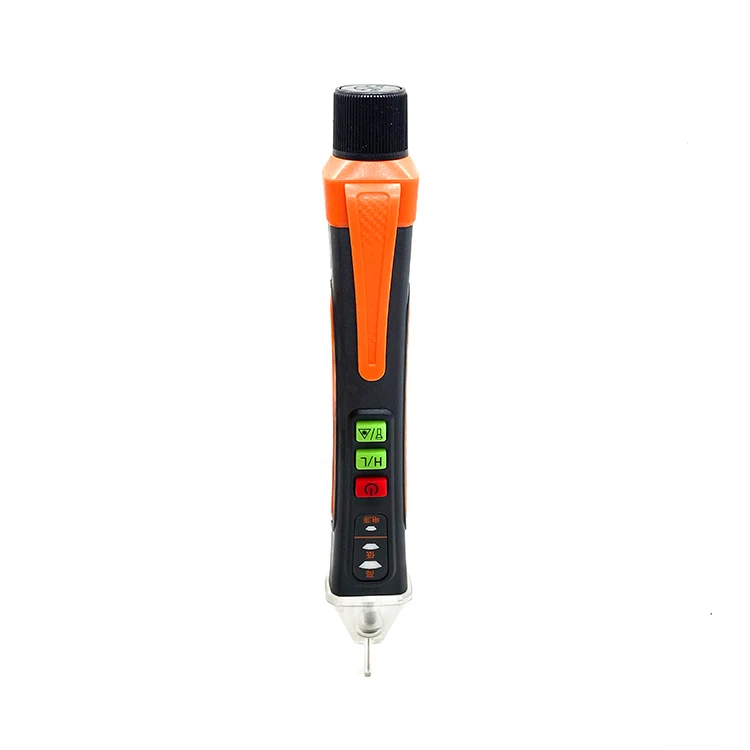

Product Pictures Detials
