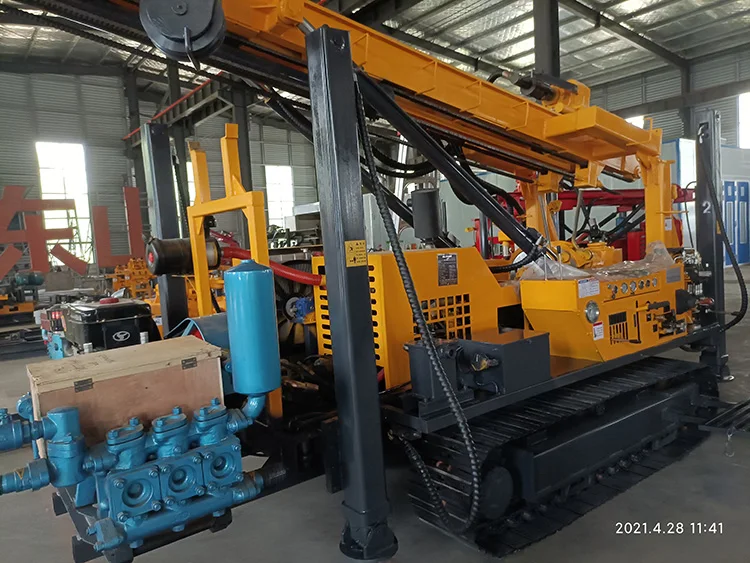

sdssino 2023 New Design crawler mounted 600m deep Geological Borehole machine portable hydraulic water well core drilling rig For Sale
- Category: >>>
- Supplier: Zhejiang Stars Energy Saving Technology Co. Ltd.
Share on (1600425820496):
Product Overview
Description
water Rigs machine portable small hydraulic borehole 100m 150 meter diesel well 200m meter 80m geotechnical core drilling rig
XY series hydraulic water well drilling rig is mainly used for water well, geological general investigation and exploration,kindsof hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling anddirect grouting,civil wells and earth temperature central air conditioner,etc.
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.2. It can be achievedwithout stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountainareas.
Tech parameter | Model | XYX-3 |
Drilling depth(m) | 600 | |
Open hole dia.(mm) | 325 | |
End hole dia.(mm) | 75 | |
Drill rod dia.(mm) | 50,60 | |
drill angle( ° ) | 90-75 | |
Matching power ( kW) | 38 | |
Weight without power ( kg ) | 3600 | |
Dimension ( m ) | 2.9*2.56*3.3 |
Details Images

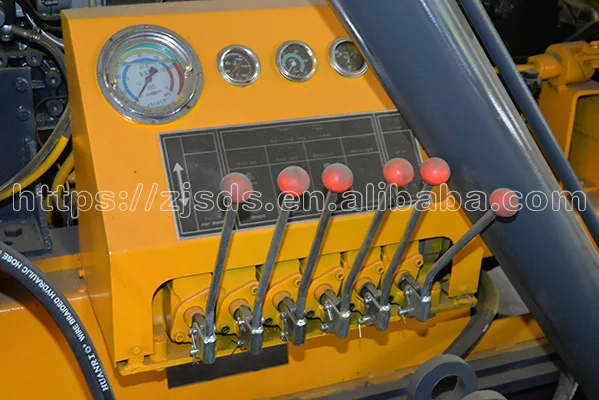

Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with sufficient area to operate.

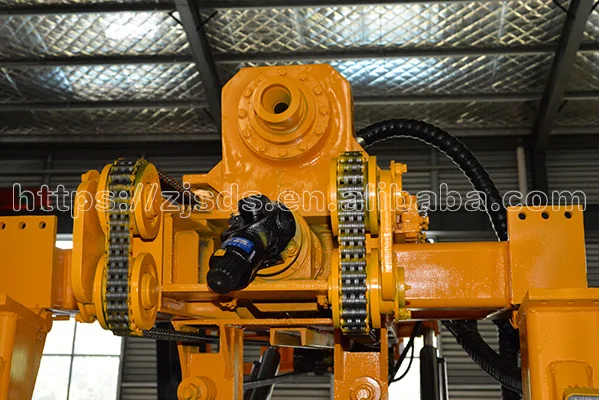

Promotion part

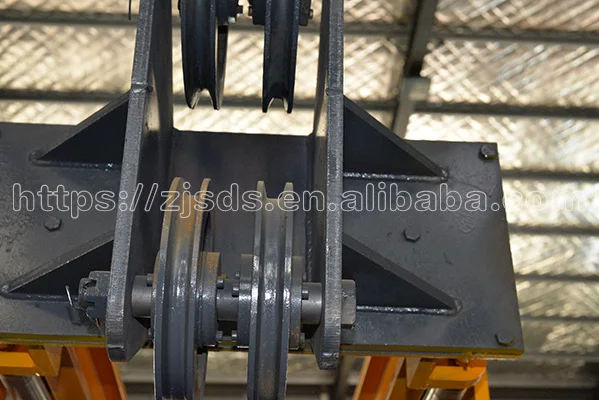

The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial pressure can be adjusted during deep hole drilling.

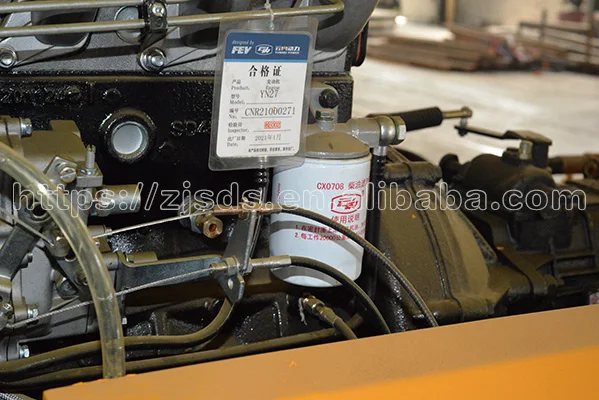

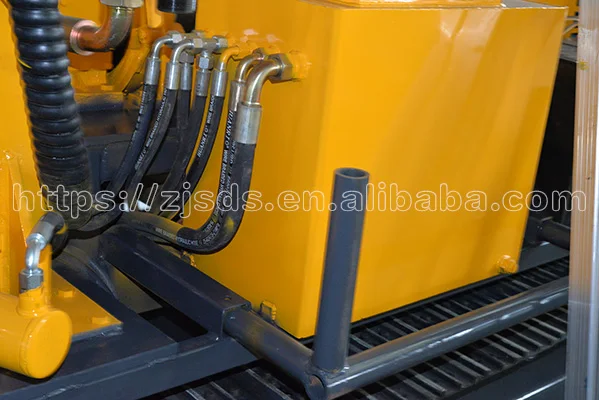

Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.

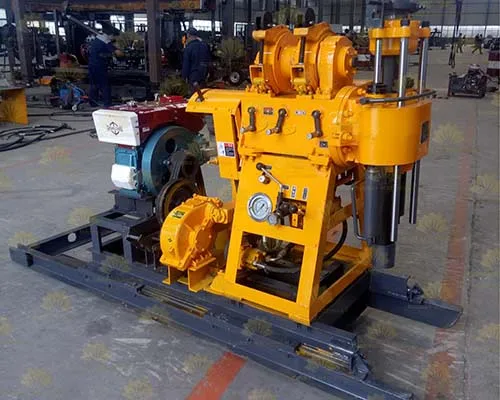

HZ Hydraulic core drilling rig
Drill Depth:130-200m
Drill Depth:130-200m
Open hole dia. : 325mm
End hole dia.: 75mm
Drill rod dia.: 42-60mm
Drill angle: 90-75°
Maching power: 13.2kw
Weight without power: 970kg
Dimension: 2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 1.8ton
Height: 6.5m
Dimension: 2.7*0.9*1.5m
End hole dia.: 75mm
Drill rod dia.: 42-60mm
Drill angle: 90-75°
Maching power: 13.2kw
Weight without power: 970kg
Dimension: 2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 1.8ton
Height: 6.5m
Dimension: 2.7*0.9*1.5m
- HZ Trailer Hydraulic core drilling rig
Drill Depth:200m
Open hole dia. :325mm
End hole dia.:75mm
Drill rod dia.:42-60mm
Drill angle: 90-75°
Maching power:13.2kw
Weight without power:970kg
Dimension:2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 1.8ton
Height:6.5m
Dimension:2.7*0.9*1.5m
End hole dia.:75mm
Drill rod dia.:42-60mm
Drill angle: 90-75°
Maching power:13.2kw
Weight without power:970kg
Dimension:2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 1.8ton
Height:6.5m
Dimension:2.7*0.9*1.5m

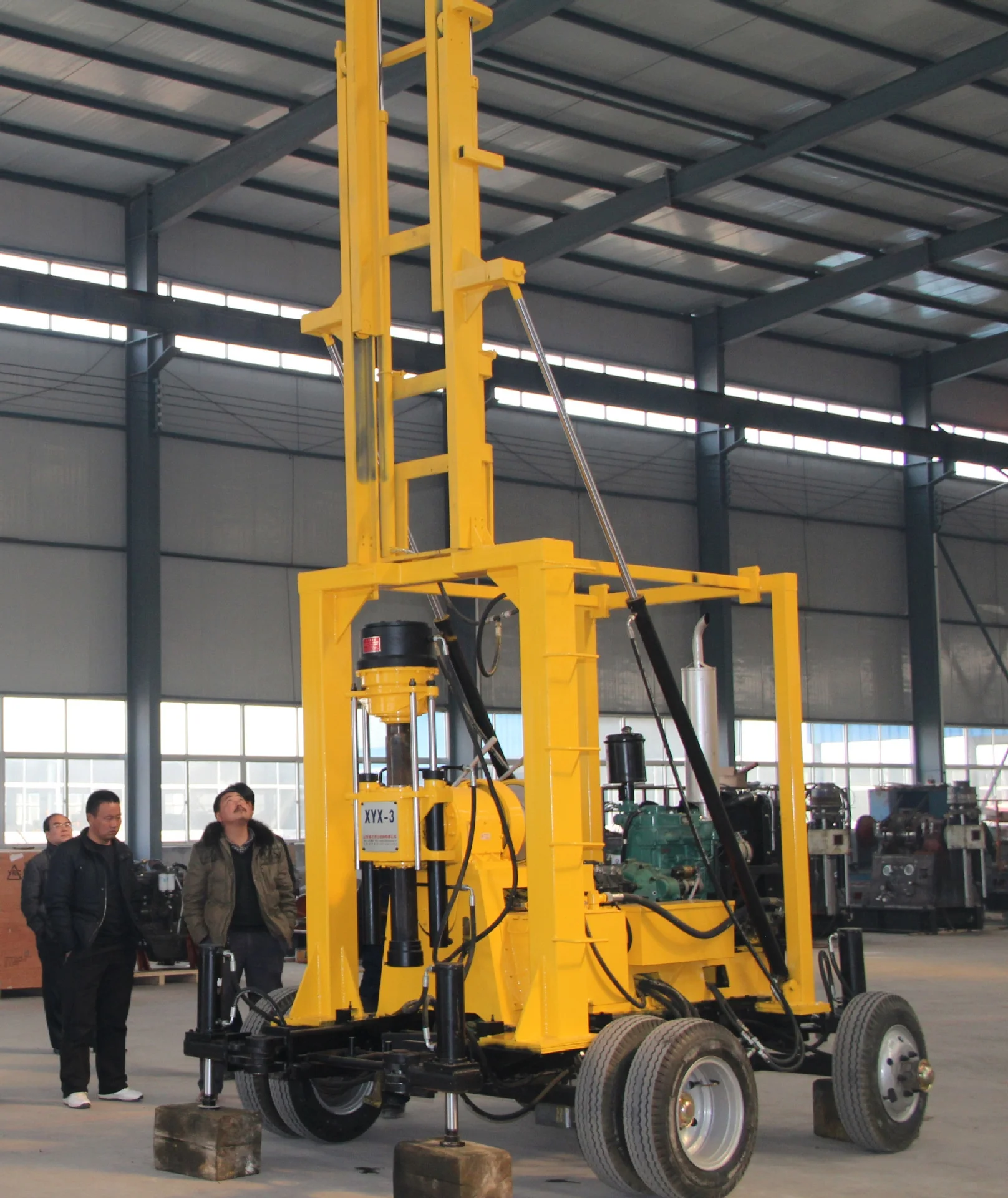

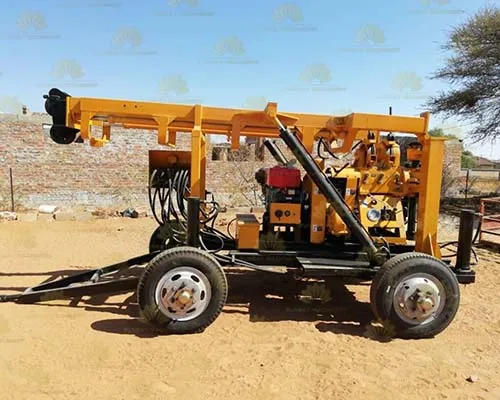

XYX-3 Trailer Hydraulic core drilling rig
Drill Depth:600m
Drill Depth:600m
Open hole dia. :325mm
End hole dia.:75mm
Drill rod dia.:42-60mm
Drill angle: 90-75°
Maching power:13.2kw
Weight without power:970kg
Dimension:2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 3.6ton
Height:6.5m
Dimension:2.9*2.56*3.3m
End hole dia.:75mm
Drill rod dia.:42-60mm
Drill angle: 90-75°
Maching power:13.2kw
Weight without power:970kg
Dimension:2.4*0.9*1.5m
Spindel speed: 64/128/287/557 r/min
Spindel stroke: 450mm
Rated load: 3.6ton
Height:6.5m
Dimension:2.9*2.56*3.3m
Related Products
Why Choose Us
1. We are driiling rig in SiChuan for more than ten years, with a series of PASSED certificate, like CE,TUV,BV,ISO.
2. for Soils, we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.
2. for Soils, we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.

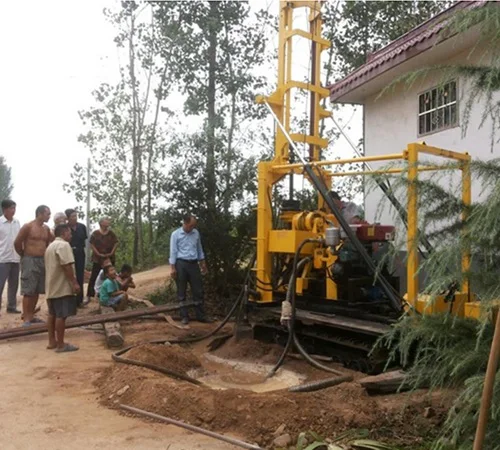

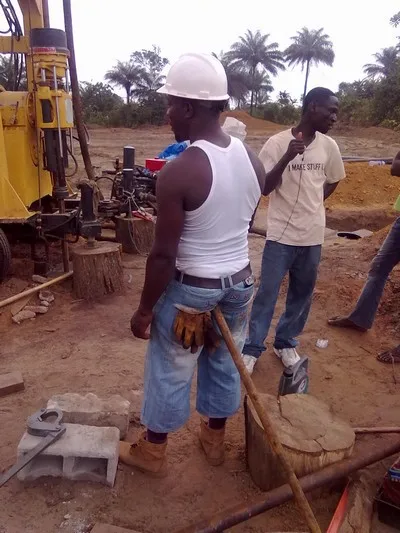

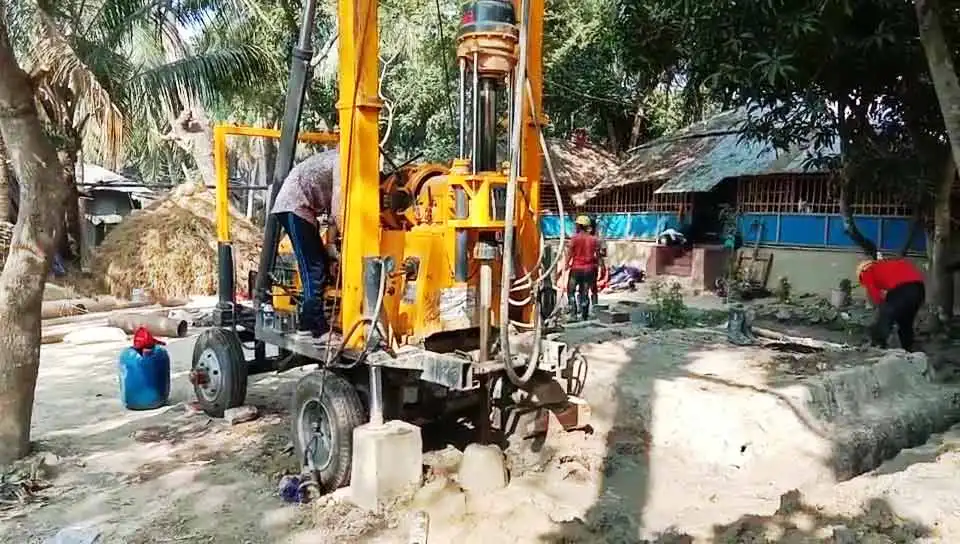

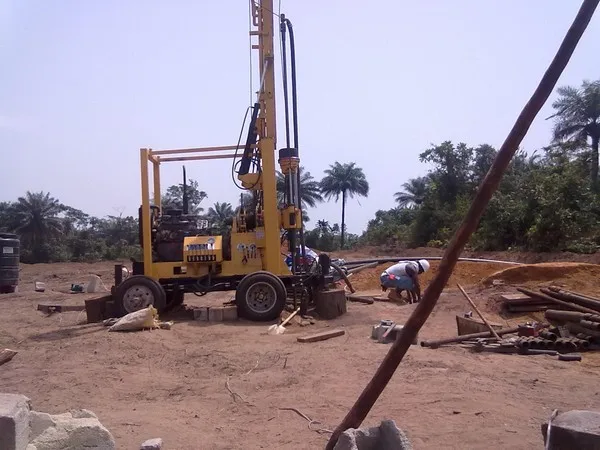

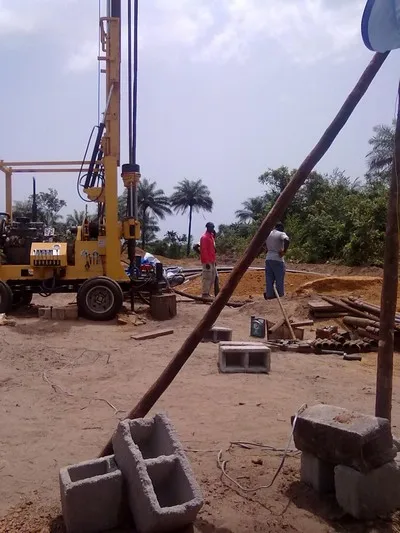

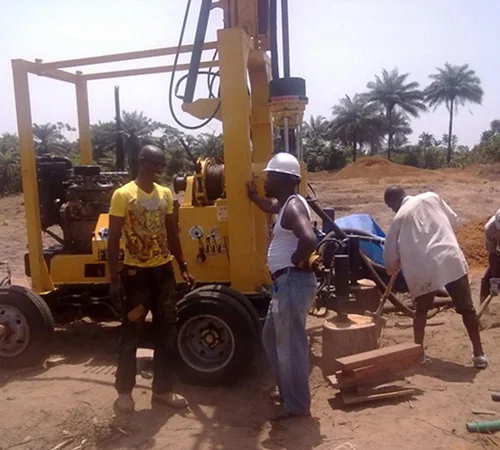

Customer Photos
