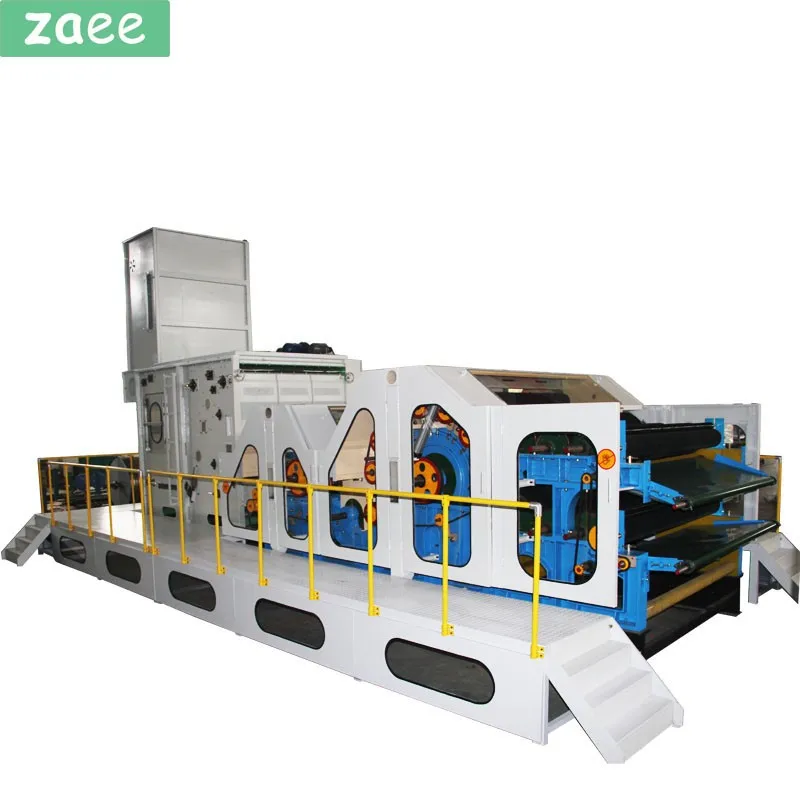

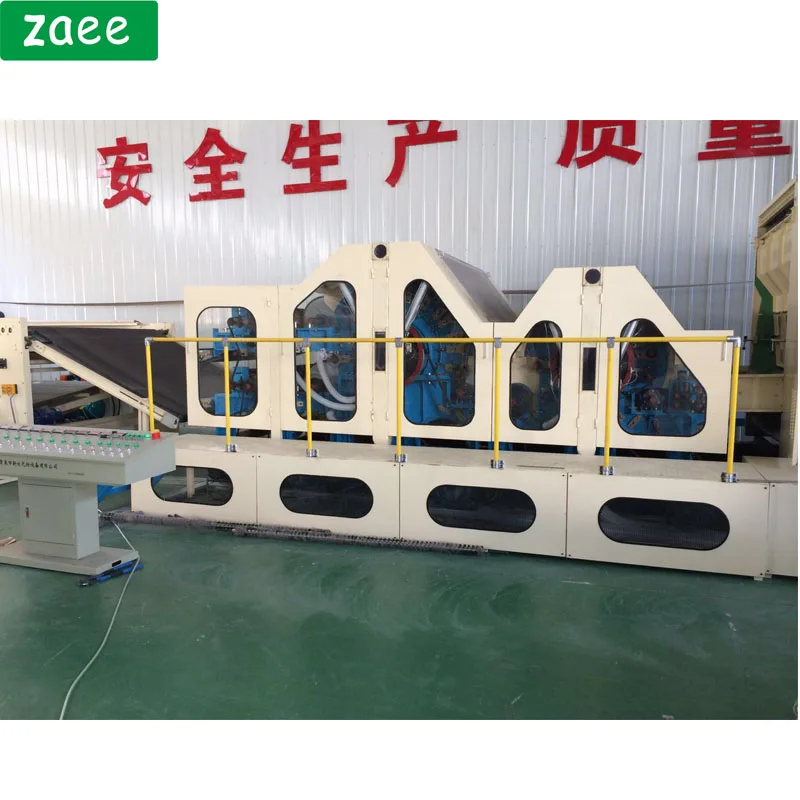

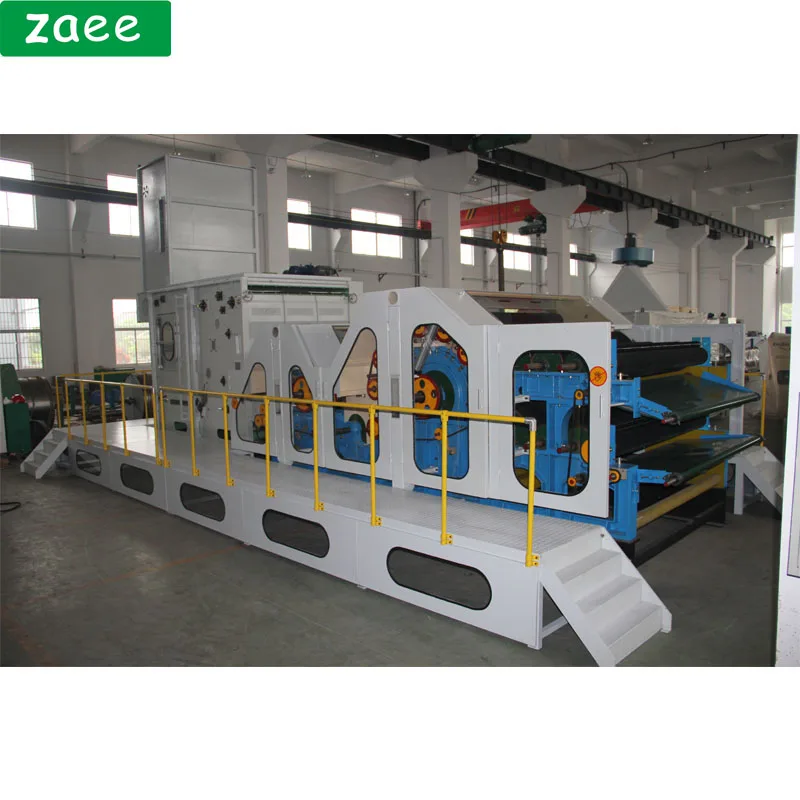

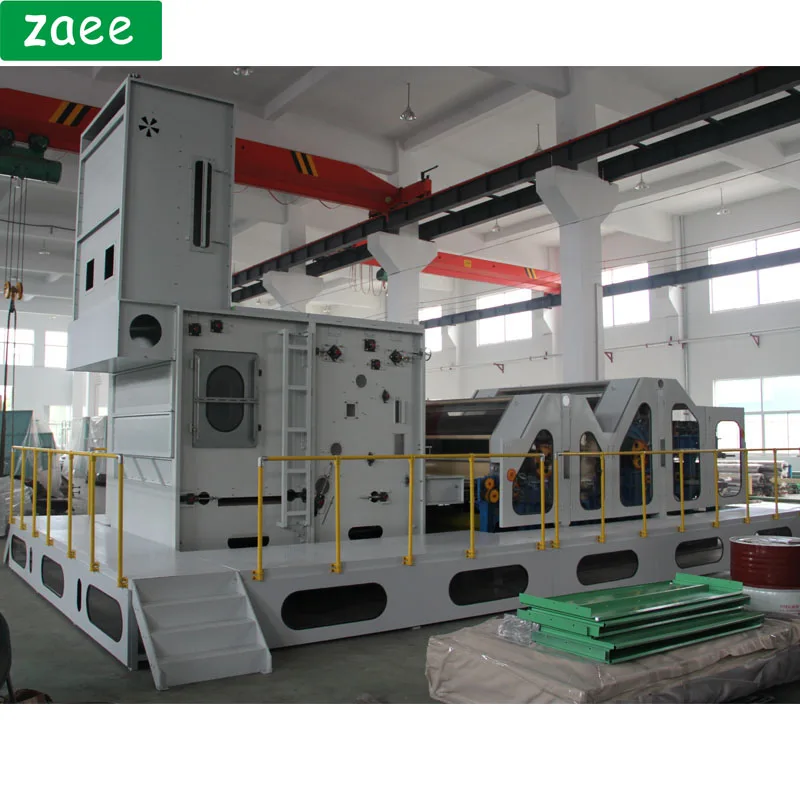

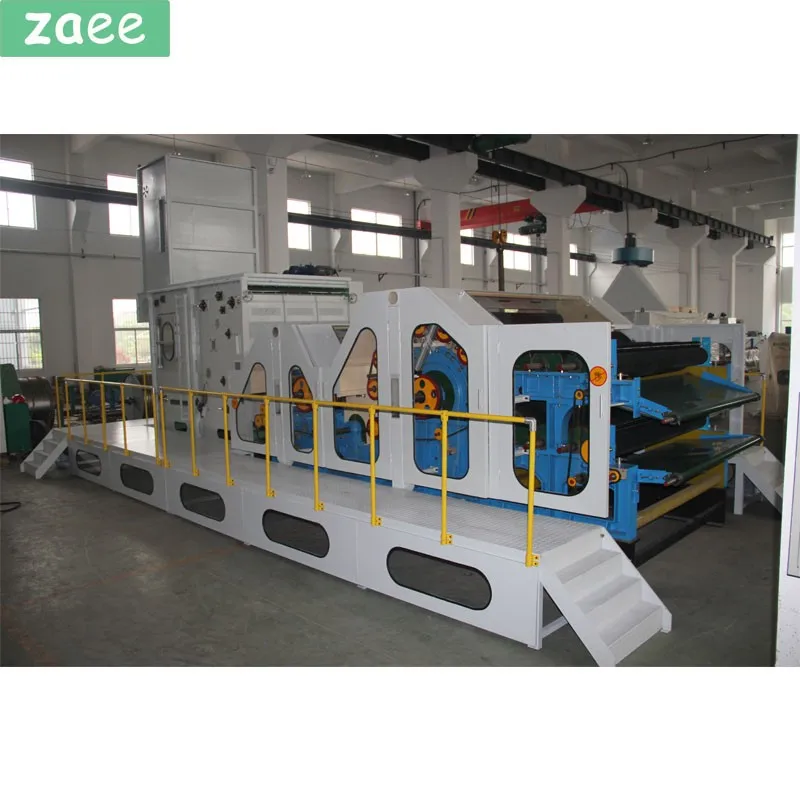

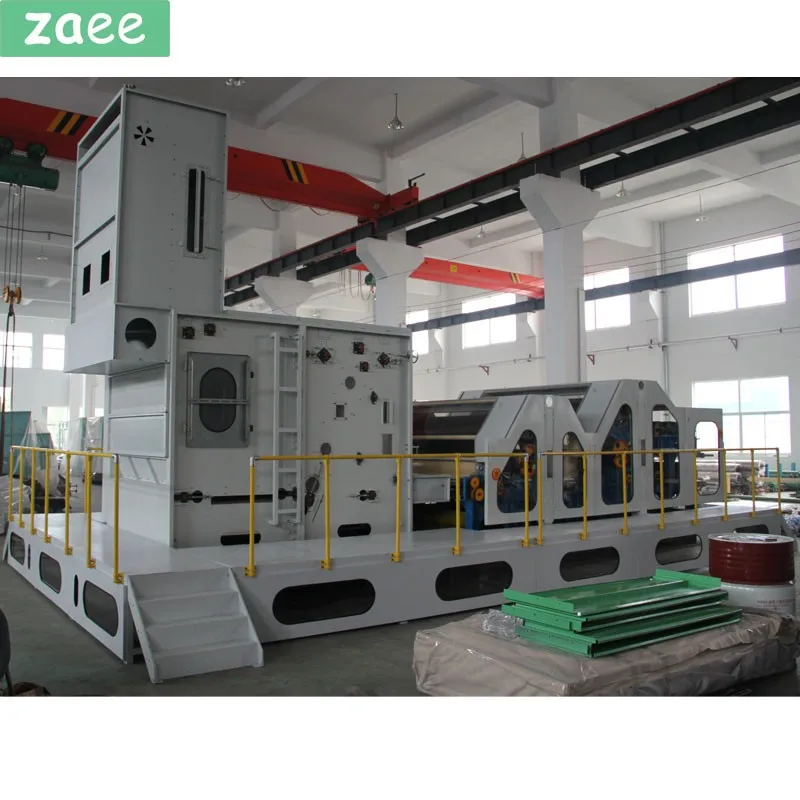

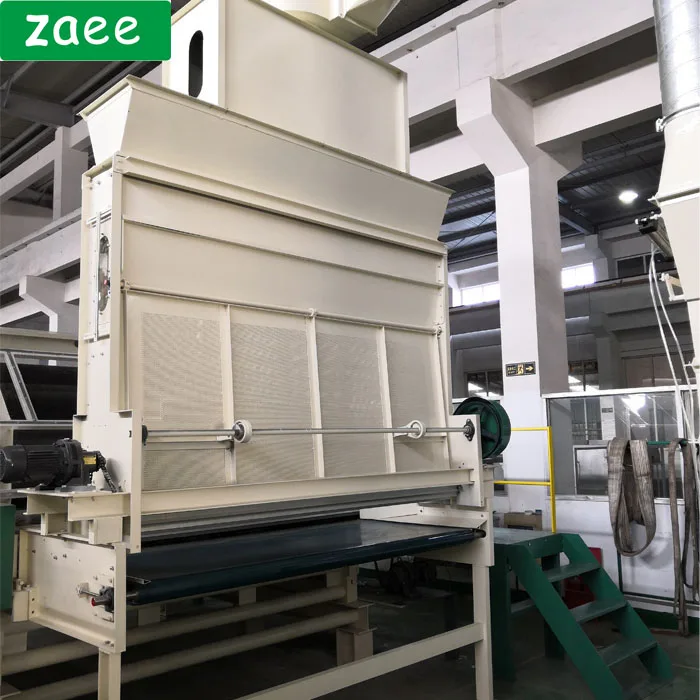

Nonwoven Double Cylinder Double Doffer Carding Machine

1. Suitable for combing of 1.5D~20Dx38~76mm artificial fibers. the fiber fully combed and the mesh more even. Feeding roller is driven by frequency conversion and it is equipped with anti-metal protection device.
2. Double cylinder double doffer double CDRS system is generally used in producing non-woven fabrics with critical web requirements, e.g. leather base cloth, water filtering material, hygienic material, garment liner etc. It is suitable for thin non-woven fabrics and production techniques which has high request in vertical and horizontal strength, e.g. auto interior material, special garment liner, hygienic material, etc.

CHARACTERISTICS:
1. Machine width: 1850mm, 2000mm, 2300mm, 2500mm, 3000mm
2. Primary cylinder: φ850mm
3. Main cylinder: φ1230mm, φ1500mm
4. Middle doff: φ635mm
5. Output doff: φ492mm
6. Cotton stripping: roller
7. Output speed: 20~55m/min
8. Power:25KW~40KW
