Ci ri942 WIFI UHF RFID Reader Parking TCP/IP Long Range RFID Reader Writer
- Category: >>>
- Supplier: Cirfid Technology Co. Ltd.
Share on (1600425852597):
Product Overview
Description
Product Description

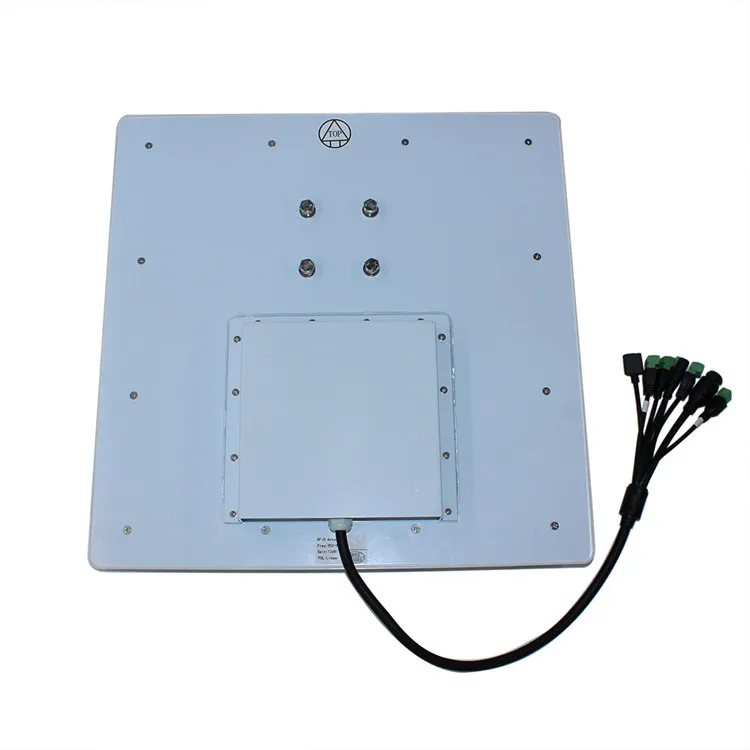

RI942 Integrated 12dBI Gain UHF Reader.
* UHF frequency band, support 866-868Mhz CE, 902-928Mhz FCC, other frequency band
customizable
customizable
* All-in-one design, with 12dBi Linear antenna
* Self-developed R2000 chip module, reading range 20m adjustable
* Support RS232, RS485, Ethernet, Wiegand26/34, GPIO(2output, 1input)standard ports.
* Additional module in: WIFI/4G Wireless optional, PoE optional
* Lightning and surge protection design, suitable for tough environment
* Available Development SDK in C++, C#, Java, Android Supported
RI942 Integrated RFID Reader Technical Parameter | ||
Operating Frequency | 866-868Mhz EU 902-928Mhz FCC 920-925Mhz China Other frequency band customizable | |
Working Protocol | EPC C1 GEN2(ISO18000-6C) | |
Antenna gain | 12dBi linear polarization | |
Communication interface | RJ45(Ethernet), RS232, RS485, Wiegand26/34 | |
GPIO | 2 channel relay output, 1channel photoelectric isolation input | |
Reading distance | 0~20m(depends on antenna and tag as well) | |
Reading speed | 300pcs/s at standard | |
Working Voltage | DC 12V/3A | |
Dimensions | 445*445*48mm | |
Weight | 2.66kg | |
Operating Temperature | -20°C~+70°C | |
Storage Temperature | -40℃~+85℃ | |
Waterproof | IP65 | |
Usage Scene | * None Stop Vehicle Access Control with WIFI, 4G module * Production Line Management * Assets Tracking * Warehouse Management * Access Control Systemzd | |
Free SDK Software Kit
UHF Reader Software Kit
Available Free UHF SDK Provided, await your Feedback and Information soon.
Two Optional Connecting Method:
1, TCP/IP connecting;
2, RS232 Connecting.
Introduction Manual and Operation Video Provided.
RFID Reader Operation Video Provided:
1, WIFI Cofiguration 940 Series
2, 4G Cofiguration 940 Series
Available Free UHF SDK Provided, await your Feedback and Information soon.

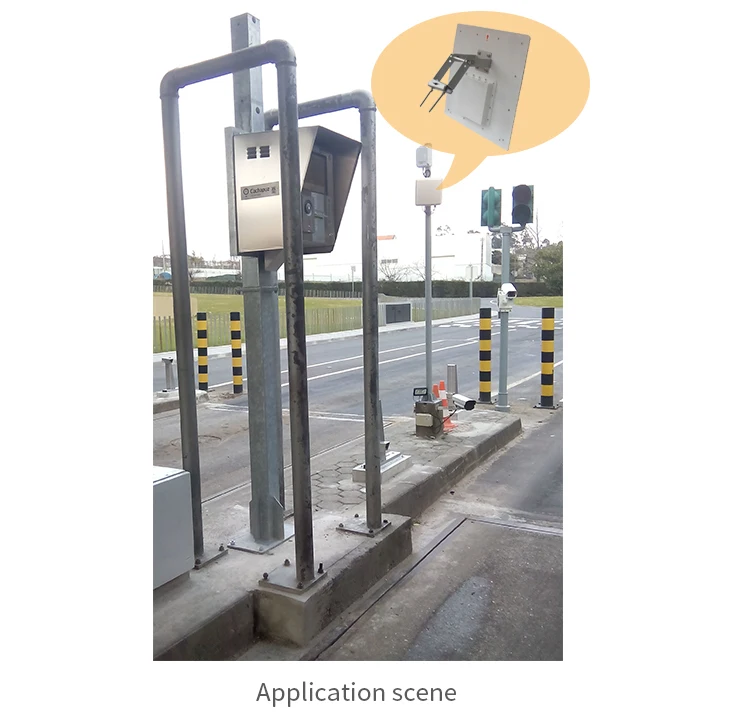

RFID Reader Application Scene
RFID Vehicle readers provide systems with the ability to identify vehicles from a distance, making for quicker scans and less downtime. Along with an RFID selected batch, vehicles can be checked out on-demand, and by using RFID vehicle tracking tags, those same vehicles can be quickly checked back in again.

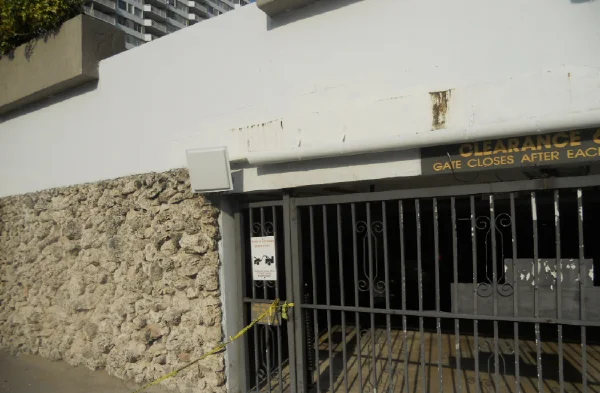

RFID Parking Actual Picture

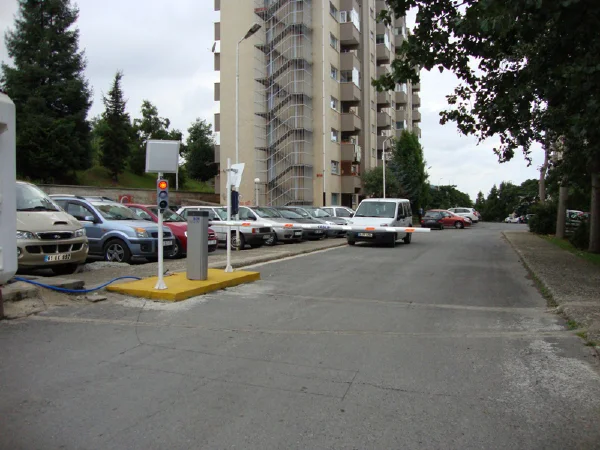

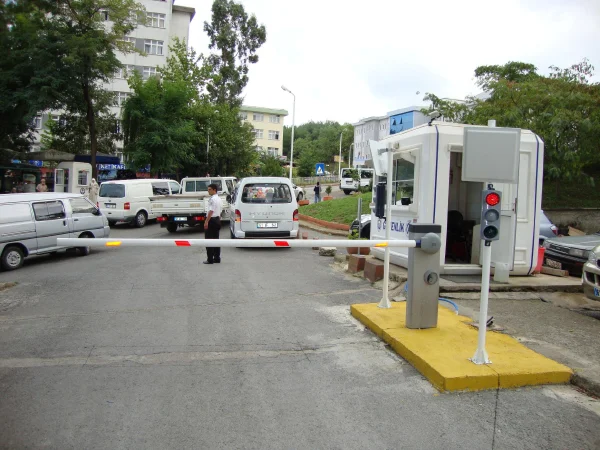

Vehicle Parking Entrance Management
Garbage Management
Company Profile
Factory
Certificate

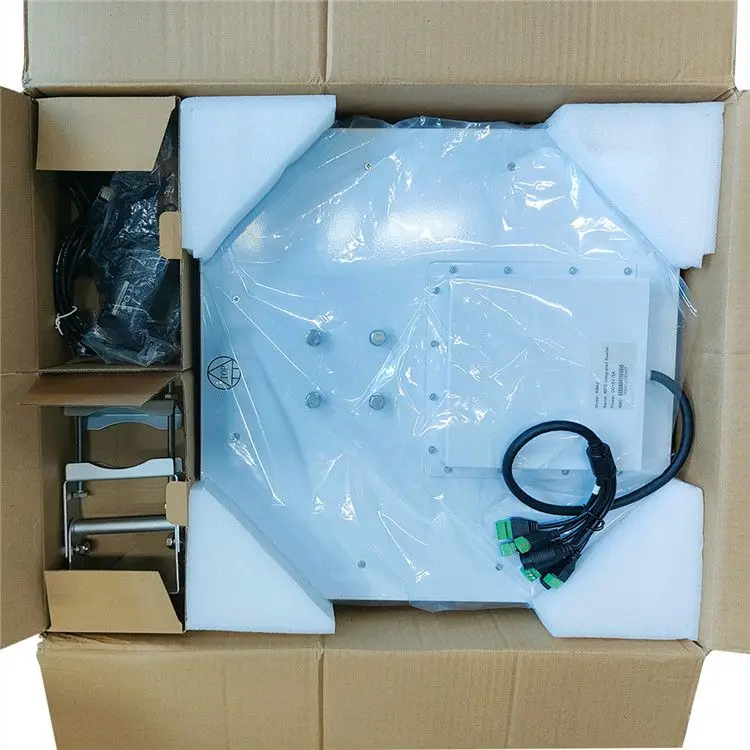

Package & Shipment
FAQ
Who we are and what we can provide?
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. Foxcoon&HUAWEI industry 4.0 verified supplier
2. 15+ years experienced R&D team on RFID&IoT
3. FCC&CE&ISO certified
4. Products range cover HF&UHF&2.4Ghz RFID readers &modules&tags &antennas
How to assure the durability of our products?
1. All components base on original high performance chip
2. 72 hours full aging time, 100% testing
3. Personalized appearance design, IP55- IP67 protection grade
4. QC-QA-Factory test-Engineer test, 4 quality control process
What support we can give?
1. Free Pre-project consultance
2. Within 24hours quick response from sales engineers
3. Software provided in C++,C#, Java, android calling sample,source code available
4. Professional R&D team for OEM&ODM, average 20days lead time for customization
5. 1 year warranty, any repair/replace are free within guarantee
6. Centralized Procurement
