Free SDK Android UHF RFID Gun Grip Scanning 3meter Handheld RFID Reader
- Category: >>>
- Supplier: Cirfid Technology Co. Ltd.
Share on (1600425859645):
Product Overview
Description
Product Description
Sled RFID reader uses a phone attached to an RFID antenna and some kind of grip. The smart phone and the app act as a brain of the device, collect the RFID data and pass them to the system, while utilizing the existing phone resources such as the data connector and wireless communication

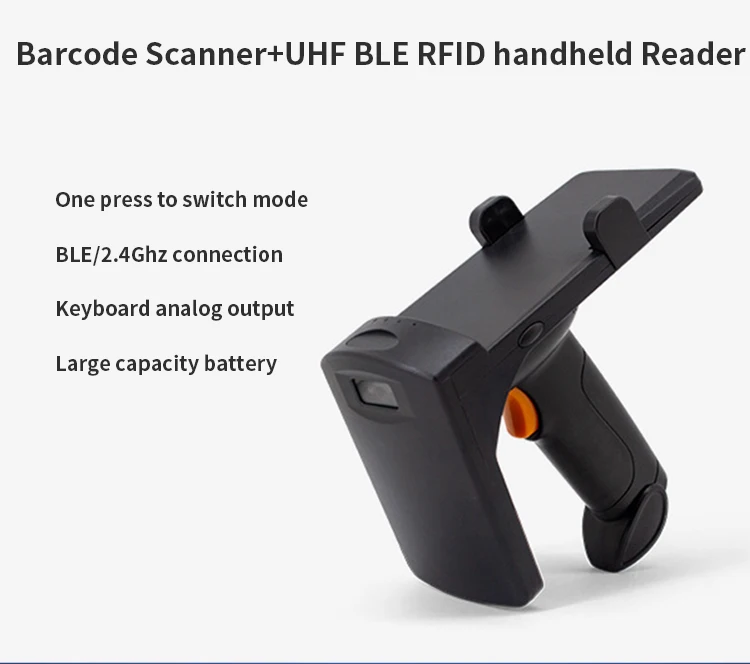

RX6100 UHF Android Handheld Reader.
To be the Best Goods Checking Assistant
* Pistol gun portable design
* Support Ble, USB, 2.4Ghz communication ports
* UHF RFID Range up to 3meters
* Support 1D/2D barcode
* SDK support android, windows, Linux Opration system
* SDK support android, windows, Linux Opration system
* Rechargeable li-ion polymer, 3500mAh
RX12 Rfid Sled Reader Handheld Product Technical Parameter | ||
1. UHF Data Collection | ||
Frequency | 865-868MHz or 902-928MHz, customizable available | |
Protocol | EPC Class1 GEN2 /ISO18000-6C | |
Operation system | Android/Windows/Linux/IOS | |
UHF Reading distance | 2-3m (tag types matters) | |
Reading speed | 106K/bit | |
Communication port | USB | |
2. Wireless Communication Parameter | ||
1). 2.4Ghz | BT 4.0 | |
2). Blue tooth 4.0 | ||
3. Barcode Parameter (Optional) | 1D/2D barcode | |
4. Indicator | Buzzer, reading green LED, connection blue LED, orange working LED, red power LED | |
5. Mechanical&Electrical Parameter | ||
Weight | 400g (including battery&pistol) | |
Dimension | 171*191*88mm | |
Battery | Rechargeable li-ion polymer, 3500mAh | |
IP rating | IP54, IEC compliance | |
Temperature | Working: -20°C ~ 50°C; Storage: -40°C ~ 70°C | |
Accessary | ||
Standard Accessary | Lithium battery, Power adaptor, USB cable | |
RFID Reader Application Scene
