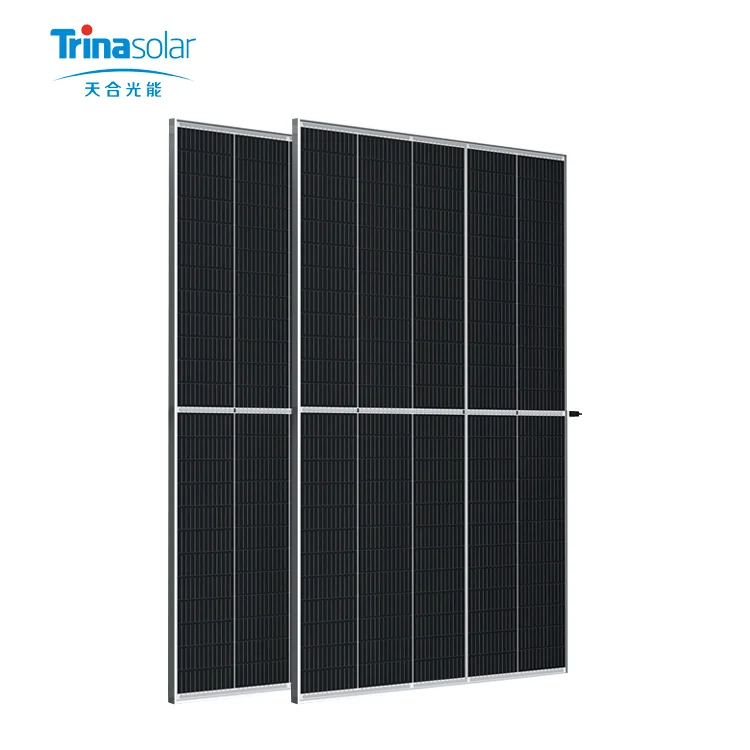

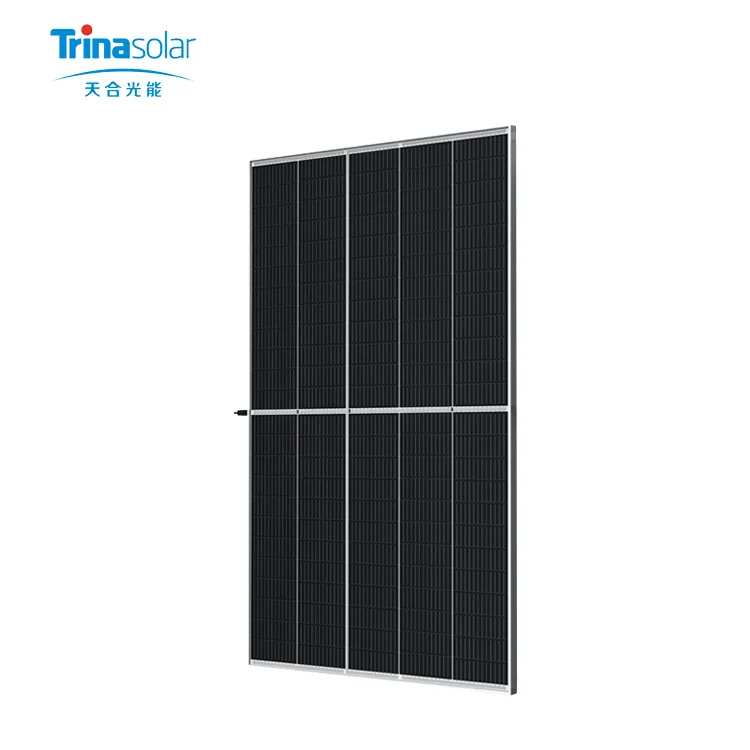

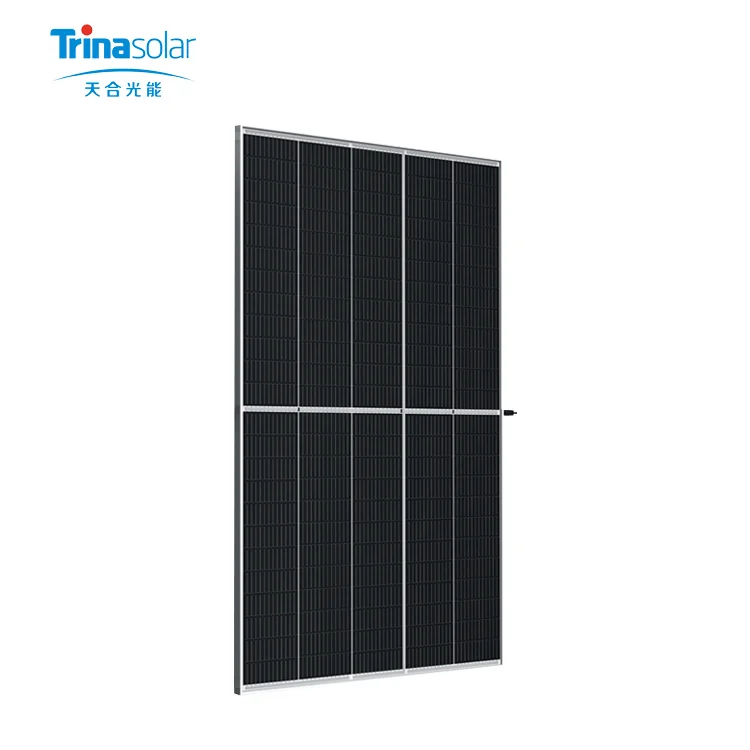

Trina Tier 1 brand 480watt 490watt 500watt solar panel vertex mono solar panels cell
- Category: >>>
- Supplier: Sunway Solar Co. Ltd.
Share on (1600425873265):
Product Overview
Description
Product Description
Specifications
ELECTRICAL DATA (STC) | ||||||||||
Peak Power Watts-PMAX (Wp) | 480 | 485 | 490 | 495 | 500 | |||||
Maximum Power Voltage-VMPP (V) | 42.2 | 42.5 | 42.8 | 43.1 | 43.4 | |||||
Maximum Power Current-IMPP (A) | 11.38 | 11.42 | 11.45 | 11.49 | 11.53 | |||||
Open Circuit Voltage-VOC (V) | 50.7 | 50.9 | 51.1 | 51.3 | 51.5 | |||||
Short Circuit Current-ISC (A) | 11.97 | 12.01 | 12.05 | 12.09 | 12.13 | |||||
Module Efficiency η m (%) | 19.9 | 20.1 | 20.3 | 20.5 | 20.7 | |||||
Power Tolerance-PMAX (W) | 0 ~ +5 | |||||||||
Front Glass | 2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass | |||||||||
Frame | 35mm(1.38 inches) Anodized Aluminium Alloy | |||||||||

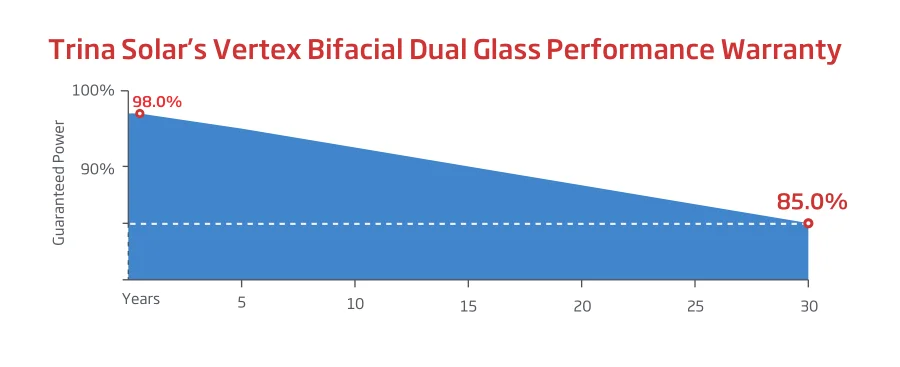

WARRANTY | 12 year Product Workmanship Warranty,30 year Power Warranty | |||||||||
PACKAGING CONFIGURATION | Modules per box: 31 pieces,Modules per 40’ container: 620 pieces | |||||||||
Electrical Characteristics With Different Power Bin (reference to 10% Irradiance ratio) | ||||||||||
Total Equivalent power -PMAX (Wp) | 514 | 519 | 524 | 530 | 535 | |||||
Maximum Power Voltage-VMPP (V) | 42.2 | 42.5 | 42.8 | 43.1 | 43.4 | |||||
Maximum Power Current-IMPP (A) | 12.18 | 12.22 | 12.24 | 12.29 | 12.34 | |||||
Open Circuit Voltage-VOC (V) | 50.7 | 50.9 | 51.1 | 51.3 | 51.5 | |||||
Short Circuit Current-ISC (A) | 12.81 | 12.85 | 12.89 | 12.94 | 12.98 | |||||
Irradiance ratio (rear/front) | 10% | |||||||||

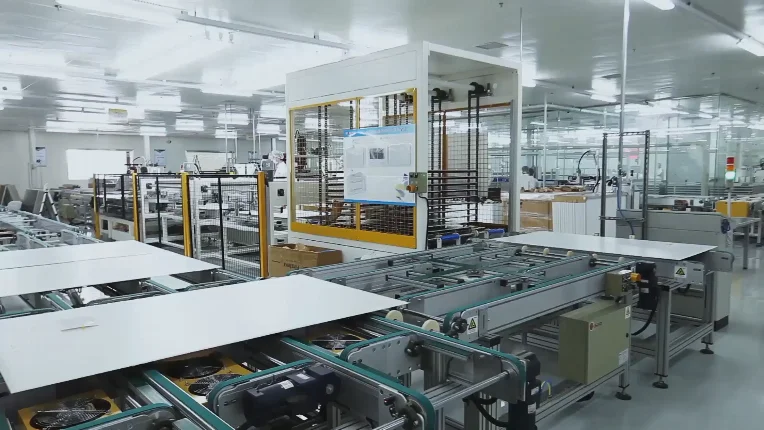

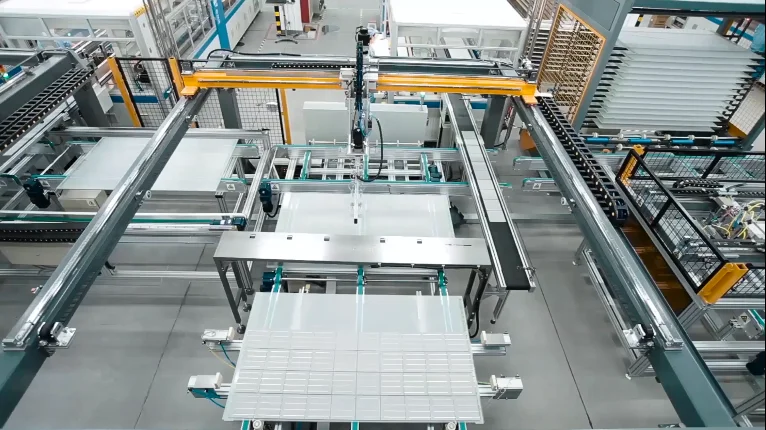

Factory Display

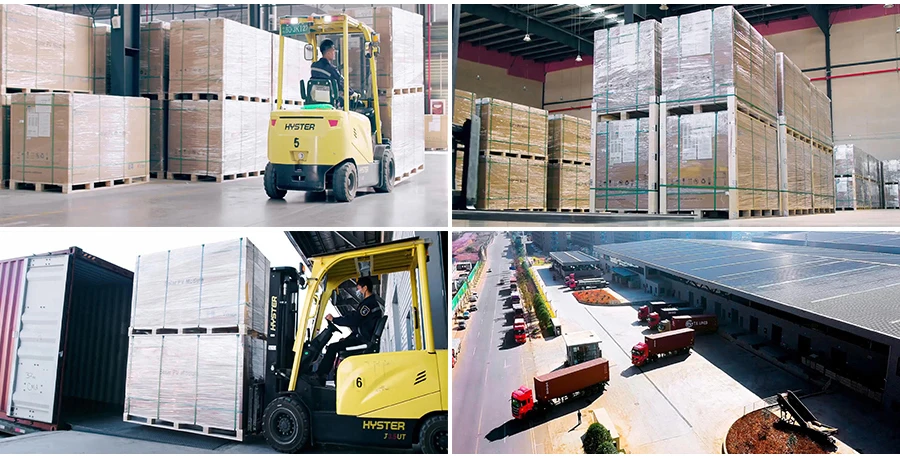

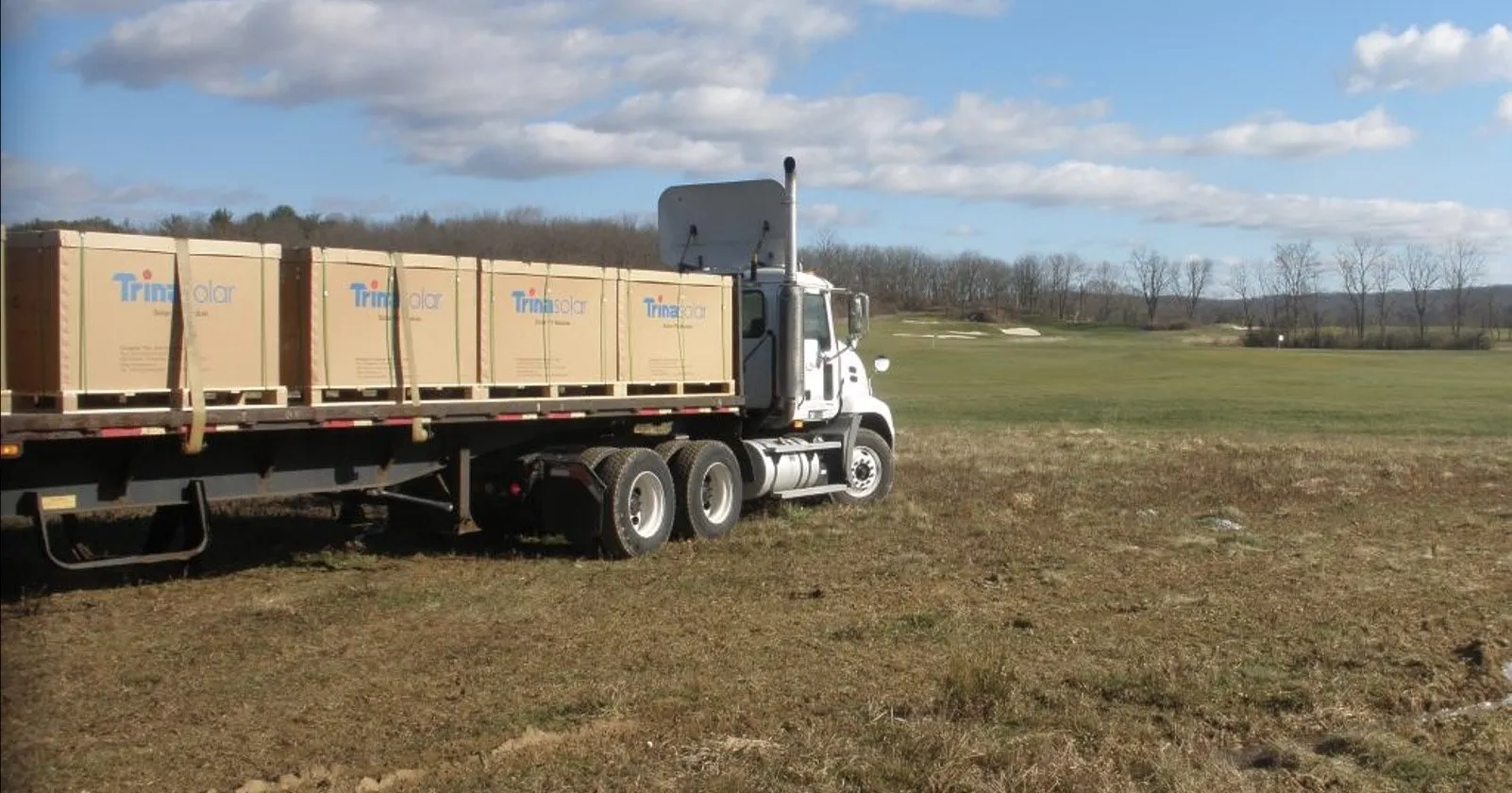

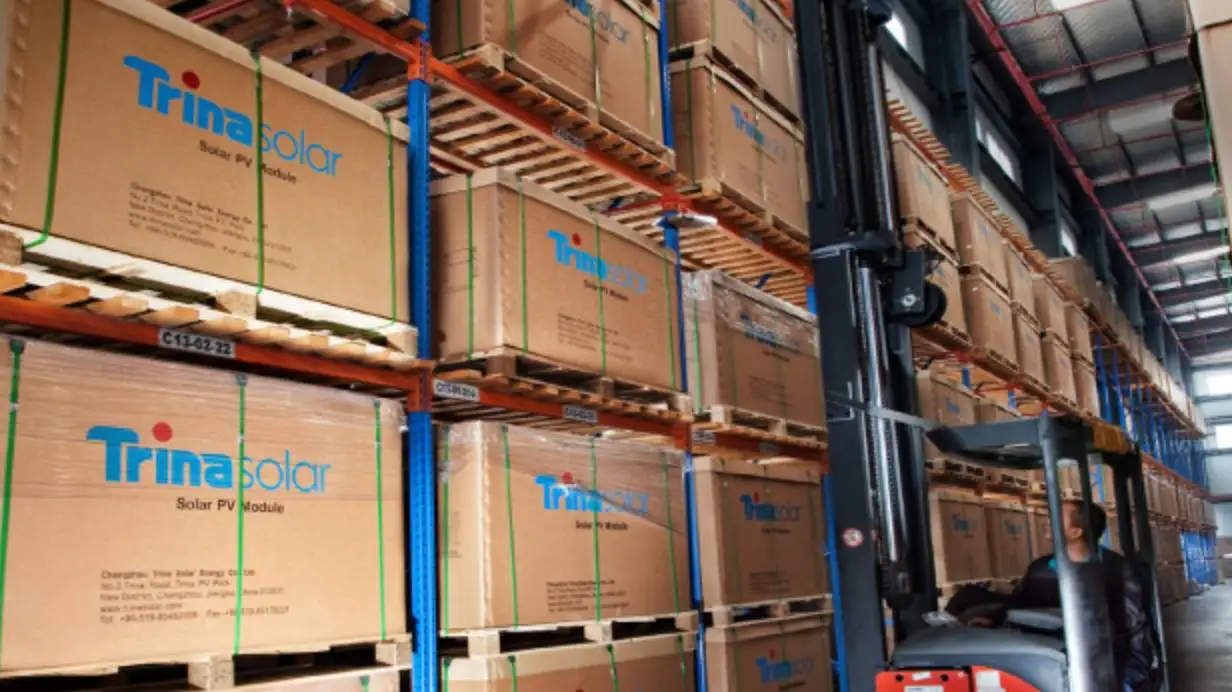

Product Packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

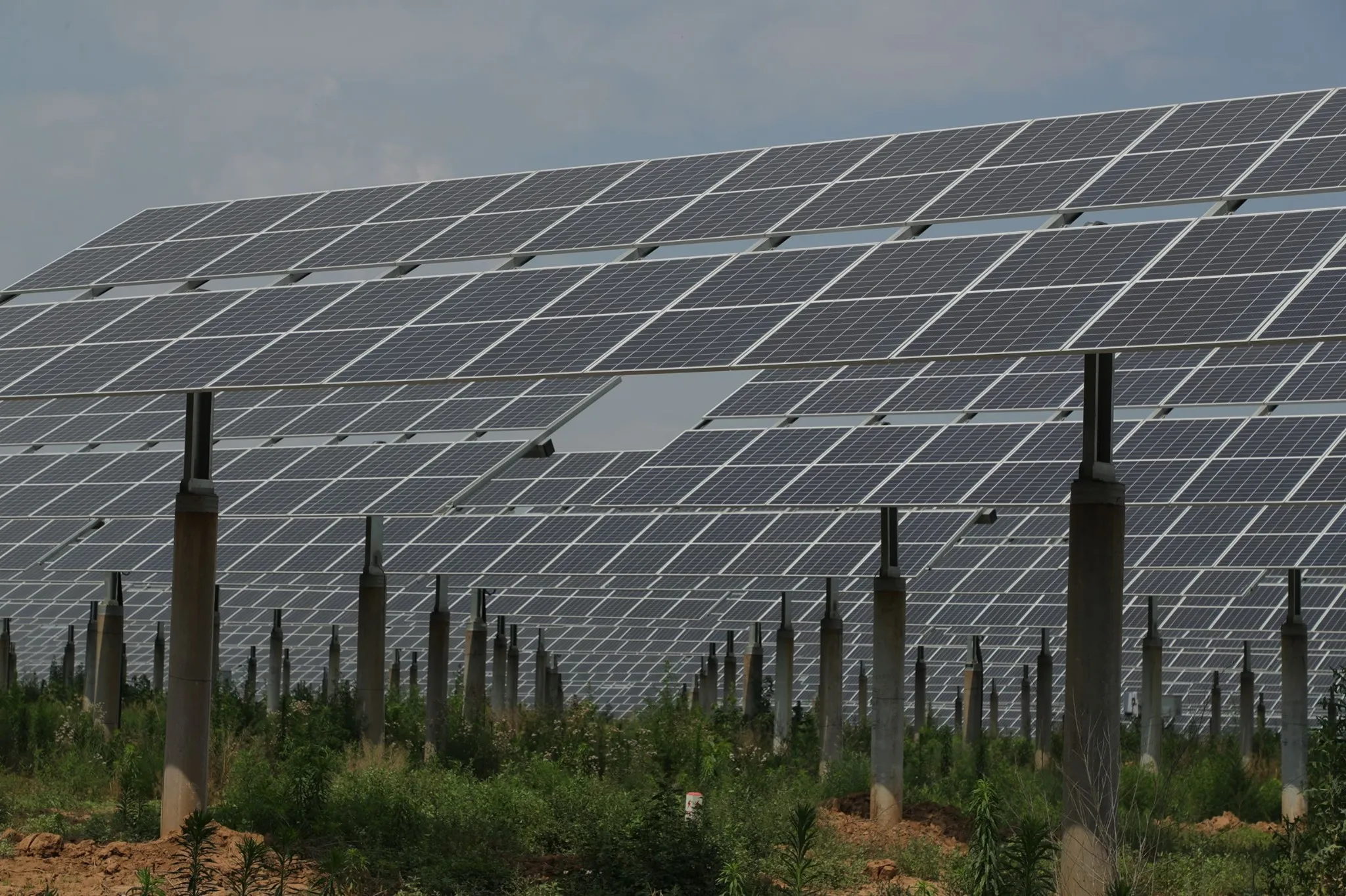

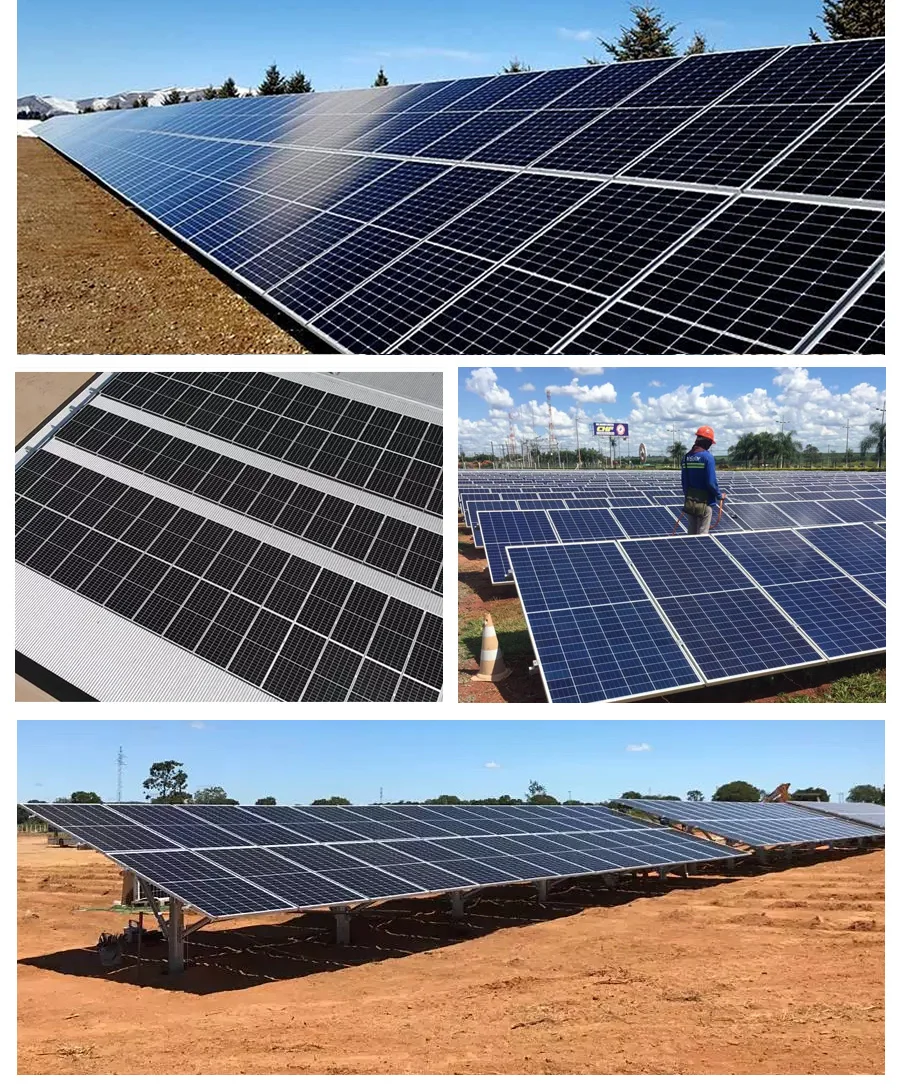

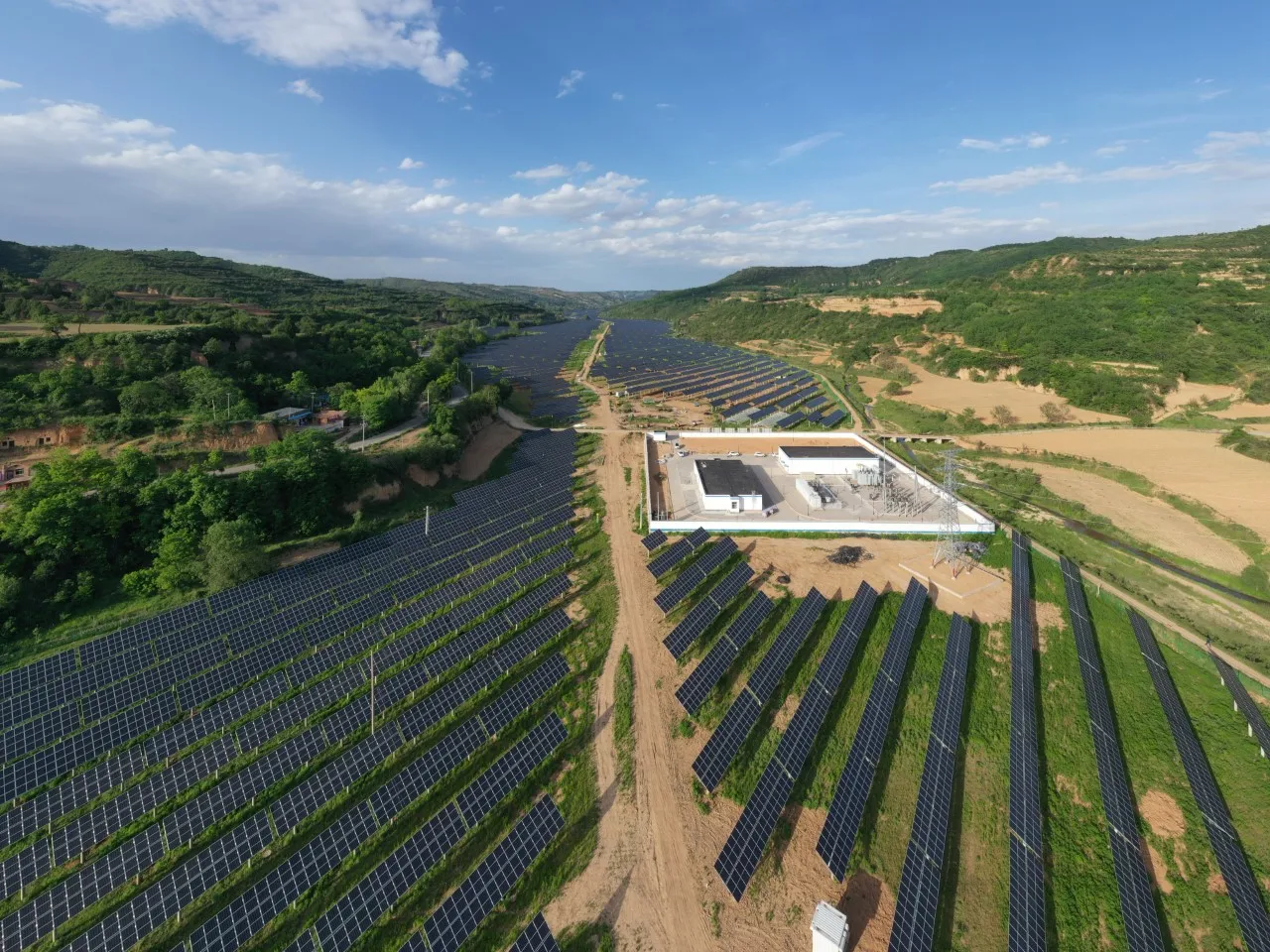

Project Case
Certifications
