30nm3/h 60nm3/h oxygen generator super large industrial plant psa oxygen generator ozone supporting machine

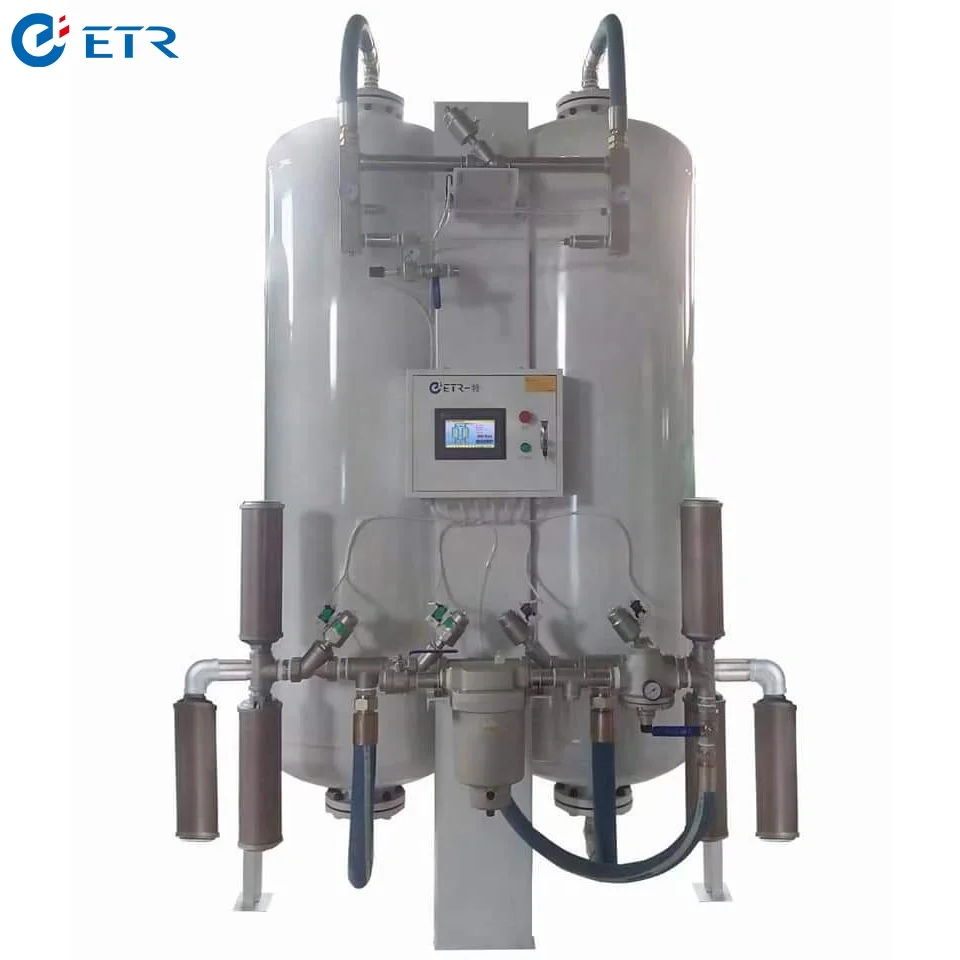

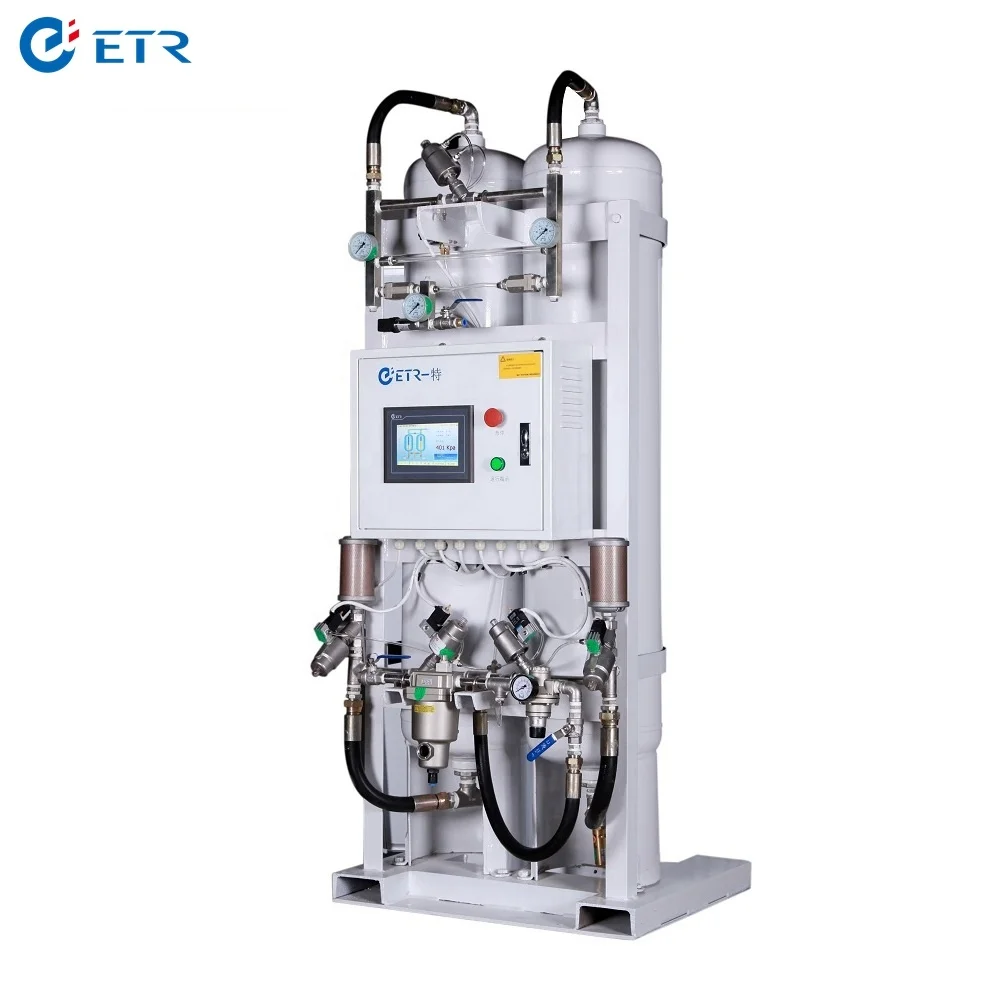

Descreption of large oxygen generator

ETR PSA Medical Oxygen Plant can fill medical level oxygen into cylinders, as a complete system, large oxygen generator is widely used for the oxygen gas station and hospitals.

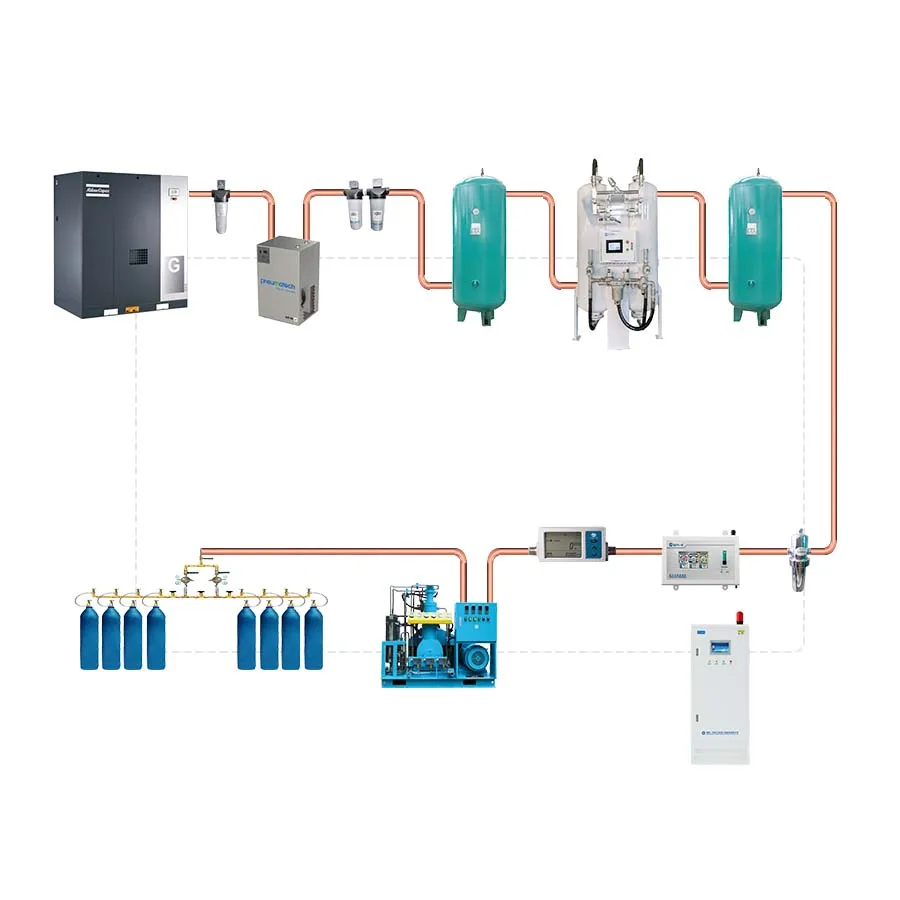

Compressed air is purified through the air dryer and filters to a certain level for main generator to work with. Air buffer is incorporated for smooth supply of compressed air thus to reduce fluctuation of compressed air source. The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93%-95% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen in buffer tank is maintained at 4 bar pressure, and with a oxygen booster, the delivery pressure can up to 150 bar.and then fill in cylinders with an oxygen cylinder filling station.

— Model For Choice —

— Working Principles —

The medical molecular sieve PSA Oxygen Generator For Cylinder Filling system applies the international advanced pressure swing adsorption (PSA) technology to form a rapid cycle of pressurization adsorption and depressurization desorption under the conditions of normal temperature and low pressure.

	More Economical
	100,000-hour service life(more than 10 years), Completely automatic, labor cost saved, 0.15 dollar cost per cube meter. Stable oxygen purity. 24 hour safe oxygen usage.
	Convenience
	The system can be controlled by computer automatically, LCD touch screen interface, it is easy to operate and run.  No need for complex  operation such as purchase,transportation,storage,canning etc. online oxygen monitor, remote monitoring system.
	Energy - Saving and Environmentally Friendly
	The raw material is air, which is easy to get.  Low noise ≤85dB, physical process, gas control system, no pollution.  No need to transport oxygen by cylinders because there are the connected pipes.
	Safety
	Time Proven PSA (pressure swing adsorption) technology to separate the oxygen from the air Directly.  No split charging during the shipment, which decreases the safety risks. Issuing alarm signal against abnormal parameters.

Unique intelligent control system-Online APP Online Oxygen Monitor Remote Monitioring System.

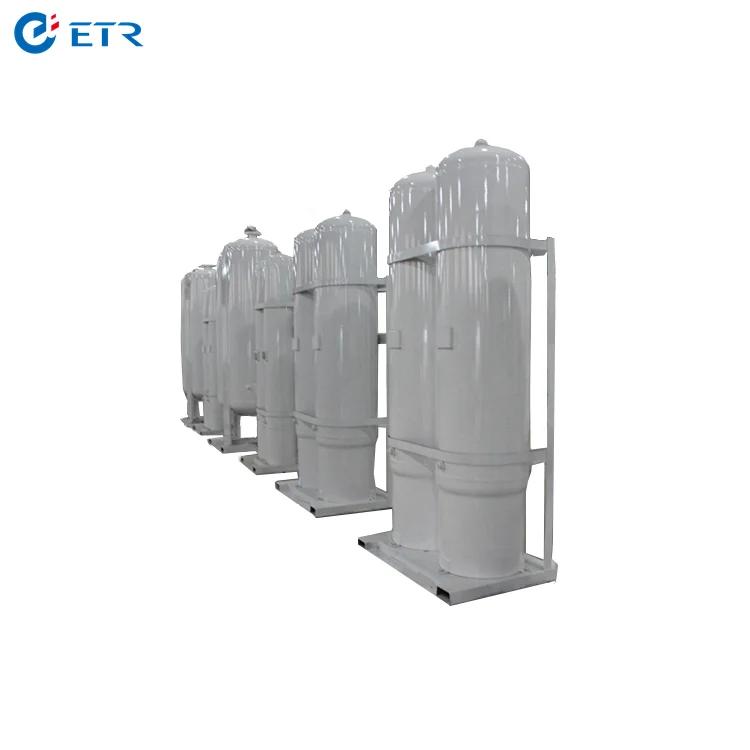

—Workshop —

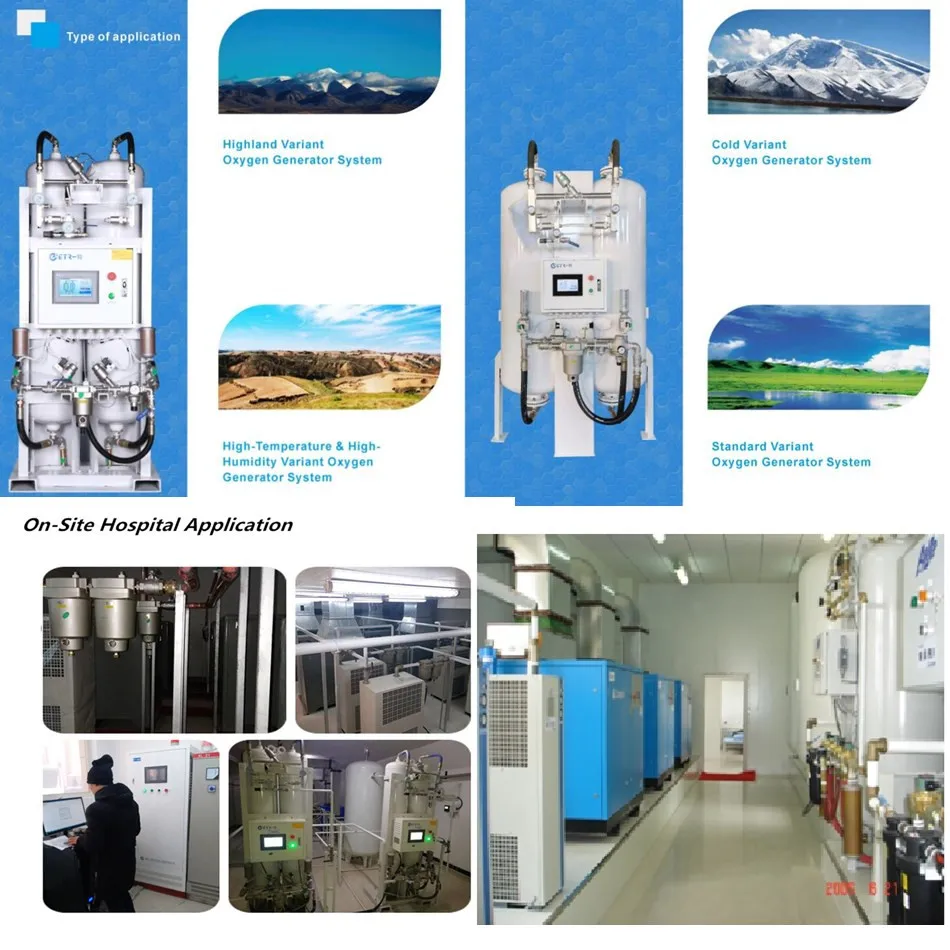

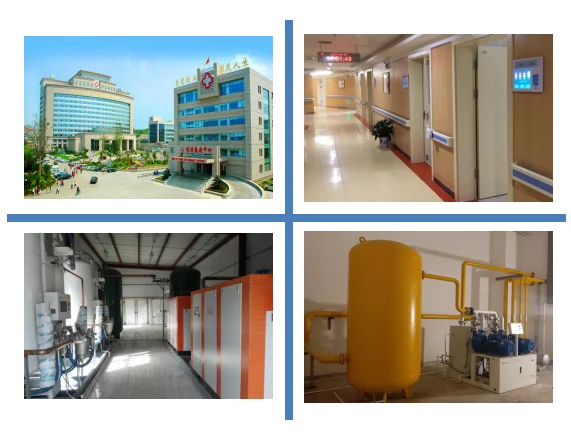

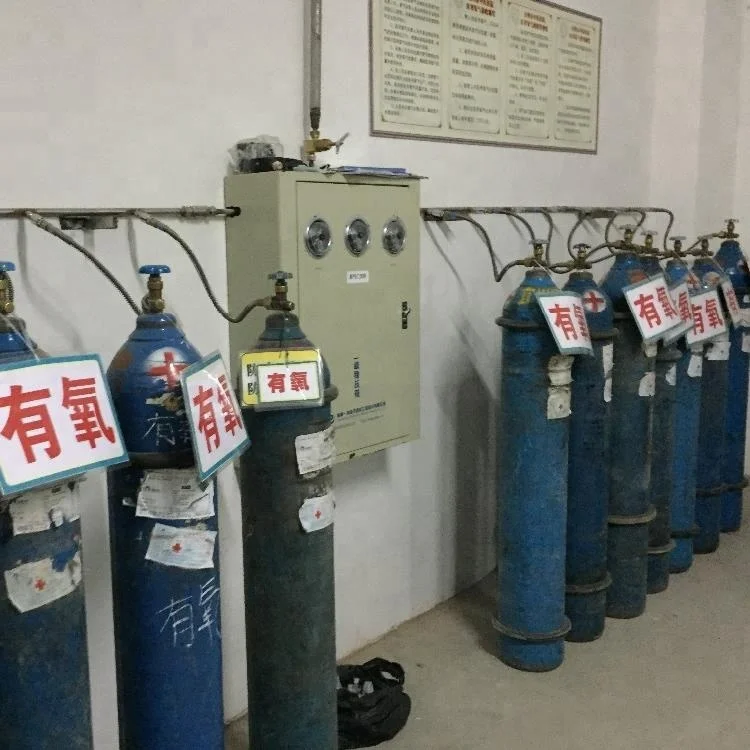

  — Market And Successful Cases —

In the international market, Eter’ssolution has been widely used in over 40 countries. With good quality, cheaper price and satisfied after-sales service, we believe our international market will become prosperous.

1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)

—Company —

CE,ISO13485,TUV

 — Packing —

ETR PSA Oxygen Plant will be packed by composite material case, suitable for long distance ocean and inland transportation and well protected against dampness, moisture, shock, rust and rough handling. ETR shall be liable for any damage to the PSA Oxygen Plant on account of improper packing and for any rust damage attributable to inadequate or improper protective measures taken by ETR and in such cases any loss and/or expenses incurred in consequence thereof shall be borne by ETR.

  1. Are you manufacturer or trade company?
    We are the manufacturer of large oxygen generator, founded in 2003.

 2. What's the order large oxygen generator process?
   a. Inquiry---provide us all clear requirements.
   b. Quotation---official quotation form with all clear specifications.
   c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
   d. Contract confirmation---provide correct contract details.
   e. Payment terms--- Negotiable.
   f. Production---mass production
   g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
   h. Installation and commissioning

3.What terms of payment you use?
   T/T, L/C etc.

4. How to get a prompt quotation of  large oxygen generator?
  When you send the inquiry to us, pls kindly send it with below technical information.
  1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours)
  2) O2 purity: _____%
  3) O2 discharge pressure: _____Bar
  4) Voltages and Frequency : ______V/PH/HZ
  5) Application

  6) Project Location:
