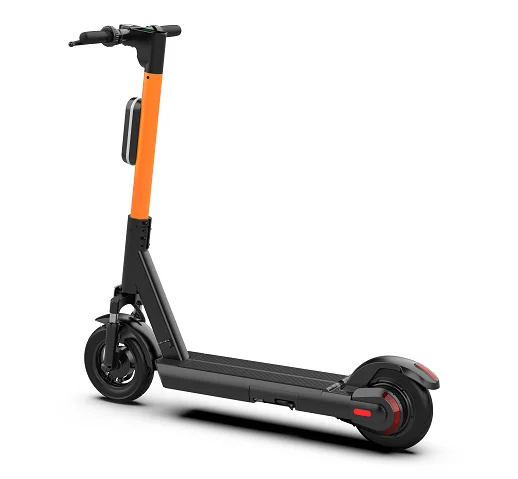

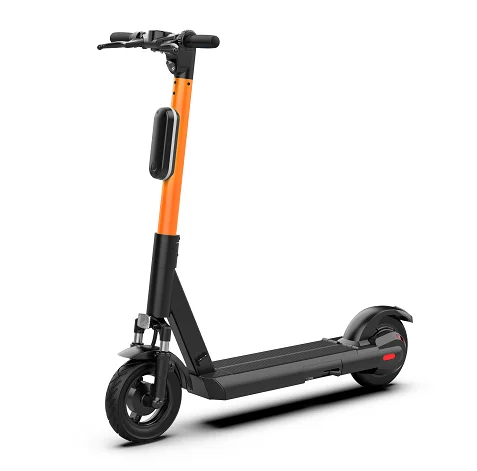

Factory Stock Electric Scooter GS1 3000 for sharing rental 10 inch with 4G IoT GPS APP function
- Category: >>>
- Supplier: Chongqing Yingmaofu Technology Co. Ltd
Share on (1600425881495):
Product Overview
Description
Product Paramenters
SPECS SHEET | ||||
General | Model | GS1 | ||
Dimension | 1160*485*1140mm | |||
N.W. | 24KG | |||
Parameters | Max. Payload | 120 KG | ||
Mileage | 50KM | |||
Max. Speed | 25KM/H | |||
Max. Slope | 9° | |||
Max. Steering Angle | 65°(Each side) | |||
Charging Duration | 6-7H | |||
Motor | Nominal Power | 500W | ||
Battery | Battery | 14500mAh | ||
Nominal Voltage | 36V DC | |||
Max. Charing Voltage | 42V DC | |||
Nominal Capacity | 572WH | |||
Charing Temperature | 32~104ºF (0~40ºC) | |||
Battery Management System | Over heating,over current, over charge, over dis-charge and short circuit protection | |||
Charger | Output Power | 14500mAh | ||
Nominal Voltage | 36V DC | |||
Max. Charing Voltage | 42V DC | |||
42V DC | 572WH | |||
Charing Temperature | 32~104ºF (0~40ºC) | |||
Battery Management System | Over heating,over current, over charge, over dis-charge and short circuit protection | |||
Charger | Output Power | 126W | ||
Input Voltage | 100-240V～ 50/60Hz | |||
Output Voltage | 42V DC | |||
Output Current | 3.0A | |||
Parts | Turn Signals | LED turn signals | ||
Suspension | Dual front suspension | |||
Dashboard | LED dashbord | |||
Braking | Rear wheel drum brake & E-ABS | |||
Tires | 10-inch non-inflatable tires | |||
Front Light | 1W built-in LED front light | |||
Bell | Integrated rotary bell | |||
Braking Light | Dual LED rear light | |||
Handle Material | Integrated TPE | |||
Video Description
GS1 is a high-end shared electric scooter series independently developed and produced by Kuickwheel. It is a very sturdy and durable with excellent features like IPX7 water-proof, invisable cable design, dual front suspension, removable battery case, simple LED dashbaord, etc. At present, many large shared scooter operators around the world are using this product.
Products Description

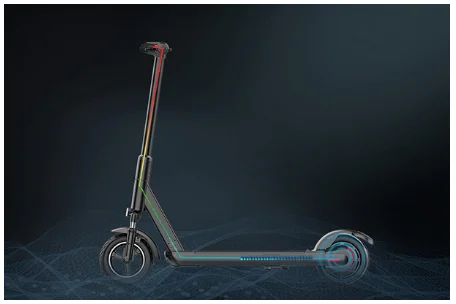

INDUSTRY-LEADING DESIGN
GS1 adopts the whole-vehicle internal wiring design and adopts a removable battery solution. The whole vehicle can achieve IPX7 waterproof level. All spare parts are made of industry-leading raw materials to ensure both an elegant appearance and solid quality, which provides a reliable solution for the shared scooter business.

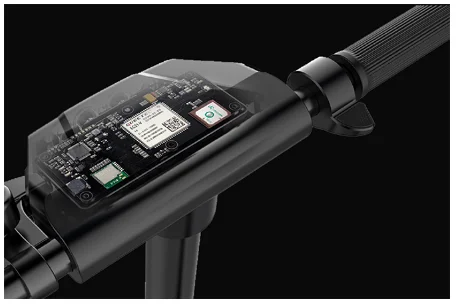

4G IOT MODULE
GS1 is equipped with 4G IOT module independently developed by Kuickwheel. It can support both MQTT and HTTP protocals based on customers’ requirements.

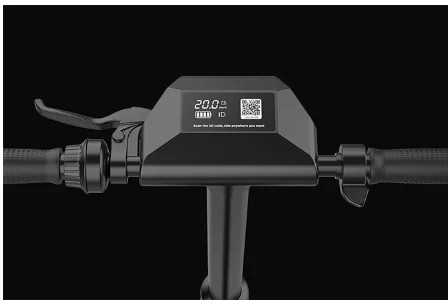

SIMPLE LED DASHBOARD
GS1 is equipped with a simple full LED digital rider dashboard, which can provide a clearer display even under strong sunlight outdoors. The important the riding data, such as speed, power, and lighting icons can be transmitted and displayed on the dashborad in real time. In addition, the simple display screen also greatly reduces the risk of damage and is suitable for placement in areas with poor road conditions.

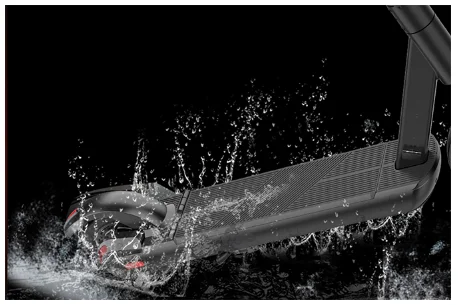

IPX7 WATER-PROOF
Shared electric scooters are exposed to wind and sun every day, especially in countries with rainy and humid climates, where waterproof performance is particularly important. All the core components of GS1, including the IoT, controller, battery, cables and connectors, have IPX7 waterproof performance, which can ensure that the scooter can still work normally even in wet and rainy environments.

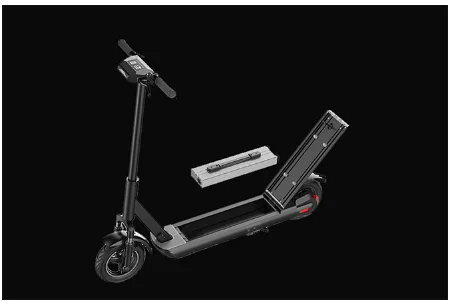

REMOVABLE BATTERY
The removable battery solution will greatly increase the convenience of shared scooters operation and maintenance. The battery case is made of aluminum alloy and completely sealed, with IPX7 waterproof level, so there is no need to worry about battery replacement problems even on outdoor roads in rainy weather.

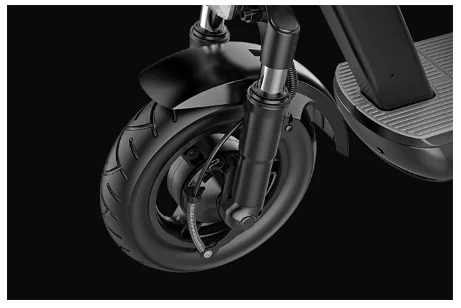

DUAL FRONT SUSPENSION & 10-INCH TIRES
With a reliable dual-arm front suspension fork, which can effectively reduce the fluctuations from the ground, GS1 can adapt to different terrains and provide excellent riding comfort. Compared to 8.5-inch tires, 10-inch tires are much easier to pass through rough ground and bumpy roads. Non-pneumatic tires can reduce maintenance costs and concerns for operators and won’t cause risks to consumers due to punctures.

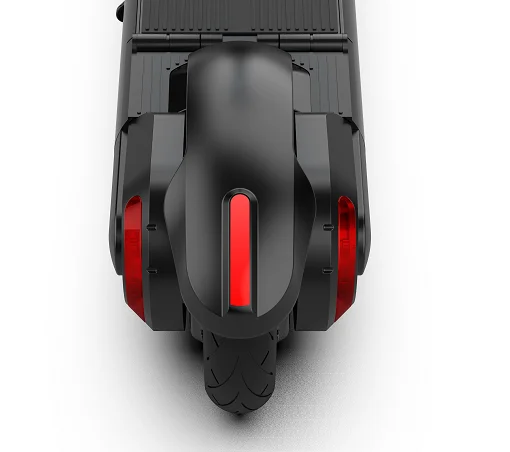

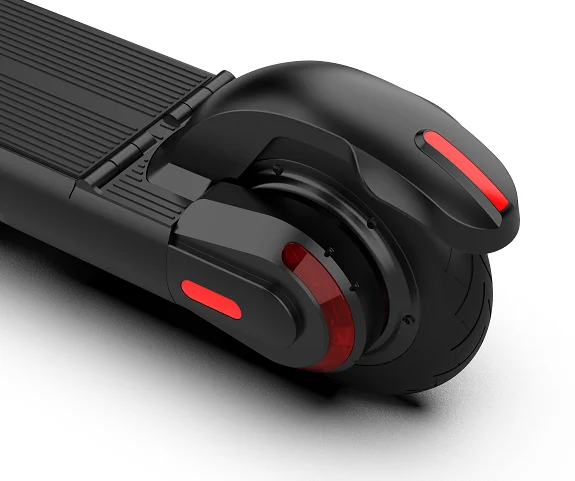

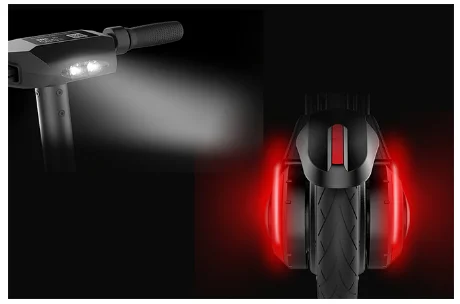

AUTOMATIC LED LIGHTING SYSTEM
User’s riding safety is always the top priority. GS1 has an automatic lighting system, including front and rear LED lights. It can switch automatically according to the instructions of the controller to illuminate the surrounding environment. The built-in design not only has a beautiful appearance, but also guarantees that the headlight is not easily damaged.

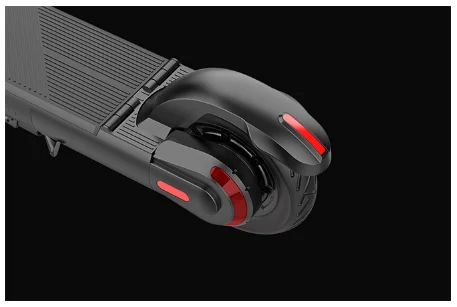

DUAL BRAKING SYSTEM
Excellent braking performance is surely essential. GS1 has a dual-braking system, which contains rear drum brake and E-ABS, which can ensure the reliability of the braking performance and provide sufficient protection for the rider safety.

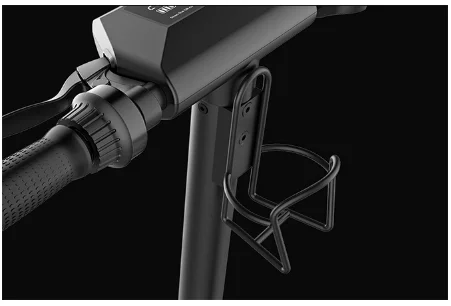

ABUNDANT ACCESSORIES
GS1 provides a wealth of accessories, such as all-metal anti-theft phone holders, metal bottle cages, turning signals, smart railing lock, metal hooks and so on.
