Leadtek Quadro High Quality GP100 16GB HBM2 717GBps 4096bit 230W Professional Computing Graphics Card
- Category: Graphics Cards >>>
- Supplier: Beijing,Plink,AI,Technology,Co.,Ltd
Share on:
Product Overview
Description
NVIDIA Quadro GP100
* Pascal GPU
* 3584 CUDA NVIDIA CUDA® Cores
* 16 GB HBM2 GPU Memory
* Up to 717 GB/s Memory Bandwidth
* PCI Express 3.0 System Interface
* 5.2 TFLOPS FP64 Performance
* 10.3 TFLOPS FP32 Performance
* 20.7 TFLOPS FP16 Performance
* 235W Max Power Consumption
* 4 x DP 1.4 + DVI-D DL Display Connectors
* 3584 CUDA NVIDIA CUDA® Cores
* 16 GB HBM2 GPU Memory
* Up to 717 GB/s Memory Bandwidth
* PCI Express 3.0 System Interface
* 5.2 TFLOPS FP64 Performance
* 10.3 TFLOPS FP32 Performance
* 20.7 TFLOPS FP16 Performance
* 235W Max Power Consumption
* 4 x DP 1.4 + DVI-D DL Display Connectors

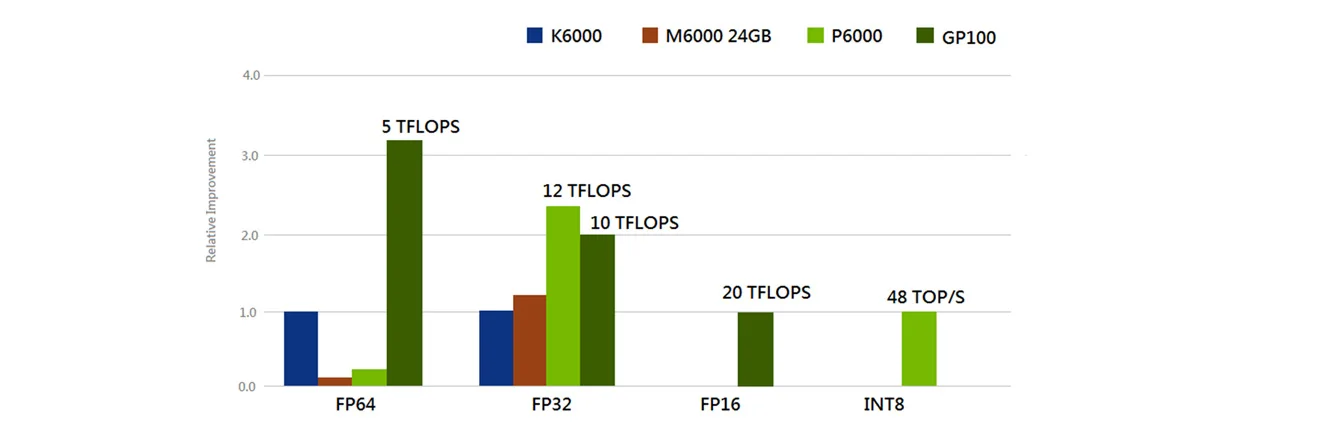

Peak Double Precision (FP64) Performance | 5.2 TFLOPs |
Peak Single Precision(FP32) Performance | 10.3 TFLOPs |
Peak Half Precision (FP16) Performance | 20.7 TFLOPs |
Memory Interface | 4096-bit |
Memory Bandwidth | 717 GB/s |
Max Power Consumption | 235 W |
Graphics Bus4 | PCI Express 3.0 x16 |
Display Connectors | DP 1.4 (4), DVI-D DL (1) |

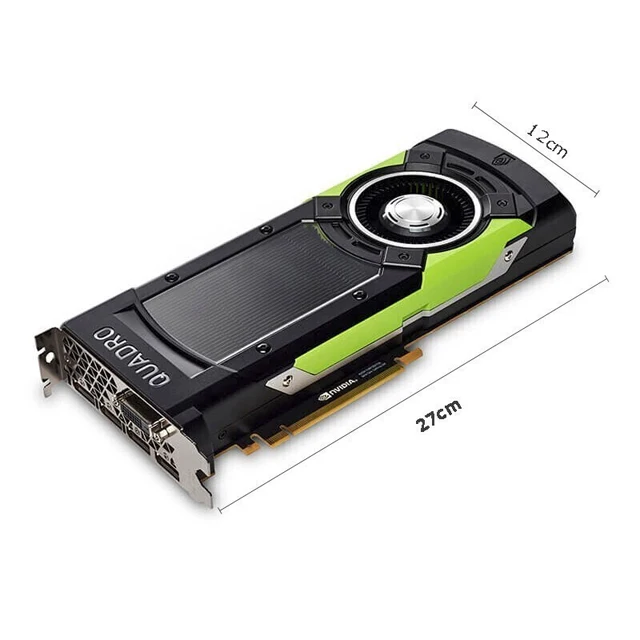

Form Factor | 4.4” H x 10.5” L Dual Slot |
Product Weight | 815g |
Thermal Solution | Active |
CNVIDIA® 3D Vision® and 3D Vision Pro | Support via 3 pin mini DIN |
Frame lock | Compatible (with Quadro Sync II) |
Multi-GPU Scalability | NVLink (2-way) |

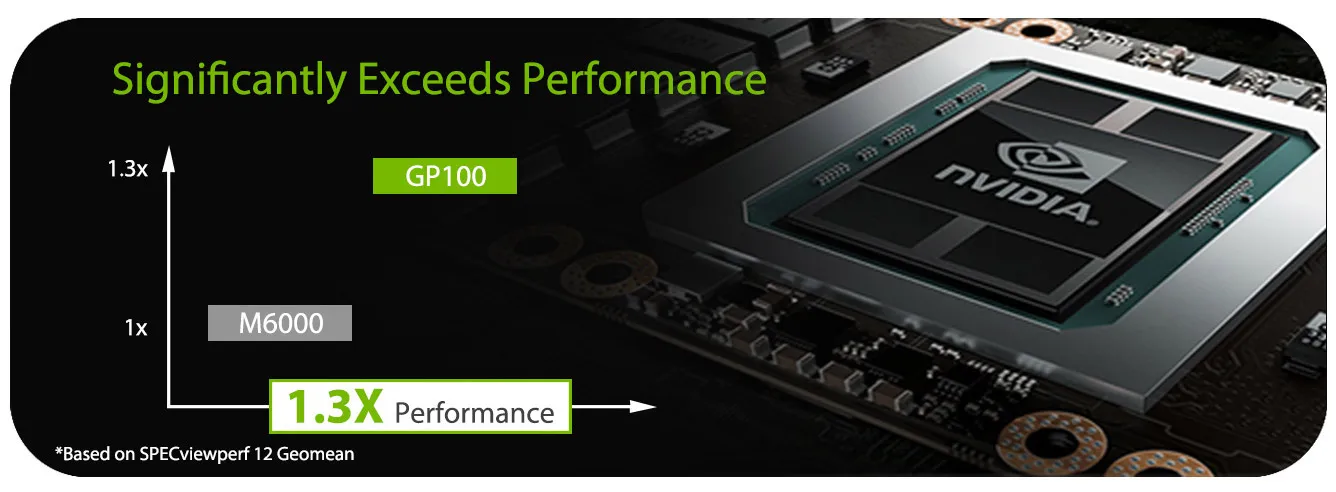

Quadro High-End Series Performance
Advanced Display Features
DisplayPort 1.4
●DP 1.4 provides twice the bandwidth of the previous generation
●Drive up to four 5K displays simultaneously
●HDR support displays 2x the visible colors resulting in brighter, more saturated images
Multiple Display
●Power up to Four 5K Displays
●Synchronize up to 8 GPUs per system with Quadro Sync II cardv
Virtual Reality
●2x Geometry Throughput
●Richer, more lifelike VR experiences
●DP 1.4 provides twice the bandwidth of the previous generation
●Drive up to four 5K displays simultaneously
●HDR support displays 2x the visible colors resulting in brighter, more saturated images
Multiple Display
●Power up to Four 5K Displays
●Synchronize up to 8 GPUs per system with Quadro Sync II cardv
Virtual Reality
●2x Geometry Throughput
●Richer, more lifelike VR experiences

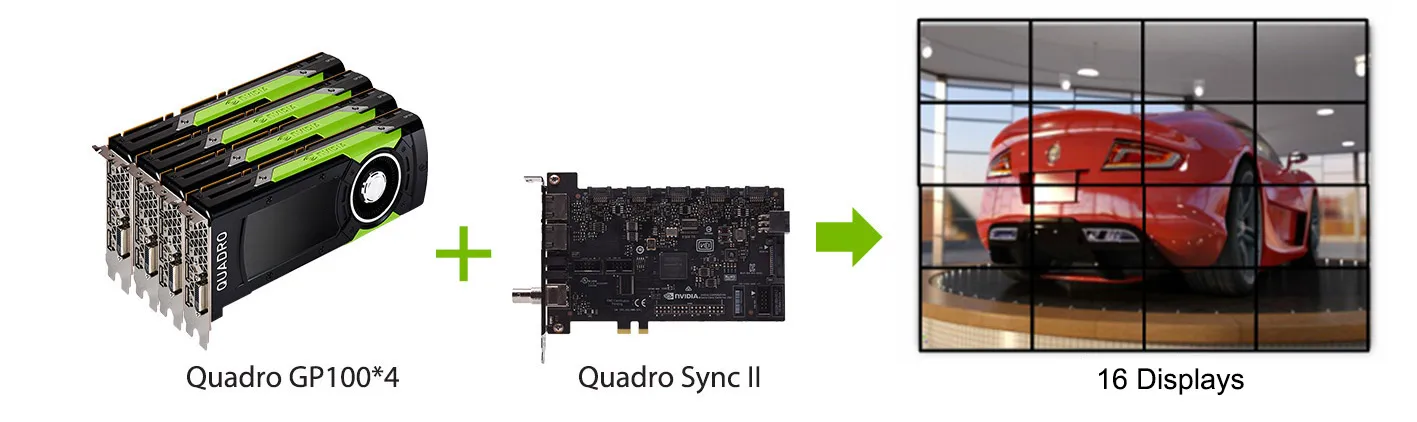

Mosaic Technology, available only on Quadro
Quadro Enable Massive Visualization
Two Quadro Sync II cards can be connected to synchronize up to 8 GPUs
per system to provide up to 32 synchronized displays per system!
per system to provide up to 32 synchronized displays per system!

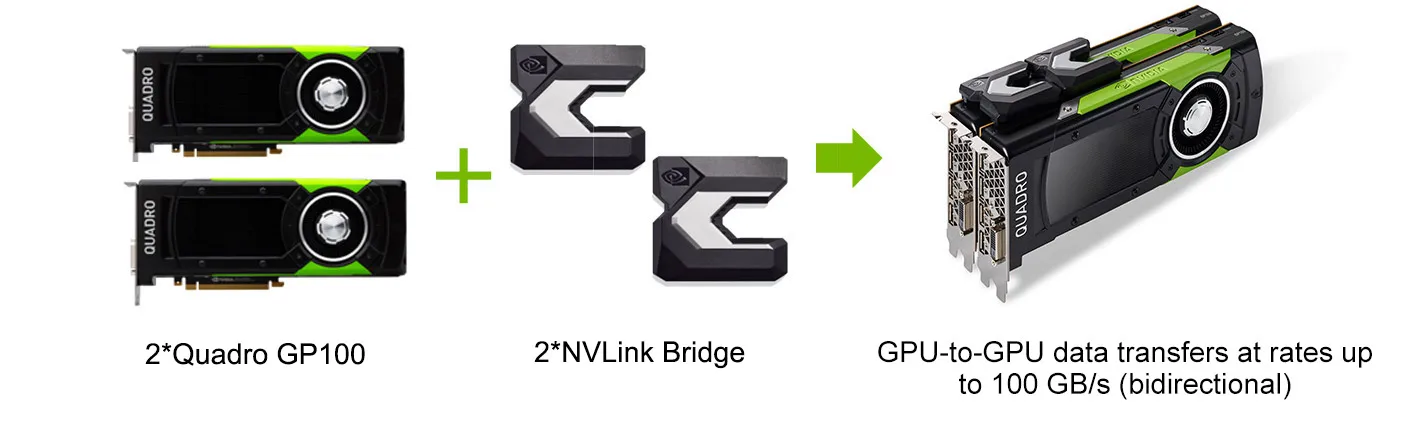

Scale Up Application Performance with NVIDIA NVLink Technology

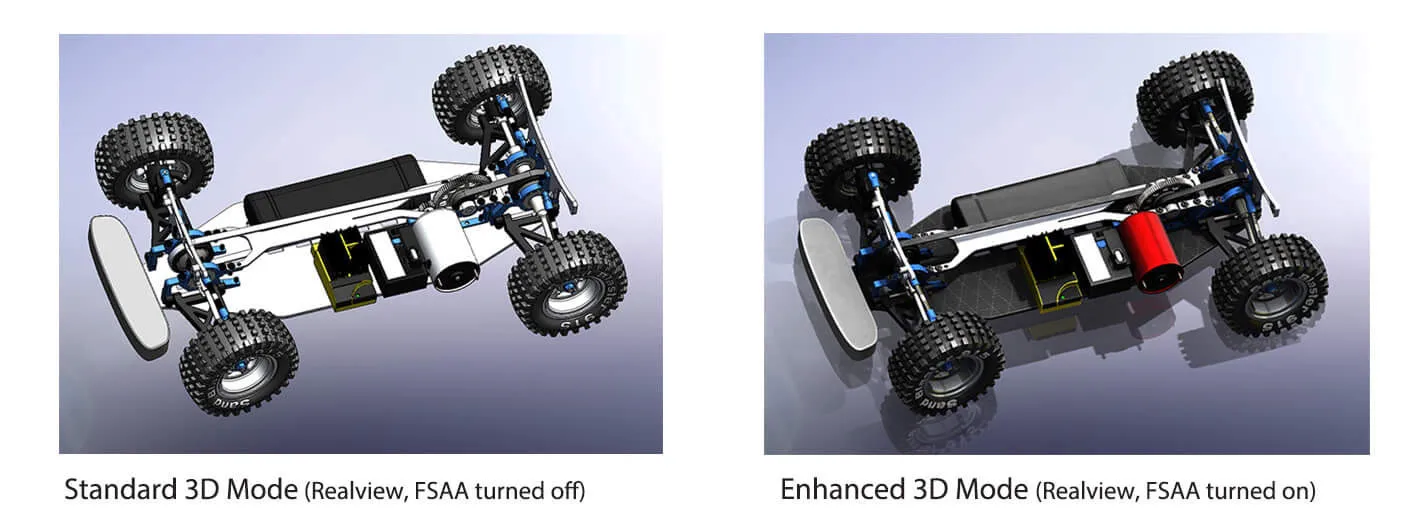

3D Graphics Architecture
Industry Solutions
* GP100 Graphics Board
* DP-DVI*3 Adaptors
* 3D Stereo Connector

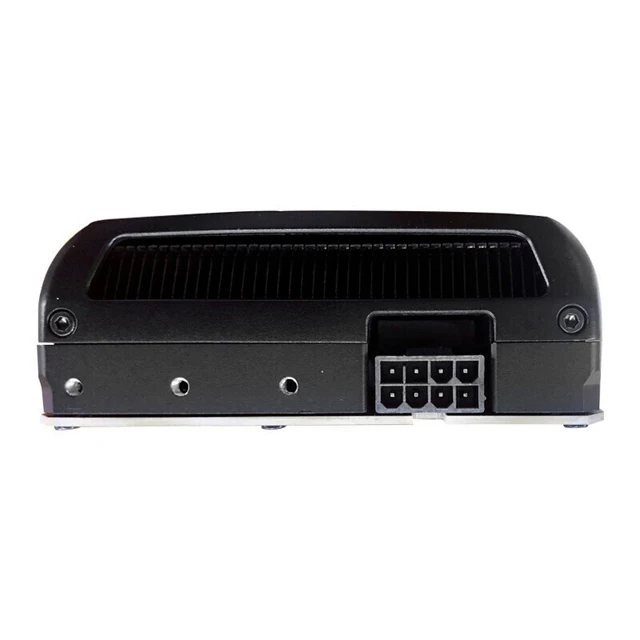

* Auxiliary Power Cord
* Driver Disc
* Quick Installation Guide
* Warranty Card
* Support Guide
* DP-DVI*3 Adaptors
* 3D Stereo Connector
* Auxiliary Power Cord
* Driver Disc
* Quick Installation Guide
* Warranty Card
* Support Guide
Smart Cities
Traffic management, parking management, transportation hub operation, public safety, and more
Healthcare
Patient monitoring, social distancing, mask detection, contact tracing, and more
Agriculture
Autonomous planting and harvesting, precision farming, yield management, and more
Construction
Mapping/planning, autonomous operation, preventive maintenance, work safety, and more
Industrial
Optical Inspection for quality control, predictive maintenance, robotic arms, and more
Retail
Asset protection, automated checkout, intelligent store analytics, digital signage, and more
Energy & Mining
Optical inspection, autonomous operation, preventive maintenance, safety, and more
Robotics & Logistics
Robots for warehouse & factory, first/last mile delivery, collaboration, service, and more
Founded in 2009, Plink-AI technology focuses on GPU solutions. It is the general agent in North China of Leadtek technology, a world-famous brand. It has been invited to become a NVIDIA partner with a full stack of NVIDIA products solutions.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
Plink-AI technology takes the game graphics card, professional graphics card, GPU server, embedded AI integrated machine scheme as the main product line, serves the data center, cloud service, independent machine, medical instrument, intelligent agriculture, intelligent logistics, intelligent city, security, vehicle road coordination, industrial automation, education and scientific research and other industries, and has accumulated a large number of implementable programs, while in-depth learning DLI training On the basis of that, we will export AI professionals for the society.
Plink-AI technology adheres to the tenet of serving customers, strives for survival with quality, and provides GPU one-stop solution for customers.
How can I get the price?
We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are very anxious to get the price, please email us ([email protected], [email protected], [email protected]) or contact us by other means so that we can help you provide pricing.
Can I place an order for samples?
Yes. Please feel free to contact us.
What is your delivery time?
It depends on the number of orders and the season in which you placed your order. Usually we can ship within 7-15 days, small quantity shipment, about 30 days.
What is your payment term?
IT/T, Western Union, MoneyGram and Paypal. This is negotiable.
What is the mode of transportation?
It can be transported by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.
Can the product be customized?
Our company has a professional R&D team and factory, which can meet the needs of customers to customize products, please email us for specific matters.
