Portable 4 In 1 Multi Gas Detector Gas Analyzer for H2S CO O2 , combustible gas detector

Product Overview

Description

1,Product Description:

MDWCK200-H4  Portable pump suction four in one detector is used for rapid detection of four in one gas concentration exceeding the standard alarm. The 2.8-inch high-definition color screen is used for real-time display, and the imported well-known brand gas sensor is selected. The main detection principles include: electrochemistry, infrared, catalytic combustion, thermal conductivity, PID photoion, etc. Advanced circuit design, mature kernel algorithm processing and unique shape design. It can detect the gas concentration in the pipeline, confined space and atmospheric environment, gas leakage or high concentration single gas purity of various background gases such as nitrogen or oxygen, and detect more than 500 kinds of gases.



2,Functional features:

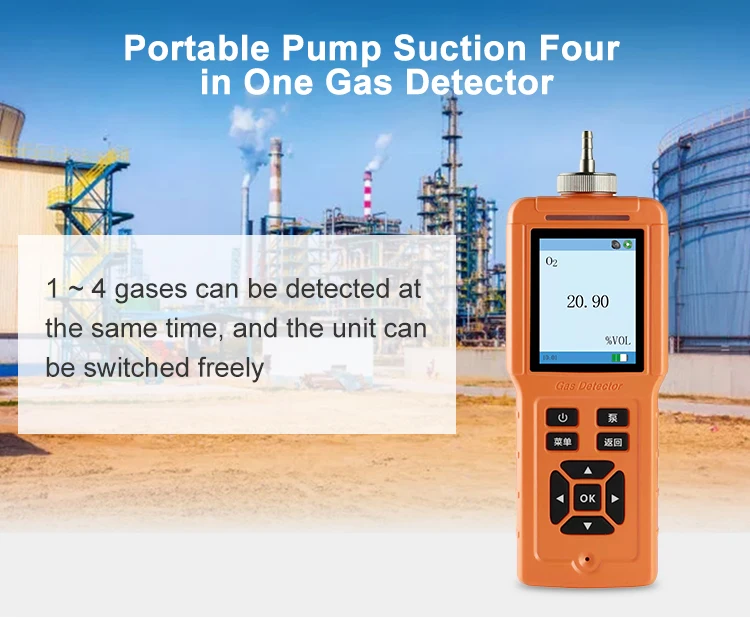

-1 ~ 4 gases can be detected at the same time, and the unit can be switched freely (the molecular weight of conventional gas does not need to be input, and the molecular weight of special gas is calculated and switched automatically). The unit can be selected: ppm, mg / m3,% vol,% LEL, PPHM, ppb, mg / L.

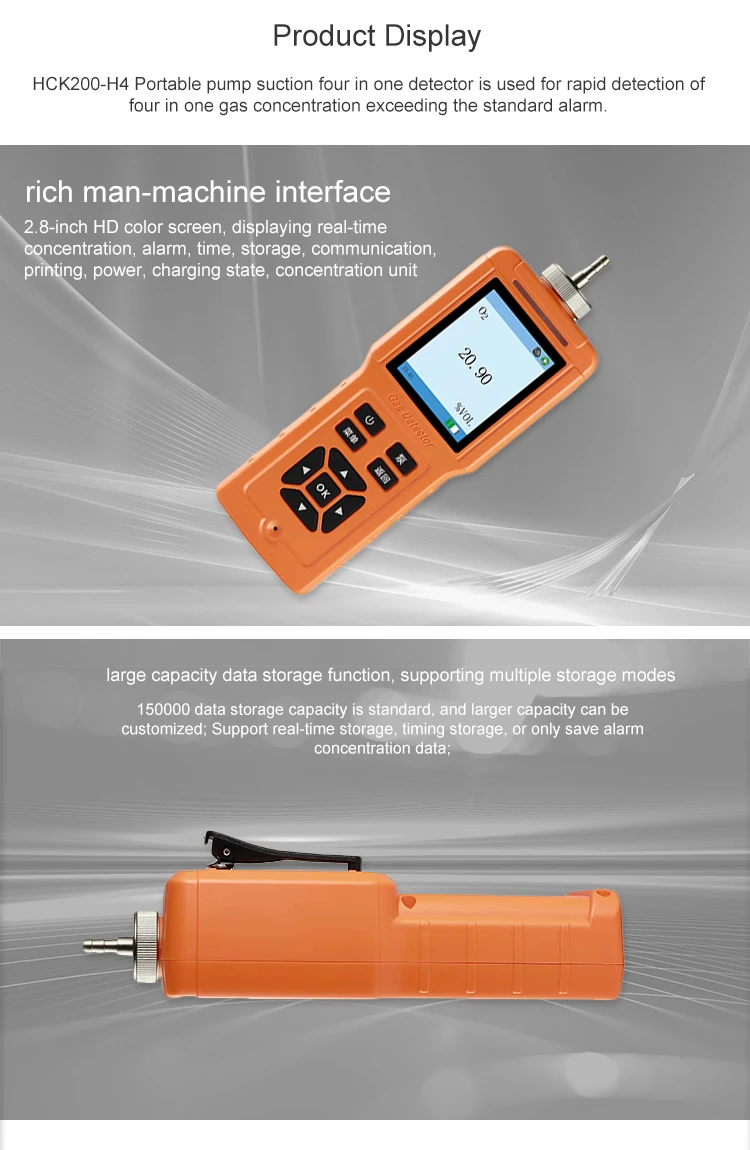

- rich man-machine interface

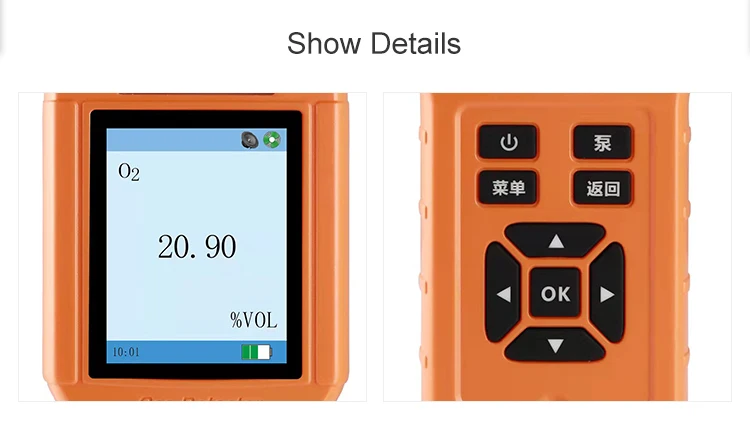

2.8-inch HD color screen, displaying real-time concentration, alarm, time, storage, communication, printing, power, charging state, concentration unit Gas molecular formula, gas name and other information; The menu interface uses high-definition simulation graphics to display the function names of each menu.



- large capacity data storage function, supporting multiple storage modes



150000 data storage capacity is standard, and larger capacity can be customized; Support real-time storage, timing storage, or only save alarm concentration data;



It supports the local machine to view and delete data. It can also upload data to the computer through USB interface, directly analyze data, store and print data, and realize the plug and play data function.



- the display mode can be switched



Four gas concentrations are displayed at the same time, and large font circulation displays the concentration of single channel gas.



#standard USB charging, with charging protection function and supporting USB hot plug



It can be charged by computer or charging treasure, compatible with mobile phone charger; Overcharge, over discharge, overvoltage, short circuit and overheating protection; Level 3 accurate power display;



The tester can work normally when charging.



#5200ma high-capacity rechargeable battery is adopted, which can work continuously for a long time (if the battery capacity is larger, it can be explained in advance)



# multiple alarm modes, multi-directional three-dimensional indication of alarm status during alarm



It includes audible and visual alarm, vibration alarm and display visual alarm.



# set low alarm, high alarm and section alarm in various alarm modes.



# the default Chinese interface can be selected for the Chinese and English interface, with concise Chinese or English operation tips



# the air pump switch can be detected in real time or regularly (for the case of small measured gas volume), and the pump can be turned off to prolong the startup time.



# meet the design requirements of intrinsically safe circuit, anti-static and anti electromagnetic interference



# protection grade up to IP66, waterproof, dustproof, explosion-proof and shockproof



3,Technical parameters:

Detection gas	Combustible, oxygen, carbon monoxide, hydrogen sulfide
Detection range	Detection range: Combustible 0-100% LEL, oxygen(O2) 0-30% vol, carbon monoxide(CO) 0-1000ppm, hydrogen sulfide(H2S) 0-100ppm
resolving power	Combustible 0.1% LEL, oxygen 0.01% vol, carbon monoxide 0.1ppm, hydrogen sulfide 0.01ppm
Detection principle	Principle of electrochemical and catalytic combustion detection
Detection mode	Built in pump suction, flow 500ml / min
Display mode	2.8-inch HD color display, 9-button operation
Check the accuracy	≤± 3% F.S (higher precision can be customized)
Linearity	≤±2%	Repeatability	≤±2%
Alarm mode	Audible and visual alarm, vibration alarm, visual alarm, audible and visual + vibration + visual alarm, shutdown alarm
esponse time	T90 ≤ 20 seconds	recovery time	≤ 30 seconds
Working power supply	DC3.7V
Battery capacity	High performance 18650 rechargeable battery, 3.7vdc, standard large capacity 5200ma (please specify in advance if the battery capacity is larger)
	With overcharge, over discharge, overvoltage, overheating and short circuit protection functions
Use environment	Temperature: - 20 ℃ ~ + 60 ℃; Relative humidity ≤ 0-95% RH (filter can be equipped and can be used in high humidity or high dust environment)
Sample gas temperature	-20℃~+60℃ ;
data storage	It is equipped with 150000 pieces of data capacity as standard, which supports local viewing, deletion or data export. It can also upload data to the computer through USB interface for direct computer analysis, storage and printing. The storage function is off by default, can be set to on, and the storage time interval can be set arbitrarily
communication interface	USB (charging and data export function)
Interface language	Chinese or English can be set, and the default Chinese interface
Standard accessories	Manual, certificate, USB charger (including data cable), back clip, high-grade aluminum alloy instrument box
