Cheap Micro Gas Rotate Cooling Supplier Seller Refrigeration Dc Inverter Compressor
- Category: >>>
- Supplier: Shenzhen Coolingstyle Technology Co. Ltd.
Share on (1600425945399):
Product Overview
Description

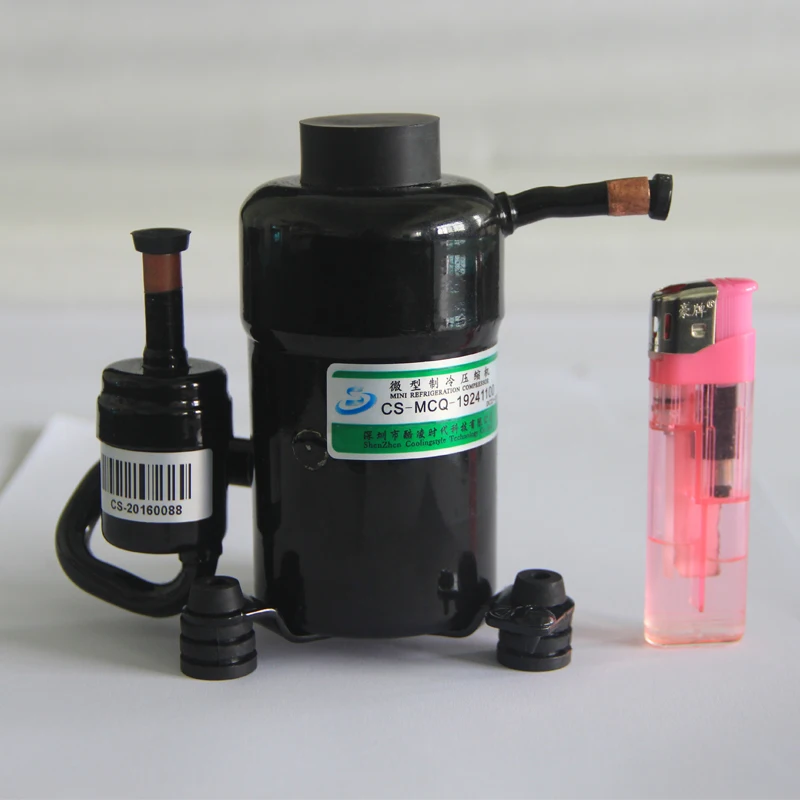

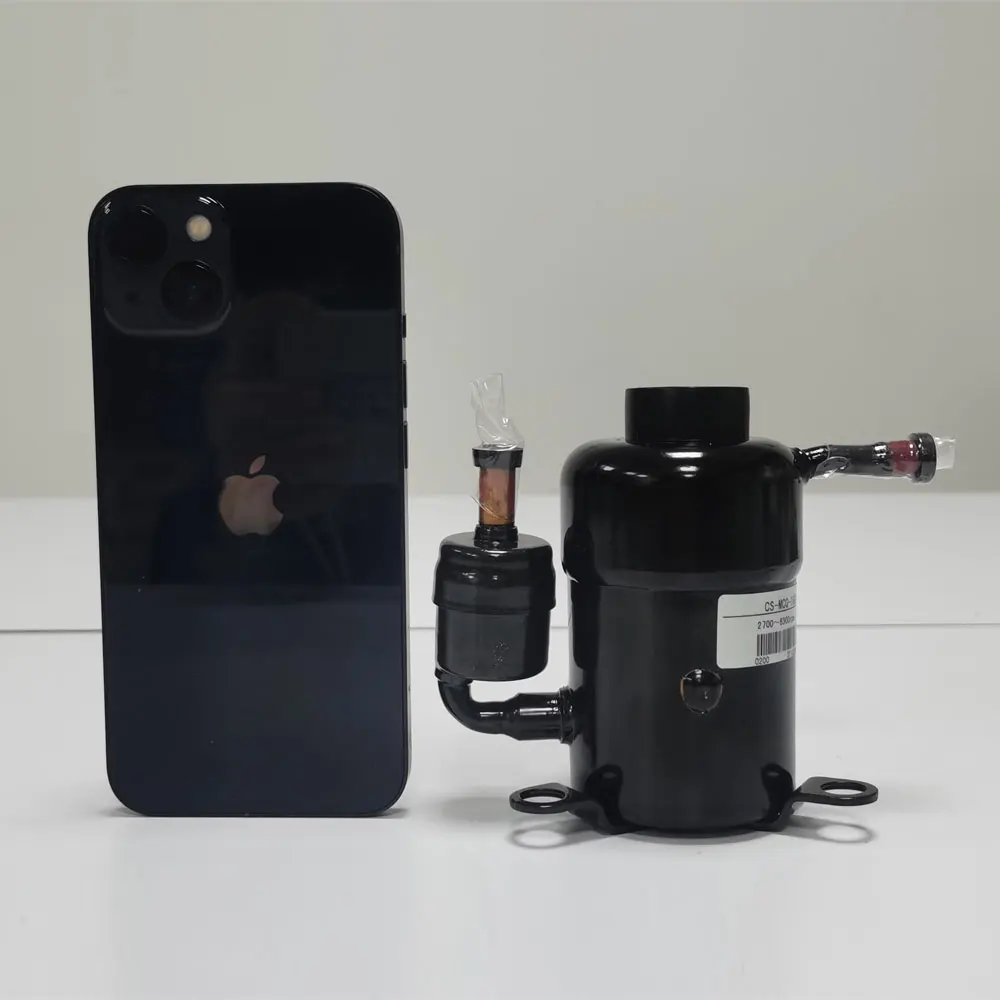

Cheap Micro Gas Rotate Cooling Supplier Seller Refrigeration Dc Inverter Compressor
PRODUCT OVERVIEW
1. Basic Parameters
| Compressor Type | Rotary DC Timing Compressors |
| Rated Voltage | DC 24V |
| Voltage range | 24V±10% |
| Rated Current | 10A |
| Maximum Current | 12A |
| Displacement | 1.9cm³/rev |
| Motor Rotor Pole | 6 |
| Maximum Compression Ratio | 8 |
| Speed Range | 2000~6000rpm |
| Cooling Capacity(at 6000 rpm) | 440W(ASHRAE Conditions) |
| Refrigerant | R134a |
| Oil | RL68H |
| Oil Charge | 50mL |
| Ambient Temperature | -5~55℃ |
| Evaporating Temperature | -10~15℃ |
| Condensing Temperature | 45~76℃ |
| Weight(Compressor Body Only) | 0.85kg |
| Suction Tube(I.D) | 6.5mm |
| Discharge Tube(I.D) | 6.5mm |
2. Cooling Capacity Curve
3. Compressor Size
4. Drive Board Size
For more models, pls contact us!
Company Information
.
FAQ
1. How to choose a suitable rotary compressor?
Our sales will help you choose a suitable model by communicating with you about the power supply, cooling capacity requirement, application, etc.
2. Do you have the compressors in stock?
We have most of the models of compressors in stock. The lead time of the sample is about 3 days. The bulk order lead time is about 20 days.
3. What is the MOQ?
MOQ is 200 units.
4. How about the warranty?
The warranty period is 1 year, and we offer free technical assistance if exceeds the warranty.
