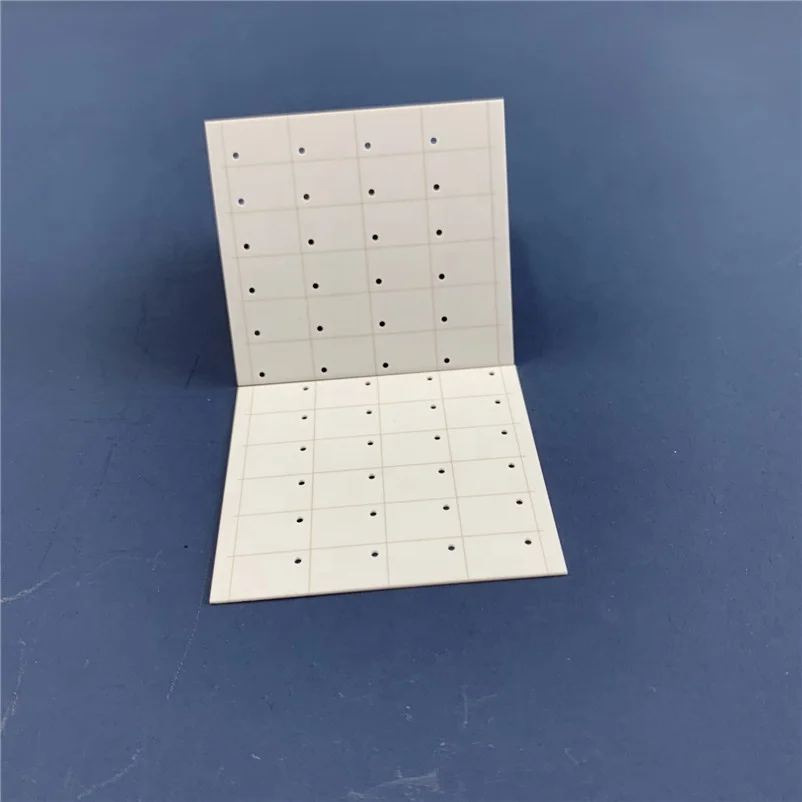

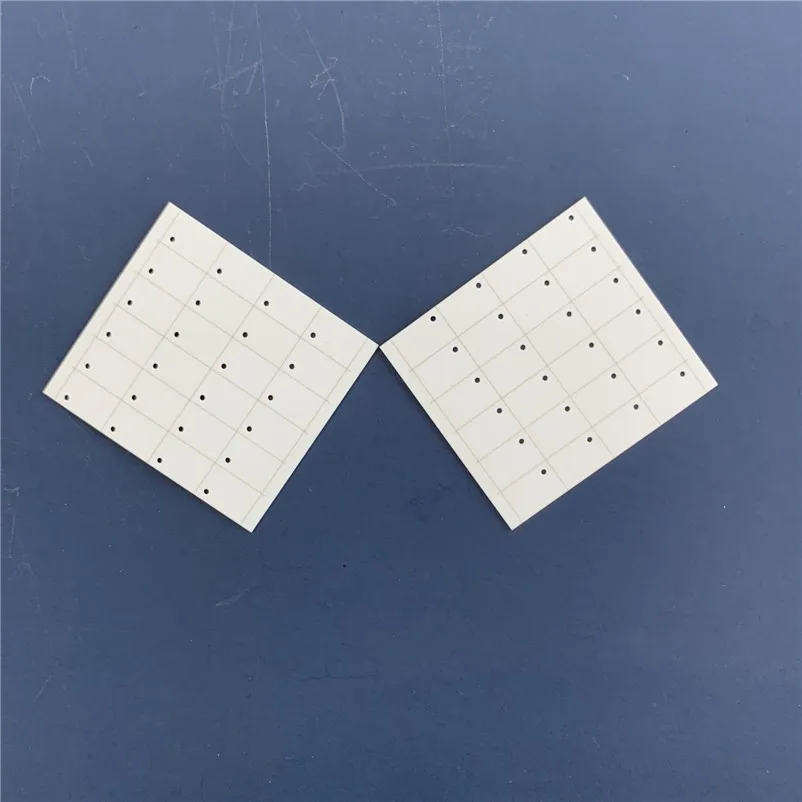

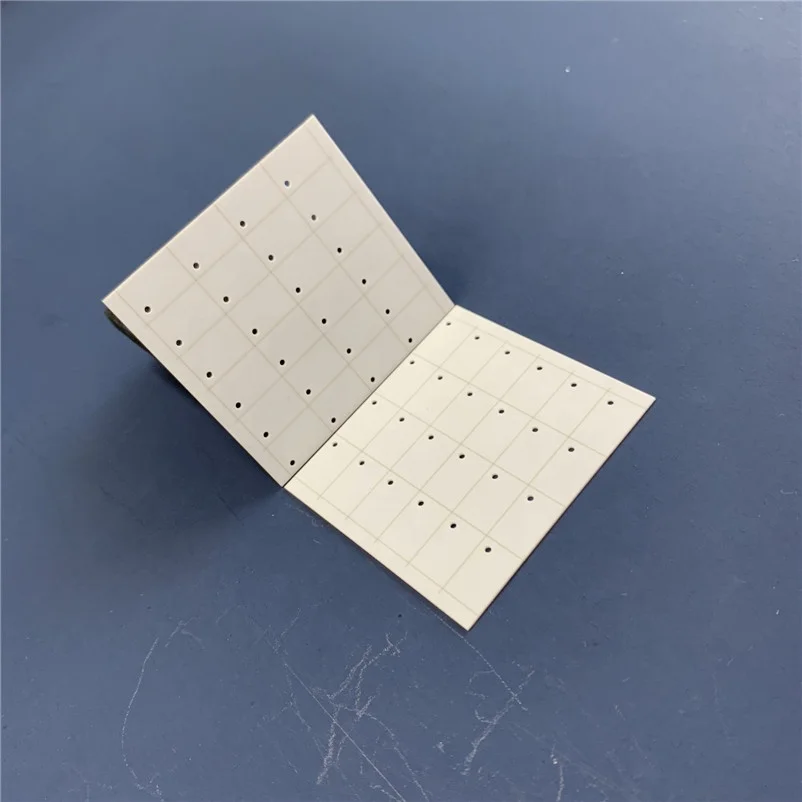

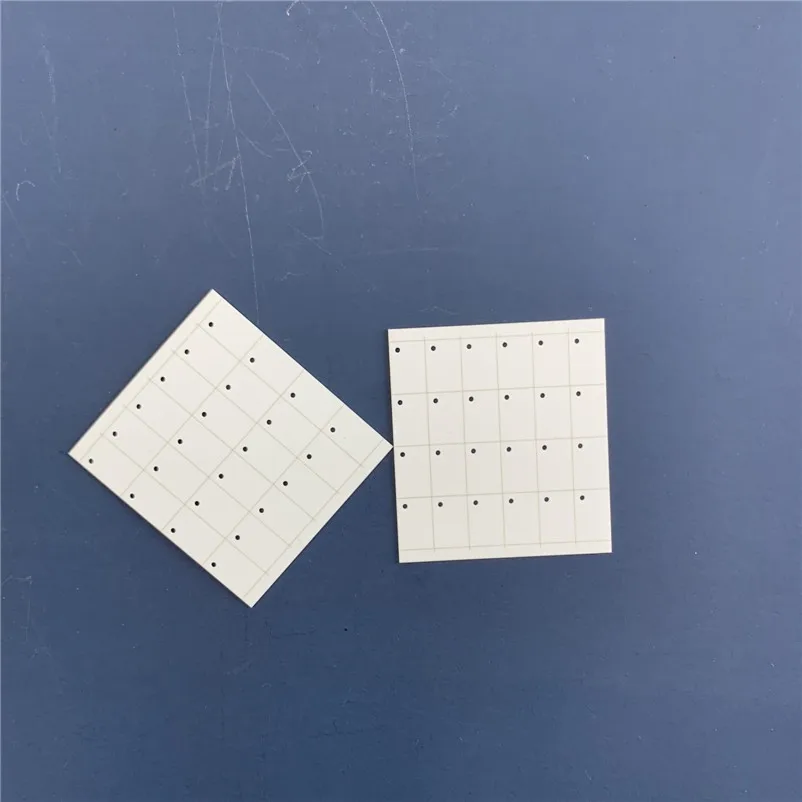

1 mm thickness 170W/m.k alumina nitride ceramic substrate for electrical equipment
- Category: >>>
- Supplier: Lianyungang Henka Ceramics Technology Co. Ltd.
Share on (1600426014935):
Product Overview
Description
Product Description
Product name | High thermal conductivity 170W/m.k aln aluminum nitride ceramic substrate for electrical industry |
Material | Aluminium nitride |
Size | 56mmx51mmx1mm |
MOQ | 30 pieces |
Package | Carton with bubble wrap |
Surface roughness | Ra 0.2 -05 um |
Thermal Conductivity | ≥170 W/m.k (at 20 ℃) |
Max working temperature | 2200 degree |
Feature | Excellent thermal, electrical and mechanical properties |
Usage | Hybrid integrated circuit interconnect substrate, microwave device, optoelectronic communication, sensor, etc. |
Delivery Time | 1.stock:delivery within 3-5 days after receiving your payment. 2. OEM/ODM:The normal Lead time is 10-45 days, which depends on your quantiy. |

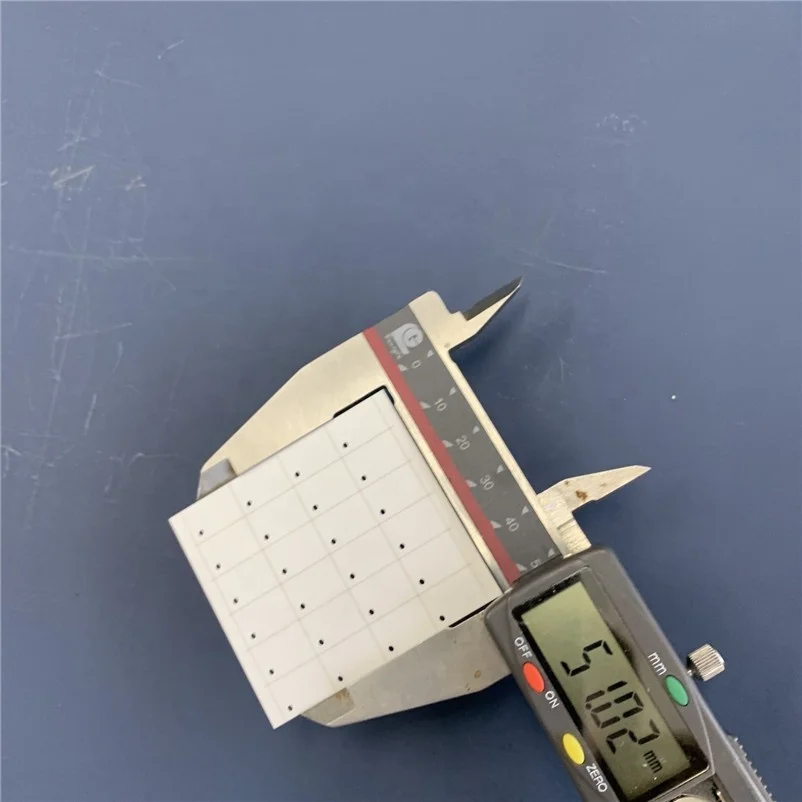

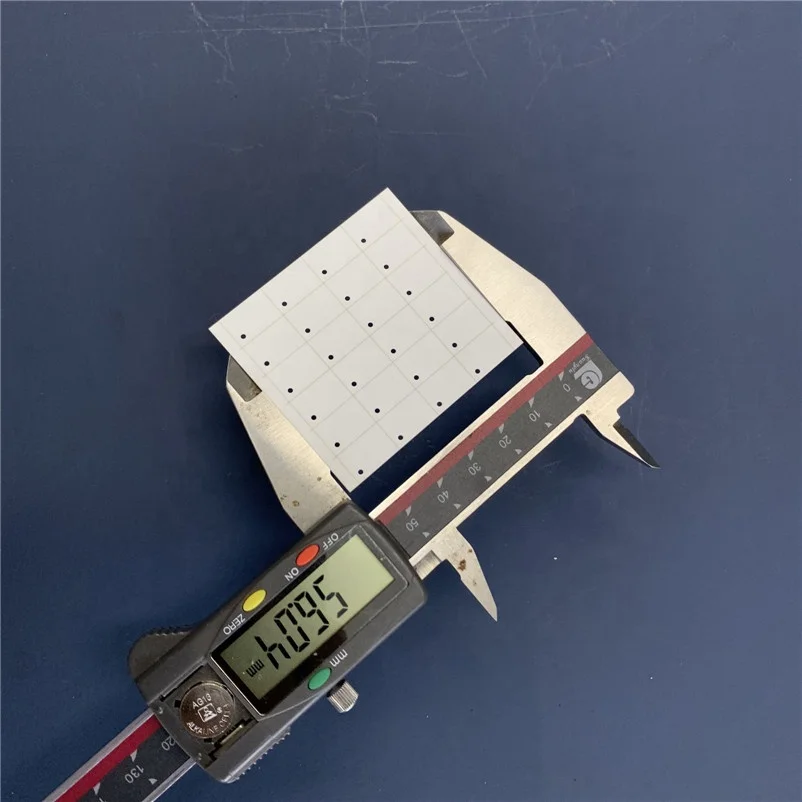

1. Instrument measurement,data accuracy,
smooth and tidy
2.Size and thickness can be customized,
excellent thermal conductivity, low dielectric constant
3.Polycrystalline ALN has a thermal conductivity of 170-210 W (m.k), which is 5-8 times higher than alumina.
Material data sheet
Aluminium nitride | ||||||||
Item | AlN180 | AlN200 | AlN220 | Unit | ||||
Colour | Gray | Gray | Beige | |||||
Density | 3.3 | 3.3 | 3.28 | g/cm3 | ||||
Flexural Strength | ≥350 | ≥350 | ≥350 | MPa | ||||
Compressive Strength | 250 | 250 | - | MPa | ||||
Elastic Modulus | 320 | 320 | 320 | GPa | ||||
Vickers Hardness (Load 500g) | 10 | 9.5 | 9 | HV0.5 | ||||
Coefficient of Line Thermal Expansion | 4.8 | 4.6 | 4.5 | 10-6K-1 | ||||
Thermal Conductivity(20℃) | 180 | 200 | 220 | W/m·K | ||||
Volume Resistance at 20°C | >1014 | >1014 | >1013 | cm | ||||
Dielectric Strength | ≥15 | ≥15 | ≥15 | KV/mm | ||||
Dielectric Constant (1MHz) | 9 | 8.8 | 8.6 | εr | ||||
Loss Tangent | 5 | 5 | 3 | 10-4 | ||||
Standard size
Size (mm) | Unit | Hole | Thickness (mm) | |||
152.4x152.4 | pcs | - | 0.38/0.5/0.635/1/1.5/2 | |||
114.3x114.3 | pcs | - | 0.38/0.5/0.635/1/1.5/2 | |||
17x22 | pcs | - | 0.635/1 | |||
20x25 | pcs | - | 0.635/1/2 | |||
24x28 | pcs | - | 1 | |||

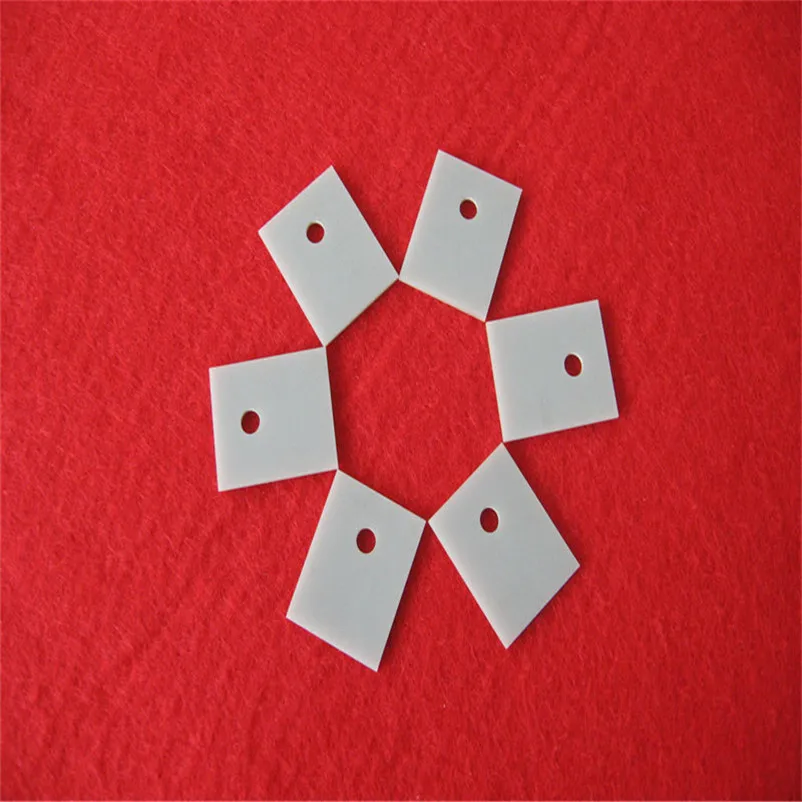

Mark:The following specification ALN plate have hole | ||||||
12x18.5 | pcs | 3.8 | 0.365/1 | |||
20x26 | pcs | 4 | 0.635/1 | |||
22x28 | pcs | 3.4 | 0.635/1 | |||
Note:
If you need other specification ALN plate,please share us your drawing,welcome to contact us freely.
