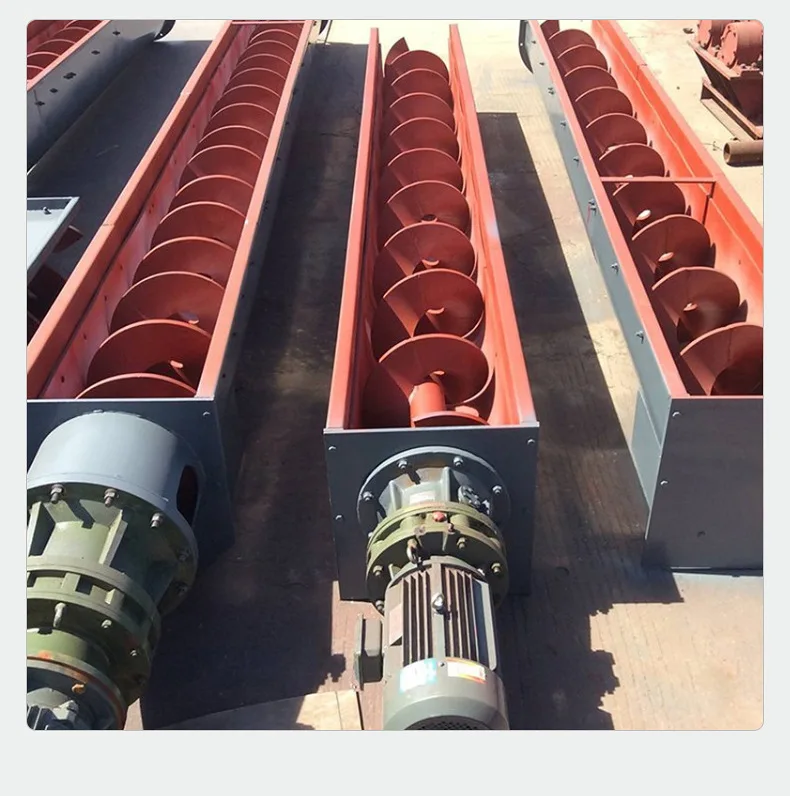

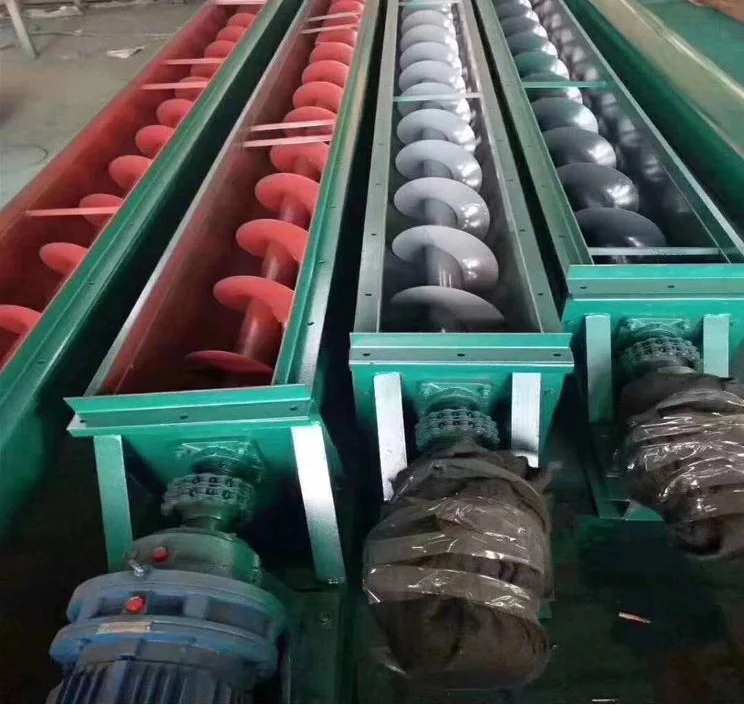

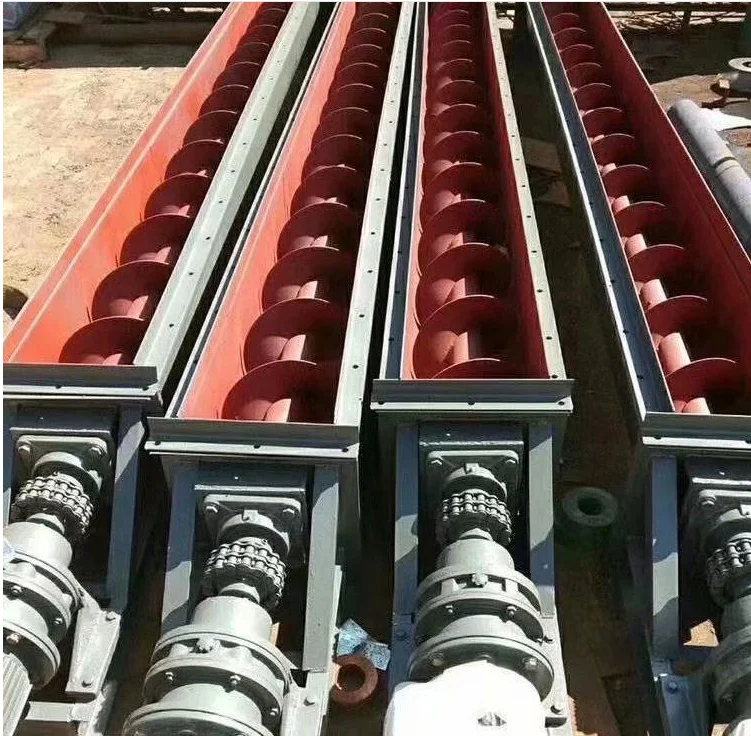

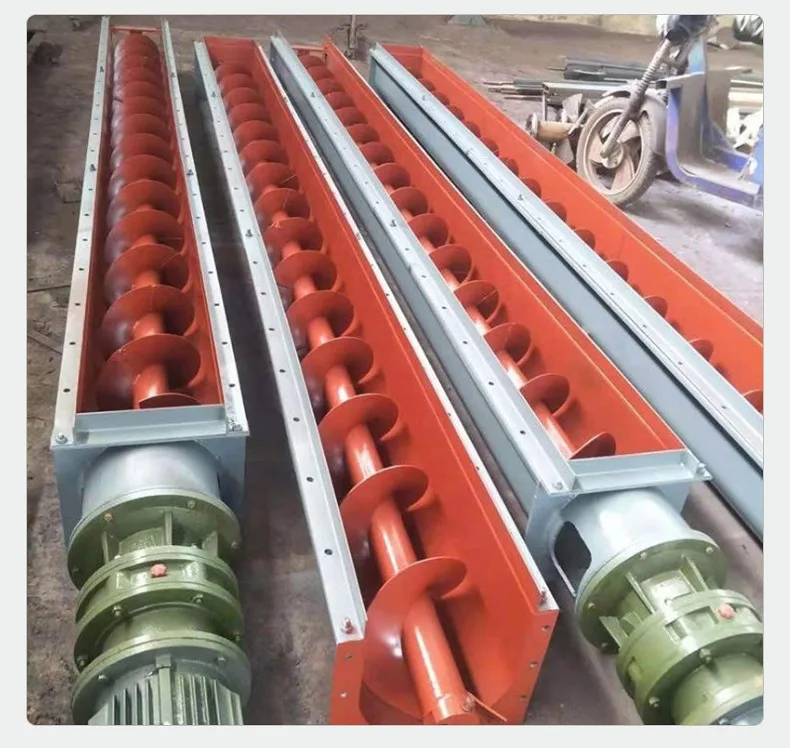

Manufacturer Supply grain auger hopper conveyor screw conveying
- Category: >>>
- Supplier: Mingyi Machinery (Tianjin) Co. Ltd.
Share on (1600426130358):
Product Overview
Description
Recommend Products

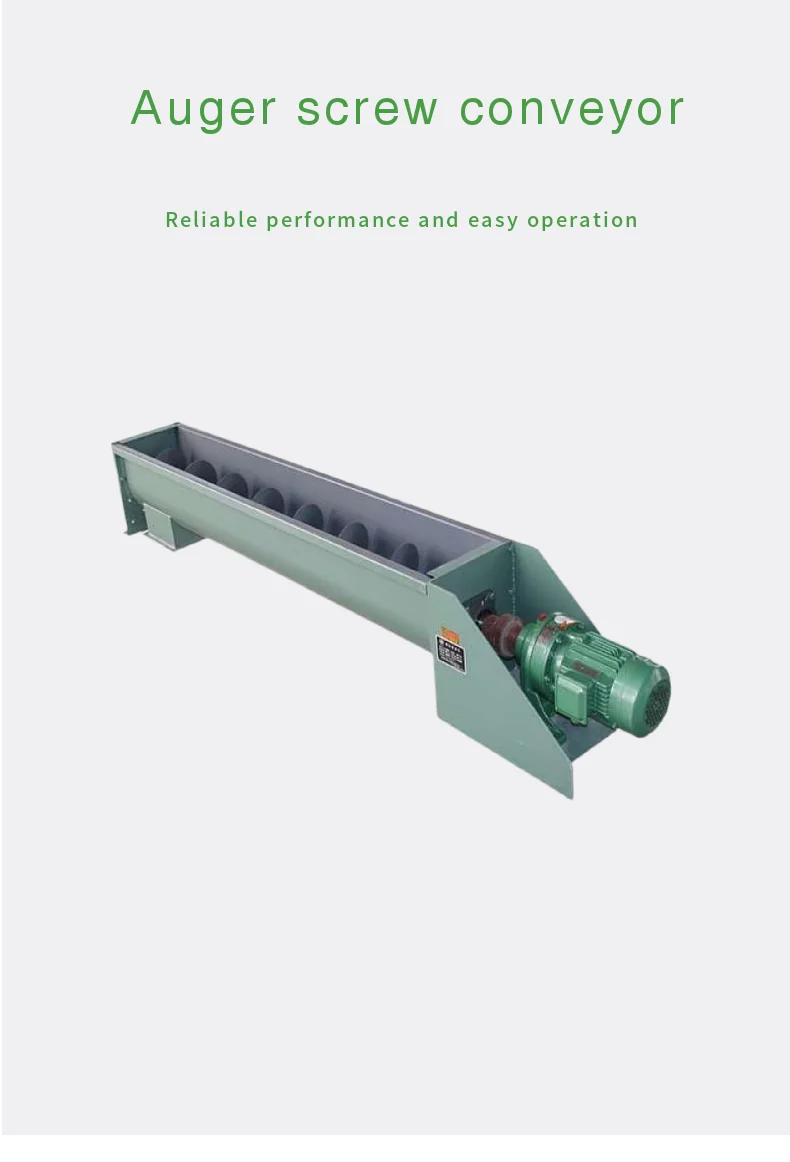

Products Description
·Smooth without vibration noise
·It is not easy to deform and weld tightly
·High hardness and meticulous workmanship

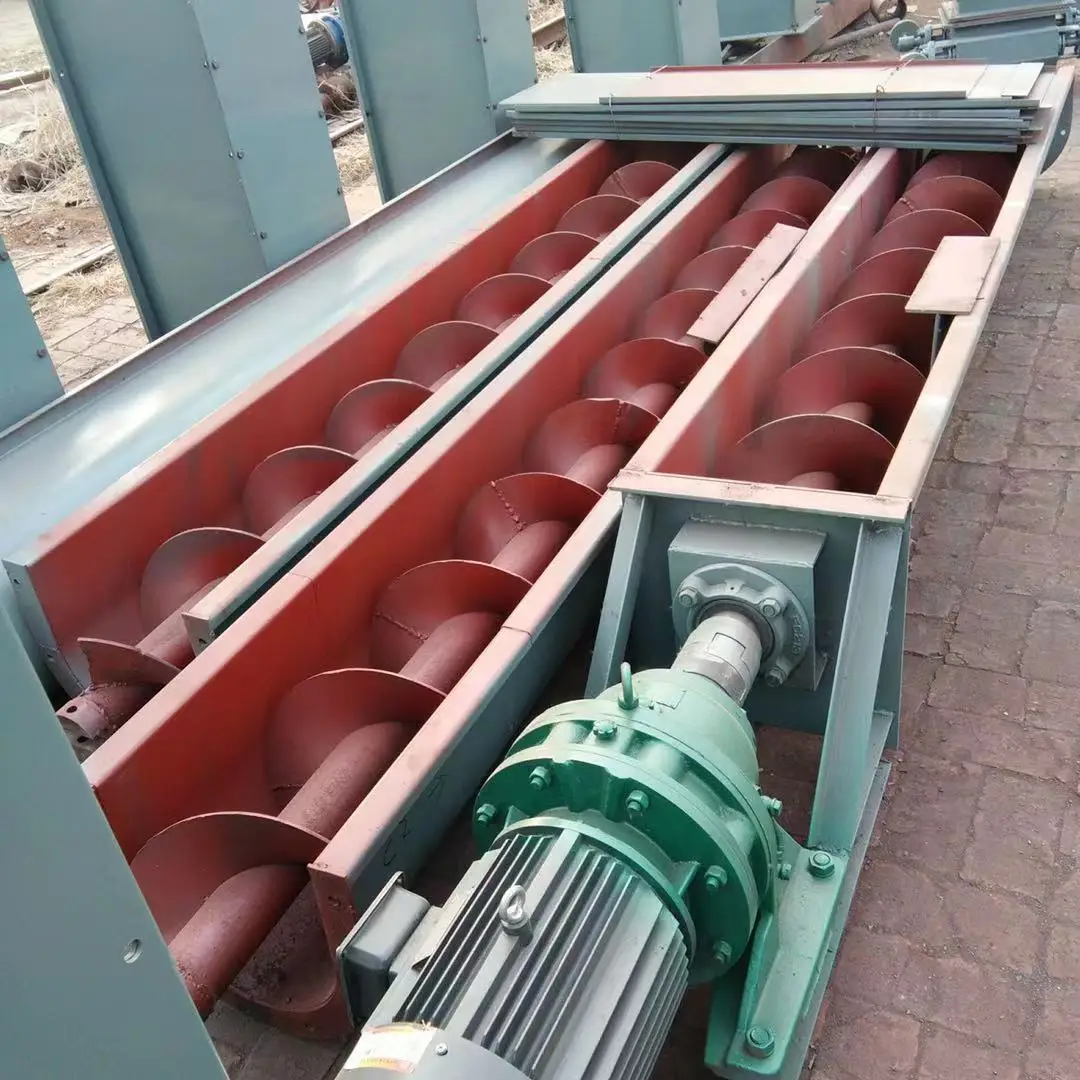

Product details
Conveyor evenly
Each procedure is strictly carried out according to standards to ensure uniform delivery
Small diameter high speed
Large throughput, high precision, good conveying condition The driving device is a gear reducer With large torque, low noise oil - free, long service time.
Product Paramenters
Model/Specifications | 168 | 219 | 273 | 325 | 426 |
Screw diameter (mm) | 140 | 190 | 250 | 290 | 390 |
Outer tube diameter (mm) | 168 | 219 | 273 | 325 | 426 |
Allowable Angle (°) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
Maximum Length (m) | 60 | 60 | 60 | 60 | 60 |
Maximum capacity (T) | 10 | 30 | 50 | 80 | 110 |
Motor power (kW) | 2.2-15 | 2.2-22 | 3-22 | 5.5-22 | 5.5-22 |
Outer tube thickness (mm) | 3-8 | 3-8 | 3-8 | 4-8 | 4-8 |
Blade thickness (mm) | 2-20 | 2-20 | 3-20 | 3-20 | 3-20 |
Reducer speed ratio | 1:5 | 1:5 | 1:7 | 1:10 | 1：10 |
Rotational speed (R/M) | 288 | 288 | 205 | 144 | 144 |
Characters
1.screw conveyor is widely used in chemical, building materials, food and other departments of a kind of conveying equipment, mainly used for conveying powder, granular and small block materials. It is not suitable for conveying metamorphic, viscous and easy to agglomerate materials.
2. screw conveyor use of ambient temperature is -20~50℃; Conveyor inclination Angle β≤20°; The conveying length is generally less than 40m and the longest is not more than 70m.
3.Compared with other conveying equipment, screw conveying has the advantages of simple structure, small cross section size, good sealing performance, can be in the middle of the multi-point loading and unloading, safe and convenient operation and low manufacturing cost. Its disadvantages are more serious wear parts, lower throughput, large power consumption and materials in the transport process is easy to be broken.
2. screw conveyor use of ambient temperature is -20~50℃; Conveyor inclination Angle β≤20°; The conveying length is generally less than 40m and the longest is not more than 70m.
3.Compared with other conveying equipment, screw conveying has the advantages of simple structure, small cross section size, good sealing performance, can be in the middle of the multi-point loading and unloading, safe and convenient operation and low manufacturing cost. Its disadvantages are more serious wear parts, lower throughput, large power consumption and materials in the transport process is easy to be broken.

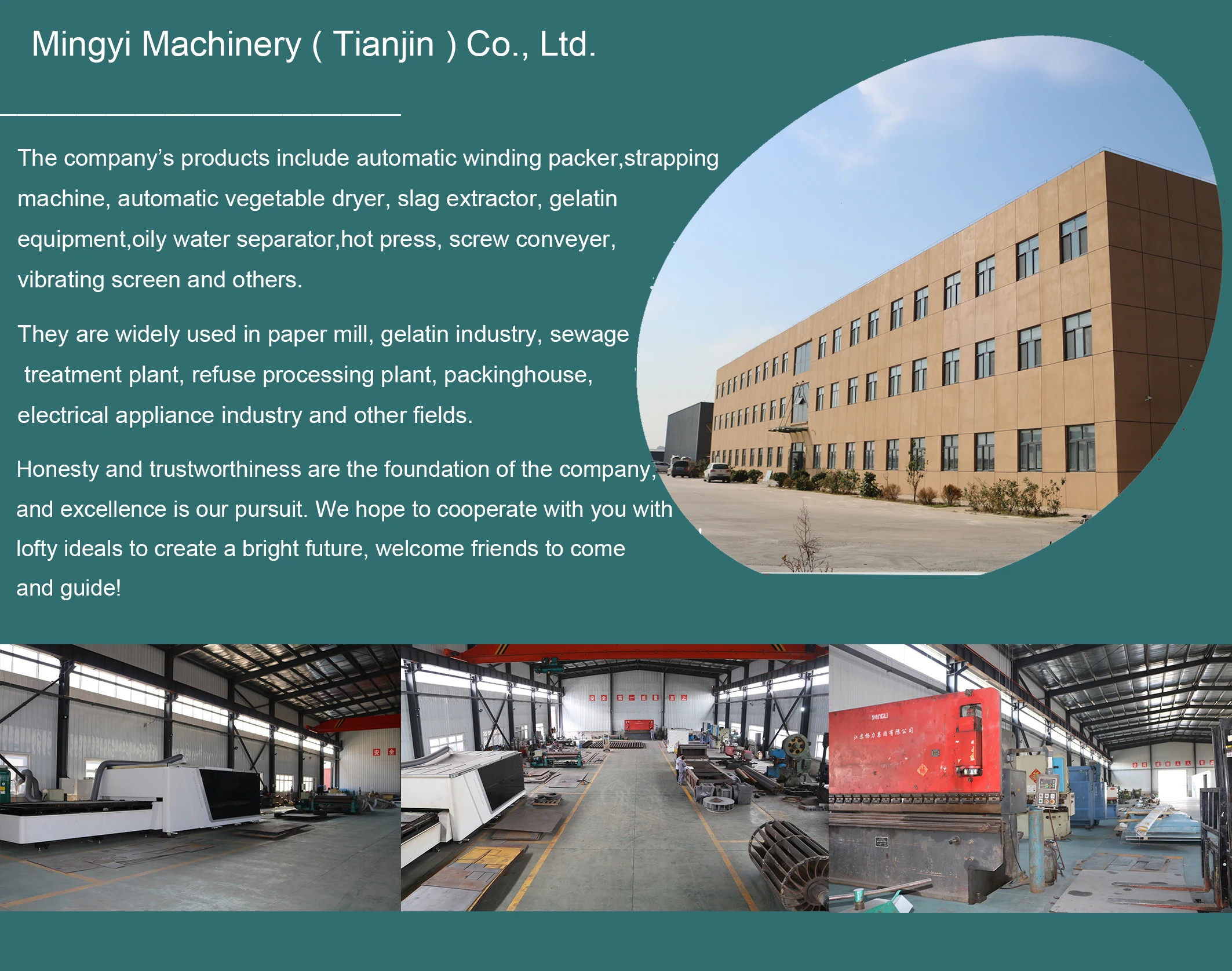

Company Profile
It is a company that integrates the research, design and customized development, production and sales services of mechanical
products. The company has been manufactured and exported in mechanical products for more than 10 years, it provides customized solutions and products for users. We provide professional and customized solutions for automatic wrapping machine, paper making machines, hot press, dished heads and other equipment, besides, we also provide CNC machining service and panel machining service, and our integrity, strength and product quality have been recognized by the industry!
With well-equipped professional engineers and strong technical ability, our company has been in this filed more than 10 years.
1. We cooperate with superior material suppliers to ensure the quality.
1. We cooperate with superior material suppliers to ensure the quality.
2. We do lots of tests on machine to ensure the high quality of the equipment before packing.
3. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support.
4. “ Keep Improving, Pursuing Excellence” is always kept forever.
* Before production, we will send the drawing of the product according to your requirements.
* During the production process, we will regularly send you the production situation and pictures.
* We will test the equipment before shipment and send you the photo and video.
* Warranty is 1 year. We will provide non-vulnerable accessories free during the warranty. We will provide on online video guidance if you have any questions. We will send engineers to your site for guidance if online video guidance can not solve the problem.
* During the production process, we will regularly send you the production situation and pictures.
* We will test the equipment before shipment and send you the photo and video.
* Warranty is 1 year. We will provide non-vulnerable accessories free during the warranty. We will provide on online video guidance if you have any questions. We will send engineers to your site for guidance if online video guidance can not solve the problem.
Customers & Feedback
Good reputation from customers!
Lots of our products have obtained patent certificates and they have been sold to Europe, Australia, USA, Chile, Russia and other countries. Our products have good impression on all of customers, it helps clients to save lots of manpower. The machinery also improve efficiency a lot, workers love them very much!
With good product quality and business reputation, we are deeply supported and loved by customers!
Certifications
Packing & Delivery

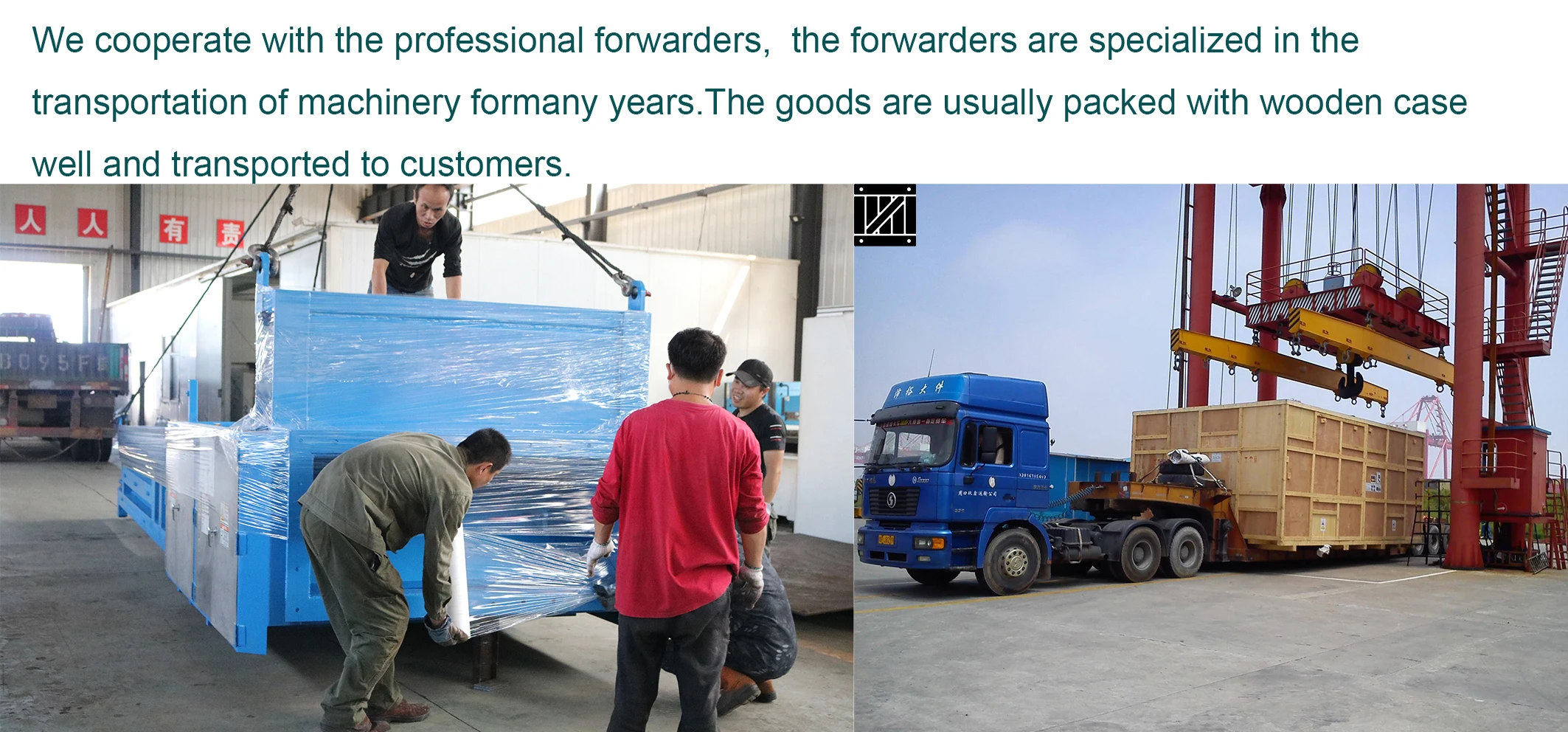

We cooperate with the professional forwarders, the forwarders are specialized in the transportation of machinery for many years. The automatic wrapping machine, hot press, non-woven fabric making machine, paper making machines and other equipment are usually packed with wooden case, and the CNC machining accessories, panel machining accessories, dished heads and hose pipe clamps are usually packed with carton or wooden case well, and then goods are transported to customers.
We support the multiple modes of transportation for customers' choose, including by sea, by truck, by air and others. Transportation modes depend on customers' requirements.
FAQ
Q: Are you manufacturer or distributor?
A: We are manufacturer and we established in 2010 and have more than 10 years’ experience.
Q: Do you have after sales support?
A: Yes, we provide 1 year warranty, and have good after-sales policy. We need your machines
Q: How do your machines compare with other big famous companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MINGYI machinery is ALIBAB’s Gold supplier. We have good impression among customers, and we have never got any complaint from our customers.
A: We are manufacturer and we established in 2010 and have more than 10 years’ experience.
Q: Do you have after sales support?
A: Yes, we provide 1 year warranty, and have good after-sales policy. We need your machines
running in order to keep business running.
Q: How do your machines compare with other big famous companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell only standard products?
A: No, we are able to make the machines according to customers’ requirements, company also provides customized solutions and products for users.
A: No, we are able to make the machines according to customers’ requirements, company also provides customized solutions and products for users.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MINGYI machinery is ALIBAB’s Gold supplier. We have good impression among customers, and we have never got any complaint from our customers.
