Product Overview
Description

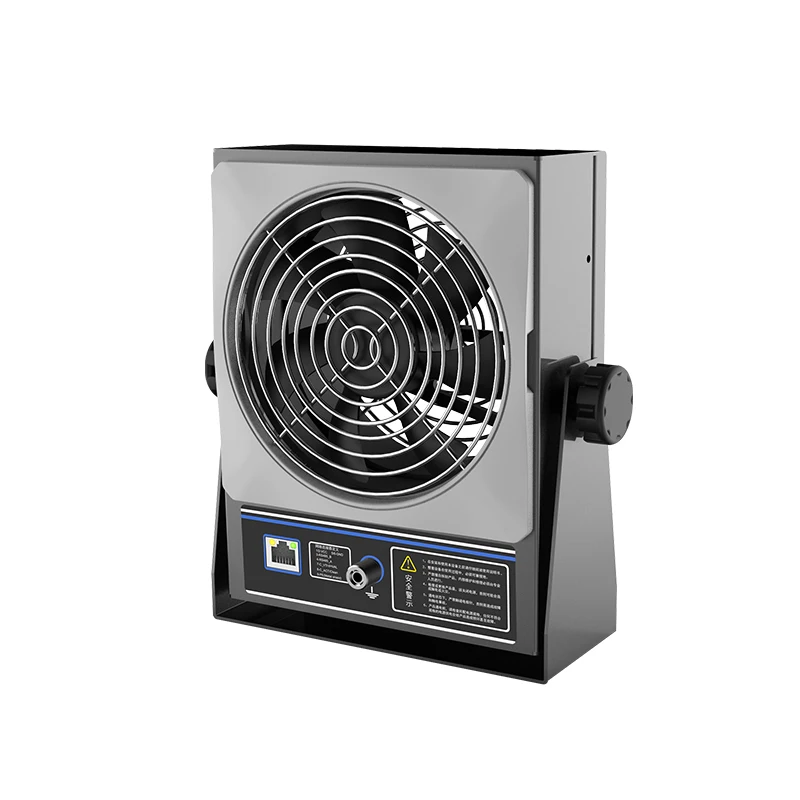

AP-DJ2811-5 intelligent desktop esd antistatic electric dc ionizing air blower
Related Products
Product Description
Industry application
Can be widely used in electronics, optoelectronics, semiconductors and other industries.
Features

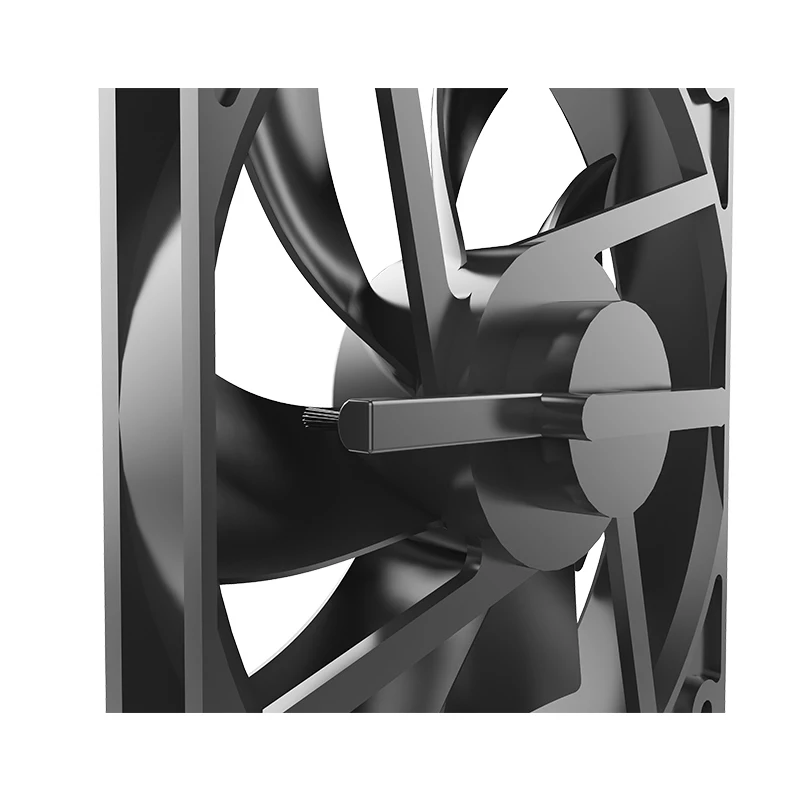

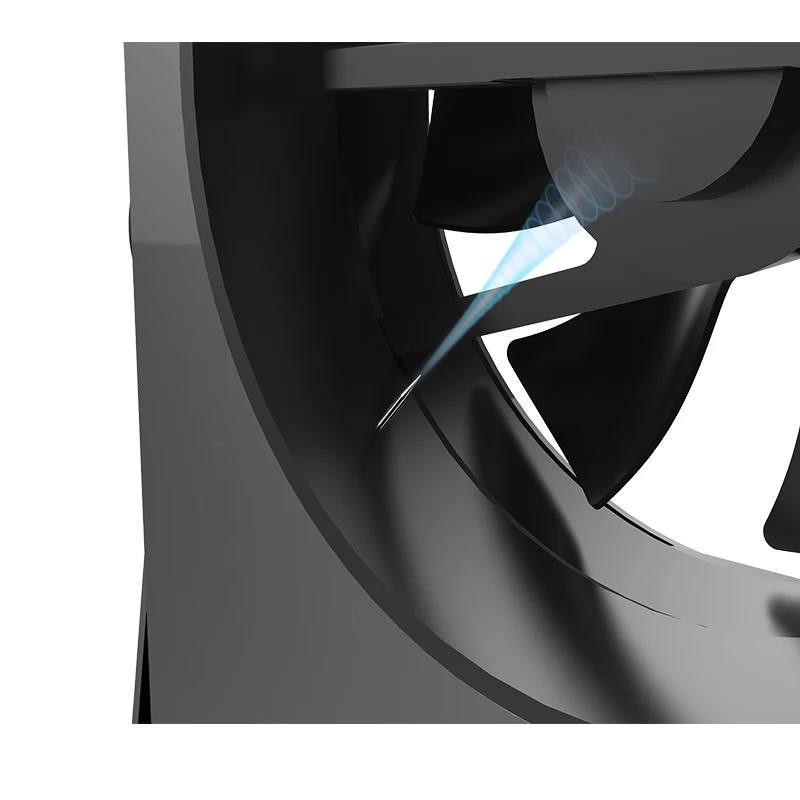

1. 8 emitters makes high ion volume and fast decay time;
2. Auto-cleaning when switch on;
3. Default auto-cleaning time every 8 hours, Artificial emitter cleaning maintenance free;
4. Five gears of stable fan speed;
5. LED display shows ID address , fan speed and cleaning time;
6. Duty ratio of positive and negative ion output adjustable to adjust ion balance;
7. Auto balance with range ±10V.
9. Light & Voice alarm when fan default and ion balance abnormal;
10. Remote control ion output When Plate or material surface with high positive static charge, Press “Fan+”“IB-”; When Plate or material surface with high Negative static charge, Press “Fan-”“IB+”
11. Support integrate control by PC, monitor working state of ion blower
12.CE certificated, with electromagnetic protection which will not cause electromagnetic interface to other equipment; It can also effectively avoid external electromagnetic interference and affect the normal operation of the fan.
Specification
Model No | AP-DJ2811 |
Input voltage | DC 24V (dual RJ45 interface) |
Input current | <0.6A |
Output voltage | DC±5KV→±5.5KV |
Power | <14.5W |
Ion emission | DC |
Emitter electrode | Tungsten |
Discharge range | 750*300mm(L*W) |
Air volume | <179CFM |
Noise | <75dBA(150mm from air outlet) |
Ozone thickness | ≤0.05ppm(150mm from air outlet) |
Ion balance | ≤|±10V| |
Discharge speed | ≤1.5S(300mm from air outlet) |

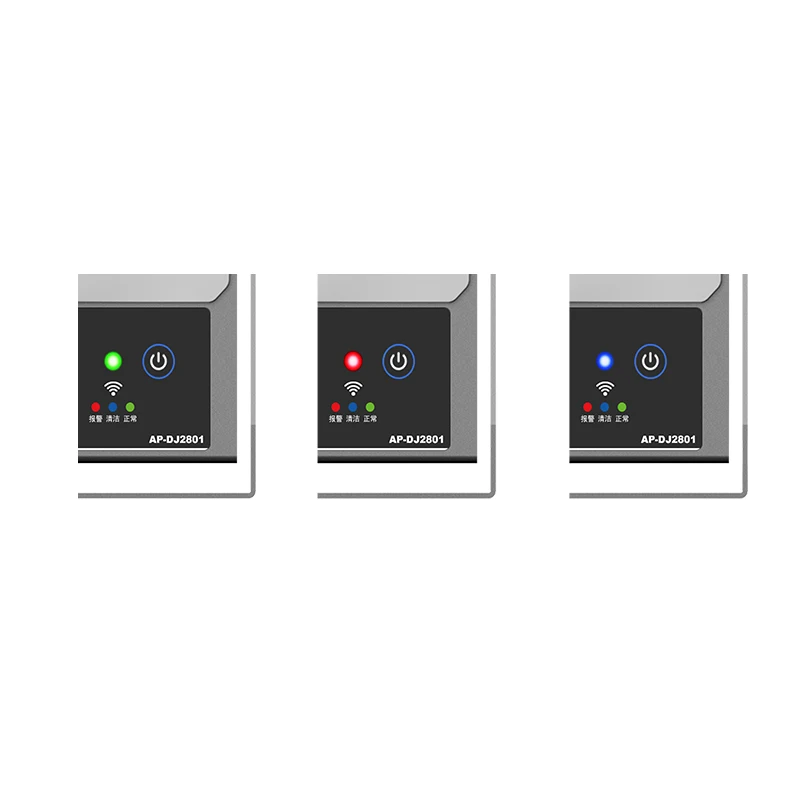

Alarm indication | Boot instant-blue light Normal working -Green light(Under monitoring) Fan alarm -Red light flash with beeping Ionization abnormal-Red light slow flash with beeping Blue light blinks when infrared debugging |
Working temperature | 0℃-50℃ |
Working humidity | <70%RH |
Dimension | 177*81*205.5mm(L*W*H) |
Power adaptor | 1. Interface power supply (default configuration): INPUT: AC100—240V 50 / 60Hz; OUTPUT: DC24V 2A (dual RJ45 interface) 2. Jack-type power supply (customized): INPUT: AC100—240V 50 / 60Hz; OUTPUT: DC24V 2A (5.5 * 2.5 single male head) |
Integrated power supply (Optional) | INPUT:AC100—250V 50/60Hz OUTPUT: DC24V 2A (16 RJ45 interfaces) |
Communication method | RS485 |
Shell material | Aluminum dusting |
Installation accessories | 1 pair of U-shaped aluminum powder spraying mounting bracket, 2 pairs of stainless steel screw handles (M5 × 8) |
Weight | Bare metal (including bracket) 1125g |
Net weight (network cable, power cord, adapter, remote control) 1590g | |
Gross weight 2080g | |
Quality assurance | 1Year |
Certificate | CE |
Our Services
Pre-sale Service
When consulting a product, please clearly inform the salesperson of your requirements for the product. Due to the professionalism of the products, the product requirements of different industries environmental are different. Our salesperson's product knowledge is very professional and can quickly help you choose the right product.
After-sale Service
Except for consumables and non-human damage, our products are guaranteed for one year. If you have any questions during working, please contact us in time. We also have a professional after-sales team and maintenance department, so you can rest assured to buy.
FAQ
Q1: What is your MOQ?
A: MOQ is 1 piece, which varies with different products.
Q2:What industry can be used?
A:Wildly used in semi conduct, encapsulation, opto-electrical, electronics, communication, spray finishing, printing, textile, pharmaceutical equipment, construction material, injection molding industries and so on.
Q3:Are you Manufacturer?
A:Yes,100% manufacturer.Also we have brand company in Guangzhou and in India.
Q4:What services do you have?
A:Professional pre-sale services,saling services and Afer-sale services.Make you worry-free shopping.
Q5:How to find the right products?
A:Recommend the corresponding product according to the actual situation of the customer, and tell the customer the effect that can be achieved after use.
Q6:How to maintain the product later?

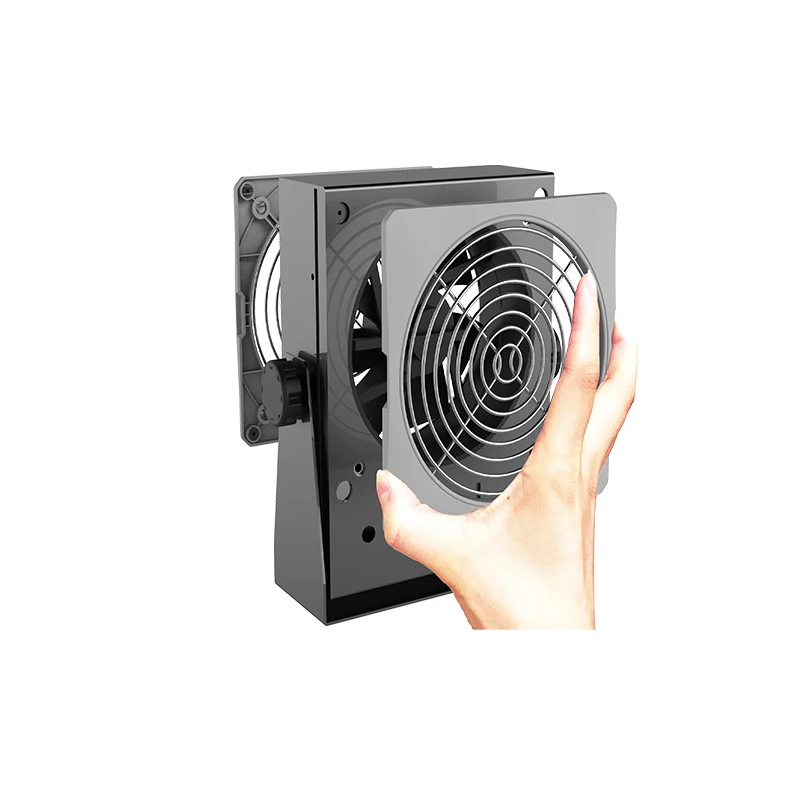

A:Regularly clean the electrode needle, gently wipe the electrode needle with a cotton swab, and power off for ten minutes.
