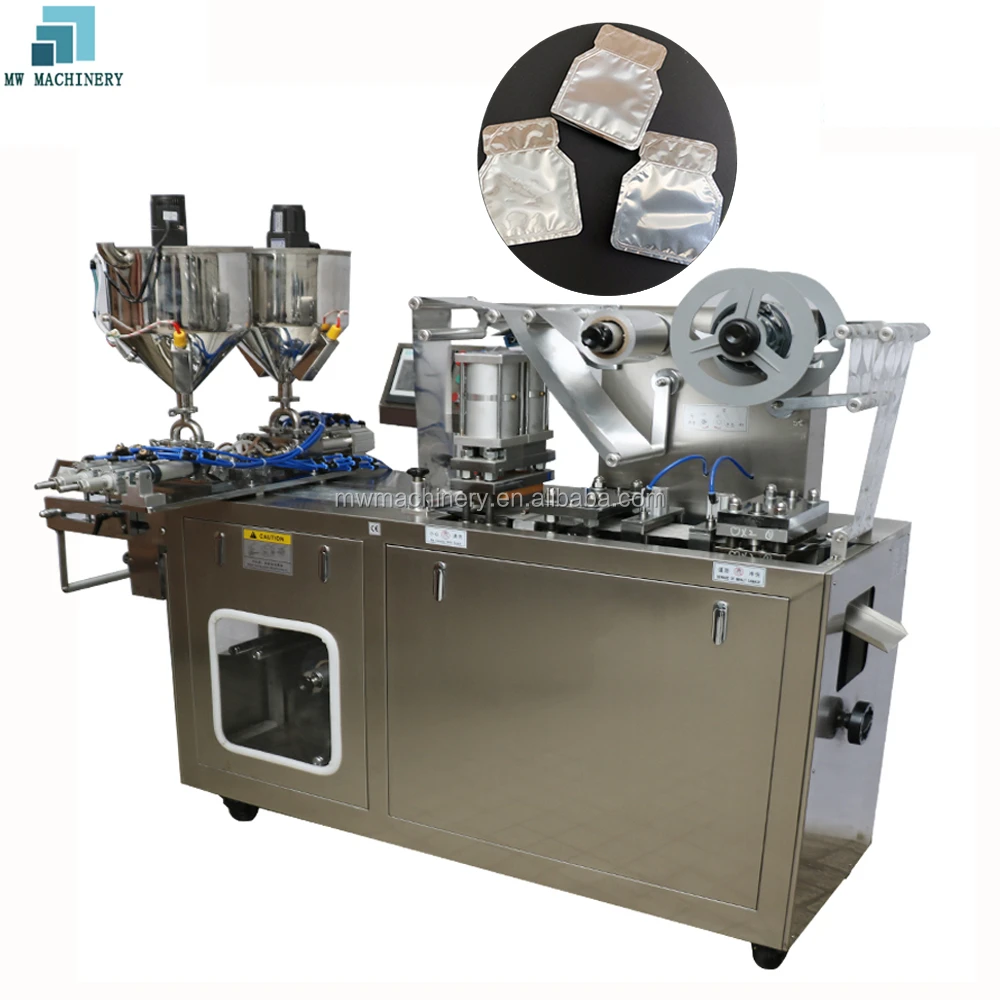

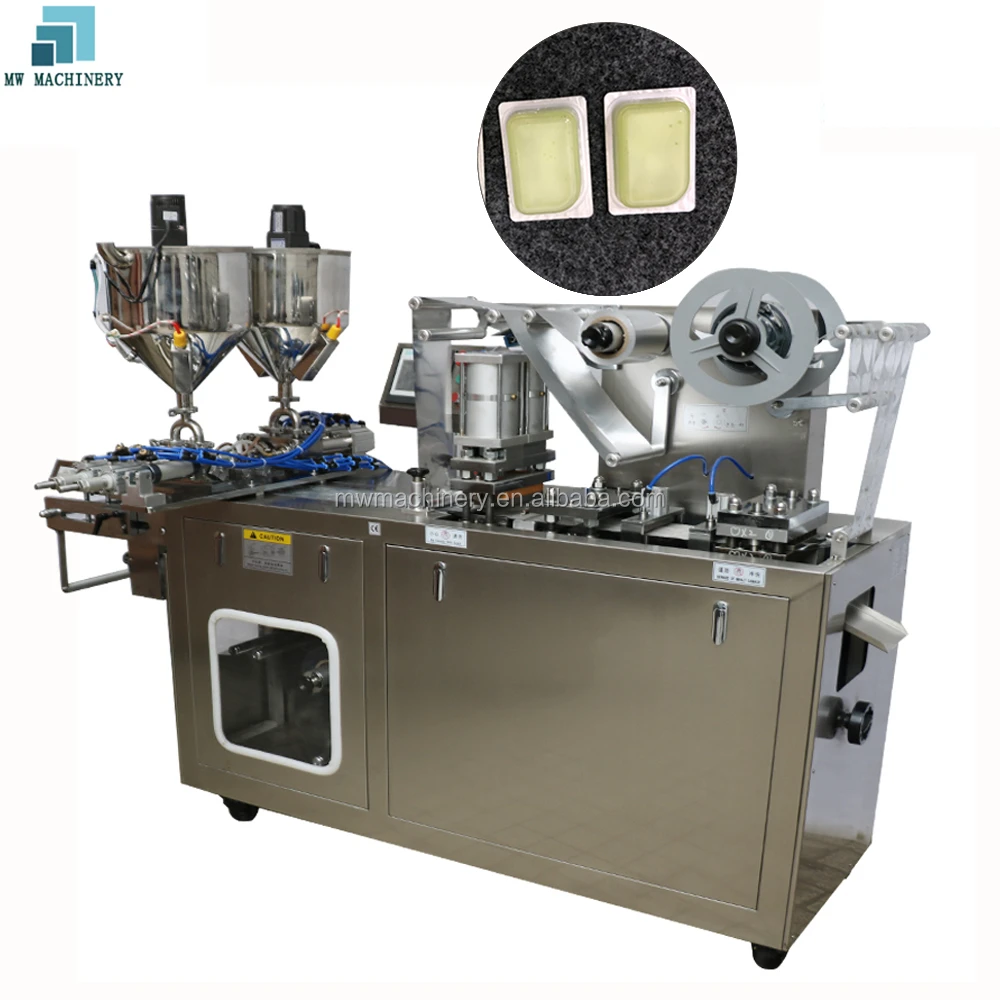

Good Performance Tomato Sauce Coconut Oil Hair Shampoo Jam Ketchup Packaging Machine
- Category: >>>
- Supplier: Guangzhou Mingwen Pharmaceutical Equipment Co. Ltd.
Share on (1600426145557):
Product Overview
Description
Products Description
Scope of application

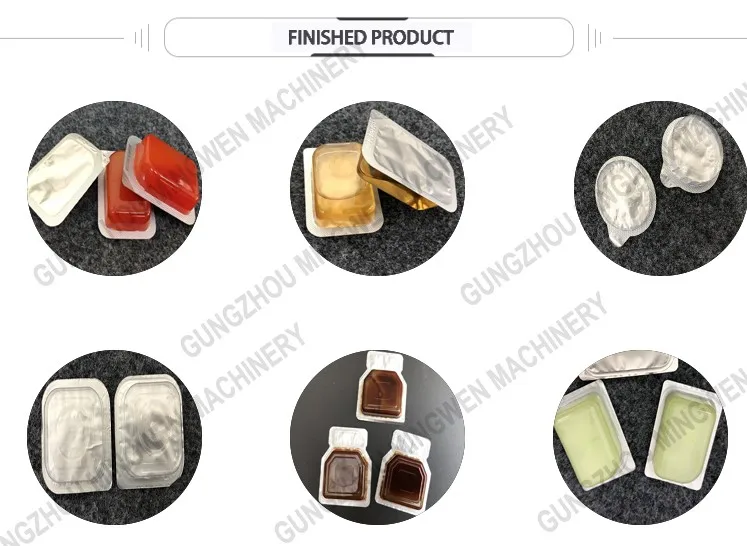

Automatic Pill Blister Packing Machine is widely used for Honey,Sauce, Butter,Cream and so on , ALU-plastic sealing packing.
Automatic Pill Blister Packing Machine is widely used for Honey,Sauce, Butter,Cream and so on , ALU-plastic sealing packing.
Full Features
1.machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.
1.machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good ex-changeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concave-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.

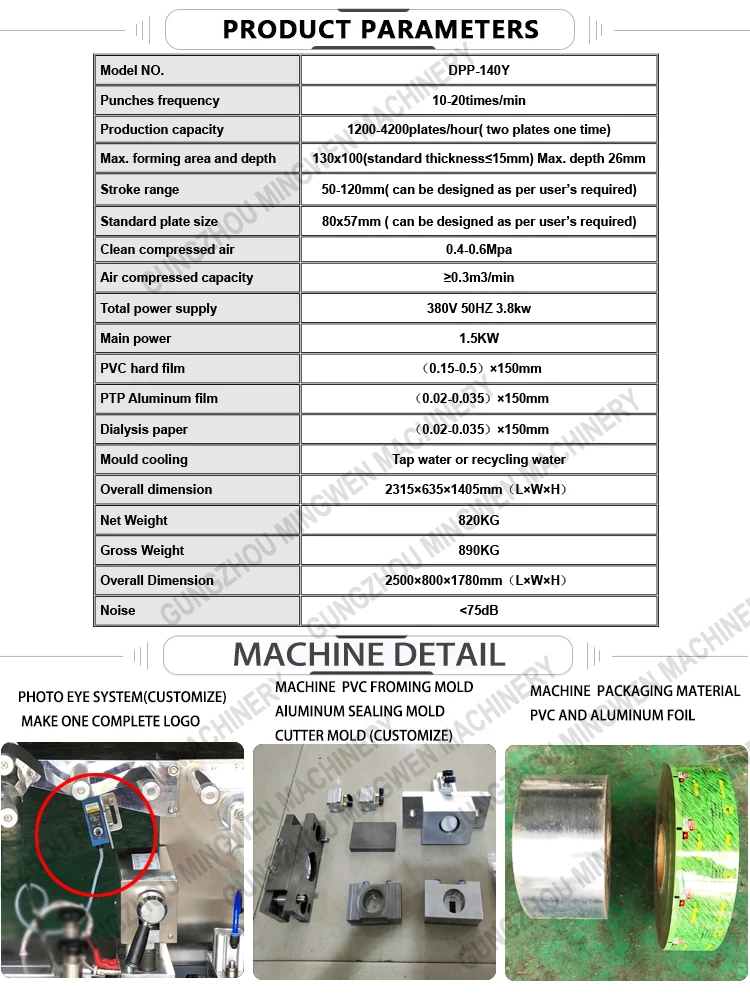

Model | DPP-140Y |
Capacity (Pcs/h) | 1200-4200 plates/hour ( two plates one time) |
Max. Forming area & Depth | 130x100 (standard thickness≤15mm) Max. depth 20mm |
Standard Stroke range | 50-120mm (can be designed as per user’s required) |
Standard plate size | 80x57mm (can be designed as per user’s required) |
Air pressure (Mpa) | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m³/min |
Total power supply | 380V 50HZ 3.8kw |
Main motor | 1.5KW |
PVC hard Film | (0.15-0.5)×150mm |
PTP Aluminum film | (0.02-0.035)×150mm |
Dialysis Paper | (0.02-0.035)×150mm |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 2315×635×1405mm(L×W×H) |
Net weight | 820KG |
Gross weight | 890KG |
Packaging size | 2500×800×1780mm(L×W×H) |
Noise index | <75dBA |
More Details
Packaging & Shipping
Company Information
Customer photo and feedback
Our Service
FAQ
1. How to find a machine suitable for my product?
Tell me about your product details and show me your product picture if you have, and tell us more details.
2. Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufactures and have engaged in the packing R&D and production for over 20 years.
4. What's your payment way?
2. Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufactures and have engaged in the packing R&D and production for over 20 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
7. Why we should choose your company?
We are professional in packing machines for over 20 years, and we provide better after-sales service.
You guarantee no risk for our deal.
