Containerized seawater desalination system
Could become Skid-mounted design


fastRO C series containerized seawater desalination system

fastRO Container series (hereinafter “fastRO C”) seawater reverse osmosis system is a containerized desalination solution, with most parts installed into 1 or 2 containers, and freshwater production capacity of 55 to 2,016 m 3 /day (2,300 – 84,000 liters/hour). Multi-media filter (MMF) will be common set-up, -S version without MMF (turbidity < 1 NTU) for better feed water is available. The water intake recommendation, extra pre-treatment and post-treatment customizing, installation guide commissioning and training services could be provided by the QT upon request.

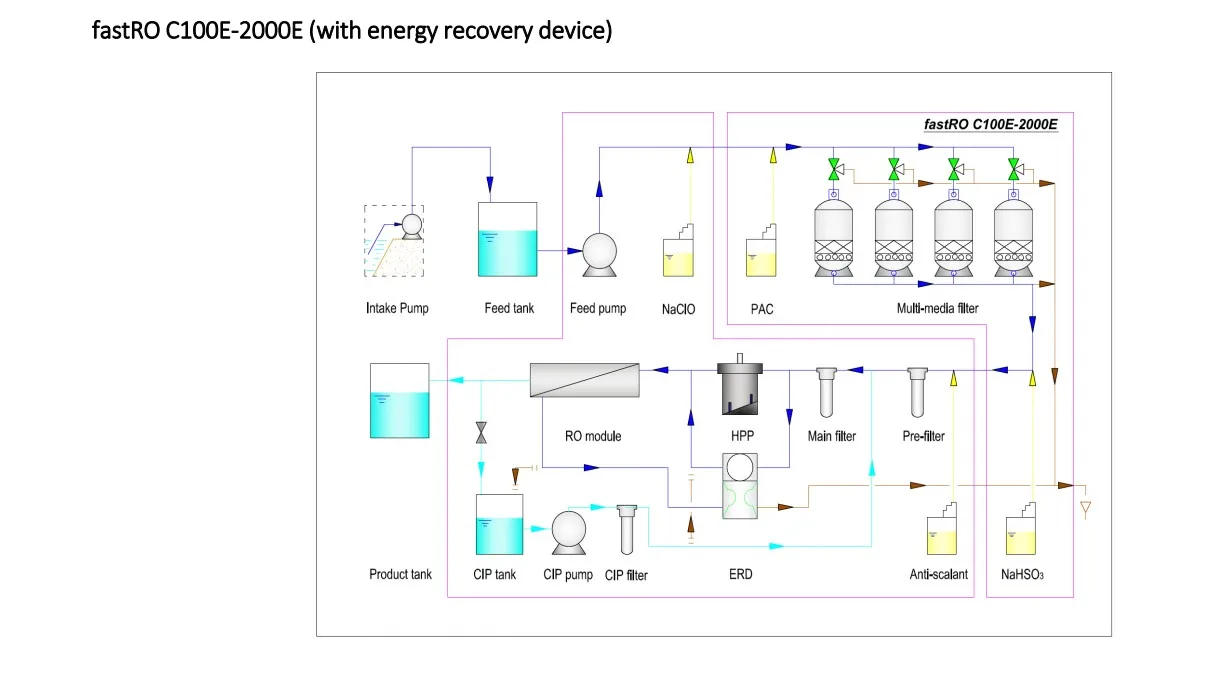

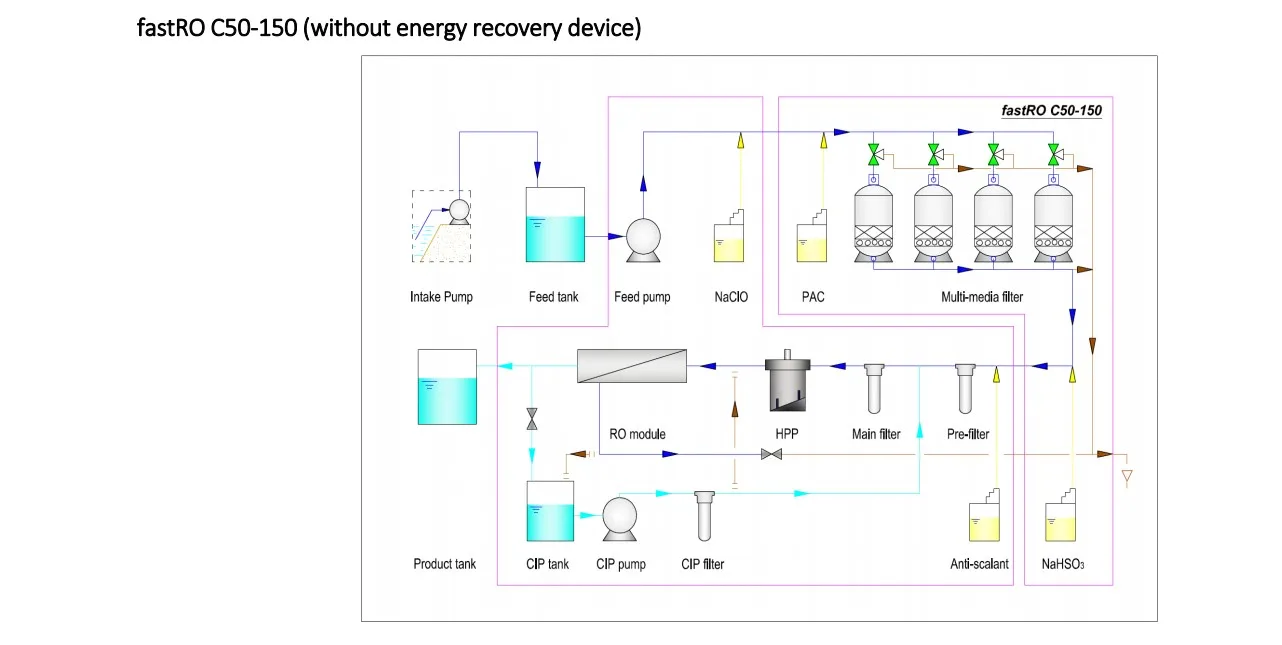

Process Flow Diagram






The desalination process is based on Reverse Osmosis (RO) technology. The process starts by filtering particles from feed water through multi-media filter (No need to use multi-media filter if the feed water turbidity is lower than 1 NTU), then entering the high-pressure pump. Fresh water is pressurized out through the membrane, while concentrated water is discharged after pressure relief/energy recovering (by energy recovery device).

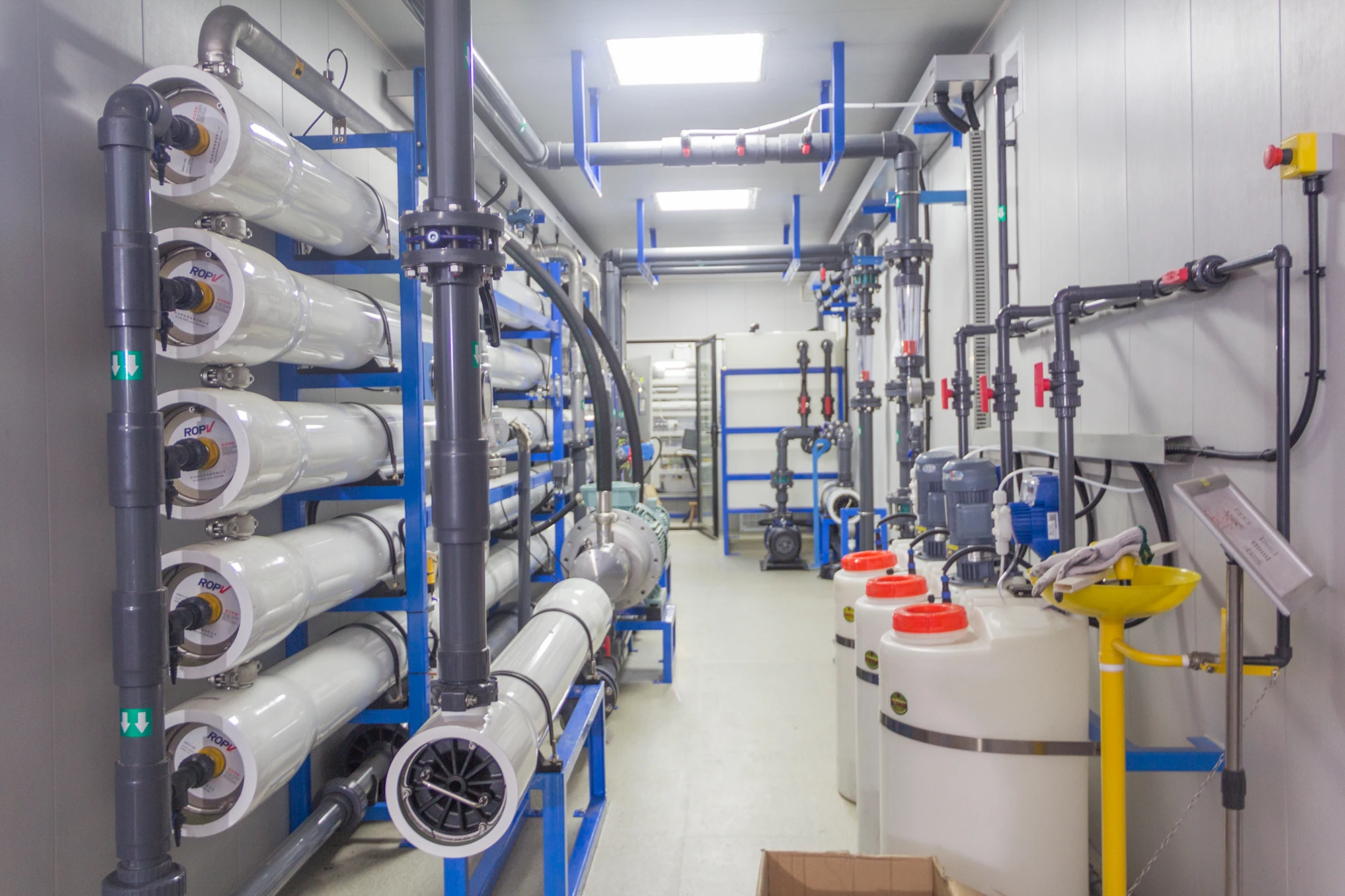

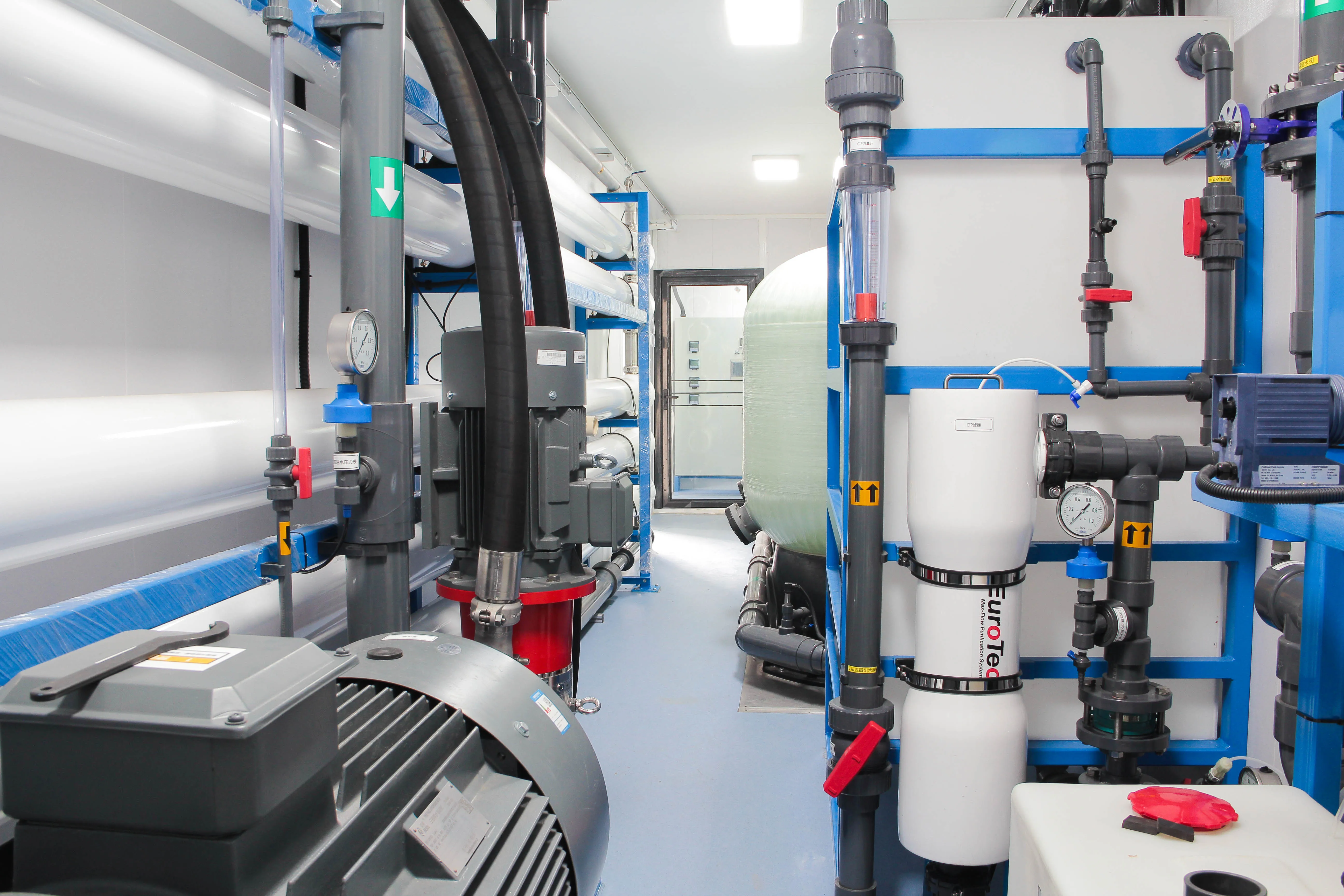

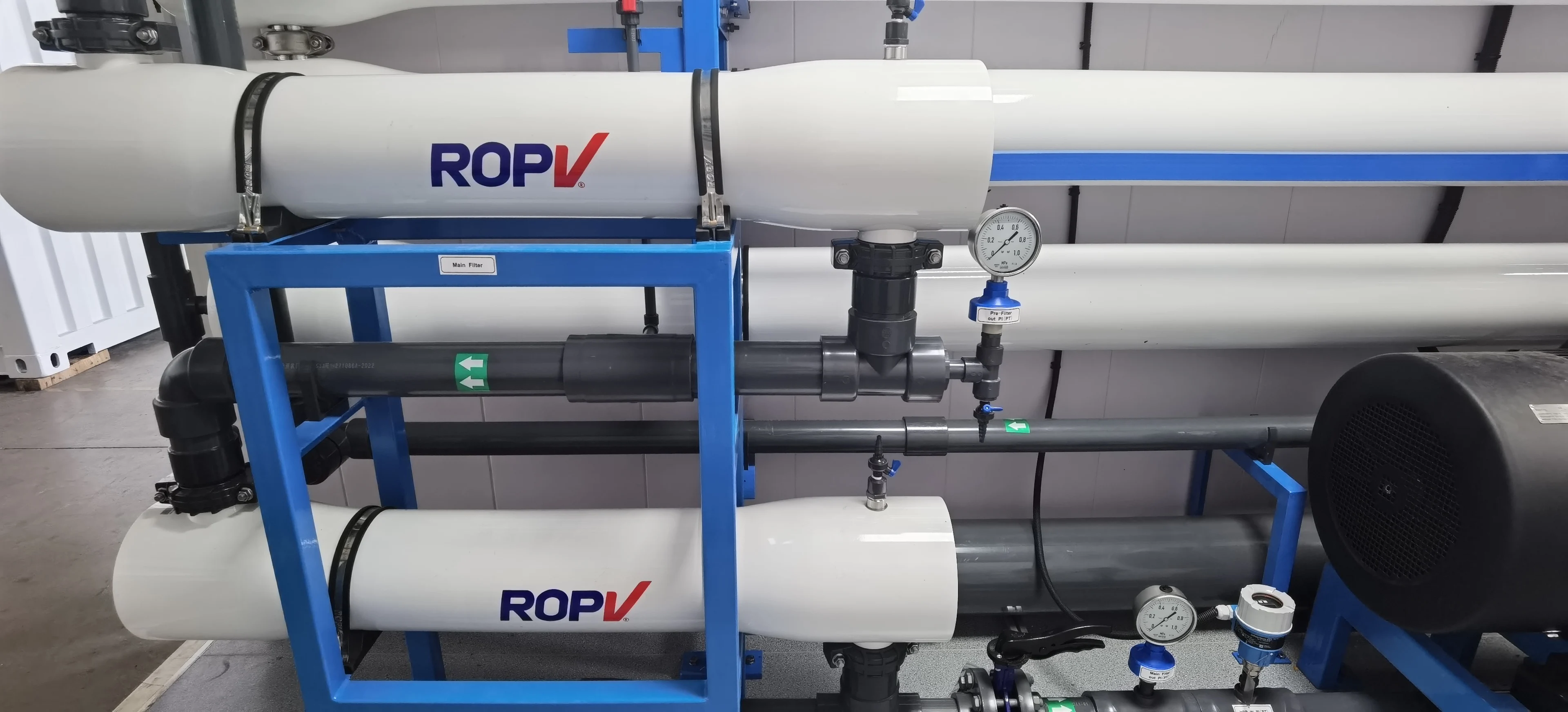

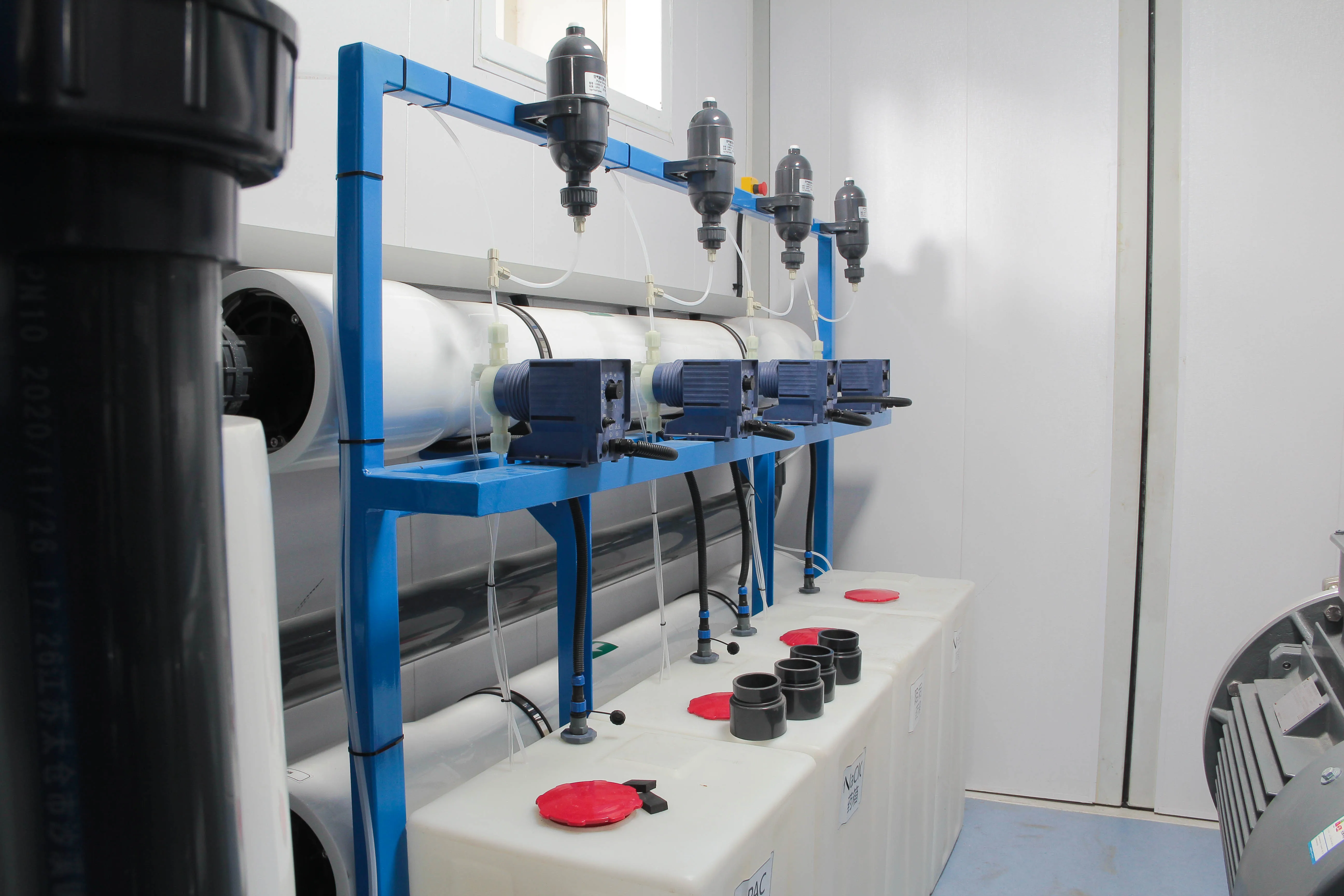

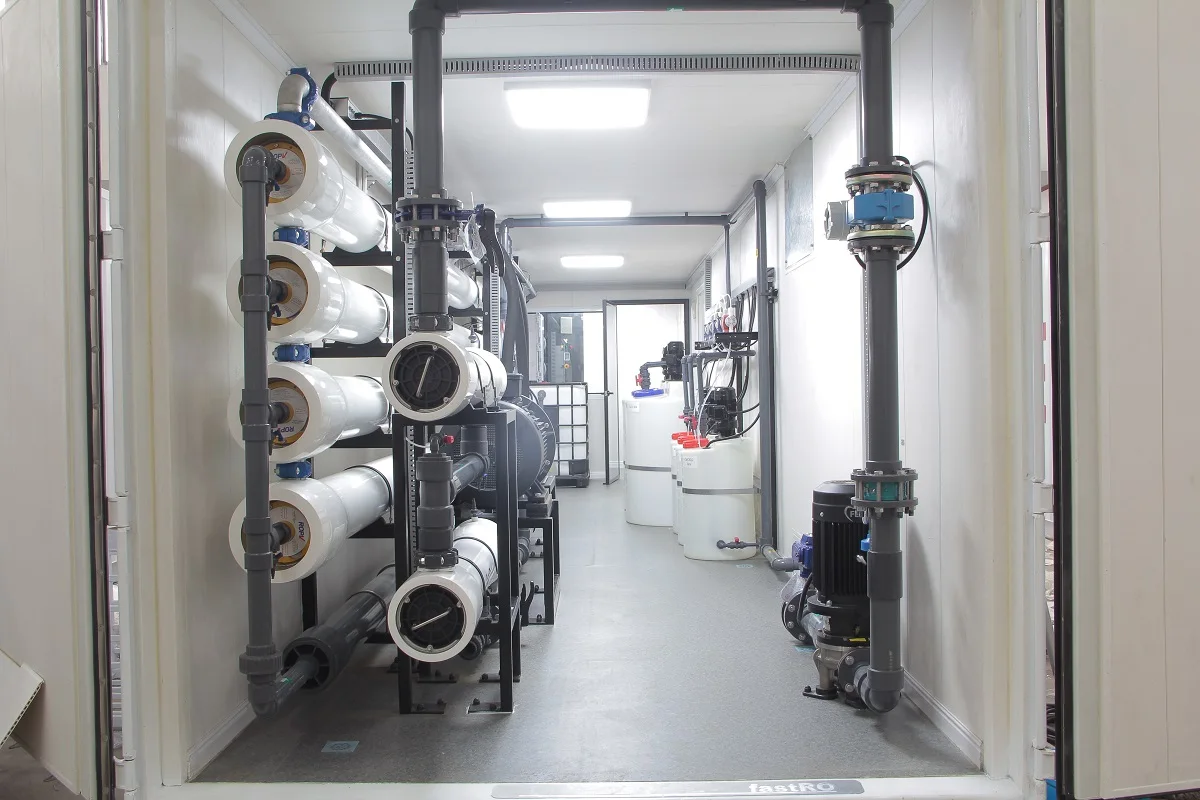

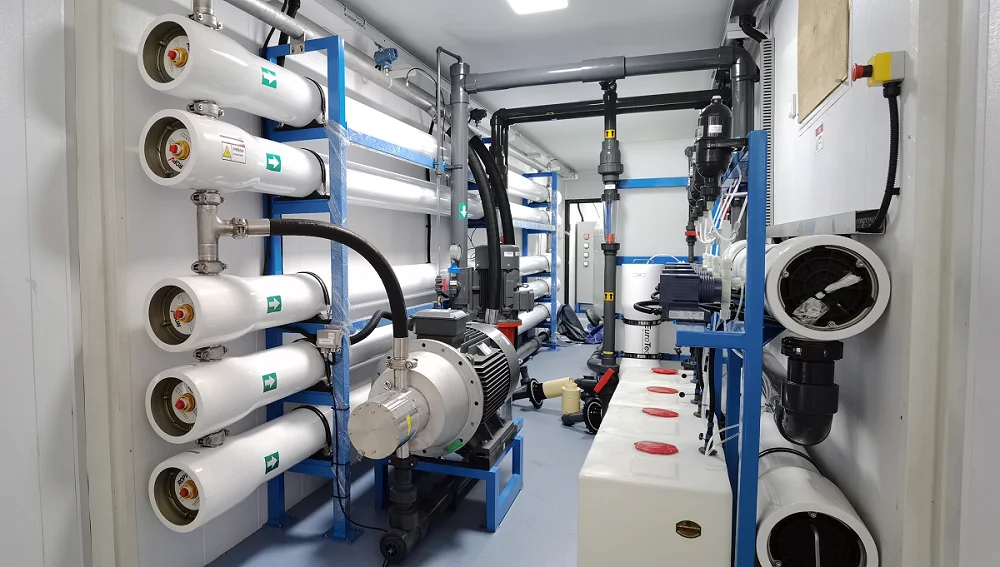

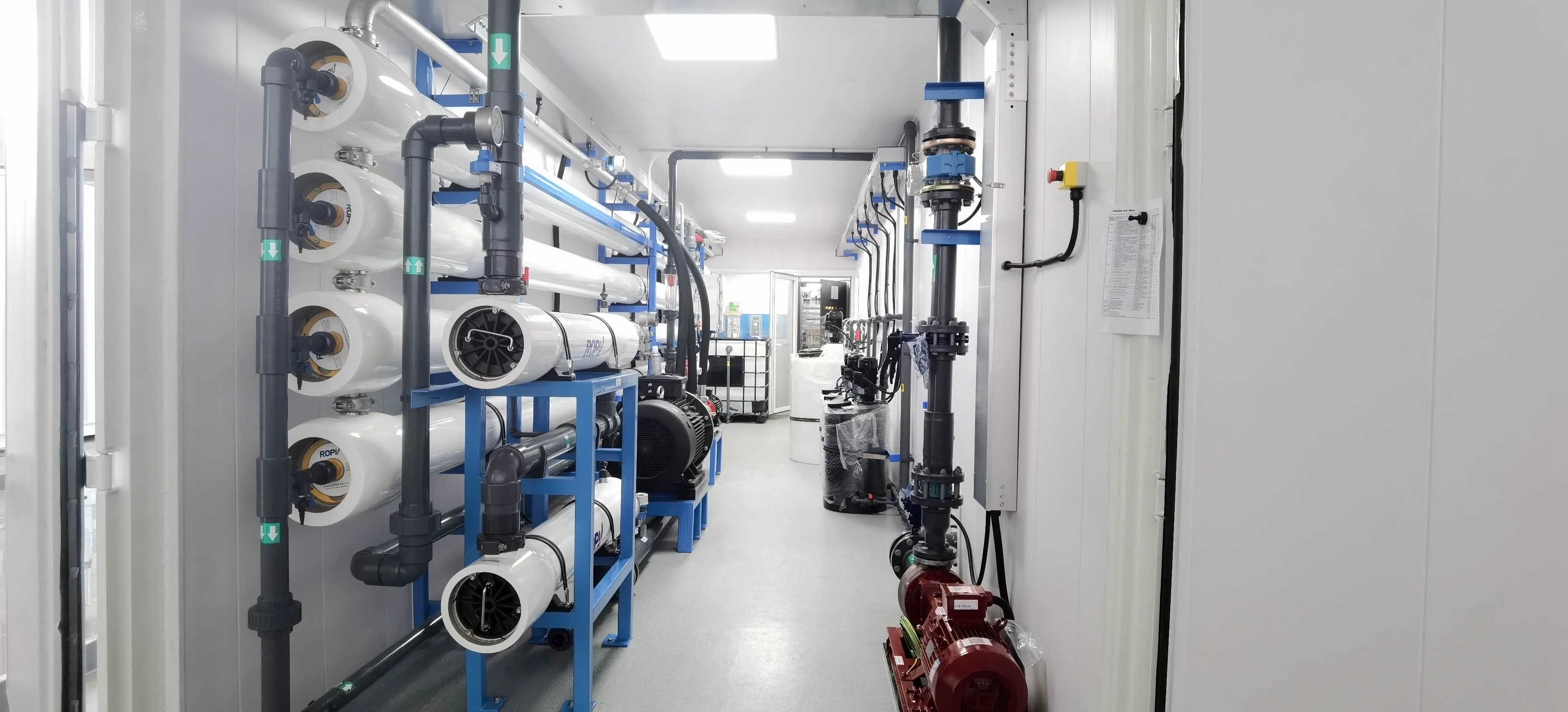

Product Gallery




C500E (Power Plant)
C350E (Water Plant)




C350E (Water Plant)
C500E (Power Plant)

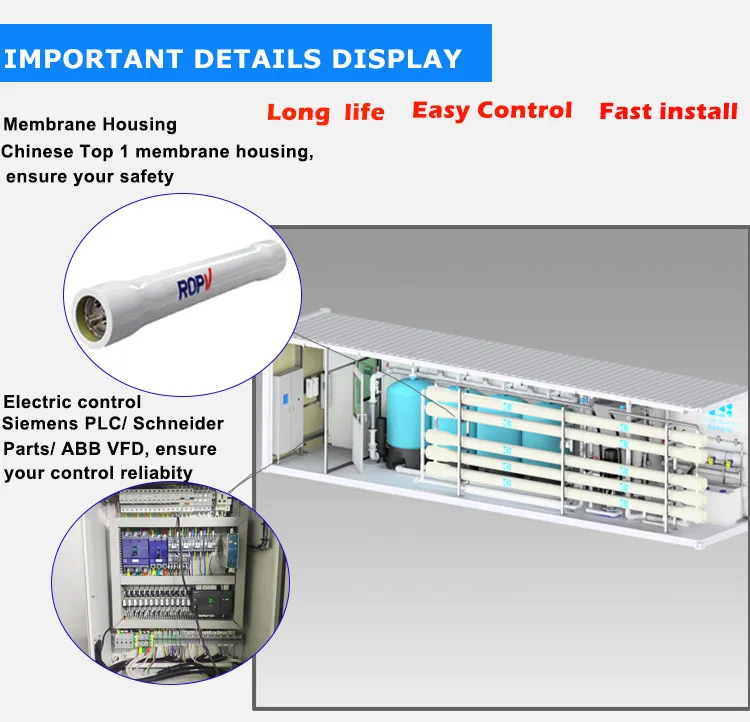

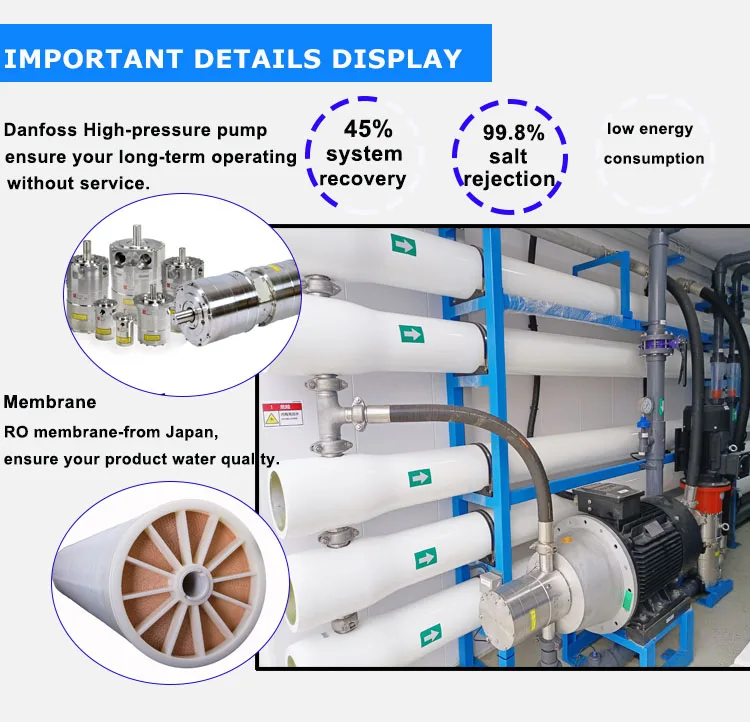

Product Advantage


Advantage:

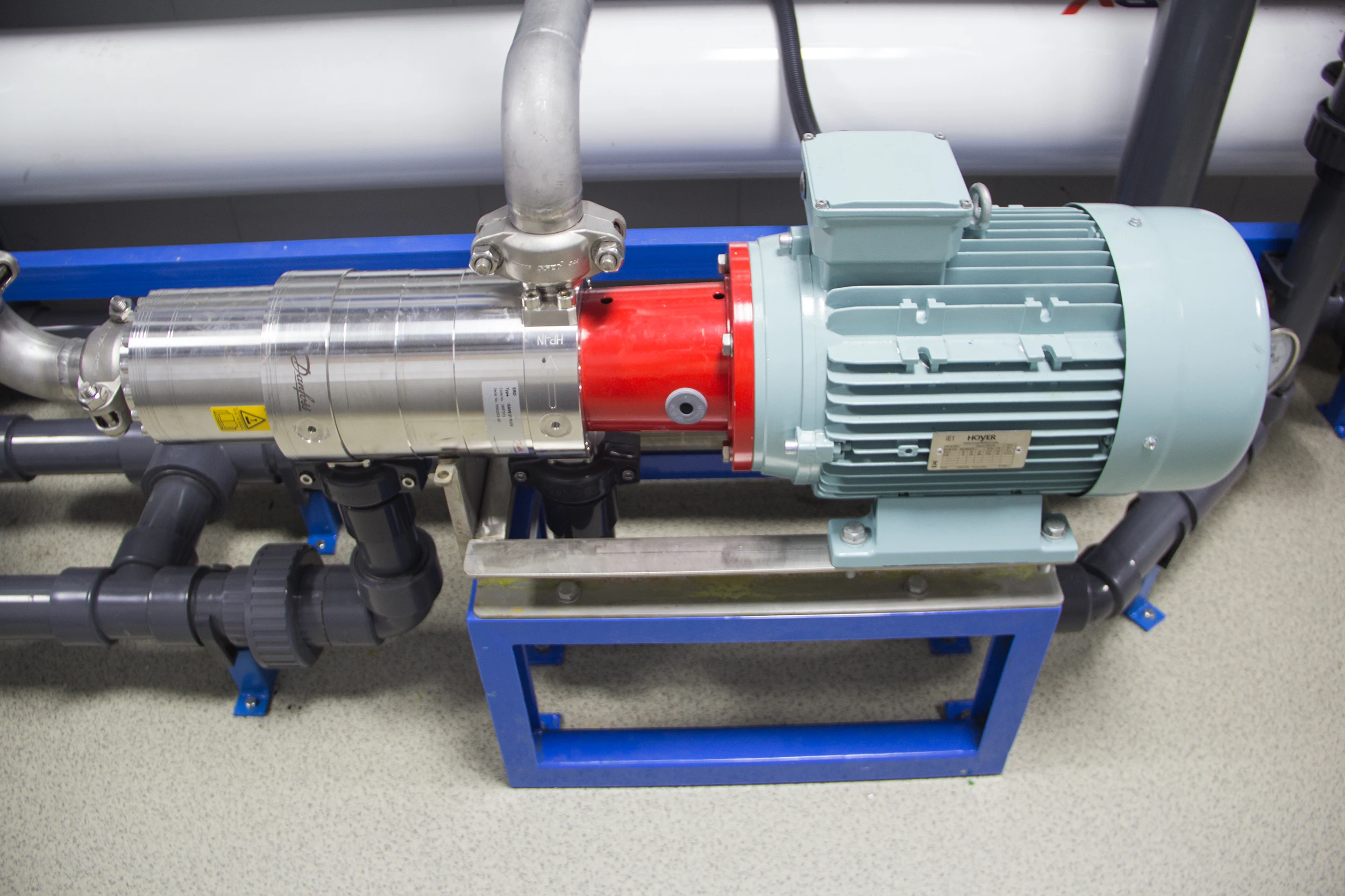

● Long life, non-corrosive duplex pump and piping (duplex and plastic), waterproof design and reliable parts from Danfoss, Toray, Wika, Schneider and Siemens.
● Fast installation, all built-in design.

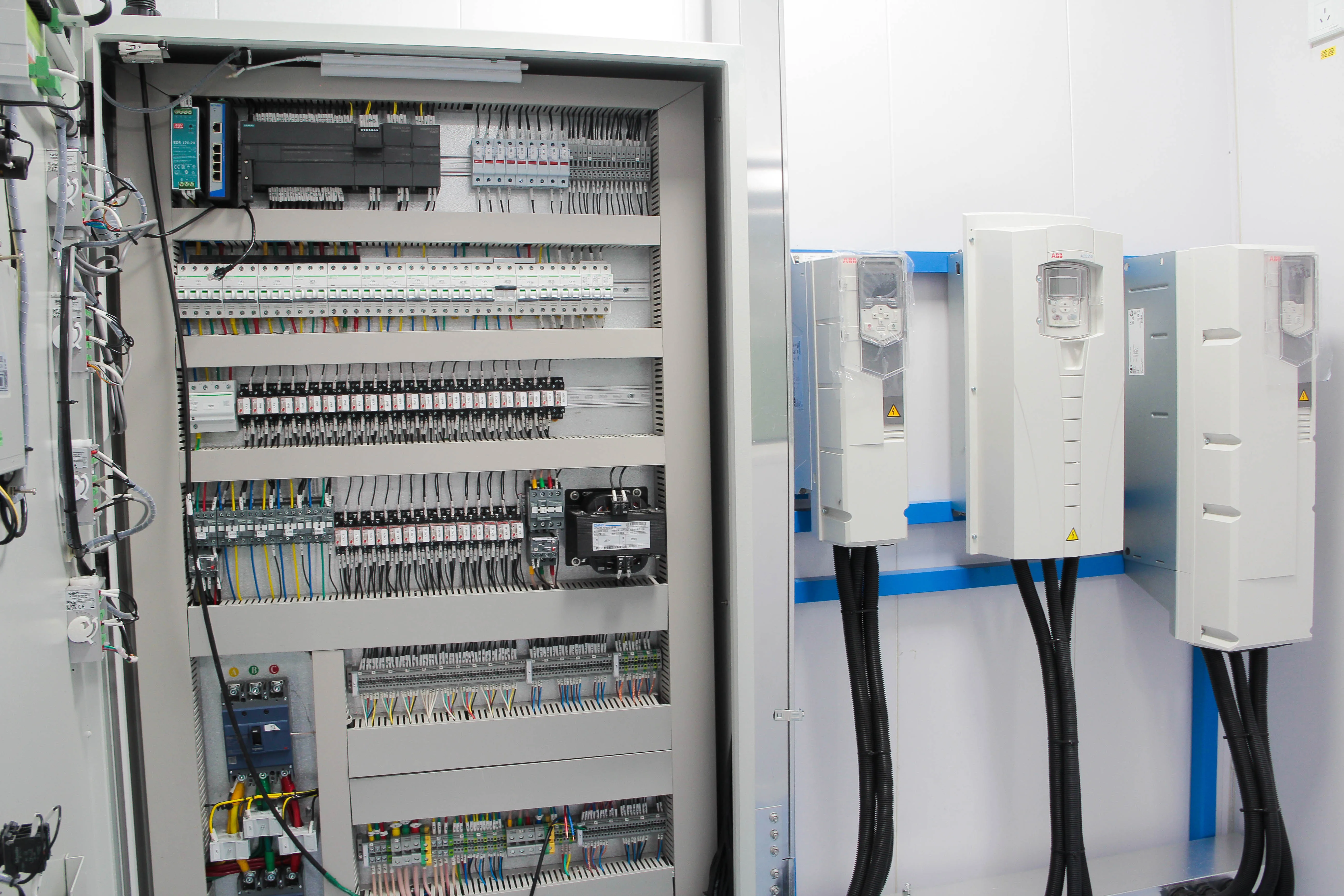

● Easy control, no need experienced operator, PLC & touch screen control, simple one button ON/OFF.

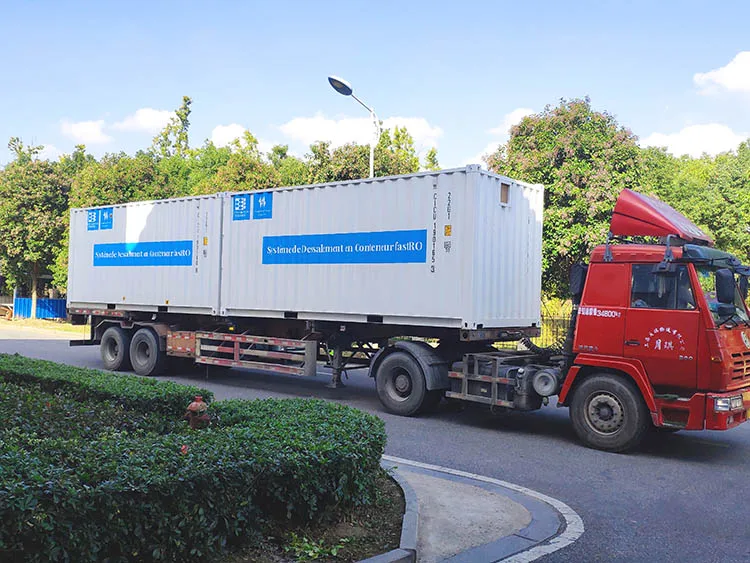

● Easy transportation, containerized design.
● Optional color kit which allow for customized painting.


Product Paramenters


Technical Data
unit
C50
C80
C100
C150
C100E
C150E
C200E
C300E
                                Rated Product Flow
m3/h
2.3
3.5
4.5
6.5
4.5
6.5
9.8
12.5
L/S
0.64
0.97
1.25
1.81
1.25
1.81
2.72
3.47
Rated Recovery Rate
%
35
35
35
35
35
35
35
35
Rated Feed Flow
m3/h
6.6
10
12.9
18.6
12.9
1.86
21.8
27.8
Min System Pressure
barg
20
20
20
20
20
20
20
20
Max System Pressure
barg
70
70
70
70
70
70
70
70
RO Membrane Spec.

8040
8040
8040
8040
8040
8040
8040
8040
RO Membrane Qty.
pcs
4
6
8
12
8
12
18
21
Weight(dry)
ton
4
5
5
6
5
6
10
11
Container size
ft
20
20
20
20
20
20
40
40
Type-s container size
ft
20
20
20
20
20
20
20
20
Rated Power
kw
13.4
20.1
25.6
36.1
13.0
18.1
25.5
34.1
Energy Consumption
kwh/M3
5.81
5.73
5.6
5.55
2.88
2.78
2.60
2.73
Installed Power
kw
18.9
25.9
36.2
52.2
22.7
27.78
37.3
47.3


Technical Data
unit
C400E
C500E
C800E
C1000E
C1200E
C1500E
C2000E
                                Rated Product Flow
m3/h
16.7
21.5
33.5
42
52
65
84
L/S
4.64
5.97
9.31
11.67
14.44
18.06
23.33
Rated Recovery Rate
%
45
45
45
45
45
45
45
Rated Feed Flow
m3/h
37.1
47.8
71.1
93.3
115.6
144.4
186.7
Min System Pressure
barg
20
20
20
20
20
20
20
Max System Pressure
barg
70
70
70
70
70
70
70
RO Membrane Spec.

8040
8040
8040
8040
8040
8040
8040
RO Membrane Qty.
pcs
28
35
56
70
84
105
144
Weight(dry)
ton
13
13
16+8
20+8
26+9
30+10
36+10
Container size
ft
40
40
40+40
40+40
40+40
40+40
40+40
Type-s container size
ft
40
40
40
40
40
40
40
Rated Power
kw
48.0
60.3
87.3
113.6
141.8
183.1
221.8
Energy Consumption
kwh/M3
2.88
2.80
2.74
2.71
2.73
2.82
2.64
Installed Power
kw
61.3
86.8
134.9
161.9
213.9
265.9
320.9


 Applications:
● Construction site
● Municipal use for Island and coastal residents
● Offshore platforms
● Industrial/Agriculture
● Mobile water plants


Related Products




Company Profile


QT ENVIRO-TECH (SUZHOU) LTD
"Processing seawater and wastewater into valuable resource", QT ENVIRO-TECH LTD is aiming to be a leading system builder specializing in desalination. With the support of 30-year expertise, we offer seawater/brackish water/waste water desalination system with reliability and cost efficiency. With us your business will be safe.






Certifications




Product packaging




FAQ


Q:What's the information you need to know before Inquiry?
A:1.Type of raw water.
2. Raw water quality report.
3.Water quality requirements for produced water.
4.Brands of important accessories.

Q:How can I know your machine works well?
A:Before delivery, we shall test the machine working condition for you.

Q.Are you a factory or trading company?
A:Ours is a water treatment machinery and equipment factory with 30 years of design experience.

Q: How much will it cost?
A:The price is affected by water quality, process, configurations, etc.
Provide the above information to get a quote quickly.

Q:Where is your factory located? How can I contact you?
A:Name: QT Enviro-Tech (Suzhou) Ltd.
Add.Block 3, No. 2 Shuangma St, Suzhou, China
Tel.:+86 512 8666 9191
Fax:+86 512 8666 9191-807
Website:www.iDesalt.com

Q:How long is your delivery time?
A:Nomally 6-10 weeks
