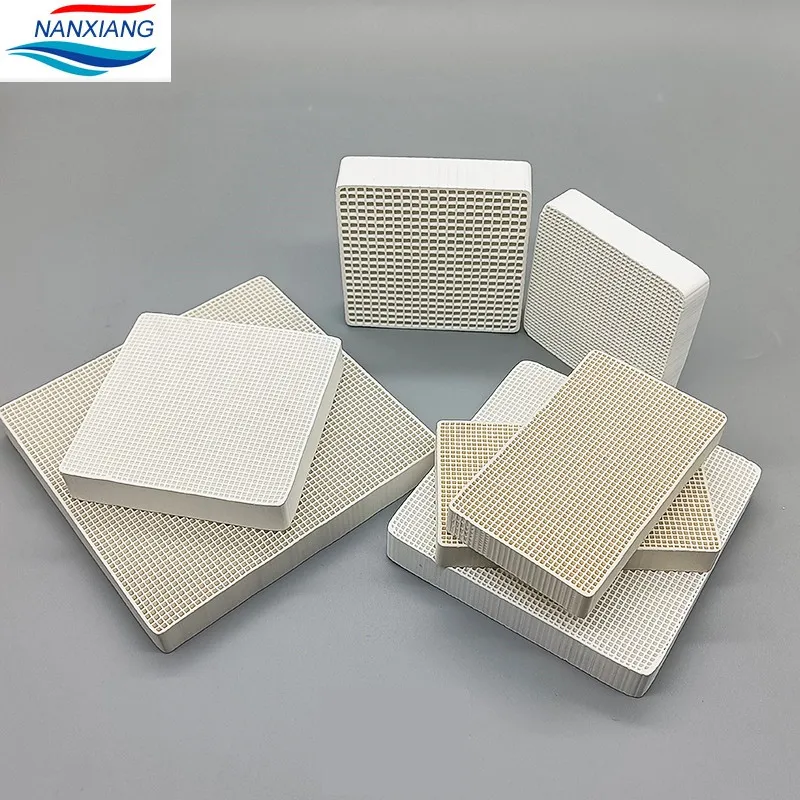

Cordierite, mullite, alumina honeycomb ceramics, heat storage body, catalyst carrier ceramic substrate
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1600426226266):
Product Overview
Description
Products Description
Precision ceramics

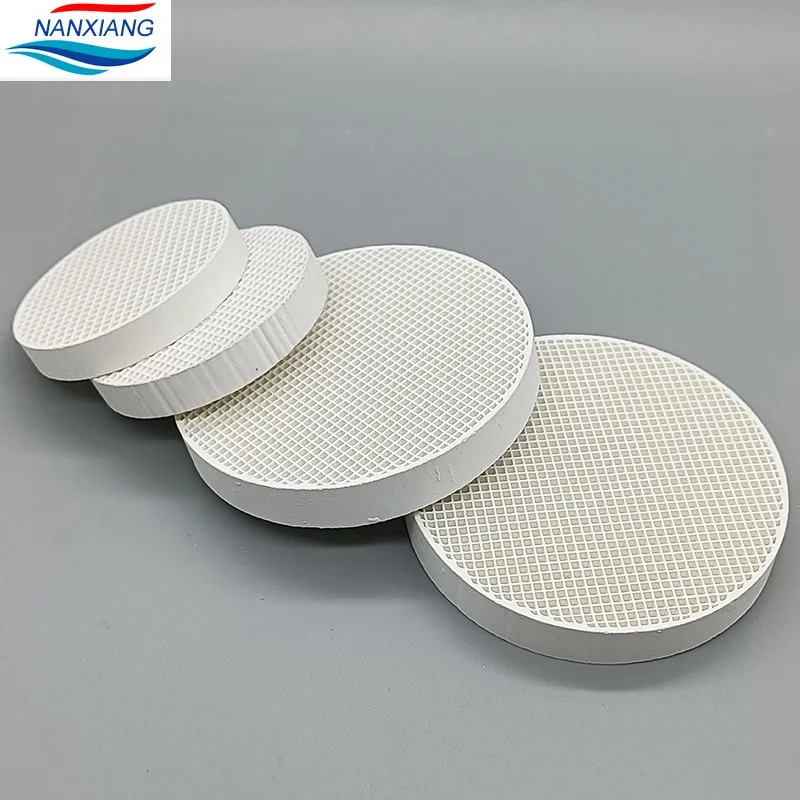

Cordierite, mullite, alumina honeycomb ceramics, heat storage body, catalyst carrier
Can be customized according to customer needs of various specifications of honeycomb ceramics
Honeycomb ceramics have large specific surface area, large heat capacity, small thermal expansion coefficient, strong corrosion resistance, good heat resistance,
Wide range of applications:
1, catalyst carrier: used to reduce the oxidation temperature of organic matter, purify industrial waste gas, automobile waste gas;
2, heat exchange medium: used for heat exchange process, heat storage element can save 12% energy;
3, fixed biological carrier: used for pharmaceutical and food industry microorganism fixation;
4, refractory kiln furniture: small mass/volume ratio, fast heat transfer, high thermal efficiency;
5, gas combustion distribution plate: promote complete combustion, energy saving 10%.
Specifications (mm) :48mm x 28mm x 10mm
Part of the specifications are in stock, special specifications can be opened according to customer requirements trial production,
Cordierite, mullite, alumina honeycomb ceramics, heat storage body, catalyst carrier
Can be customized according to customer needs of various specifications of honeycomb ceramics
Honeycomb ceramics have large specific surface area, large heat capacity, small thermal expansion coefficient, strong corrosion resistance, good heat resistance,
Wide range of applications:
1, catalyst carrier: used to reduce the oxidation temperature of organic matter, purify industrial waste gas, automobile waste gas;
2, heat exchange medium: used for heat exchange process, heat storage element can save 12% energy;
3, fixed biological carrier: used for pharmaceutical and food industry microorganism fixation;
4, refractory kiln furniture: small mass/volume ratio, fast heat transfer, high thermal efficiency;
5, gas combustion distribution plate: promote complete combustion, energy saving 10%.
Specifications (mm) :48mm x 28mm x 10mm
Part of the specifications are in stock, special specifications can be opened according to customer requirements trial production,
Material | Alumina | Dense Cordierite | Cordierite | Dense Alumina | Mullite | Corundum Mullite | ||
Density (G/Cm3) | 2.0~2.3 | 2.1 ~2.5 | 1.5 ~1.9 | 2.4 ~2.7 | 2.0 ~2.5 | 2.3 ~2.7 | ||
Coefficient Of Heat Expansion (×10-6K-1) (20~800℃) | ≤5 | ≤3.5 | ≤3.0 | ≤5 | ≤5 | ≤6 | ||
Specific Heat (J/Kg.K) (20~1000℃) | 900 ~1150 | 900 ~1100 | 900~1150 | 1000~1150 | 1000~1150 | 1100 ~1300 | ||
Thermal Conductivity (W/M.K) (20~1000℃) | 1.5~2.0 | 1.5~2.5 | 1.2~1.8 | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | ||
Impact Thermal Resistance (℃/Min) | ≥300 | ≥350 | ≥350 | ≥300 | ≥350 | ≥300 | ||
Max. Working Tem. (℃) | 1350 | 1320 | 1320 | 1350 | 1450 | 1550 | ||
Water Absorption (%) | ≤20 | ≤1 | 15~25 | ≤2 | 15~25 | 15 ~25 | ||
Compressive Strength (Mpa) | A Axis | ≥32 | ≥32 | ≥29 | ≥34 | ≥28 | ≥39 | |
B Axis | ≥8 | ≥8 | ≥6 | ≥8 | ≥8 | ≥10 | ||
Chemical Composition (%) | Al2O3 | 55 ~65 | 25 ~38 | 28 ~38 | 55 ~65 | 60~70 | 70 ~80 | |
SiO2 | 25~35 | 50 ~60 | 45 ~55 | 25 ~35 | 25 ~35 | 15 ~25 | ||
MgO | 1~3 | 5 ~10 | 11 ~14 | 3~5 | 0 ~1 | 0 ~2 | ||
Others | <5 | <5 | <5 | <5 | <5 | <5 | ||

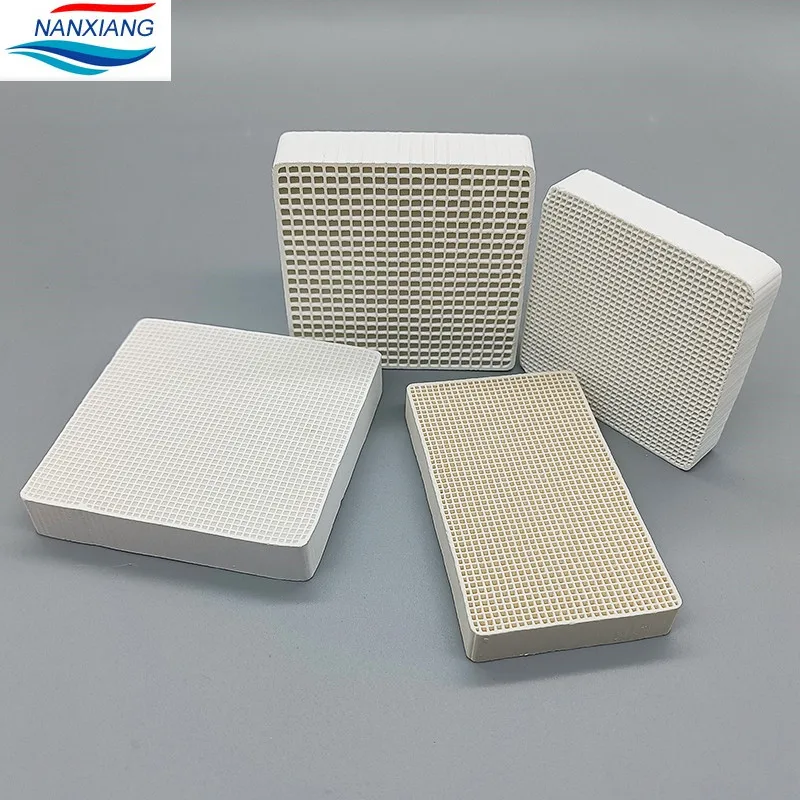

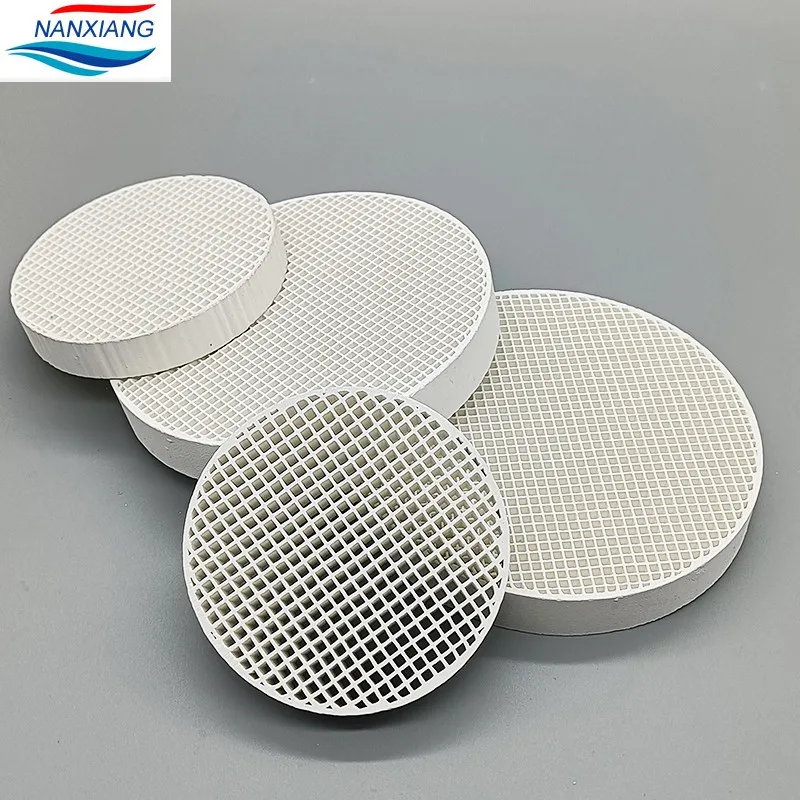

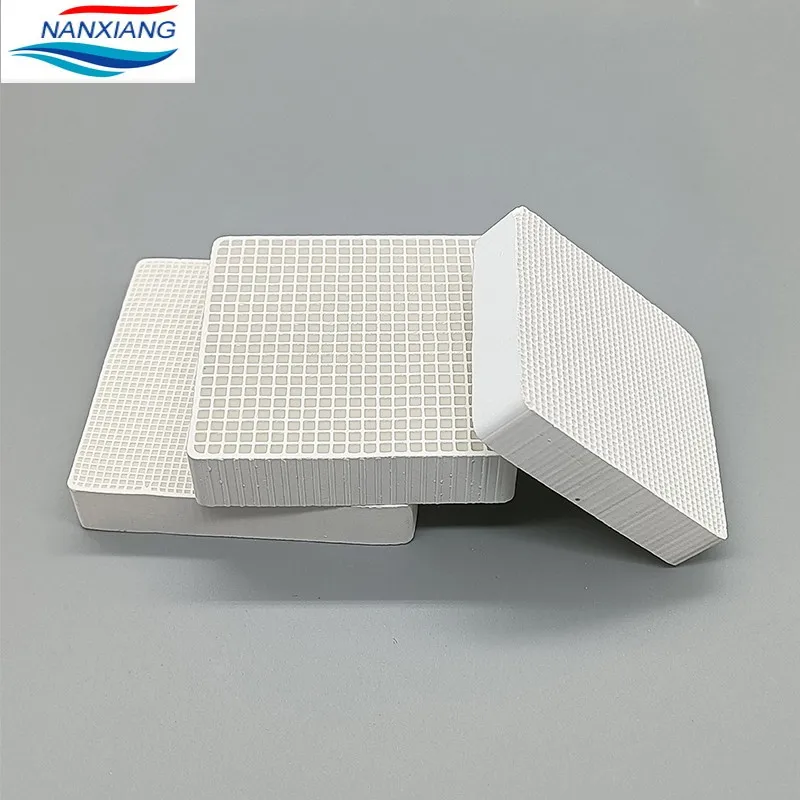

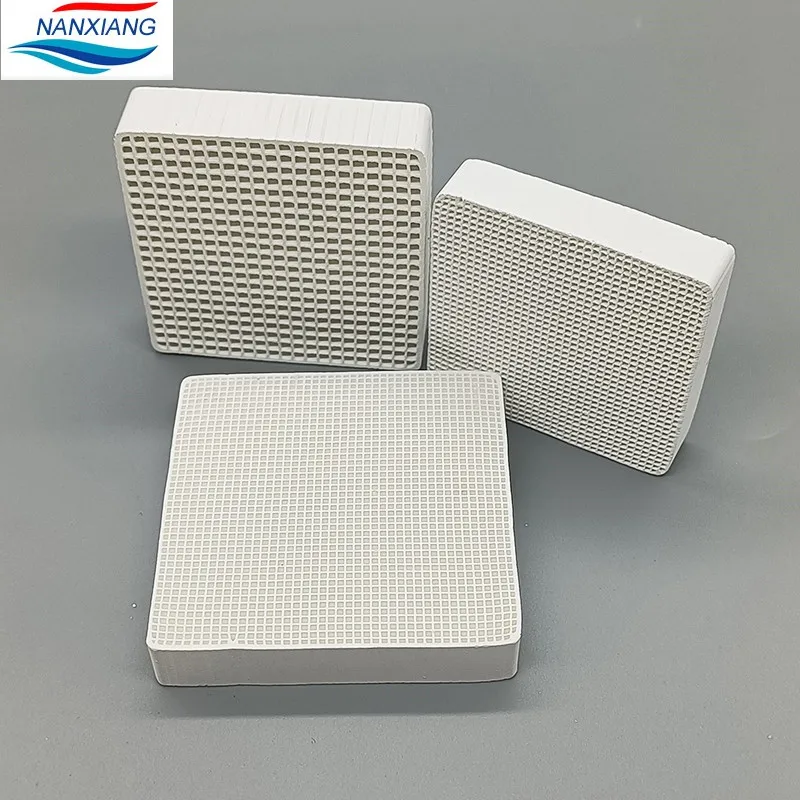

Details Images

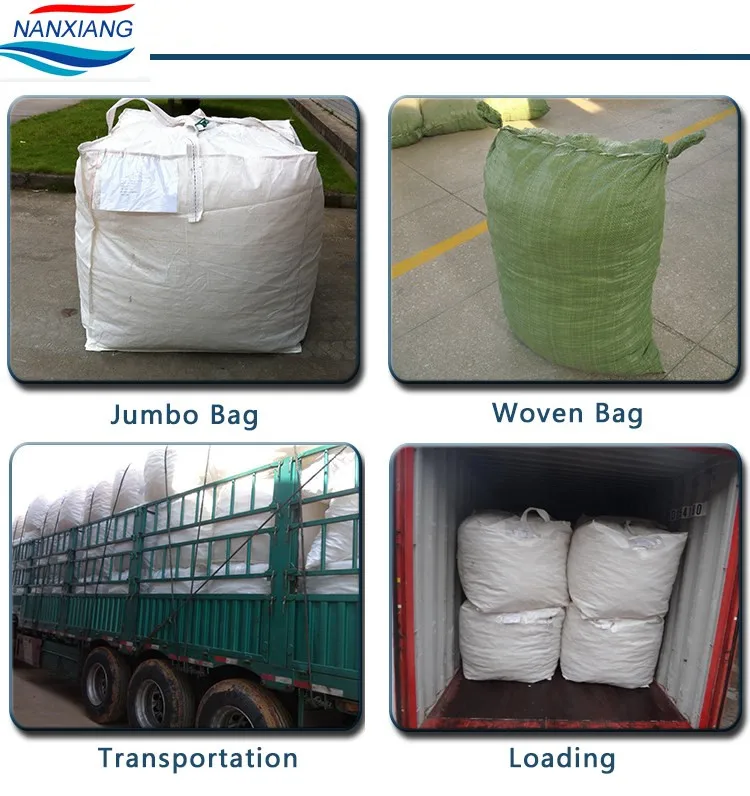

Packing & Shipping
Company Profile
Pingxiang Nanxiang Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 16 years experience in Chemical Packing.
Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certificate, SGS report, and credible merchant of Alibaba. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven continents.
our company keeps living up to the belief of “honest selling ,best quality ,people-orientation and benefits to customers” We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.
