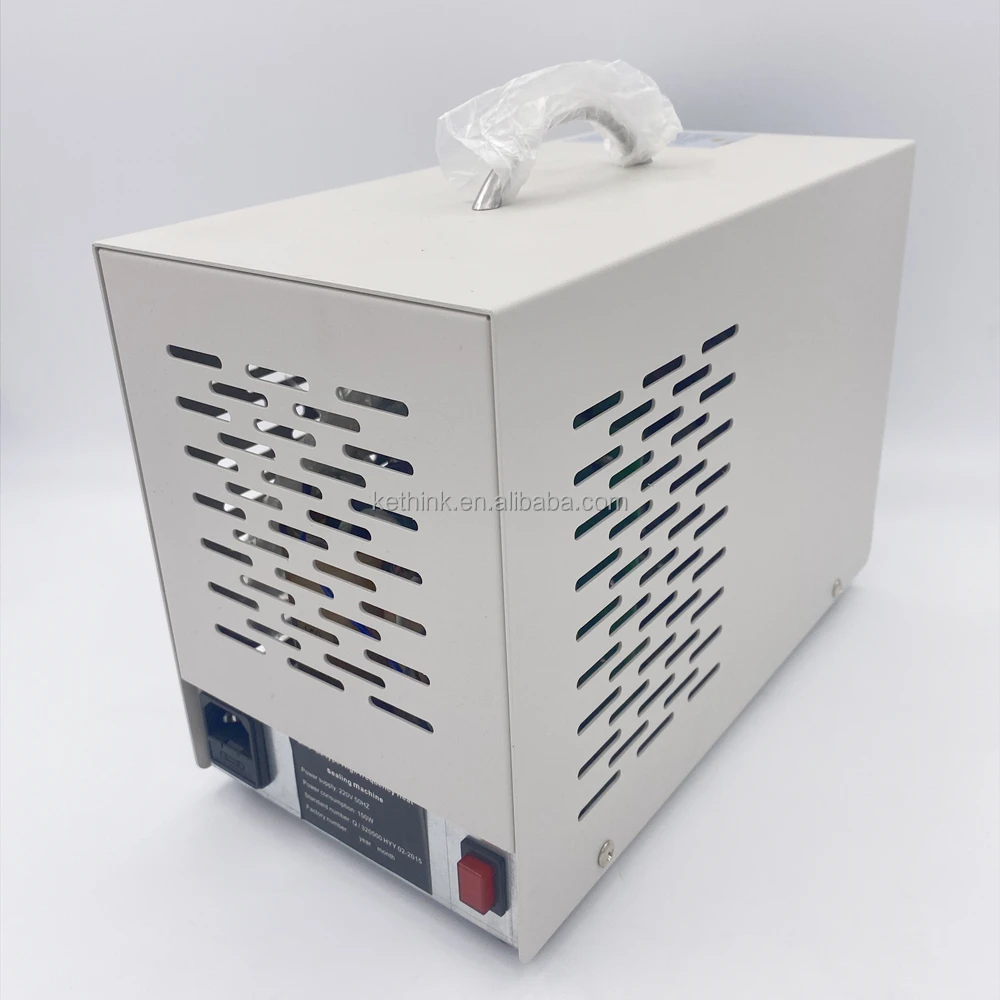

medical portable pvc blood tube blood bag sealer sealing machine KETHINK FR5.0 blood bank use
General Introduction:
Automatic heat sealing machine is used to heat seal PVC medical catheters.
Working Principle:
The high-frequency electrode on the heat sealing head performs high-frequency induction heating on the PVC pipeline to make the PVC pipeline melt (the molecular polarization of the PVC material conduit under a high-frequency electric field) and the heat-sealing electrode compresses the molten part according to the preset procedure. After a predetermined time, complete a heat seal.
Features & advantages:
1) Using transistor high-frequency generator, its radiation is weak.
2)The G circuit is mature and stable, safe and reliable, and has a long service life.
3) The heat sealing process is total automated, without voltage adjustment and time adjustment.
4)Humanized design, small size, light weight, portable and simple operation.
5)Rapid heat sealing, accurate and stable, suitable for mobile blood collection tube heat sealing work.
2)The G circuit is mature and stable, safe and reliable, and has a long service life.
3) The heat sealing process is total automated, without voltage adjustment and time adjustment.
4)Humanized design, small size, light weight, portable and simple operation.
5)Rapid heat sealing, accurate and stable, suitable for mobile blood collection tube heat sealing work.
Application:
Mainly applicable to hospital blood transfusion department, blood collection department and component department, blood bank and medical scientific research.
Technical Data
Name | Auto Blood Bank TUBE SEALER |
Model Number | FR-5.0 |
Power | AC 1 phase,180V~260V 2A |
Ambient temperature | 15°C~30°C |
Heat Sealing Time | 0.8S~1.2S |
Applicable Tube Size | outer diameter 2mm~6mm, thickness≤1mm |
Device Dimension | 320mm*180mm * 130mm |
Net Weight | 9kg |

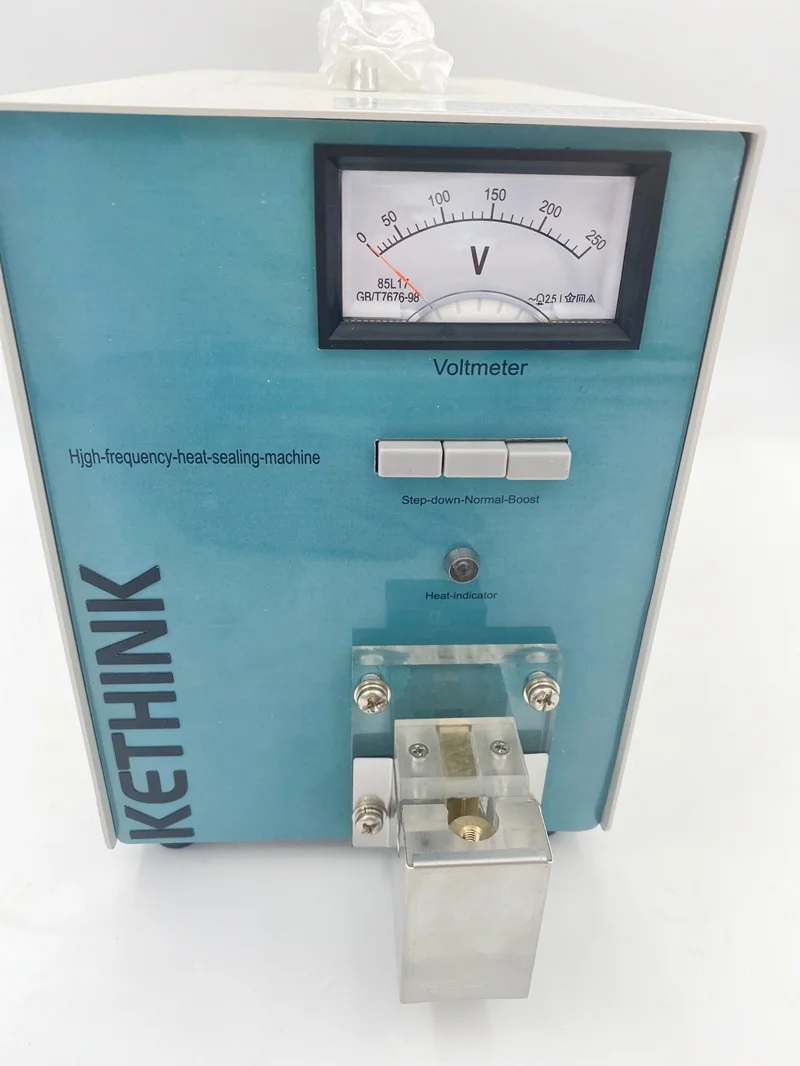

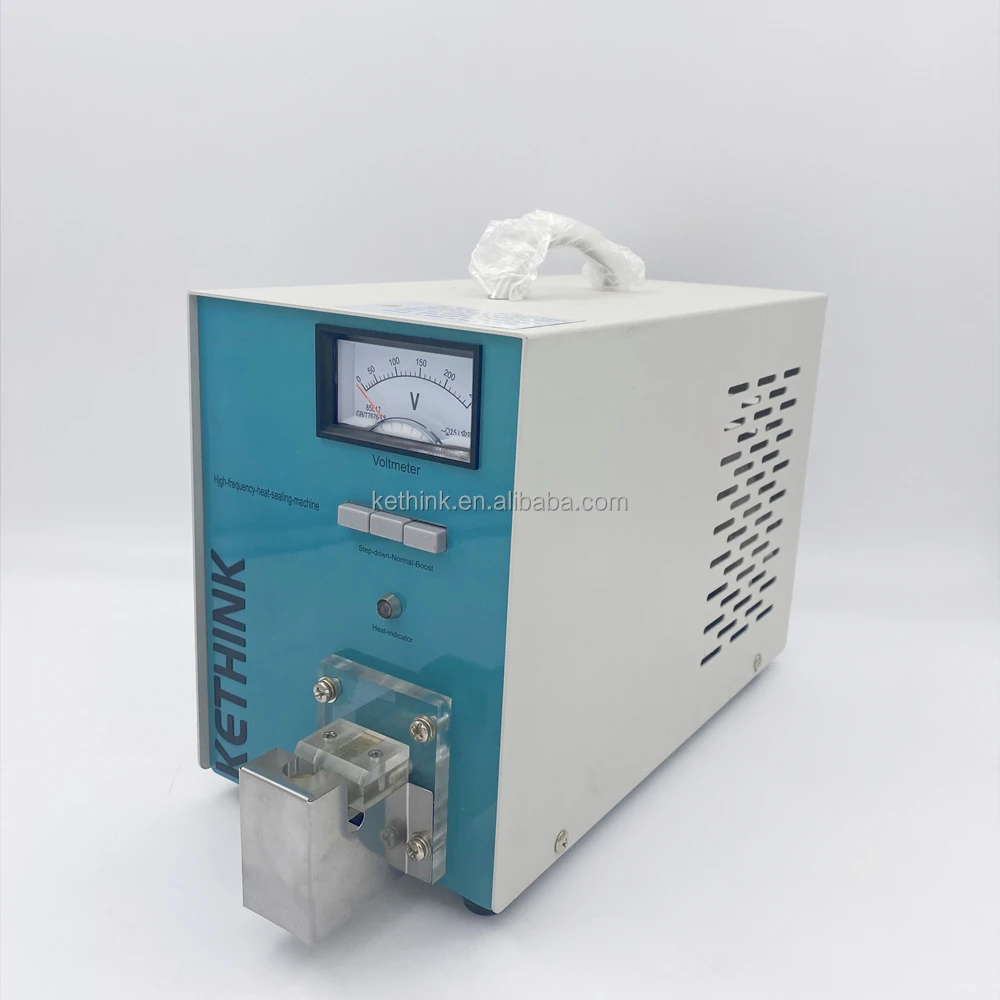

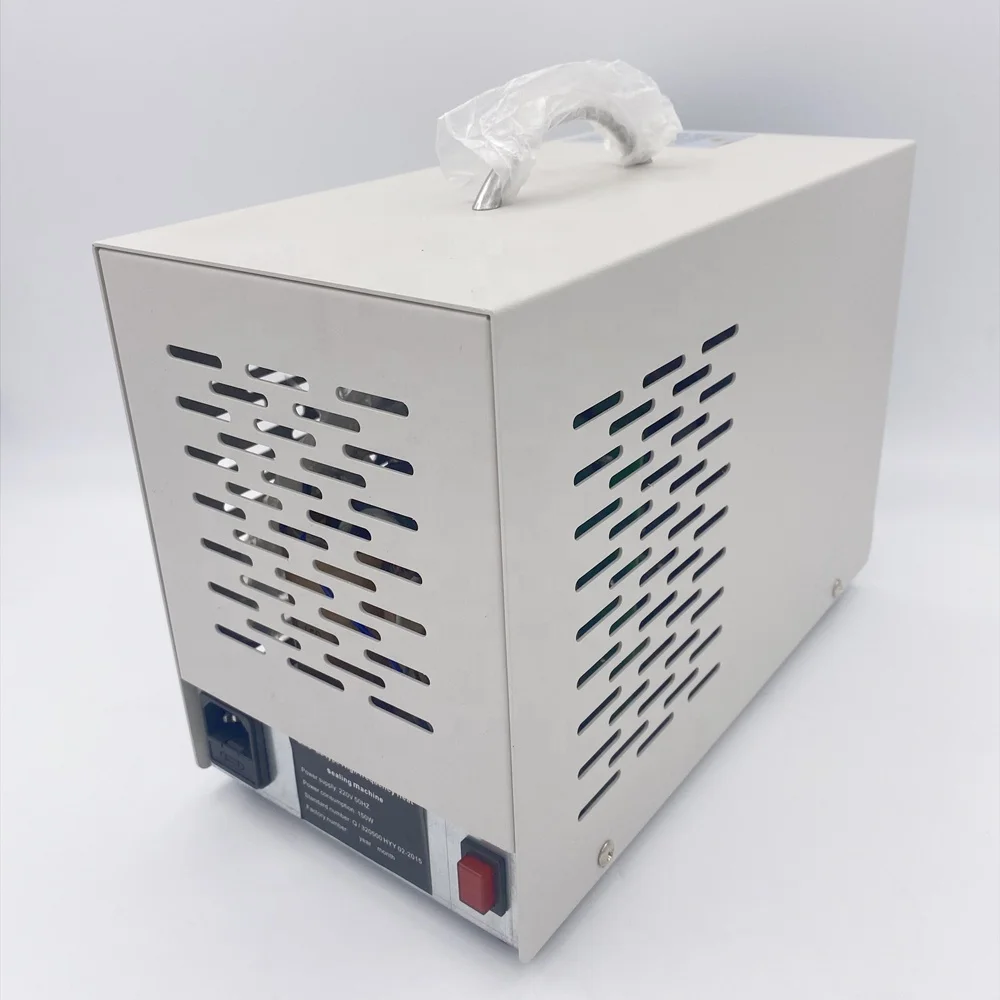

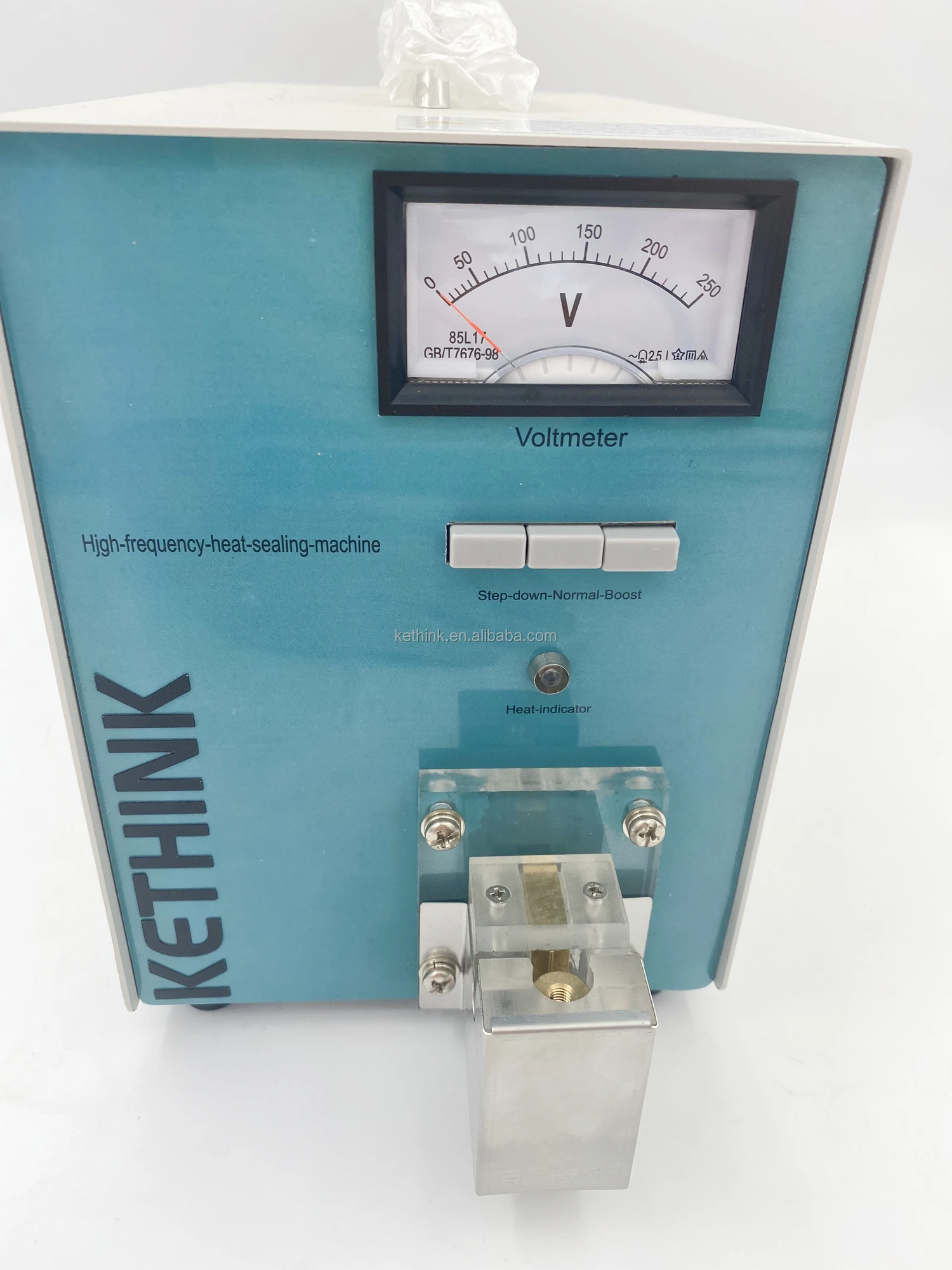

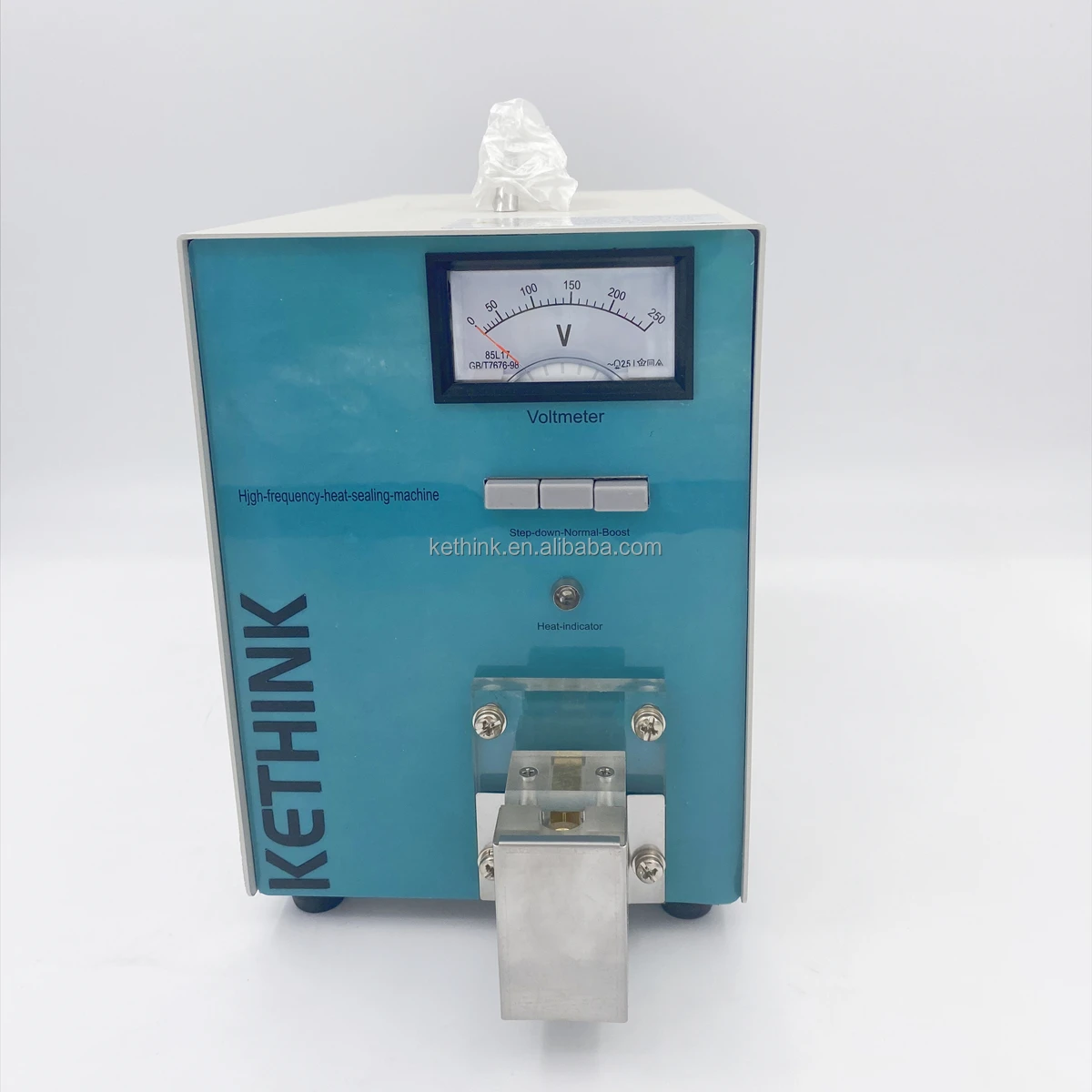

Detailed Images

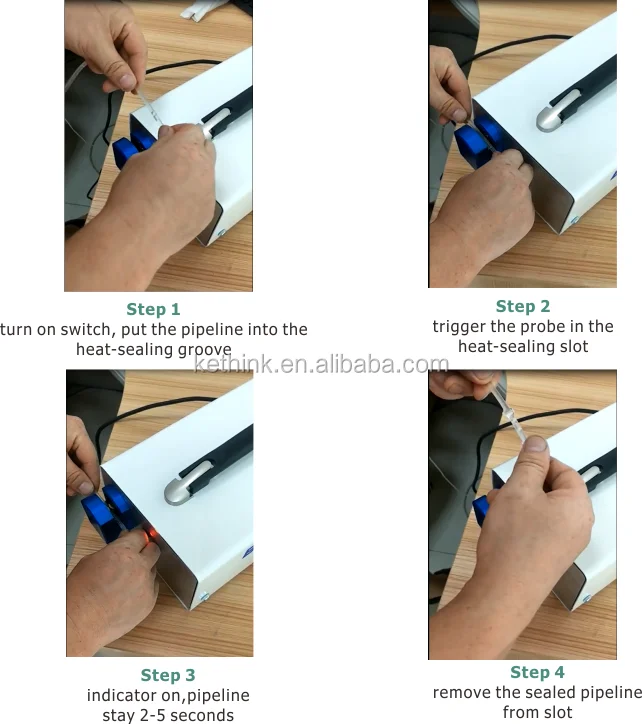

Operation
1)Pinch the two sides of the pipeline to be heat-sealed with both hands, and put the pipeline into the heat-sealing groove.
2)Use your right hand to apply a little more force to trigger the probe / switch in the heat-sealing slot.
3)At this time, the heat sealing head is slowly sucked in.
4) After about 2-5 seconds, the heat sealing work is completed.
5) Remove the sealed pipeline and cut the pipeline along the heat sealing gap; or pull the pipeline slightly with both hands to separate the two sections.
2)Use your right hand to apply a little more force to trigger the probe / switch in the heat-sealing slot.
3)At this time, the heat sealing head is slowly sucked in.
4) After about 2-5 seconds, the heat sealing work is completed.
5) Remove the sealed pipeline and cut the pipeline along the heat sealing gap; or pull the pipeline slightly with both hands to separate the two sections.
