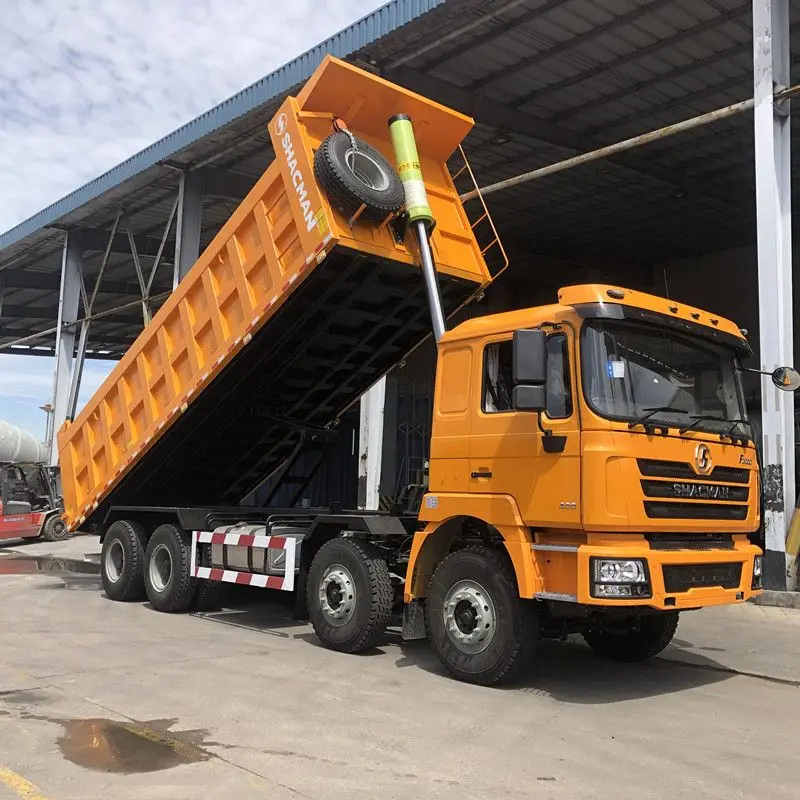

Used Shacman 8x4 Brand new mining dumper truck shacman 12 wheels dump trucks 60Ton payload shacman dump truck 8x4
- Category: >>>
- Supplier: Tangshan Yingdong International Trading Co. Ltd.
Share on (1600426266550):
Product Overview
Description
Products Description
High Performance
* Core power upgrade, twin center shaft structure gearbox, high ratio single-stage axle, vehicle power increased by 20%
* Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology
* Military-grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension
Model | SX3256DV384C |
Cab | MAN F3000 Cab，Single bed，Air conditioner |
Dimension(Lx W xH)(mm) | 8329×2500×3450mm |
GVW (kg) | ≤50000kg |
Kerb mass(kg) | 14500kg |
Approach / departure angel | 28/30 |
Front/rear suspension(mm) | 1525/1730 |
Max. gradeability (％) | 28 |
Engine brand | Cum-mins Engine |
Engine model | ISM11E4 420，420hp |
Rated output power | 309kw |
Rated speed(rpm) | 1900rpm |
Emission Standard | E-IV |
Displacement(L) | 10.8L |
Driving type | 6×4 |
Axle number | 3 |
Wheel base(mm) | 3775+1400mm |
Clutch | φ430 diaphragm spring |
Gearbox | FA-ST 12JSD200T-B，12 Forward&2 Reverse，Manual |
PTO | QH50 |
Front axle | 9.5T MAN,with drum braking system |
Rear axle | 16T MAN double speed reduction drive axle |
Ratio | 5.262 |
Steering | ZF technology Left-hand drive(LHD) |
Type | 12.00R20，10+1pc |
Suspension | Both front and rear are high strengthen mechanical leaf spring+4 U bolts |
Tank capacity(L) | 400L |
Max. speed (km/h) | 80km/h |
Color | Optional |
Cargo box size(mm) | 5600×2300×1300mm bottom8mm,side4mm |
Lifting style | φ180 hydraulic front lifting cylinder |

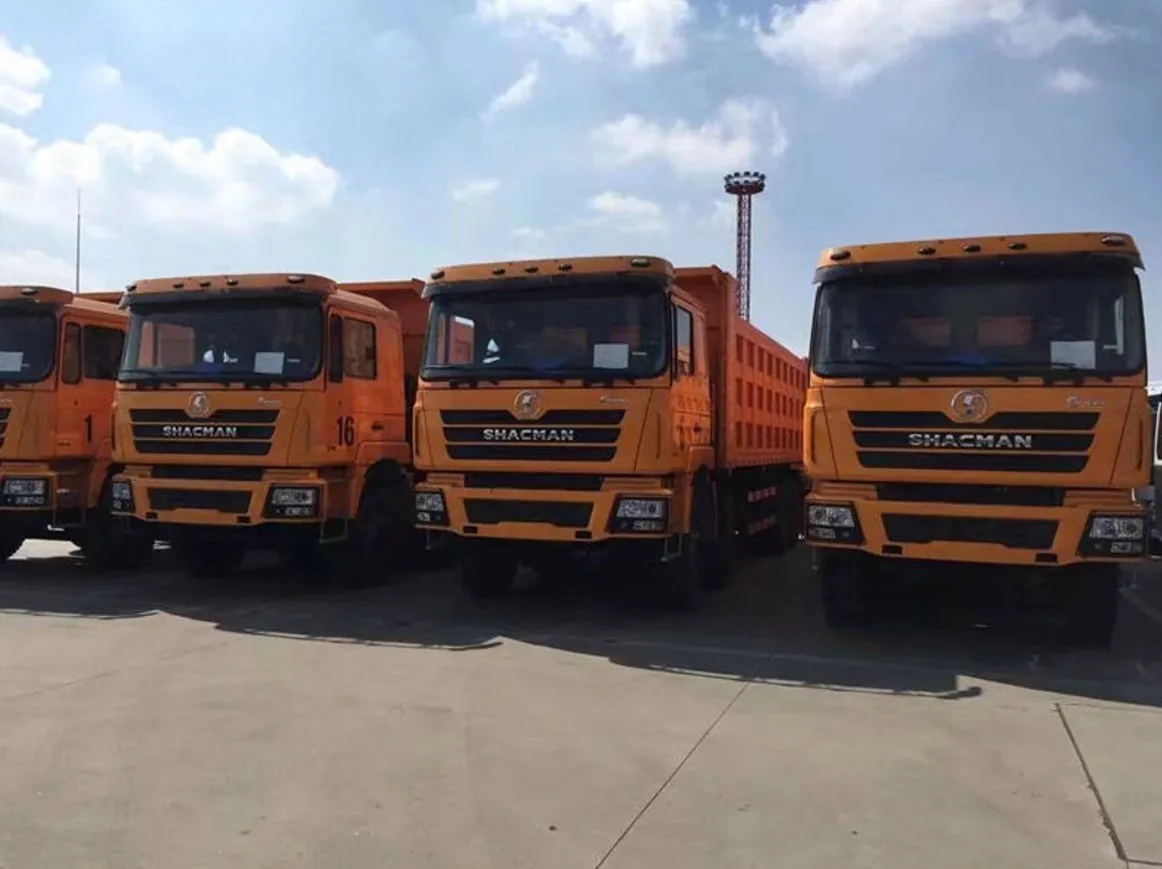

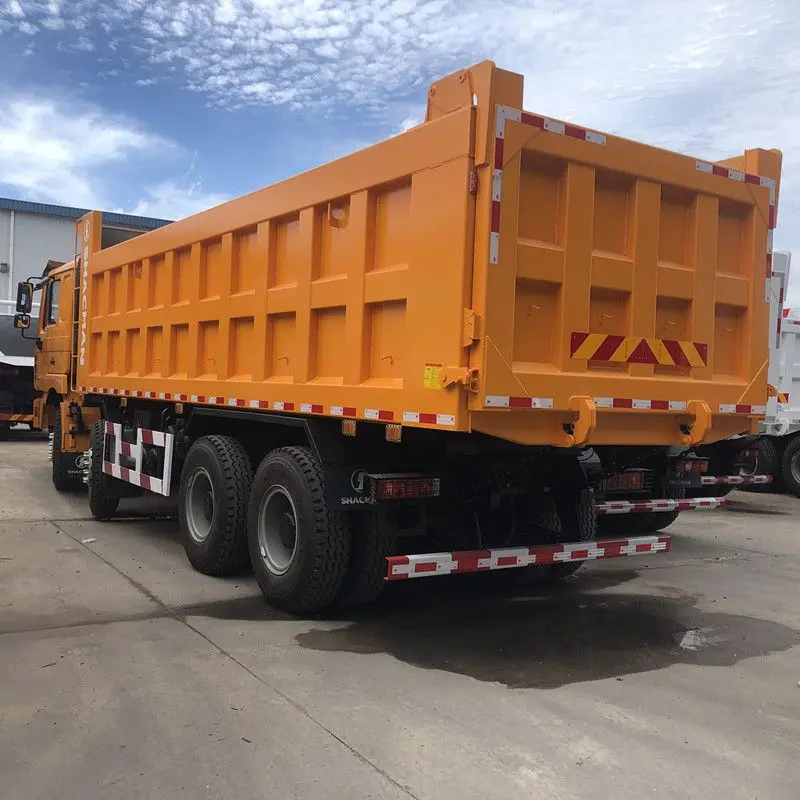

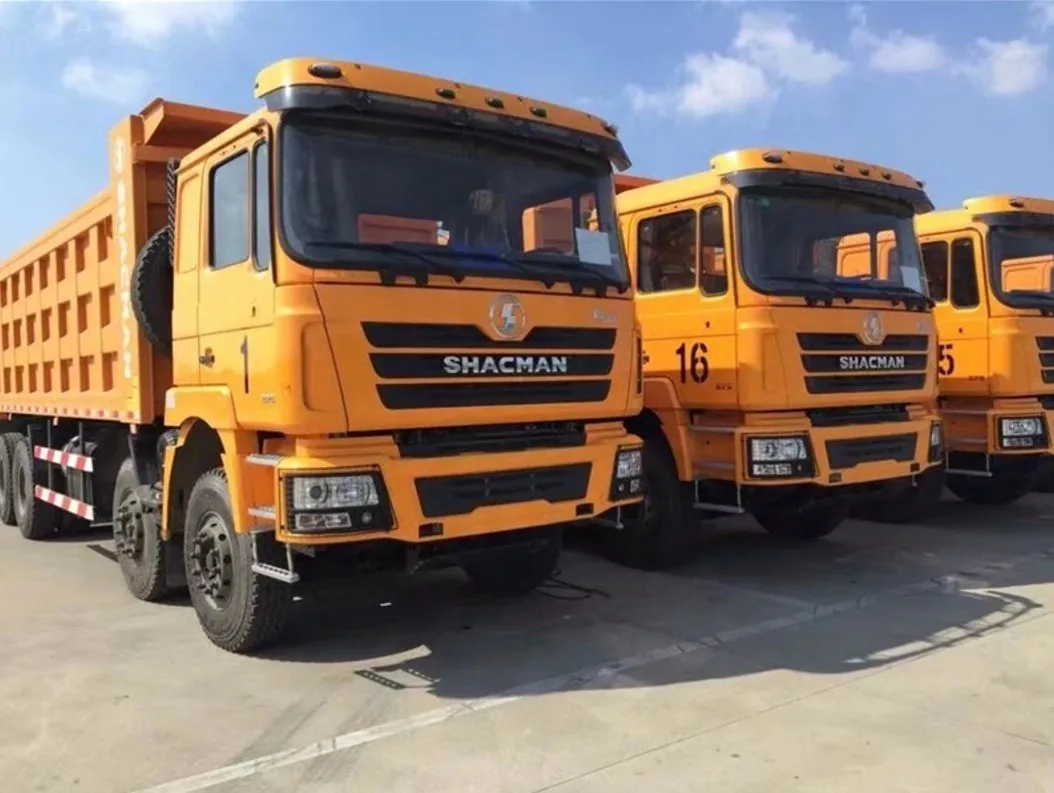

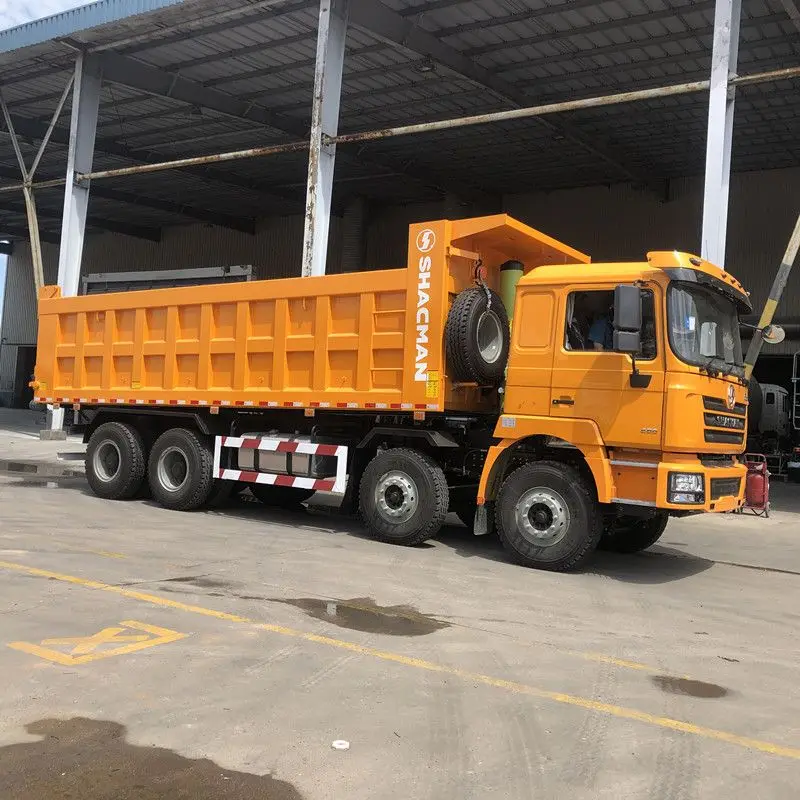

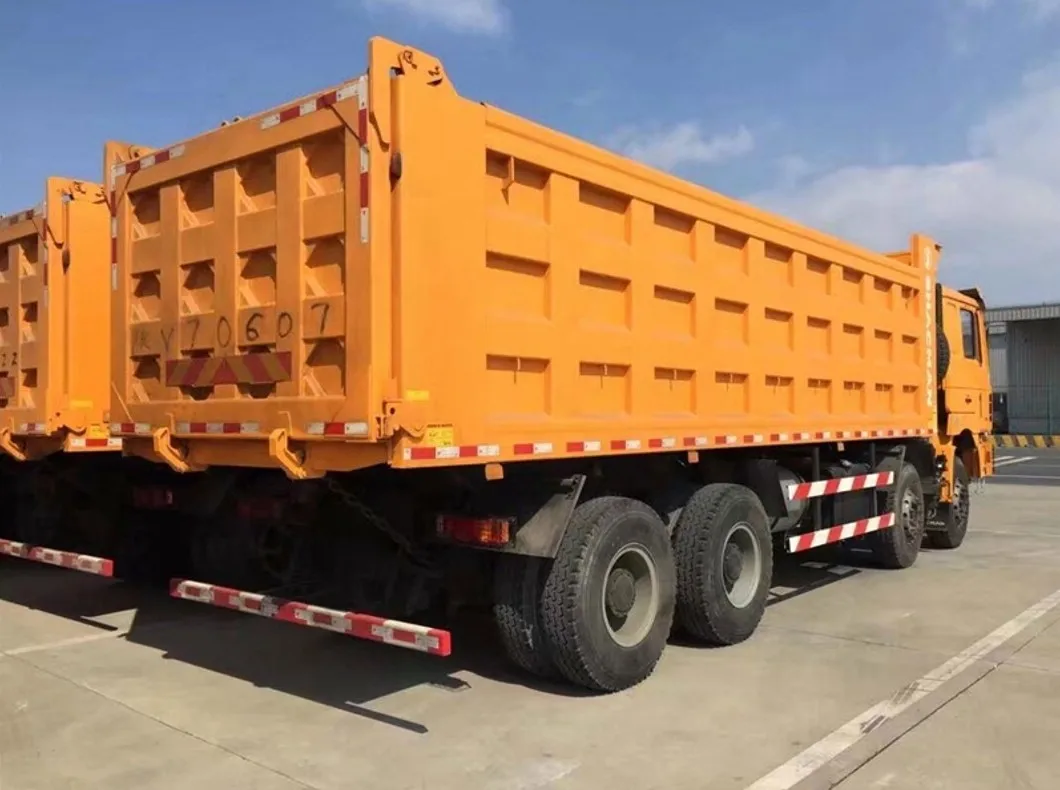

Detailed Images
Related Products
Recommend view more >>
Certificate
Customer Photos

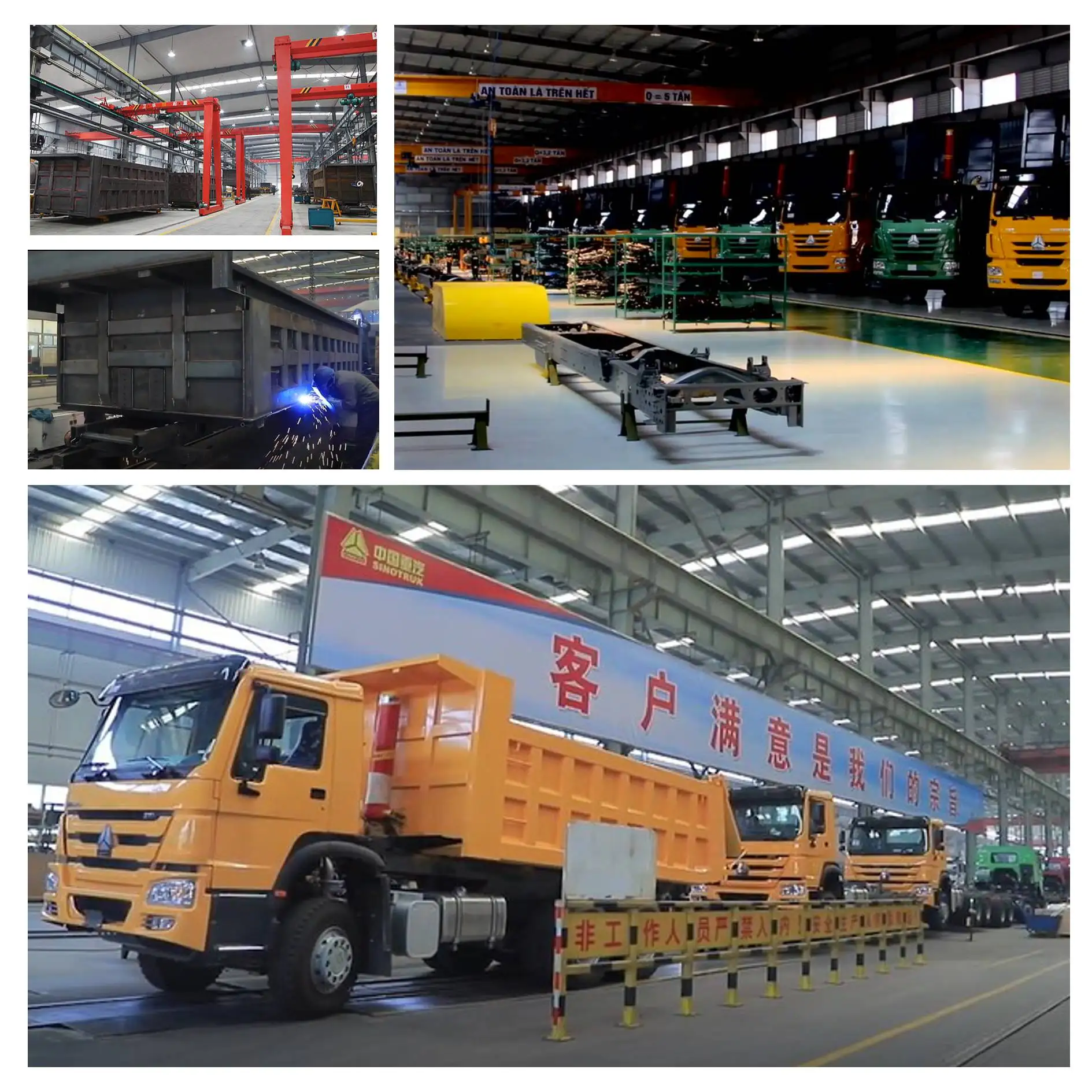

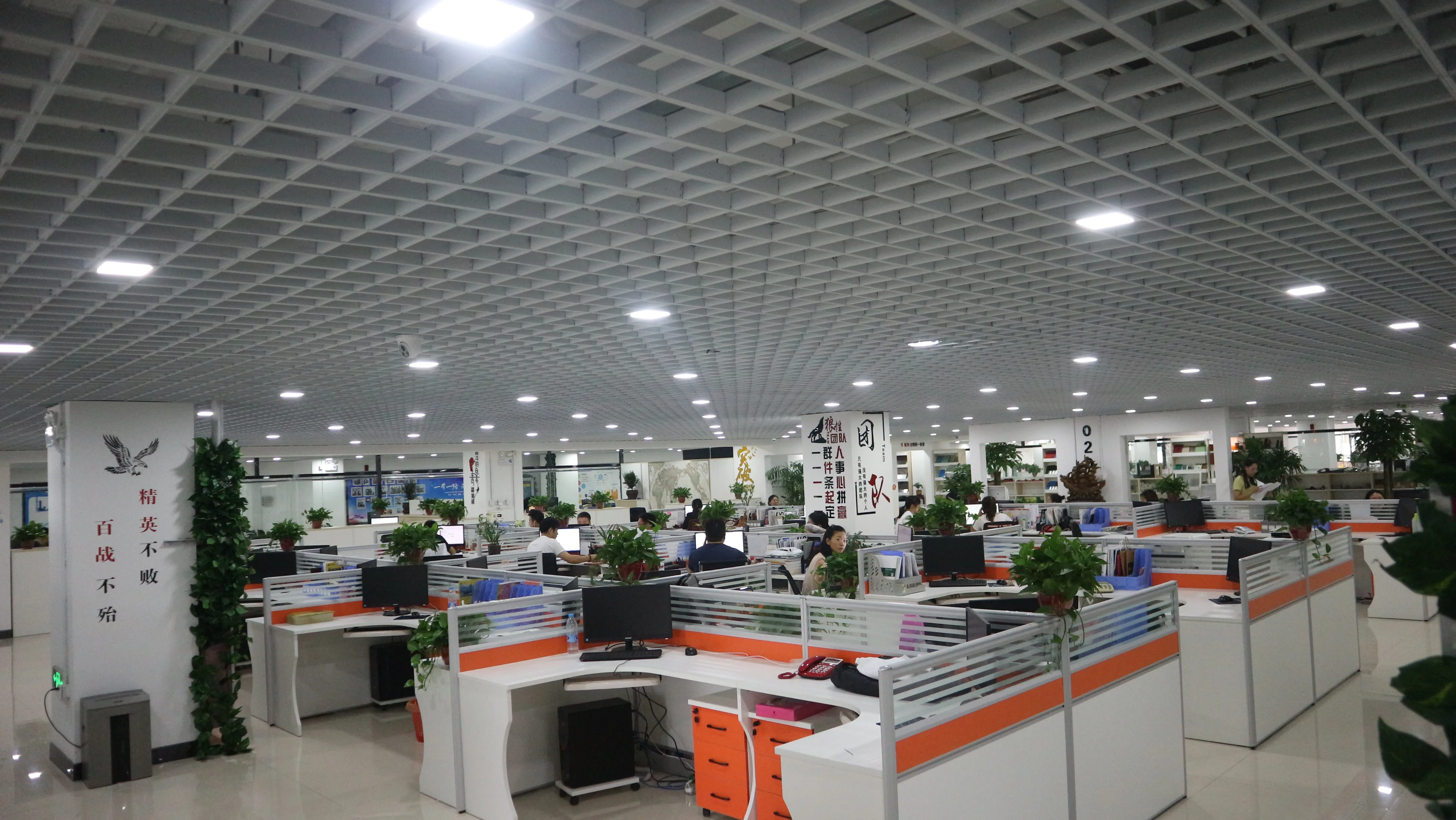

Company Introduction
Established in 2008, Tangshan YingDong is one of the biggest truck tipper exporter in china. Located in Bohai Economic Rim of China, near to the Jingtang Port and Tianjin Port, fast cargo loading and land freight saving.
One-stop shop of truck tipper, meet all of your requirements.
Indepent Logistic in Air, train and sea, offer best service with good quality.
YingDong is accredited with ISO9001-2000 quality system authentication, owning a professional and strict technical inspection team to ensure the quality by tracking whole course from production to shipment. This guarantee our customers could get the best quality products and best business relationship with us.
Inventory
FAQ
Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you would like to view our quality certification and various test reports, please contact us.
We are a factory and able to give you the lowest price. Please trust the quotation we would give you, and it is professional one.
Choosing us happens because of quality, then price, and we can give you both. Additionally, we can also offer professional products inquiry,products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
Our company supports Alibaba online trading, which not only ensures the safety of the buyer's funds, but also guarantees the quality of the goods. From the outbound, to the loading, and finally to the receiving, the whole process is transparent.
We are a factory with a large inventory of stock, which guarantees that the goods will be shipped within the shortest time from the date of signing the contract.
We can provide samples for buyer's testing free of charge, but buyers need to pay for shipping costs.
