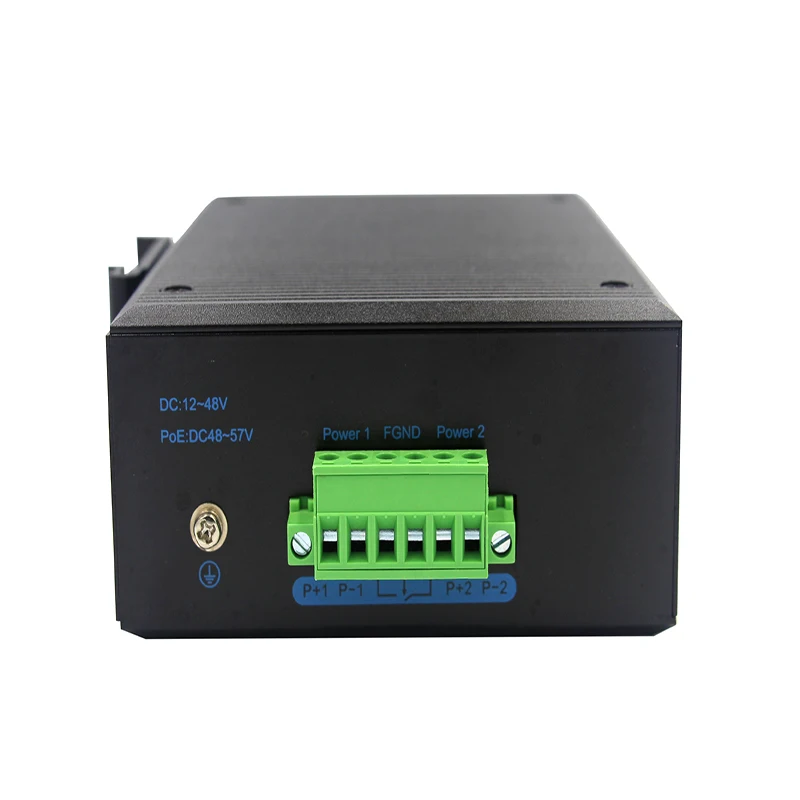

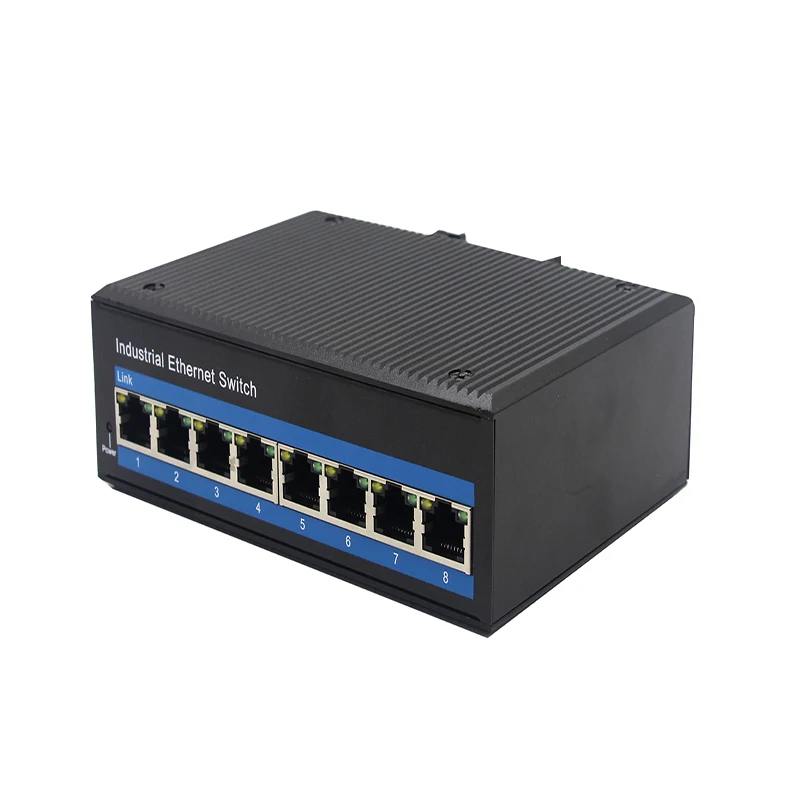

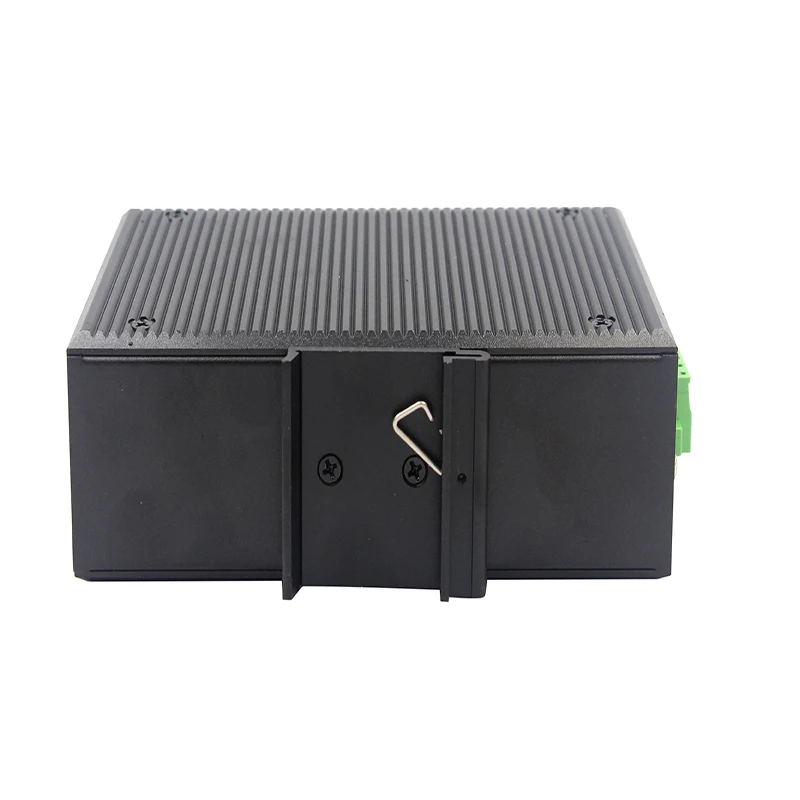

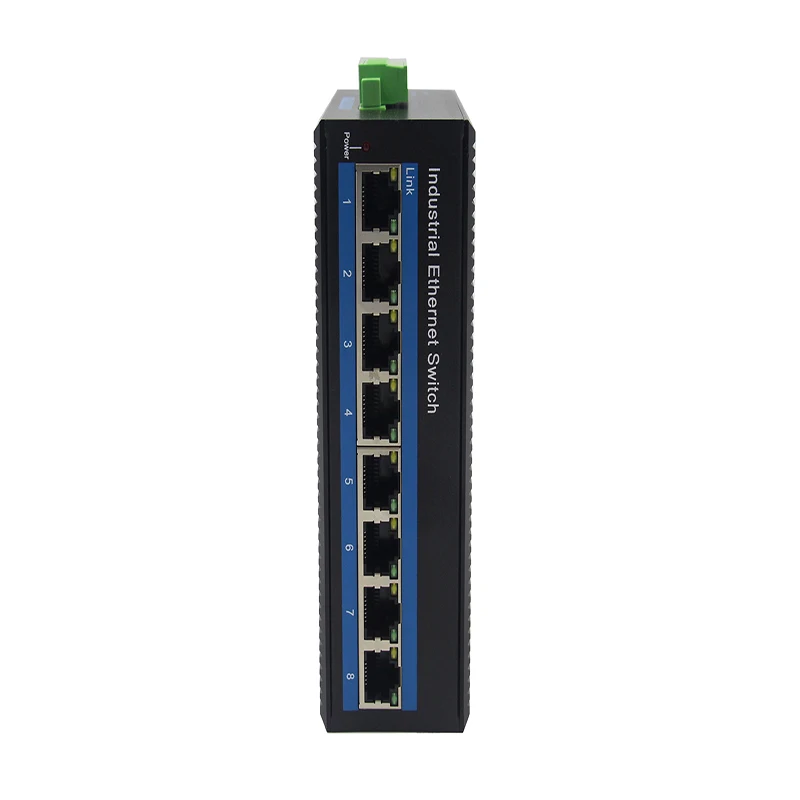

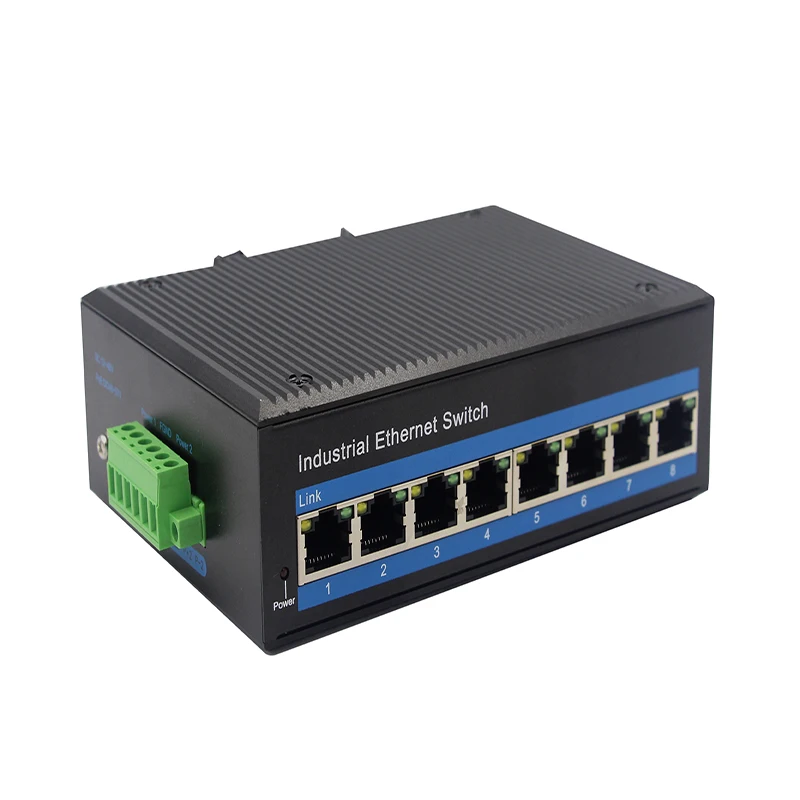

Hot Sale Switch Gigabit Switch 8 Port 10/100/1000base tx Ethernet Industrial Switch
- Category: >>>
- Supplier: Guangxi Nanning Deepen Communication Equipment Co. Ltd.
Share on (1600426278269):
Product Overview
Description
Product Description
product description
Industrial PoE switch, 8 Port 10/100/1000Mbps PoE ports, for connecting with devices like computer, switch, hub, server, etc, as
well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh
outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of
the uninterrupted PoE system. Power input also chooses industry-standard types of power.
well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh
outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of
the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Specification
Model No. | ZXD08GP |
10/100/1000BASE-TX Port | 8 Port RJ-45 auto-MDI / MDI-X |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports:1-8 port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:1/2+;3/6- | |
Power Type: End-span( Mid-span optional) | |
Performance Specification | Bandwidth: 20Gbps Packet Buffer Memory:2Mbit Packet Forwarding Rate:15Mpps MAC Address Table: 8K |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | IP40 aluminum housing |
LED Indicator | Power: Red Ethernet: Yellow POE: Green |
Power Input | 48 to 57V DC |
Power Consumption | 3 watts |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7 x 103 x 47.7 mm |
Weight | Product Weight: 0.36KG Packing Weight: 0.46KG |
Working Environment | Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
Weight | Product Weight: 0.56KG Packing Weight: 0.66KG |
Working Environment | Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty | 1-year replacement with new item; 3-years for main parts. |
