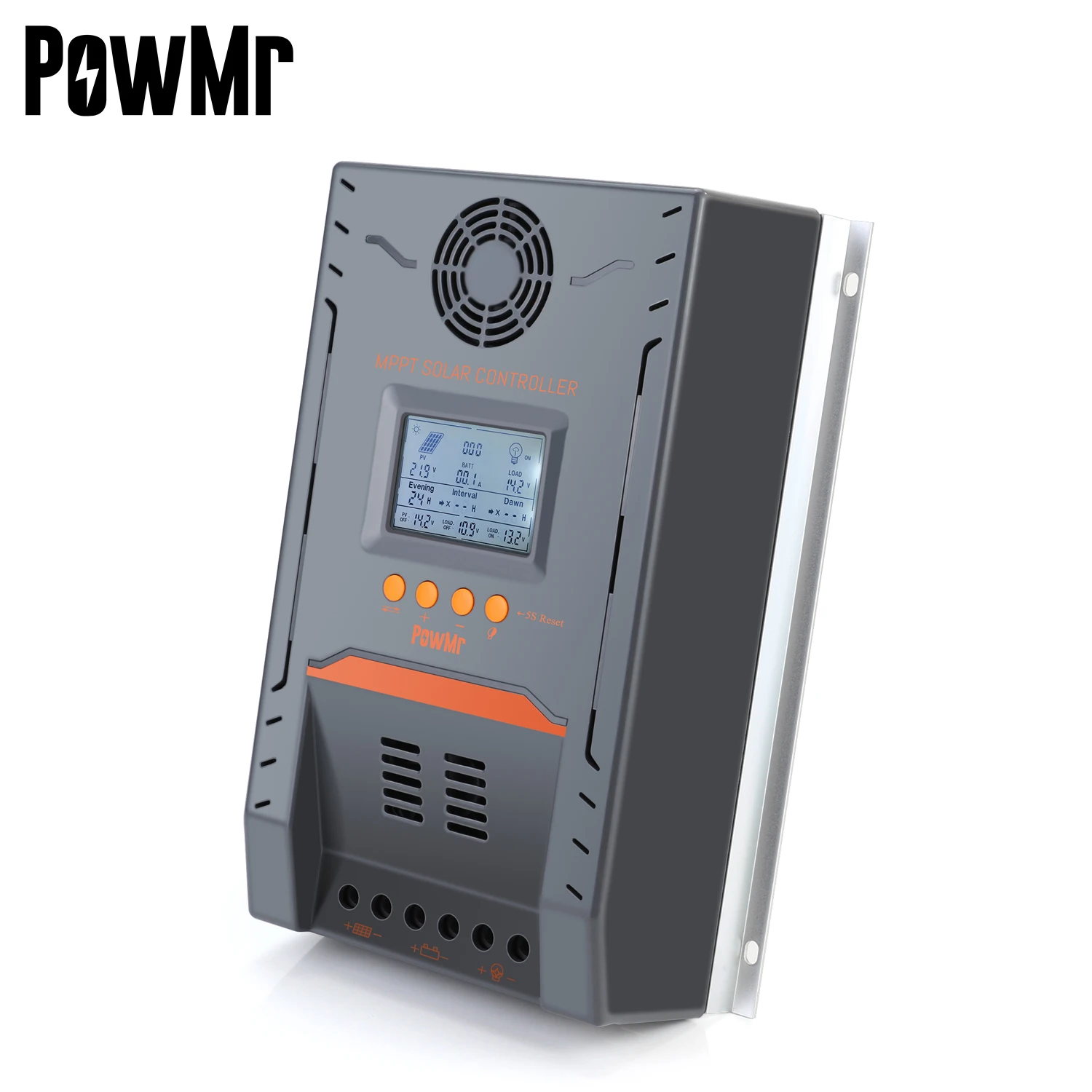

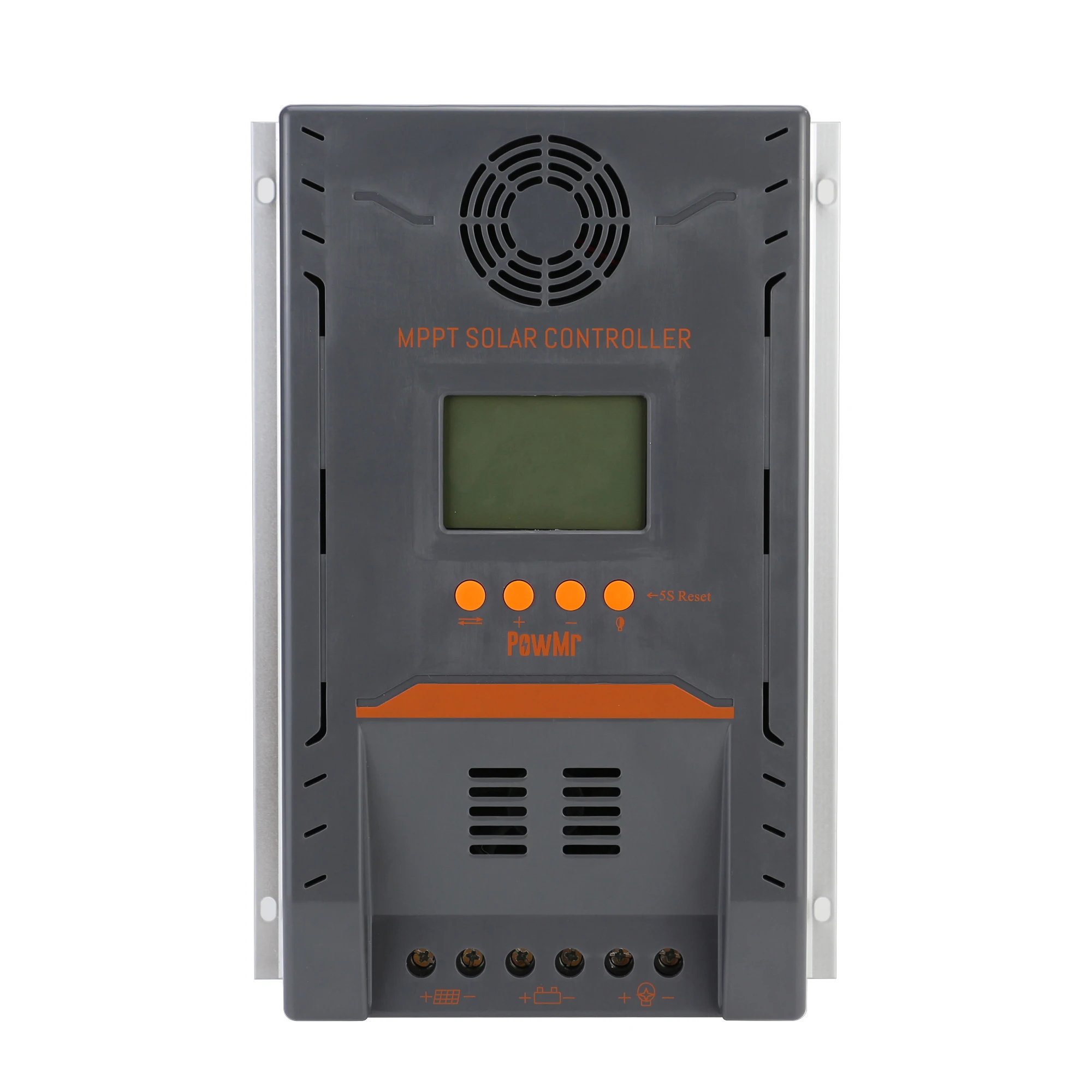

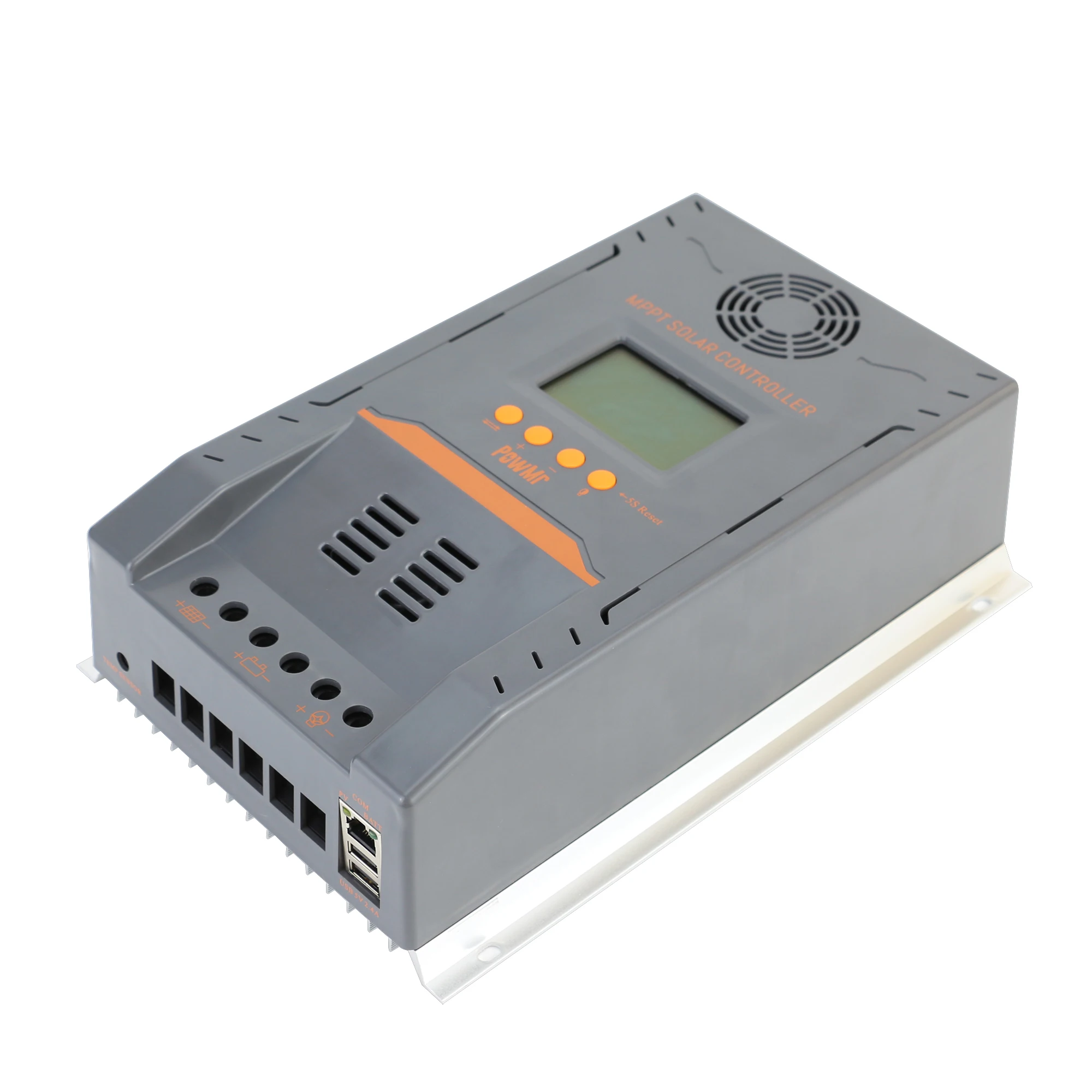

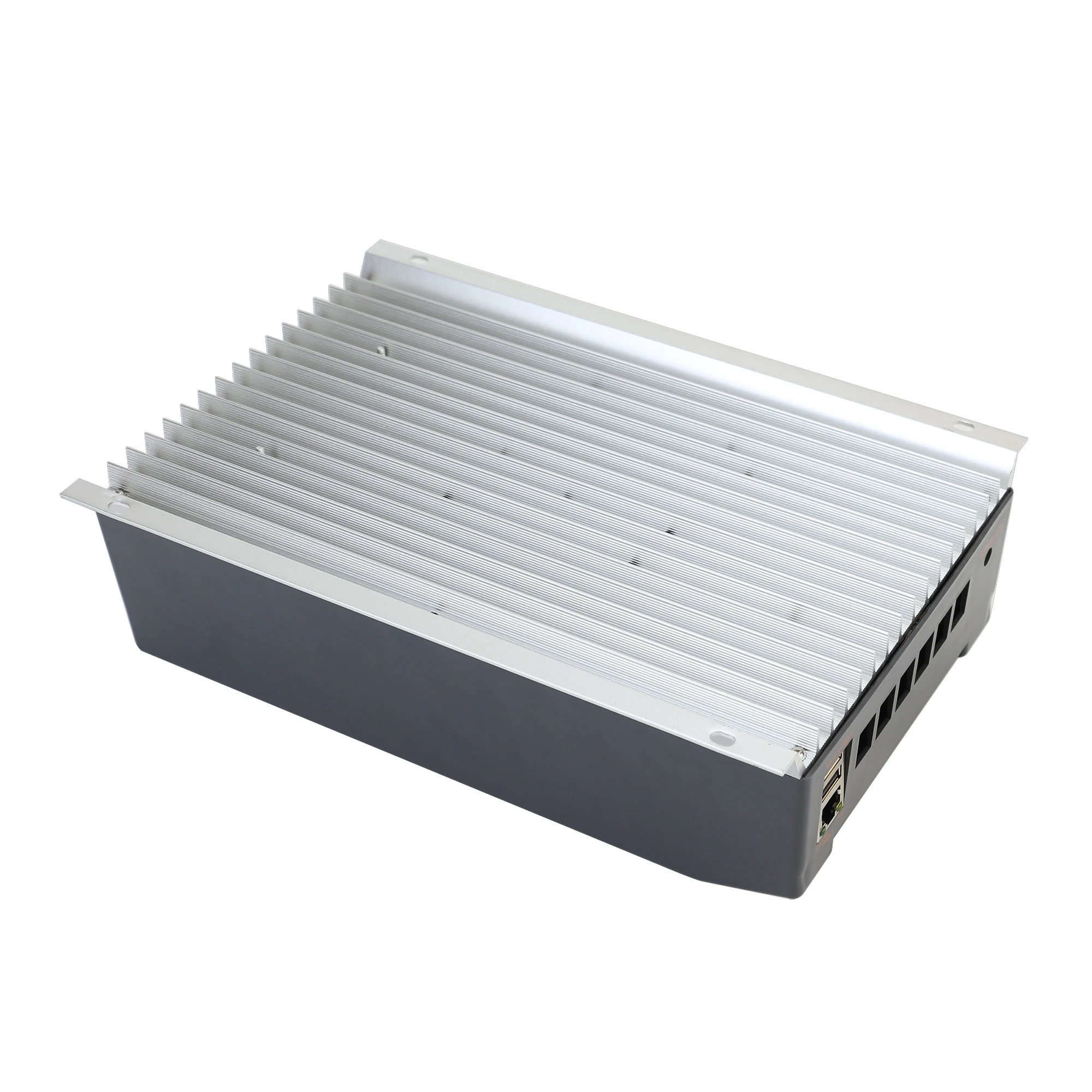

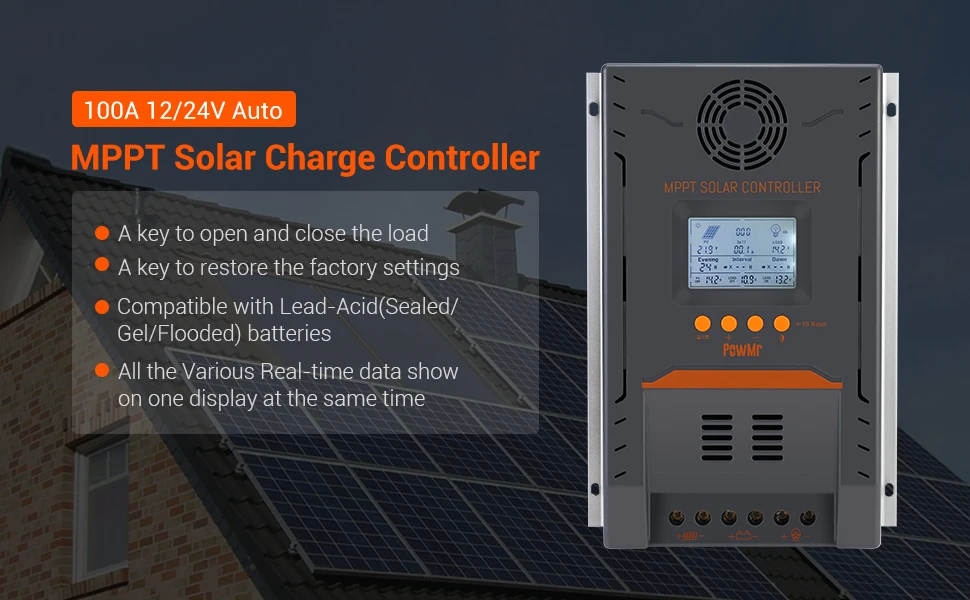

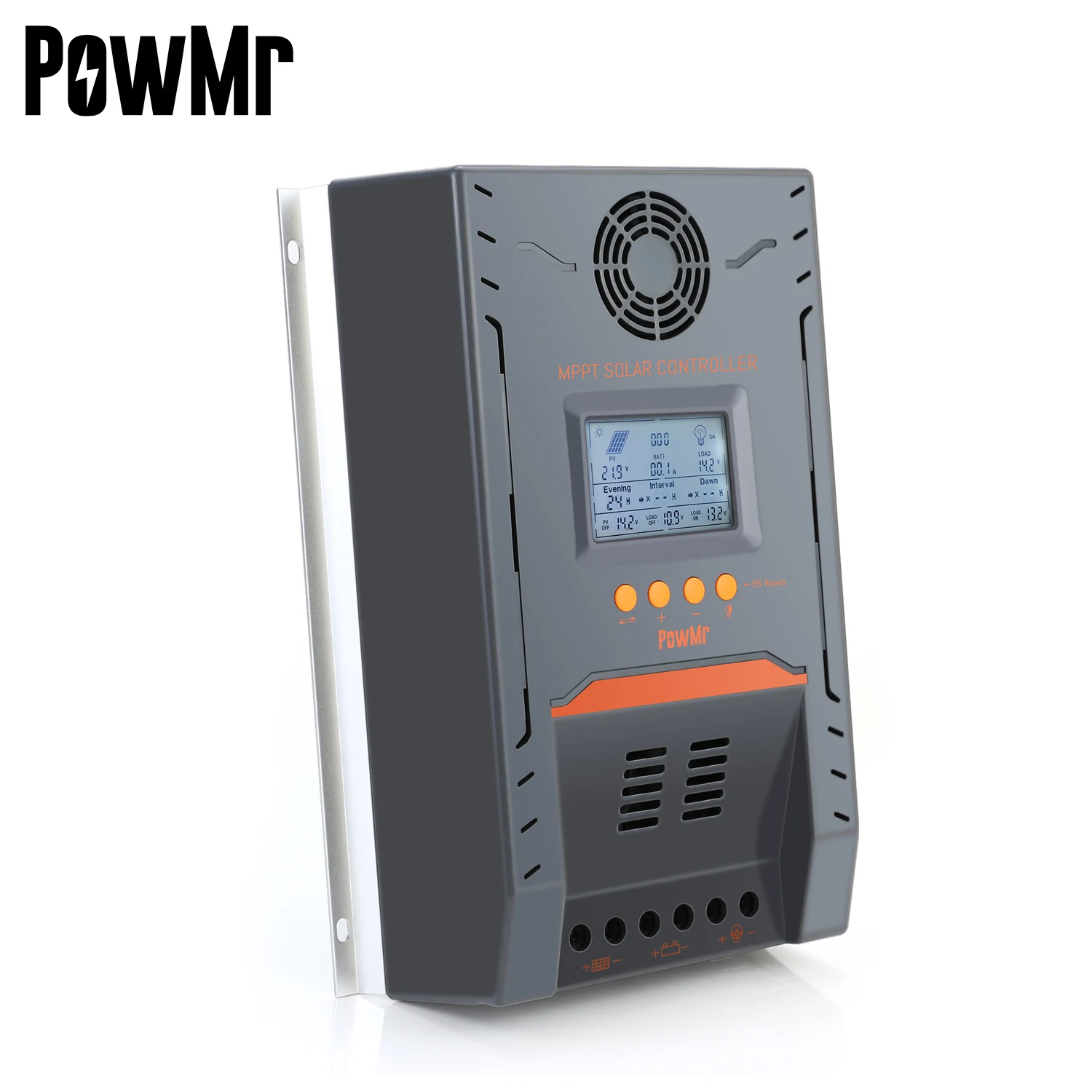

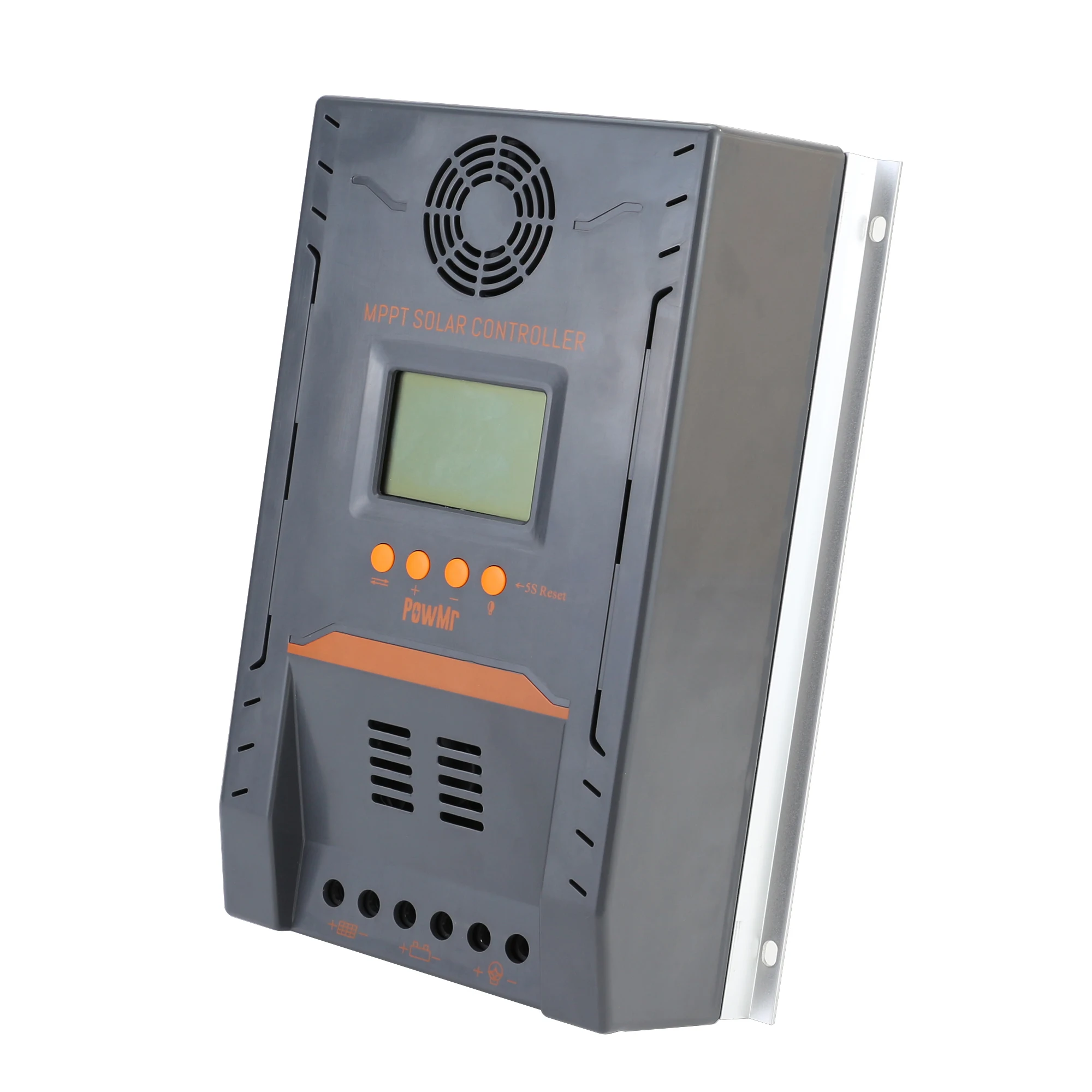

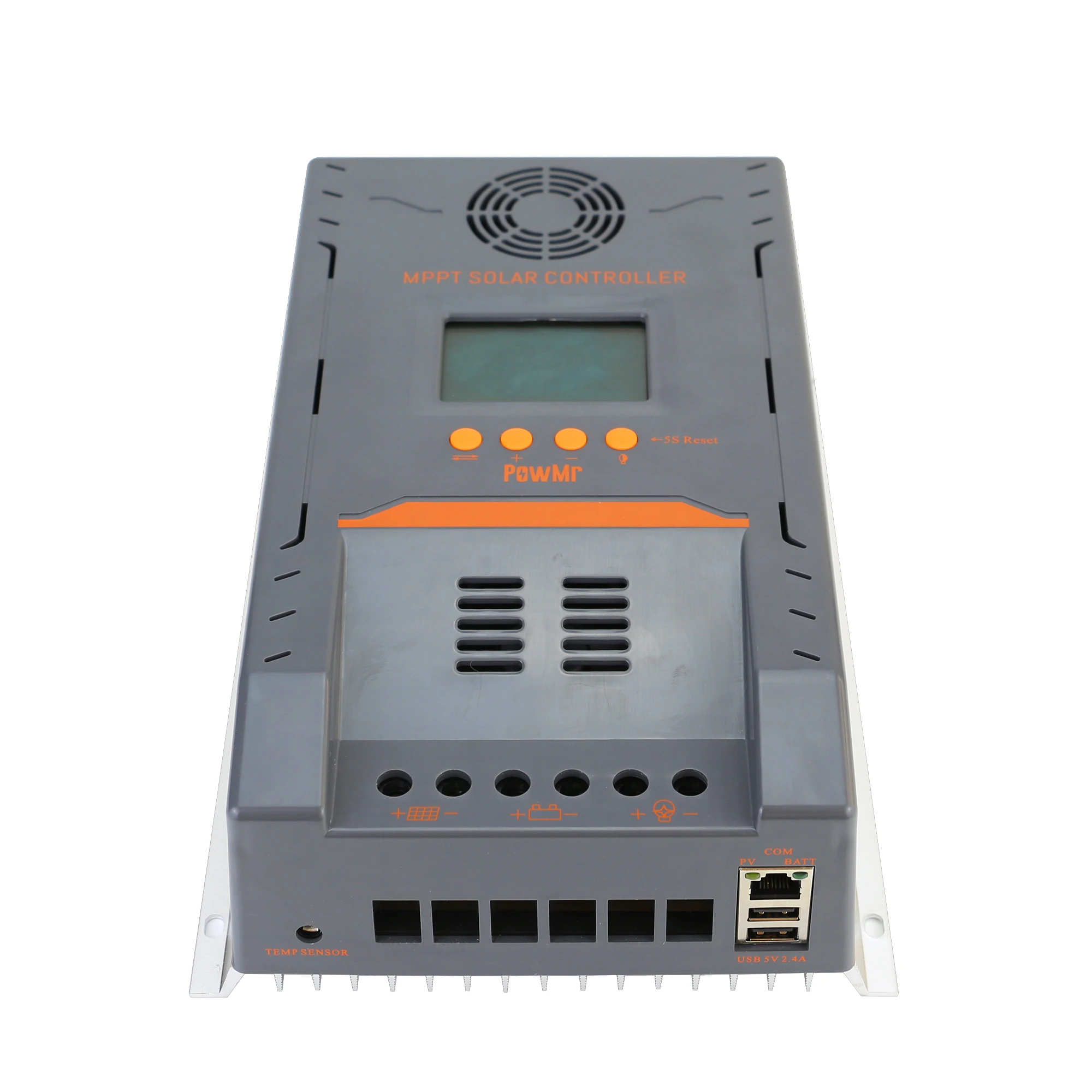

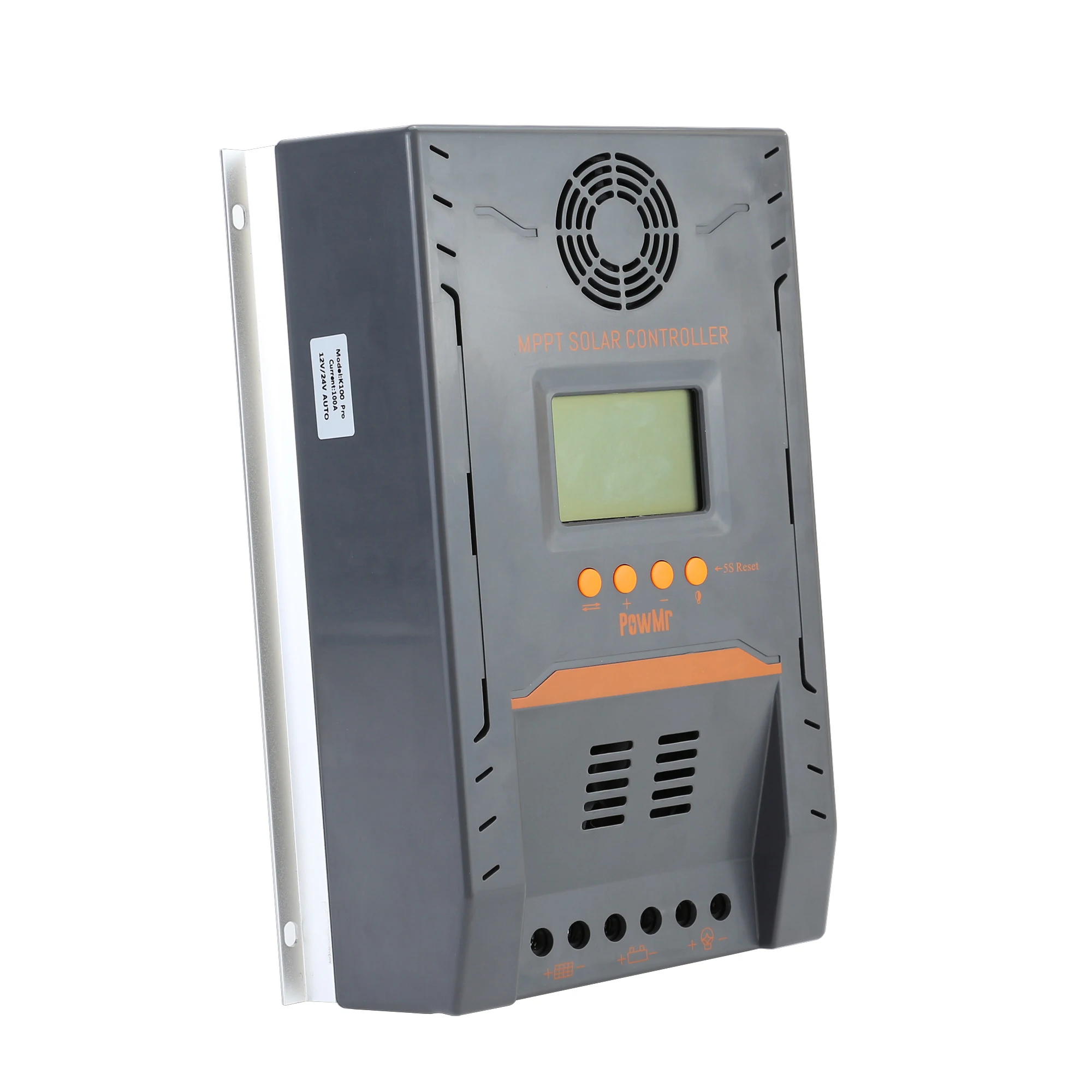

PowMr In Stock 100A Solar Panel Charge Controller 48V LCD Display Built in MPPT Solar Controller
- Category: >>>
- Supplier: Shenzhen Hehejin Industrial Co. Ltd.
Share on (1600426285377):
Product Overview
Description
Product Description
MPPT series solar charge controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to
the solar system,the charge controller conversion efficiency up to 98%.
Features :
Support 0 layer pricnciple = No scrolling No browsing operating system
（1）Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.
（2）High quality components, perfecting system performance, with maximum conversion efficiency of 98%.
（3）UItra-fast tracking speed and guaranteed tracking efficiency.
（4）Wide MPP operating voltage range.
（5）12/24VDC automatically identifying system voltage.

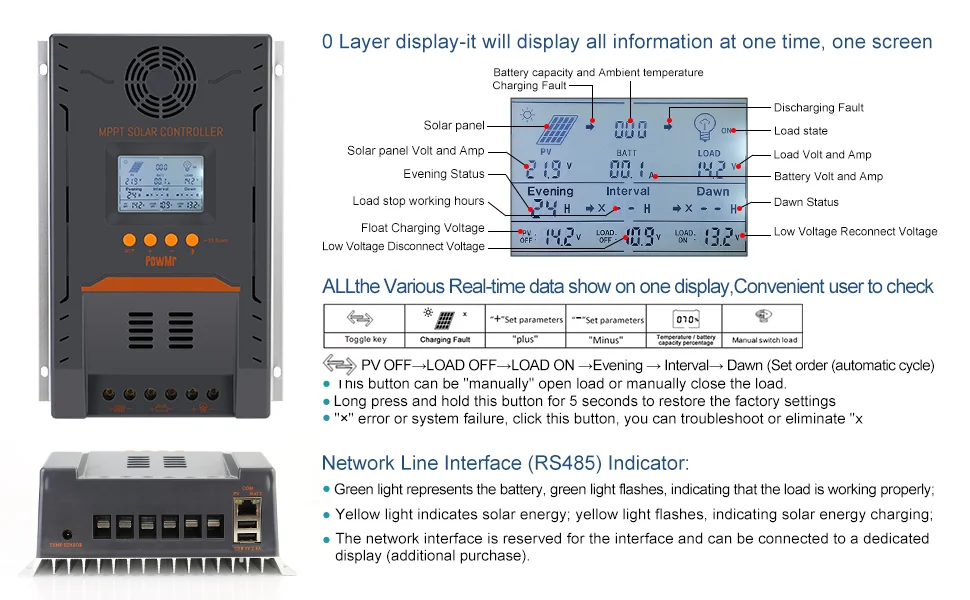

（6）LCD panel display design, dynamically displaying tool' s operating data and working condition.
（7）Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.
（8）Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
（9）Battery temperature compensation function.
（10）Multiple load work modes
（11）This solar charge controller with three time function.
the solar system,the charge controller conversion efficiency up to 98%.
Features :
Support 0 layer pricnciple = No scrolling No browsing operating system
（1）Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.
（2）High quality components, perfecting system performance, with maximum conversion efficiency of 98%.
（3）UItra-fast tracking speed and guaranteed tracking efficiency.
（4）Wide MPP operating voltage range.
（5）12/24VDC automatically identifying system voltage.
（6）LCD panel display design, dynamically displaying tool' s operating data and working condition.
（7）Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.
（8）Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
（9）Battery temperature compensation function.
（10）Multiple load work modes
（11）This solar charge controller with three time function.
Model | K60 | K80 | K100 | |||||
Maximum power current | 60A | 80A | 100A | |||||
Load output current | 40A | 40A | 40A | |||||
Installation Lin（mm2） | 18 | 20 | 20 | |||||
Installation Line(AWG) | 6# | 4# | 4# | |||||
Weight | 2100g | 2300g | 2300g | |||||
Peak power of solar cell panel(Max Wp) | ≤800 | ≤1040 | ≤1300 | |||||
Battery capacity configuration | ≥600AH | ≥800AH | ≥800AH | |||||

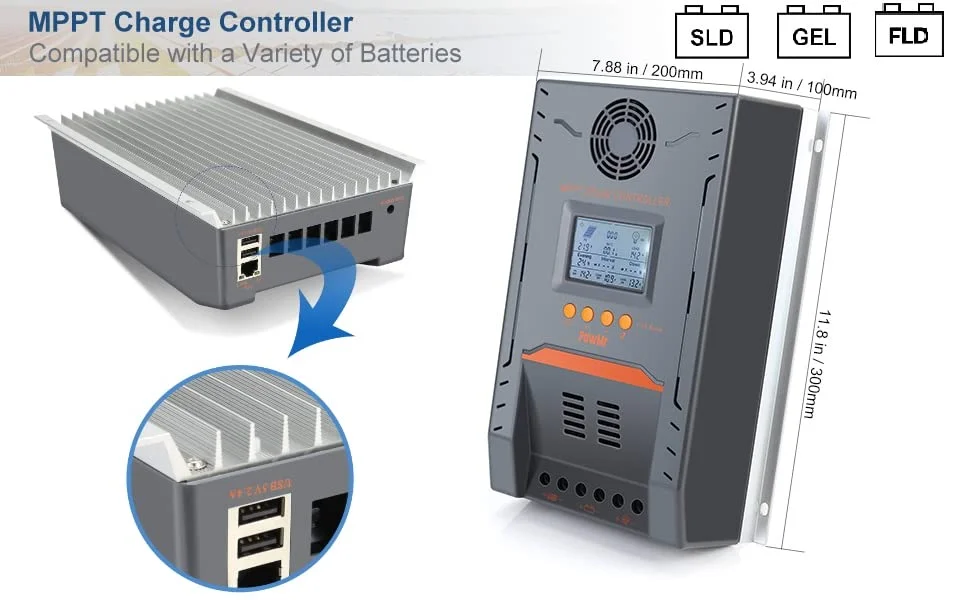

Dimension | 300*200*100mm | |||||||
Original Value | ||||||||
Battery float voltage | 13.8V(12V System)/27.6V(24V System) | |||||||
Battery (under voltage) protection | 10.6V(12V System)/21.2V(24V System) | |||||||
Battery (under voltage) recovery voltage | 12.6V(12V System)/25.2V(24V System) | |||||||
System load loss: ≤13mA | Loop Buck: ≤100mV | |||||||
Operating temperature: －10℃~60℃ | Storage temperature: -30~70℃ | |||||||
Humidity Requirements: ≤90%,No Condensation | Temperature Compensation: -4mV/Cell/℃ | |||||||
Maximum open circuit voltage of solar panel | 18V-48V(12V System)/36V-96V(24V System) | |||||||
Solar panels maximum open circuit voltage (V) | ≤96V | |||||||
Specification

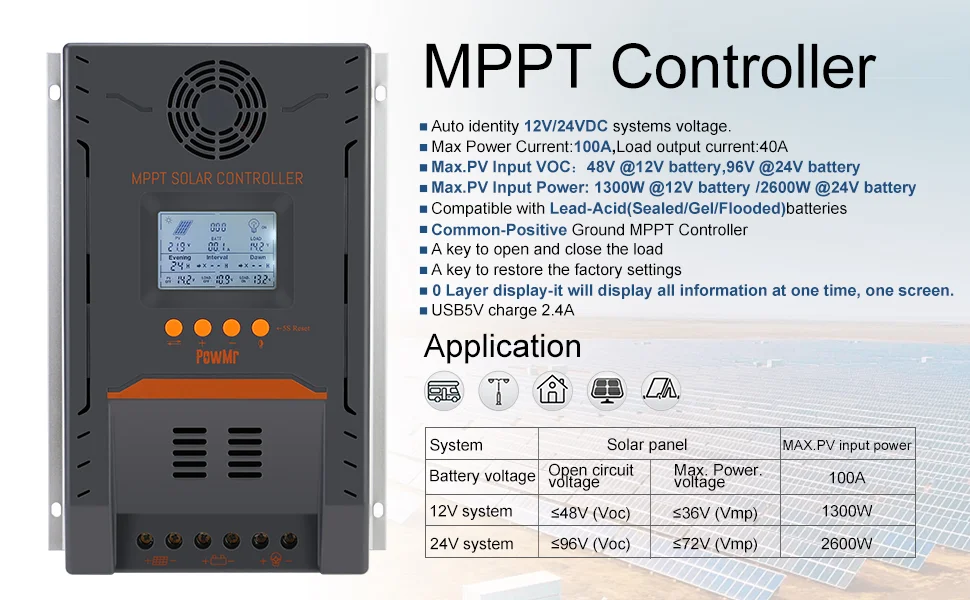

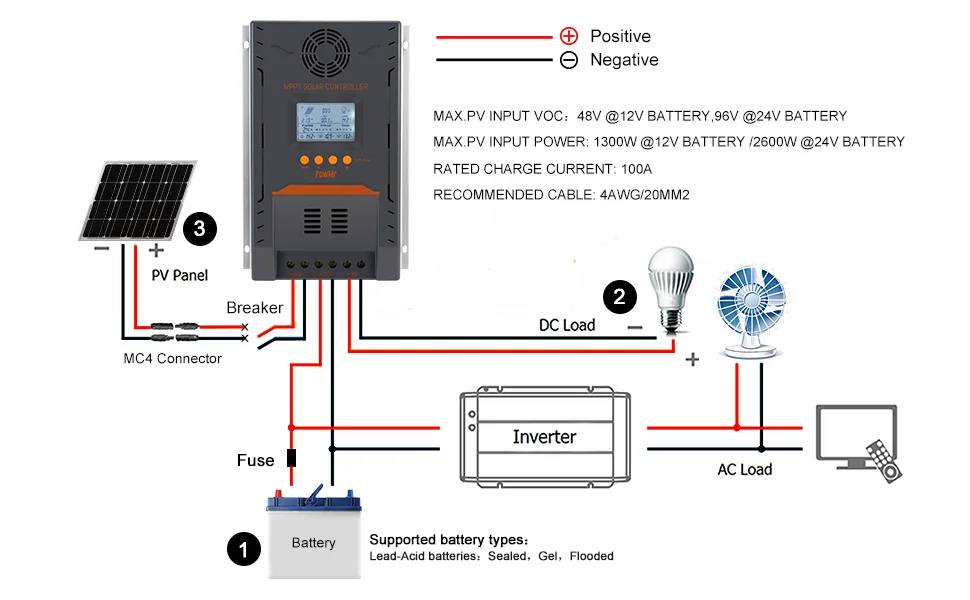

System | Solar Panel | Max. PV Intput Power | Max PV Input Power | |||||
Battery Voltage | Open Circuit Voltage | Max. Power. Voltage | 60A | 80A | 100A | |||
12V System | ≤48V(Voc) | ≤36V(Vmp) | 780W | 1040W | 1300W | |||
24V System | ≤96V(Voc) | ≤72V(Vmp) | 1560W | 2080W | 2600W | |||
