Yolin Meter OEM E bike Panel Replace Spare Parts 24V 36V 48V Electric Bicycle Kits E bike Color LCD Display

Share on:

Price:$20.90 - $23.90
Price in USD:Details


Product Overview


Product Description

Place of Origin
Brand Name
Model Number
Screen Type
LCD Display
Support Protocol
YL-01, YL-02, 5S, KDS, J, BAFANG
PAS Level
Install Handlebar Size
Wire Connector
Waterproof wire(recommended)/ conventional wire
CE / EN15194 / ROHS

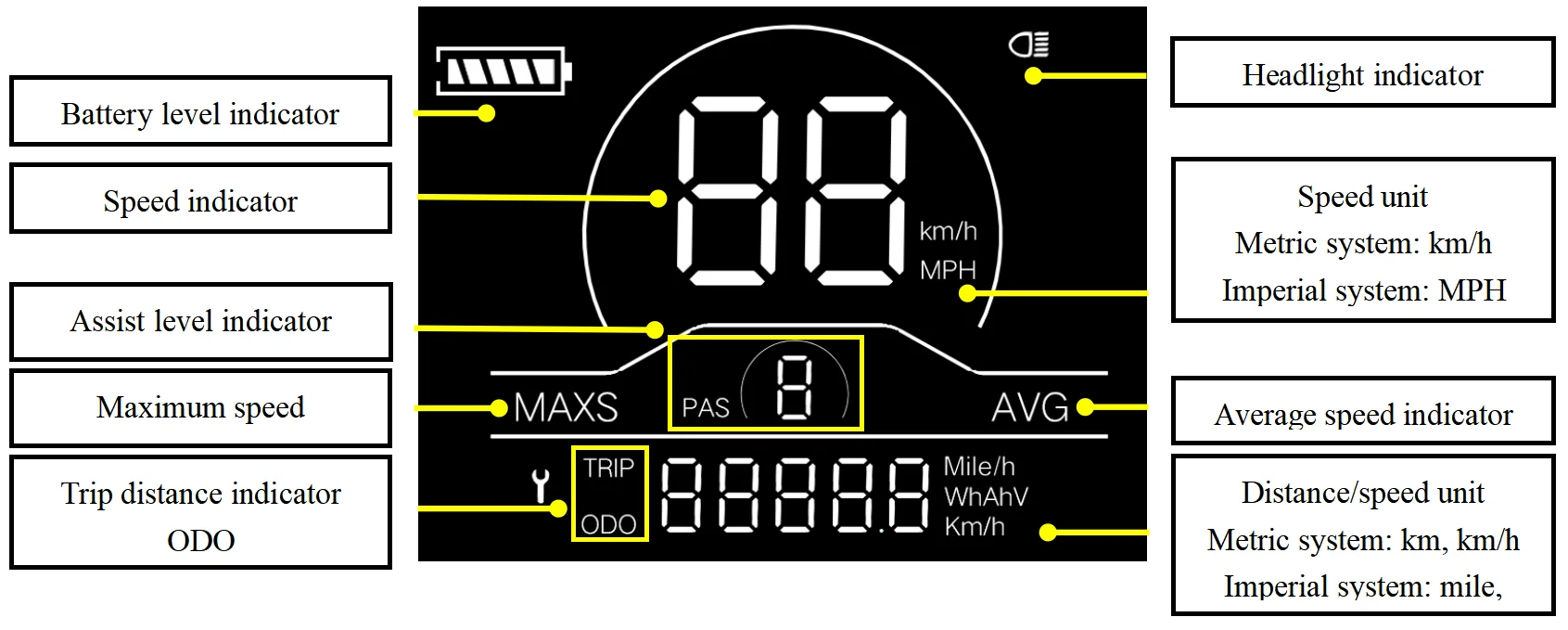

1. Product Function
● Battery level indicator
● Assist level adjustment and indication
● Headlight indicator
● Speed indicator (including real-time speed, maximum speed (MAXS) and average speed (AVG))
● Distance indicator (including ODO and trip distance (Trip))
● Error code indicator
● Parameter setting function

2. Product Specification
● 36V/48V power supply
● Rated working current 15mA
● Maximum working current 30mA
● Leakage current at power-off <1uA
● Working current at the supply controller end 50mA
● Working temperature -20~60℃
● Storage temperature -30~70℃

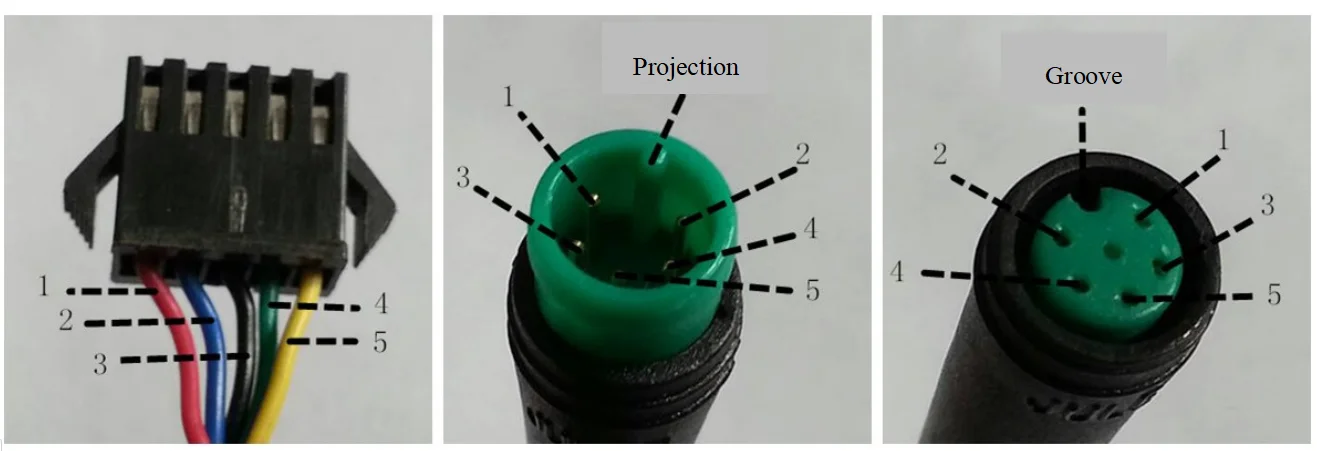

3. Wiring Sequence definition
We have regular connection harness and waterproof connector. According to customer requirements, we can provide different connector.

Wiring Sequence
Standard Wire Color
Red (VCC)
Power wire of display
Blue (KP)
Power control wire of controller
Black (GND)
Power control wire of controllerGround wire of display
Green (RX)
Data receiving wire of display
Yellow (TX)
Data transmission wire of display

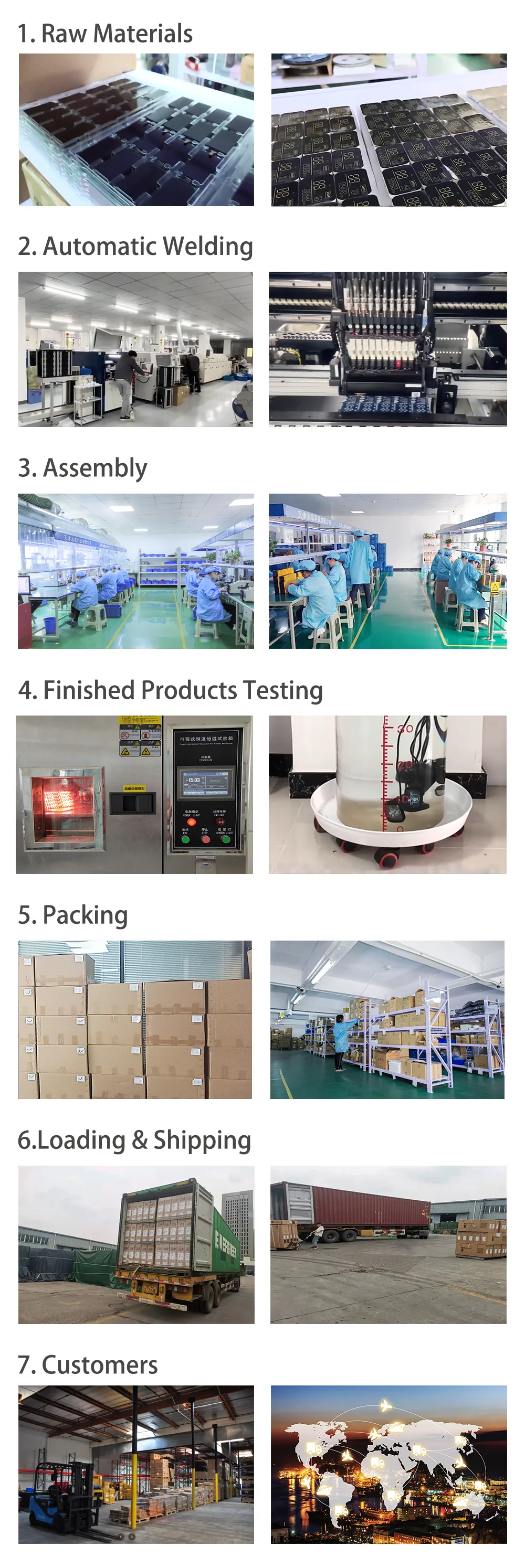

Production Process

Packaging & Shipping

Standard export carton packing.

3-45 days after confirming the order, a detail delivery date should be decided according to
production season and order quantity.

Company Profile

Tianjin Yolin Technology Co., Ltd.

Tianjin Yolin Technology Co., Ltd. is stretched over 1200 square meters free-standing factory area facility in Beichen, Tianjin, China, which is established in 2005 and professional in developing and producing electric bikes, electric scooters, phone holders, air pumps, displays, bicycle light, PAS sensor, and other accessories. Our products have obtained a number of national invention patents and utility model patents, and they have passed ISO9001, CQC, FCC, CE, and RoHS certifications. The products had been exported to most areas in the world, like Europe, America, Canada, Italy, Australia, Israel, etc. Our annual sales amount to 10 million RMB, about 1.5 million USD.

Our company is dedicated to the development of electronic products and solutions for national high-tech enterprises. We are dedicated to multiple products of development, manufacturing, sales, and service. We complete sets of the processing systems, the German imported pipe molding equipment, Taiwan automatic large cutting equipment, and welding production lines, and Automatic Dust-free spray paint production lines imported from Germany, also, We have semi-automatic assembly lines, its own R&D team, the overseas business team, and after-sales team, with a complete and scientific quality management system.

Our strength and product quality are recognized by the industry. Welcome our foreign guests and friends to visit our factory, guidance, and business negotiations! We are delighted to design and develop new products together with you.

Certifications & Exhibition


YOLIN--High and New-Tech Enterprises

Our company has established extensive sales channels and stocked our products in the US and Europe. Besides, we have obtained 9001, CQC, CE, ROHS, FCC, EMC, and UL certificates and letters of patent for part of our products. We expect that more and more people will learn about Yolin in the future. We hope Yolin's products can bring convenience to more

▶ Exhibition

We have participated in many electric bicycle exhibitions, including Tianjin Exhibition, Shanghai Exhibition and this year's European Bicycle Exhibition. Customers in many countries have learned about our strength and innovation, and Yolin's products have been widely recognized by customers and facilitated a lot of cooperation.

Selling well in all cities and countries around the world, currently, our products are exported to clients in such countries and regions as the US, UK, EU, and other regions of South-east Asia. We also welcome OEM and ODM orders.

Why Choose Us

▶ Advantages

Professional technical team
with 16-year rich experience

1 year warranty & Free spare parts
Intergrated supply chain

Strong R & D capability
OEM & ODM service
Low MOQ & Fastly time

Partners & Customers


Q1: How can I get a sample for testing?
A: Yes we can provide samples for evaluation. Please contact us to confirm.

Q2. Do you accept OEM/ ODM oder? What's your MOQ?
A: Yes, we can customize logo, packaging. Our MOQ for OEM/ODM is 50pcs.

Q3: How can I order?
A: You can order directly from Alibaba or contact us for more details.

Q4: How long is your delivery time?
A: For Ordinary sample, 3-7 work days.
For OEM/ODM sample, 5-10 work days.
For stock items, we can ship within 20-45 work days.
For OEM/ODM items, the production takes about 30-50 days.

Q5: Whats your payment terms?
A: For payment, we can accept T/T, Western Union, Paypal, Alipay, Cash.

Q6: How Is the packing?
A: We pack our products in cartons.Carton Size: Depends on the products size.

Q7: Where Is your factory?
A: We are located in Tianjin, China.

Q8: What are the FOB shipping ports?
A: Tianjin, Shenzhen, etc.

Q9: What's your warranty?
A: We provide a one-year warranty.
