HONGSHENG Automatic Sliting Machine for shrinkable PVC, PET, BOPP paper roll cutting machine

Product Overview

Description

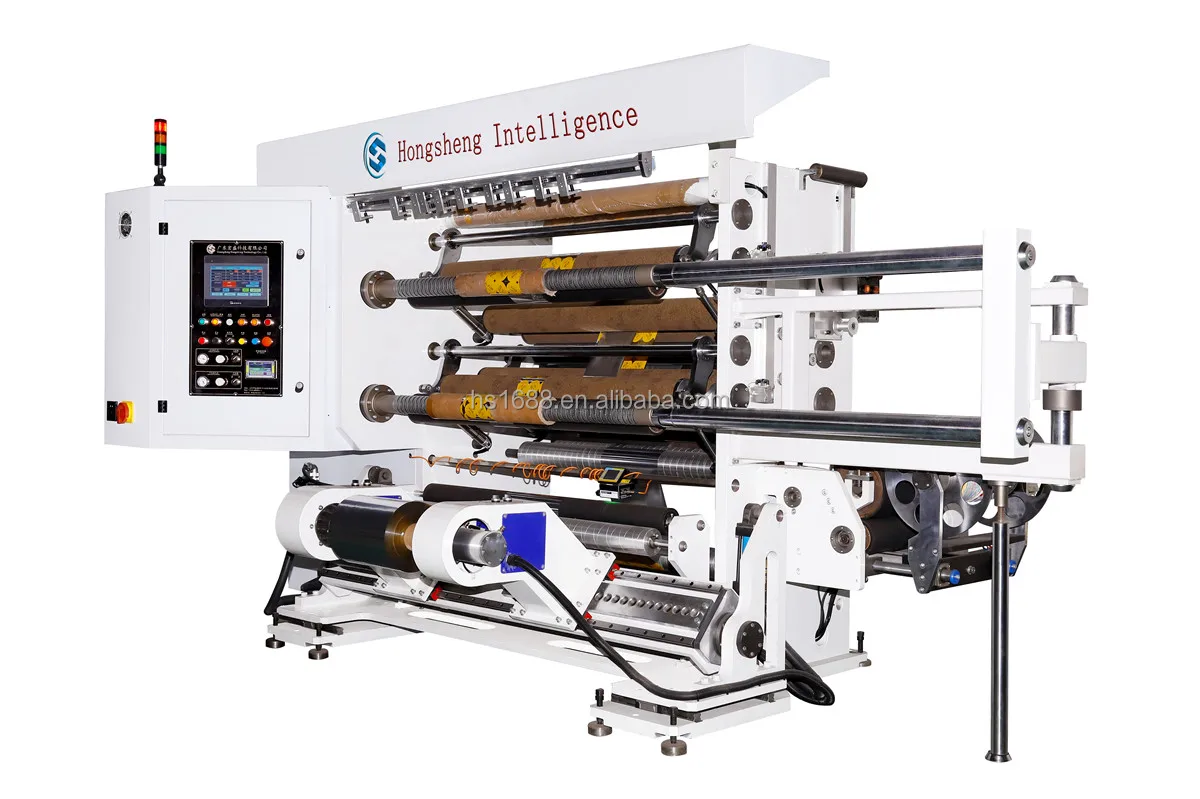

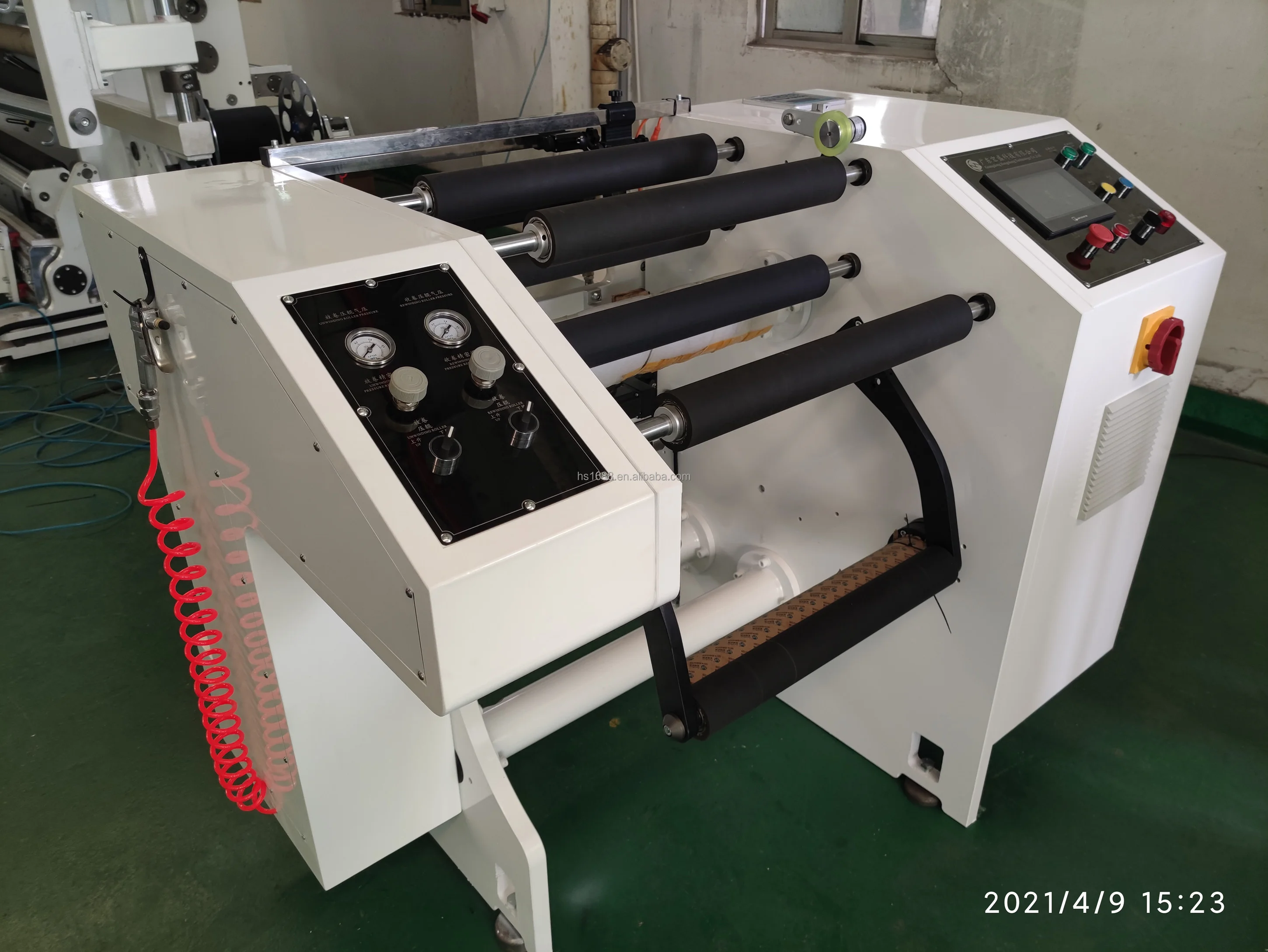

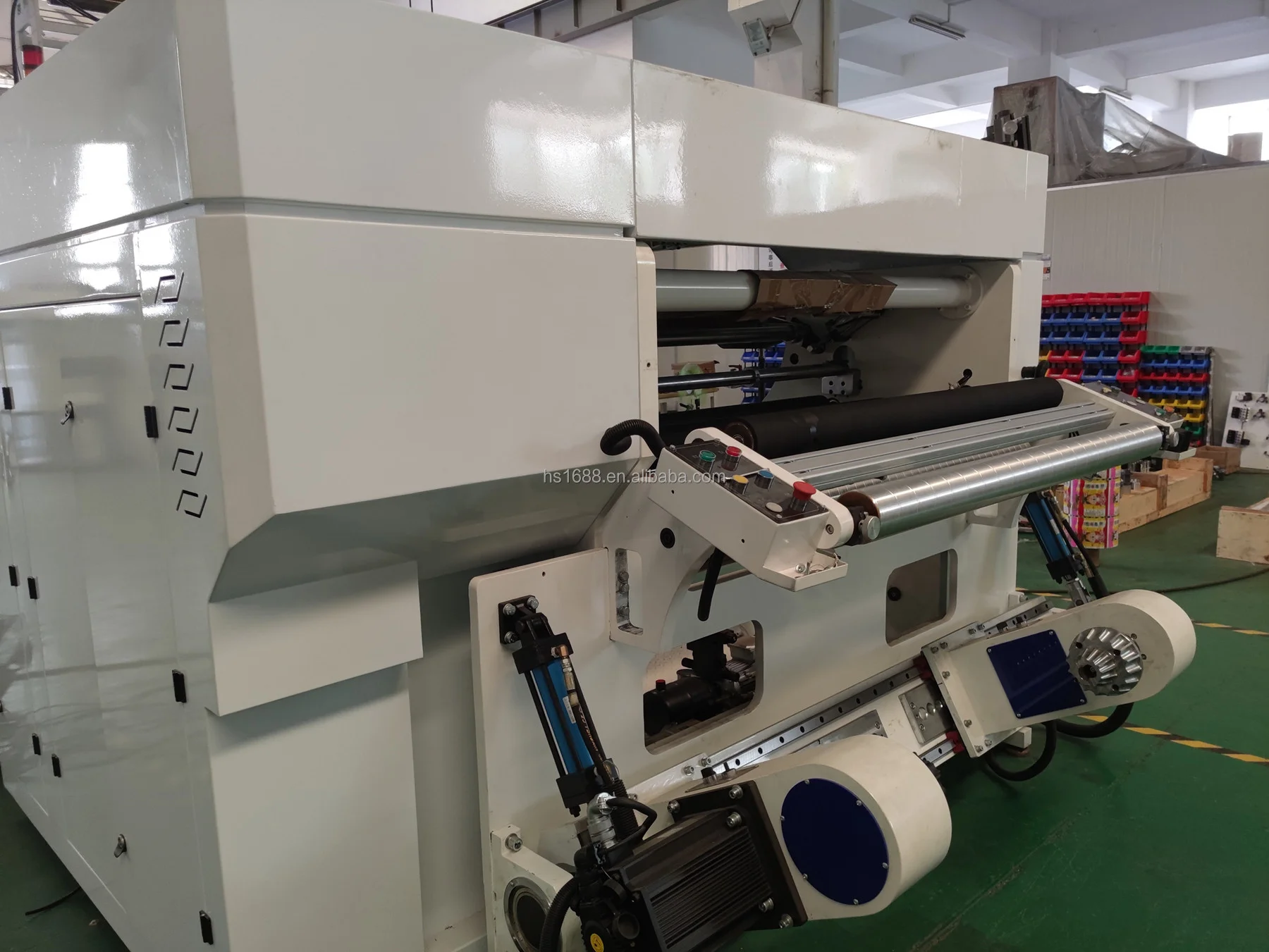

                                HS-1300J Fully Automatic High speed  Plastic Roll                                 Film Slitting  Machine





Function Description :

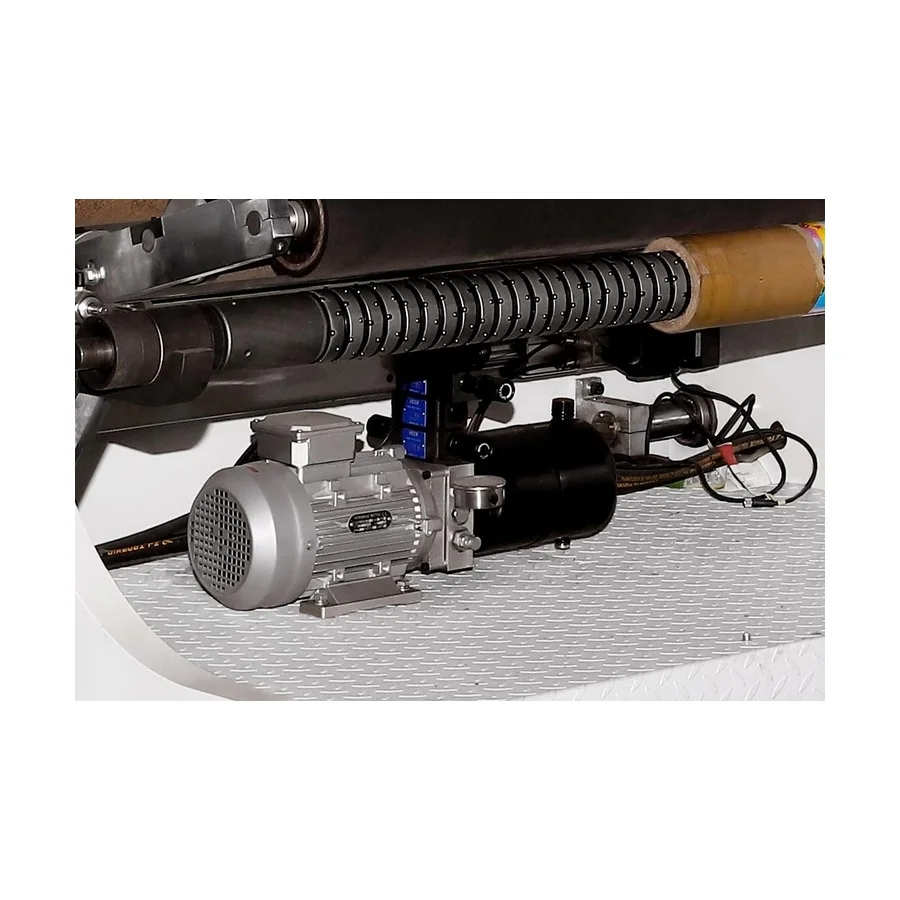

Unwinding method: Adopting shaft-less mechanical cone head chuck, manual adjusting width  with location holes, achieving automatic loading  hydraulic lifting to reduce labor intenity.



Web guiding :  Adopting imported analog web guiding system ,tracking material edge or printedline, with electrical the tuning function, it allows machine to quick adjust photoelectric position to reduce cost and improve

efficiency .



Adjusting device:  Unwinding  aluminum guiding roller has front and back adjusting devices, make materialto the full extent of paralleling with guiding roller in order to ensure the rewinding accurancy and quality.



Unwinding tension detection:  Unwnding is driven by 1 sets of servo motor , arc-gear synchronous belt transmission torque, with its feature of lower noise, large torque, less power loss.



Unwinding control:  There are functions  like start, stop , speed controland unwinding tension adjusting ,synchronize with rewinding part, displaying machine speed, unwinding tension, rewinding tension, rewinding length.



Slitting:

Slitting method:  adopting flat knife cutting , hanging slitting or groove slitting can be chose according to different materials.



Technical parameter



Mechanical  speed	max 500/min	Equipment valid width	1350mm
Rewinding width	300-1350mm	Reinding diameter	Φmax 400mm
Equipment size	L3400*W2300* H 1800mm	Unwinding diameter	Φmax 800mm





 Company profile



  Guangdong  Hong Technology Co., Ltd . is a company specializing in the production of intelligent machinery, integrating design , production , processing  and sales .  After years of research and development,innovation,and the introduction of foreign advanced technology, the product has developed from a single variety to a variety of intelligent machinery. Main intelligent high speed slitting vmachine, intelligent high-speed inspection product rewindig machine, intelligent two dimensional code codig platform.



Guangdong Hongsheng Technology Co.,Ltd has a team of professional technicians with reasonable knowledge structure and rich production experience.



WIth a unque and innovative vision, Hongsheng develops innovative thinking and integrates advanced technology, focusing, focusing and continous development, and strives to expand the fleible packaging material machinery industry.



Operating  principles: quality first,reputation first, service first, customer first.





Company picture

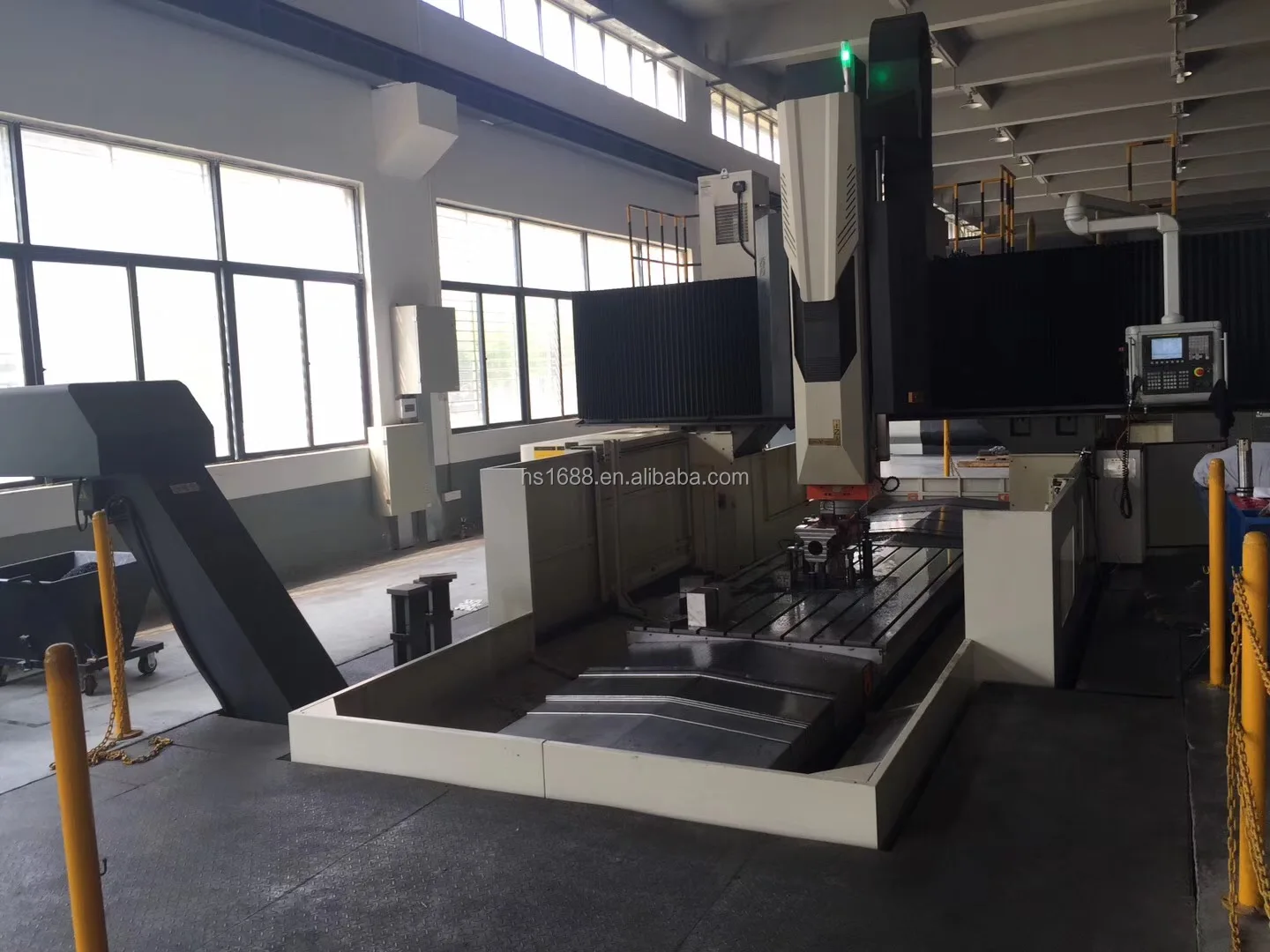

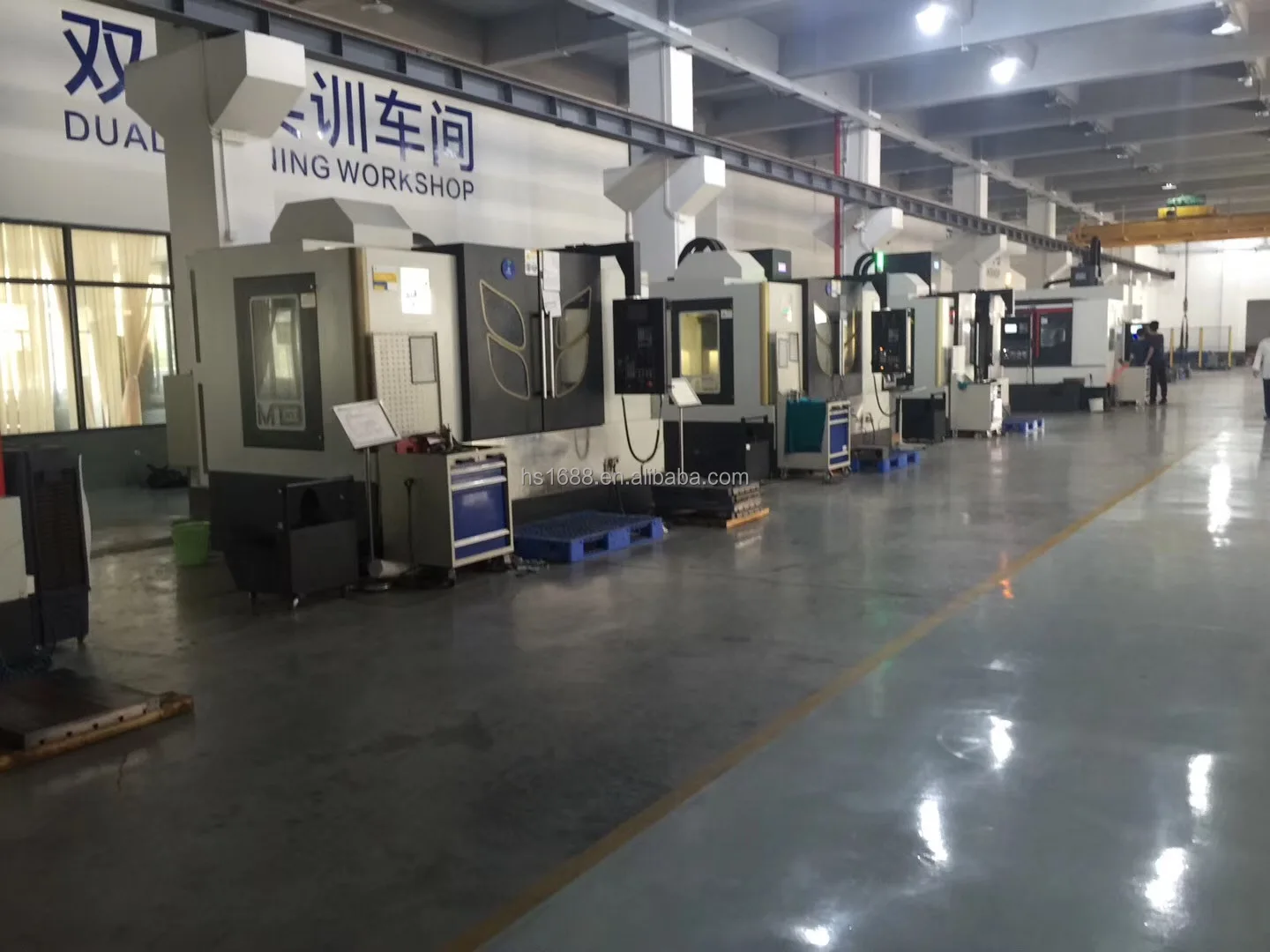

Workshop picture
