Product Overview
Description
We have 25+ years of production experience in this industry. In order to adapt to the upgrading speed of electronic products, we can provide customers with One-Stop service (PCB + PCBA), which not only shortens the product launch cycle, but also saves customers' Research and Development costs. We can provide flexible production of Prototypes and Small&Middle volume production to meet customers' requirements from r&d to product launch.
PCB+AL
Pasting a metal aluminum board on one side of the PCB can help the PCB to dissipate heat better during use.

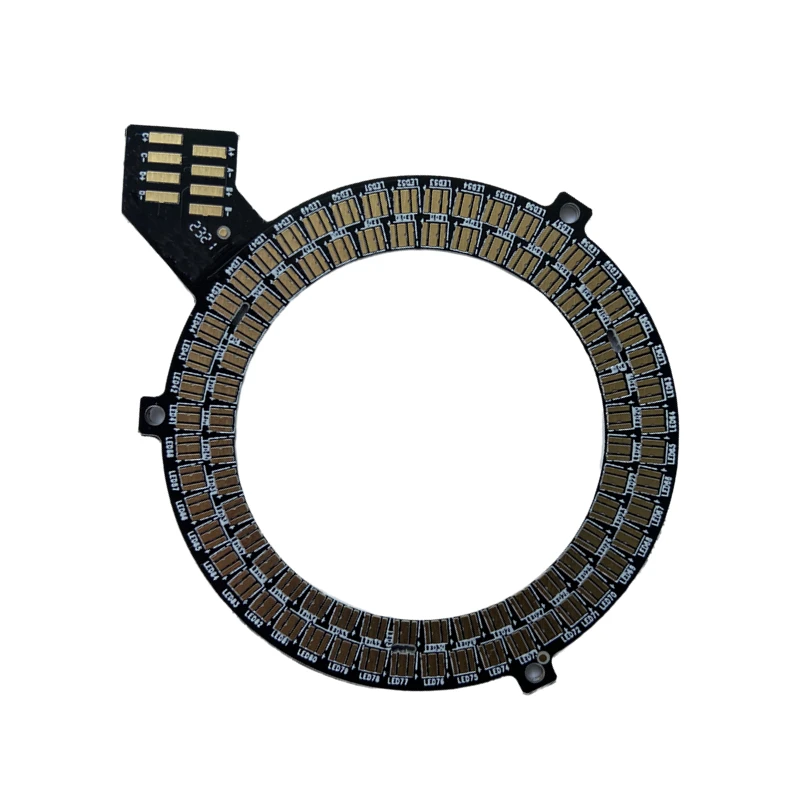

LED PCB
LED Metal AL PCB, the longest size can be 1012mm, suitable for high power LED lamp, the heat dissipation effect is very good.

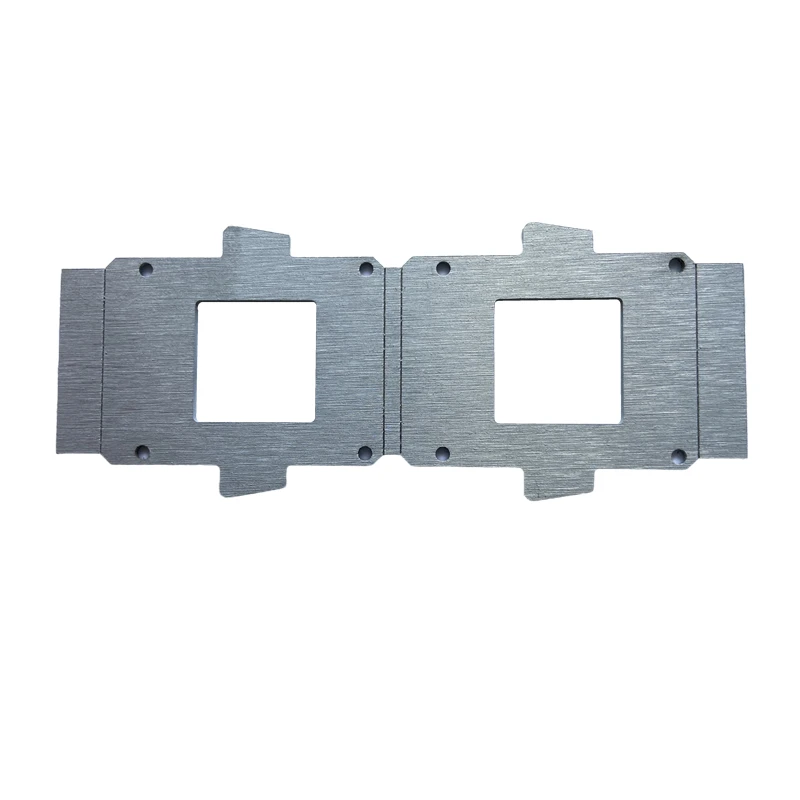

Single AL PCB
Conventional single-sided Aluminum PCB has advantages in cost, and different materials can be selected according to thermal conductivity.

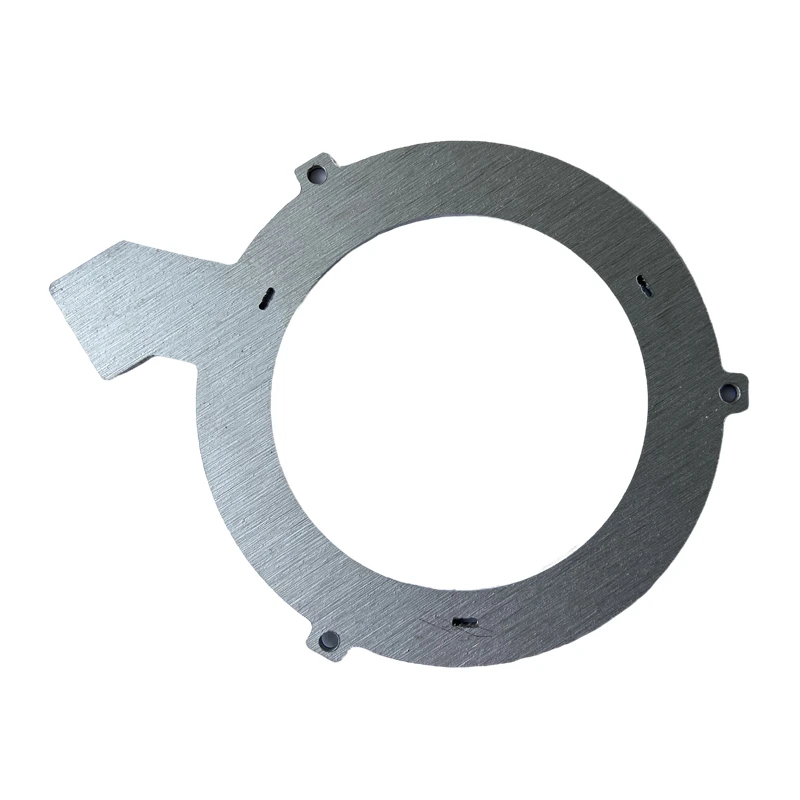

AL PCB+PE FILM
Single sided Aluminum PCB with high temperature resistant PE film pasted on the back can protect the smoothness of aluminum surface and avoid scratch.
1. Service Advantages
2. Quality Advantages
Key Parameters Of MCPCB | ||||||
ITEM | Standard | Advanced | ||||
Layer Count | Max Layer Count | 4L | 8L | |||
Board Thickness | Max PCB Thickness | 5.0mm | 5.0mm | |||
Min PCB Thickness | 0.5mm | 0.5mm | ||||
Finished Size(AL，Copper,Sintered Board) | Min Finished Size | 5*5mm | 5*5mm | |||
Max Finished Size | 610*610mm | 10*1012mm | ||||
Max Finished Size(Ceramic Board) | 100*100mm | 100*100mm | ||||
Max Base Copper Weight | 8OZ | 10OZ | ||||
Min finished hole size and tolerance | NPTH：0.5±0.05mm；PTH(AL、Copper)：1.0±0.1mm；PTH(Metal core printed board)：0.2±0.10mm； | |||||
Tolerance of Routing | ax PCB Aspect Ratio | ±0.1mm | ±0.05mm | |||
Coefficient of thermal conductivity | 0.3-3w /m.k (AL, Copper); 8.33w /m.k (Sintered Board); 0.35-30W/ M.K (Buried Metal Board); 24-180w /m.k (Ceramic Board) | |||||
Surface Treatment | HASL/LF-HAL；OSP；ENIG；Electronic Gold Plating；Hard Gold Plating；Anodic oxidation、Hard oxidation | |||||
Material | Metal Substrate | Shengyi SAR20, Yugu YGA，T110/1/2，T112B/C，VT-4A1/2/3/5，1KA04/6/8 | ||||
Ceramic | Al2O3 /AlN (inch):4.5*4.5//5.0*5.0//5.5*7.5 | |||||
MCPCB LEAD TIME | ||||
Layer | Quick Turn/Normal Time | Mass Production | ||
1L | 3 days/5 days | 8-10 days | ||
2L | 4 days/7 days | 10-12 days | ||
4L | 7 days/10 days | 12-14 days | ||
6L | 8 days/12 days | 16-18 days | ||
8L | 9 days/14 days | 16-18 days | ||
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
