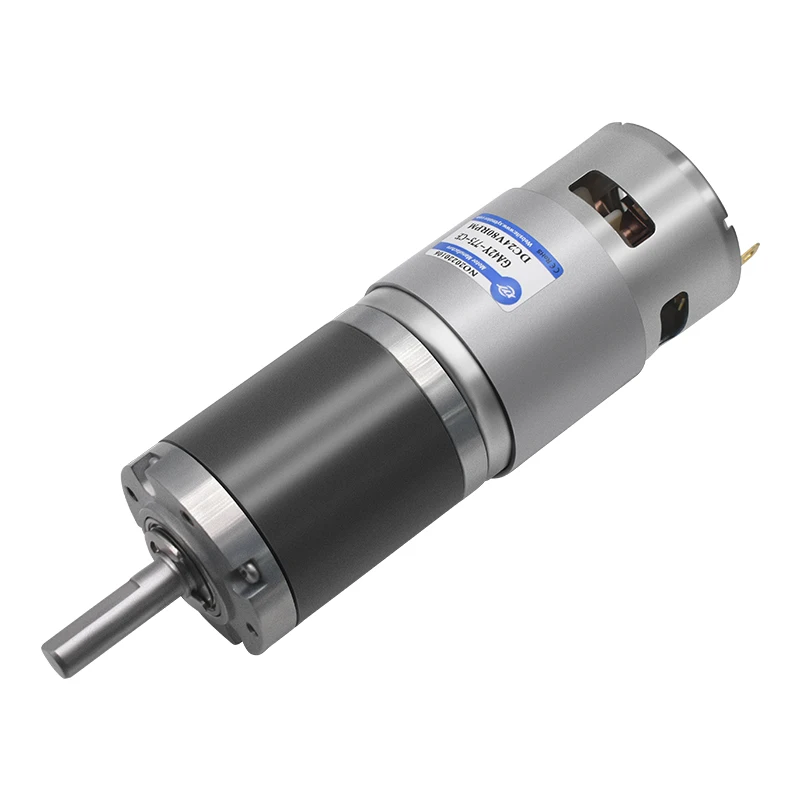

XYT GA24Y 2430 24MM 2430 BLDC 12V 24V Max 21kg,cm Torque Planetary Gearbox Precision Gear Low Noise Long Life Brushless Motor
- Category: >>>
- Supplier: Shenzhen Xinyongtai Motor Co. Ltd.
Share on (1600426516764):
Product Overview
Description
Product Description
XYT GA24Y-2430 24MM 2430 BLDC Motor 12V 24V Max 21kg,cm Torque Planetary Gearbox Precision Gear Low Noise Long Life Motor
Brand | Xinyongtai |
Motor type | Planetary motor |
motor model | GA24Y-2430 |
Voltage | 12 / 24V |
Load Electric current | 0.09-0.18A |
power | 5.7-6.0W |
Load Torque | 0.15-21kg,cm |
No load speed | 12-1500rpm |
weight | 135-150g |

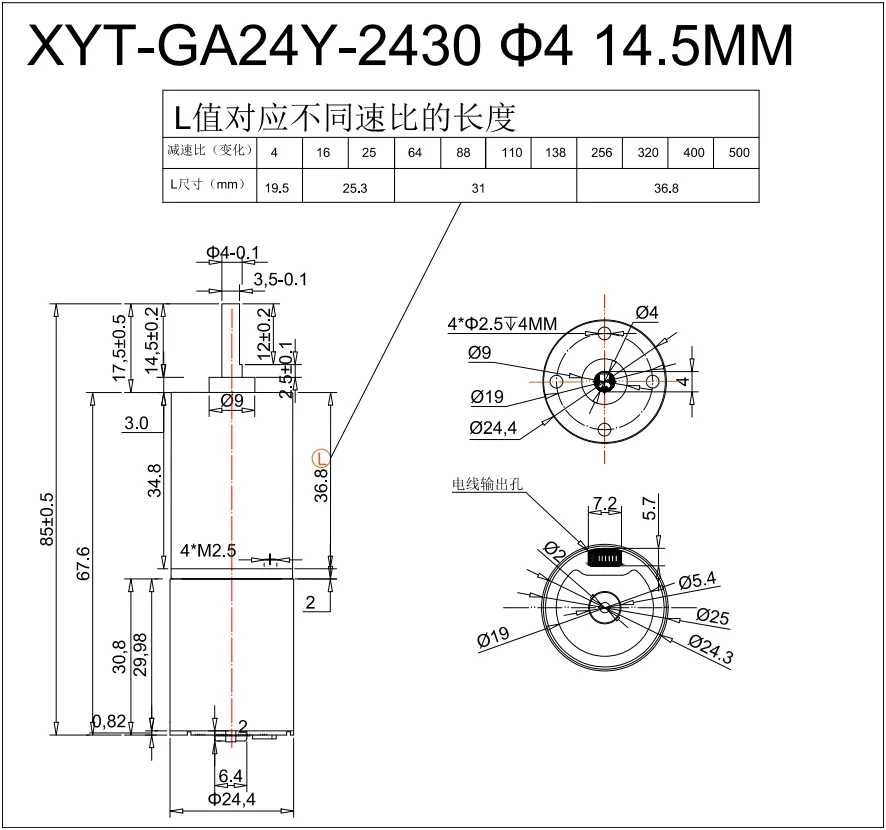

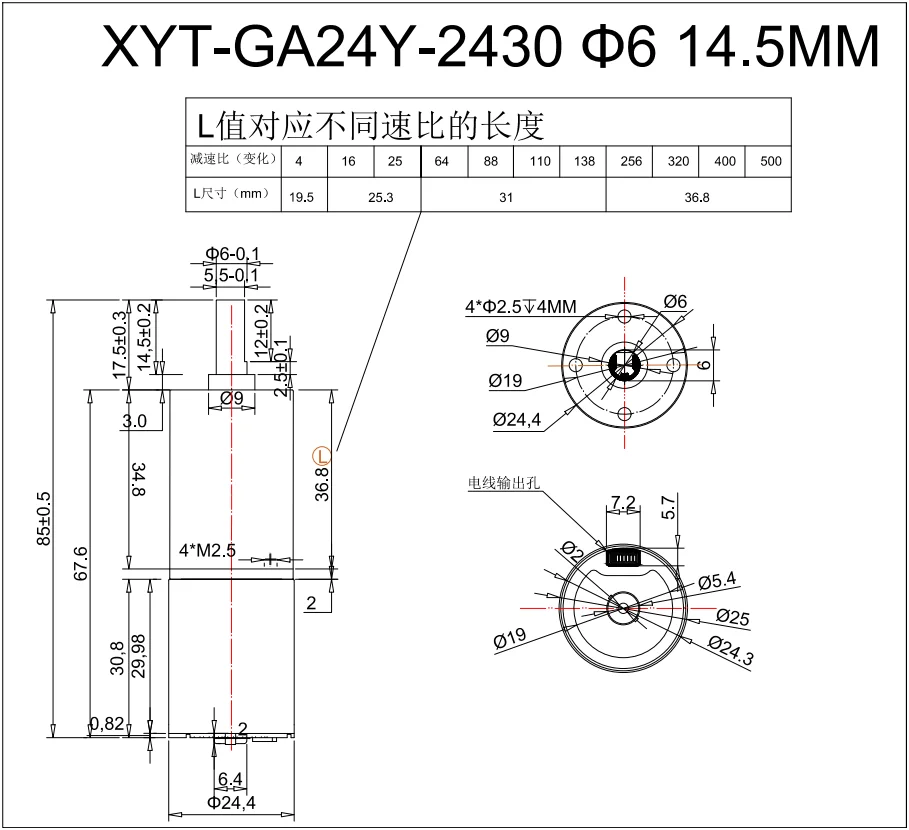

Shaft | D4/D6 15mm |
Whether forward or reverse | Yes |
Whether to adjust the speed | Yes |
Model ：XYT-GA24Y-2430-1260 | ||||||||||||||||||
Reduction ratio | No-Load | Rated Load | Stall | |||||||||||||||
Rated Voltage (V) | Speed (RPM ±10%) | Current (A) | Speed (RPM ±10%) | Current (A) | Torque (Kg,cm) | Power(W) | Torque (Kg.cm) | Current (A) | ||||||||||
4 | 12 | 1500 | 0.18 | 1200 | 0.5 | 0.15 | 6.0 | 0.5 | 1.9 | |||||||||
16 | 12 | 375 | 0.18 | 300 | 0.5 | 0.6 | 6.0 | 2 | 1.9 | |||||||||
25 | 12 | 240 | 0.18 | 192 | 0.5 | 1 | 6.0 | 3 | 1.9 | |||||||||
64 | 12 | 94 | 0.18 | 75 | 0.5 | 2.5 | 6.0 | 7.5 | 1.9 | |||||||||
88 | 12 | 68 | 0.18 | 54 | 0.5 | 3.5 | 6.0 | 10 | 1.9 | |||||||||
110 | 12 | 54.5 | 0.18 | 43 | 0.5 | 4 | 6.0 | 13 | 1.9 | |||||||||
138 | 12 | 43 | 0.18 | 34.5 | 0.5 | 5 | 6.0 | 16 | 1.9 | |||||||||
256 | 24 | 23 | 0.18 | 18.5 | 0.5 | 10 | 6.0 | 30 | 1.9 | |||||||||
320 | 24 | 18.5 | 0.18 | 15 | 0.5 | 12 | 6.0 | 38 | 1.9 | |||||||||
400 | 24 | 15 | 0.18 | 12 | 0.5 | 16 | 6.0 | 48 | 1.9 | |||||||||
500 | 24 | 12 | 0.18 | 9.5 | 0.5 | 20 | 6.0 | 60 | 1.9 | |||||||||
Model ：XYT-GA24Y-2430-2460 | 12 | 9 | 0.13 | 6.5 | 0.275 | 41 | 7 | 125.25 | 3.6 | |||||||||
4 | 24 | 1500 | 0.09 | 1200 | 0.24 | 0.15 | 5.7 | 0.5 | 0.9 | |||||||||
16 | 24 | 375 | 0.09 | 300 | 0.24 | 0.7 | 5.7 | 2 | 0.9 | |||||||||
25 | 24 | 240 | 0.09 | 192 | 0.24 | 1 | 5.7 | 3 | 0.9 | |||||||||
64 | 24 | 94 | 0.09 | 75 | 0.24 | 2.5 | 5.7 | 8 | 0.9 | |||||||||
88 | 24 | 68 | 0.09 | 54 | 0.24 | 3.5 | 5.7 | 11 | 0.9 | |||||||||
110 | 24 | 54.5 | 0.09 | 43 | 0.24 | 4.5 | 5.7 | 14 | 0.9 | |||||||||
138 | 24 | 43 | 0.09 | 34.5 | 0.24 | 5.5 | 5.7 | 17 | 0.9 | |||||||||
256 | 24 | 23 | 0.09 | 18.5 | 0.24 | 10 | 5.7 | 32 | 0.9 | |||||||||
320 | 24 | 18.5 | 0.09 | 15 | 0.24 | 13 | 5.7 | 40 | 0.9 | |||||||||
400 | 24 | 15 | 0.09 | 12 | 0.24 | 17 | 5.7 | 51 | 0.9 | |||||||||
500 | 24 | 12 | 0.09 | 9.5 | 0.24 | 21 | 5.7 | 64 | 0.9 | |||||||||
The engineer recommends： Recommended that the load not exceed 21KG,CM | ||||||||||||||||||
More Products
Product Application
Customization Process
Packing & Shipping
Why Choose US?
FAQ
Q1: Are you a Manufacturer or a Trading Company?
A:We are a professional manufacturer with over 11 years of experience, and have a complete supply chain from parts processing to finished products.
Q2: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Q3: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.
Q4: How long is the producing and shipping?
A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.
2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days.
Q5: When will you reply after got my inquiries?
A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
