Cooling Equipment Immersion Cooling Water Cooled Chiller
- Category: >>>
- Supplier: Bobai Machinery (shanghai) Co. Ltd.
Share on (1600426530174):
Product Overview
Description

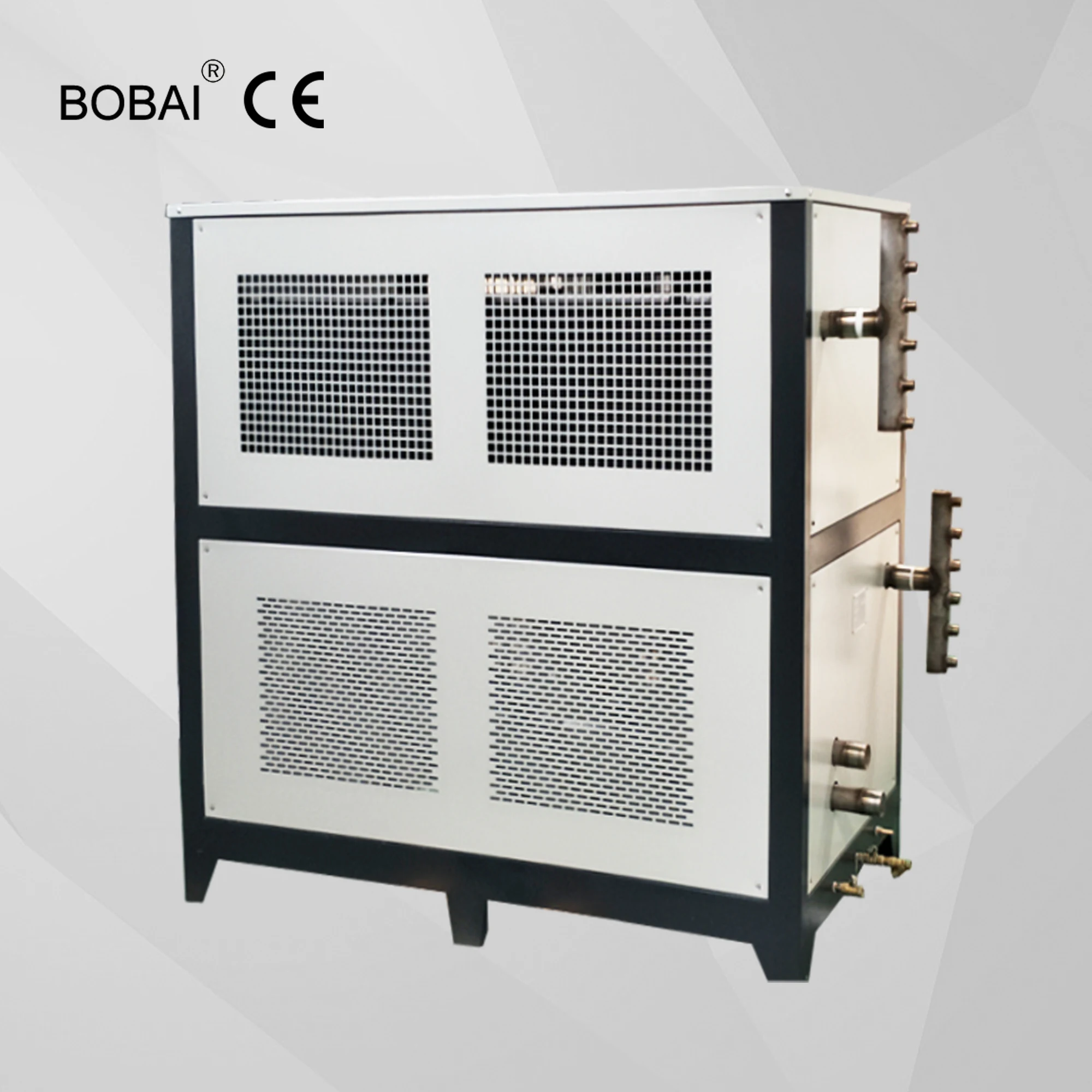

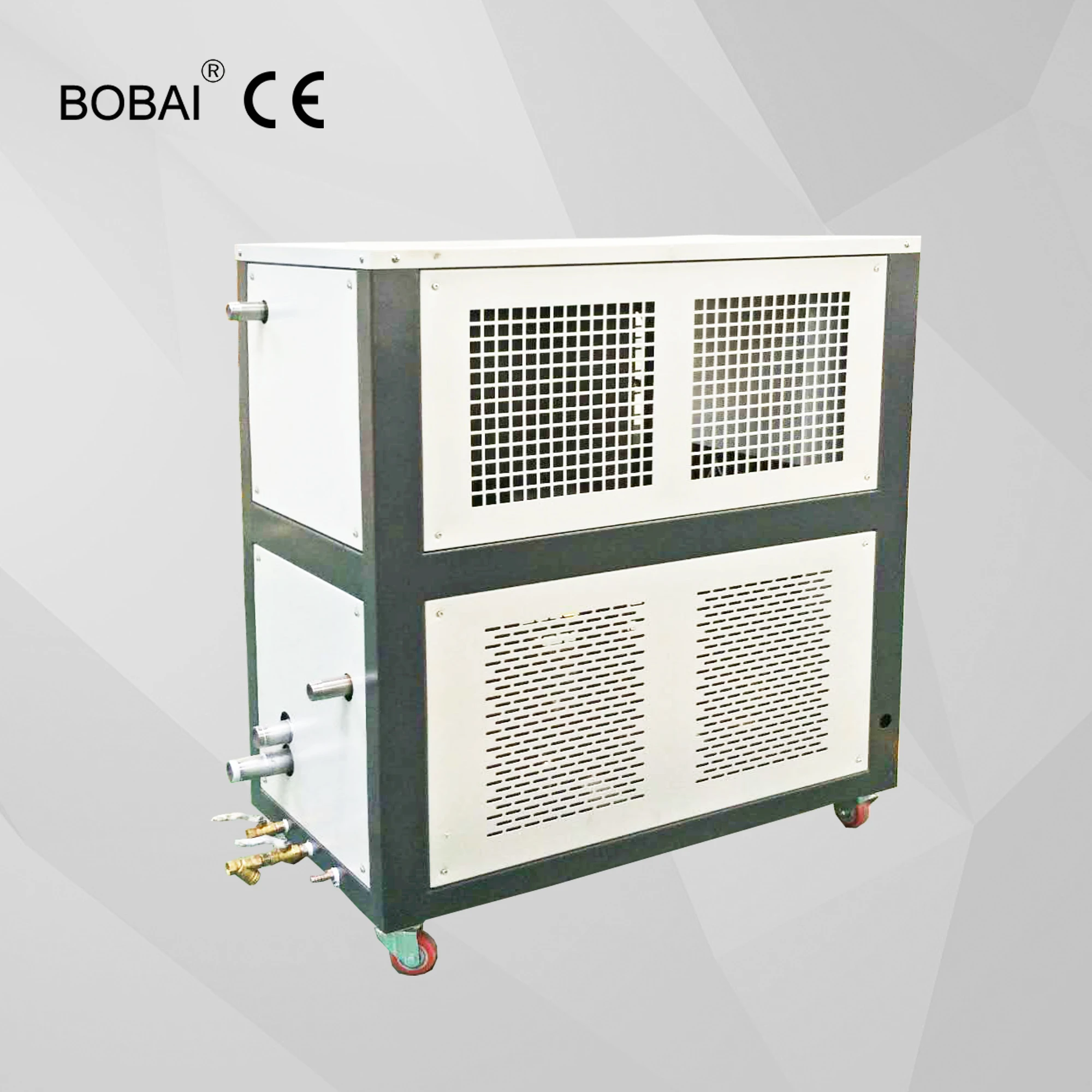

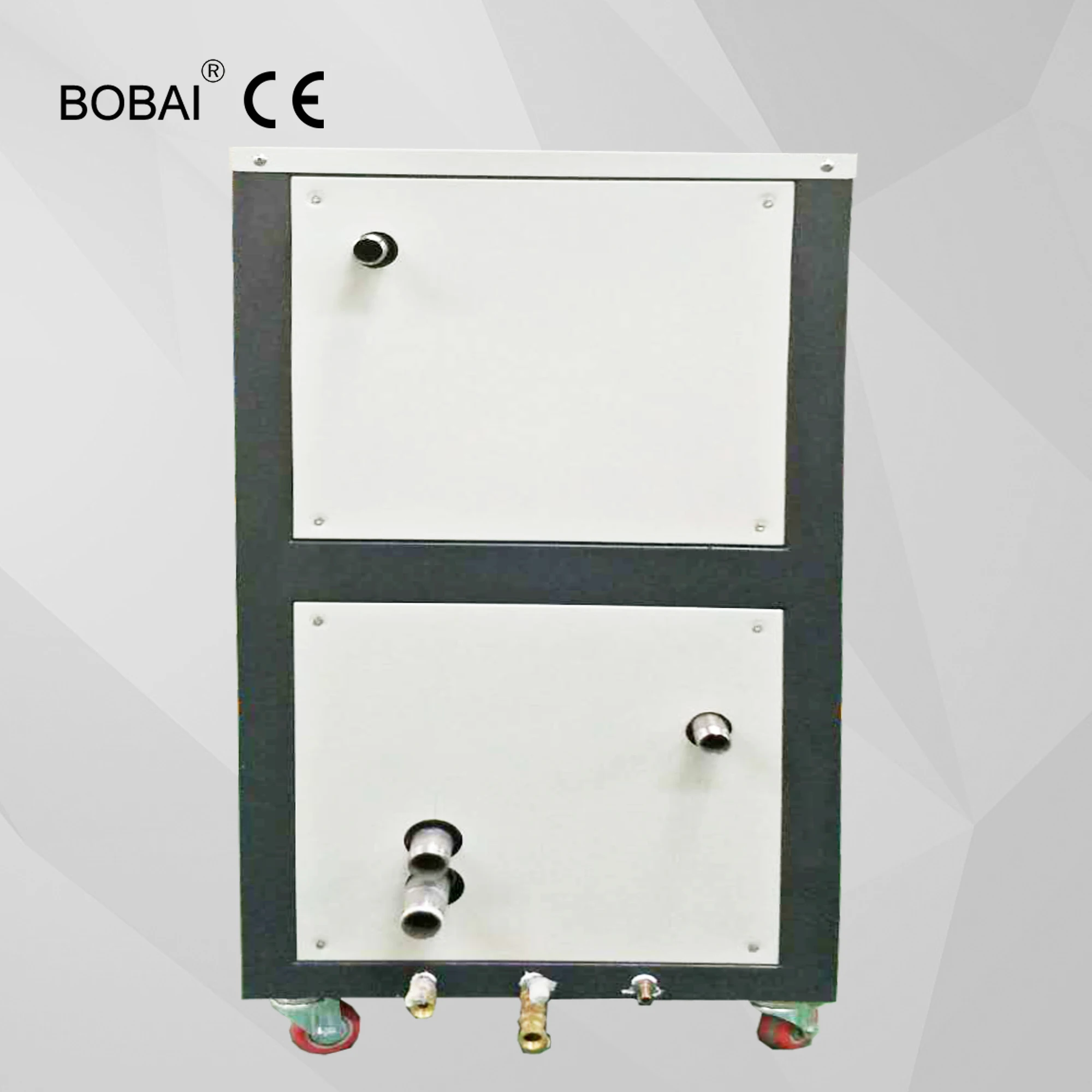

Cooling Equipment Immersion Cooling Water-Cooled Chiller
Product Description
Product Description
Baking Pizza Water Cooler
Water Chiller Technical Characteristics:
* suitable for using in hot climate area for baking different kinds of bread.
* Heavy Stainless Steel (304 series) Construction for Easily Cleaning
* Heavy duty copper refrigerant coil within the chamber.
* Up to 1000 L /hr from atmosphere temperature to 5°C or 41°F .
* More durable and high performance.
* One-Year Parts and Limited Labor Warranty
* Can provide different size water chiller, such as 100 L, 200 L, 300 L,500L, 600L.

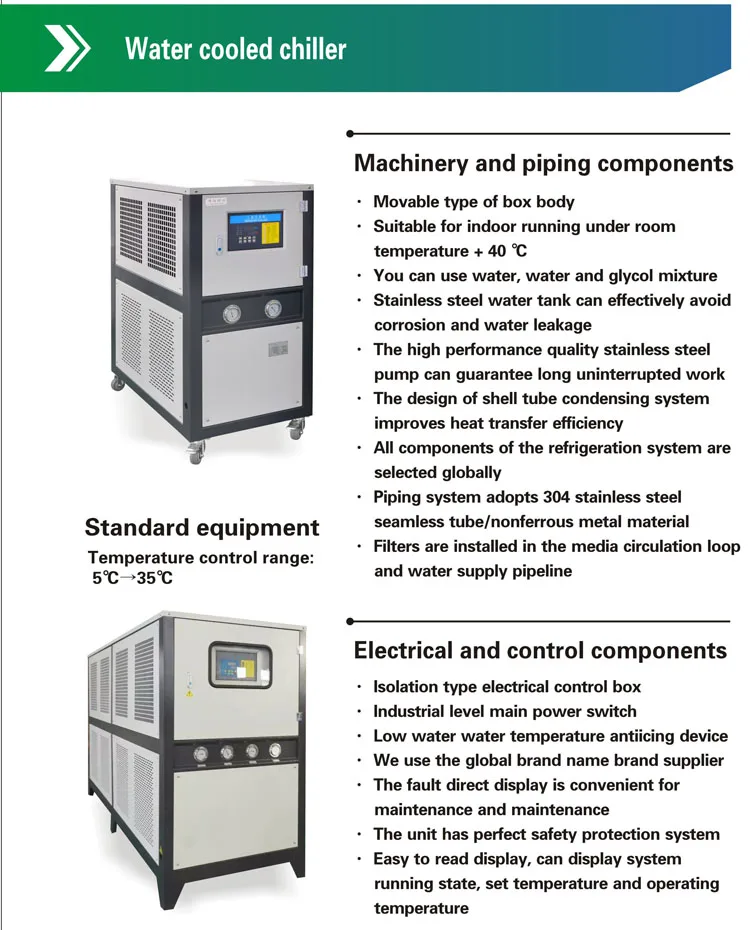

Product Feautures
1. Using COPELAND from the United States and other brand compressors, low noise and power saving, More durable;
2. Adopt fin and tube condenser, cooling effect is good and stable performance;
3. Evaporator stainless steel water tank, built-in automatic water device;
4. Adopt imported pumps, stainless steel pump for customers to choose from, to prevent secondary pollution;
5. Microcomputer digital temperature controller, integrated operation, simple and practical, high control precision;
6. Using box structure, CNC punch press precision machining, electrostatic power paint, elegant appearance, easy to move;
7. Chiller Unit equipped with reverse phase lack protection, motor overload protection, high and low voltage protection, temperature protection and other security protection device, made the system more stable and secure. Small size, light weight, and compact structure.

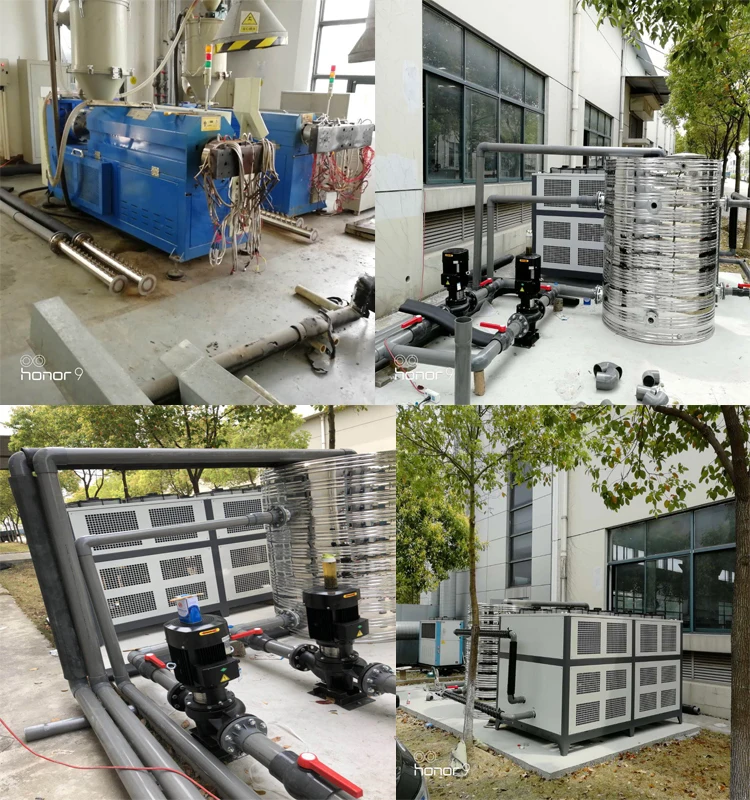

Applications

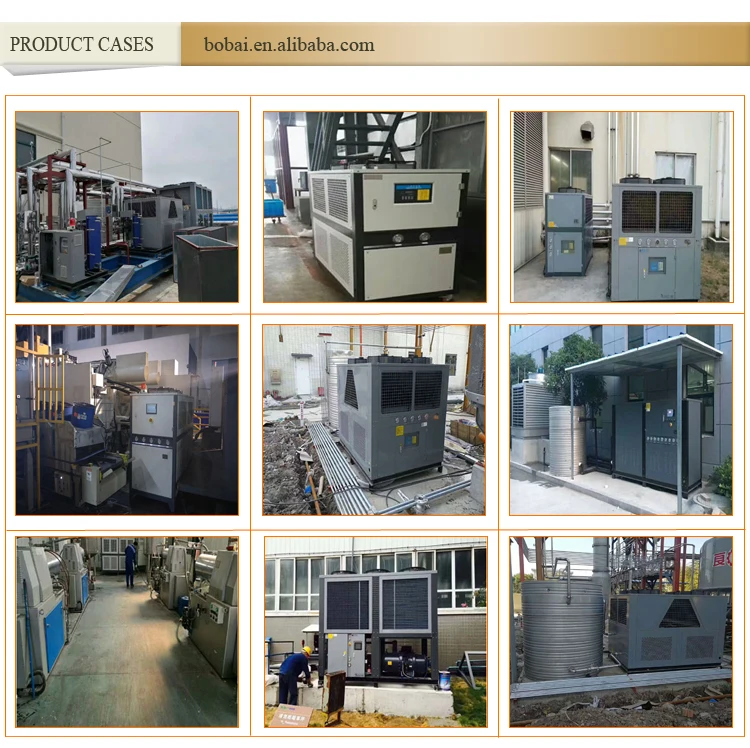

chillers are the perfect solution for any application, in particular for the plastic field, such as: injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field: electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc.
Technical Parameter:
| Model | BCW-03 | BCW-05 | BCW-08 | BCW-10 | BCW-15 | BCW-20 | BCW-30 | BCW-50 | ||
| Max temperature control range | 3℃~35℃(Over 0℃ can be cus tomized) | |||||||||
Cooling Capacity | KW 50HZ/60HZ | 9.59 11.22 | 15.91 18.62 | 24.85 29.08 | 31.83 37.24 | 50.14 58.66 | 67.14 78.56 | 99.19 116.05 | 153.91 180.07 | |
| Kcal/h 50HZ/60HZ | 8251 9654 | 13690 16018 | 21375 25009 | 27370 31023 | 43120 50451 | 57748 67565 | 85303 99805 | 132359 154860 | ||
| Total Input power | KW 50HZ/60HZ | 2.8 | 4.3 | 6.8 | 9 | 11.9 | 17.2 | 26.5 | 41.5 | |
| Power Supply | 3N-380V/415V 50HZ/60HZ | |||||||||
Comperssor | Type | Totally closed corter type or piston type | ||||||||
| power | KW | 2.25 | 3.75 | 3*2 | 3.75*2 | 5.5*2 | 7.5*2 | 7.5*3 | 9.375*4 | |
Cooling water | Flow | M3/h | 2.06 2.41 | 3.42 4.00 | 5.34 6.25 | 6.85 8.01 | 10.78 12.61 | 14.44 16.90 | 21.32 24.94 | 33.09 38.72 |
| P.D | Kpa | 28 | 34 | 38 | 34 | 28 | 38 | 36 | 42 | |
| In/Out pipe size | G3/4(DN20) | G1(DN25) | G1-1/2(DN40) | G1-1/2(DN40) | G2(DN50) | G2(DN50) | G2-1/2(DN70) | G3(DN70) | ||
Freeze water | Flow | M3/h | 1.65 1.93 | 2.74 3.20 | 4.27 5.00 | 5.47 6.40 | 8.62 10.09 | 11.55 13.52 | 17.06 19.96 | 26.48 30.98 |
| Tank | M3 | 0.047 | 0.062 | 0.138 | 0.138 | 0.22 0 | 0.303 | optional | optional | |
| In/Out pipe size | G1/(DN25) | G1/(DN25) | G1.2(DN32) | G1.5(DN40) | G2(DN50) | G2-1/2(DN65) | G2-1/2(DN65) | G3(DN80) | ||
Water Pump | power | KW | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 4 |
| pumping head | M | 19.5 | 19.5 | 25 | 19.8 | 19.8 | 24.6 | 25.1 | 25.1 | |
| size | L | MM | 800 | 1100 | 1400 | 1400 | 1600 | 1800 | 2400 | 2754 |
| W | MM | 500 | 600 | 850 | 850 | 810 | 940 | 910 | 1640 | |
| H | MM | 700 | 1110 | 1300 | 1300 | 1260 | 1400 | 1460 | 1360 | |
| Roughly Weight | KG | 150 | 220 | 310 | 360 | 650 | 850 | 1250 | 1650 | |
Customized Product Service
Bobai have one special engineer team to work for customers with customized chillers, they can make the special solution according to your working need, such as customize cooling capacity, special material for ship use, seawater, corrosive, food industry, juice and wine process and etc. Just tell us:
A. What's your water composition? or industry
B. What's your temperature range?
C. What's your chilled water flow need?
D. What's the working ambient?
E. What voltage do you need?
1. Differing Refrigerants: R22, R407, R134a can be supplied on request
2. Special voltages: 115V 220V~240V 50 Hz or 60 Hz (Single and Three Phase) are available
Then we can choose the right chiller for you.
After-sales service
12 months quality warranty since the date of delivery.
Free of charge to replace new chillers if quality problems.
Cost price to buy extra parts with Chillers from bobai if needed.
7/24 online service by e-mail, WhatsApp, Skype or Telephone Calling.
Installation Video to help installation even send engineer to customer's jobsite if needed.
