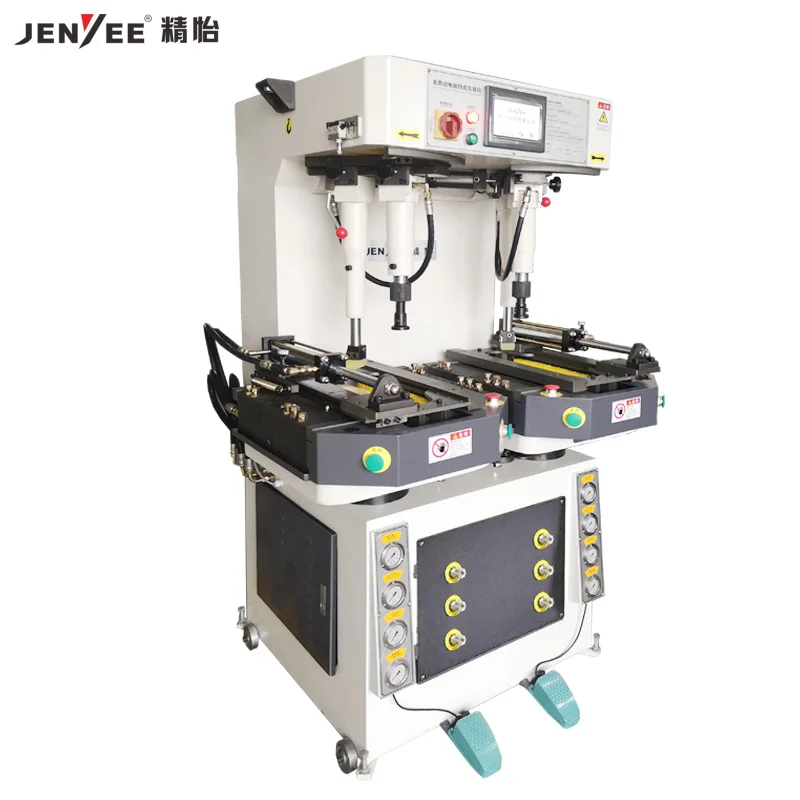

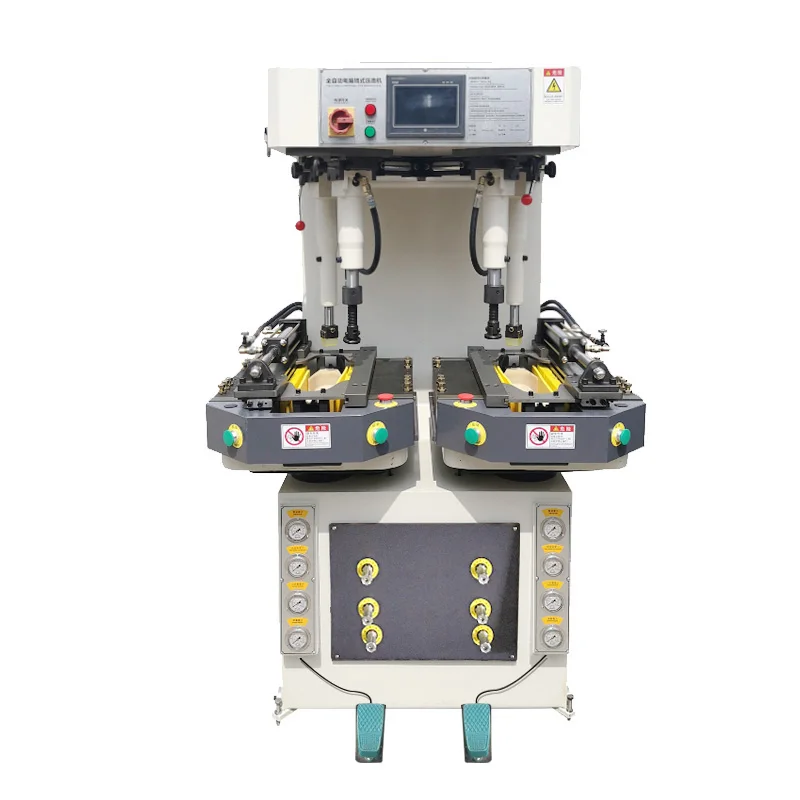

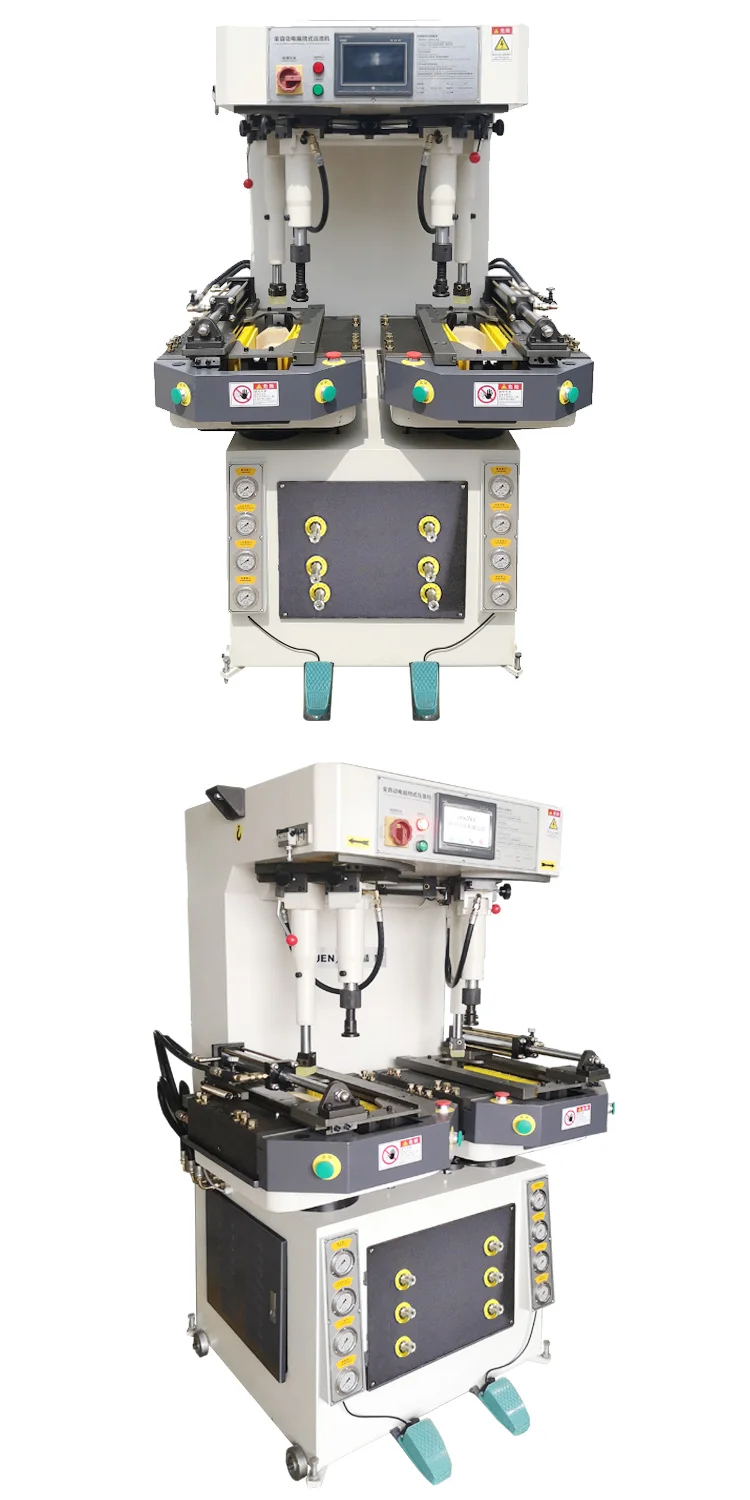

JY 989EX high speed oil pressure automatic shoe sticking machine is suitable for all kinds of men and women shoe soles
- Category: >>>
- Supplier: Shenzhen Gude Automation Equipment Co. Ltd.
Share on (1600426582332):
Product Overview
Description
Product Details
Brand Name: | JENYEE | Dimension(L*W*H): | 1200*1280*1920mm |
Power(W): | 2KW | Voltage: | 380V |
Weight: | 1500KG | Type: | Hydraulic system |
Application: | Sole Attaching Machine | Applicable: | all kinds of shoes |
Production Capacity: | 2500pairs/8hr | Warranty: | 1 Year |
Products Description

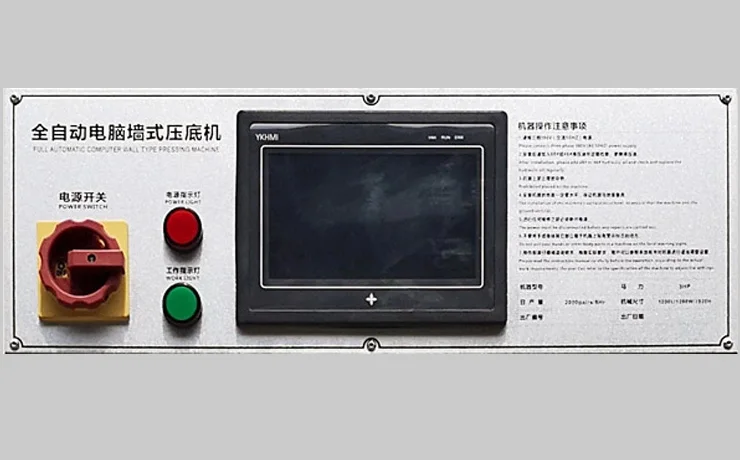

Computer control center
Computer control center is the machine circuit control unit, operation of it is carried out through function buttons displayed on touching screen

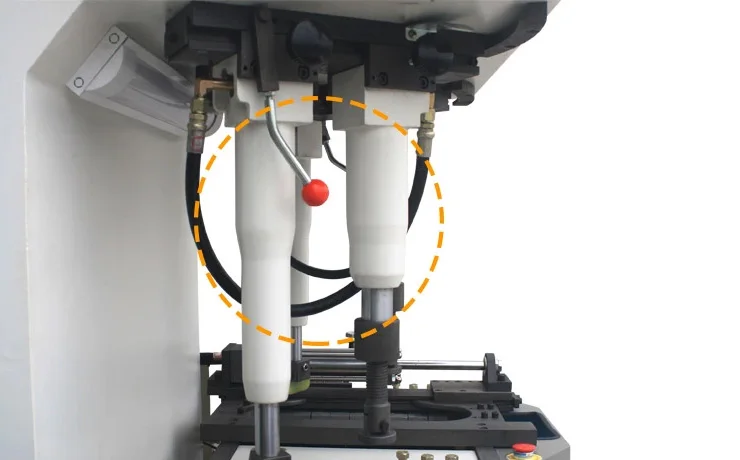

Pressing head rod & Swing arm structure
When machine is running, swing structure pull and push the seat correspondingly the pressing rod will rotate and change its position to make it convenient for taking out or putting in the shoe model.

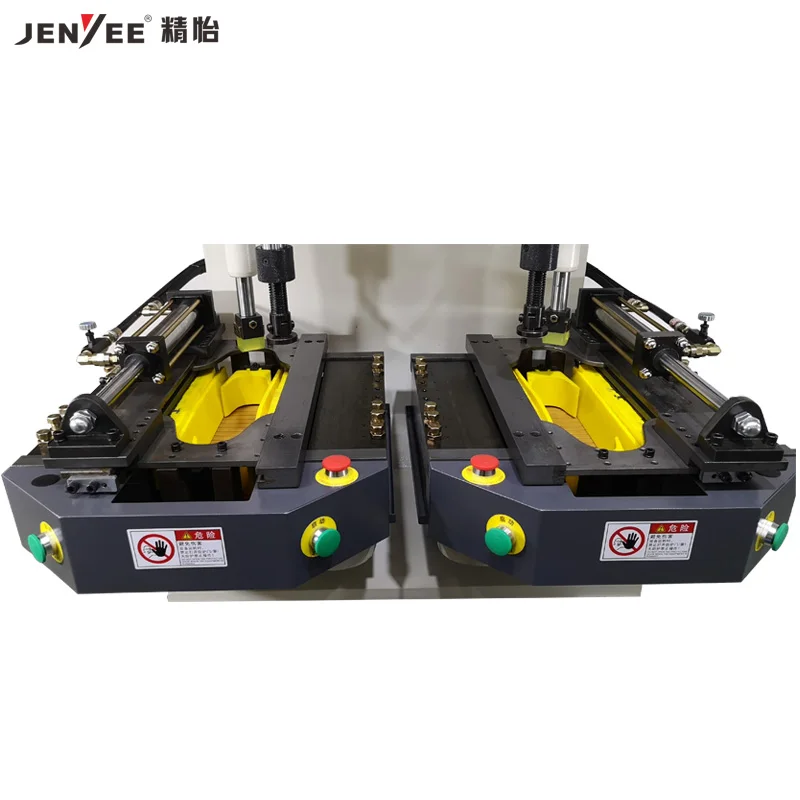

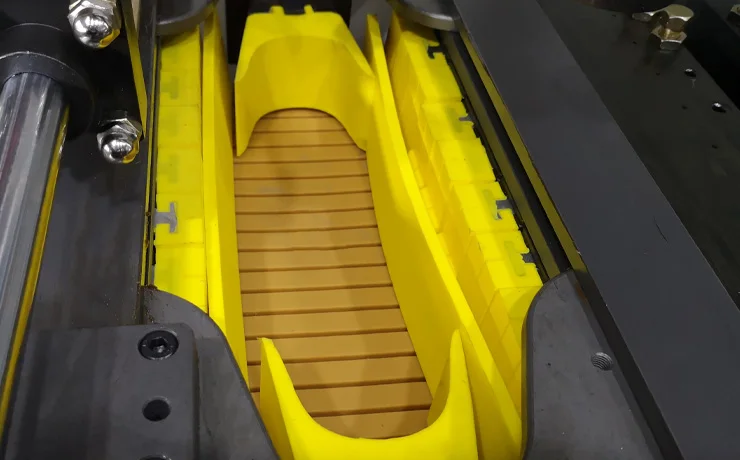

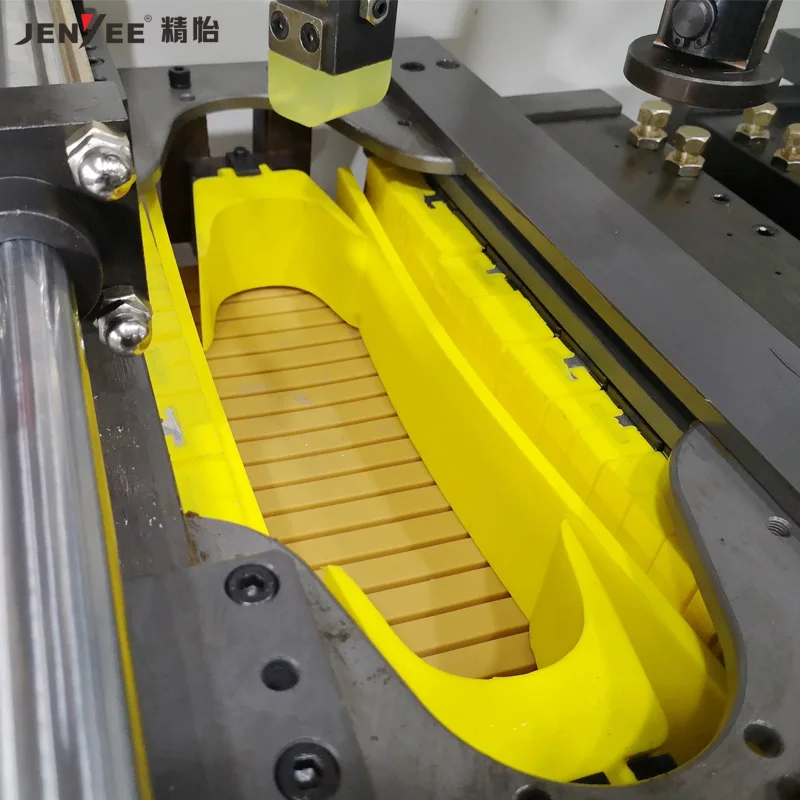

Large seat
Pressing operation buttons need to be pressed at the same time to make the machine work

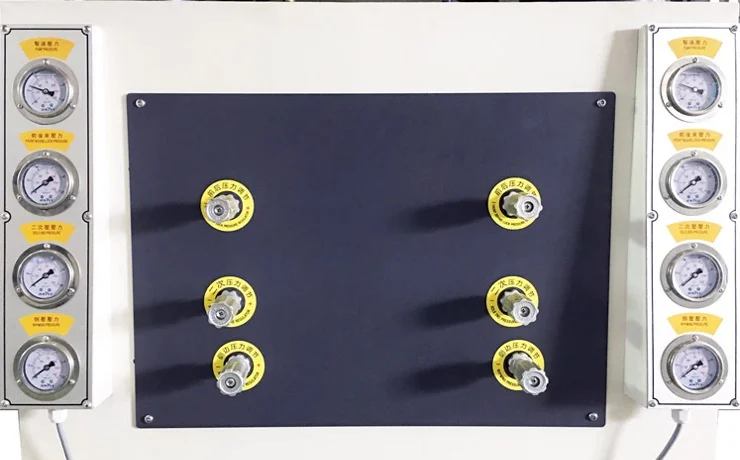

Oil meter & adjusting valve
High quality pressure oil meter are introduced, pressure system,Value is indicated clearly, which makes commissioning and repairing simple.

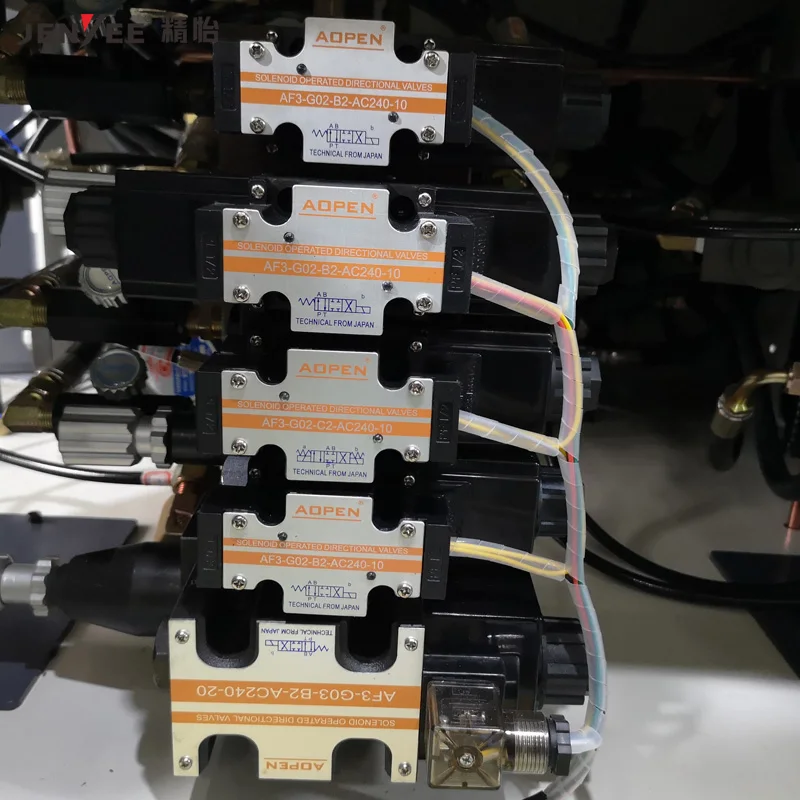

Oil system
Devices of Taiwan brands are introduced ,CML oil pump, motor, offer big horsepower with low noise.Valve of Taiwan brand are introduced CML hydraulic magnetic valve adjusting system Offer more precise control over circuit and oil flow.
Product Application
This machine adopts full oil pressure system design, press bottom, pressure edge, front and rear fastening, can be completed at one time, or can be completed separately according to needs, high pressure, firm fit.
Brief operating proc
Brief operating procedures of sole attaching machine
1.Power cable should be connected on socket meet ECC standards with magnetic switch of 380v.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
2.Please fill 90-100 litters of 68# or 46# hydraulic oil into oil tank.
3.switch on main power, then turn on pump switch, then select mode, then adjust pressing time.
4.Put the shoe last in the large seat properly, then adjust relevant component properly.
5.To adjust distance between front and rear rod, adjusting distance between top and bottom part of the rear pressing head by screwing the rod.
6.Step the pedal switch or press the two green button at the same time to start the machine for pressing operation.
