Non management whole gigabit 2 Ports poe Network industrial switch SFP media converter
- Category: >>>
- Supplier: Shenzhen Yuhang Communication Technology Co. Ltd.
Share on (1600426597059):
Product Overview
Description

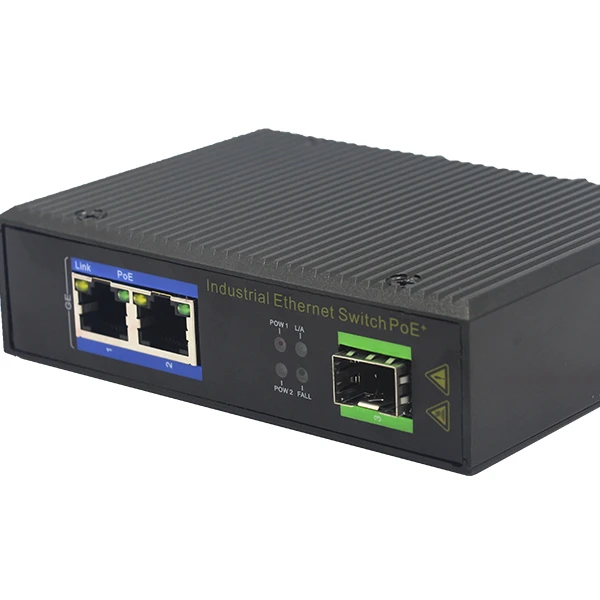

| Product Name | 2 Port 10/100/1000M Industrial Switch |
| Product Model | YHD12G-SFP |
| Interface | 2x 10/100/1000Base-T ports + 1x Gigabit SFP slots |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| PoE Specification
| PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports: 1-2 ports support PoE | |
Each PoE Port: Max. 30 Watts | |
Power Pin Assignment:1/2+;3/6- | |
Output Voltage: DC48V | |
| Fiber Media | Multi-mode: 2km; Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 10Gbps Packet Buffer Memory:1M |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| Power Supply | Input Voltage: DC48V /Terminal block |
| Other Specifications | |
| Working Environment | Working temperature: -40~75℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Weight & Size | Product Weight: 0.5 KG Product size (L×W×H): 127mm× 107mm× 33mm |
| Warranty | 5-years |
