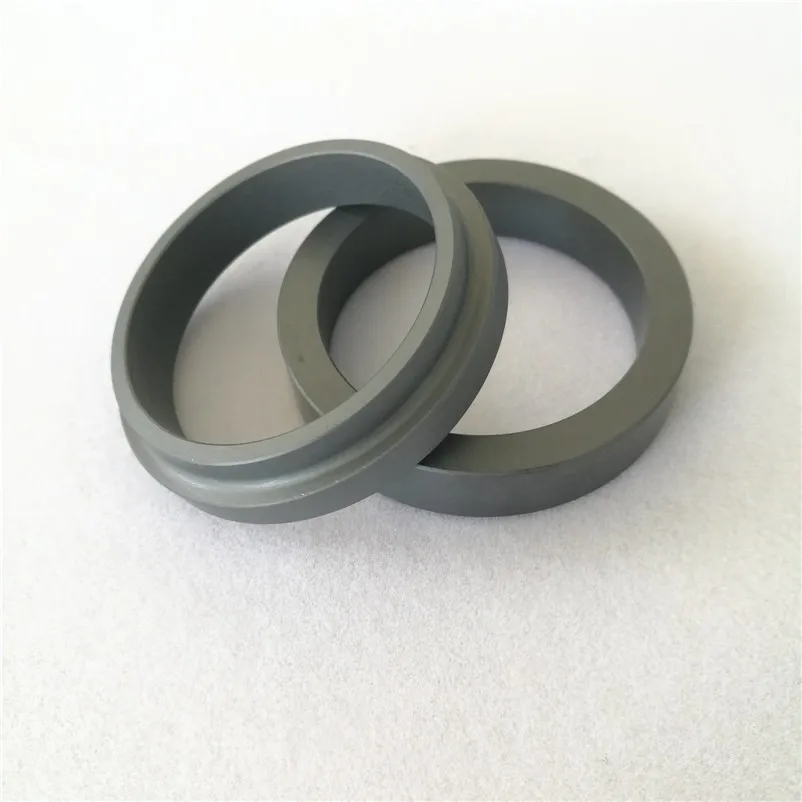

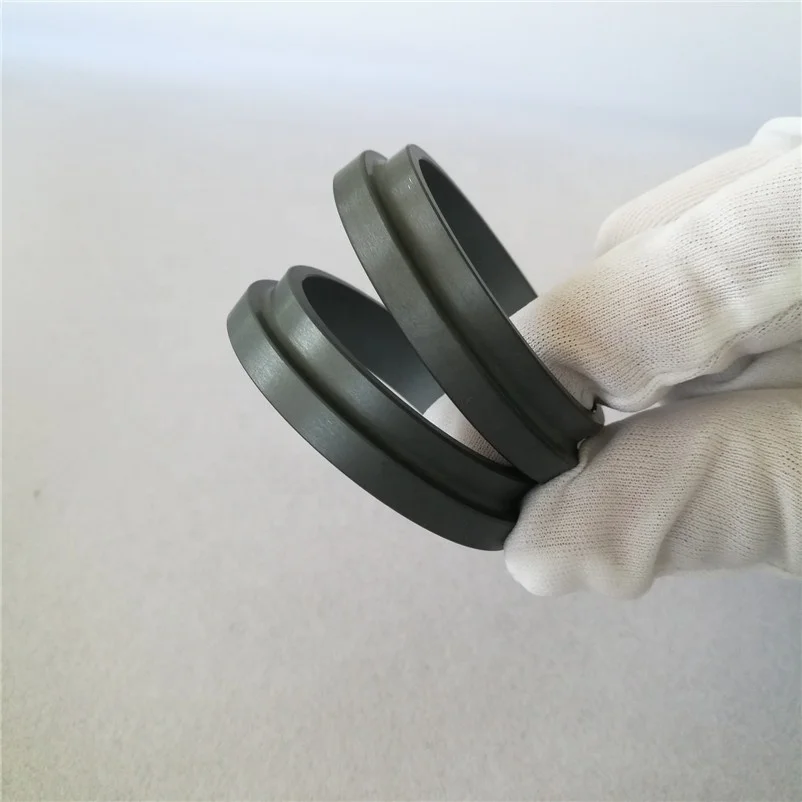

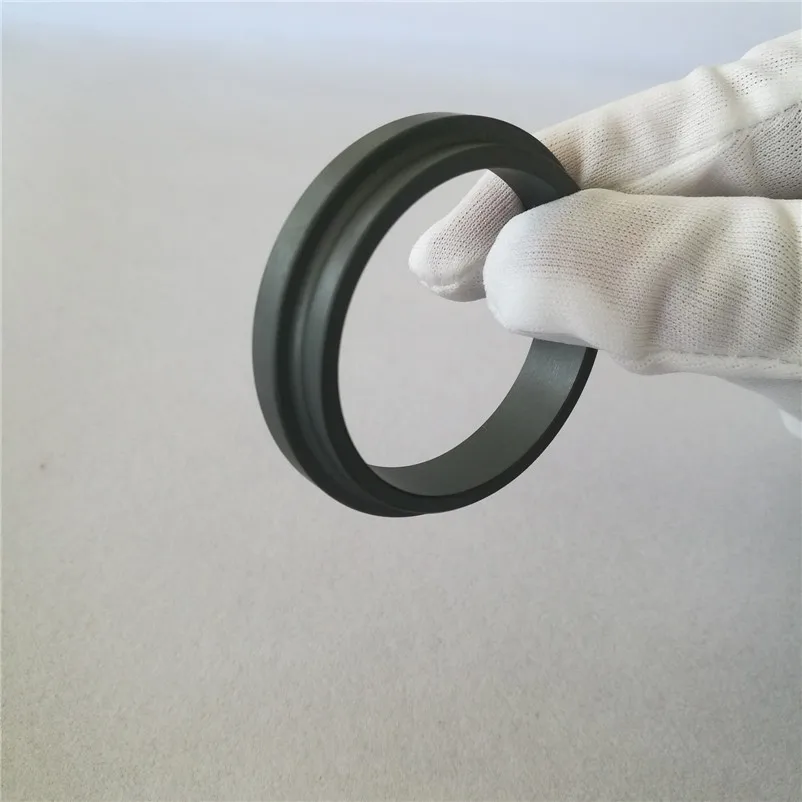

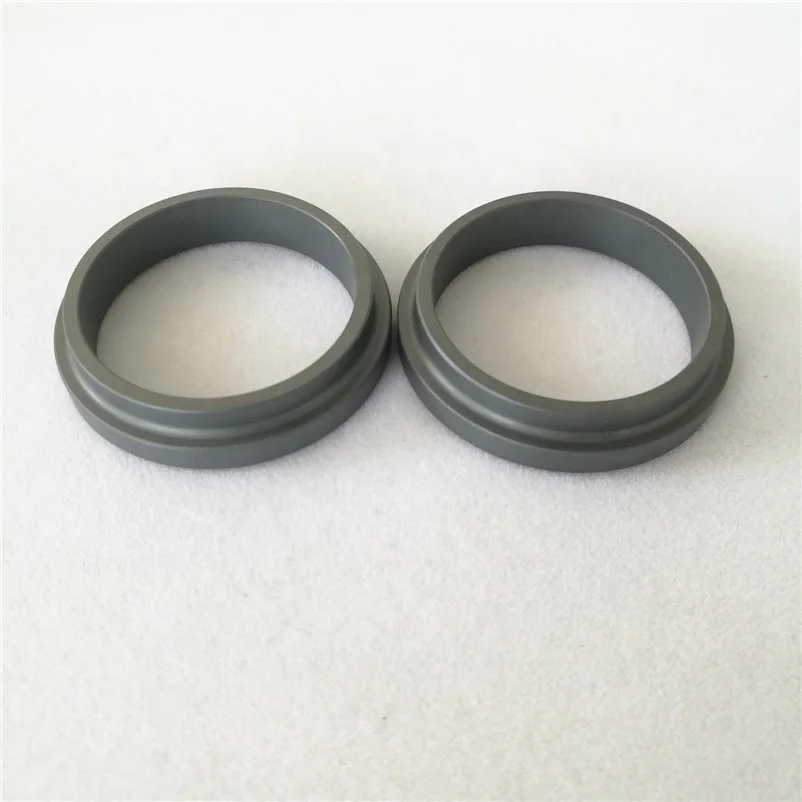

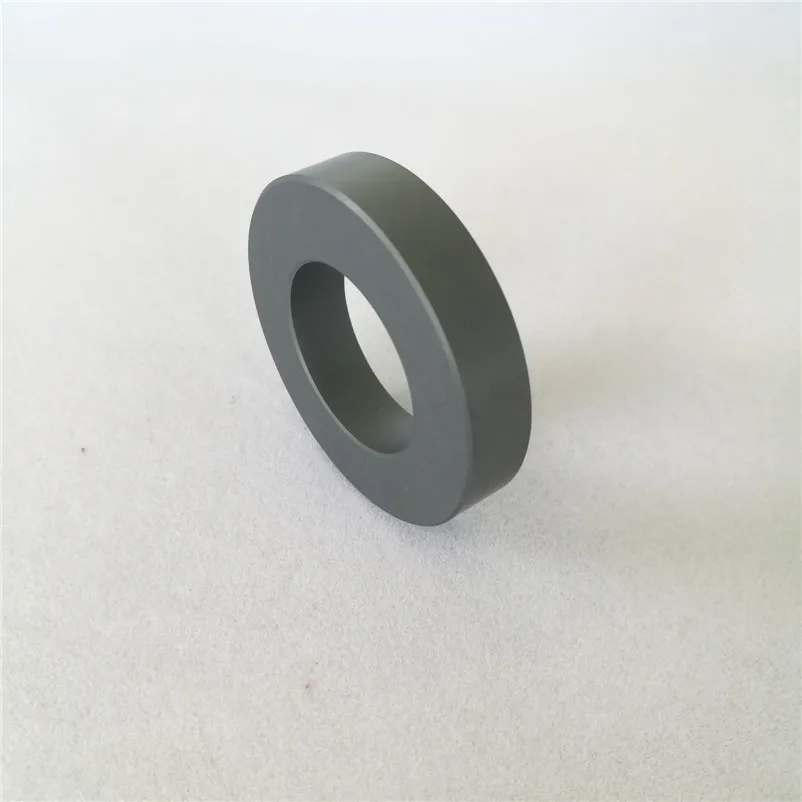

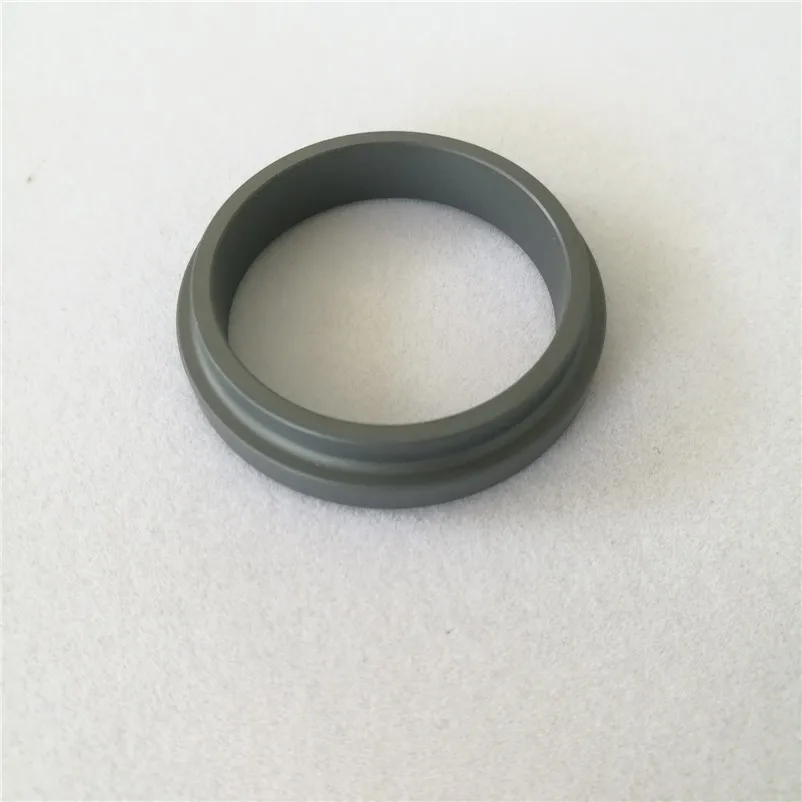

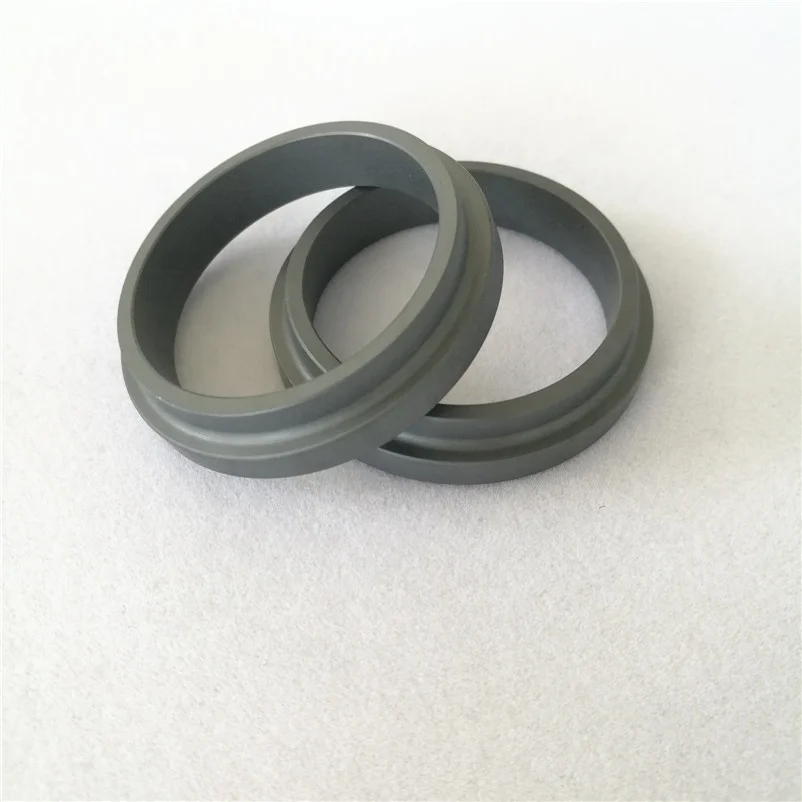

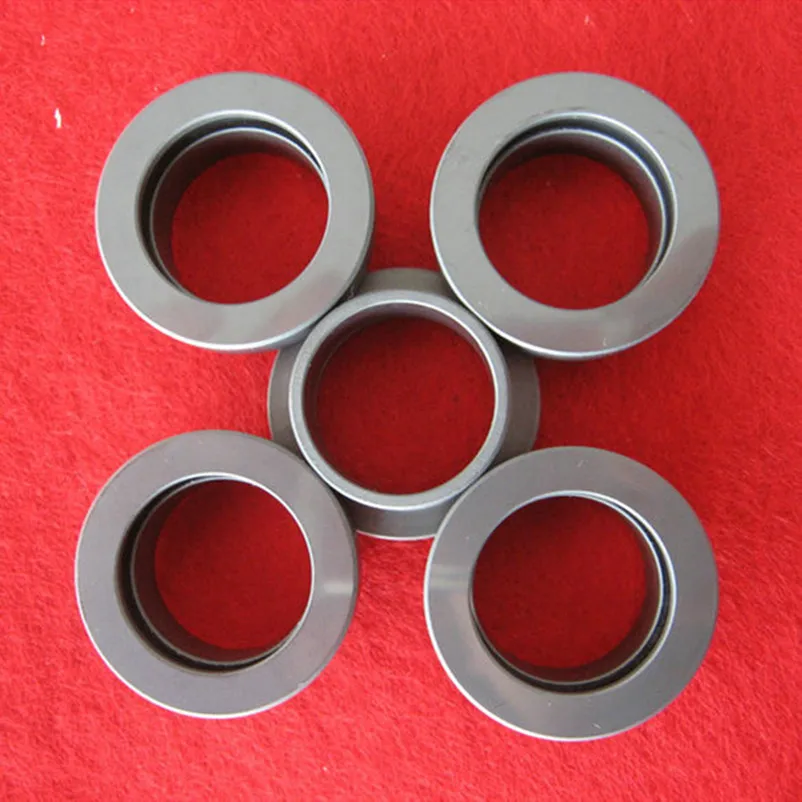

High precision wear resistance sic silicon carbide ceramic seal ring for water pump
- Category: >>>
- Supplier: Lianyungang Henka Ceramics Technology Co. Ltd.
Share on (1600426600225):
Product Overview
Description
Product Description
Product name | High precision wear resistance sic silicon carbide ceramic seal ring for water pump |
Purity of silicon carbide | >98% |
Grain size | <15µm |
Hardness | 105HS |
Thermal conductivity | 150W/m.k(20℃) |
Weibull modulus | 10 |
Thermal expansion | 4.4 10-6Degc(at20℃ to 500℃) |
More details
Introduction
When the Silicon carbide faces are combined with graphite faces the friction is the smallest and they can be made into mechanical
seals which are able to work in highest working requirements
seals which are able to work in highest working requirements
Advantage
Extreme Hardness and High Strength
High Abrasion and Wear Resistance
Excellent Corrosion Resistance
Superior Thermal Shock Resistance
Application
1.Gear Pumps
2.Magnetically-driven Pumps
3.Canned Motor Pumps
Application
4.Multi-stage Pumps
5.Vertical Pumps
6.Down Hole Pumps
Technical data
Technical Parameter | Unit | SiC | SSic | Sic+C |
Hardness | HS | 110 | 115 | ≥105 |
Porosity Rate | % | <0.3 | <0.2 | <0.5 |
Density | g/cm3 | 3.00~3.05 | >3.10 | 2.69-2.90 |
Compressive Strength | MPa | >2200 | >2500 | >1400 |
Fractural Strength | MPa | >350 | >380 | >150 |
Coefficient of Heat Expansion | 10-6/oC | 4.0 | 4.2 | 3.5 |
Content of Sic | % | ≥90 | ≥98 | ≥85 |
Free Si | % | ≤10 | ≤1 | ≤12 |
Elastic Modulus | GPa | ≥400 | ≥410 | ≥350 |
Temperature | ℃ | 1300 | 1400 | 1300 |
Our Company
Introduction
Lianyungang Henka ceramics technology Co.,ltd is a subsidiary of Lianyungang Highborn technology Co.,ltd.
Highborn is a modern enterprise management company, who devote themselves to the service of product research and development,construction and maintenance.
Highborn is a modern enterprise management company, who devote themselves to the service of product research and development,construction and maintenance.
Equipment&Workshop
Our company has a long history. We own the advanced equipment, a young, energetic, proficient and experienced team of professionals which with leading technology strength, excellent operational management and high-quality services what made us be recognized by customers of the chemical, petroleum, electric power, metallurgy, building material, aerospace, machinery and other industries
Office
Certification
Patent certificates
We have applied for more than 20 patents, including 11 authorized patents and 3 invention patents, we are a national high-tech enterprise now.

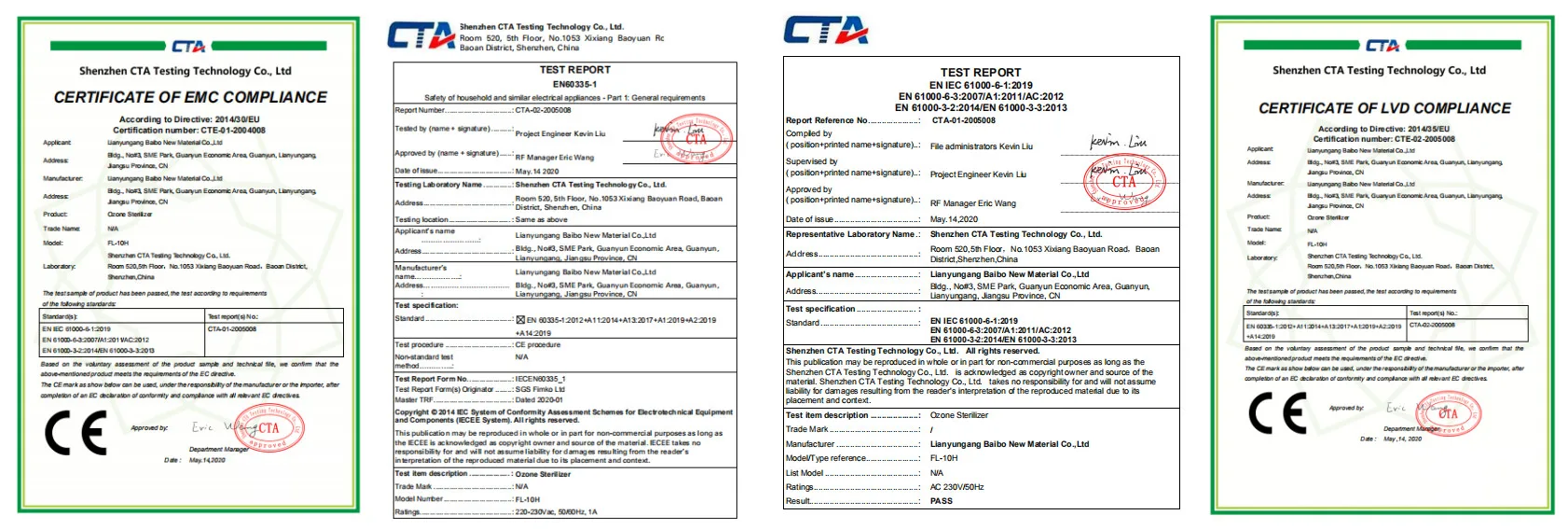

CE & RoHs & MSDS certificates
Here are CE & RoHs & MSDS certificates and test reports ,they are only for a part of products.
Honor certificates
Packing & Delivery
Regarding the package,we will pack them according to your request.
Regarding the delivery,we support to send you our products by air ,by sea,by train or other
Why choose us
Service
FAQ
1.I can not find our products in your catalog ,can you make customized products for us ?
Yes ,Customized products is available .OEM is welcomed.
2.I don't have drawing or picture available for custom products, could you design it?
Yes,we can make the best suitable design in accordance with your application.
3.What's your payment terms ?
We accept T/T, Western Union when qualified goods are ready for ship.
Also pay to Alibaba via Credit Card is welcomed.
For amount less than 1500USD ,100% in advance.
For amount more than 1500USD,50% in advance ,balance payment before shipment
4.Can you supply free sample?
Yes, the free samples can be supplied if there are stock. But we hope you can bear freight charge.
.
