Product Overview
Description
Specification
Mi Light's new brand: Miboxer

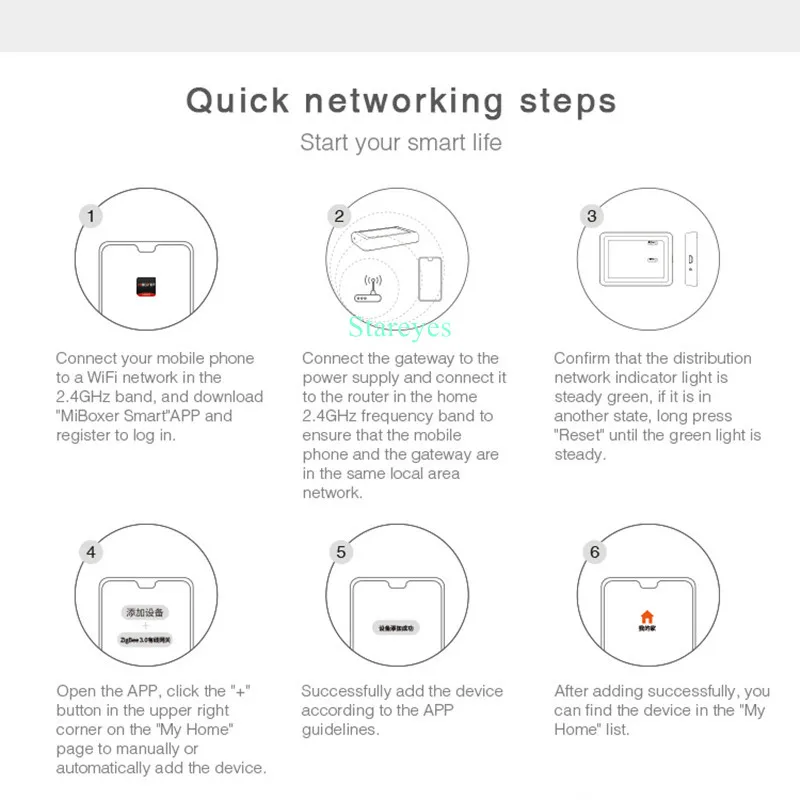

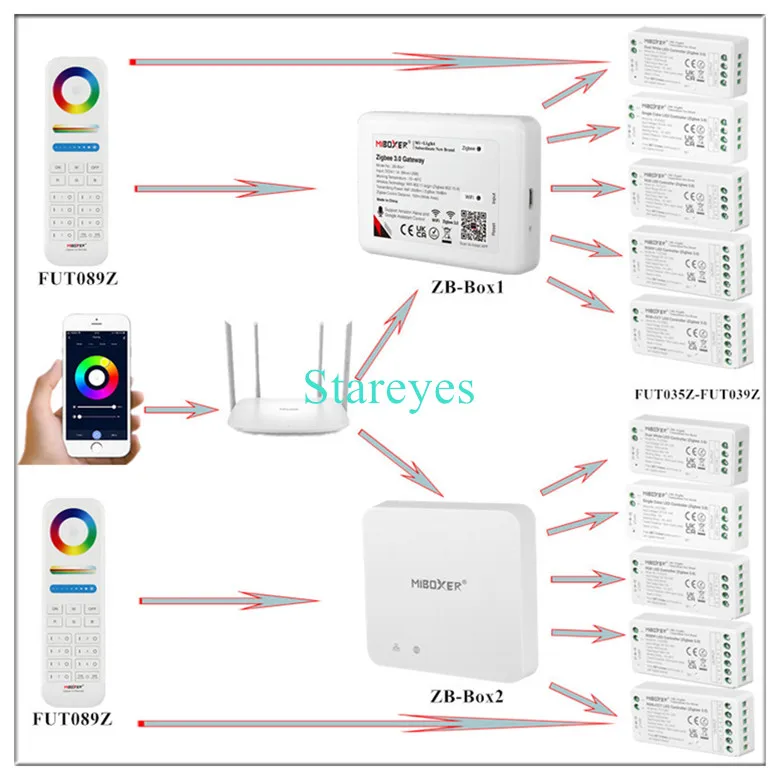

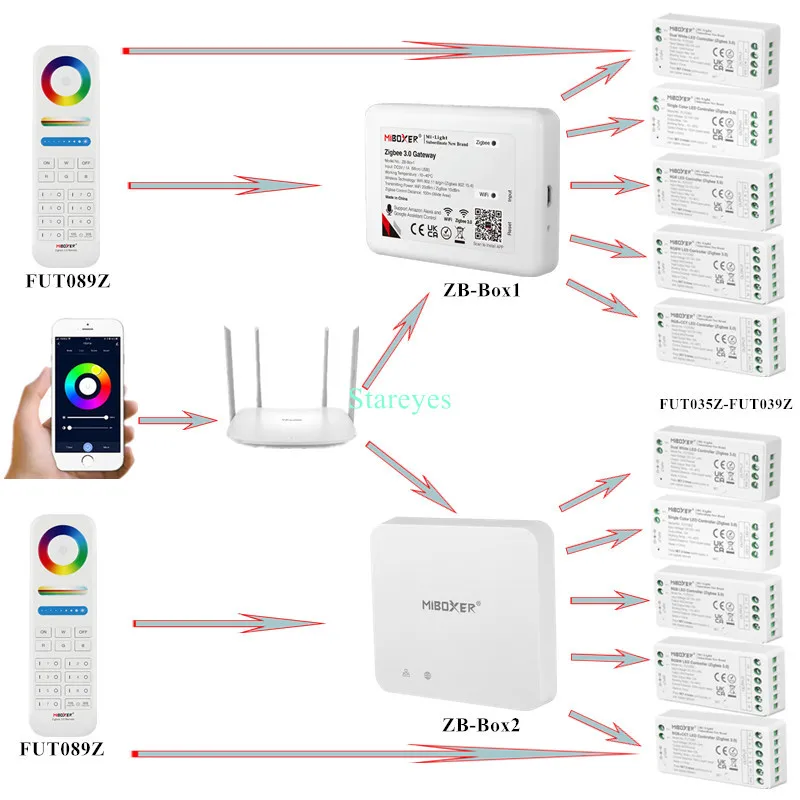

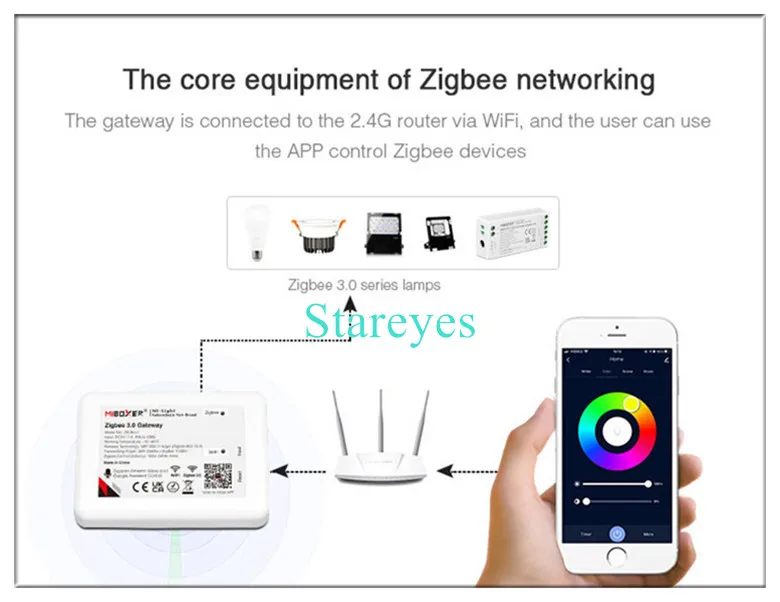

FUT035Z-FUT039Z Series cann't connect to WiFi directly, they need a Gateway ZB-Box1 or ZB-Box2.
Specifications:
Product Name: CCT (Dual White) LED Controller (Zigbee 3.0)
Model No.: FUT035Z
Working Voltage: DC12~24V
Output: 12A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: CCT (Dual white: WW&CW ) LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: Single Color LED Controller (Zigbee 3.0)
Model No.: FUT036Z
Working Voltage: DC12~24V
Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: Single color LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: RGB LED Controller (Zigbee 3.0)
Model No.: FUT037Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGB LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z

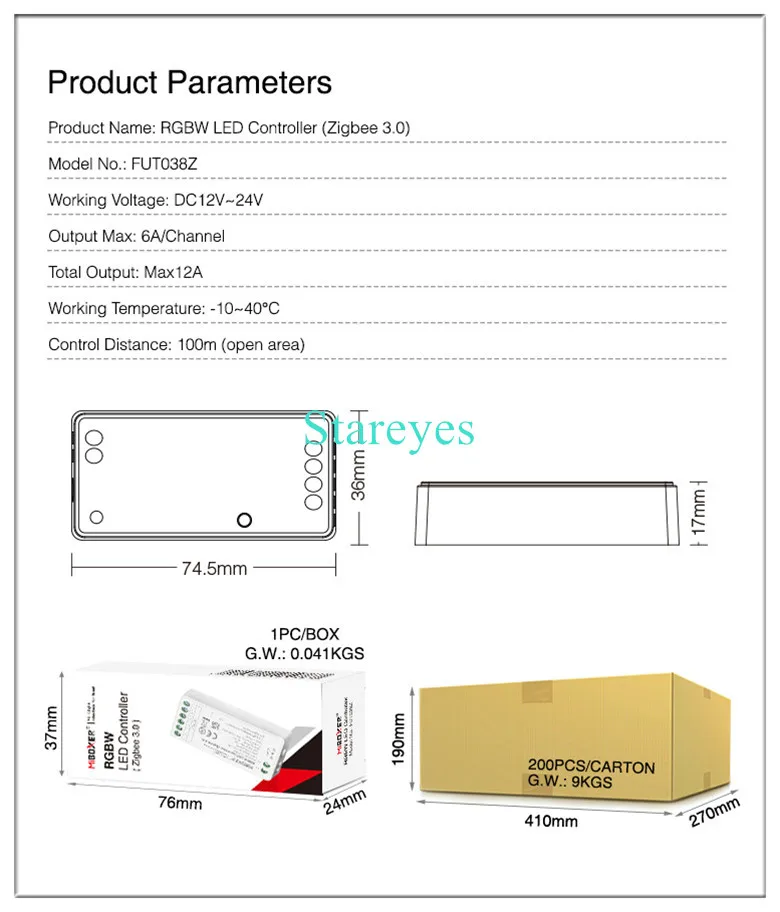

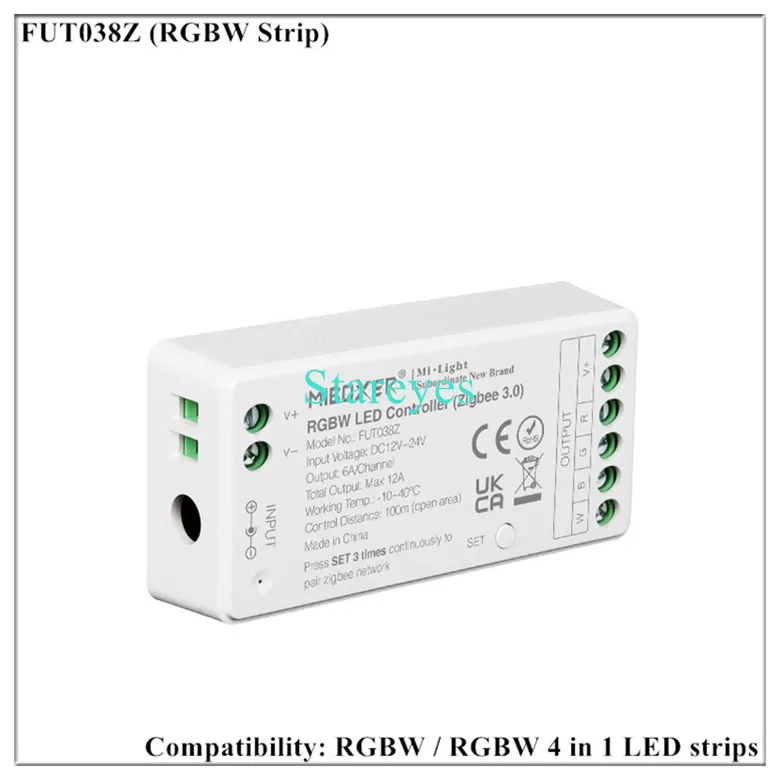

Product Name: RGBW LED Controller (Zigbee 3.0)
Model No.: FUT038Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGBW / RGBW 4 in 1 LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z

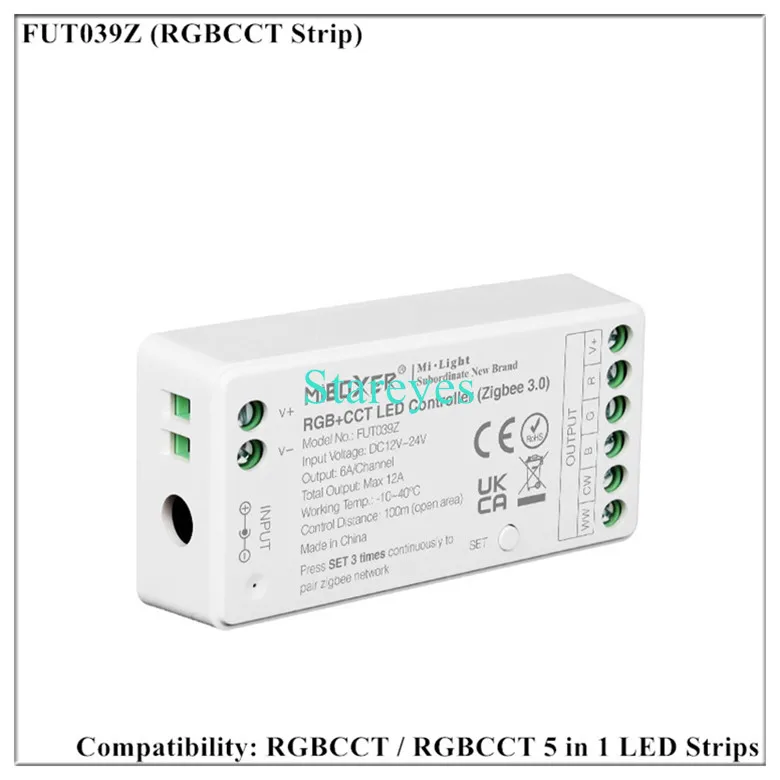

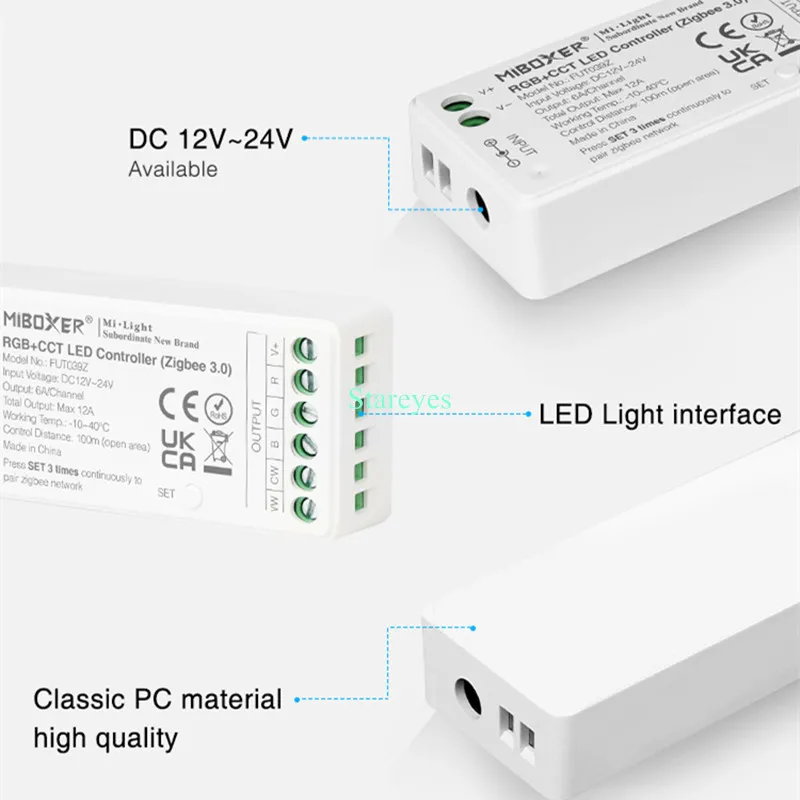

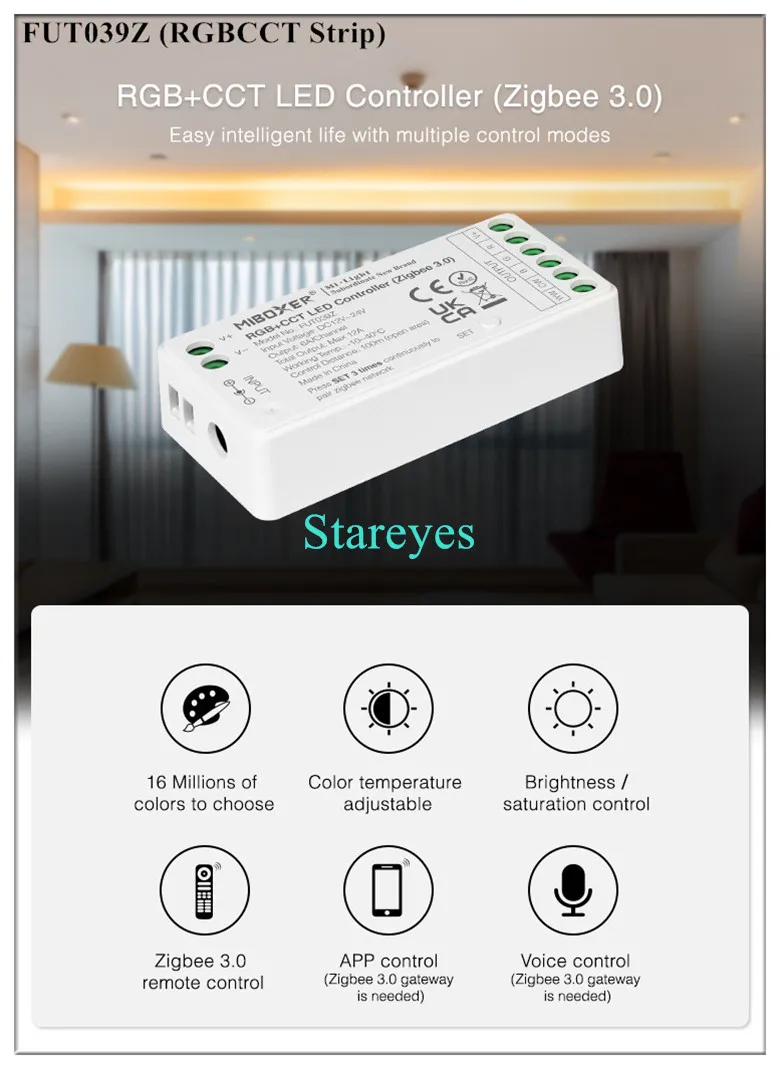

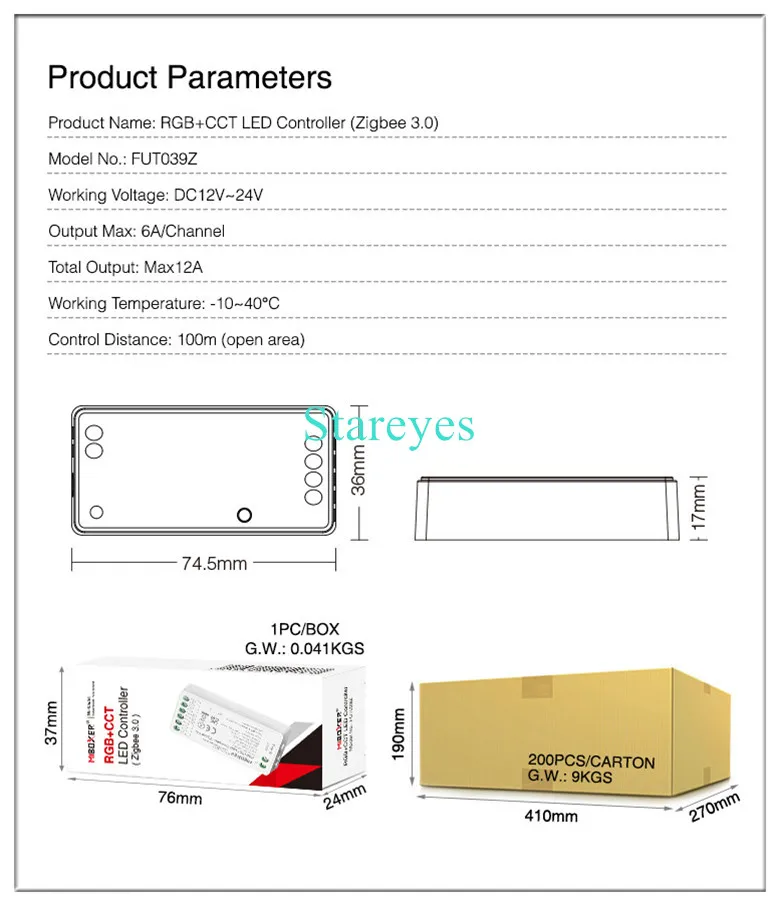

Product Name: RGBCCT LED Controller (Zigbee 3.0)
Model No.: FUT039Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGBCCT / RGBCCT 5 in 1 LED Strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z

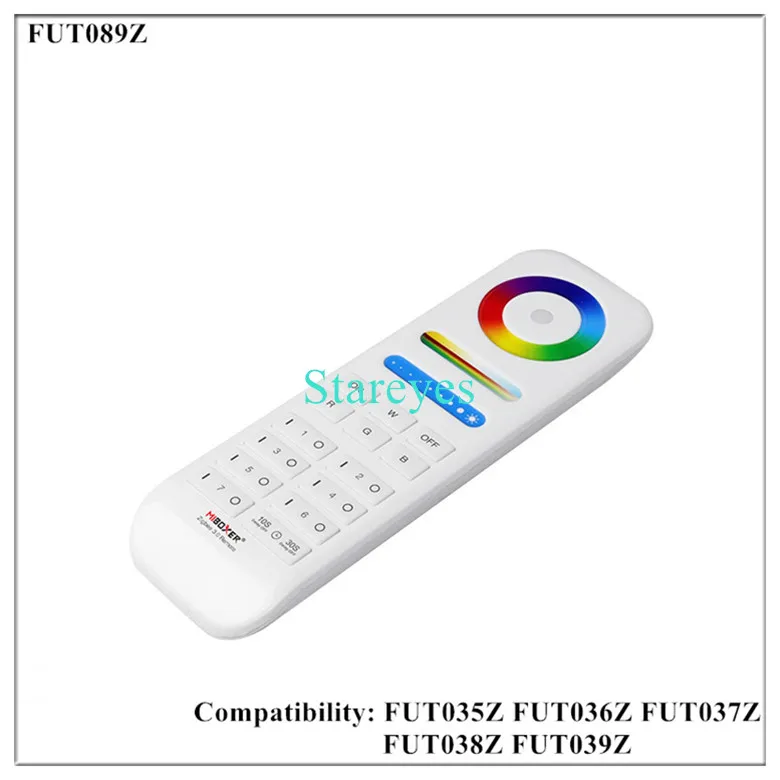

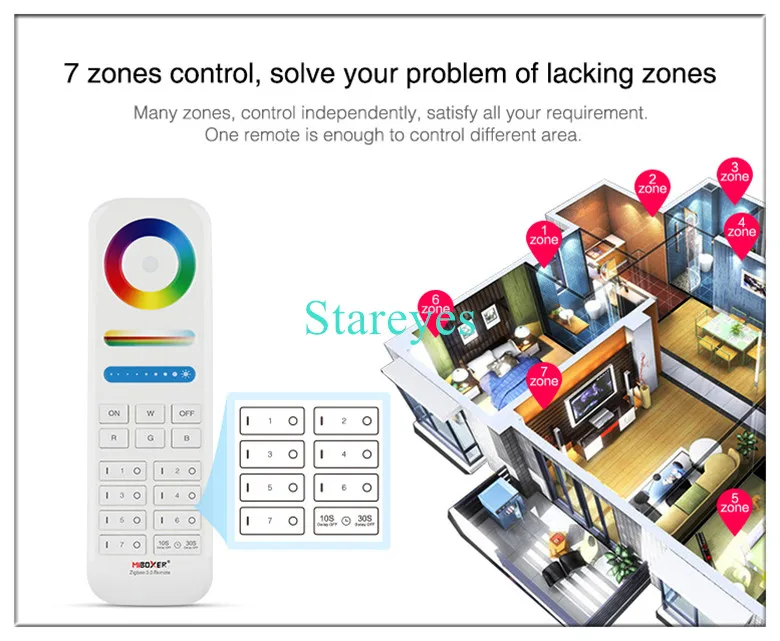

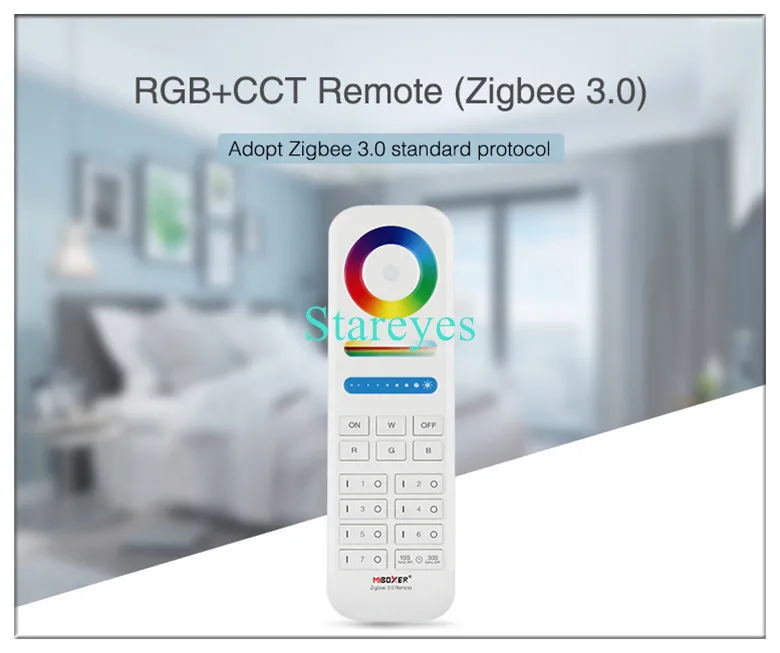

Product Name: 7-Zones RGBCCT Remote Control (Zigbee 3.0)
Model No.: FUT089Z
Voltage: 3V(2*AAA Battery)
Transmitting Power: 10dBm
Standby Power Consumption: 20uA
Max Controllable Lights 25pcs
Control Distance: 100 meters (Open area)
Working Temperature: -10 -40℃
Size: 153*47*19mm
Matching Controller: FUT035Z / FUT036Z / FUT037Z / FUT038Z / FUT039Z

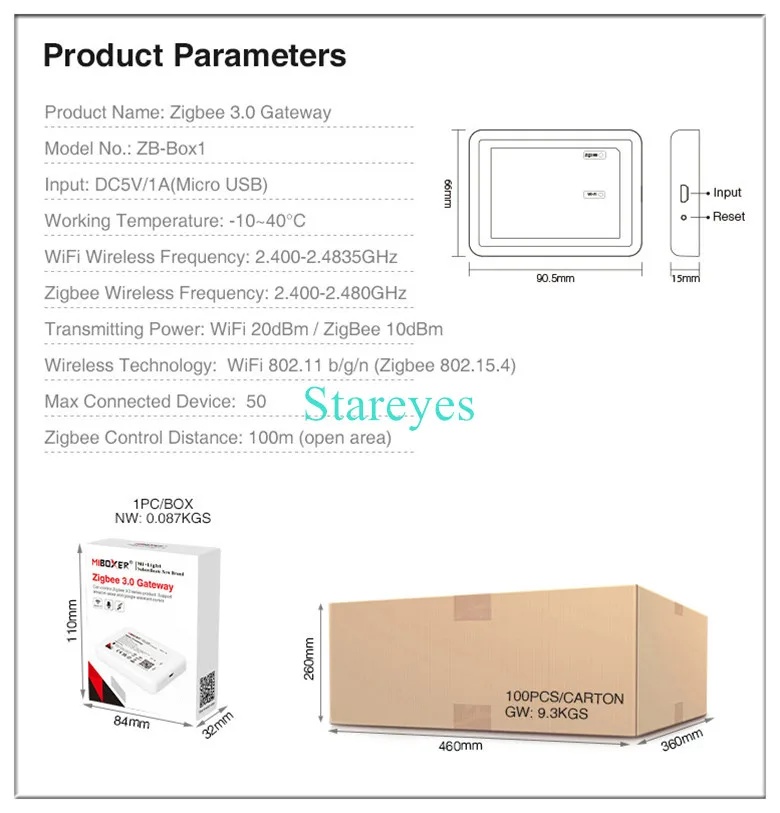

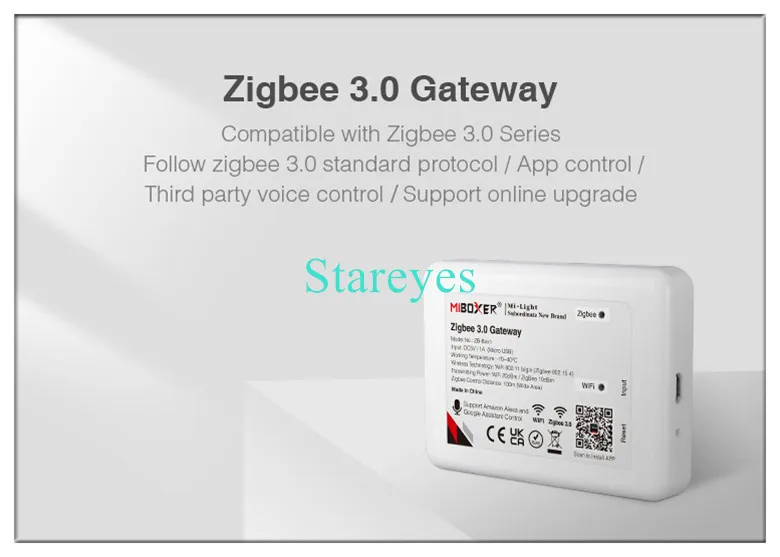

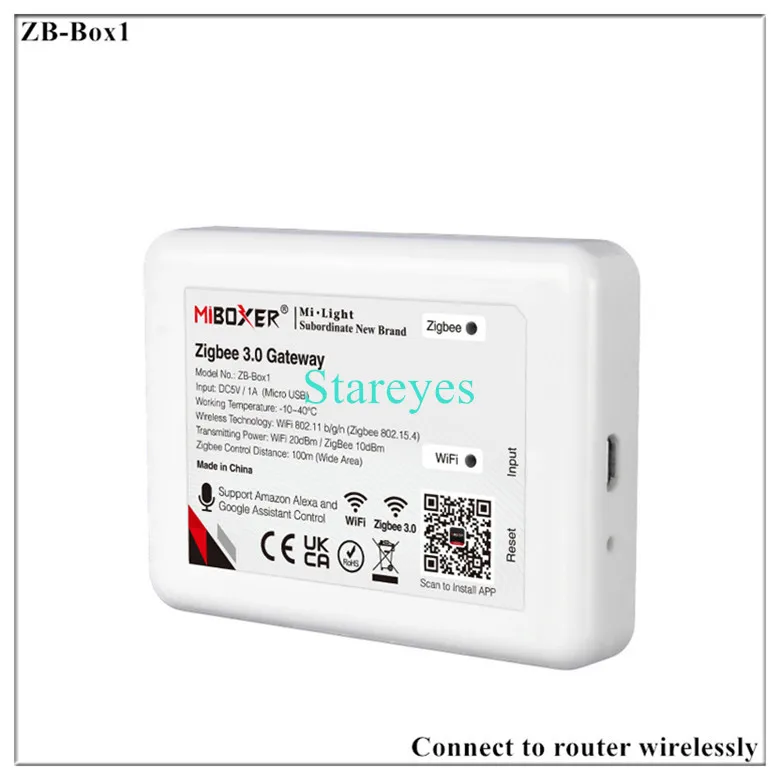

Product Name: Zigbee 3.0 Gateway
Model Number: ZB-Box1
Input: DC5V/1.0A (Micro USB)
WiFi Wireless Frequency: 2.400-2.4835GHz
Zigbee Wireless Frequency: 2.400-2.480GHz
Transmitting Power: WiFi 20dBm / Zigbee 10dBm
Wireless Technology: WiFi 802.11b/g/n (Zigbee 802.15.4)
Max Connected Device: 50
Zigbee Control Distance: 100 meters (Open area)
Working Temperature: -10~40°C

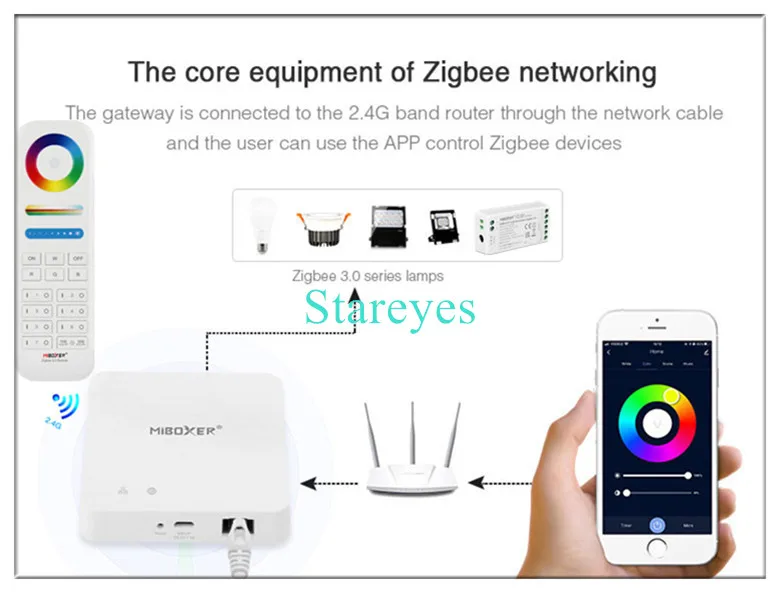

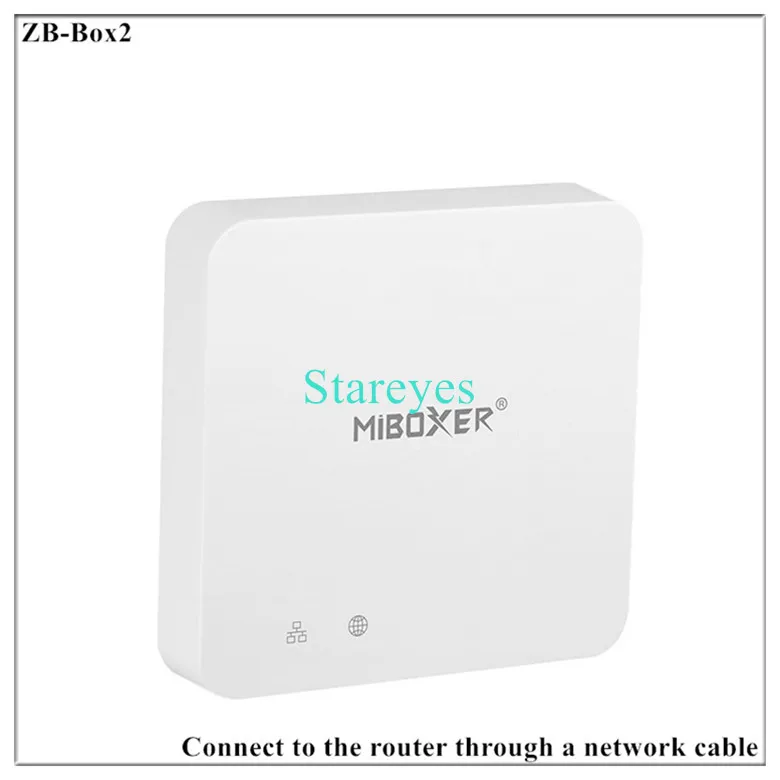

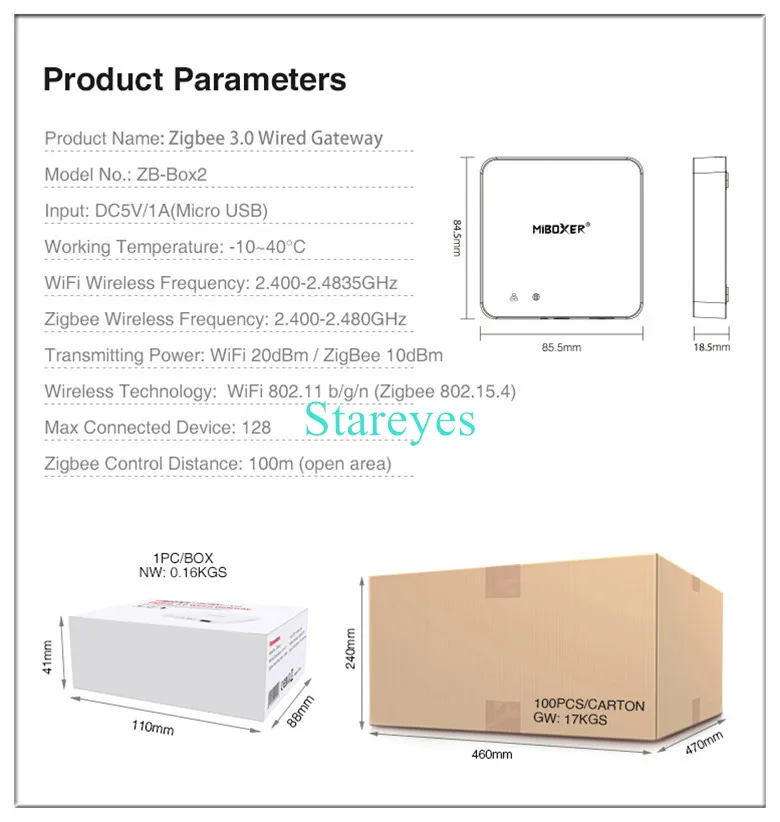

Product Name: Zigbee 3.0 Wired Gateway
Model Number: ZB-Box2
Input: DC5V/1.0A (Micro USB)
WiFi Wireless Frequency: 2.400-2.4835GHz
Zigbee Wireless Frequency: 2.400-2.480GHz
Transmitting Power: WiFi 20dBm / Zigbee 10dBm
Wireless Technology: WiFi 802.11b/g/n (Zigbee 802.15.4)
Max Connected Device: 128
Zigbee Control Distance: 100 meters (Open area)
Working Temperature: -10~40°C
FUT035Z-FUT039Z Series cann't connect to WiFi directly, they need a Gateway ZB-Box1 or ZB-Box2.
Specifications:
Product Name: CCT (Dual White) LED Controller (Zigbee 3.0)
Model No.: FUT035Z
Working Voltage: DC12~24V
Output: 12A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: CCT (Dual white: WW&CW ) LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: Single Color LED Controller (Zigbee 3.0)
Model No.: FUT036Z
Working Voltage: DC12~24V
Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: Single color LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: RGB LED Controller (Zigbee 3.0)
Model No.: FUT037Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGB LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: RGBW LED Controller (Zigbee 3.0)
Model No.: FUT038Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGBW / RGBW 4 in 1 LED strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: RGBCCT LED Controller (Zigbee 3.0)
Model No.: FUT039Z
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Working Temperature: -10~40℃
Compatibility: RGBCCT / RGBCCT 5 in 1 LED Strips
Size: 74.5*36*17mm
Matching remote control: FUT089Z
Product Name: 7-Zones RGBCCT Remote Control (Zigbee 3.0)
Model No.: FUT089Z
Voltage: 3V(2*AAA Battery)
Transmitting Power: 10dBm
Standby Power Consumption: 20uA
Max Controllable Lights 25pcs
Control Distance: 100 meters (Open area)
Working Temperature: -10 -40℃
Size: 153*47*19mm
Matching Controller: FUT035Z / FUT036Z / FUT037Z / FUT038Z / FUT039Z
Product Name: Zigbee 3.0 Gateway
Model Number: ZB-Box1
Input: DC5V/1.0A (Micro USB)
WiFi Wireless Frequency: 2.400-2.4835GHz
Zigbee Wireless Frequency: 2.400-2.480GHz
Transmitting Power: WiFi 20dBm / Zigbee 10dBm
Wireless Technology: WiFi 802.11b/g/n (Zigbee 802.15.4)
Max Connected Device: 50
Zigbee Control Distance: 100 meters (Open area)
Working Temperature: -10~40°C
Product Name: Zigbee 3.0 Wired Gateway
Model Number: ZB-Box2
Input: DC5V/1.0A (Micro USB)
WiFi Wireless Frequency: 2.400-2.4835GHz
Zigbee Wireless Frequency: 2.400-2.480GHz
Transmitting Power: WiFi 20dBm / Zigbee 10dBm
Wireless Technology: WiFi 802.11b/g/n (Zigbee 802.15.4)
Max Connected Device: 128
Zigbee Control Distance: 100 meters (Open area)
Working Temperature: -10~40°C
Product Description
Certifications
We don't compare prices with others, we only compare the quality. For safety concerns, please don't buy cheaper remote controller, because they have not been certified by CE RoHS FCC. Our remote controller have been certified by CE RoHS FCC, please look over pictures.
Packing & Delivery
CFR orders: DHL FedEX UPS TNT Aramex CDEK Free shipping.
Company Profile
Haipo Lighting focuses on R&D, production, technological innovation and application of LED lighting products and IOT applications, and is a high technology enterprise integrating research, production and marketing. The company has a professional R&D and management team, and the sales of the company's Stareyes brand have covered the whole world. By changing the traditional assembly mode of LED lighting industry and integrating the industrial chain, Haipo Lighting has achieved all industrial automation production from raw materials to general assembly, and can produce one finished product per second on average, with an annual output capacity of 100 million. Haipo Lighting is dedicated to building the "factory supermarket" of the global LED lighting, and has completely subverted the industry tradition from R&D, production to marketing and application. In the future, Haipo Lighting will make intelligent lighting products of IOT application gradually integrate into the people's life, let light create more value, and change the lighting of the world.
