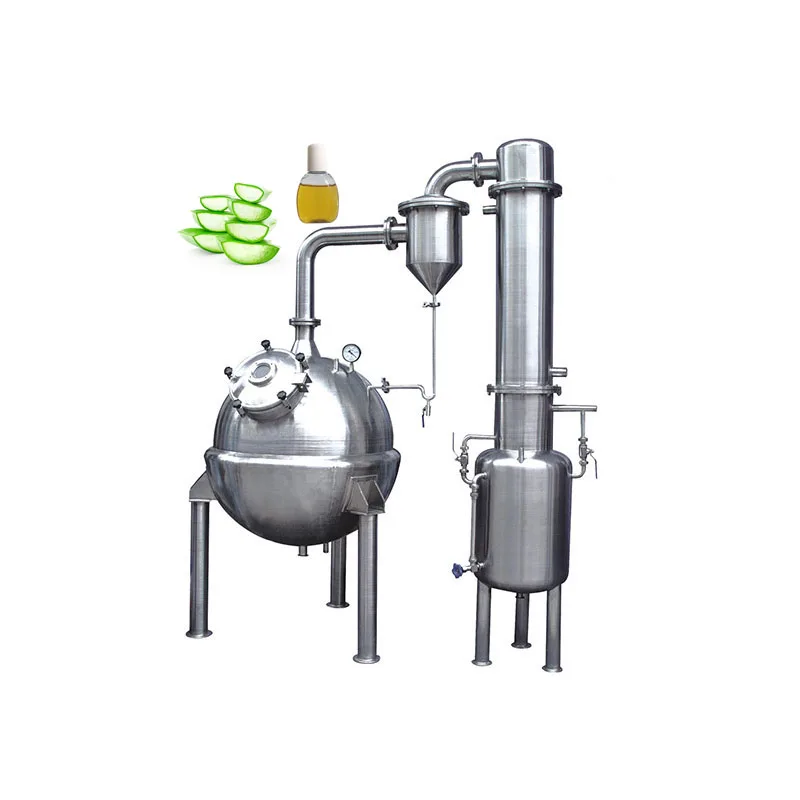

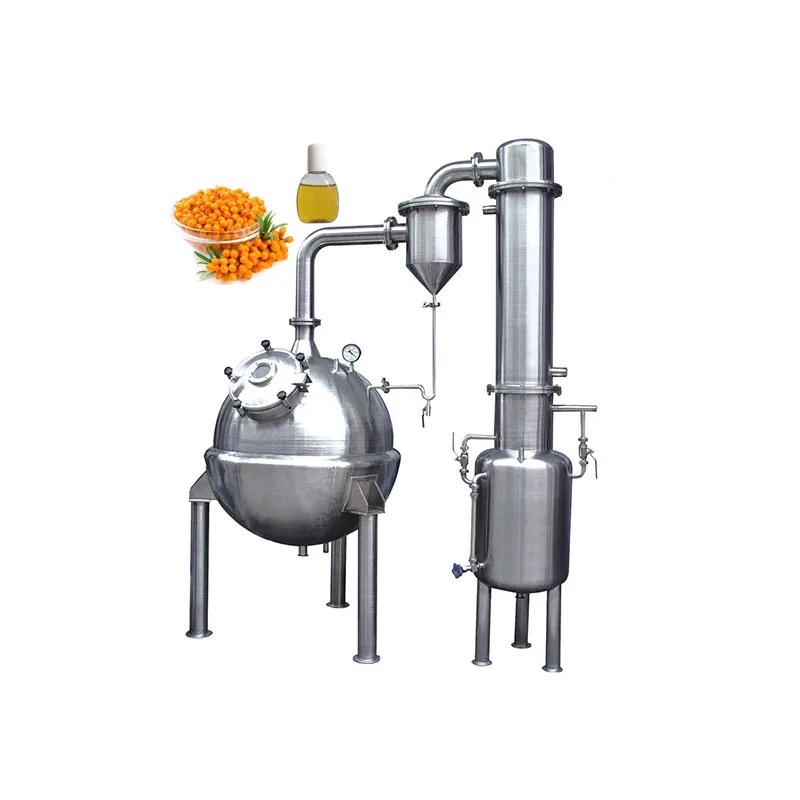

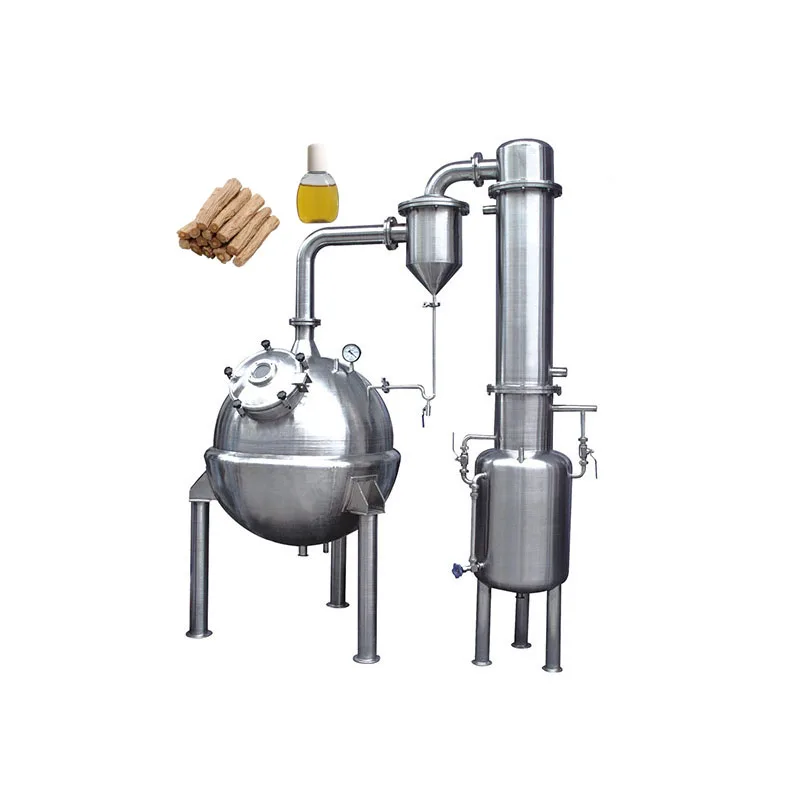

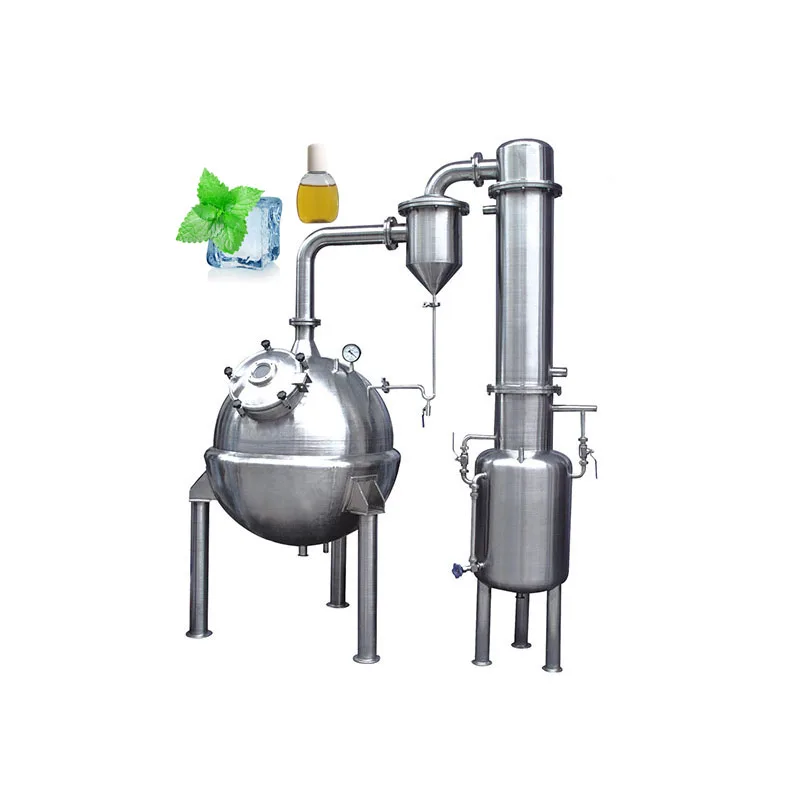

Extraction Machine Vacuum Evaporation Concentrator,Spherical Concentrate Pot Evaporator
- Category: >>>
- Supplier: Liaoyang Xianglong Pharmaceutical Machinery Co. Ltd.
Share on (1600426601833):
Product Overview
Description
Product Description

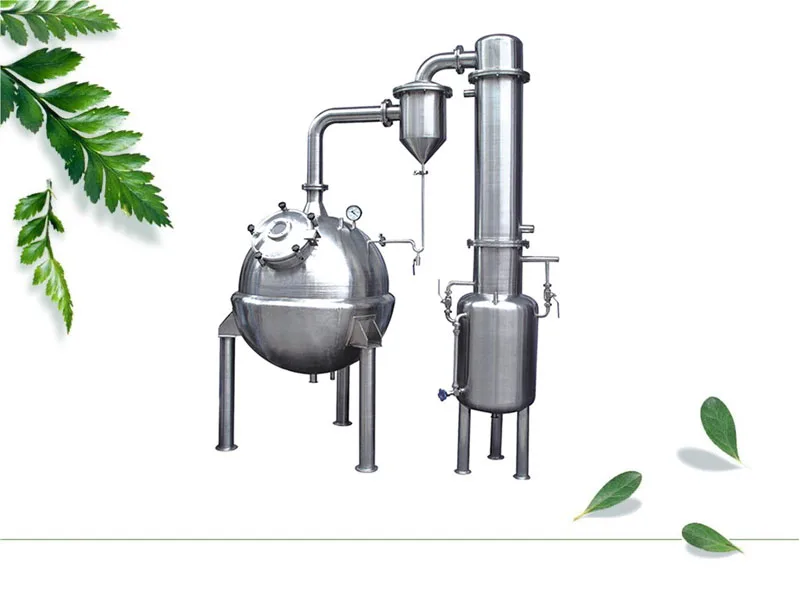

QN series roundness vacuum concentrator
Application：QN series roundness vacuum concentrator ( concentration tank) serves to Chinese herbal medicine, western medicine, food, glucose, juice, candy, chemical engineering etc. The vacuum of the liquid concentrated, crystallize, recyle, distil, alcohol recovery etc.

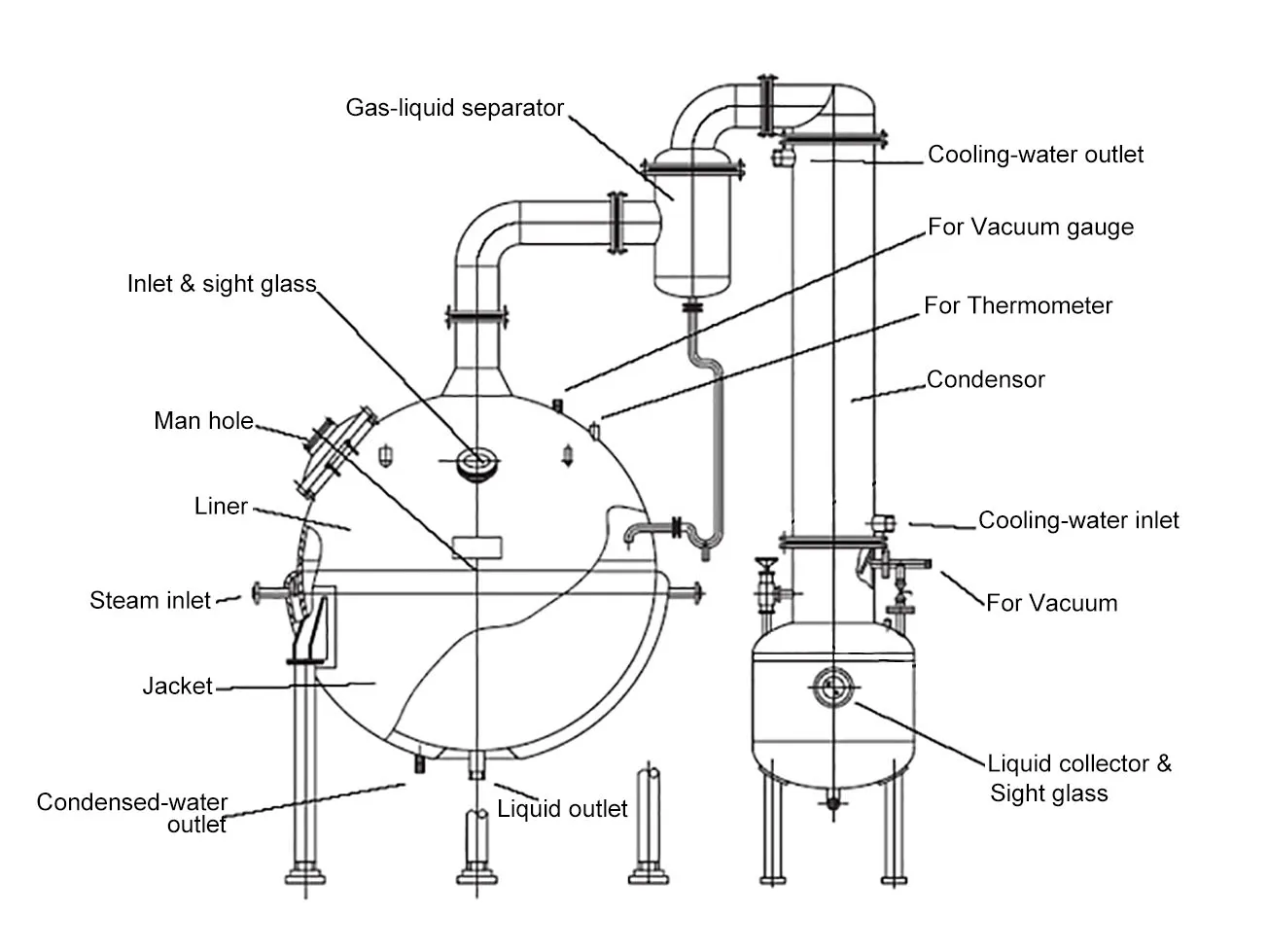

Component：
1) This equipments primarily contain concentration tank, condensator and gas-liquid separator. The concentration under reduced pressure brings short time of concentration and prevent the destruction of effective content in the thermal sensitive material.
2)The part in contact with the material is made of stainless steel brings qualified anti-corrosion performance, meeting with the GMP standard.
Ball Type Low Temperature Vacuum Evaporator Concentrator Machine operates under negative pressure. It is necessary to seal the equipment, often to condense the secondary steam through the condenser and then discharge it, so that the secondary steam in the evaporator becomes negative pressure. At this time, the boiling point of the solution is lower than that under normal pressure, the effective heat transfer temperature difference between the heating steam and the secondary steam stamp can be increased, and the production intensity of the evaporator can be increased. The heating steam of decompression evaporation can use low-pressure steam or waste gas as heat source, and the heat loss of the system in operation is also small, so it is widely used.
Ball Type Low Temperature Vacuum Evaporator Concentrator Machine features :
1. The Vacuum concentrator adopts decompression concentration, so the concentration time is short, and the effective composition of heat sensitive materials will not be damaged.
2. The Vacuum concentrator is made of 304 or 316L stainless steel, with good corrosion resistance and durability.
3. Vacuum concentrator is equipped with automatic spray cleaning system, which is convenient for cleaning.
4. Simple and convenient operation, only one person, small floor area and low noise, especially suitable for small-scale test or small-scale material liquid concentration.
5. Vacuum concentrator has strong universality, which can be used for evaporation and concentration of various materials,
realizing multi-purpose of one machine.
realizing multi-purpose of one machine.
Technical parameters
Type | QN-300 | QN-500 | QN-700 | QN-1000 | |||
Transpiration rate (kg/h) | 70 | 120 | 145 | 195 | |||
Volume (L) | 300 | 500 | 700 | 1000 | |||
Ball inner diameter (mm) | 800 | 990 | 1115 | 1250 | |||
Steam pressure (Mpa) | 0.15 | ||||||
Vacuum degree (mmHg) | -0.05~-0.08 | ||||||
Heating area (m2) | 1.6 | 2 | 2.3 | 3.2 | |||
Condensing area (m2) | 3.9 | 5 | 5.8 | 8.2 | |||
Outsize dimension (mm) | 1900*1100*2300 | 2030*1200*2500 | 2100*1300*2600 | 2335*1520*2765 | |||
Equipment weight (kg) | 380 | 450 | 630 | 950 | |||
Water cost (T/H) | 5 | 5 | 8 | 8 | |||
Steam inlet (mm) | 32 | 32 | 32 | 40 | |||
Water inlet and outle (mm) | 32 | 32 | 40 | 40 | |||
