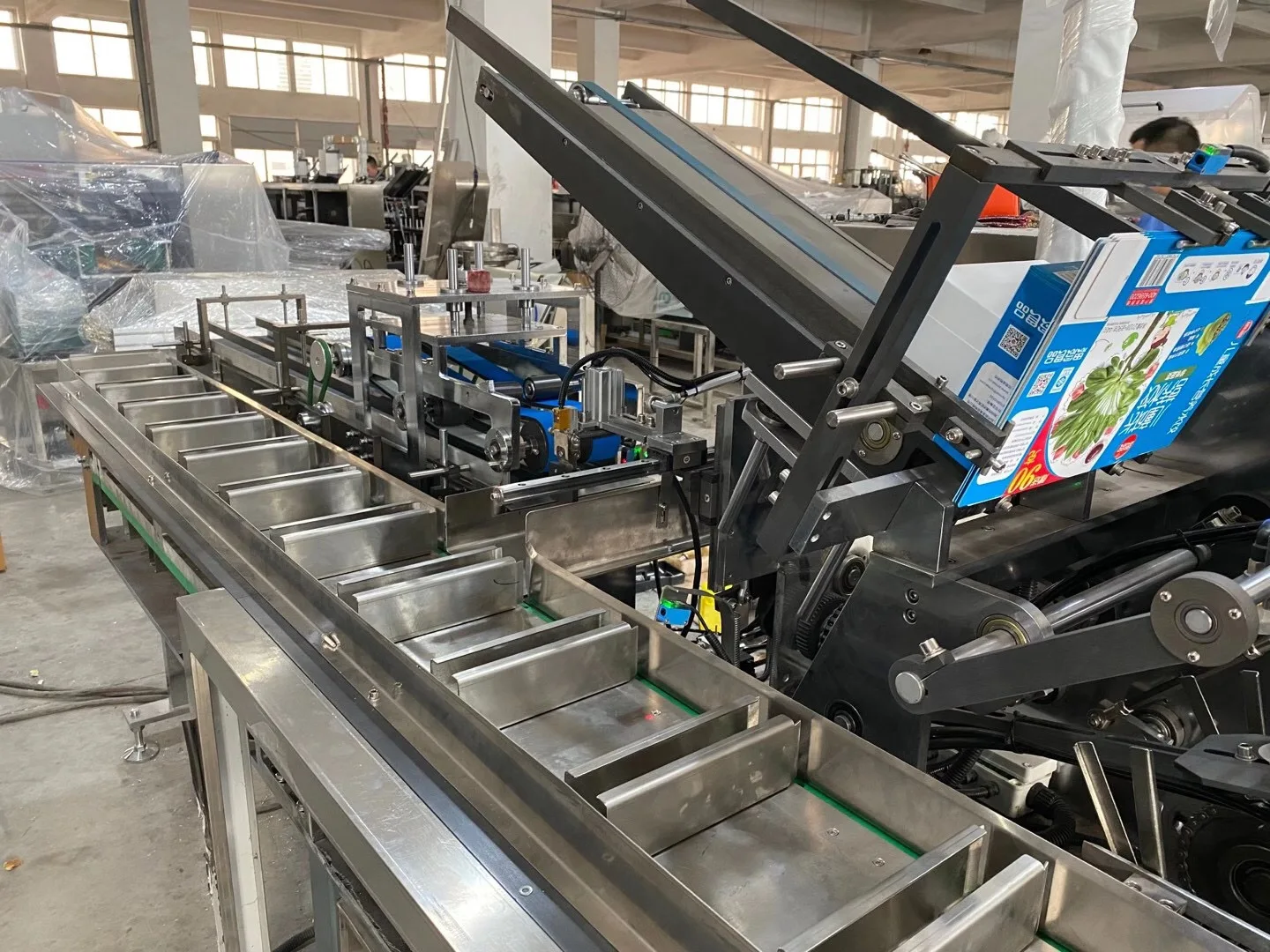

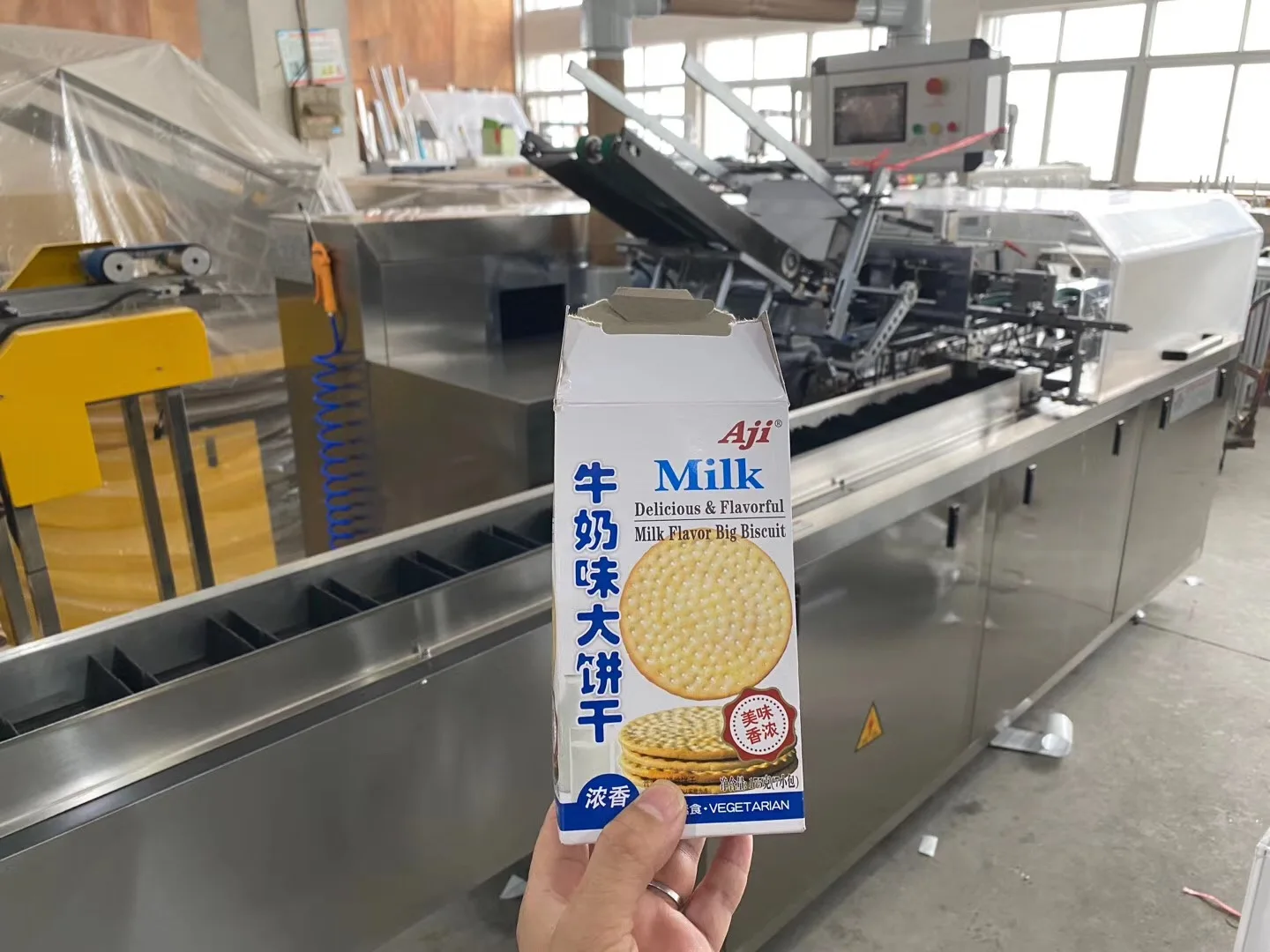

Automatic Feeding instant coffee capsule/coffee powder stick box cartoning packing machine Supplier
- Category: >>>
- Supplier: Foshan Tentoo Mechanical Equipment Co. Ltd.
Share on (1600426649143):
Product Overview
Description
Automatic Feeding instant coffee capsule/coffee powder stick box cartoning packing machine Supplier
Product Description

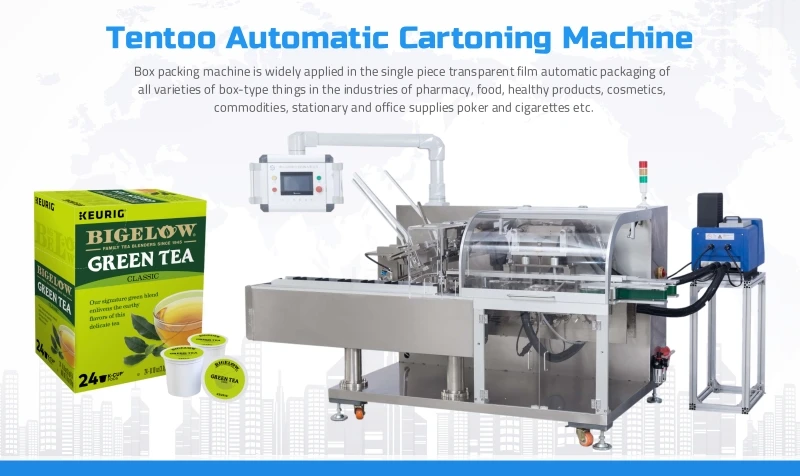

Tentoo Box Packing Machine is designed with box forming, feeding, folding, glue spraying and sealing systems.It saves a lot labour cost which equal of 8-20 workers.The machine is applied to a variety of foods, ,toys, cosmetics, electronics , stationary and office supplies poker and cigarettes etc.
Specification
Model | TT-A100 Automatic Box Cartoning Machine |
Box Quality Requirement | 250-350g/m2 (according to customer request) |
Power | 1.5KW (220V/380V,3PH,50HZ) |
Compressed Air Working Pressure | >=0.6mpa |
Dimension(L*W*H) | 3800X1100X1900mm |
Weight | 1500kgs |
Box Packing Speed | 30-80 bags/min |
Box Dimension Range | (55-200)mmX(14-160)mmX(13-70)mm Can be customized according to your box shape and size |
Features | 1. Japan Omron PLC control 2. Japan Omron inverter 3. Japan Omron touch screen 4. Automatic stop when machine is overload 5. Automatic reject lacking of package product and leaflet 6. Automatic trouble display, alarm and counting 7. Stable performance, operaion is easy |
Please provide the following information for initial evaluation:
1. What's the box shape and size?
2. Picture or video to show us how the product is placed in the box.
3. Do you need single machine or need to be connected with conveyor of production line?
4. If need to be connected with conveyor of production line, what's the coming speed of the product? How is the product delivered
on the conveyor? Provide us the picture or video is rather more helpful.
5. Any special products you want to pack with box, please go ahead to provide us the details, we can provide solution for you.
1. What's the box shape and size?
2. Picture or video to show us how the product is placed in the box.
3. Do you need single machine or need to be connected with conveyor of production line?
4. If need to be connected with conveyor of production line, what's the coming speed of the product? How is the product delivered
on the conveyor? Provide us the picture or video is rather more helpful.
5. Any special products you want to pack with box, please go ahead to provide us the details, we can provide solution for you.

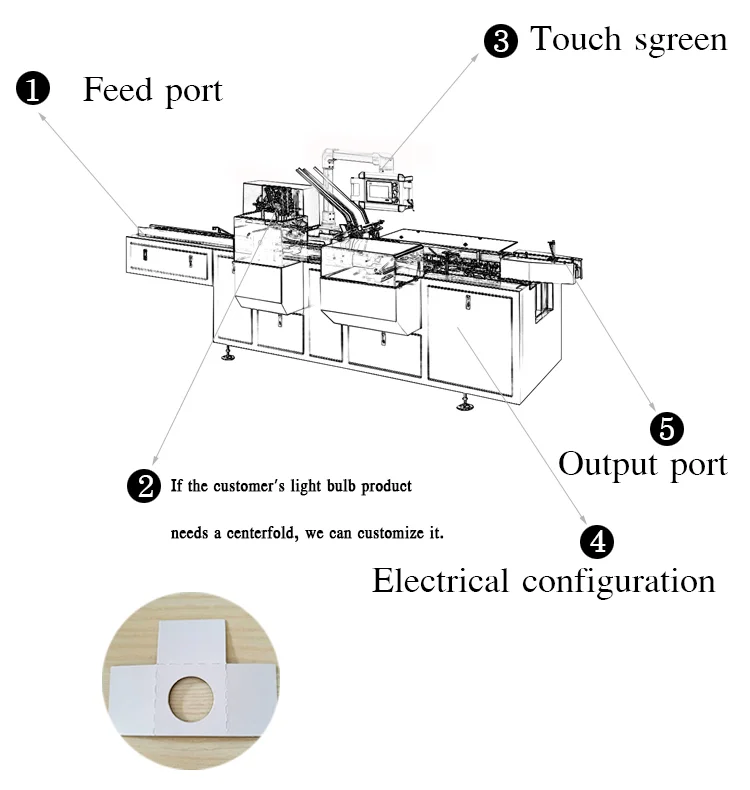

Details Images For Main Working Parts

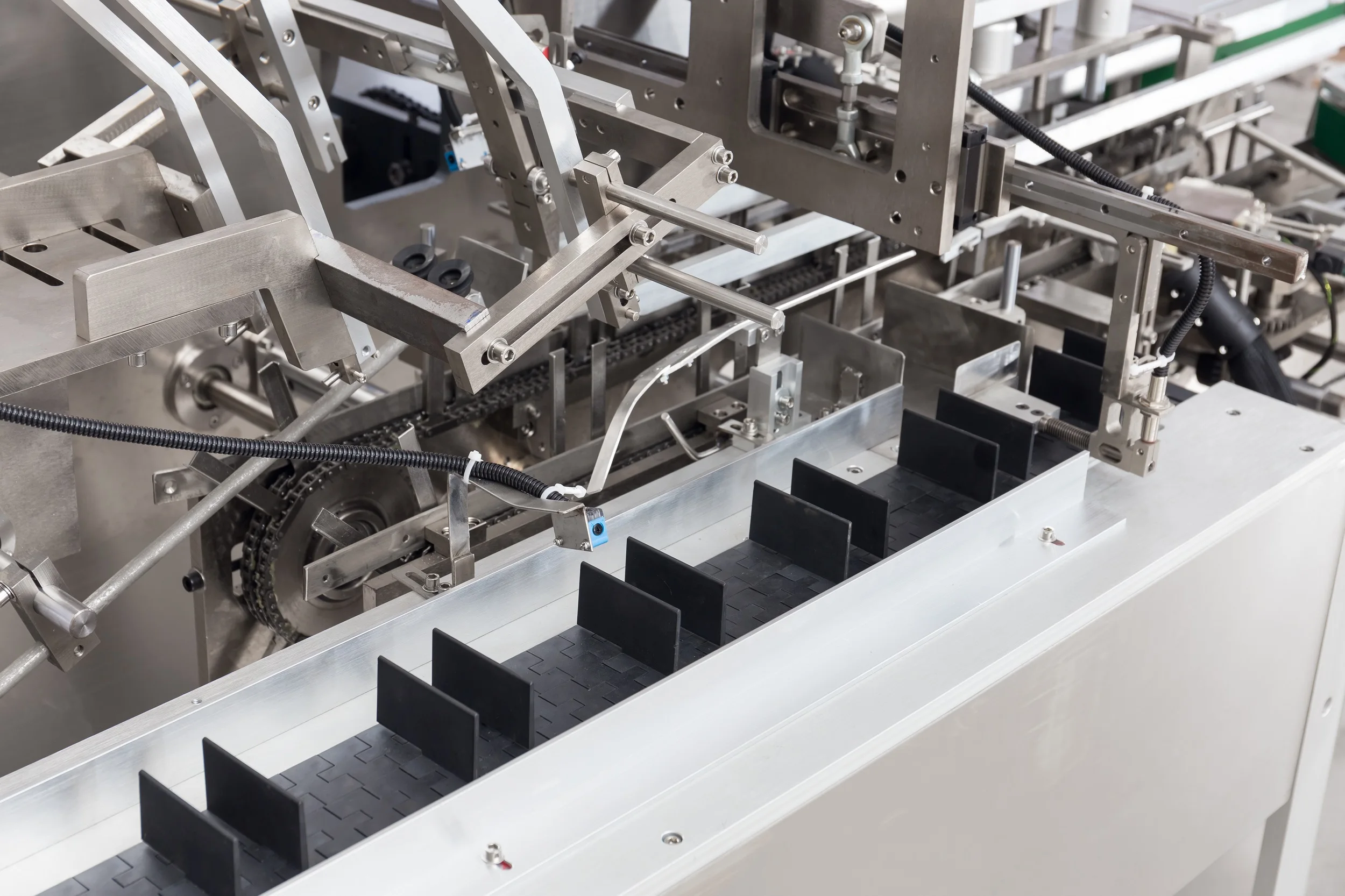

01.Products conveyor And Box storage device
The product conveyer pulls the product into the formed carton.and the box storage device put the box into the storage slot.

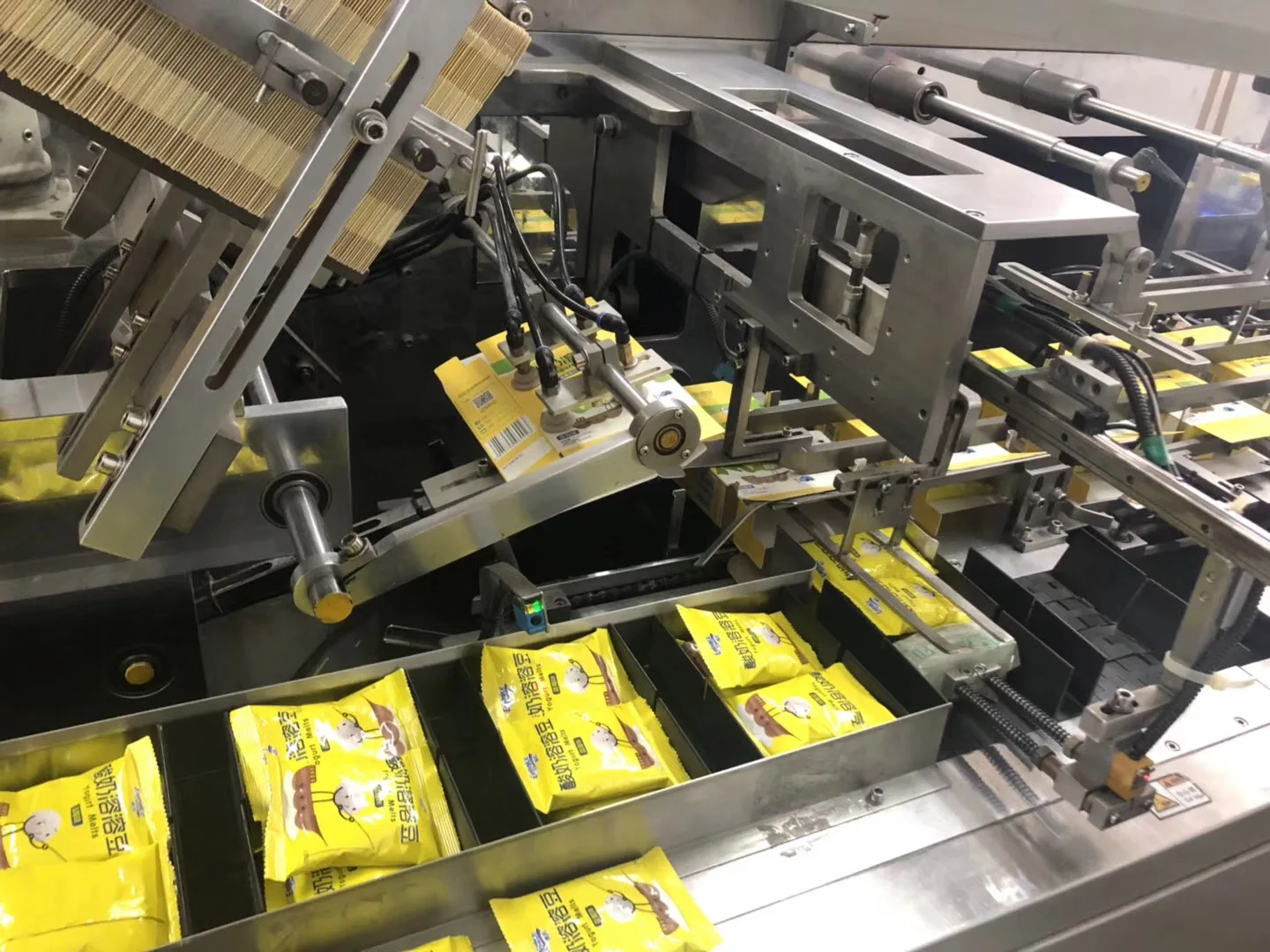

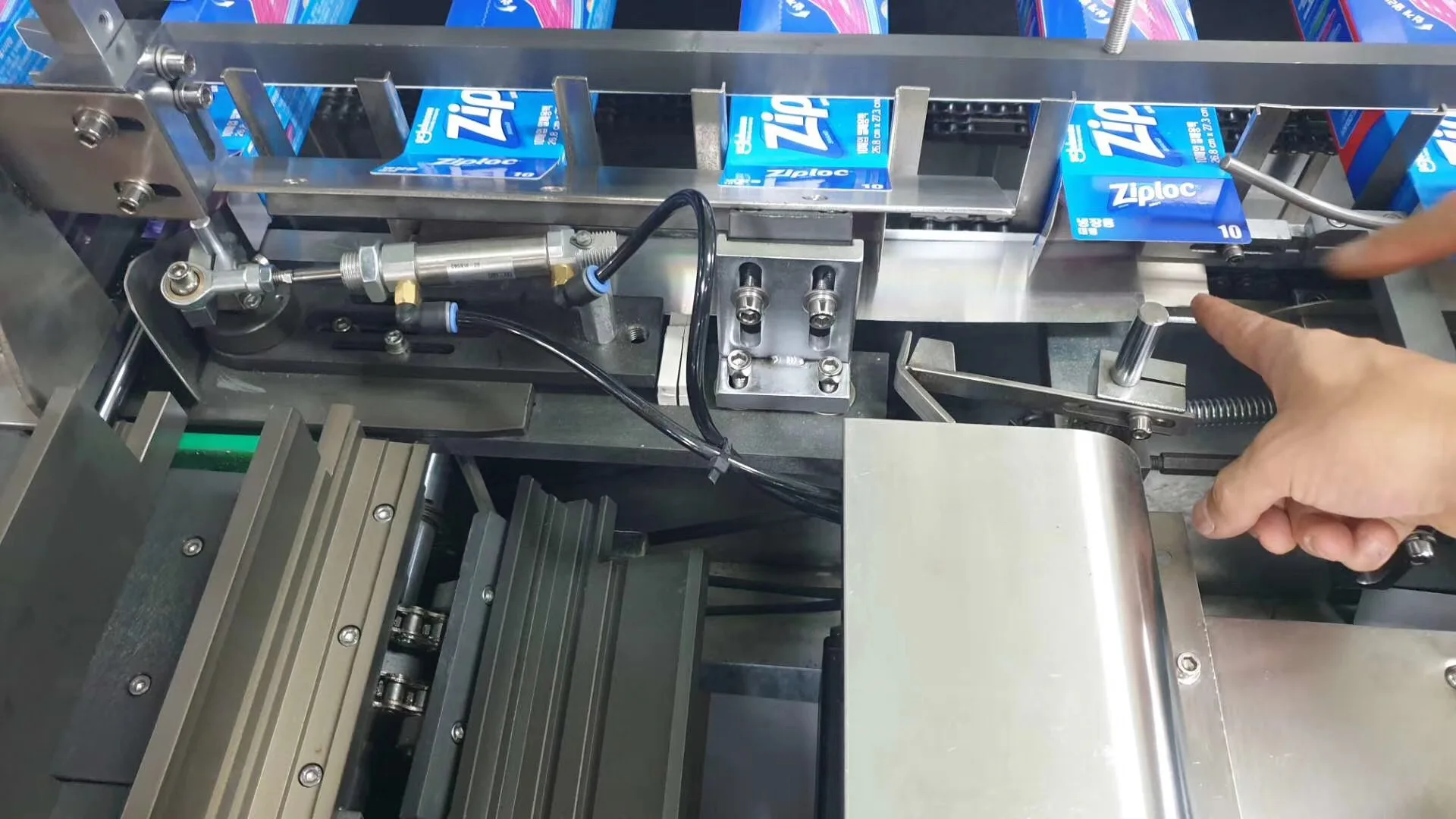

02.Device of box Forming ,feeding,folding,glue spraying sealing
The suction cup automatically sucks the box and shapes the box type.Then Push the product into the corresponding tray continuously while the machines is running.

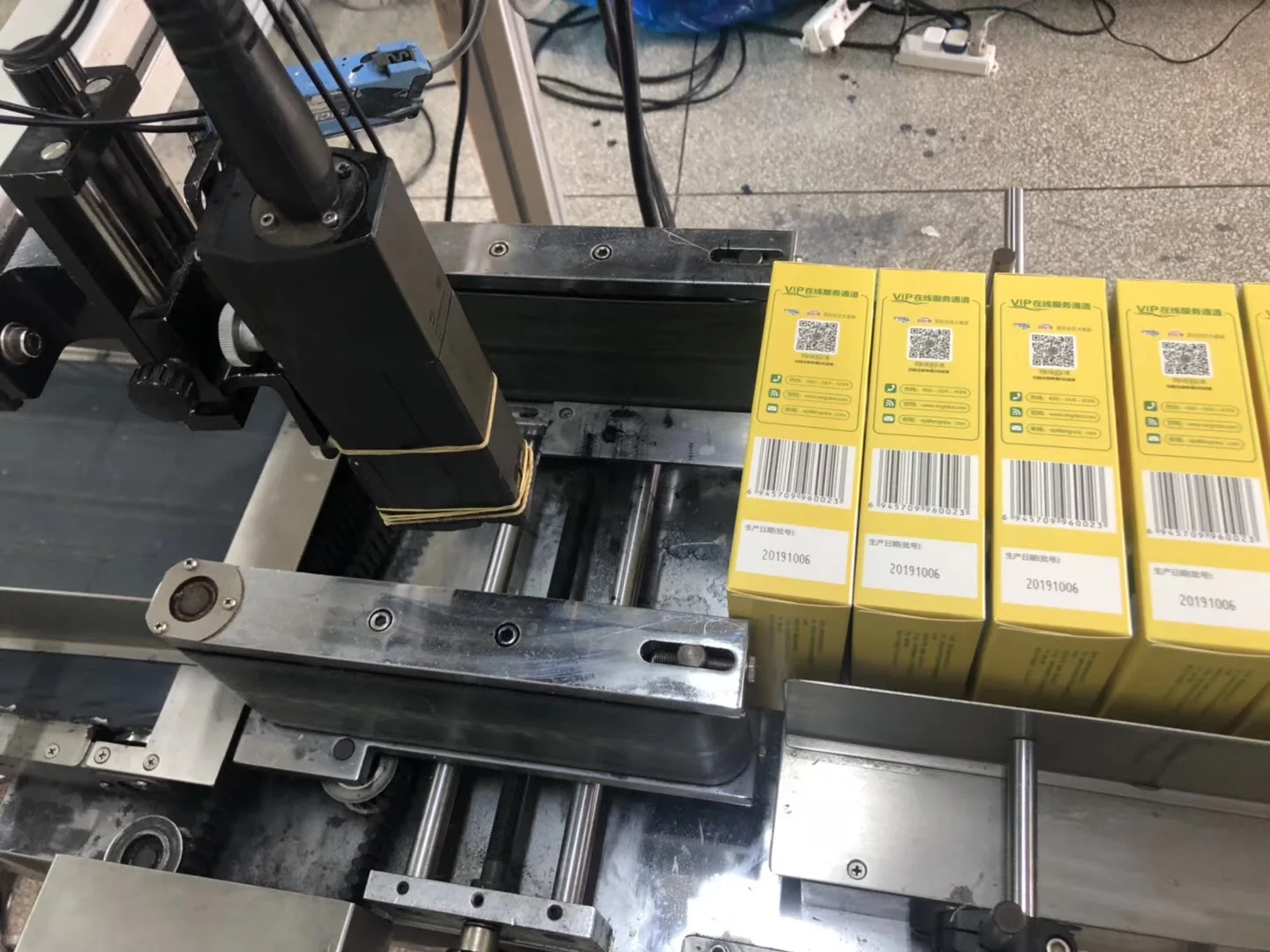

Finished box product outlet
The product has been placed in the box and the carton has been packaged，the finished product is output.

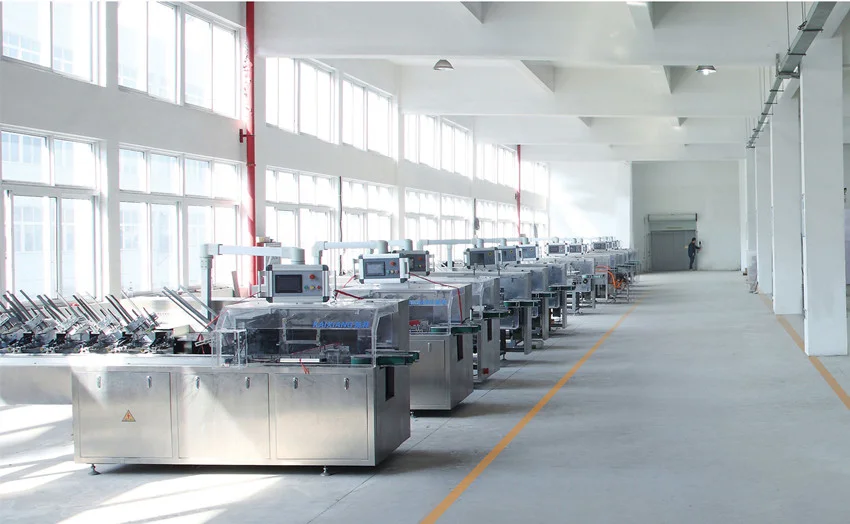

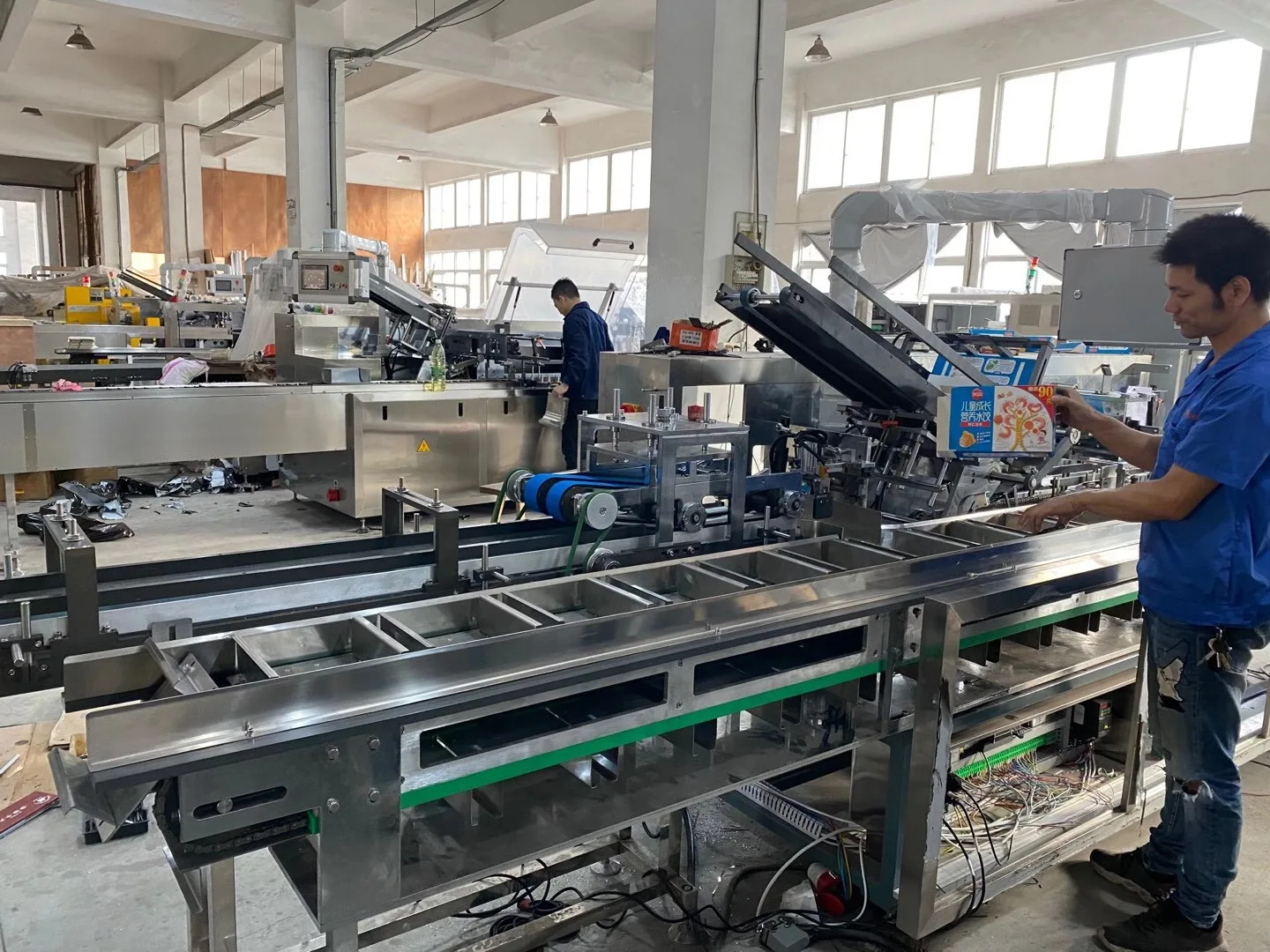

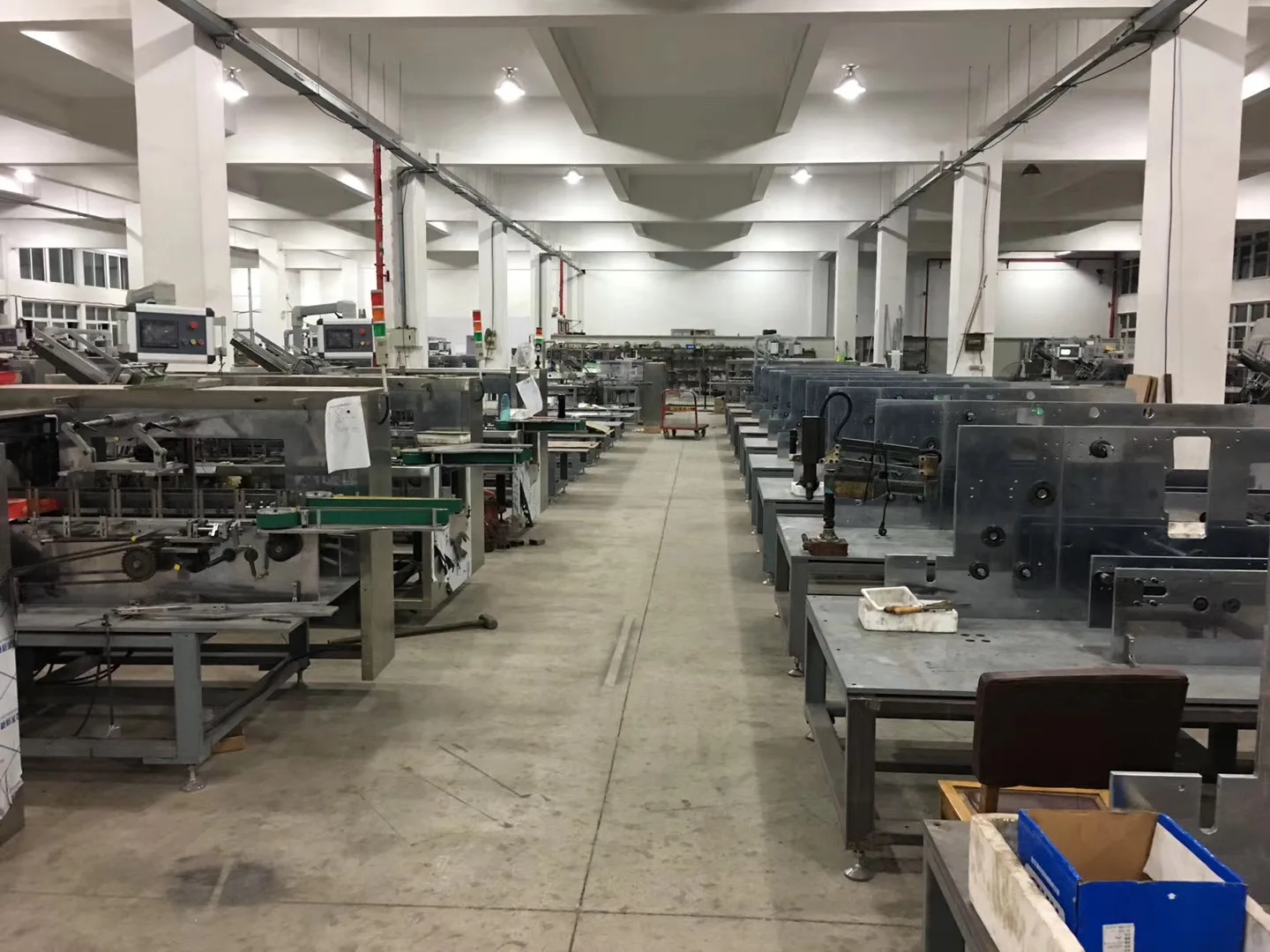

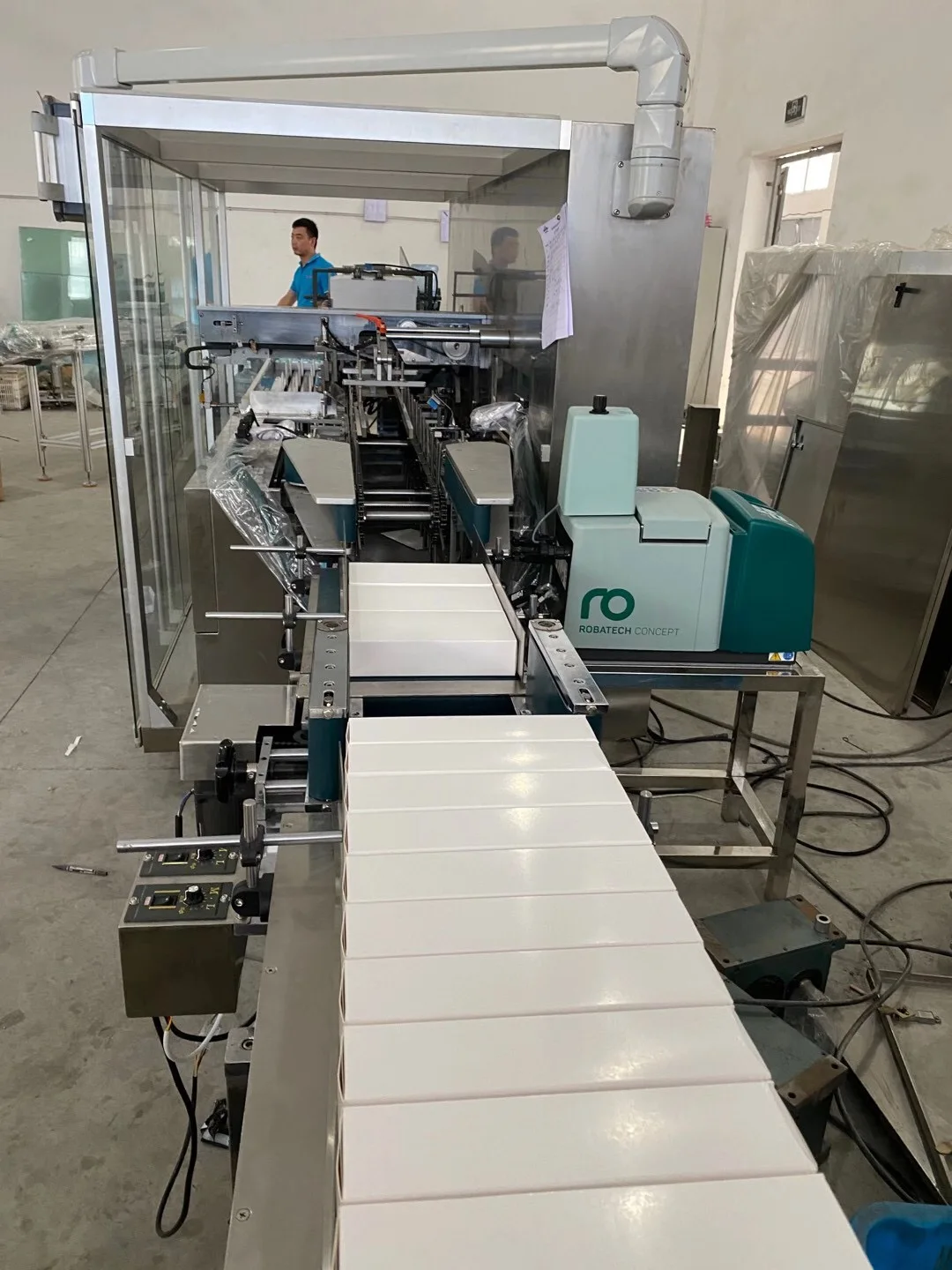

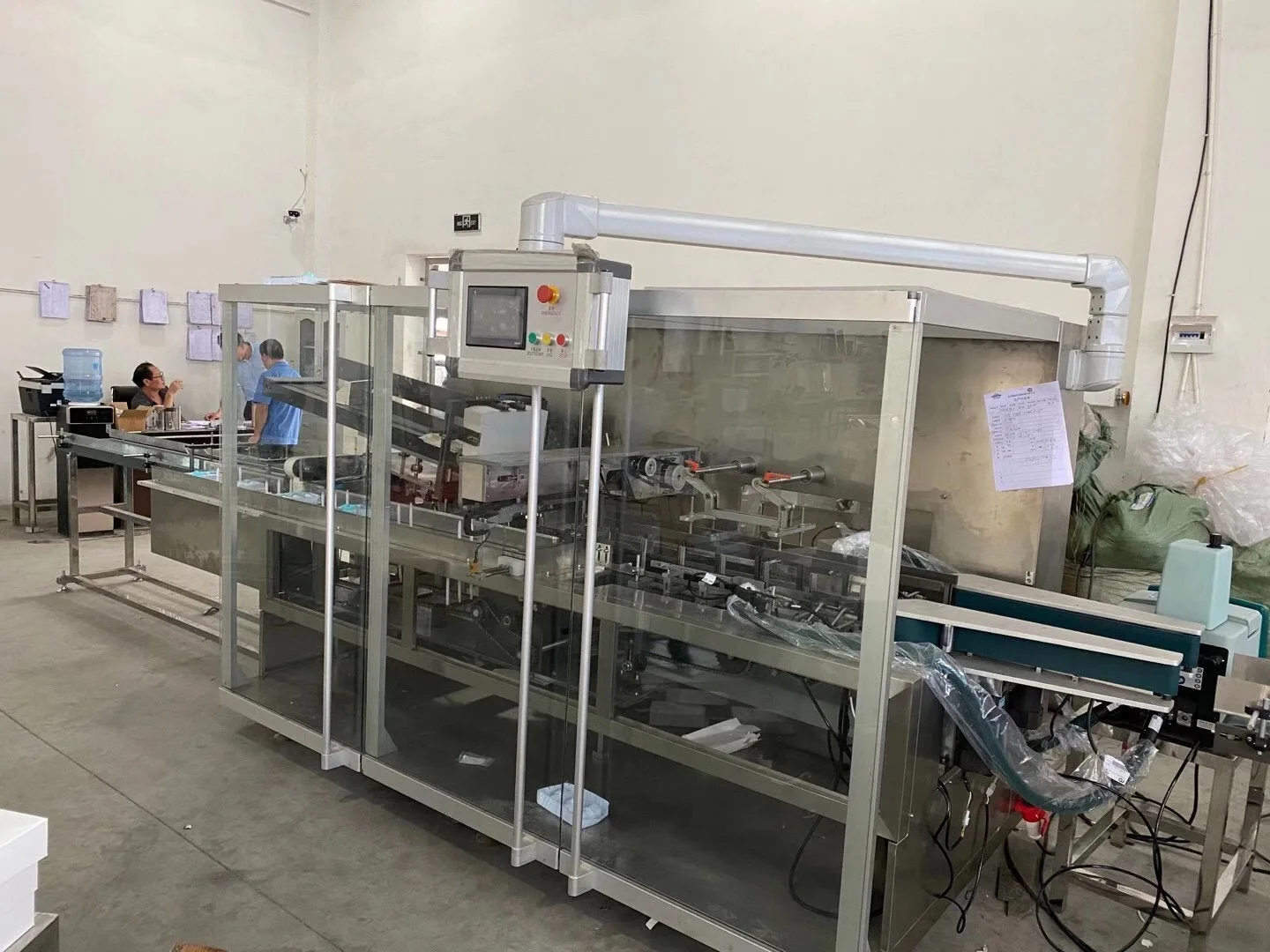

Manufacturing Workshop
Our Advantages
TentooPack devote ourselves to produce high quality, durable and cost effective machines to all our clients. During the production of machine we have a series of systematic mechanism of quality control and inspection. For shipment we use solid wooden case to fix and wrap it carefully. Make sure 100% it is safe and it can work for their masters once they get to the position. For installation and after-sales service, we are not only provide English manuals but also every, every detailed video you will need, we make it all quite simple and detailed. And the feedback shows that most of our clients can install and run the machine by themselves after seeing these videos. Of course, we are here for you all the time, anything unclear, just call us, send us email, send some videos to point out your issue, we will get back to your within 24 hours. And we provide oversea installation service as well if it is needed.

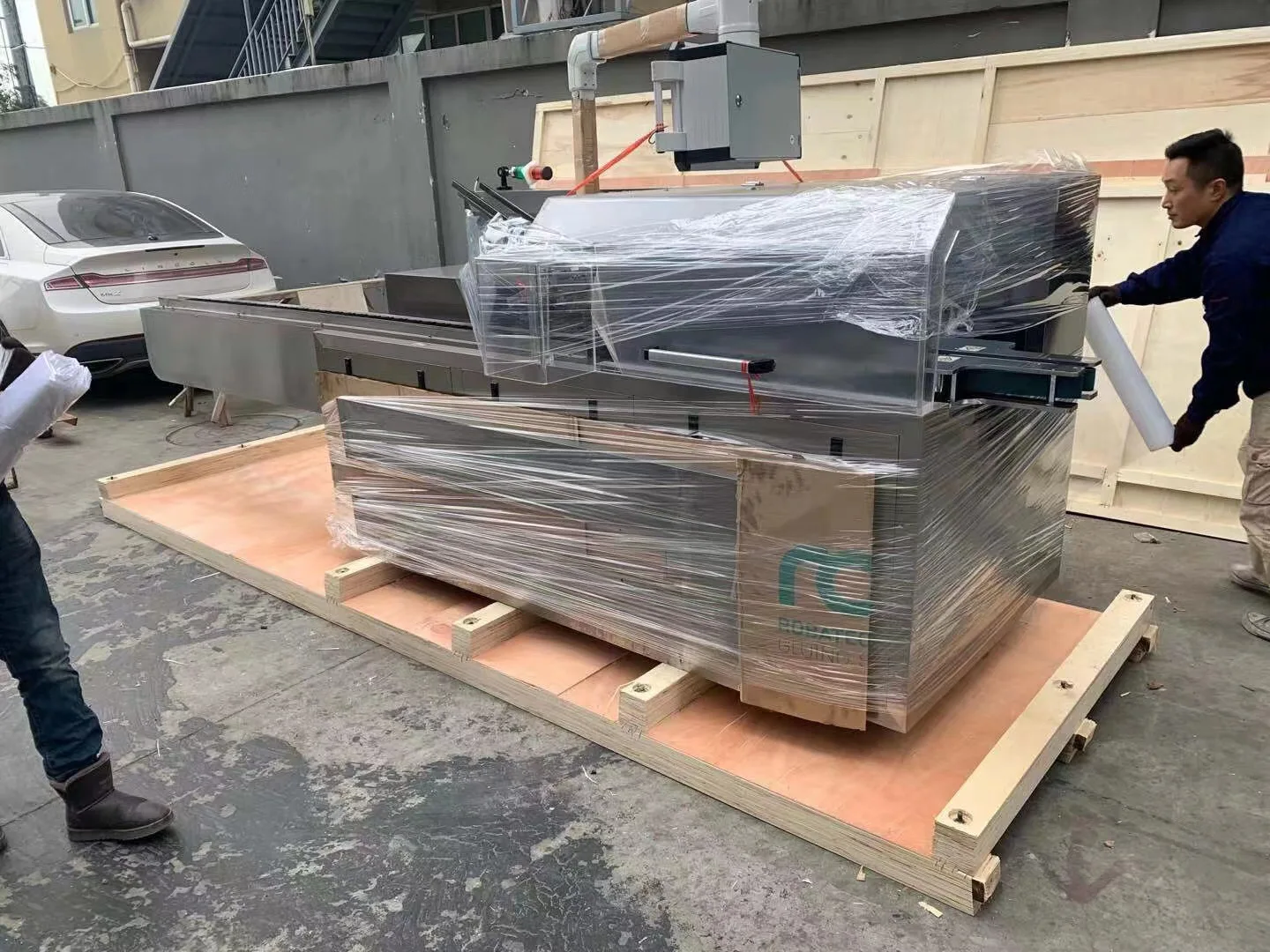

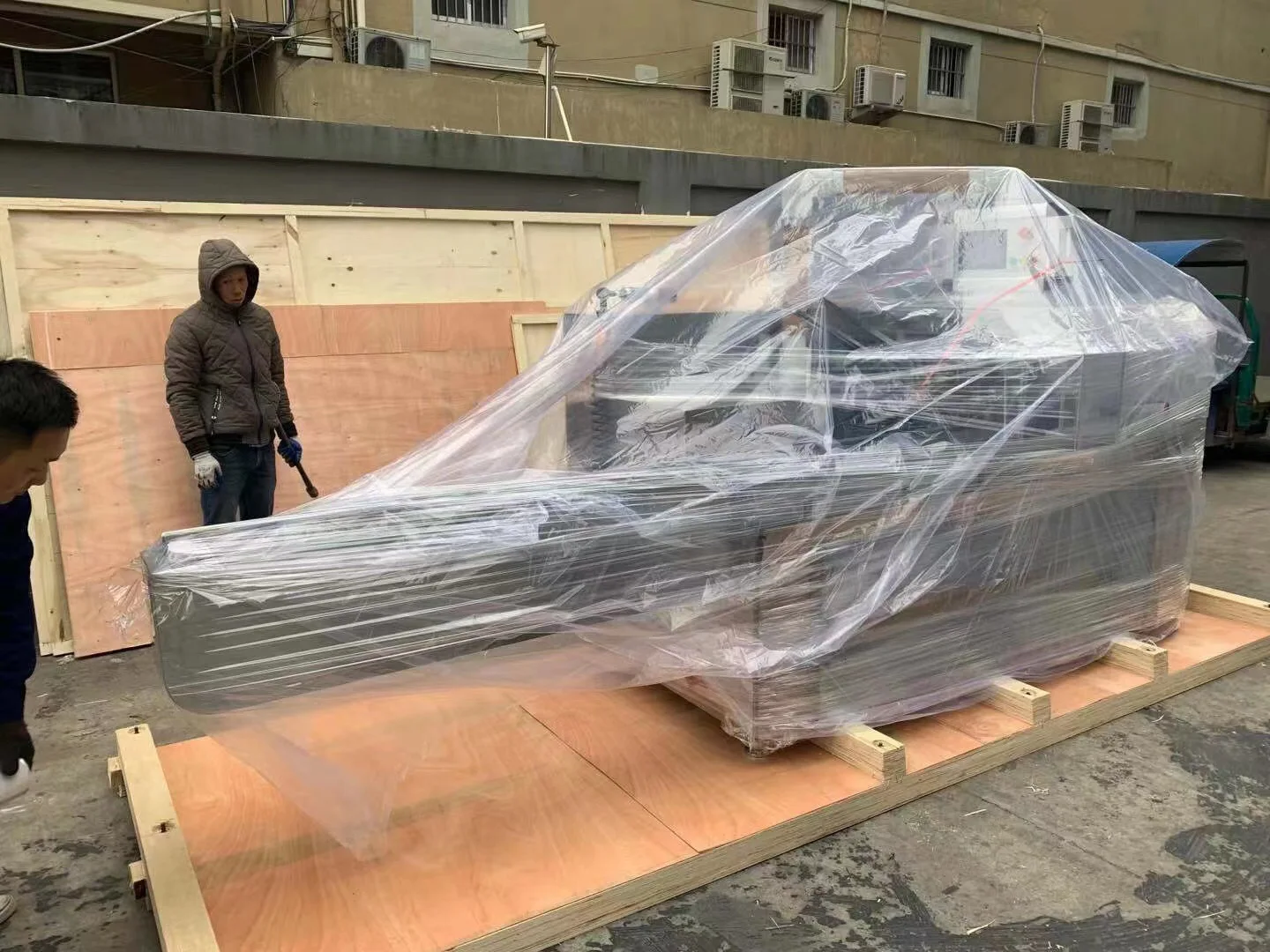

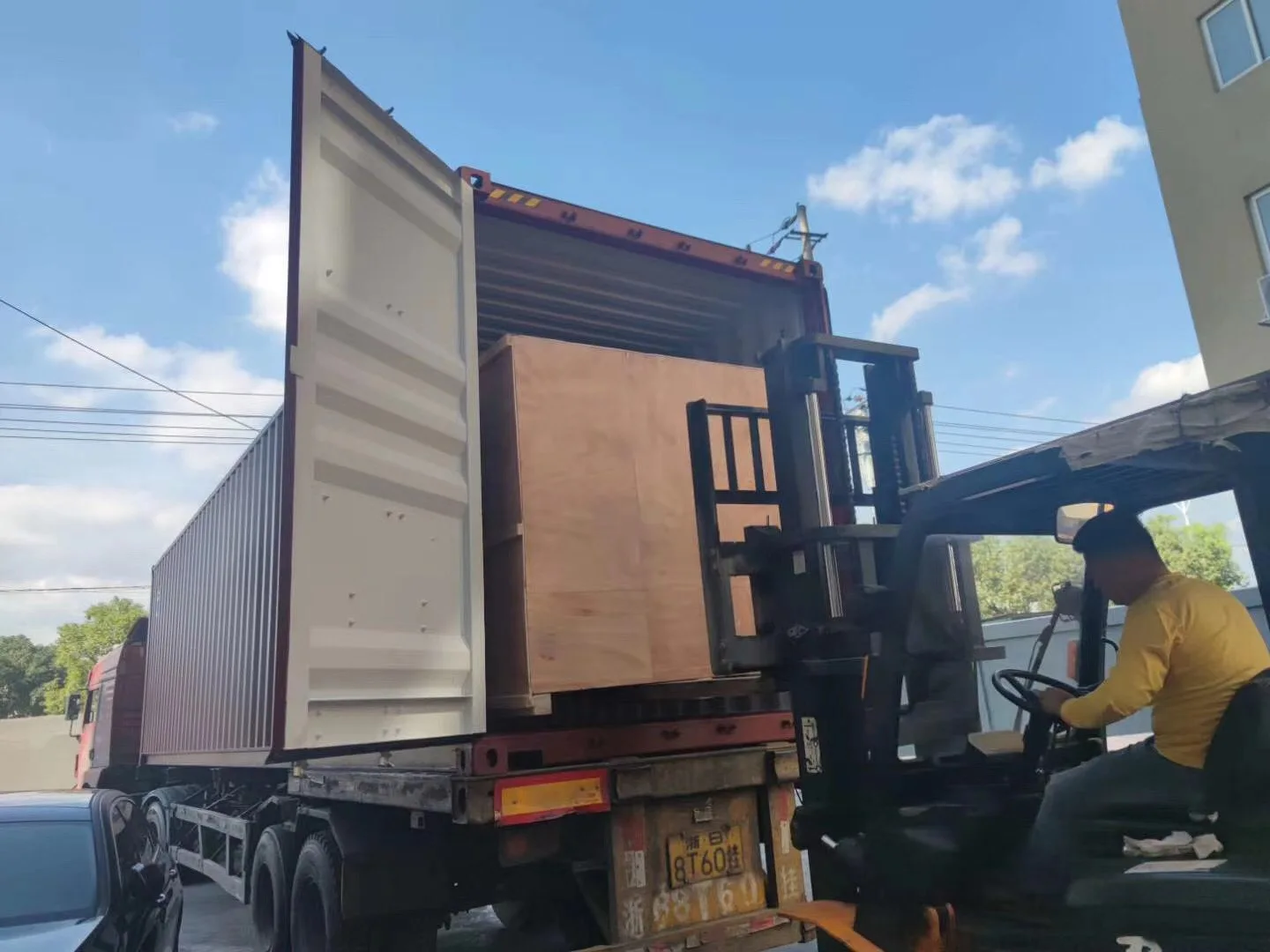

Packing & Delivery
Payment
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment.
3.All banking charges outside China are on buyers.
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea .
3.Shipment cost will depend on the destination, shipment way and the weight of the goods.
1.T/T and Western Union are accepted.
2.30% deposit before production and 70% balance before shipment.
3.All banking charges outside China are on buyers.
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea .
3.Shipment cost will depend on the destination, shipment way and the weight of the goods.
