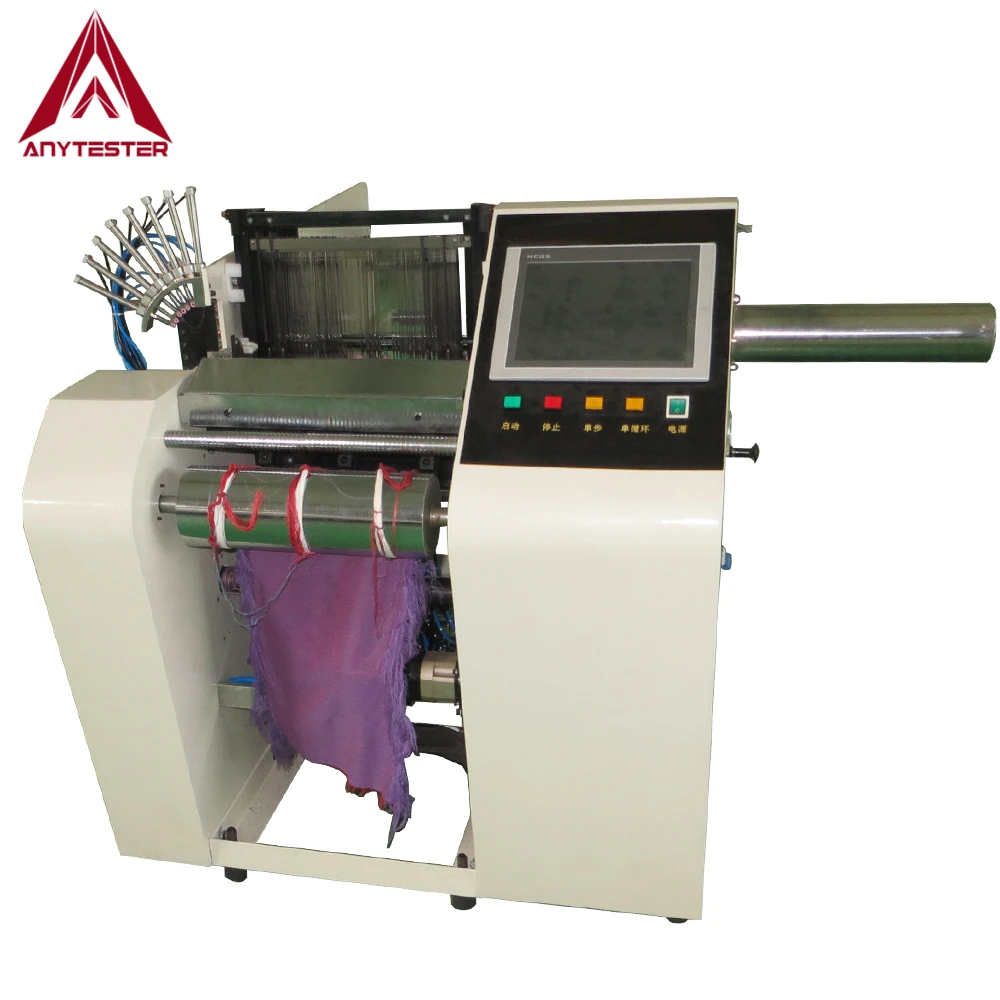

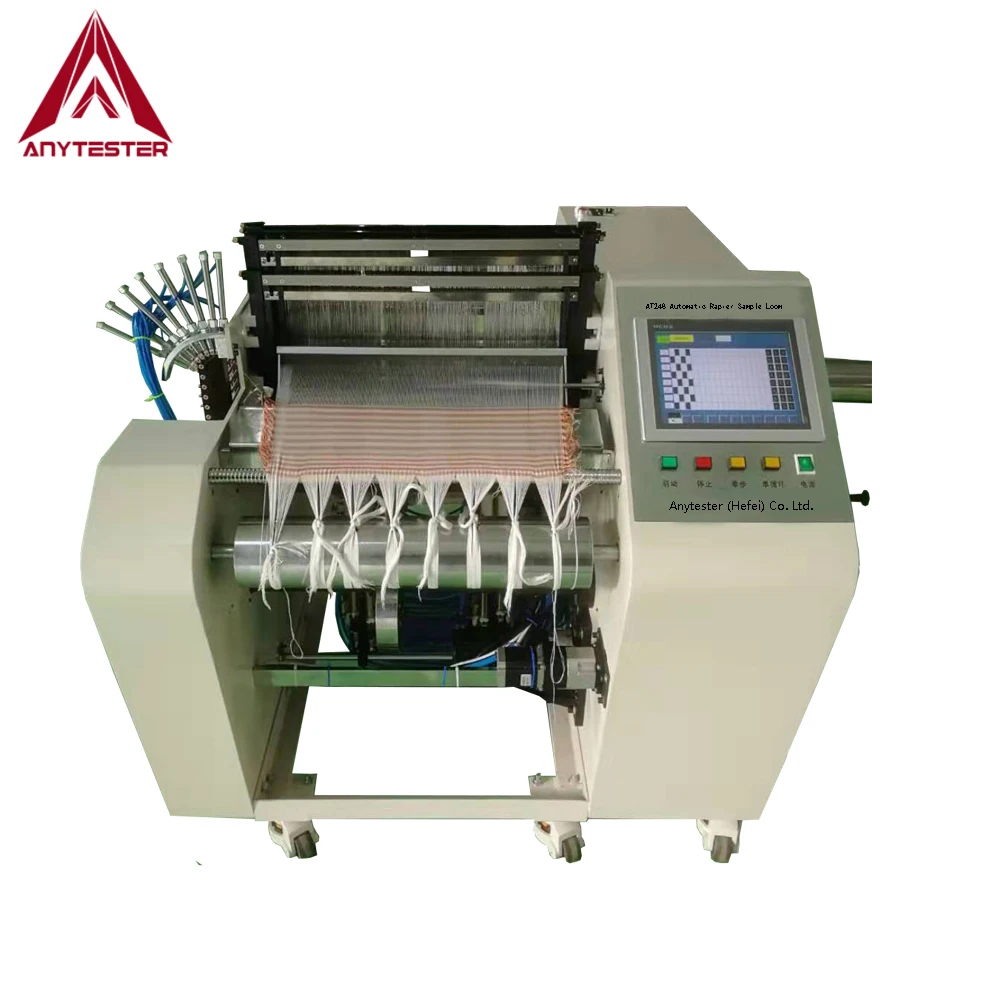

Automatic Air-jet Sample Loom

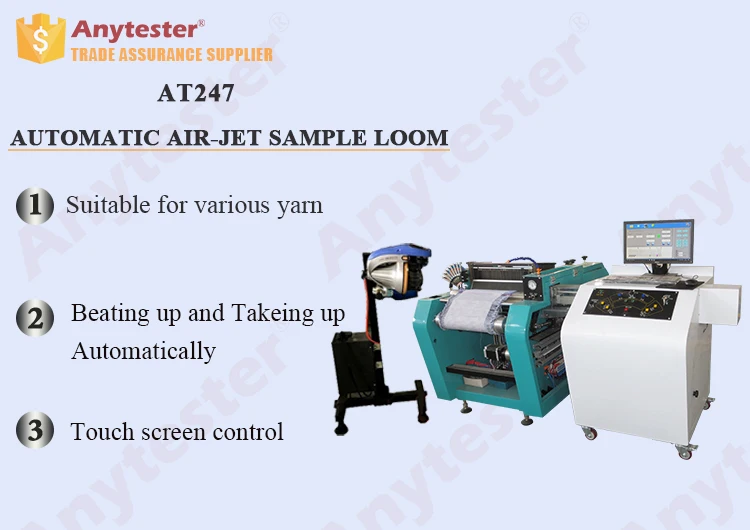

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Details and Features
1 Consists of control part (computerized control platform) and mechanical part (loom);
2 Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
3 Mechanical let-off, beating-up and take-up and pneumatic shedding;

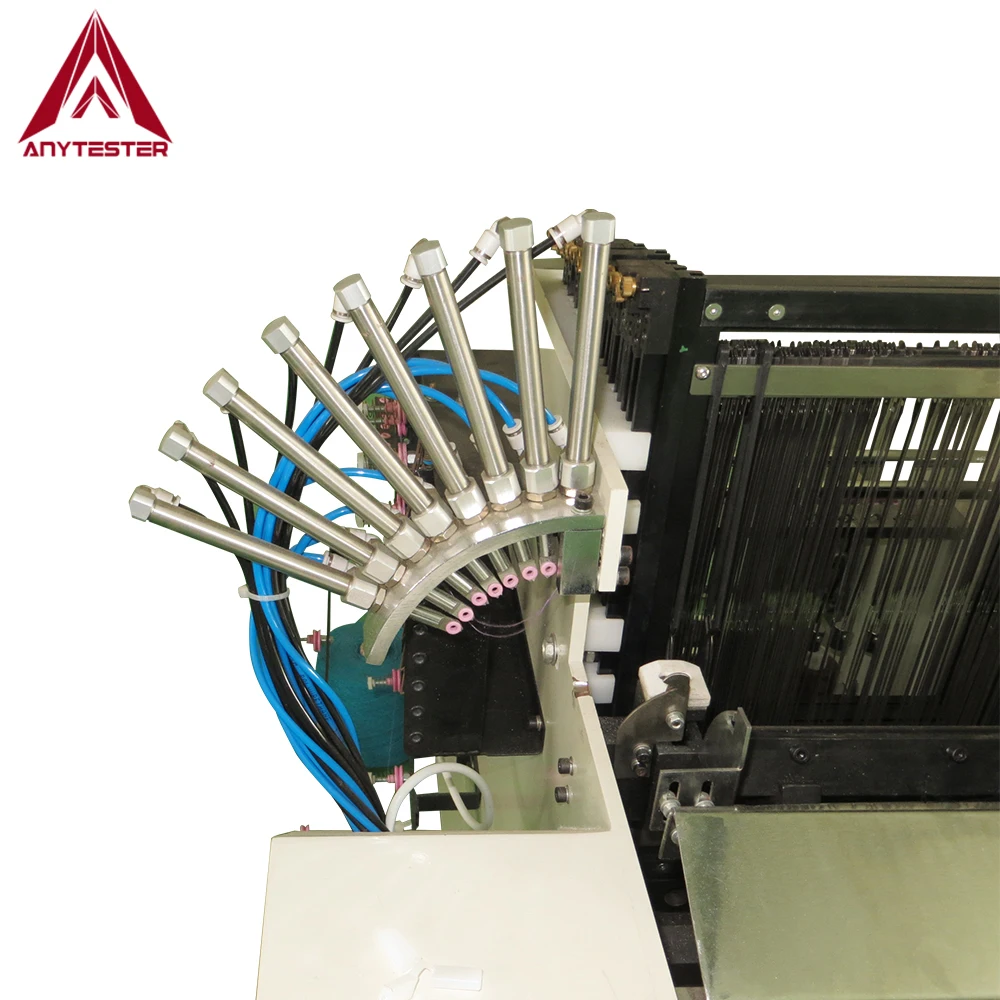

4 Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
5 Heald frames up to 20pcs, easy to mount and dismount;
2 Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
3 Mechanical let-off, beating-up and take-up and pneumatic shedding;
4 Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
5 Heald frames up to 20pcs, easy to mount and dismount;
Technical specification
Model | AT247 |
Reed width | 12inches (16, 20 and 24 inch, optional) |
Yarn linear density range | 5~500tex |
Weft density | 30~45weft/min, selectable |
No. of heald frame | 4~20 |
Color selection | 1 color |
Let-off | Active electronic control |
Take-up | Motor control |
Shedding | Dobby shedding, pneumatic control |
Beating-up | Motor control |
Air pressure | 0.45~0.8Mpa |
Air consumption | Max. 500L/min |
Power | A220V 50Hz, single-phase AC380V 50Hz, three-phase |

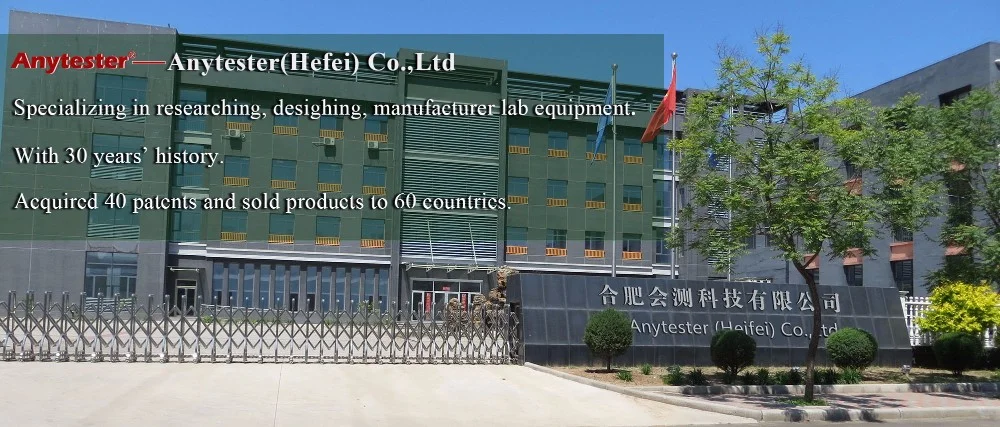

Our Company
Packing & Delivery
Pakeging | ||
1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | ||
