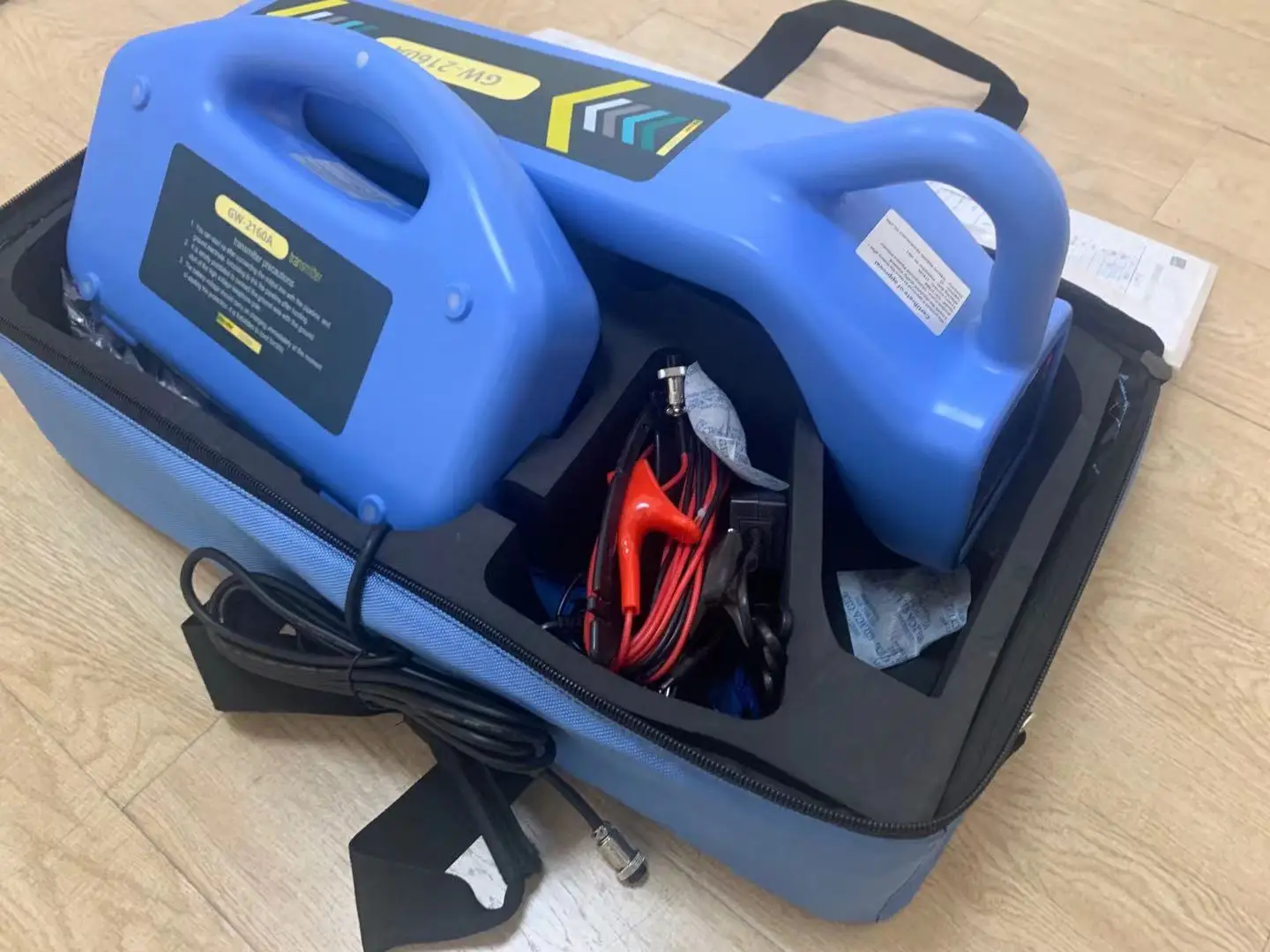

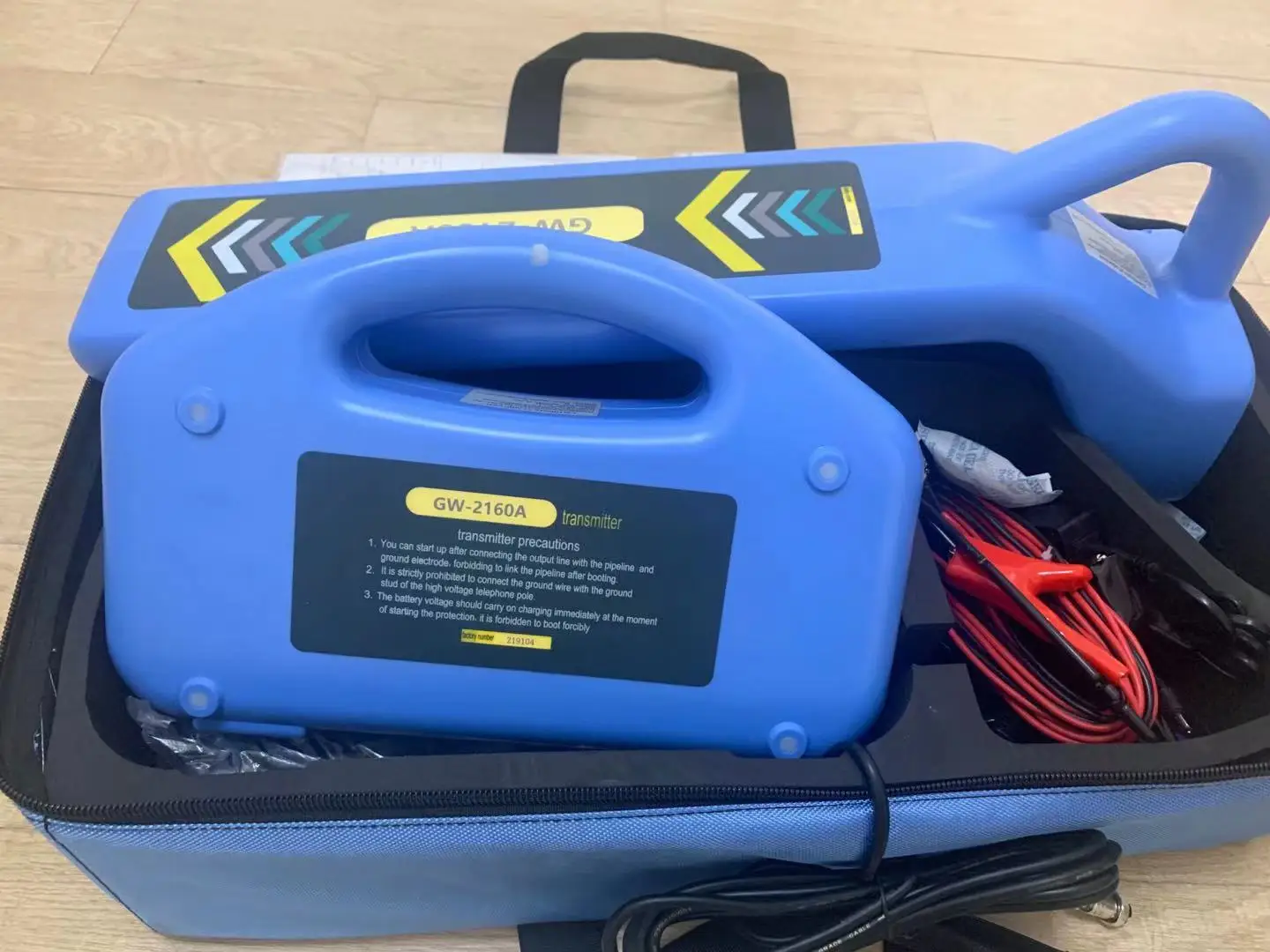

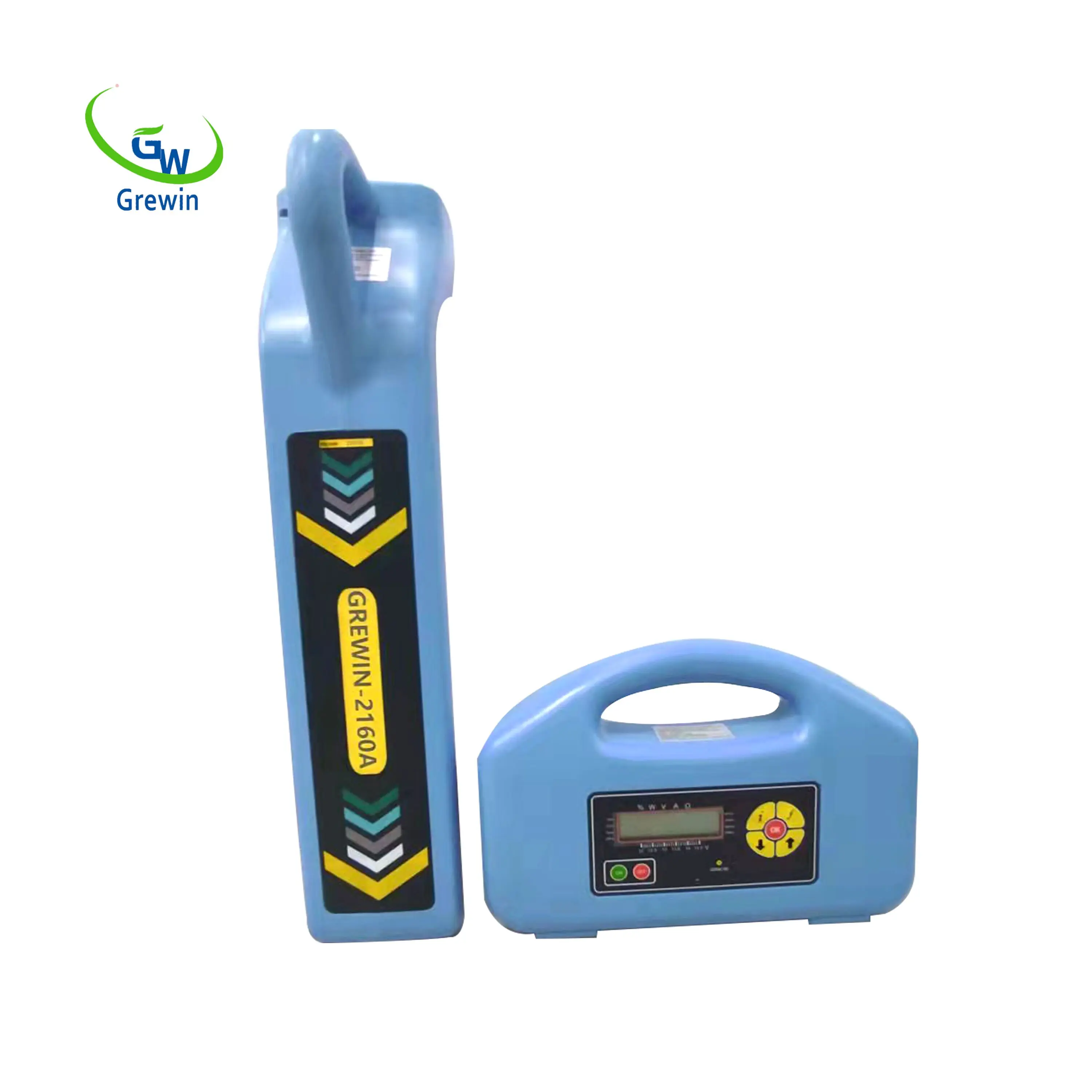

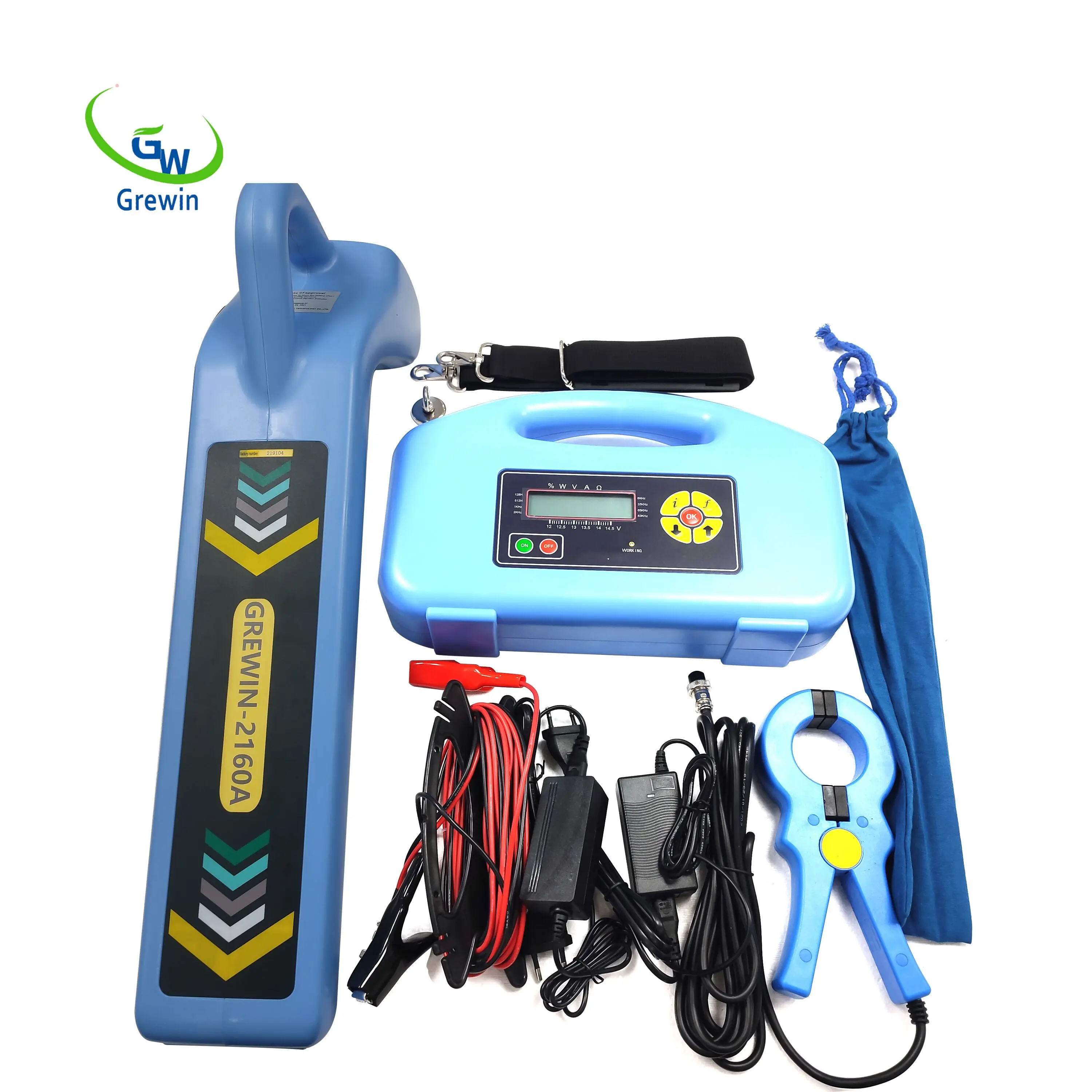

GW 2160A Pipe And Cable Locator Underground Portable Pipe Detector Line Fault Locator Made in china.
- Category: >>>
- Supplier: Tianjin Grewin Technology Co. Ltd.
Share on (1600426723983):
Product Overview
Description
Products name
GW-2160A Pipe And Cable Locator Underground Portable Pipe Detector Line Fault Locator Made in china.

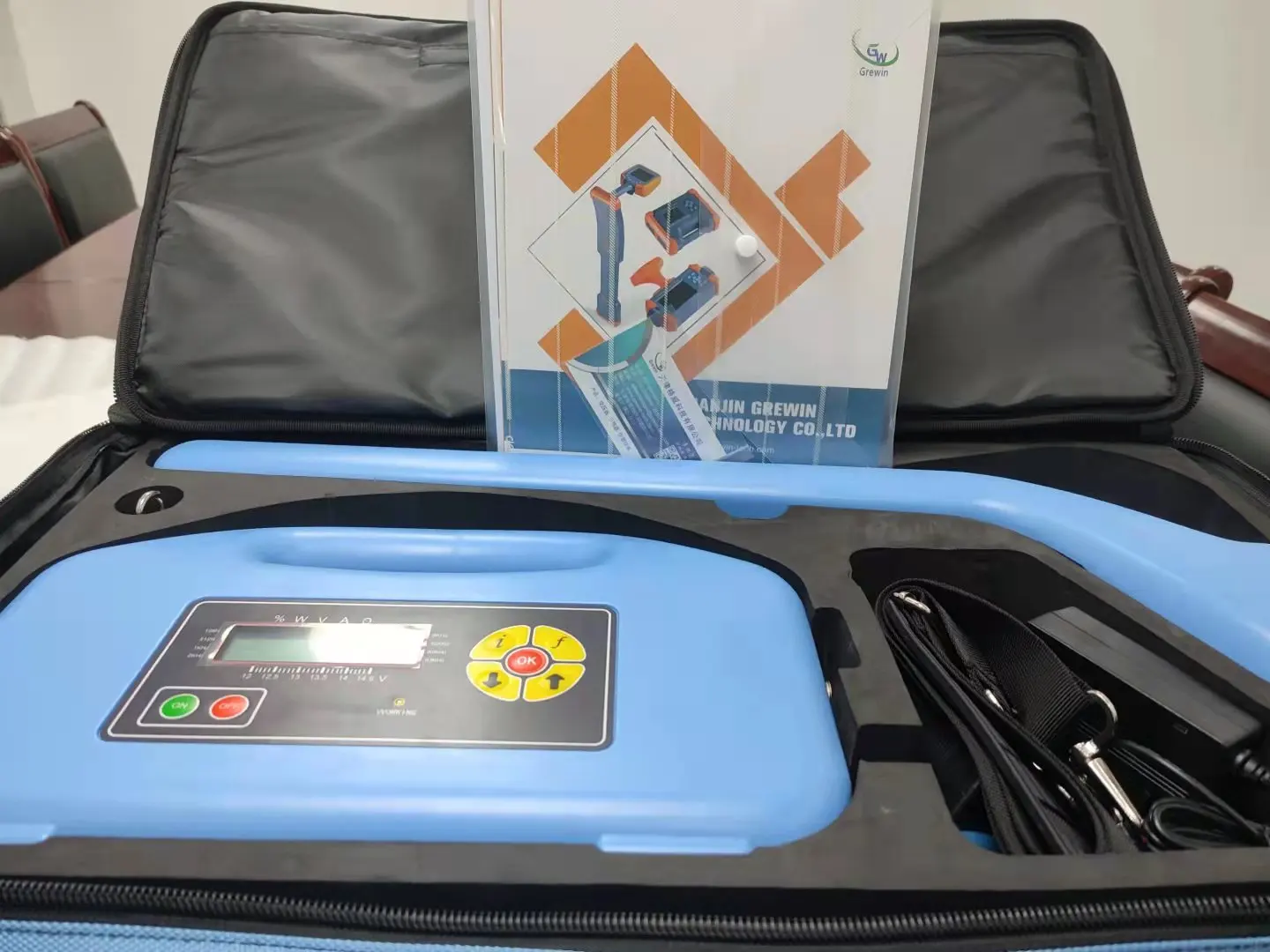

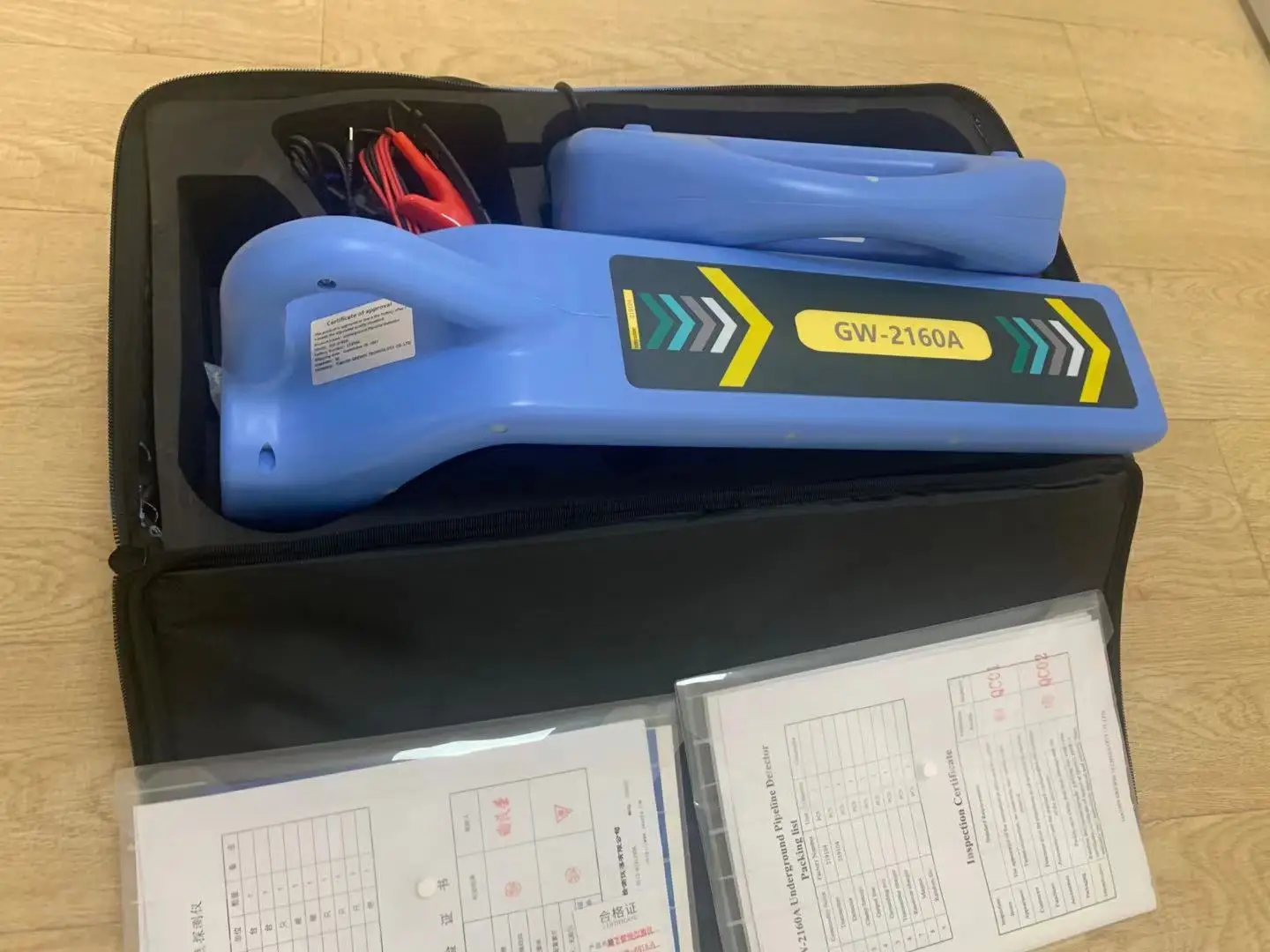

Products display
Products spacification
1) Transmitter: three connection modes: inductive connection, direct connection and clamp connection; suitable for different occasions.
2) The receiver functions: detecting the position,path, depth and tube current of underground pipes and cables.
3) Left and right positioning arrows indicate the target pipeline position fast and accurately; front and rear arrows and dB value indicates the point and size of the coating damage.
4) Backlight suitable for urgent use in the nighttime.
5) Optional GPS geolocation with the automatic mapping of the pipelines.
6) Optional professional data analysis software with the automatic detection report.
7) Unique feature of GW-6000GE: locating the breakdown points (pipeline breakdowns refer to the coating damaged points while electric cable breakdowns refer to the outer layer damages.); detecting the insulation damages of underground pipeline and cable.
8) Measuring the current of the pipeline and cable applied by the transmitter.
9) Multimeter function: measure the output voltage, line voltage, line current, impedance and power; Test the cable continuity and insulation quality before and after cable fault finding.

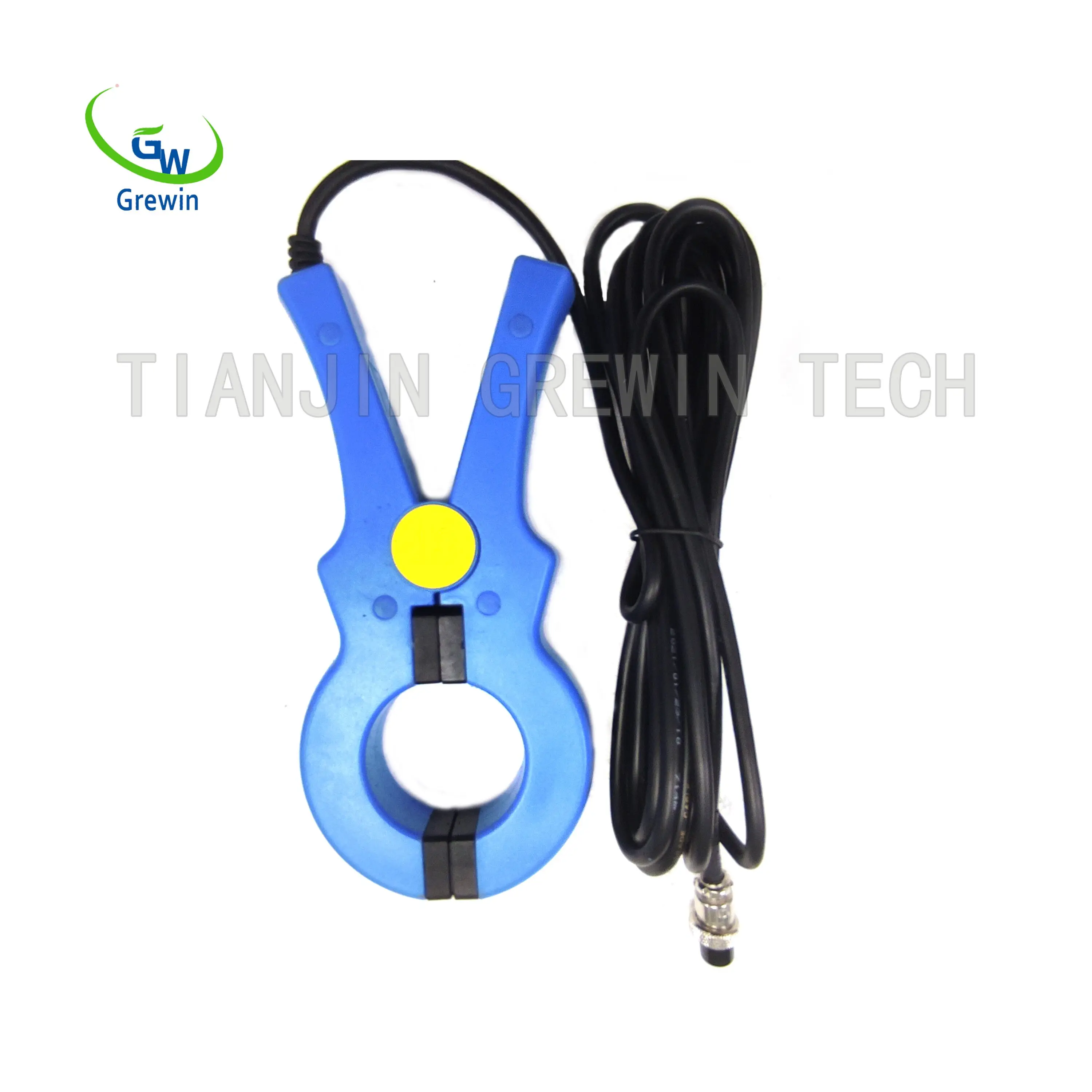

10) External induction clamp: suitable for testing the cable when they cannot be directly applied to the signal of the place.
2) The receiver functions: detecting the position,path, depth and tube current of underground pipes and cables.
3) Left and right positioning arrows indicate the target pipeline position fast and accurately; front and rear arrows and dB value indicates the point and size of the coating damage.
4) Backlight suitable for urgent use in the nighttime.
5) Optional GPS geolocation with the automatic mapping of the pipelines.
6) Optional professional data analysis software with the automatic detection report.
7) Unique feature of GW-6000GE: locating the breakdown points (pipeline breakdowns refer to the coating damaged points while electric cable breakdowns refer to the outer layer damages.); detecting the insulation damages of underground pipeline and cable.
8) Measuring the current of the pipeline and cable applied by the transmitter.
9) Multimeter function: measure the output voltage, line voltage, line current, impedance and power; Test the cable continuity and insulation quality before and after cable fault finding.
10) External induction clamp: suitable for testing the cable when they cannot be directly applied to the signal of the place.
Multiple Working Frequency:
Transmitter frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz.
Receiver frequency: radio, 50Hz, 100Hz, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz.
According to the target pipeline features (material, structure, depth, length, etc.) and the environment to select the appropriate
Transmitter frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz.
Receiver frequency: radio, 50Hz, 100Hz, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz.
According to the target pipeline features (material, structure, depth, length, etc.) and the environment to select the appropriate
Device demo video
Company profile
Company equipment certification
Trade capacity

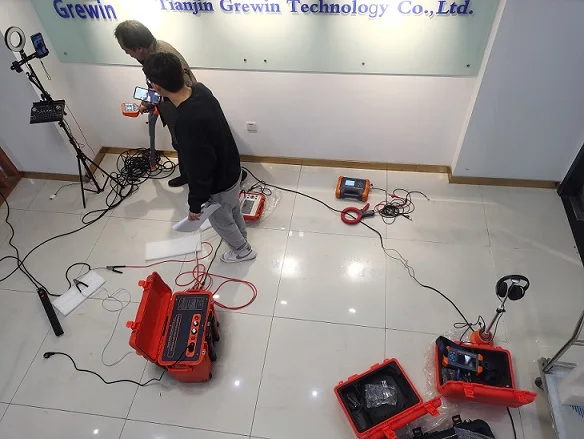

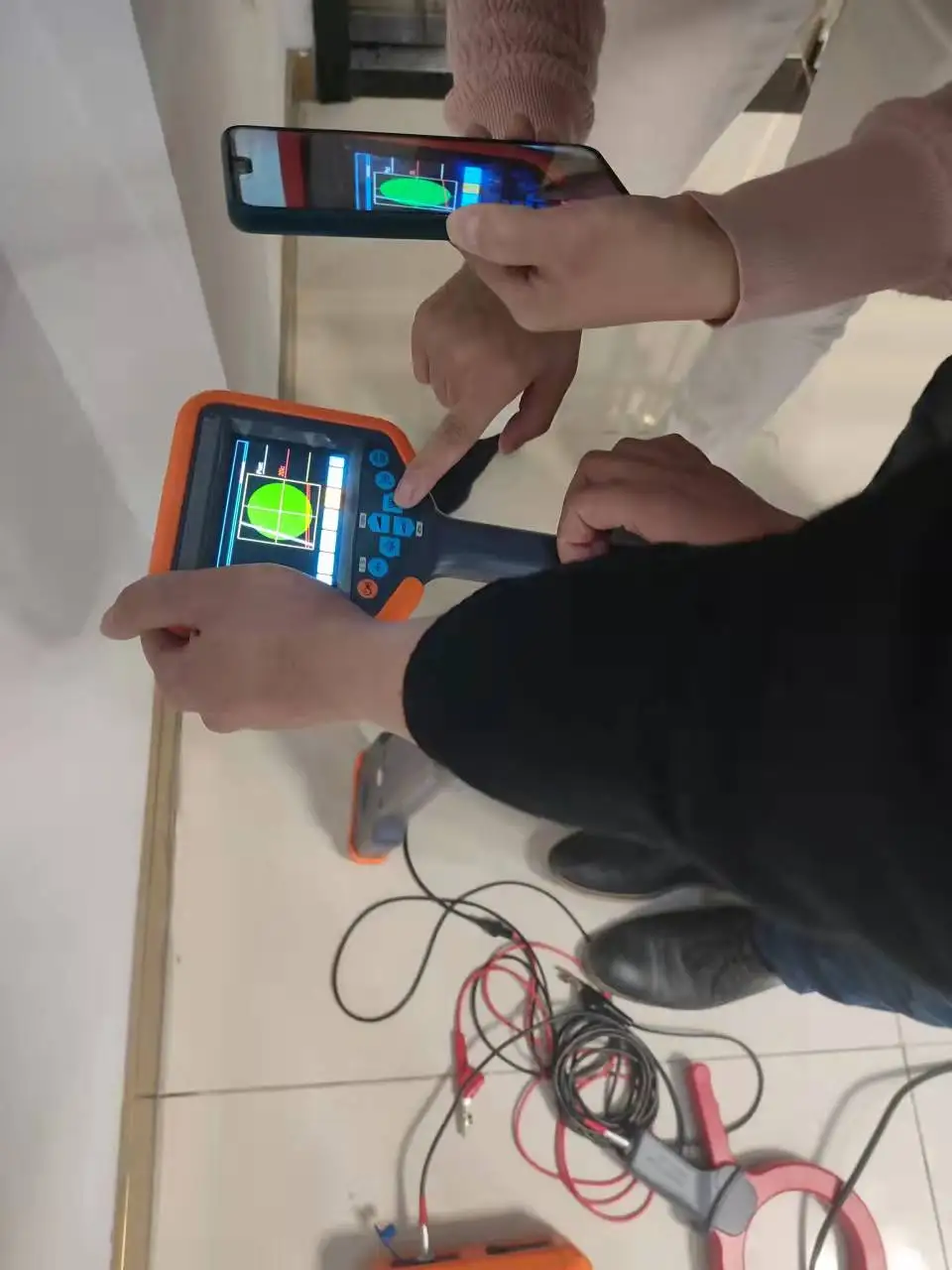

On-site equipment training

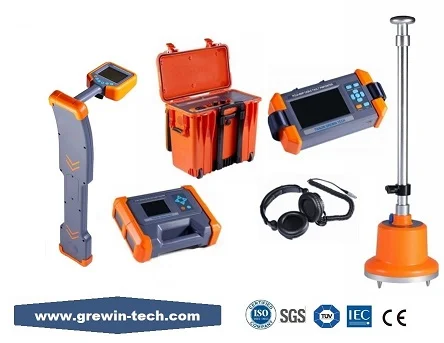

Equipment recommended

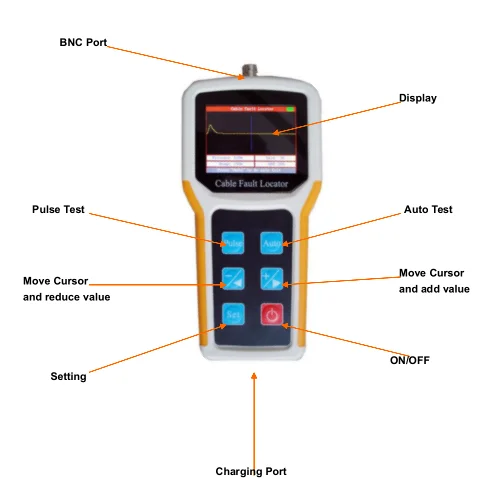

TDRL-902 Handheld cable locator

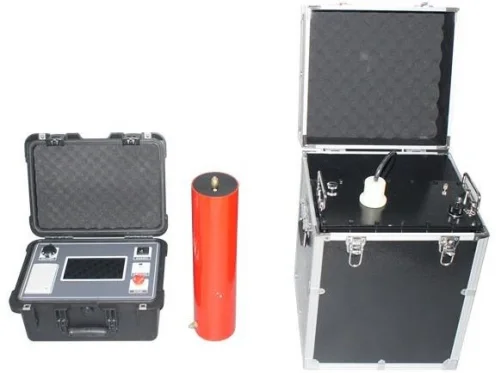

PCLC-900C Cable multiple impulse filter GWOL-668 Overhead line grounding fault location VLF Hipot Tester
