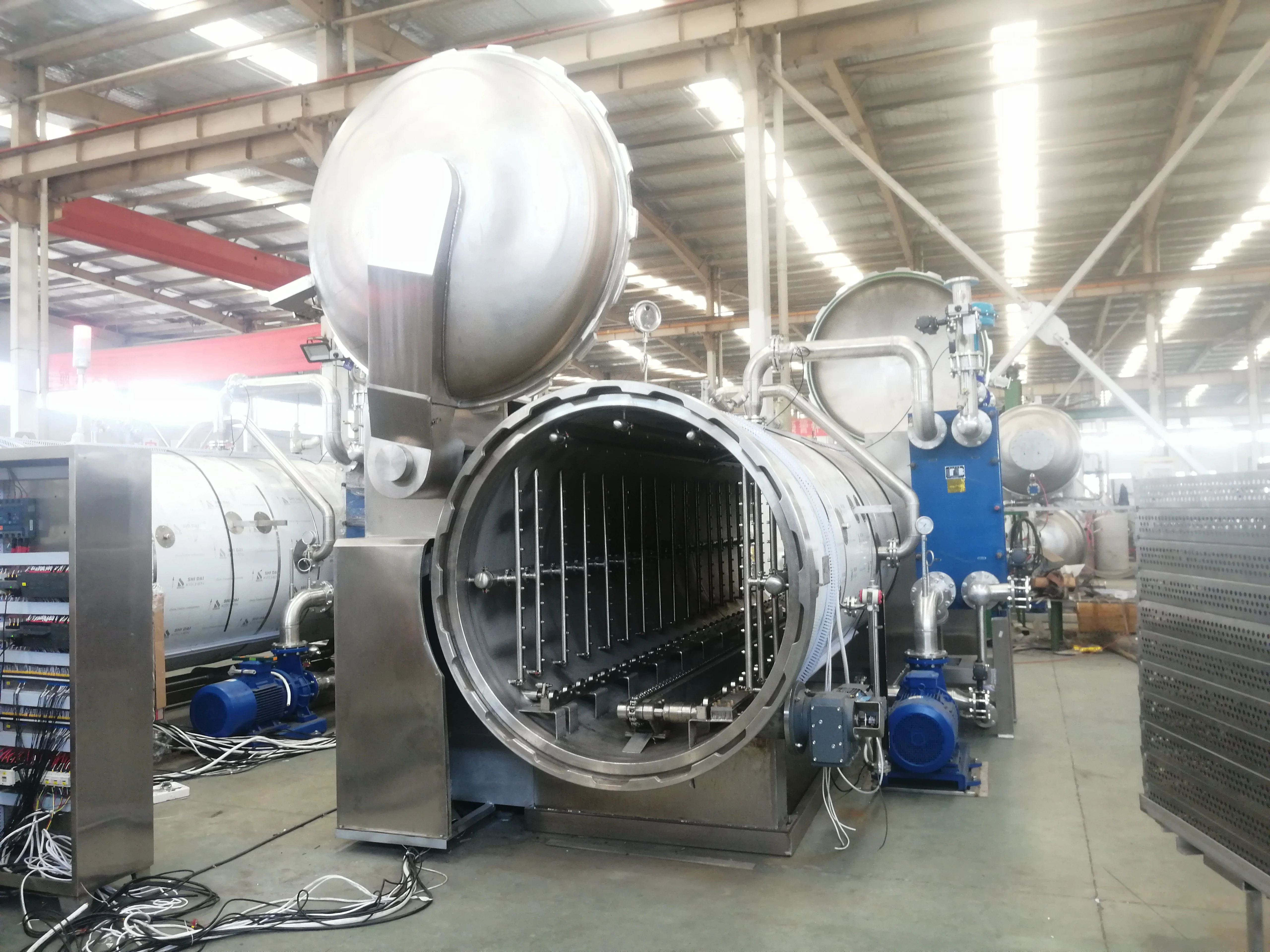

Horizontal High pressure steam food retort pouch autoclave
- Category: >>>
- Supplier: Shandong Guiguan Machinery Co. Ltd.
Share on (1600426737737):
Product Overview
Description
Products Description
Product Details

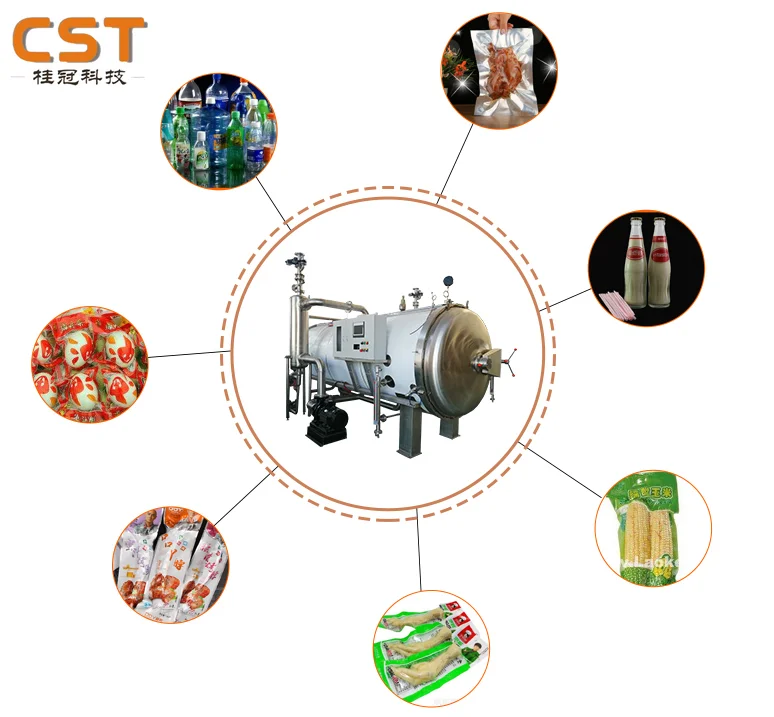

Application

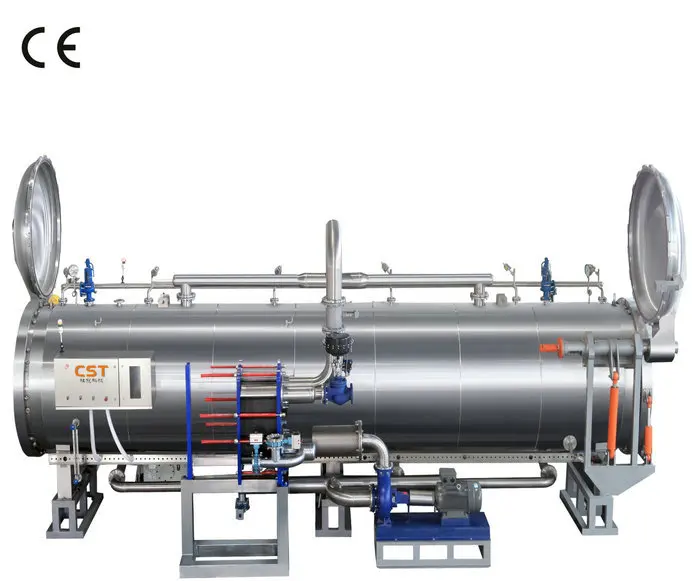

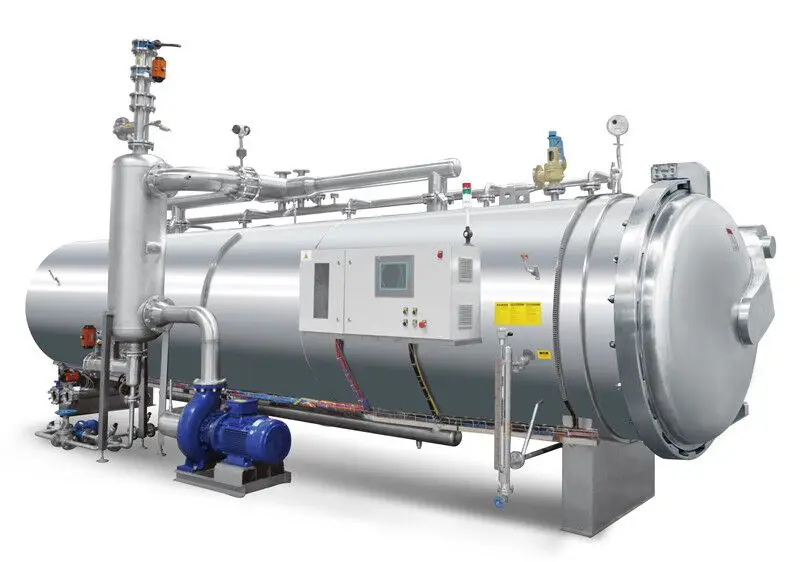

Water spray retort | ||||||||||||||
Item | Unit | 1000# | 1200# | 1300# | ||||||||||
Retort chamber length | mm | 2400 | 3200 | 3600 | 4000 | 3600 | 4000 | |||||||
Overall length | mm | 3200 | 4300 | 4700 | 5100 | 4800 | 5200 | |||||||
Overall width | mm | 1500 | 2100 | 2100 | 2100 | 2300 | 2300 | |||||||
Overall height | mm | 1800 | 2000 | 2000 | 2000 | 2300 | 2300 | |||||||
Effective volume | m³ | 2.2 | 4 | 4.6 | 4.9 | 5.3 | 5.8 | |||||||
Crate | pcs | 3 | 4 | 4 | 5 | 4 | 5 | |||||||
Steam consumption | kg/batch | 95 | 185 | 210 | 230 | 250 | 310 | |||||||
Power | kw | 6.5 | 12 | 12 | 12 | 12 | 12 | |||||||
Design temperature | 145°C | |||||||||||||
Test pressure | 0.44MPa | |||||||||||||
Design pressure | 0.35MPa | |||||||||||||
Item | Unit | 1500# | 1600# | ||
Retort chamber length | mm | 4200 | 5250 | 6300 | 7500 |
Overall length | mm | 5450 | 6500 | 7550 | 8300 |
Overall width | mm | 2600 | 2600 | 2600 | 2800 |
Overall height | mm | 2500 | 2500 | 2500 | 2600 |
Effective volume | m³ | 8.1 | 10 | 11.8 | 16 |
Crate | pcs | 4 | 5 | 6 | 6 |
Steam consumption | kg/batch | 385 | 480 | 575 | 650 |
Power | kw | 16 | 16 | 16 | 23 |
Design temperature | 145°C | ||||
Test pressure | 0.44MPa | ||||
Design pressure | 0.35MPa |
Related Products
Company Profile
Certifications
Packing
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
Q: How to control quality?
Q: What is your after-sale service?
We will arrange one or two professional engineer to customer's factory for establish and training;
We supply the full set professional operate manual;
PLC operate language is Chinese, English, Spainish, Korea, Vietnam.
Q: How long is your delivery time?
A: Generally it is 30 day per set retort; the special power not same to 380V/220V/50HZ, it is 50 days per set retort.
Q: How to control quality?
A: When production, we have water pressure test and x-ray inject welding room;
When finish the retort, China gornment workers inject again;
Before delivery, we connect water, steam and compressed air to test like work in site.
When finish the retort, China gornment workers inject again;
Before delivery, we connect water, steam and compressed air to test like work in site.
Q: What is your after-sale service?
We will arrange one or two professional engineer to customer's factory for establish and training;
We supply the full set professional operate manual;
PLC operate language is Chinese, English, Spainish, Korea, Vietnam.
