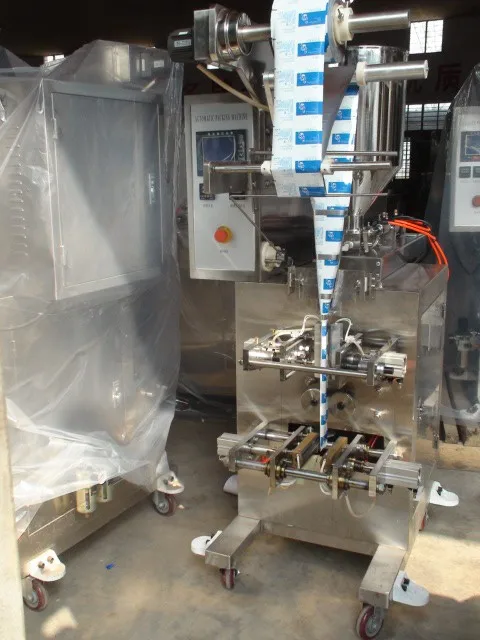

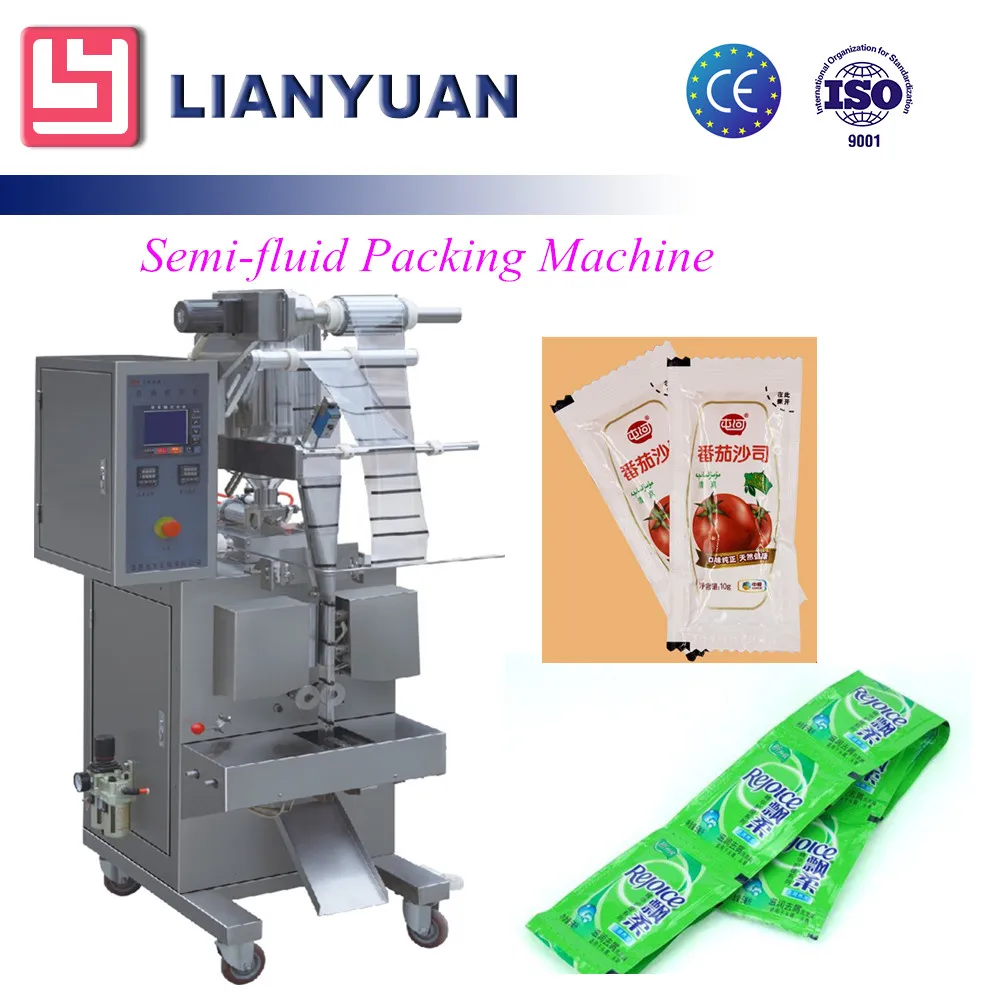

Automatic liquid sachet pouch form fill seal Fruit Jam Honey Paste Ketchup Mayonnaise Chocolate Liquid Packing
- Category: >>>
- Supplier: Zhejiang Lianyuan Machinery Co. Ltd.
Share on (1600426738489):
Product Overview
Description
Products Description
Easy to Operate Automatic Hand Lotion Health Drink Meat Sauce Packing Machine
It is applicable for packing foodstuff, medicine, chemical industry, daily chemical industry semi-liquid or paste material, such as honey, fruit sauce, chili sauce, vegetable oil, water, wine, soy sauce, vinegar, detergent, hand sanitizer, disinfectant, shampoo, pesticide etc.
Technical Parameters:
Model | SJIII-S100 | SJIII-S300 | SJIII-S500 |
Bag-making length (mm) | 50-150 | 40-260 | 40-300 |
Bag-making width (mm) | 25-120 | 25-120 | 70-190 |
Power | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Packing capacity (ml) | 5-100 | 100-300 | 100-1000 |
Packing speed (bags/min) | 30-60 | 25-40 | 20-40 |
Power (KW) | 1.6 | 1.6 | 1.6 |
Air power (Mpa) | 0.65 | 0.65 | 0.65 |
Air consumption (L/min) | 150 | 180 | 180 |
Dimension (mm) | 760*1380*1700 | 800*1000*2000 | 1000*1800*2100 |
Weight (kg) | 300 | 480 | 500 |

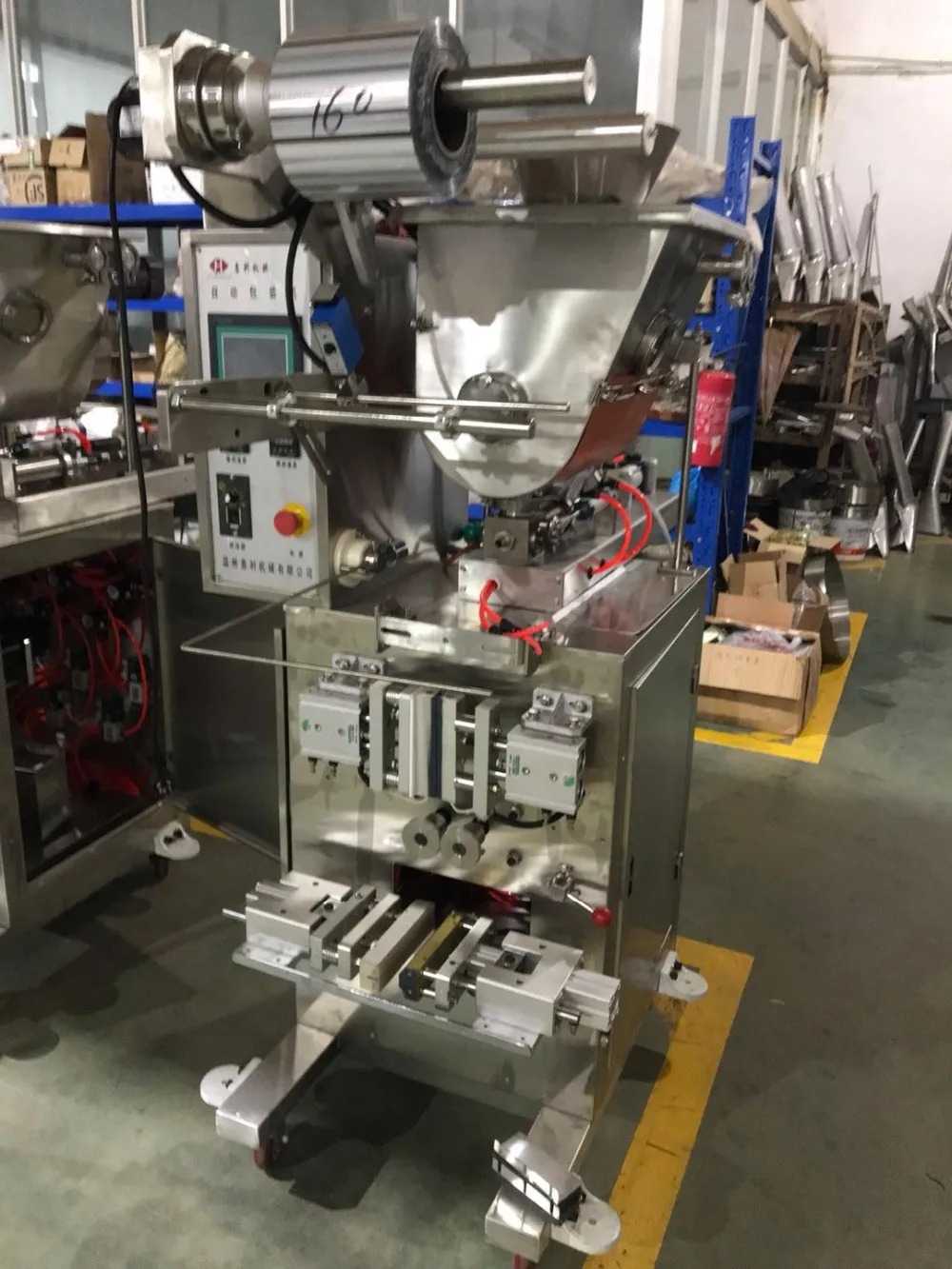

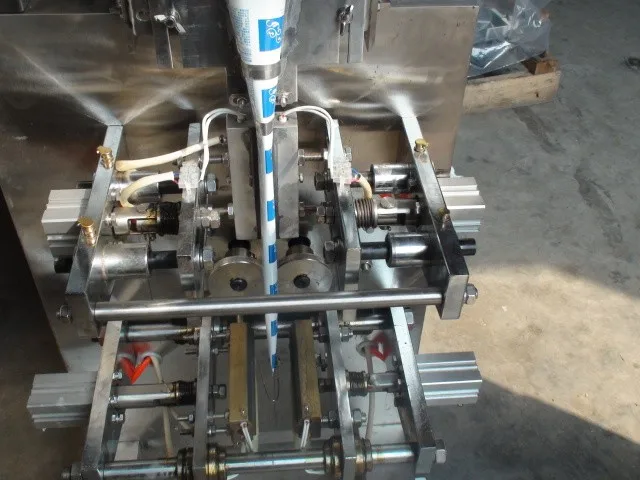

Detailed Images
Three side sealing
Four side sealing/Seal sealing
With heating and mixing
#Advantages#
1.Bag length, packing volume,speed ang other parameter can be displayed on the screen. The user can directly operate it on it.
2.It can automatically finish making-bag,metering,filling, sealing, cutting, counting and printing batch number.
3.Packing material:Pe pet/ al foil/ paper/ penylon/ pe and other heat-sealing compound material.
4.Packing material required:0.04mm≤film thickness≤0.08, inner diameter of film roll need 75mm at least, outer diameter of film roll need 320mm
5.Back sealing, three-side sealing, four-side sealing packing method.
The body and the parts touching the material are made of stainless steel.

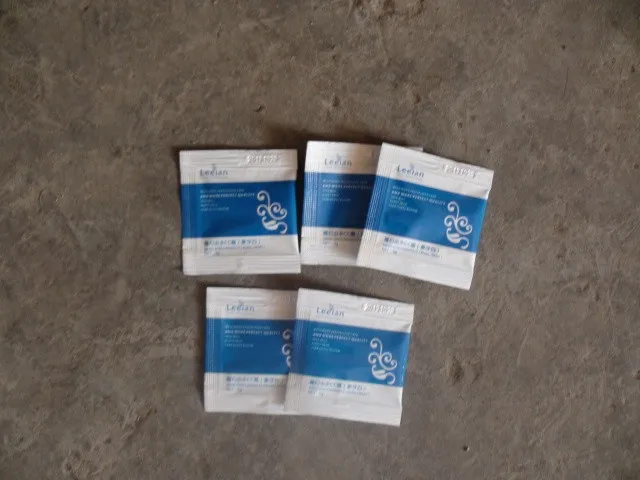

Packaging Samples
Welcome to contact with us for more detail and get free customized packaging solution !
Recommend Products
Company Profile
Zhejiang Lianyuan Machinery Co., Ltd is located in Wenzhou, Zhejiang Province who is professionaly in supplying packaging machines,filling machine,sealing machine,bottle plant with over 10 years experience.
● Our modern standard workshops over more than 3000 square meters of area,and more than 200 sets of manufacturing equipments. We are such comprehensive manufacturer who composed of research, development and production.
● Our company has invested all the force into the new technological area of packaging machine all the time since its
foundation.And now we have formed in ourselves' special competitive market that based on the advanced technologies.
● Our products have more than 20 series with more than 80 types of machines. Such as,Automatic Powder/Granule packaging machine,Automatic Cup filling & sealing machine,Vacuum packaging machine Automatic bottling plant, Automatic bottling plant,Automatic Liquid packaging machine,Plastic Bag sealer,Pad printer,Ribbon hot printer,thermal shrink packaging machine,strapping machine,Hand wrapper Desktop container sealer and so on.
● Our products are sealing well not only on domestic market but also on international market,such as American,Africa,Middle East and European. My company has always been the best quality, excellent service waiting for all friends to visit us and sincere cooperation,join hands to create brilliant.
Factory View
Why Choose Us
Customer Feedback
Customer visit
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Inquiry and consulting support.
* Customization
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Training how to instal the machine, training how to use the machine.
* One year warranty
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 146cm(L)*89cm(W)*186cm(H) | |
Weight | 360kgs | |
Packaging Details | * The normal package is standard export wooden case. If container is too tigher,we will use pe film for packing or pack it according to customers special request. * Good package Make sure package quality for customer. * Experience of loading Every month loading container | |
FAQ
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 10 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
4.Q:What do you need to make a specific offer for my product?
A:To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project
5.Q:Can you offer oversea service?
A:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.
