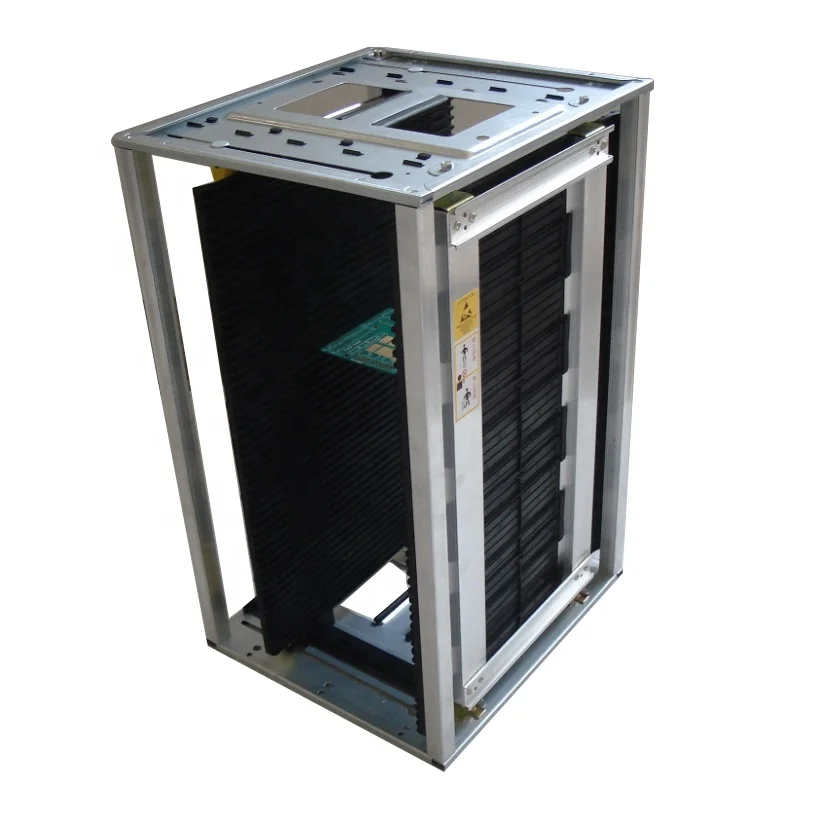

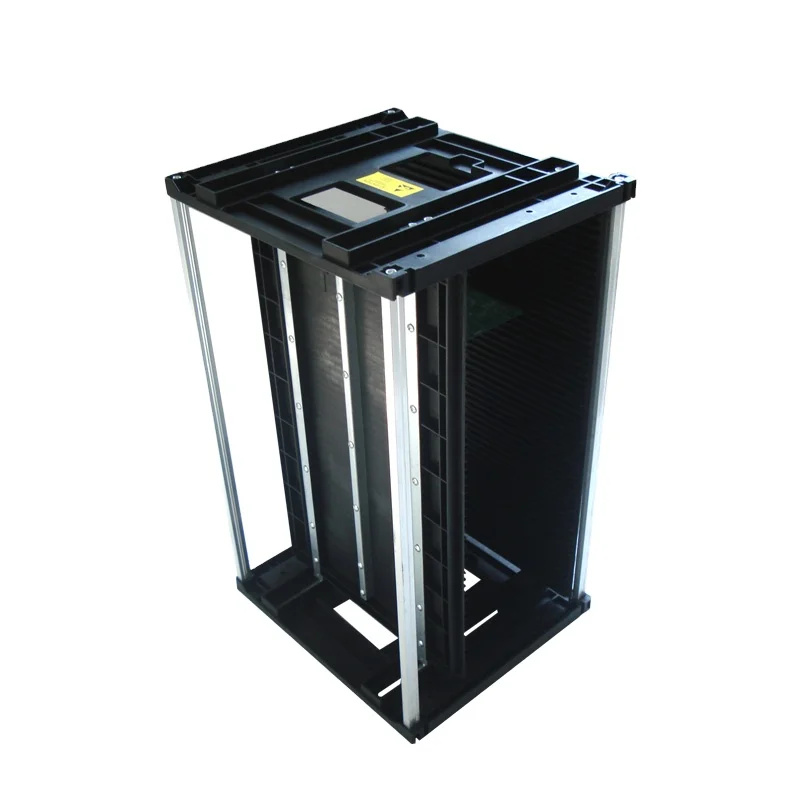

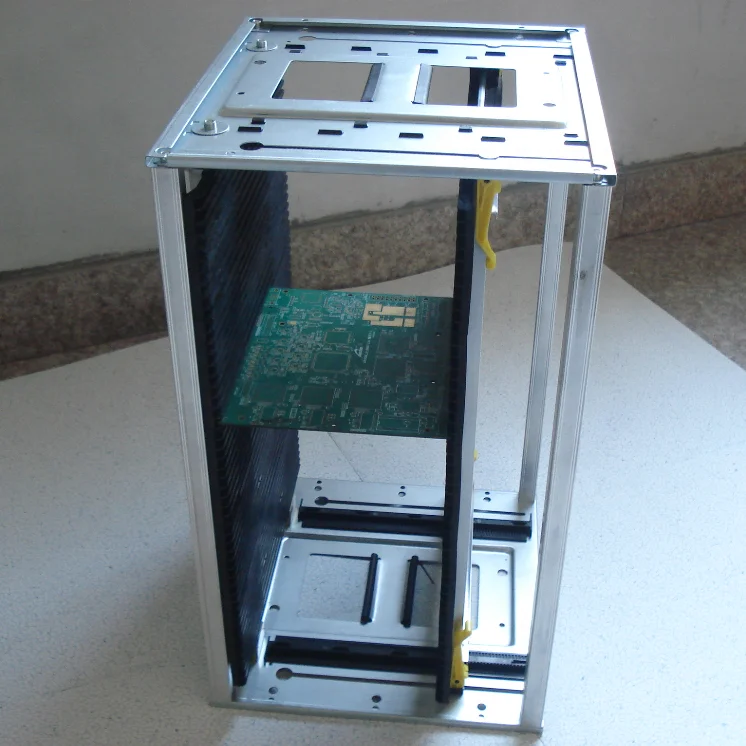

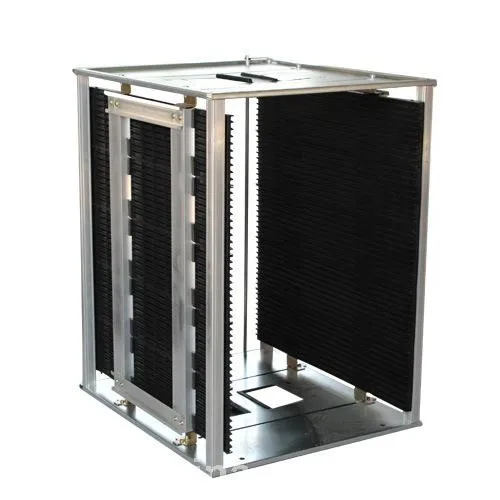

ESD Antistatic PCB Magazine Rack Adjustable Rack For SMT PCB Board
- Category: Warehousing >>>
- Supplier: Shanghai Leenol Industrial Co. Ltd.
Share on (1600426746359):
Product Overview
Description
Details Images

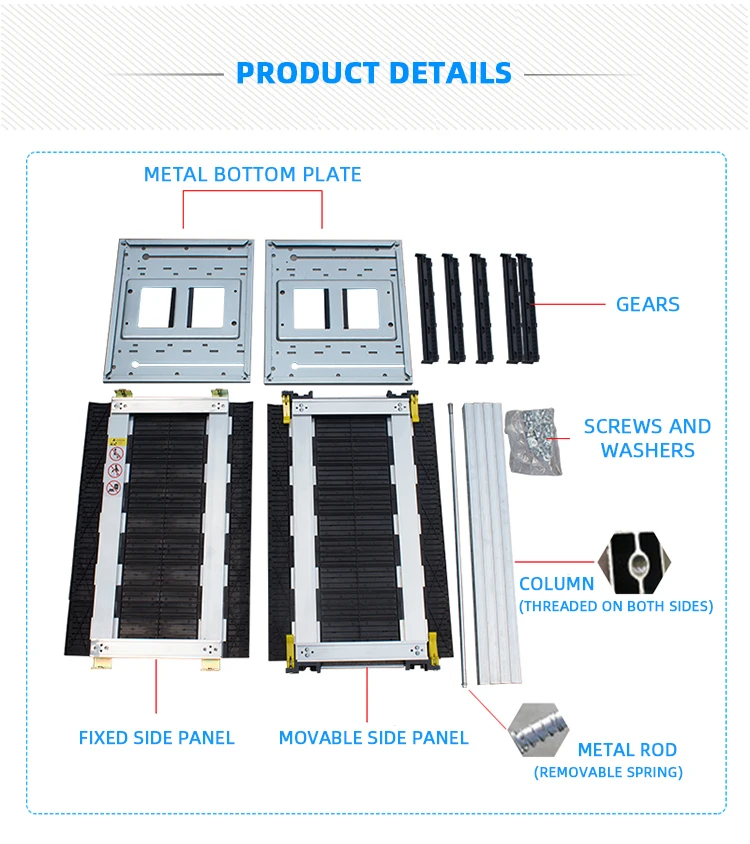

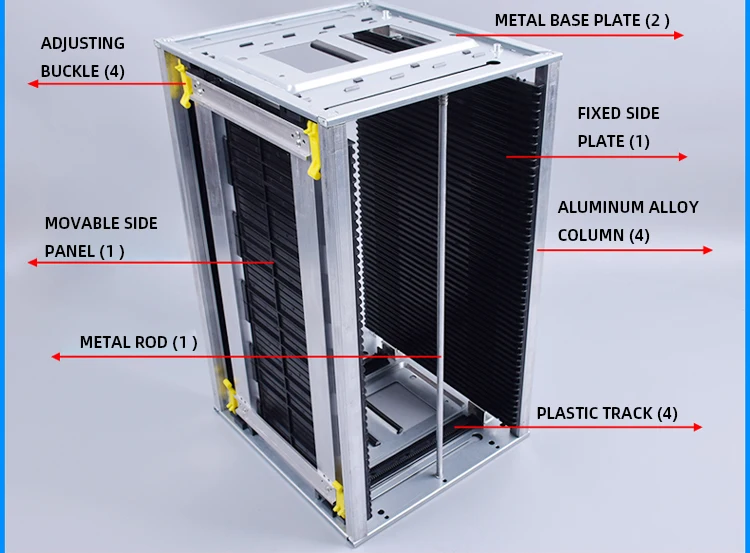

ANTI-STATIC SIDE PANEL
The Inside Of The Anti-static Side Board Is Mainly Madeof Plastic, Which Effectively Ensures That The Surfaceof The Pcb Board Will Not Be Scratched When The Pcbboard Is Placed.
METAL ROD
A Single Material Rack Consists Of A Total Of Fouruprights, Both Sides Are Fixed With Screws, The Stabilityis Strong, And The Installation And Operation Aresimple, Which Greatly Strengthens Its Supporting Force.
METAL BOTTOM PLATE
The Bottom Plate Greatly Enhances The Friction With The Ground, And The Stability Is Enhanced.
PLASTIC BUCKLE
The Plastic Buckle Makes The Movable Side Plate Morefixed And Not Easy To Detach. The Distance Can Beadjusted According To The Size Of The Product.
ARTICLE GEAR
The gear bar is high-frequency hardened, so it has high strength, strong wear resistance, strong Inheritance and strong bearing capacity.
LN-A801/A802 SMT Magazine Rack
●Surface Resistance: 10e3-10e9Ω
●Contour Size (LxWxH)mm: 355x315x580
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(80 -250)mm
●Guide slot: Depth 3.5mm, Width 7mm, Pitch 10mm
●Top and bottom Base is plastic base
●Fix method: screw adjustable
●Weight: 5.0KG
LN-B803 SMT Magazine Rack
●Surface Resistance: 10e3-10e9Ω
●Contour Size(LxWxH)mm: 355x320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(50 - 250)mm
●Guide slot: Depth 3mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw or gear track adjustable
●Side plate: five pieces assembled
●Weight: 5.0KG
LN-B804 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 355x320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(50 - 250)mm
●Guide slot: Depth 3mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is plastic base
●Fix method: gear track adjustable
●Side plate: five pieces assembled
●Weight: 4.5KG
LN-B805 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 355x320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(50 - 250)mm
●Guide slot: Depth 3mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw/gear track adjustable
●Side plate: whole plates
● Weight: 6.5KG
LN-B806 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 355x320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(50 - 250)mm
●Guide slot of side plate: Depth 3mm, Width 5.5mm,Pitch 10mm
●Top and bottom Base is plastic base
●Fix method: gear track adjustable
●Side plate: whole plates
●Weight: 6.0KG
LN-C807 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 460x400x563
●50pcs of Plates can be stored
●The specification of PCB plates: 460x(50-330)mm
●Guide slot: Depth 4mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw or gear track adjustable
●Side plate: five pieces assemblec
●Weight: 8.0KG
●Aluminum alloy material side plate is available(LN-C817)
LN-D808 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 535x460x570
●50pcs of Plates can be stored
●The specification of PCB plates: 535x(50-390)mm
●Guide slot: Depth 4mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw or gear track adjustable
●Side plate: five pieces assemblec
●Weight: 10.5KG
●Aluminum alloy material side plate is available (LN-D818)
LN-E809 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 535x530x570
●50pcs of Plates can be stored
●The specification of PCB plates: 535x(50-460)mm
●Guide slot: Depth 4mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw or gear track adjustable
●Side plate: five pieces assembled
●Weight: 12.0KG
LN-F810 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 630x530x570
●50pcs of Plates can be stored
●The specification of PCB plates: 630x (50-460)mm
●Guide slot: Depth 3.5mm, Width 6.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw adjustable
●Side plate: two pieces assembled
●Weight: 13KG
LN-B811 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm: 355x320x560
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(50 - 250)mm
●Guide slot: Depth 3.0mm, Width 4.5mm, Pitch 10mm
●Top and bottom Base is plastic base
●Fix method: chain adjustable
●Side plate: whole plate
● Weight: 6.0KG
LN-B814 SMT Magazine Rack
●Aluminum alloy SMT Magazine Rack
●Contour Size(LxWxH)mm: 355×320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 355x(80-250)mm
●Guide slot: Depth 3.0mm, Width 8mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw/gear track adjustable
●Side plate: five pieces assembled
●Weight: 6.8KG
LN-C815 SMT Magazine Rack
●Surface Resistance: 10e3-10e9 Ω
●Contour Size(LxWxH)mm:400x320x563
●50pcs of Plates can be stored
●The specification of PCB plates: 400x(50 -250)mm
●Guide slot: Depth 3mm, Width 5.5mm, Pitch 10mm
●Top and bottom Base is metal base
●Fix method: screw or gear track adjustable
●Side plate: five pieces assembled
●Weight: 6.0KG
1.Install the 4 gear strips on the metal base plate.
2.Install the 4 uprights on the metal bottom plate.
3.Install the fixing plate on the metal bottom plate.
4.Install the movable plate on the gear bar, making sure the left and right are in sync to the bottom.
5.Cover the other base plate, carefully align the round holes, and then screw in 6 screws.
6.buckle the yellow wrench with two hands, and at the same time push the movable wrench back.
