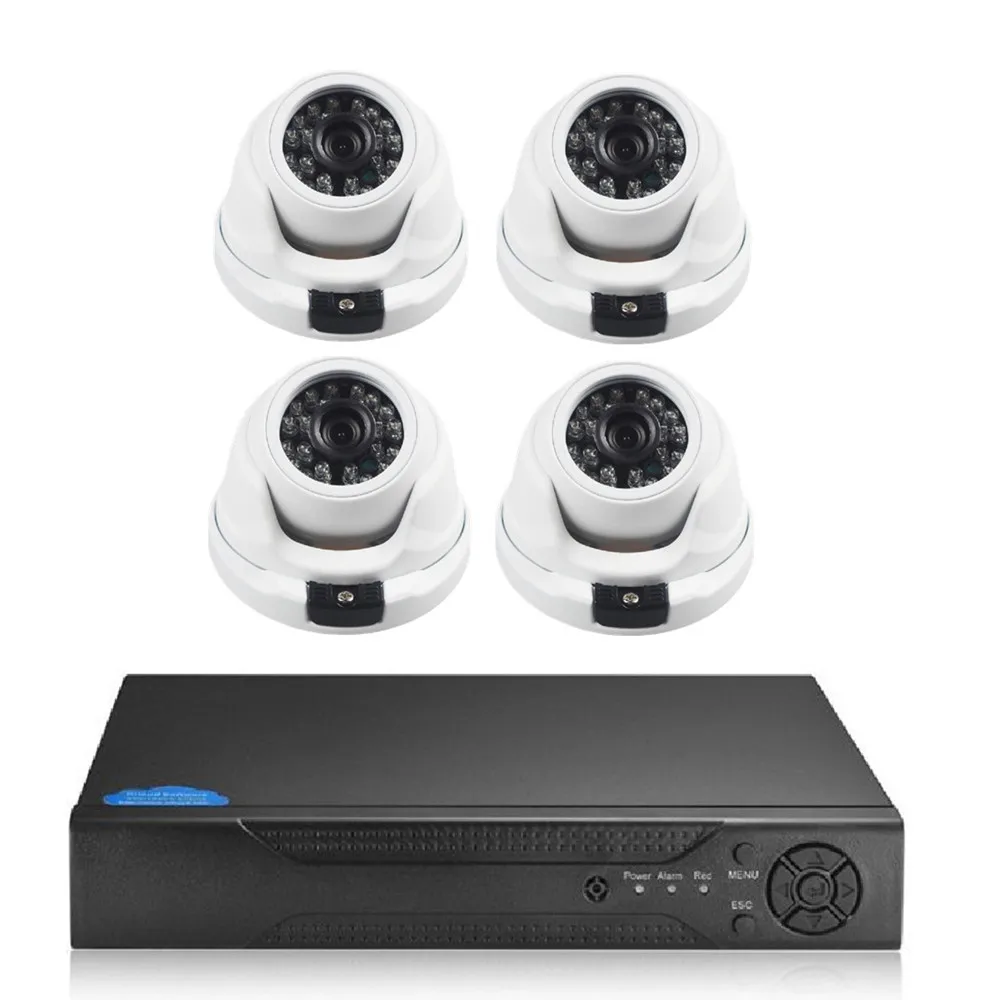

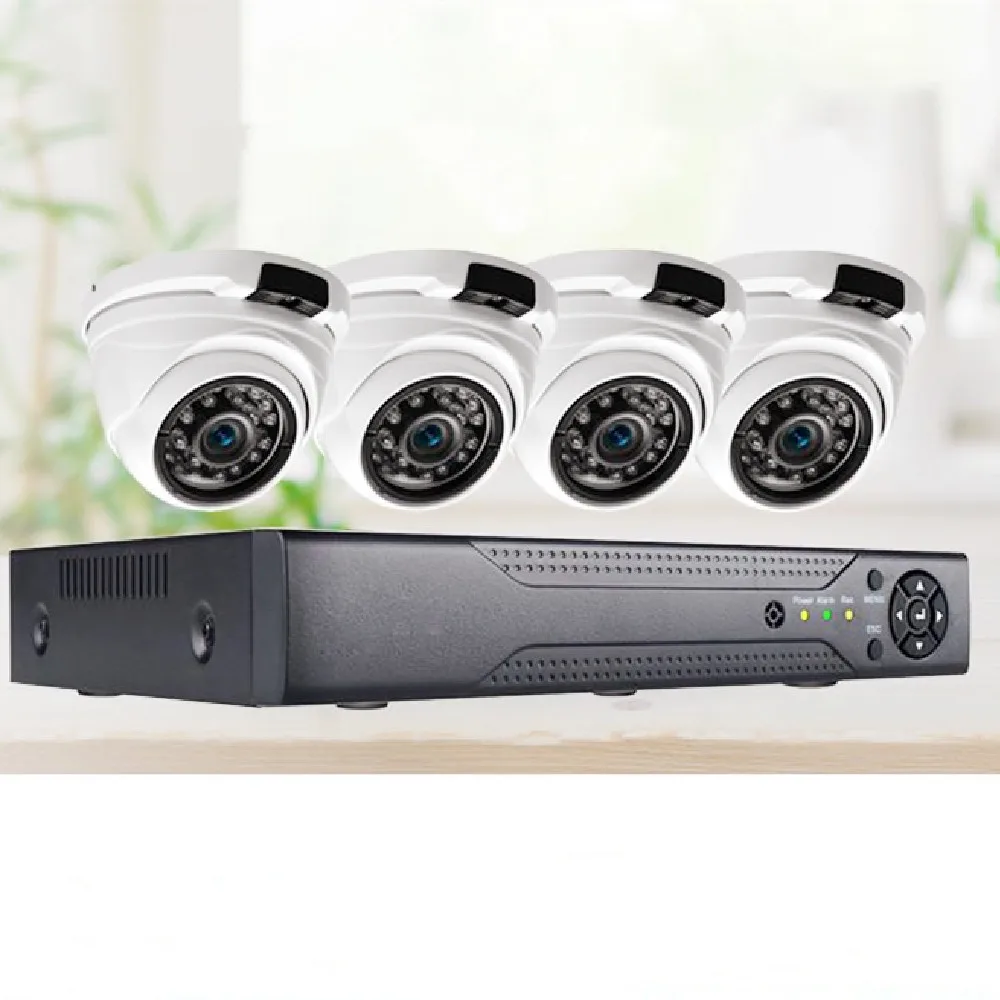

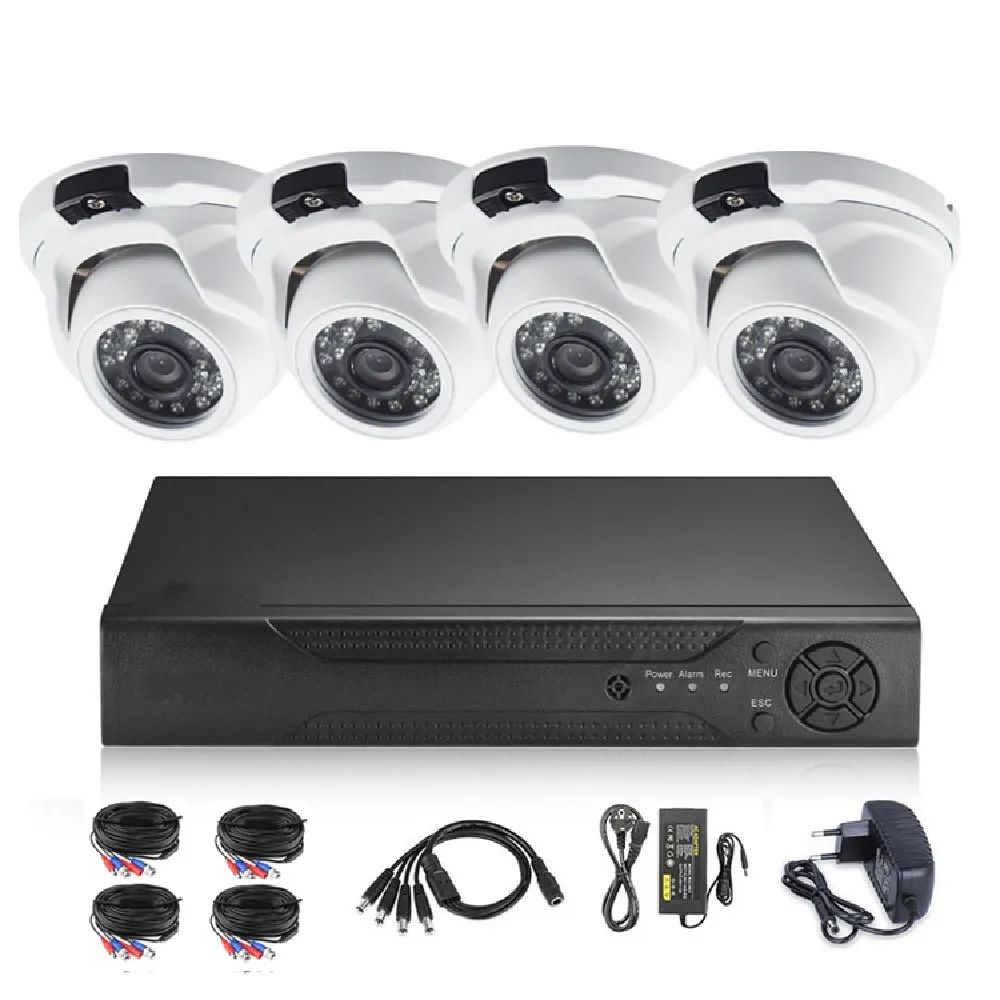

JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi
JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi

JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Cctv Camera Wifi

Share on (1600426754797):


Price:$88.00 - $90.00

Quantity:


Product Overview

Description

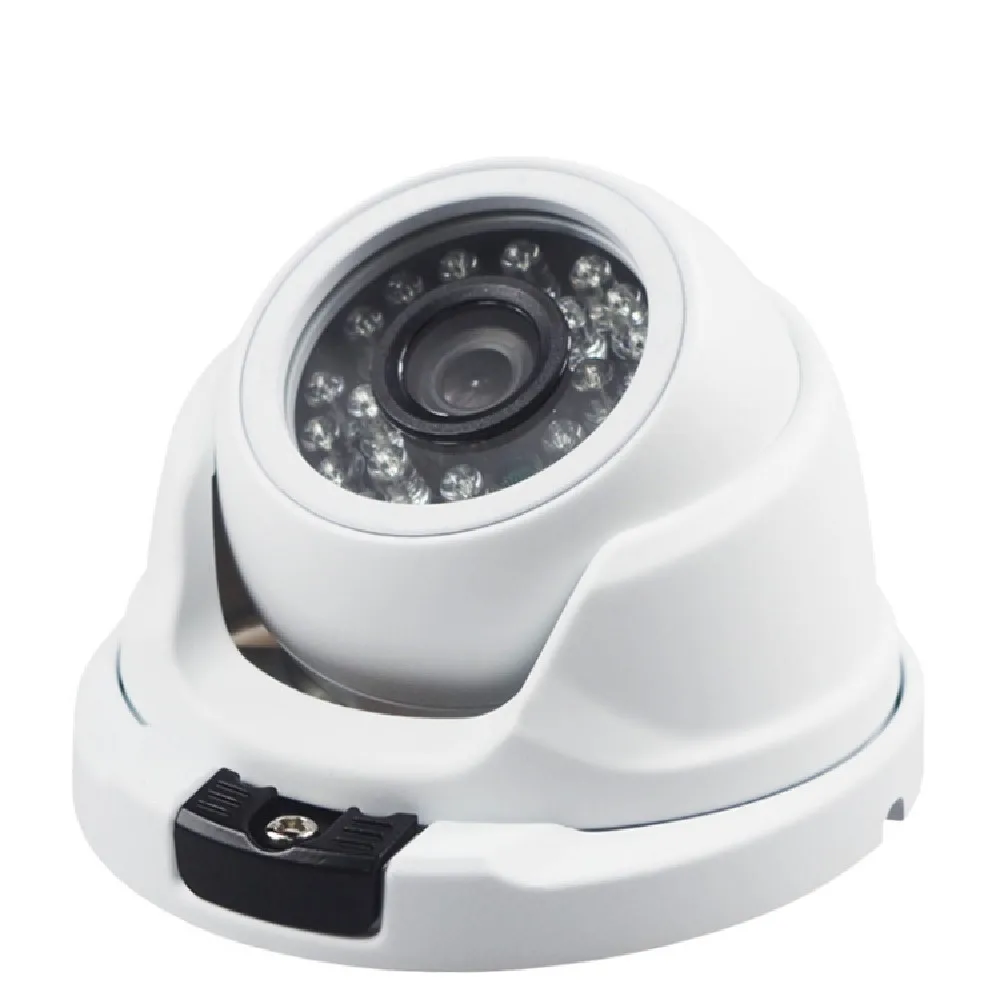

JXJ Security System 4CH NVR Kit Indoor Home Wireless Video Dome Ir High Definition Surveillance Mini Hidden Cctv Camera Wifi





Style No.
FA24
Image Sensor
1/2.8'' Fullhan 8536H+SOI F37
Resolution
1920 (H) × 1080(V)
Effective Pixels
2MP
Signal System
PAL/NTSC(switched by OSD)
Day-night Mode
External (Default)/Auto/Color/White&Black
(switched by OSD)
S/N Ratio
≥50DB
Minimum illumination
0.2LUX
BLC
AUTO
(AES)Auto electronic shutter
AUTO/ 1/50(1/60)-1/50,000sec
AWB
AUTO
IR control input voltage
OFF(DC 0V) / ON:DC 3V-8V
OSD language
English/ Simplified Chinese(Only 2 languages are supported now)
Video output
AHD/TVI/CVI/CVBS
Video record occupation
1min≈35.2MB(3.6mm lens)
Working Voltage
DC12V/82mA ±6mA(Wide voltage 9V-18V)
Working environment
-30℃ --- 85℃
RECORDER
Main processor
Hi3520D V200
Preview
1/4
Codec
H.264
Monitor quality
VGA,HDMI:HD
Preview ability
4*1080N
Encode ability
4*1080N
Decode ability
1*1080N
Multi-mode input
analog: 4*1080N;4*720P;4*960H hybrid: 2*720P(analog)+2*720P(network);
 network:8*1080P;12*960P;8*720P; 4*1080P; 4*720P; 1*1080P
Motion Detection
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
Audio compression
G.711A
Intercom
Support
Record mode
manual>alarm>motion detection>timing
Local Playback
4ch(analog input mode)
Search mode
Search by time, calendar, event, channel
Video storage
HDD, network
Backup mode
Network, USB hard disk, USB burner, SATA burner
Video input
4ch BNC
Video output
1ch VGA, 1ch HDMI
Loop Vout
N/A
Audio I/O
1/4
Alarm I/O
0(Can be extended to 4ch)/0(Can be extended to 1ch)
Network interface
RJ45 10M/100M self-adaption
PTZ control
1*RS485, Support kinds of PTZ protocols
USB
2* USB 2.0 ports
HDD
2*SATA ports (Max 8TB/per)
Wireless
3G, WIFI (extend via USB)
Power supply
12V/4A
Power Consumption
<15W (without HDD)
Working environment
Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
Dimension
171mm*78mm
Weight
135g






Shenzhen Jiaxinjie Wisdom IoT Co., Ltd. (referred to as JXJ) is the subsidiary of Jiangxi Jiaxinjie Electronic Co., Ltd., which was founded in 2006. It focuses on the R&D, production, sales and overall solutions for security products, relying on industry-leading core technologies such as audio and video codec, transmission, storage, intelligent analysis and its own strong sustainable R&D capabilities.
JXJ products including analog cameras/HD network cameras, smart dome cameras/HD network smart domes, HD SDI cameras, hard disk SDI recorders, DVR/NVR, video matrix, HD decoding servers, optical transceivers, LCD monitors, LCD splicing walls and integrated video management platform, which are widely used in government project, public security, transportation, finance, communications, energy, education, tourism, communities, medical and other fields.
JXJ has 1,000+ workers and covers an area of more than 100,000+ square meters in Jiangxi and Shenzhen, equipped with advanced SMT assembly lines and test machines. We strives to constantly improve quality control management under the ISO9001-2008 system and follow the 7S management principles. The core products are certified both domestically and internationally such as CE, FCC, CCC, MA, RoHS, etc..













1. Who are we?
JXJ Group was founded in 2006 and has been specilaized in security products for more than 15 years. We have been highly recognized by society and industries, decorated with awards from all areas such as,
AAAA Good Standardized Practice Certificate,
China Security Product Quality Trustworthy Enterprise,
Guangdong Excellent Security Enterprise, China Security Industry Top 100 Enterprise,
Vice President Unit of Shenzhen Security Industry Association.

Our own brand have continuously won the top 10 National Brands in the Security Industry,
10 Innovative Brands in the Security Industry,
The Recommended Brand for Safe City Construction,
The Excellent Security Products Recommended for Safe City Construction,
The Top 10 Cutting-edge Security Products in China, and the China Security Expo Golden Tripod Award.

2.What is our proudcts?
Analog cameras/HD network cameras, smart dome cameras/HD network smart domes, HD SDI cameras, hard disk SDI recorders, DVR/NVR, video matrix, HD decoding servers, optical transceivers, LCD monitors, LCD splicing walls and integrated video management platform.

3.Where is our factory?
We moved our production base to Jiangxi Province in 2020. It covers an area more than 100,000 square meters, equipped with advanced machines and production lines.

4. What services can we provide?
Accepted Delivery Terms: EXW, FOB, CIF
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, MoneyGram, Credit Card, PayPal, Western Union
Language Spoken: English, Chinese

5.Who have we been cooperated with?
We have been working with many leading international companies as below.
