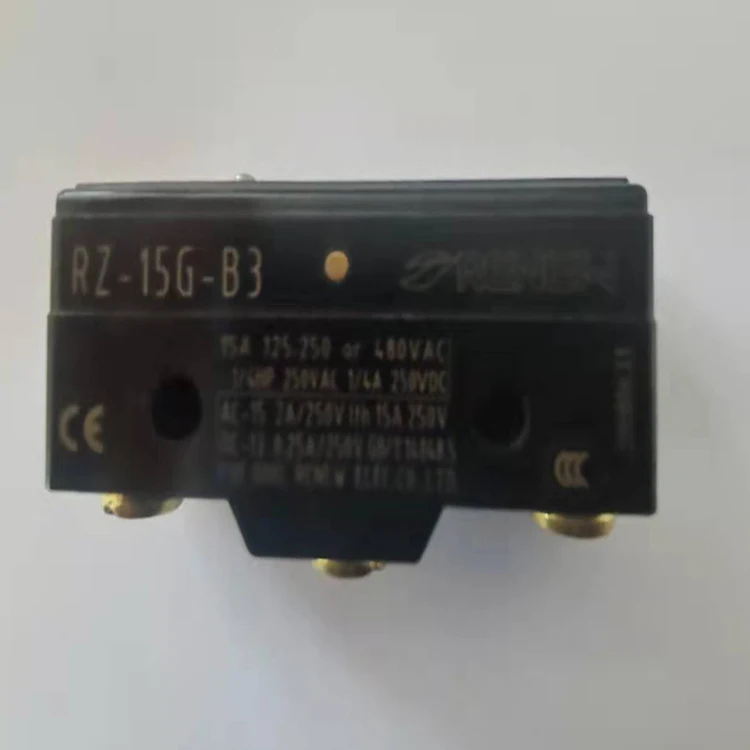

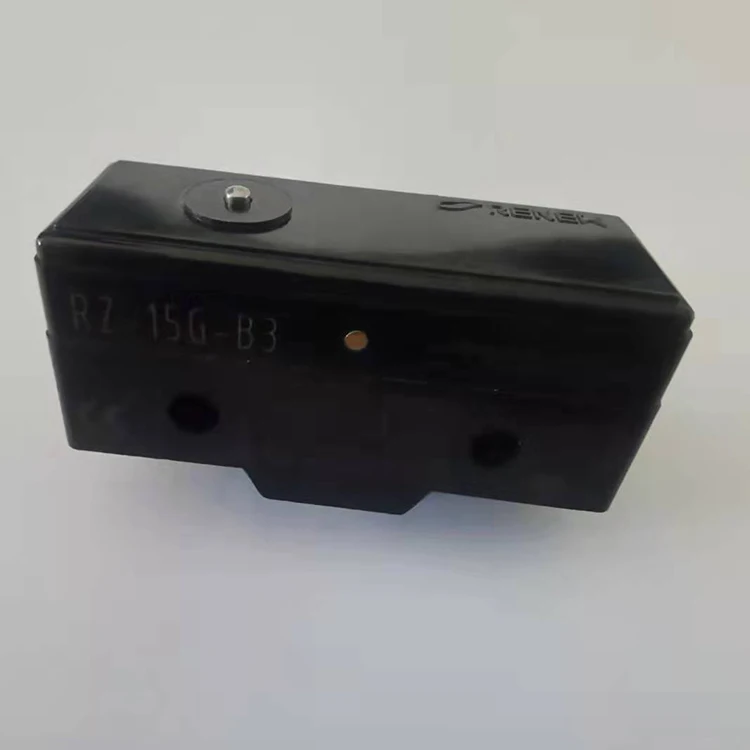

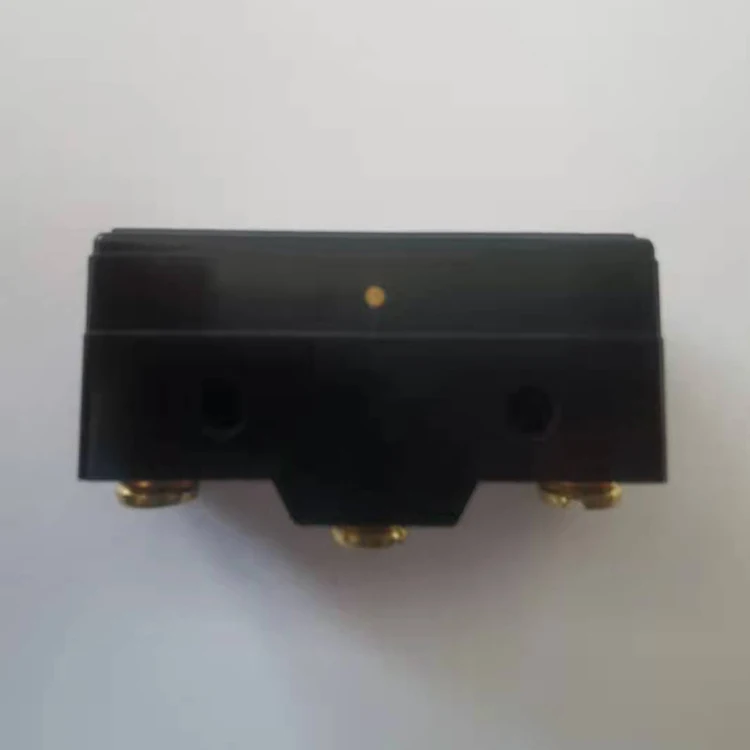

Black High Quality Switch RZ 15G B3 Microswitch Pin Plunger Mini Micro Switch
- Category: >>>
- Supplier: Yueqing Renew Electronic Co. Ltd.
Share on (1600426755894):
Product Overview
Description
Product Overview
RENEW Micro Switch RZ-15GW22S Short Metal Roller Lever Mini Microswitch
* A large switch capacity of 15A with repeat accuracy, plastic roller
* Various of actuators that can according to customer's request for customizing
* A series of standard models for micro load is available
* A series of modeled terminal-type models incorporating safety terminal protective cover is optional
* Various of actuators that can according to customer's request for customizing
* A series of standard models for micro load is available
* A series of modeled terminal-type models incorporating safety terminal protective cover is optional
FEATURES AT A GLANCE

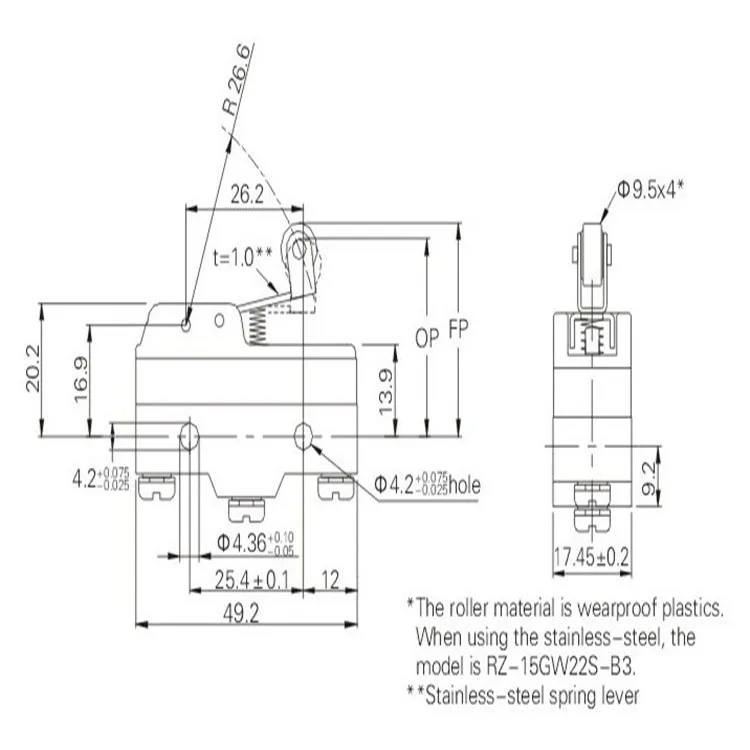

RZ-15GW22S-B3 Micro Switch
Rating: 15 A, 250 V AC
Contact gap: 0.5 mm
Actuator: Short Metal Roller Lever

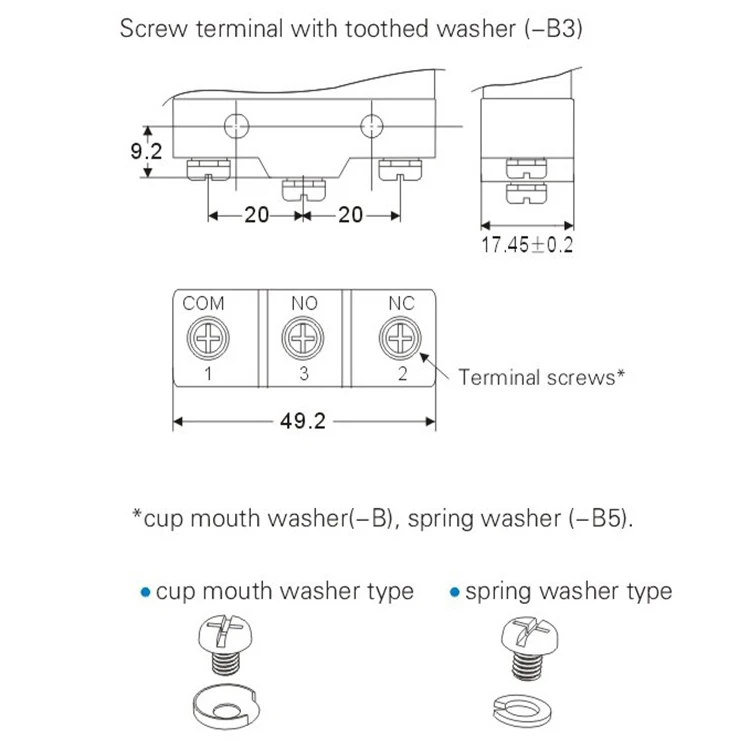

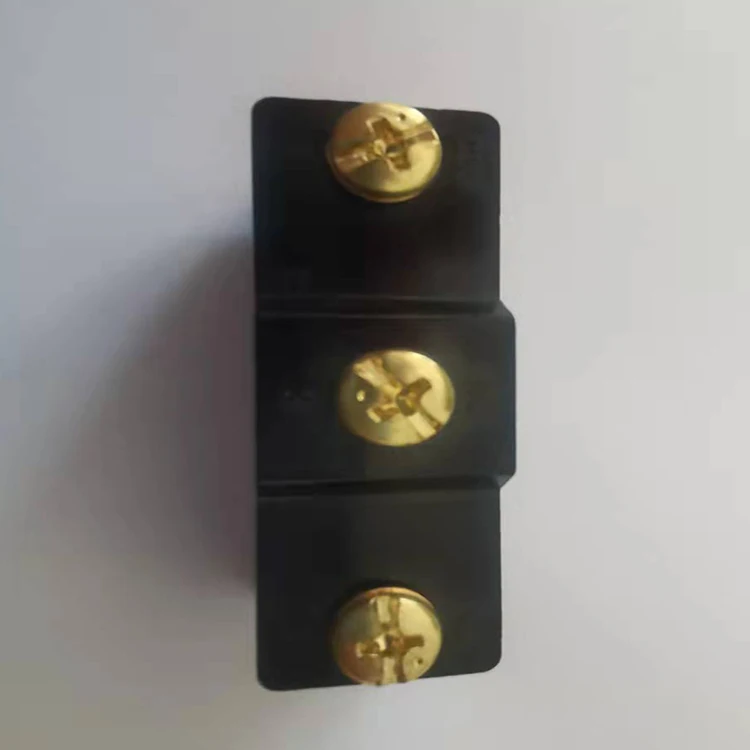

Terminal: Screw terminal with skidproof within toothed washer
Contact form: SPDT
PRODUCT SPECIFICATIONS
Contact gap | Rated voltage | Non-inductive load | Inductive load | ||||||||||||
1 | Power | Resistive load | Resistive load | Lamp load | Inductive load | Motor load | |||||||||
2 | NC | NO | NC | NO | NC | NO | NC | NO | |||||||
G, H, F, E | AC 125V | 15 (10) A | 3A | 1.5A | 15 (10) A | 5A | 2.5A | ||||||||
4 | AC 250V | 15 (10) A | 2.5A | 1.25A | 15 (10) A | 3A | 1.5A | ||||||||
5 | AC 480V | 10 A | 1.5A | 0.75A | 6A | 1.5A | 0.75A | ||||||||
G | DC 8V | 15A | 3A | 1.5A | 15A | 5A | 2.5A | ||||||||
DC 14V | 15A | 3A | 1.5A | 10A | 5A | 2.5A | |||||||||
DC 30V | 6A | 3A | 1.5A | 5A | 5A | 2.5A | |||||||||
DC 125V | 0.5A | 0.5A | 0.5A | 0.05A | 0.05A | 0.05A | |||||||||
DC 250V | 0.25A | 0.25A | 0.25A | 0.03A | 0.03A | 0.03A | |||||||||

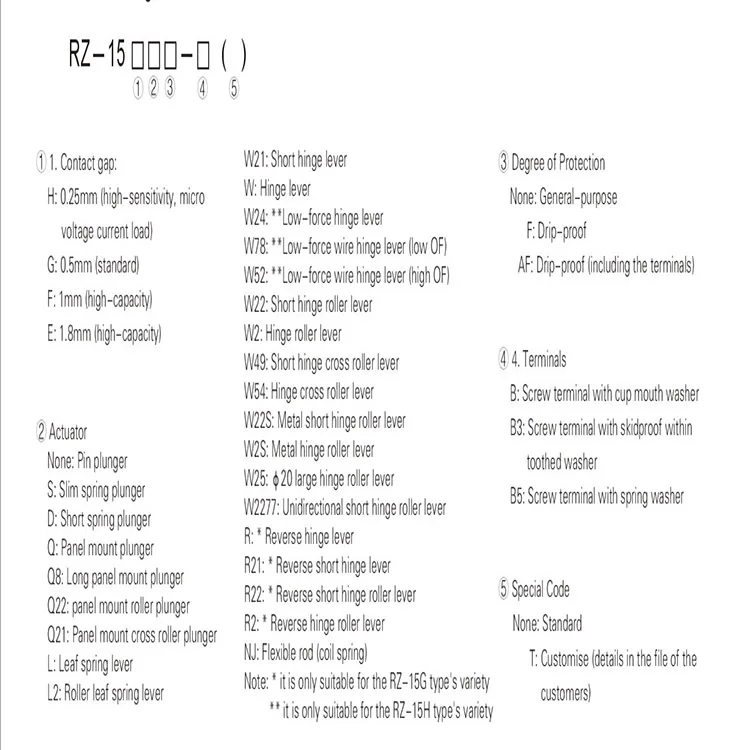

PRODUCT CONFIGURATION

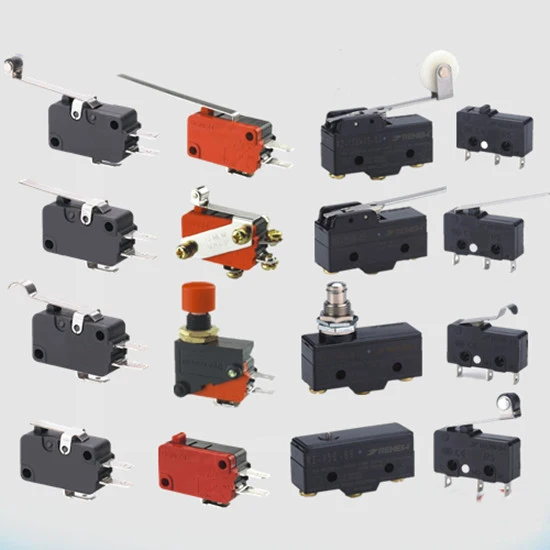

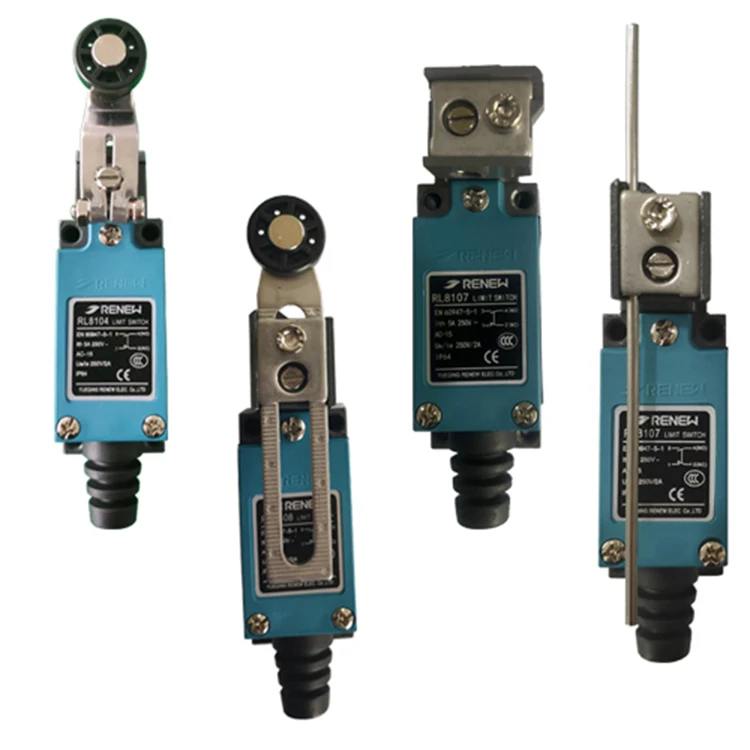

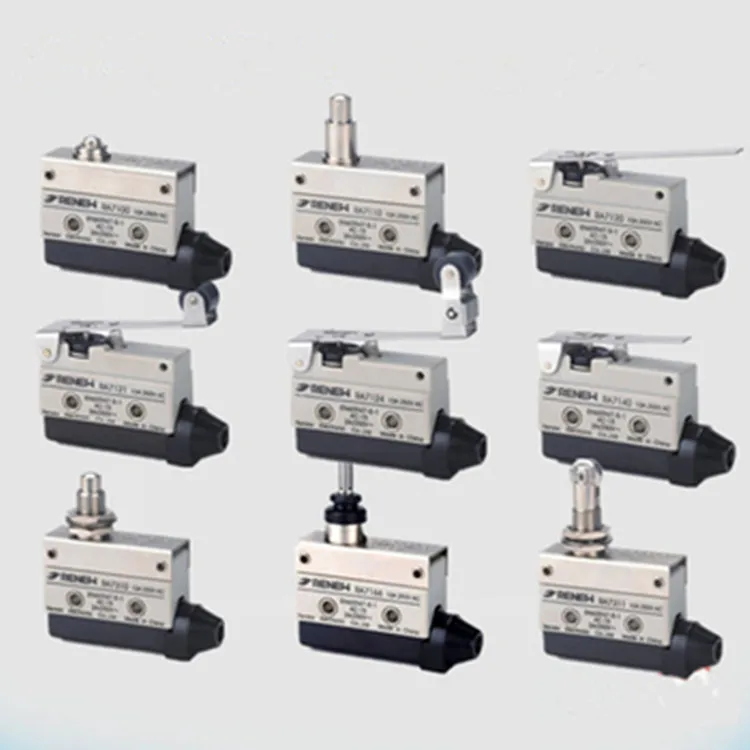

SIMILAR PRODUCTS
FAQ
Q1: What are your payment terms? Do you accept paypal?
A1: 100% T/T in advance. We have western Union
Q2: Do you have a price list?
A2: Yes, pls contact us.
Q3: What are your warrantie?
A3: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
Q4: Can you accept OEM?
A4: Yes, need your trademark authorization letter.
Q5: What about the package?
A5: All use thickening export carton with "RENEW" mark, you specified mark or none.
Q6: Do you provide sample?
A6: Yes, free sample can provide to you, express freight collect.
Q7: Do you accept small order quantity?
A7: Yes, order quantity without limited.
Q8: How about the delivery mothod?
A8: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
Q9: Do you bear the freight charge?
A9: We can offer you EXW, FOB or CIF price.
