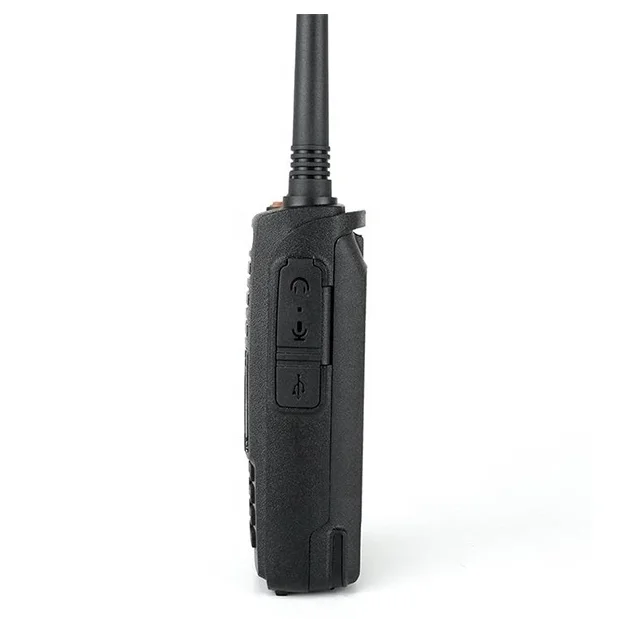

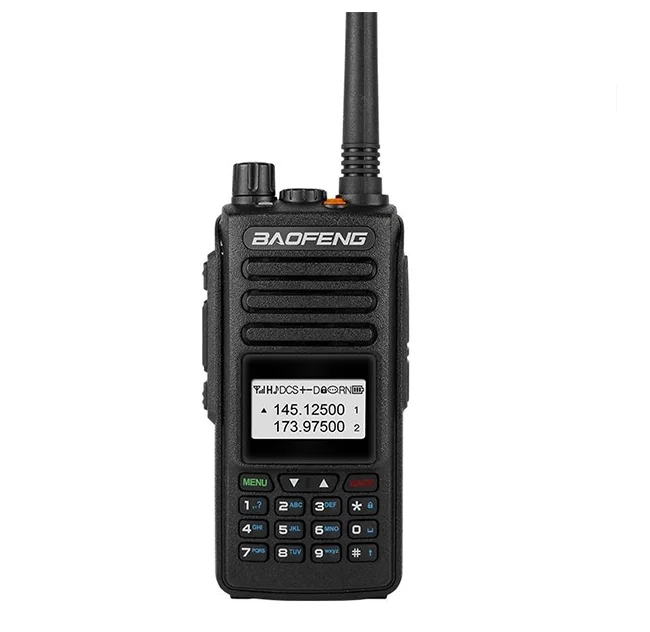

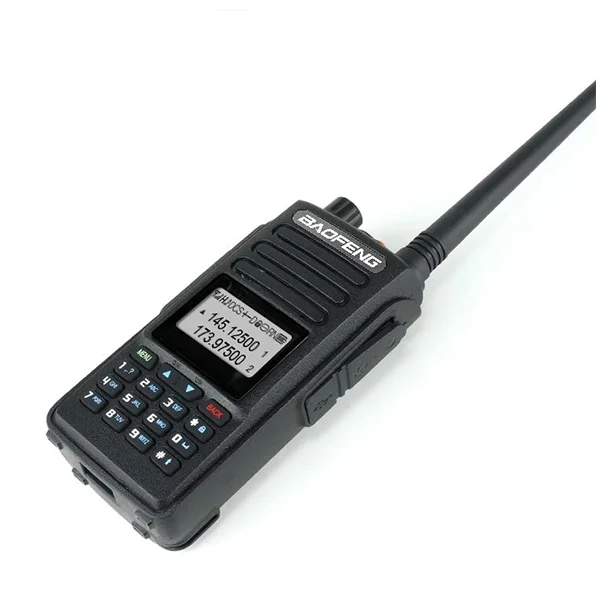

Baofeng H2 dual band ham uhf vhf 136 174MHz 400 520MHz radio mobile two way radio handheld walkie talkie

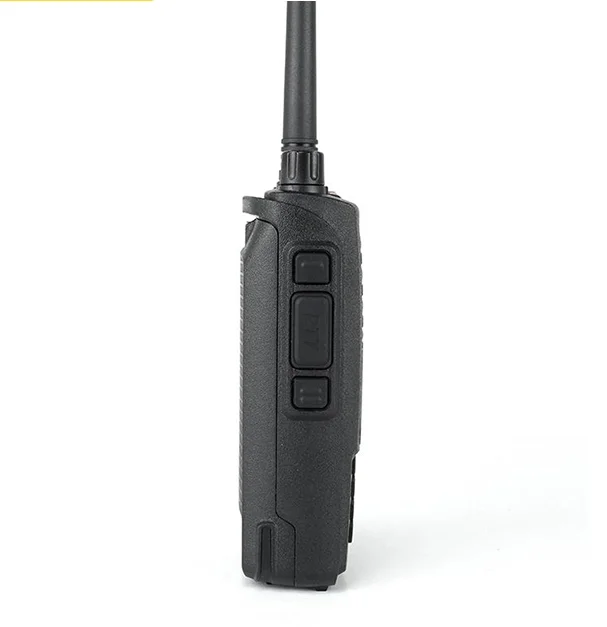

Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie
Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie

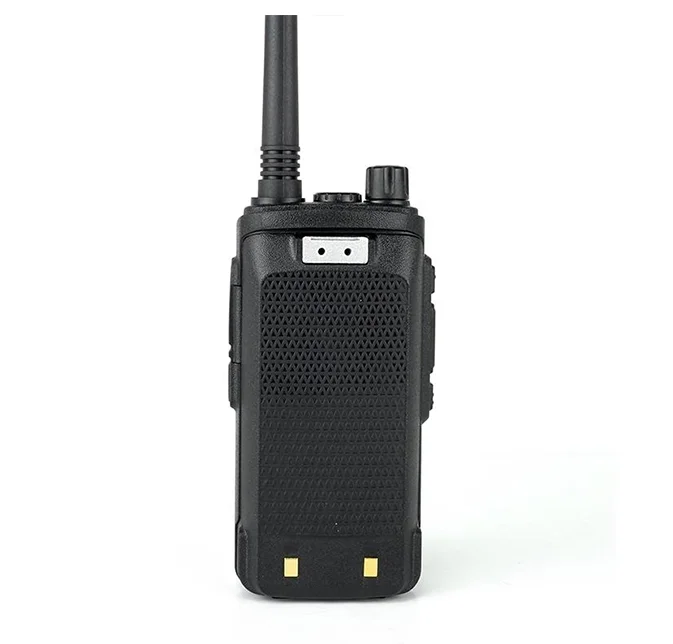

Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie
Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie
Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie
Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie
Baofeng H2 dual band ham uhf vhf 136-174MHz 400-520MHz radio mobile two way radio handheld walkie talkie

Baofeng H2 dual band ham uhf vhf 136 174MHz 400 520MHz radio mobile two way radio handheld walkie talkie

Share on (1600426767948):


Price:$20.50 - $21.90

Quantity:


Product Overview

Description



Title goes here.
Frequency Range VHF:136-174MHz UHF:400-520MHz(Dual band)
Memory Channel 128 Group
Channel Spacing 25KHz(Wide)、12.5K(Narrow)
Operating Voltage DC7.4V
Frequency Stability ±2.5ppm
Operating Temperature -20~+60℃
Antenna Impedance 50Ω
Transmit Current H≤2.5A；M≤1.8A；L≤1.1A
Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
Stray Power ≤7.5uW
Adjacent Channel power ≤-65dB/≤-60dB
Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
QT/DQT Deviatio（wide/narrow） 0.7±0.1KHz/0.4±0.1KHz
Modulation Sensitivity 8-12mV
Demission 135*65*38mm(no including the antenna)
Weight About 300g(include in battery and antenna)

Receiver
Receiver Sensitivity ≤0.25uV(12dB SINAD）
Audio Power 1W@10%
Audio Distortion <10%
Signal-to-Noise ≥45dB
Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB
Intermodulation(wide/narrow ) ≥-65dB/≥-60dB
Stray Suppression ≥-65dB
Receive Current ≤380mA
