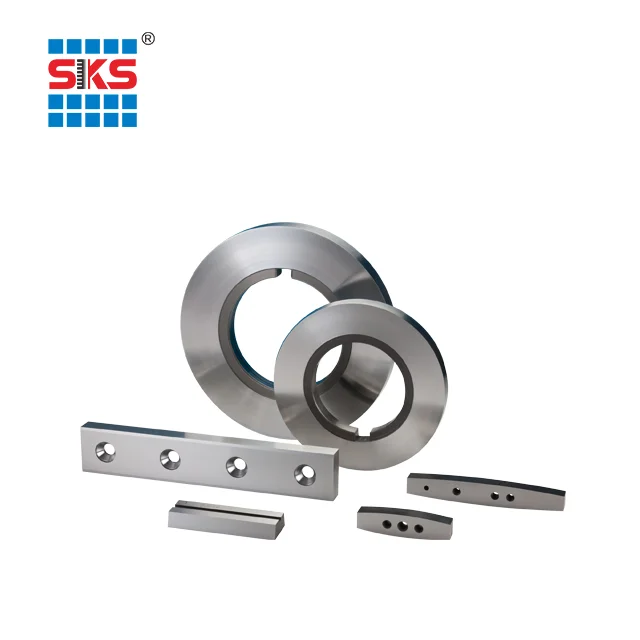

Hss/skd11 Fabric Leather Paper Circular Slitter Blades Slitting Knife Pneumatic Blade roll shear knife
- Category: >>>
- Supplier: Nanjing Ld Machine Knife Manufacturing Co. Ltd.
Share on (1600426770191):
Product Overview
Description
Brand
Standing at the junction of history and future, there’re Wright brothers invented and produced airplanes in the past.Today,Nanjing SKS brothers research, produce and develop the best mechanical blade from the last century. Time will take away many memories,Only inheritance is constant ...
Product information

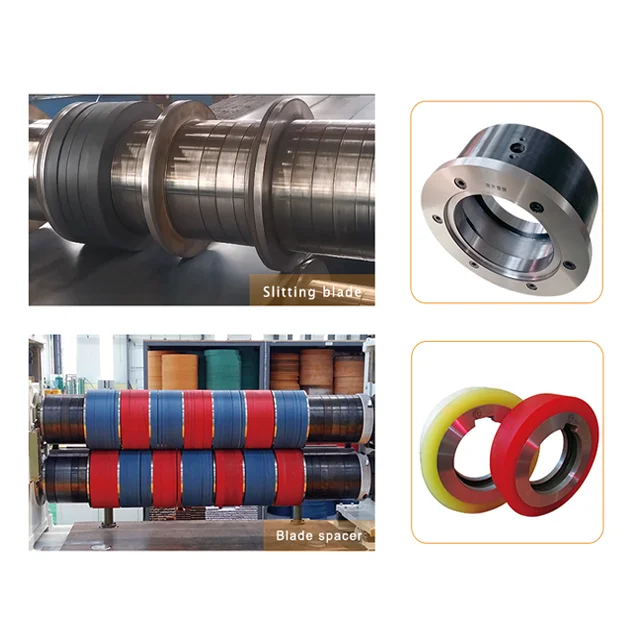

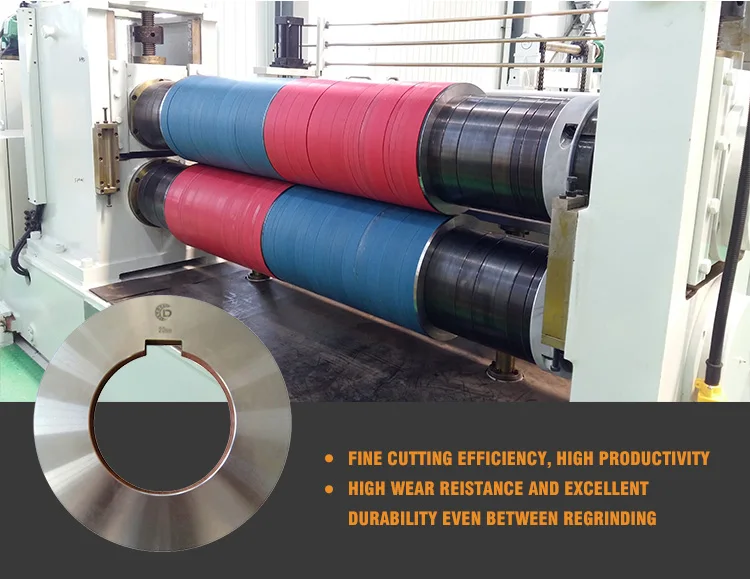

Coil Processing Knives
Slitter Knives and Slitting Tooling are for Pickling Lines, Galvanizing Lines, Tin Lines, Continuous Annealing Lines, Coating Lines, Inspection Lines, Blanking and Hot or Cold Strip Finishing Lines.
Material：D-2,H-13,HSS,Solid Carbide etc. Sharp and durable.

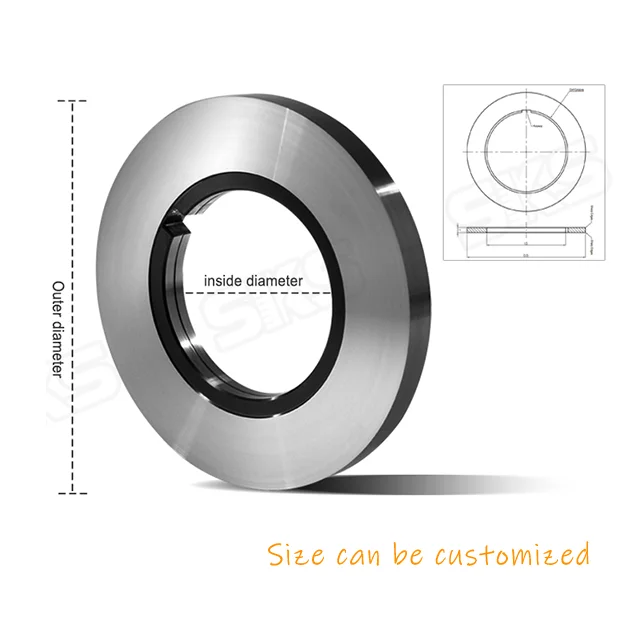

Size: Accurately customize according to drawings or real objects, and the size is accurate.
In addition, we can provide the same types of blades with accessories.
Material：D-2,H-13,HSS,Solid Carbide etc. Sharp and durable.
Size: Accurately customize according to drawings or real objects, and the size is accurate.
In addition, we can provide the same types of blades with accessories.
The maximum size/minimum size can be customized | ||||||||||
Specification mm | Outer diameter | Inside diameter | thickness | Quenching HRC | Material | |||||
Φ95*Φ55*2 | Φ95 | Φ55 | 2 | 55°- 65° | HSS，SKD-11，SLD，SKH | |||||
Φ105*Φ52*5 | Φ105 | Φ52 | 5 | 55°- 65° | ||||||
Φ210*Φ100*5 | Φ210 | Φ100 | 5 | 55°- 65° | ||||||
Φ240*Φ120*10 | Φ240 | Φ120 | 10 | 55°- 65° | ||||||
Φ320*Φ200*10 | Φ320 | Φ200 | 10 | 55°- 65° | ||||||
Φ440*Φ280*30 | Φ440 | Φ280 | 30 | 55°- 65° | ||||||
Φ1200*Φ600*70 | Φ1200 | Φ600 | 70 | 55°- 65° | ||||||
Tolerances we perform: | ||||||||||
Outside Dia. | +0/+0.02 | Inside Dia. | +0.03/+0.04 | Thickness | +0/-0.003 | |||||
Perpendicularity | ∟0.005 | Flatness | +0/-0.003 | Roughness | 3.2 | |||||

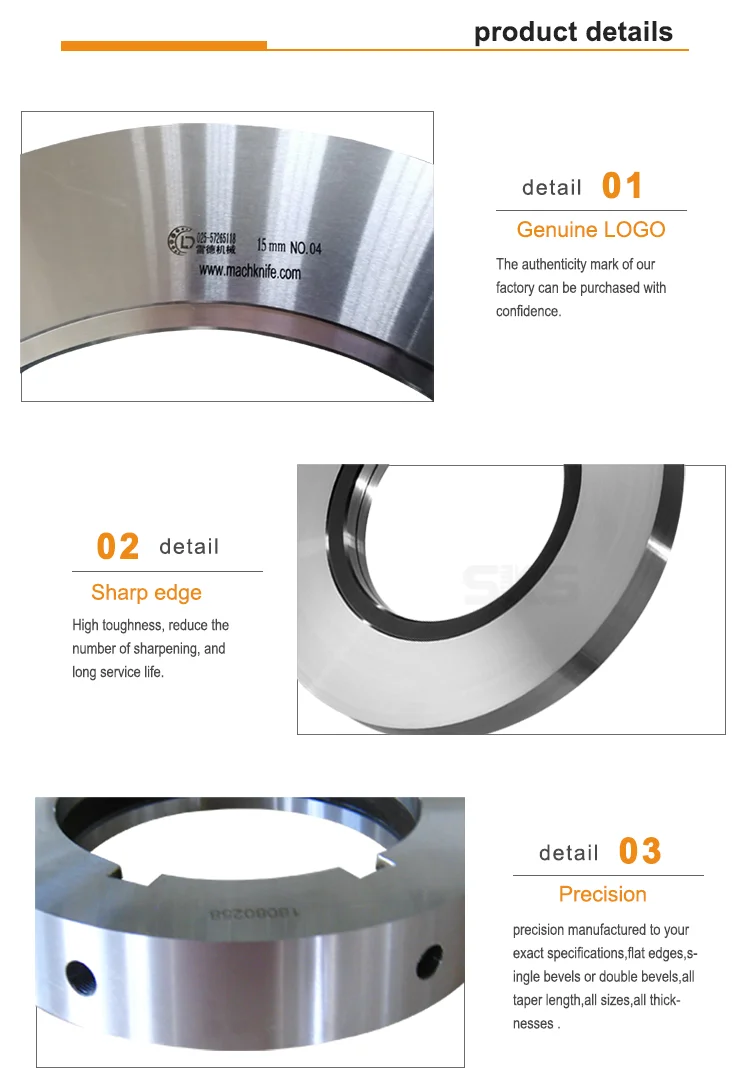

Product advantages:
◆ A wide selection of materials.
◆ Single or Multi-Keyway lock and dirt groove available
◆ Cutting capacity ranging from 0.05mm to 25mm thick coil strips
◆ Tolerance up to 0.003 or +/-0.0025mm
◆ Forged and triple tempered to ensure the best hardness and wear-resistance
◆ Single or Multi-Keyway lock and dirt groove available
◆ Cutting capacity ranging from 0.05mm to 25mm thick coil strips
◆ Tolerance up to 0.003 or +/-0.0025mm
◆ Forged and triple tempered to ensure the best hardness and wear-resistance

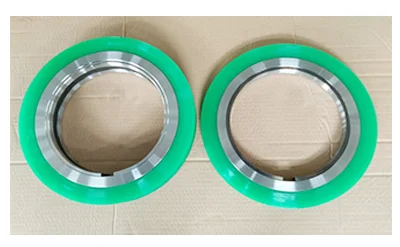

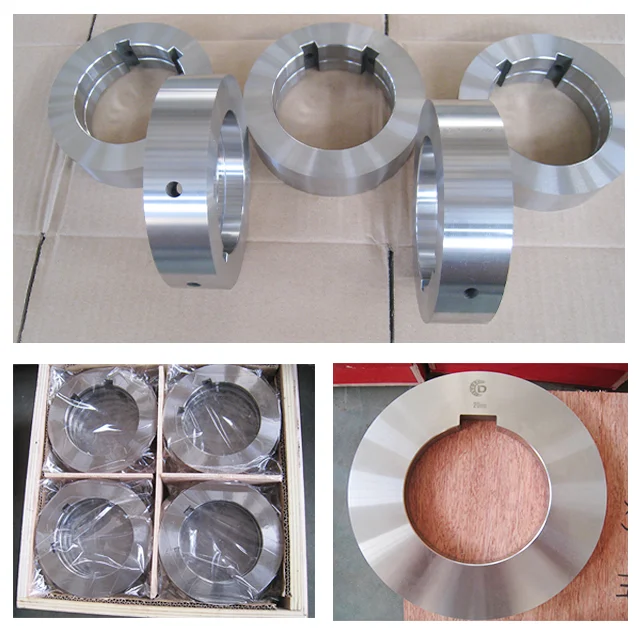

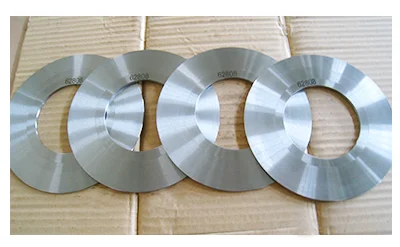

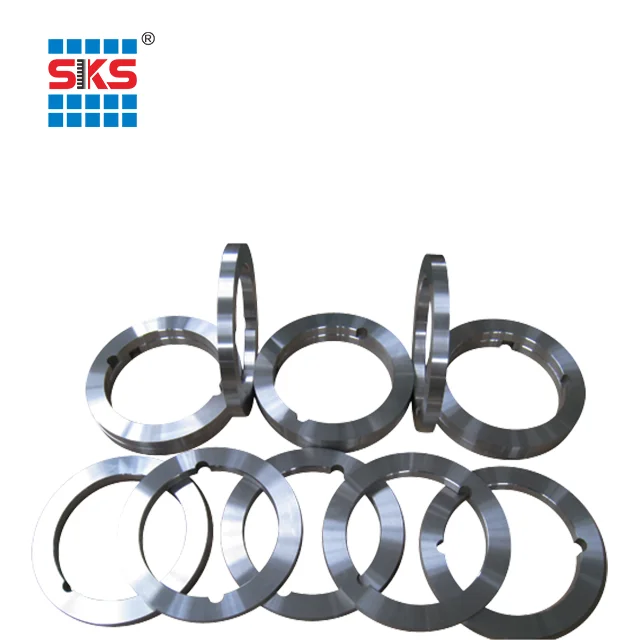

Products Show

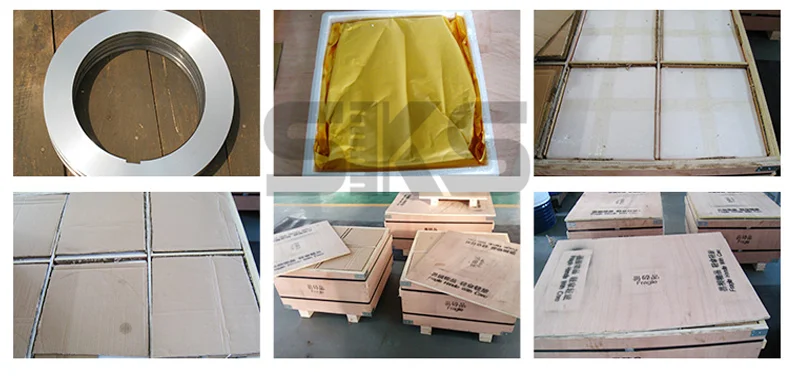

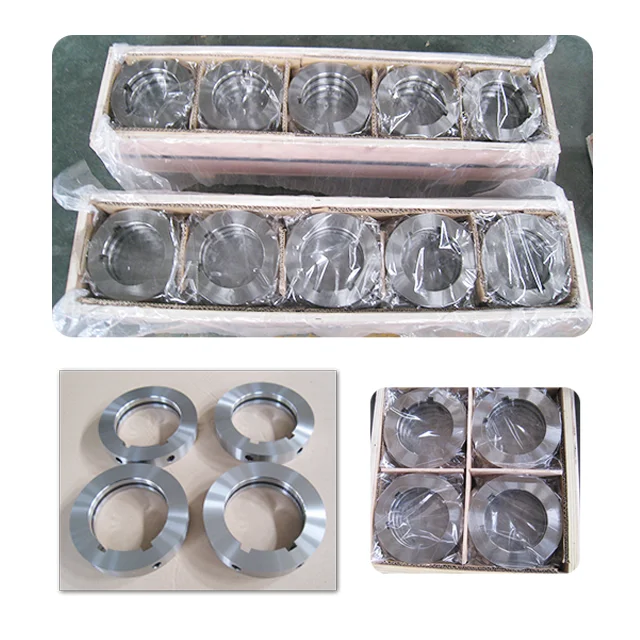

Packing & Shipping
1, PE film or Kraft paper in anti-rust oil - keep air/water/humid away, thus rust-proofing.
2, Bubble film - increases the impact resistance ability.
3, Rubber Slip or Corrugated Angle - gives special care to knife edges.
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or plywood case - provide superior protection and stack-ability
2, Bubble film - increases the impact resistance ability.
3, Rubber Slip or Corrugated Angle - gives special care to knife edges.
4, Wood Screws crates - makes opening easier without damaging the crates
5, Corrugated boxes or plywood case - provide superior protection and stack-ability
Technical service and processing
SKS has its own forging workshop
We will select the most suitable forging method according to the types of forgings to ensure the precise shape and size of the forgings and perfect internal quality.
SKS master craftsmen with 20 years of forging experience
We have more than 20 years of forging experience. Proficient in WHF forging method, center pressing method, FM forging method and KD forging method.

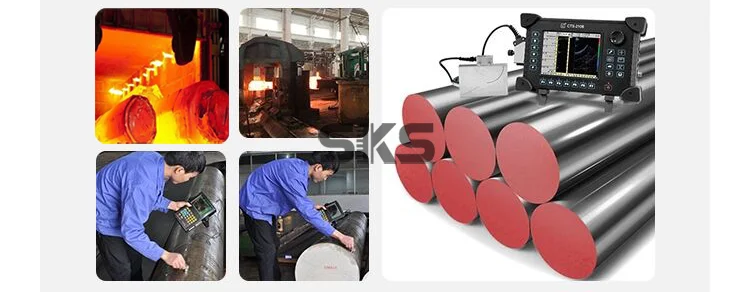

Advanced forging process and testing method
◆ SKS forgers rearrange the metal grain structure through advanced forging process, which increases the strength, toughness and service life of materials.
◆ Advanced testing methods, such as ultrasonic testing, also make SKS blades better and faster to detect the results, customers are more assured to place orders for use.
◆ Advanced testing methods, such as ultrasonic testing, also make SKS blades better and faster to detect the results, customers are more assured to place orders for use.

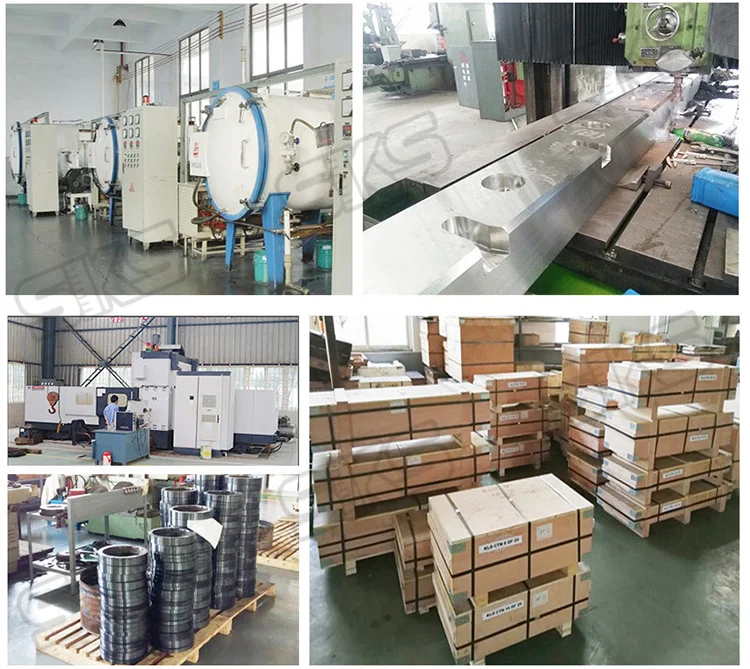

Factory strength
The company occupies an area of 6,600 square meters, equipped with various process workshops and production areas. The factory has more than 100 production equipment including CNC machining centers, and has 10 heat treatment and material testing technicians. We have passed ISO9001, CE and SGS certification, and strictly abide by international quality standards.
Our factory has strong non-standard production ability, and we can make tailor-made according to customers' drawings and samples. Products are widely used in steel, paper, wood, plastic, rubber, textile and packaging industries. Since the company exported to the United States in 2008, it has been exported to dozens of countries including Indonesia, India, Japan, the Philippines, Malaysia, the United Kingdom, Italy, Turkey, Russia, and Mauritius. At the same time, the company's customer base includes well-known domestic and foreign companies, domestic and foreign OEM manufacturers, foreign tool dealers and even tool manufacturers.
Our factory has strong non-standard production ability, and we can make tailor-made according to customers' drawings and samples. Products are widely used in steel, paper, wood, plastic, rubber, textile and packaging industries. Since the company exported to the United States in 2008, it has been exported to dozens of countries including Indonesia, India, Japan, the Philippines, Malaysia, the United Kingdom, Italy, Turkey, Russia, and Mauritius. At the same time, the company's customer base includes well-known domestic and foreign companies, domestic and foreign OEM manufacturers, foreign tool dealers and even tool manufacturers.
International Exhibition
Maintenance advice:
1. Check the cutter screws regularly. After crushing the material by crusher, tighten it with tools. Move the knife and the screw
that fixes the knife to strengthen the fixity between the blade and the tool holder.
1. Check the cutter screws regularly. After crushing the material by crusher, tighten it with tools. Move the knife and the screw
that fixes the knife to strengthen the fixity between the blade and the tool holder.
2. Always pay attention to check whether the material is doped with screws, metal blocks, small stones or Other hard materials, which will affect the use of the blade or even damage the blade.
3. Pay attention to the sharpness of the blade incision, and grind it after the blade becomes dull to avoid the knife. The dulling
of the sheet causes damage to other parts.
4. When replacing the blade, the clearance between the moving blade and the fixed blade is well set. Adjust the thickness of
recycled broken materials with different gaps,so as to obtain better shearing effect.
3. Pay attention to the sharpness of the blade incision, and grind it after the blade becomes dull to avoid the knife. The dulling
of the sheet causes damage to other parts.
4. When replacing the blade, the clearance between the moving blade and the fixed blade is well set. Adjust the thickness of
recycled broken materials with different gaps,so as to obtain better shearing effect.
