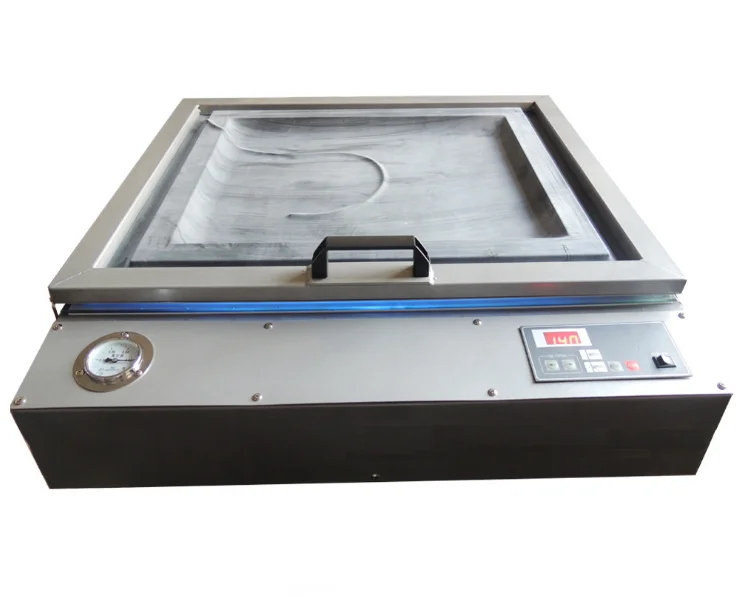

Vacuum Exposure Machine Plate Making Equipment UV Cold Light 8 Lamps
- Category: >>>
- Supplier: Nanyang Qicai Digital Technology Co. Ltd.
Share on (1600426831521):
Product Overview
Description
Product Description
item | value |
Item Name | UV Exposure Machine |
Condition | New |
Type | Plate Exposure |
Brand Name | QICAI/OEM |
Model | QC-SBJ5060 |
Voltage | 110V/220V |
Dimension(L*W*H) | 750*720*190mm |
Applicable Industries | Plate printing exposure |
Type | Pre-press Equipment |
Light source | UV Cold Light |
Feature | Vacuum Exposure Machine |
Power | 110V/220V 50HZ,250W |
Exposure Area | 500*600mm |
Max Print Area | 480*580mm （20"*24"） |
Lamp Power | 20W*8pcs |
Vacuum degree | -0.08 |
Display type | Digital display |
Weight | 32KGS |
Gross Weight | 44KGS |
Specification
Details

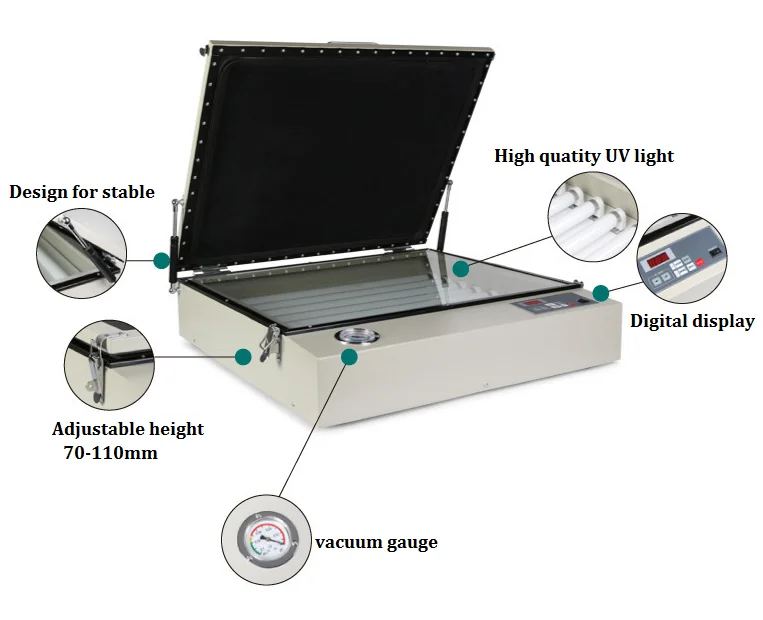

Feature:

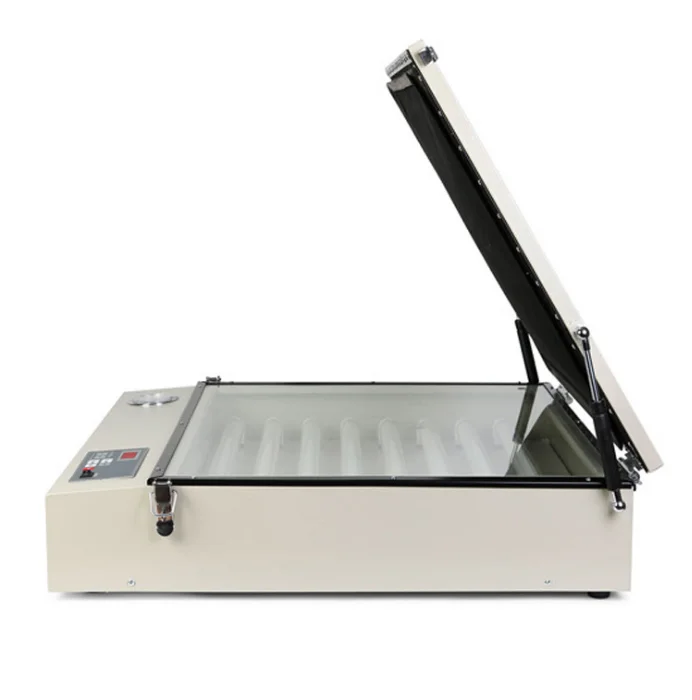

The vacuum screen printing machine is a new model launched by our company according to the needs of users. The machine has compact structure, microcomputer control, data display, key set number, parameter storage, intelligent design, simple and fast operation. The exposure
source adopts 8PCS 20W high-efficiency ultraviolet light tubes, and the vacuum rubber is
glued with high-quality cloth pattern rubber, which has changed the ordinary white glass of
the original exposure machine and replaced it with high-strength tempered glass. It is widely used in the drying of screen plates, signs and steel plates.The clear digital display time setting can automatically control the exposure time very accurately.
source adopts 8PCS 20W high-efficiency ultraviolet light tubes, and the vacuum rubber is
glued with high-quality cloth pattern rubber, which has changed the ordinary white glass of
the original exposure machine and replaced it with high-strength tempered glass. It is widely used in the drying of screen plates, signs and steel plates.The clear digital display time setting can automatically control the exposure time very accurately.

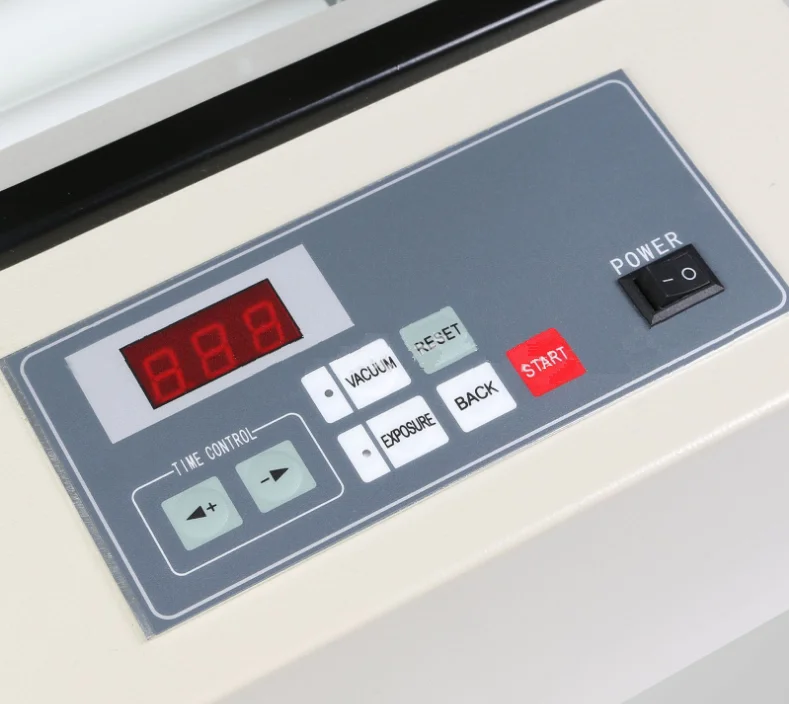

Function:
(1) Power switch: turn on/off the power of the whole machine.
(2) Display window: three-digit display, used to display the printing parameters and program execution process.
(3) Reset button: With reset function, during program execution, press this button to return to the initial state.
(4) Start button: touch this button to start all the printing process.
(5) Vacuum key: Used in combination with the number key to preset, query, and modify the vacuum delay time.
(5) Vacuum key: Used in combination with the number key to preset, query, and modify the vacuum delay time.
(6) Exposure key: used in combination with the number key to preset, query, and modify the exposure time.
(7) Number setting key: "+, -" key in number when preset or modify printing parameters.
(8) Clear key: It has the function of clearing the display. Note: When the number setting function key is pressed to be valid, a buzzer will sound. But it is invalid during program execution.
(9) Vacuum indicator light: In the initial state, the indicator light is on, and after a delay of two seconds, it returns to
the "Exposure" button. The indicator light is on when the vacuum delay program is executed.
(10) Exposure indicator: In the initial state, the indicator light will be on until the "vacuum" button is pressed, the exposure button is valid and the indicator light is on when the exposure program is executed.
the "Exposure" button. The indicator light is on when the vacuum delay program is executed.
(10) Exposure indicator: In the initial state, the indicator light will be on until the "vacuum" button is pressed, the exposure button is valid and the indicator light is on when the exposure program is executed.
Operation Step:
1. Turn on the power.
2. Turn on the machine switch: POWER
3. Set vacuum time:
1). Press "VACUUM", the left indicator lights up.
2). Press the "TIME CONTROL" left and right buttons to adjust and set the vacuum time
(When using this machine for the first time, first place the empty screen in the middle left part of the rubber cavity, indicating that the vacuuming effect meets the requirements, otherwise, the experiment can be extended for a longer time to meet the vacuuming requirements)
2. Turn on the machine switch: POWER
3. Set vacuum time:
1). Press "VACUUM", the left indicator lights up.
2). Press the "TIME CONTROL" left and right buttons to adjust and set the vacuum time
(When using this machine for the first time, first place the empty screen in the middle left part of the rubber cavity, indicating that the vacuuming effect meets the requirements, otherwise, the experiment can be extended for a longer time to meet the vacuuming requirements)
Company Profile

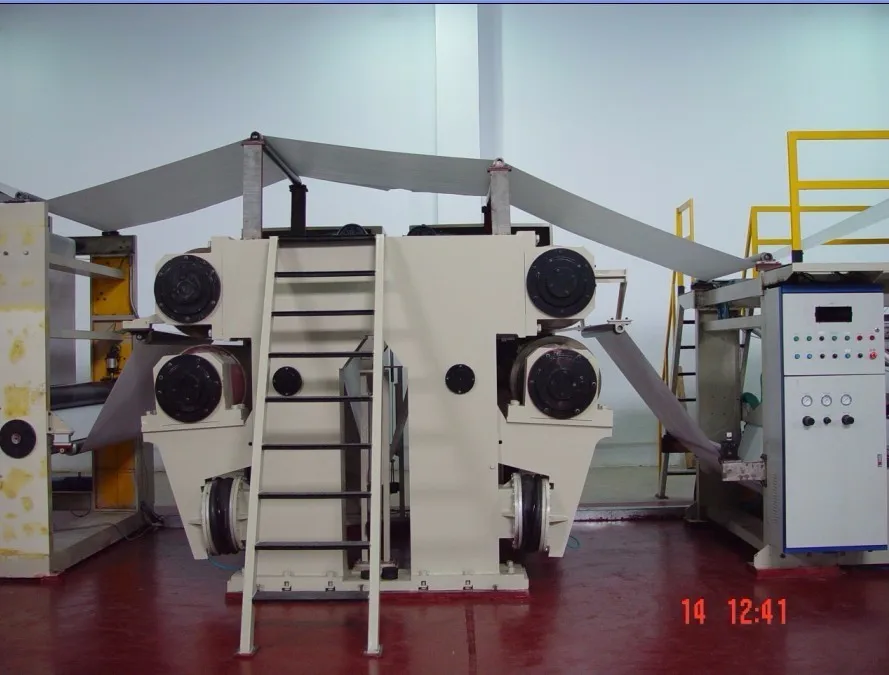

Nanyang QICAI Digital Technology Co.,LTD.is a private high tech chemical enterprise, which is engaged in developing, processing and marketing the digital printing materials, which located in a historic city----Nanyang, Henan province.Our company covers an area of 20 acres in Lihe ecosystem industrial park, our annual production of various coating products can be 7 million square meter since founded.now we are one of the most professional manufacturer of ink-jet media in China.
Our company has a strong R&D strength, advanced coating production lines and strict management, keeping the product first-class quality. We always insist:”there is no best, only better, keep improving”.
Our mainly products include: digital output plate making ink-jet film series, RC digital photo paper series, digital medical image receiving series. They are totally include more than 50 kinds of products.
We have obtained the certification of ISO9001.2000 international quality system, which include independent intellectual property rights ad six patents.some of our products fill the gap in national market, and break the monopoly of foreign products in high-end market.
Exhibition
FAQ
Q1:Are you a factory?
A1:Yes.We have more than 10 years manufacturing exprerience for printing films.
Q2:Can you accept small quantity?
A2:Yes, we can and would like to grow with customers
Q3:Can you provide free sample for evaluation?
A3:Of course, the plant is able to supply free roll (3m to 10m in length)or sheet for test, clients just pay for shipping cost.
Q4:What is the Lead time & Shipping time respectively?
A4:Lead Time: Usually takes 3 to 5 days after the payment (deposit), final according to the order quantity .Shipping Time: 4-6 days by Express/ Air Freight, 15 - 20 days,if by ocean shipment.
Q5:What is guaranteed for the Products?
A5:Completely promise the quality. Responsible for any problem products and replace with new ones without any extra cost required.
A1:Yes.We have more than 10 years manufacturing exprerience for printing films.
Q2:Can you accept small quantity?
A2:Yes, we can and would like to grow with customers
Q3:Can you provide free sample for evaluation?
A3:Of course, the plant is able to supply free roll (3m to 10m in length)or sheet for test, clients just pay for shipping cost.
Q4:What is the Lead time & Shipping time respectively?
A4:Lead Time: Usually takes 3 to 5 days after the payment (deposit), final according to the order quantity .Shipping Time: 4-6 days by Express/ Air Freight, 15 - 20 days,if by ocean shipment.
Q5:What is guaranteed for the Products?
A5:Completely promise the quality. Responsible for any problem products and replace with new ones without any extra cost required.
