Product Description
This product will let the user experience of transmitting the HD content by wireless. The HDMI sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away. Proprietary anti-interference technology to ensure stable streaming in a crowded Wi-Fi environment, support up to 6 sets of equipment running at the same time at one space.this product support AES 128-bit security encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to protect data. HDCP supported to protect the content.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product name | KVM HDMI Wireless Extender | |
Model No. | HDEX0028M1 | |
Input ports | HDMI | |
Ports | TX: HDMI IN x1, HDMI OUT x1, AUX IN x1, IR OUT x 1, RS232 x1, Micro USB x1, DC JACK x1 RX: HDMI OUT x1, AUX OUT x1, IR IN x 1, RS232 x1, USB2.0 x2, DC JACK x1 | |
HDMI input resolution | 480P/720P/1080P/2160P@60/50/30/25/24 | |
HDMI Audio format | LPCM (48/44.1/32KHZ 16/20/24bit) | |
HDMI output resolution | 480P/720P/1080P@60，Output 4K@30 when 4K input | |
Input/output TMDS signal | 0.5~1.5Vp-p(TTL) | |
Toslink output audio format | Dolby AC3/DTS/LPCM2.0 | |
Input/output DDC signal | 5Vp-p(TTL) | |
Transmission latency | Less than 80ms | |
Wireless standard | 802.11 ac WiFi MIMO technology | |
Wireless Band | 4.900 GHz ~ 5.845 GHz (5GHz ISM Band) | |
Antenna type | External dual 5dBi gain antenna | |
Transmit Output Power | 802.11ac /MCS9: 15 dBm ± 1.5 dB @ EVM ≤ -32dB | |
Transmission distance | ≤100m (in open space) | |
IR Carrier frequency | 20~60KHz | |
Power adapter specification | Input: AC 100~240V / Output: DC 12V/1.5A | |
Max working current | TX≤ 400mA, RX≤ 300mA | |
Working temperature range | 0~ +40℃ | |
Working humidity range | 10 to 85%RH（No Condensation） | |
Storage temperature | -10 to 60℃ | |
Storage humidity | 5 ~95%RH(No Condensation) | |
Size | TX/RX:170.5*74.5*27.5 (mm) | |
Weight | TX:325g,RX:330g | |

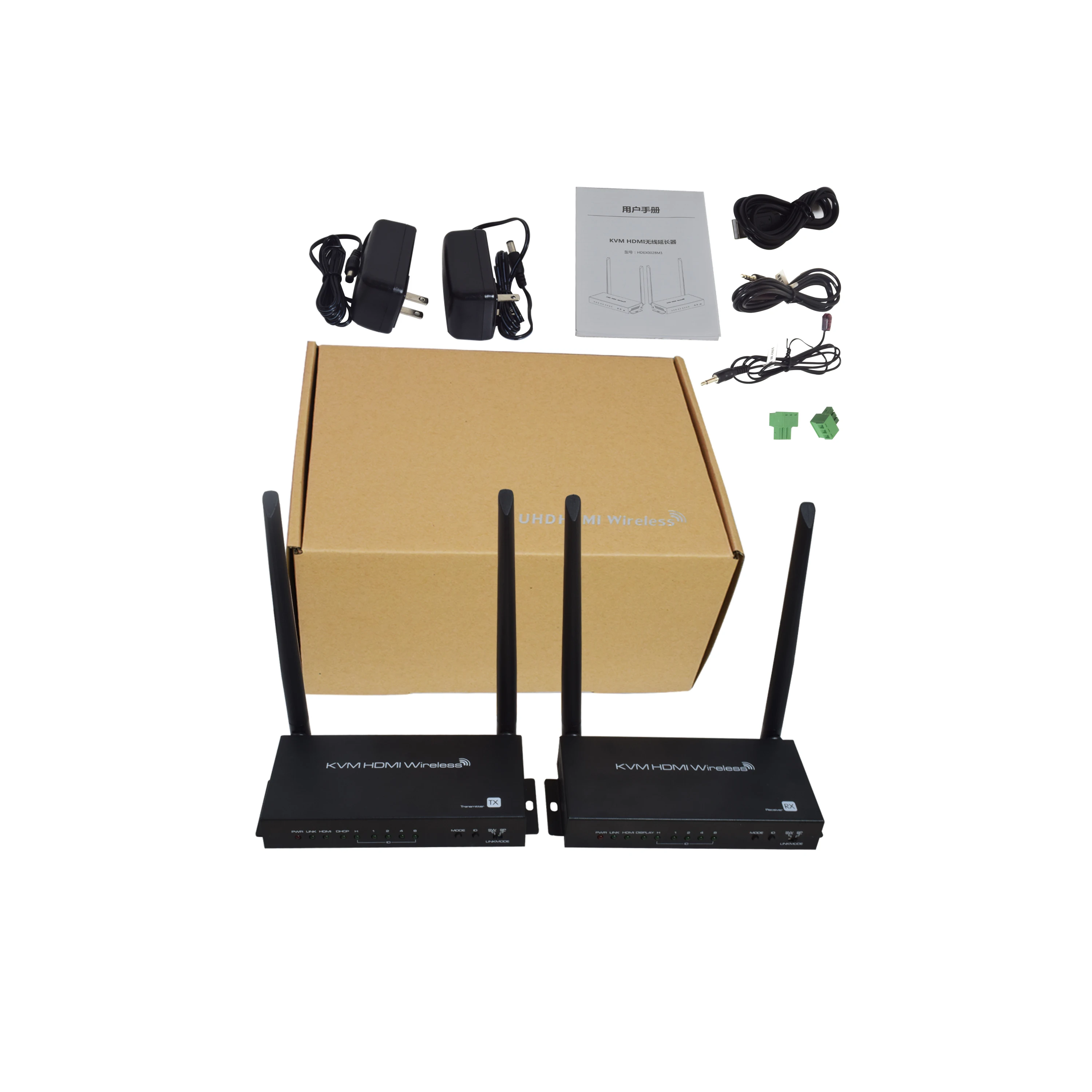

Accessories | Transmitter x1, Receiverx1, Manualx1, Power Adaptorx2, Micro USB-USB cable x1, IR Transmitter cable x1, IR Receiver cable x1 |
Packing&Shipping
Accessories
Transmitter x1
Receiverx1
Manualx1
Power Adaptorx2
Micro USB-USB cable x1
IR Transmitter cable x1
IR Receiver cable x1
Company Introduction
About Us:
Ask Technology Company limited was established in 2009 , manufacturer for Audio and Video products ODM/OBM/OEM with concentrate on R&D ,solution, design ,QC and producing teams . And insist on high quality level A/V products for market remand. Specially for HDMI switcher, splitter, converter, matrix, extender, wireless, KVM, video Capture, decoder, audio extractor, digital audio and SDI , DVI, VGA, AV, RF, Type-C,SPDIF and so on A/V interface devices , high-end professional displays include hook face displays and V-COB LED screen . With 3 R&D teams , more than 100 engineers with over 10 years experience for A/V technology hardware, software, PE and custom-development.

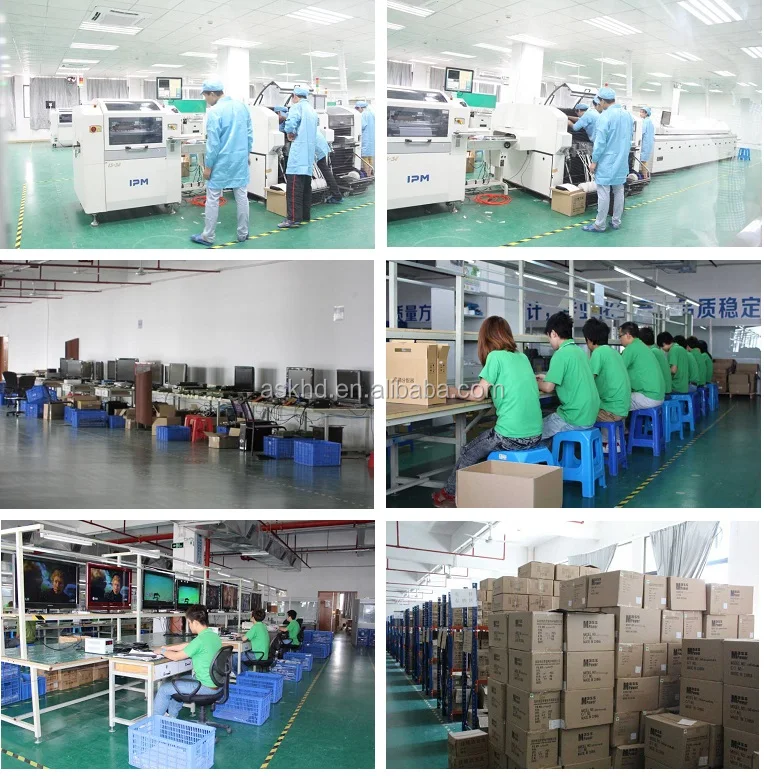

Product line&Test line
