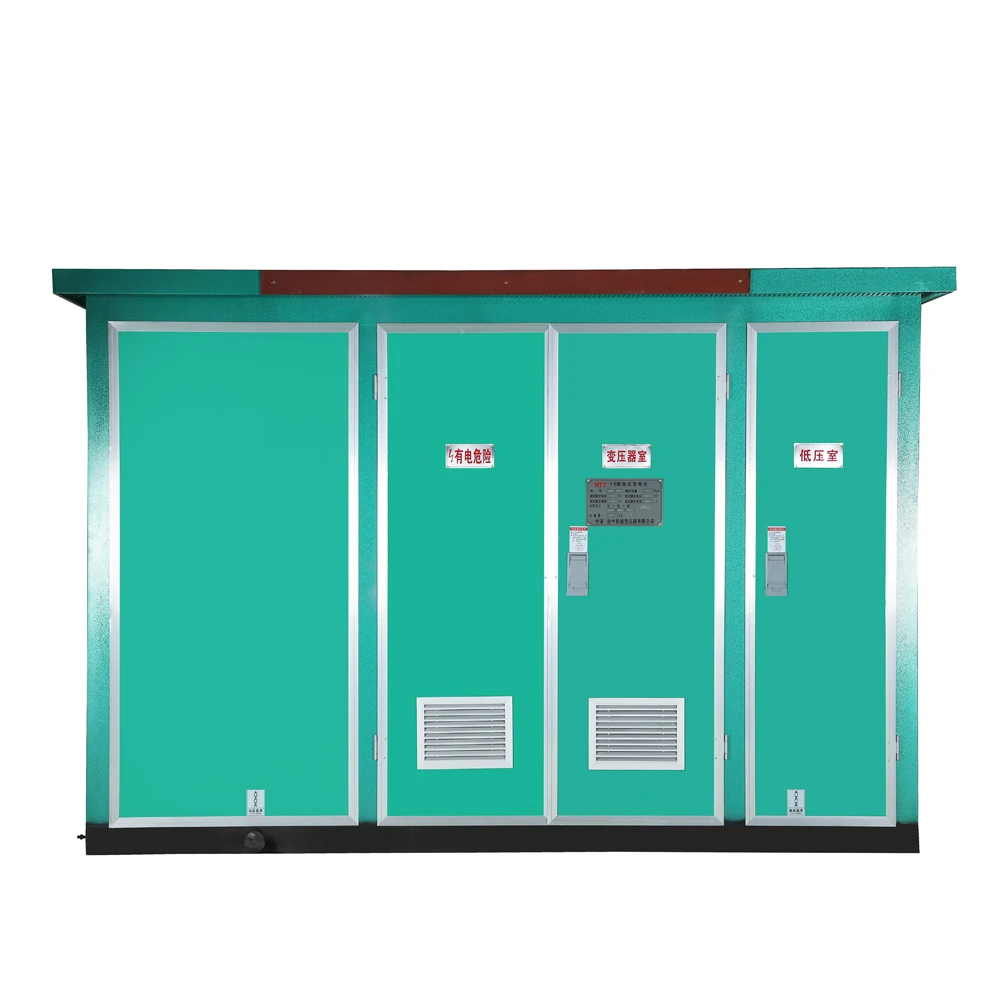

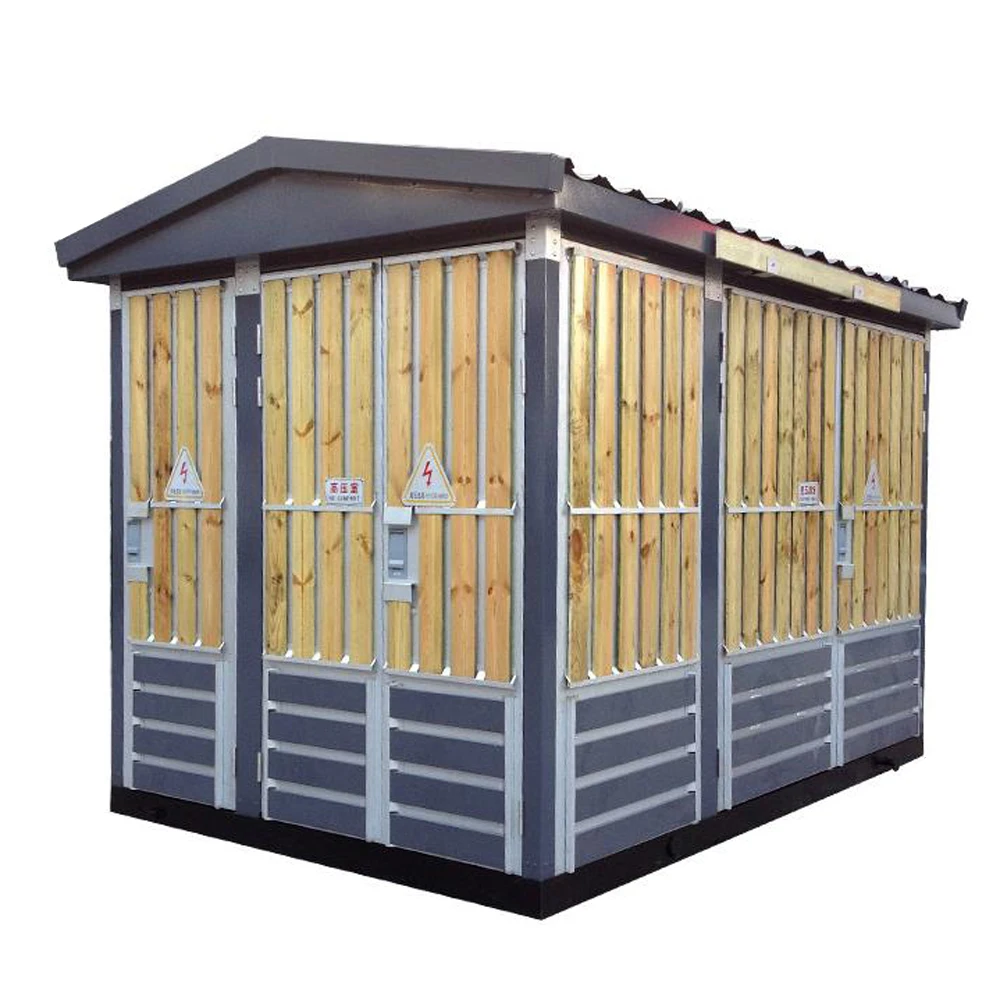

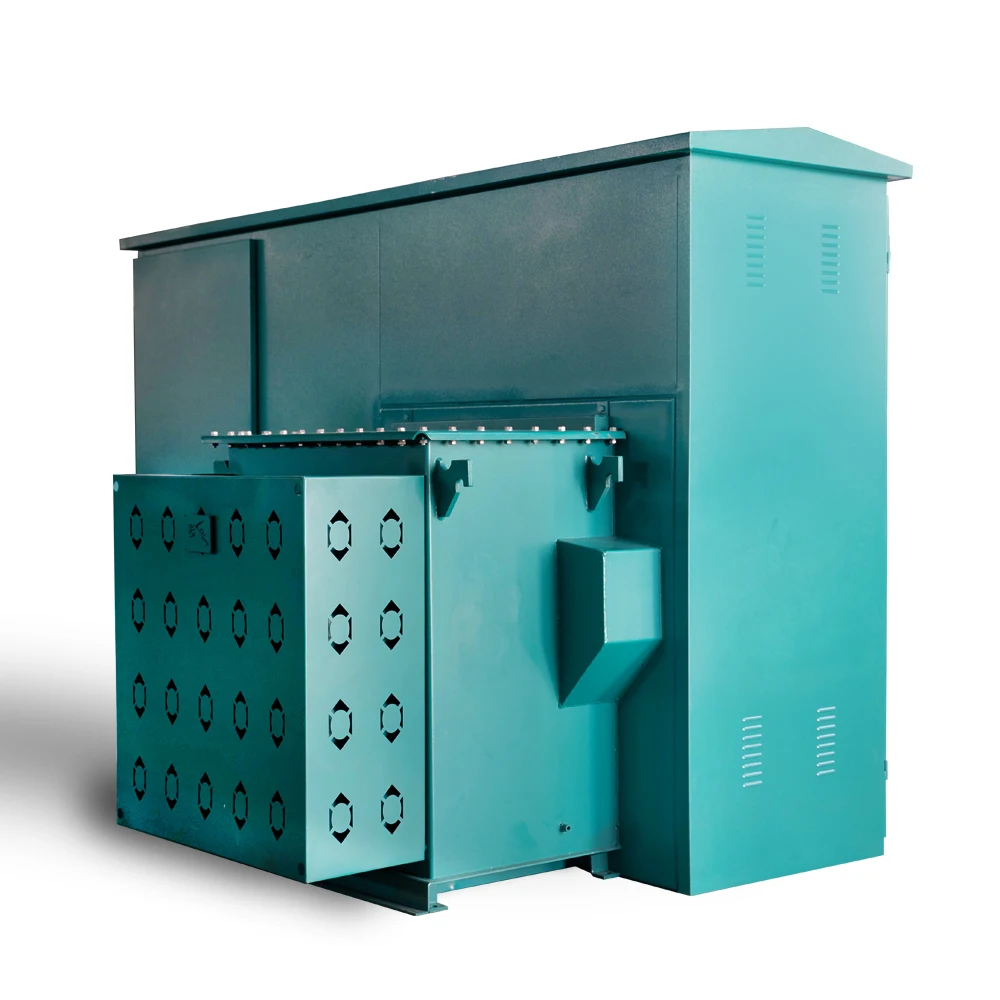

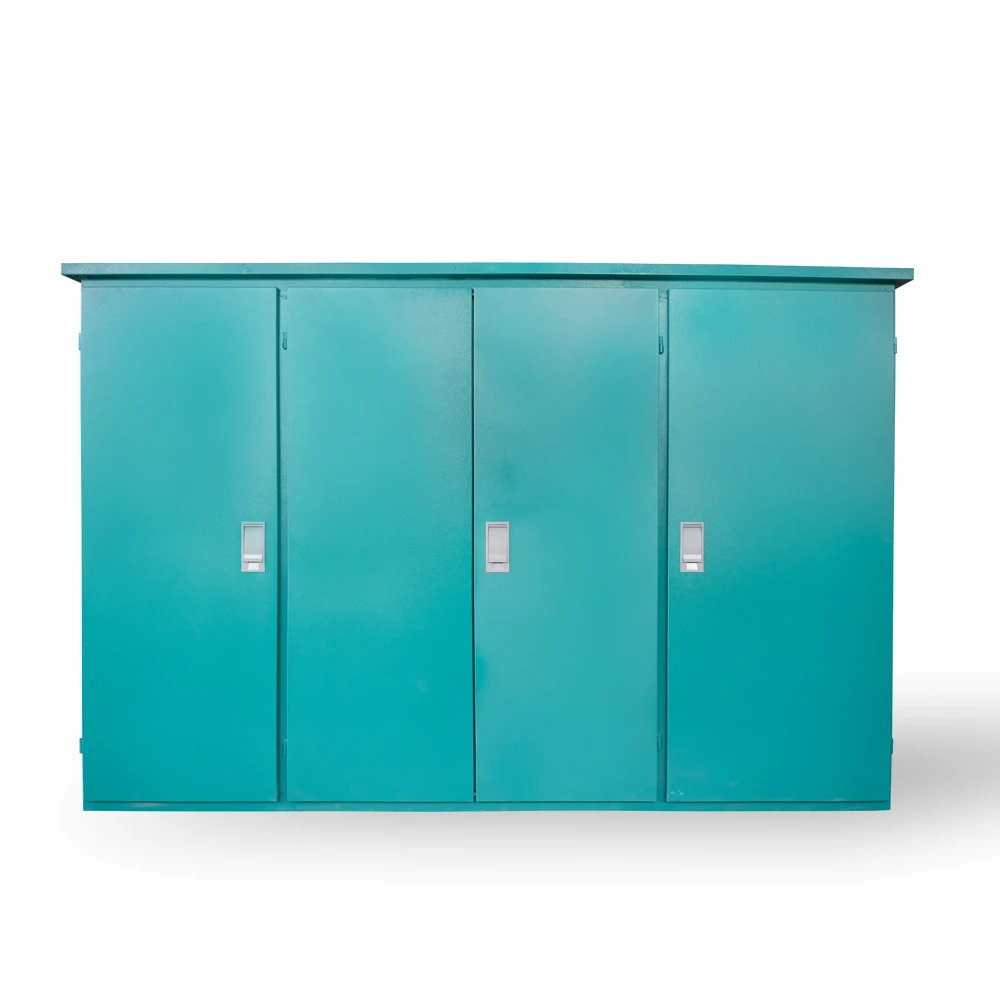

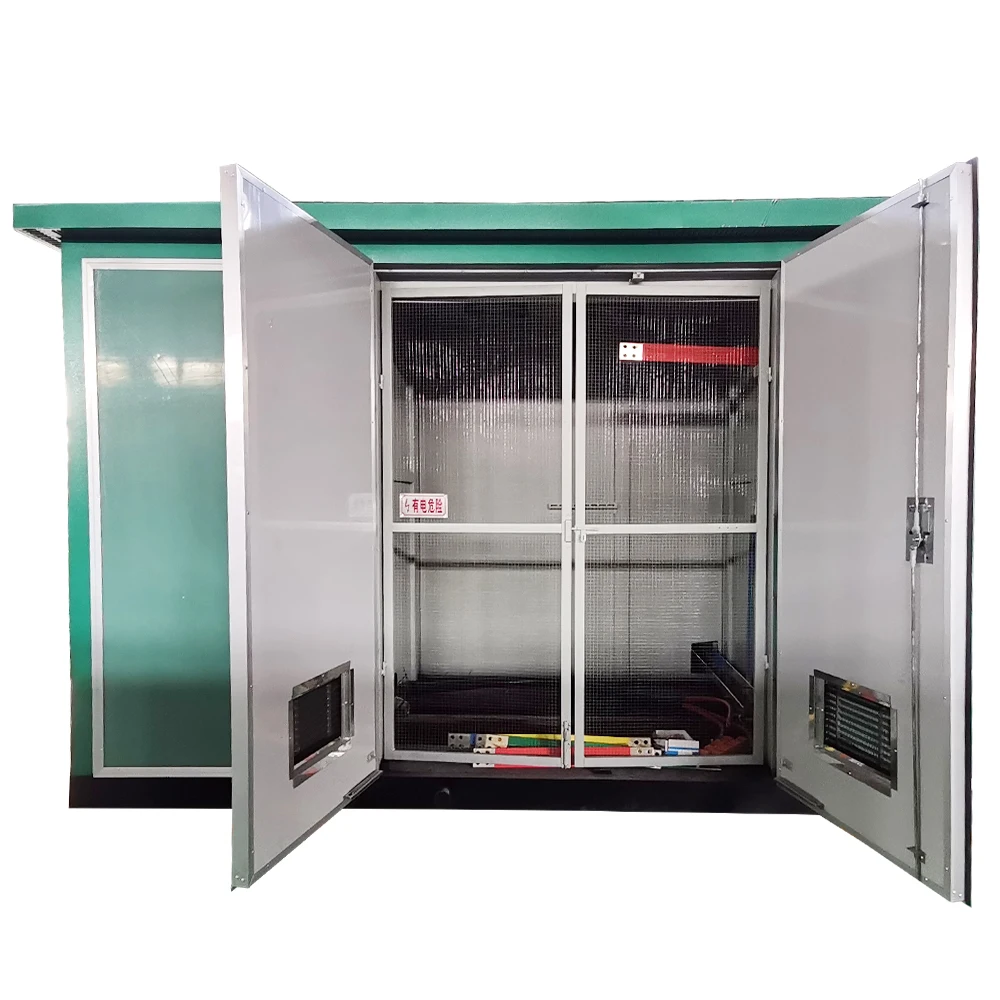

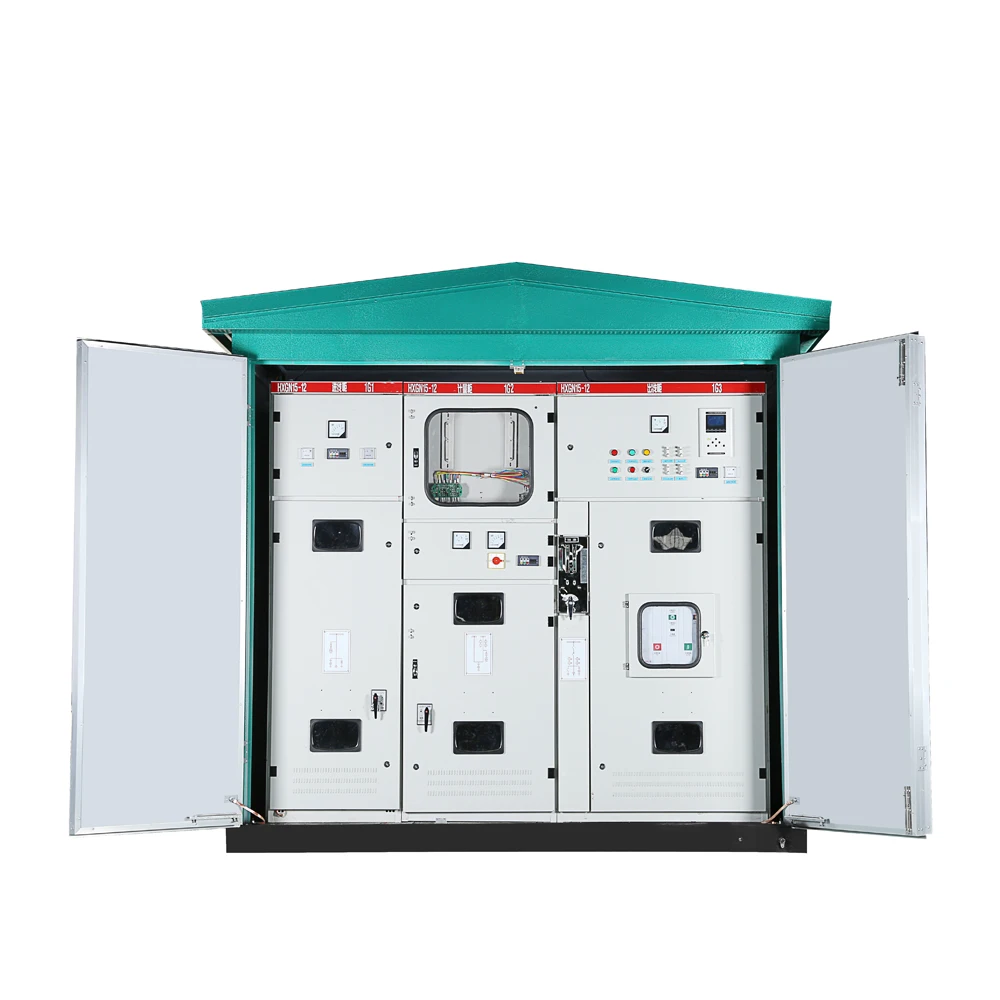

Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer
Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer

Outdoor Transformer 10kv 11kv 500KVA 630KVA 750KVA Pad Mounted Transformer

Share on (1600426844335):


Price:

Quantity:


Product Overview

Description









Product name
compact pad mounted transformer
Rated capacity
30-3150kva
Input Voltage
11kv/10.5kv/10kv/6.3kv/6kv
Output Voltage
0.4kv
Certification
CE / ISO9001
Cooling Method
ONAN
Warranty
2 Years
Winding Material
Copper\\Aluminum
Vector group
Dyn11 / Yyn0
Standard
IEC60076/IEEE






Specification(Reference)


Item
Unit
Parameters
High Voltage Unit
Rated Voltage
KV
12
40.5
Power frequency withstand voltage to ground, interphase, fracture within 1min
KV
42/48
95/110
Lightning impluse voltage ground, interphase, fracture
KV
75/85
185/215
Rated current
A
315-630
630-1250
Rated short-time withstand current (4s)
KA
20-40
20-40
Rated peak withstand current
KA
50-100
50-100

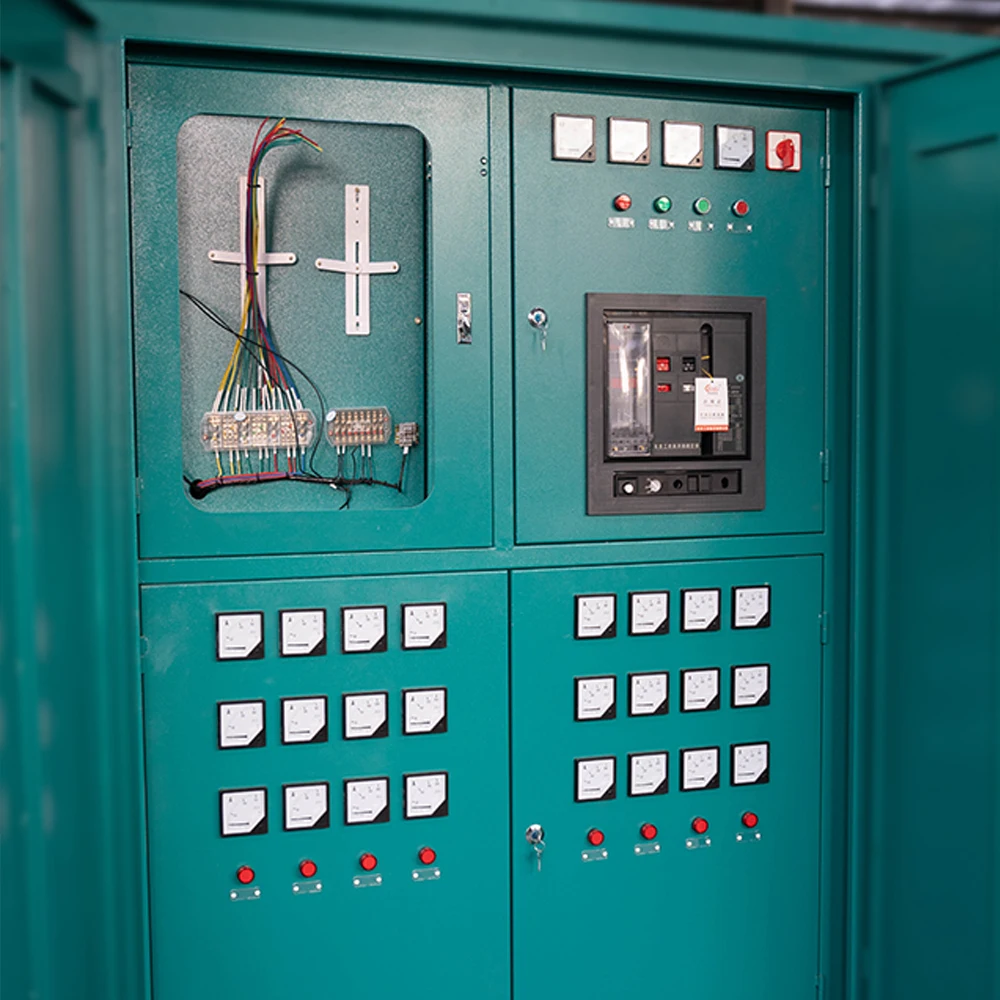

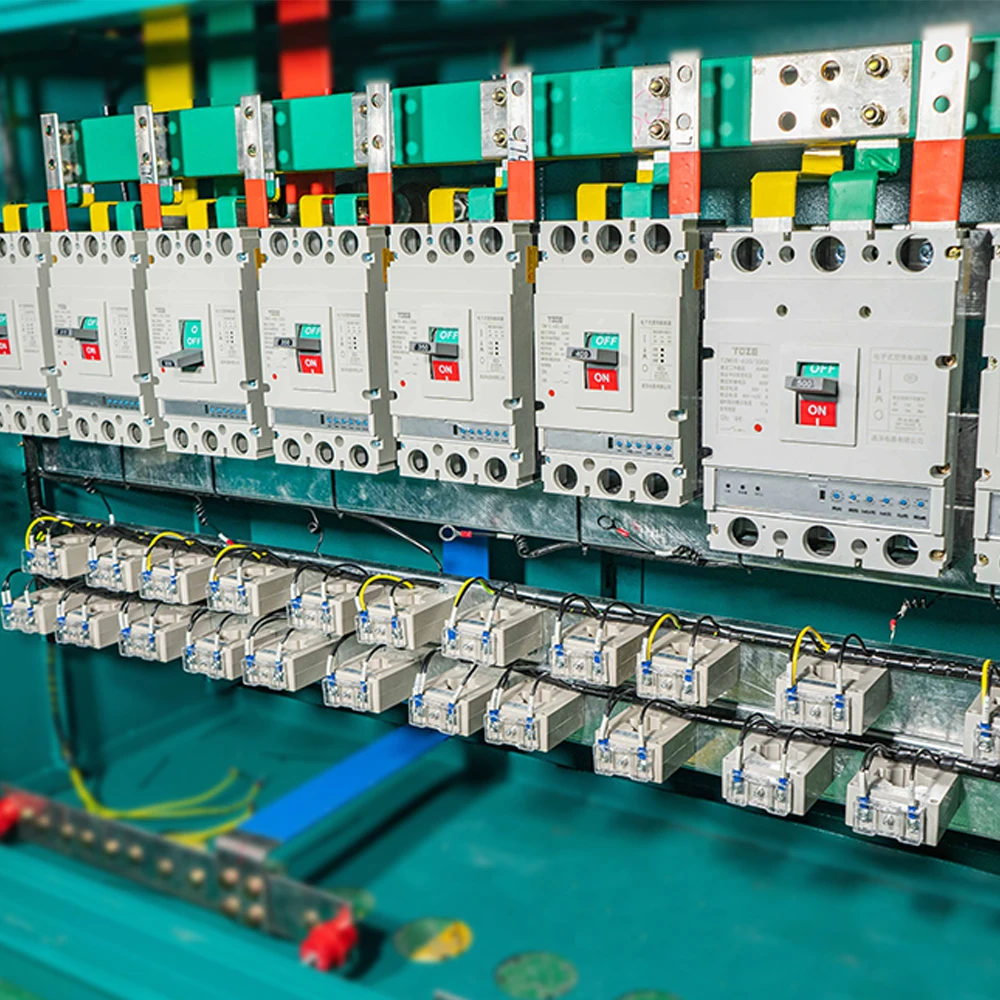

Low Voltage Unit
Rated Voltage
V
≤690
≤690
Main bus-bar rated current
A
100-4000
100-4000
Rated short-time withstand current (4s)
KA
25-75
25-75
Rated peak withstand current
KA
40-150
40-150

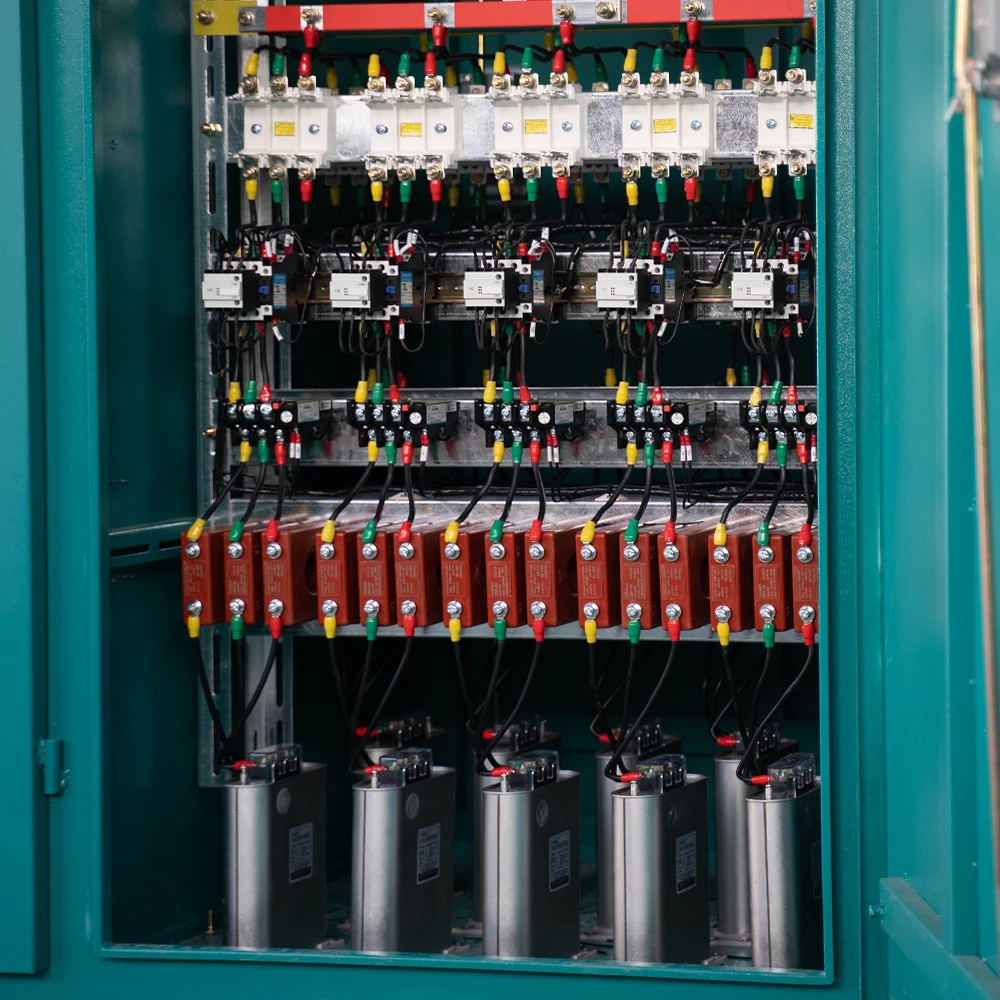

Compensation capacity
KVAR
Customized
Customized

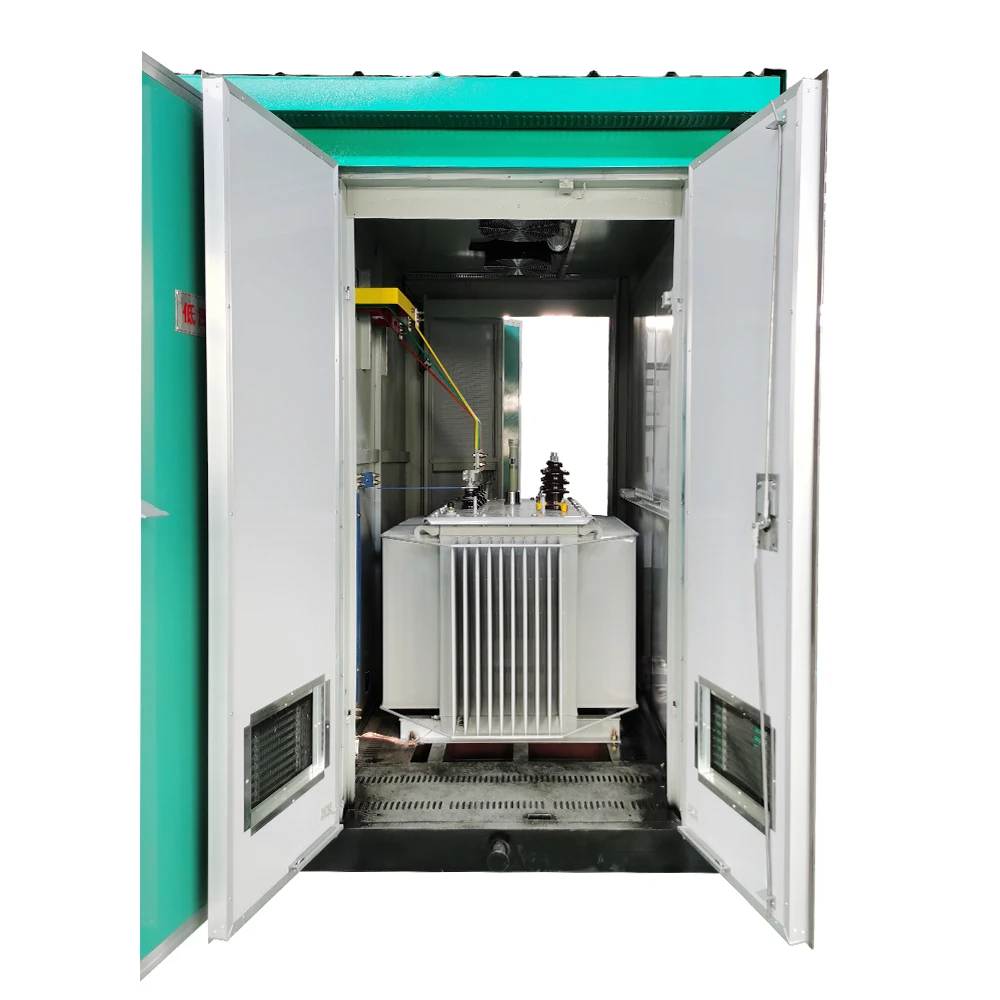

Transformer Unit
Rated Voltage
KV
10
35
Frequency
Hz
50
50
Rated capacity
KVA
30-2500
630-3150
Impedance voltage
%
4/6
6/6.5
Tapping range
-
±2*2.5%/±5%
±2*2.5%/±5%
Combination symbol
-
Dyn11/Yyn0
Dyn11/Yyn0
Protect case
Protection grade
IP33




Silicon steel core, CNC technology
Enameled copper wire, transposed wire


Copper/aluminum winding

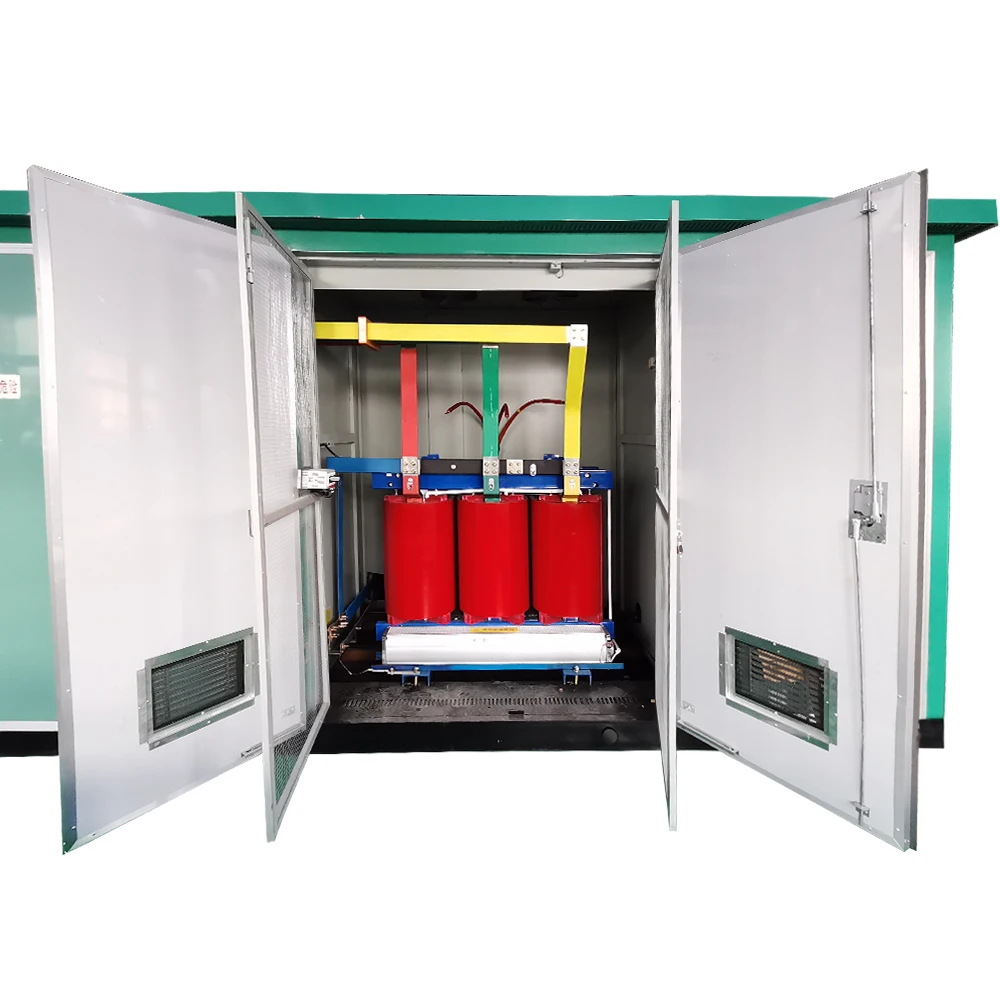

Dry transformer,oil immersed transformer




JIEZOU ELECTRIC GROUP. is located in Haian City, Jiangsu Province where close to Shanghai, established in 1992, owns more than 50 engineers and 500 employees , occupies 12 million square meter , annual sales is more than USD 200,000,000. JIEZOU has very strong production ability , advance production technology, professionally in production of dry transformer, oil immersed transformer, auto-transformer , isolation transformer, substation , switchgear, distribution box, transformer winding of enameled wire. Products are widely used in Africa, Middle east, South America, Middle Asia, Southeast Asia, etc .
We pass ISO9001, ISO14001 quality system , have CE, CCC, KEMA, UL certificates , and TEST REPORT, SGS report .








Certificates
Power transformer with CE, ISO,CCC, KEMA, UL certificates , and TEST REPORT





More than 28 years experience of production ,research and development in transformers

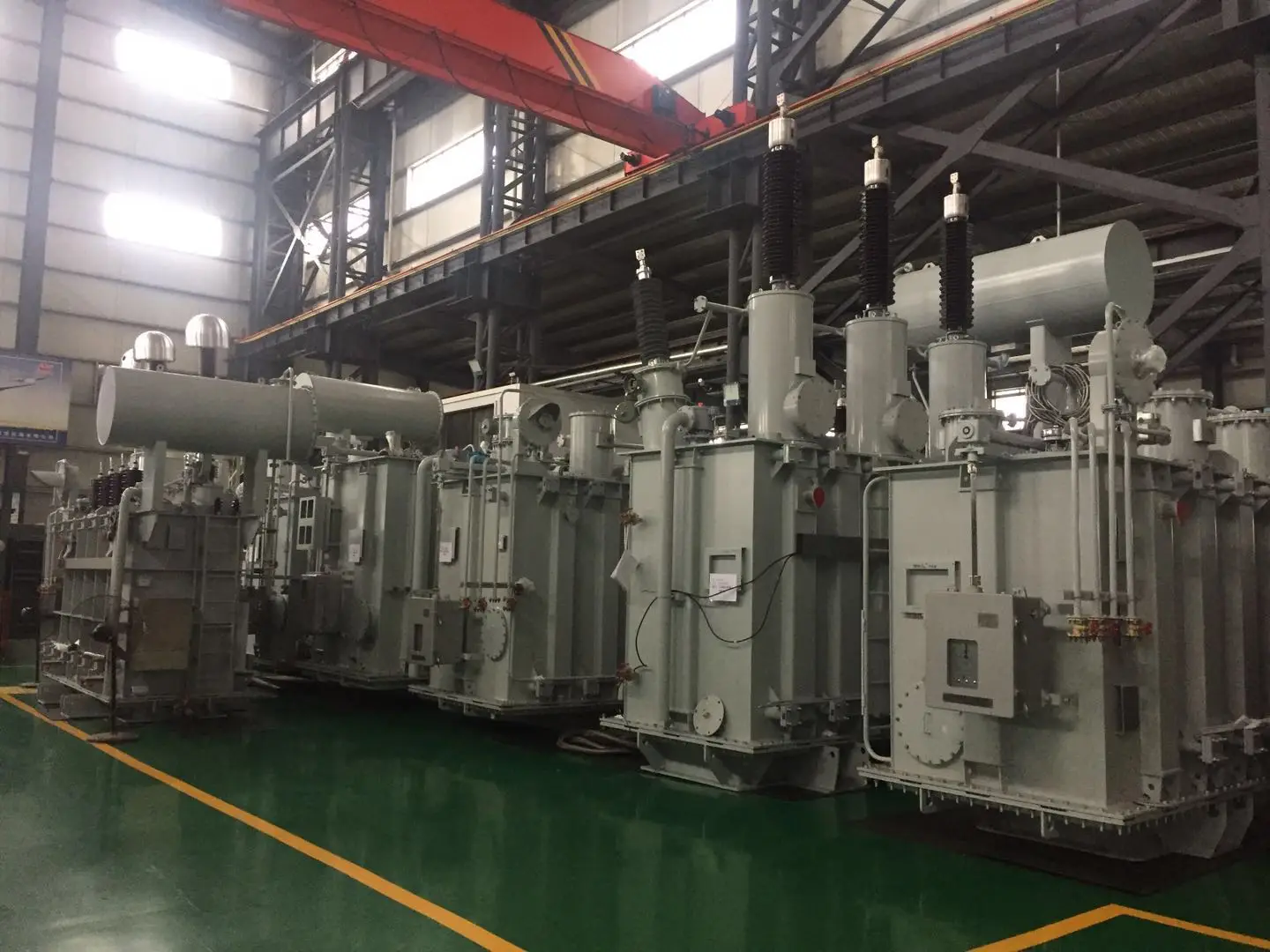

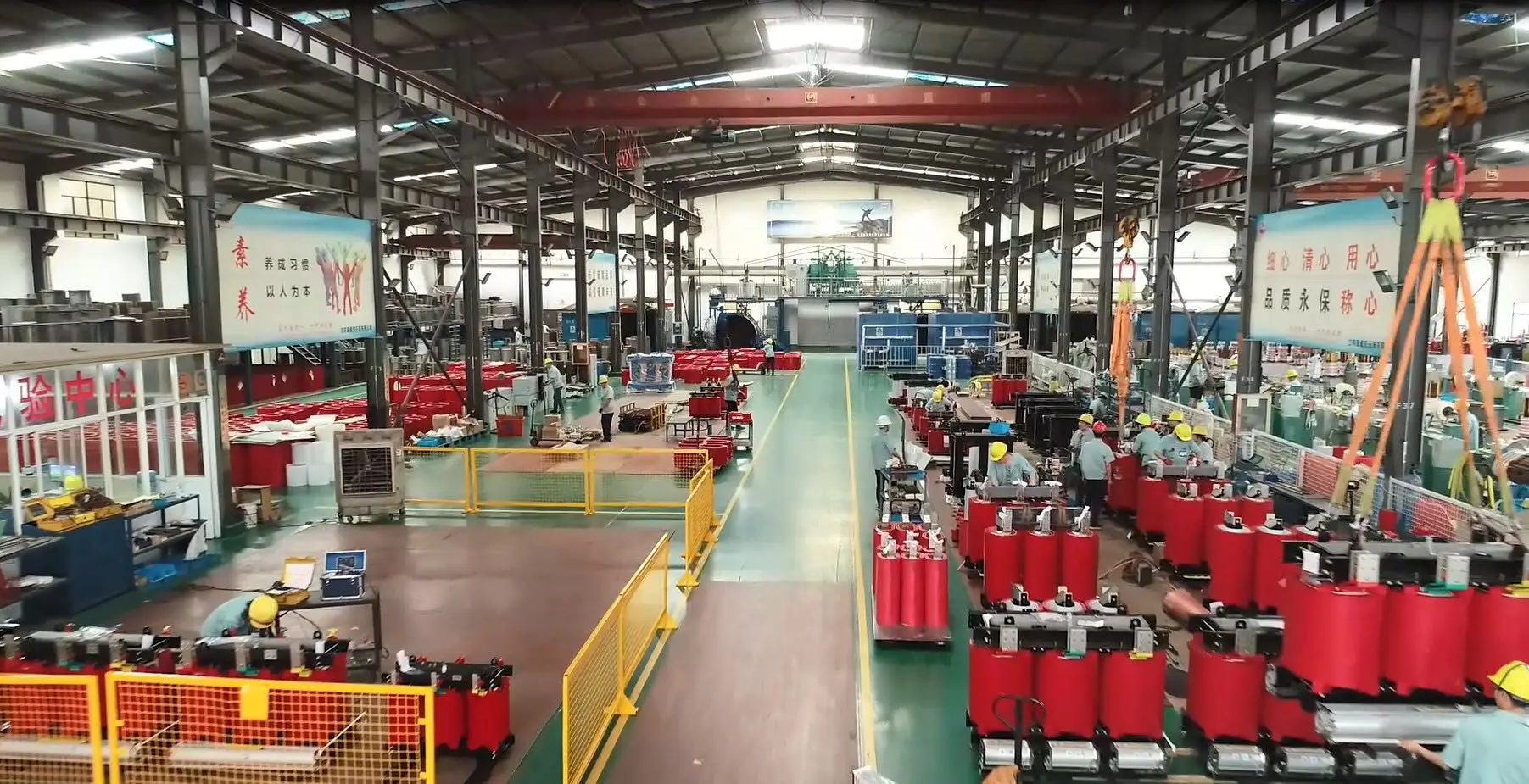

Advance and strong production ability, research and development ability, can produce 400kv substation


Professional management team with rich experience
Professional marketing team with rich experience




Exhibition in Frankfurt
Exhibition in Guangzhou Canton Fair


Exhibition in South Africa
Exhibition in Saudi Arabia




Distributor in many areas
We are still looking for good business partners for some empty markets.




Title goes here.
We accept OEM. Payment terms are normally T/T, L/C at sight , but we are opened to negotiated other payment terms. Delivery time normally is 10-25 days .




1. Who are we?
We are a big professional manufacturer of transformer, substation,HV and LV switchgear, established in 1992 year .

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
110kV~220kV Oil~immersed Power Transformer,Dry~type Transformer, Unpacked H Grade Dry Transformer, Oil-immersed Distribution
Transformer, Pad mounted Transformer

4. Why should you buy from us not from other suppliers?
As an enterprise specializing in transformer production for 28 years. ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates,
we have IEC, ANSI, KEMA, GOST standard, we have high quality, fast delivery, guarantee after-sales service and factory price.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C;
