Shandong Road Construction Polypropylene Needle Punched Non Woven Geotextile Fabric
- Category: >>>
- Supplier: Taian Zhongqi Building Materials Co. Ltd.
Share on (1600426857058):
Product Overview
Description
Product Description
Geotextile is a kind of geosynthetic fabric , which can be divided into woven fabric and non-woven fabric according to the production process.According to raw materials, nonwoven fabrics are divided into staple fiber needle-punched non-woven fabrics and filament spun-bonded needle-punched non-woven fabrics.
Non-woven geotextiles are permeable geosynthetic materials made of synthetic fibers through needle punching or weaving.The finished product is in the shape of cloth, with a general width of 4-6 meters and a length of 50-100 meters.
Non-woven geotextiles are permeable geosynthetic materials made of synthetic fibers through needle punching or weaving.The finished product is in the shape of cloth, with a general width of 4-6 meters and a length of 50-100 meters.
■Product Details:
Technical Parameter
Filament Geotextile Fabric Technical Parameter
Specification | 100 | 150 | 200 | |||
Deviation ofmass per unit area (%) | -8 | -8 | -8 | |||
Thickness(mm>) | 0.9 | 1.3 | 1.7 | |||
Amplitu de-deviation(%) | 0.5 | |||||
Breaking strength(KN/m>) | 2.5 | 4.5 | 6.5 | |||
Elongation atbreak(%) | 25500 | |||||
CBR bu rst stren gth (KN>) | 0.3 | 0.6 | 0.9 | |||
Equivalent aperture 090(095)(mm) | 0.07-0.2 | |||||
Vertical permeability coefficient(cm/s) | K*(1OJ1~ioa.3)(K=1.0-9.9) | |||||
Tearing strength (KN>) | 0.08 | 0.12 | 0.16 | |||
Note: TD=transverse direction LD= longitudinal direction | ||||||
Short Fiber Geotextile Fabric Technical Parameter
Specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |||||||||
Deviation of mass per unit area (%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | |||||||||
Thickness(mm>) | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | |||||||||
Amplitude- deviation(%) | 0.5 | |||||||||||||||||
Breaking strength (KN/m>) | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 (LD/TD) | |||||||||
Elongation at break(%) | 25-100 | |||||||||||||||||
CBR burst strength (KN>) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | |||||||||
Equivalent aperture 090(095)(mm) | 0.07-0.2 | |||||||||||||||||
Vertical permeability coefficient(cm/s) | (K=1.0~9.9) | |||||||||||||||||
Tearing strength (KN>) | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 (LD/TD) | |||||||||
Note: TD=transverse direction LD= longitudinal direction | ||||||||||||||||||
Product Features
1) UV resistant |
2) High temperature resistance to up to 230℃ maintaining structure stability and original physical properties |
3)High flat drainage and vertical permeability |
4) High creep resistance |
5) Resistance of erosion of chemicals in soil as well as thecorrosion of gasoline and diesel etc |
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases |
Production Process
1. Raw materials | 2. Sort out |
3. Laying | 4. Needle punched |
5. Winding | 6. Package |

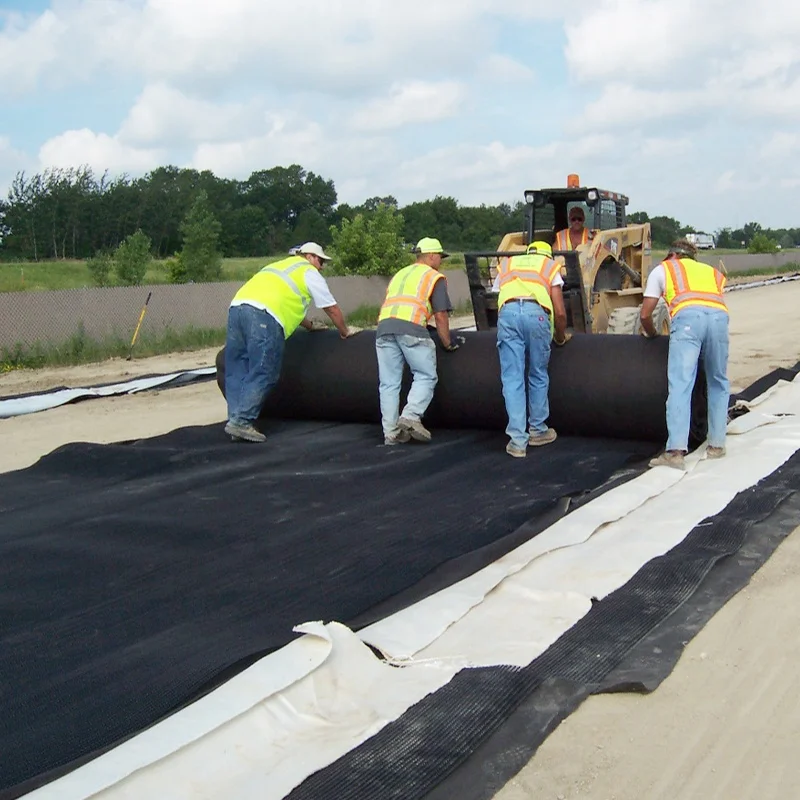

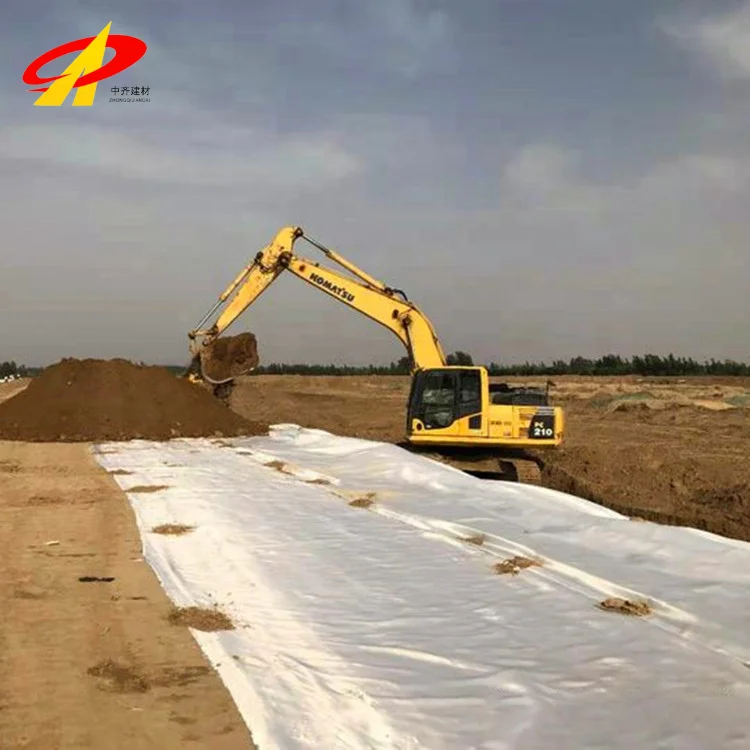

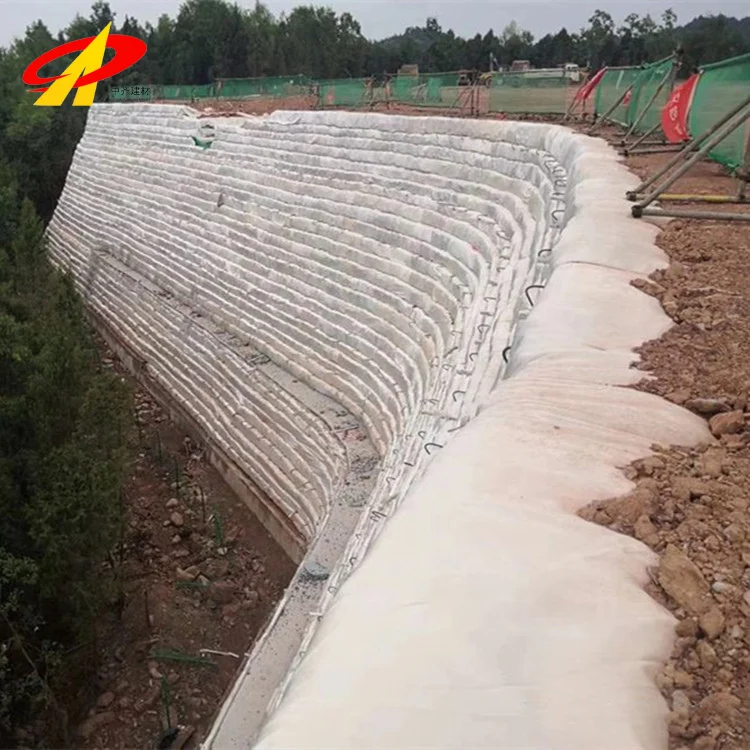

Application picture
Company Profile
Taian Zhongqi Buildings Materials Co.Ltd. was estabished in 2010, wiith a registered capital of 50.8 million, more than 300 employees, covers an area of 35,000 square,equipped with professional technical research and development teams, it is a comprehensive company integrating production,sales,construction and after-sales. Some production lines have reached fully automated operation. Zhongqi Buildings company is specialized in geomembrane, geotextile,composite geomembrane,geocell,geogrid,3D geomat,grosyntheic clay liner and other geosynthetic materials.The products are widely used in foundation reinforecement of highways, railways,airports,municipal projects,anti-seepage of construction projects,landscaping,landfills,sewage treament,soild waste disposla,waterproffing projects and etc.
■Our Factory
■Our Workshop
■Advanced Equipments
Package&Delivery
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: Can I get samples?
A: Yes. We can send you free sample. You only pay the DHL express freight.
Q3: What is your delivery time?
A: It is 5-10 days if the goods are in stock, it is 10-15 days if the goods are not in stock.
Q4: What is your terms of payment?
A: Payment≤5000usd,100% in advance. Payment≥ 5000usd,30% TT in advance for deposit,and the balance before shipment. Others payment can negotiations.
Q5: Can you produce the product according to customer's requirements?
A: Yes. OEM and ODM can be accepted.
Q6: What is your MOQ?
A: 10000 per square meters.
If you have any another question,please feel free to contact us at any time.
Wish you have a good purchasing experience.
