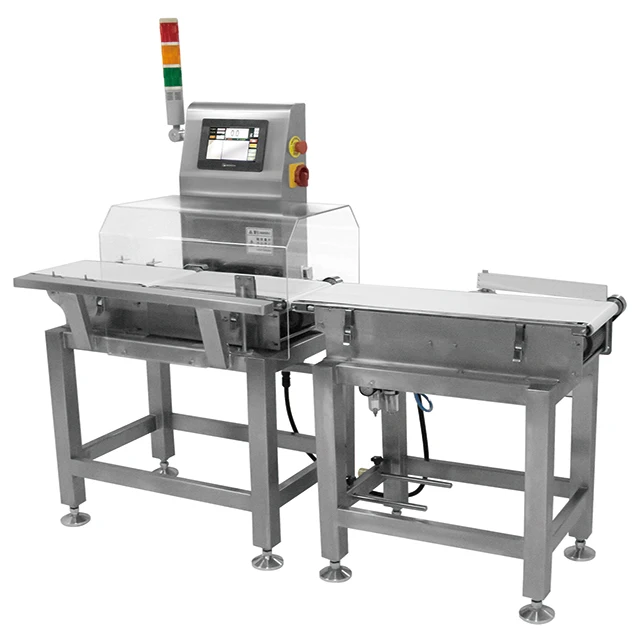

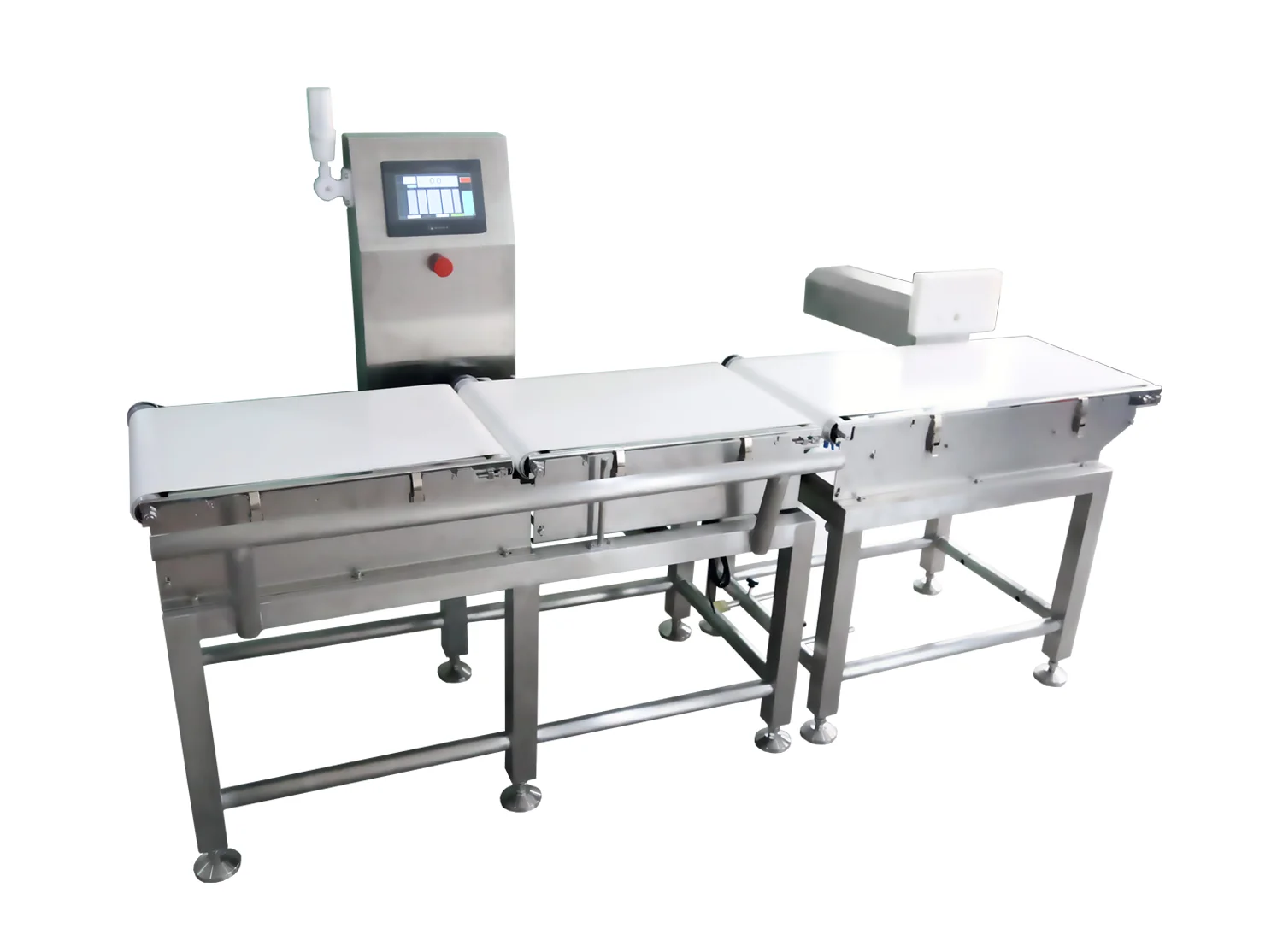

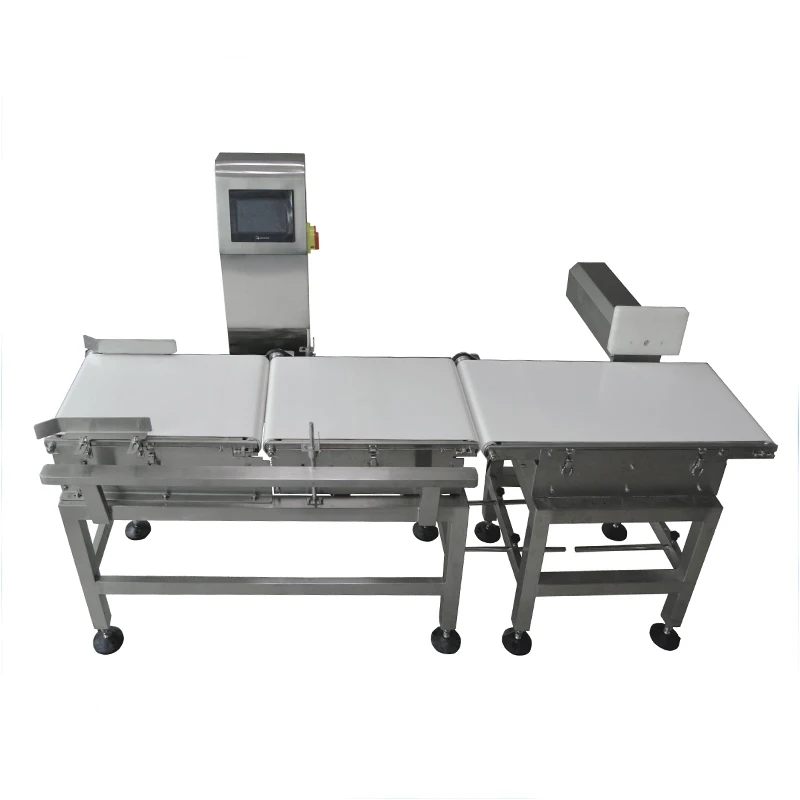

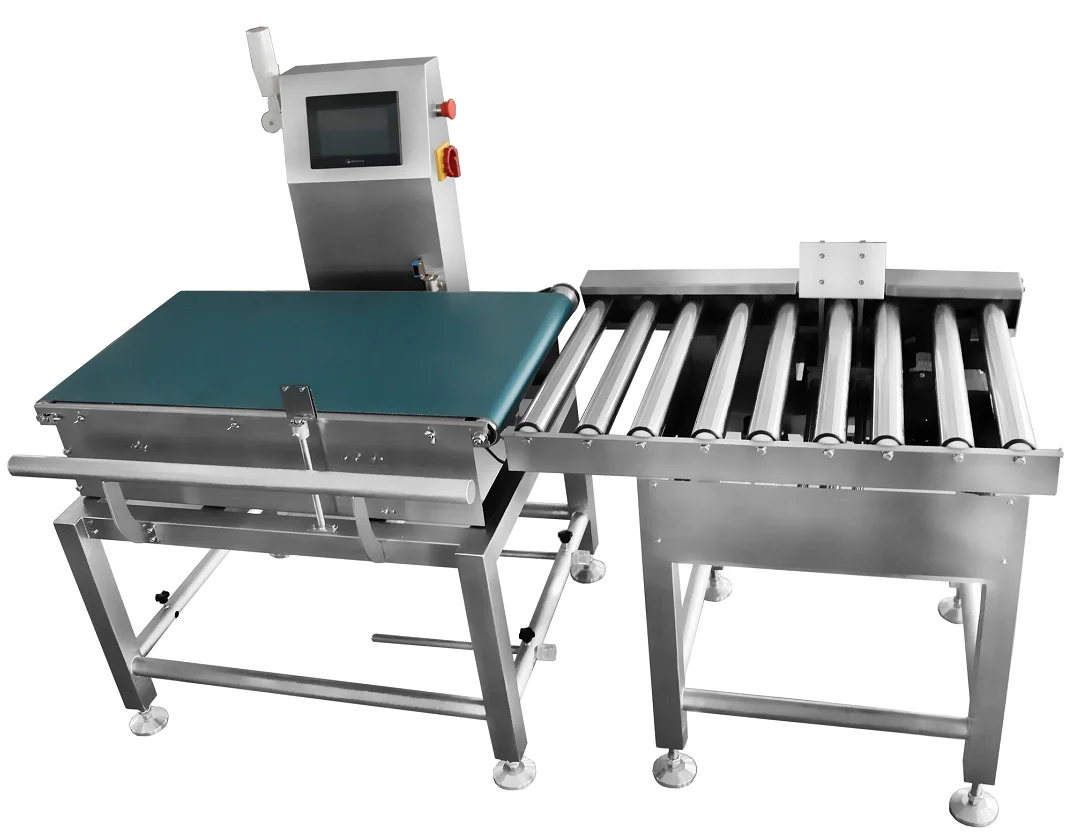

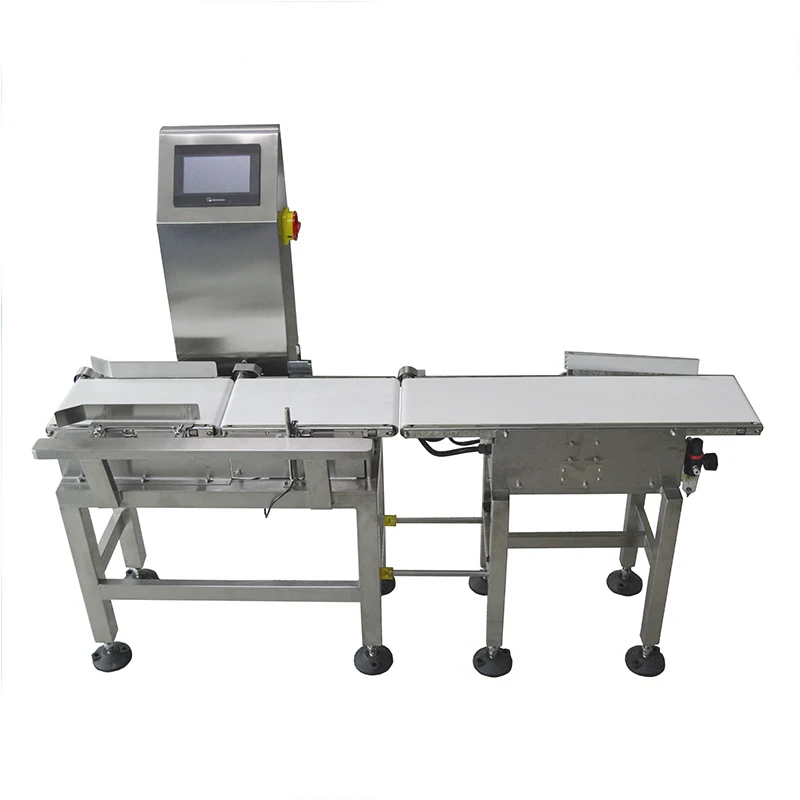

Online Weighing Scales Bottles Jars Checkweigher for Food Industry
- Category: Weighing Scales >>>
- Supplier: Dongguan Coso Electronic Tech Co. Ltd.
Share on (1600426863207):
Product Overview
Description
Product Description
Application:
Checkweigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Checkweigher machine can check packed products’ weight online whether their weights are overweight or less-weight to ensure the weight of products to meet standards. Checkweigher is automatic device that used to check the products’ weight in automatic packing production lines, and it can check products in a continuous working process which weight accords with the standard weight we set or not. Also, the checkweigher can automatically reject unqualified products.
Check weigher is widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health care products, and many other industries. For example, it can be used in food industry to check the weight of bread, cake, hams, instant noodles, frozen food, food additives, preservative etc.
Checkweigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Model | CW150 | CW200 | CW300 | CW400 | CW500 | CW600 | |||||
Weight Range | ≤200g | ≤1000g | ≤3000g | ≤20Kg | ≤40Kg | ≤40Kg | |||||
Minimum Scale | 0.01g | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | |||||
Accuracy | ±0.2-0.5g | ±0.3-1g | ±0.5-3g | ±1-5g | ±5-20g | ±5-20g | |||||
Speed | 0-70m/m | 0-70m/m | 0-70m/m | 0-60m/m | 0-50m/m | 0-50m/m | |||||
Product's Length | 150mm | 300mm | 300mm | 500mm | 650mm | 650mm | |||||
Product's Width | 120mm | 180mm | 270mm | 350mm | 440mm | 530mm | |||||
Power | 0.1KW | 0.15KW | 0.4KW | 0.4KW | 0.4KW | 0.4KW | |||||
Power Supply | AC220V/110V ± 10% 50/60Hz | ||||||||||
Rejection | Air Blowing/Pusher/Swing Arm/Flap/Sinking Conveyor Rejection | ||||||||||
Operation Panel | Touch Screen | ||||||||||
Compressed Air | 0.6-1Mpa | ||||||||||
Material | SUS304 | ||||||||||
Main functions:
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
Company Introduction
Dongguan Coso Electronic Technology Co., Ltd was established in 2005, is a leading high-tech company that has more than 18 years of experience in metal detector. The main products include metal detector, metal separator, needle detector, checkweigher, weight sorting machine, etc. COSO has its own R&D team, many experienced engineers and workers in designing and manufacturing metal detector and check weigher. COSO can provide customization service to customers to meet their special requirements on machines. COSO mahcines have CE certificates and have been sold to many foreign countries. We have a reliable reputation among customers because of professional services, quality products and competitive prices. Our machines are in low cost of usage and maintenance, have warranty time. When machines are broken, changing spare parts can easily solve problems. Our missions are to manufacture high quality machines; help customers improve quality and efficiency of their products, be a worldwide famous brand that can benefit the world. If you are interested in our machines, welcome your kind inquiry.
