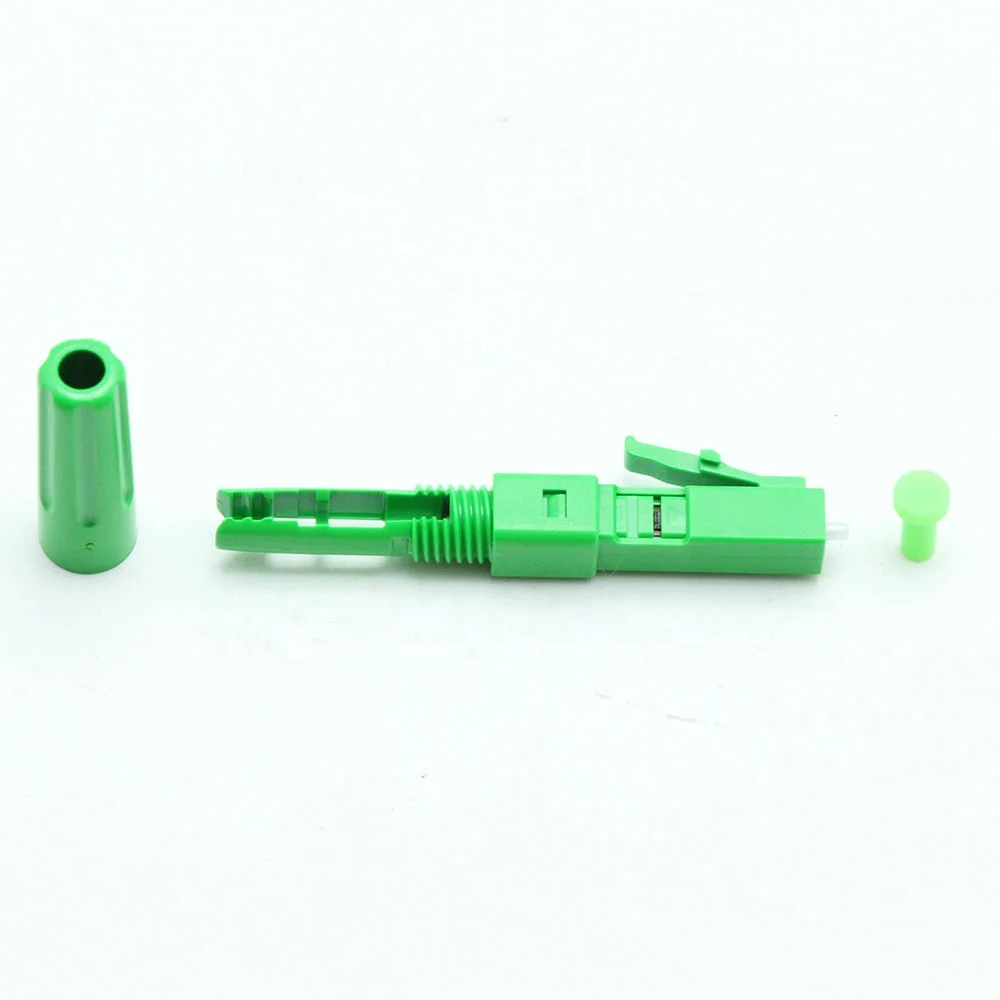

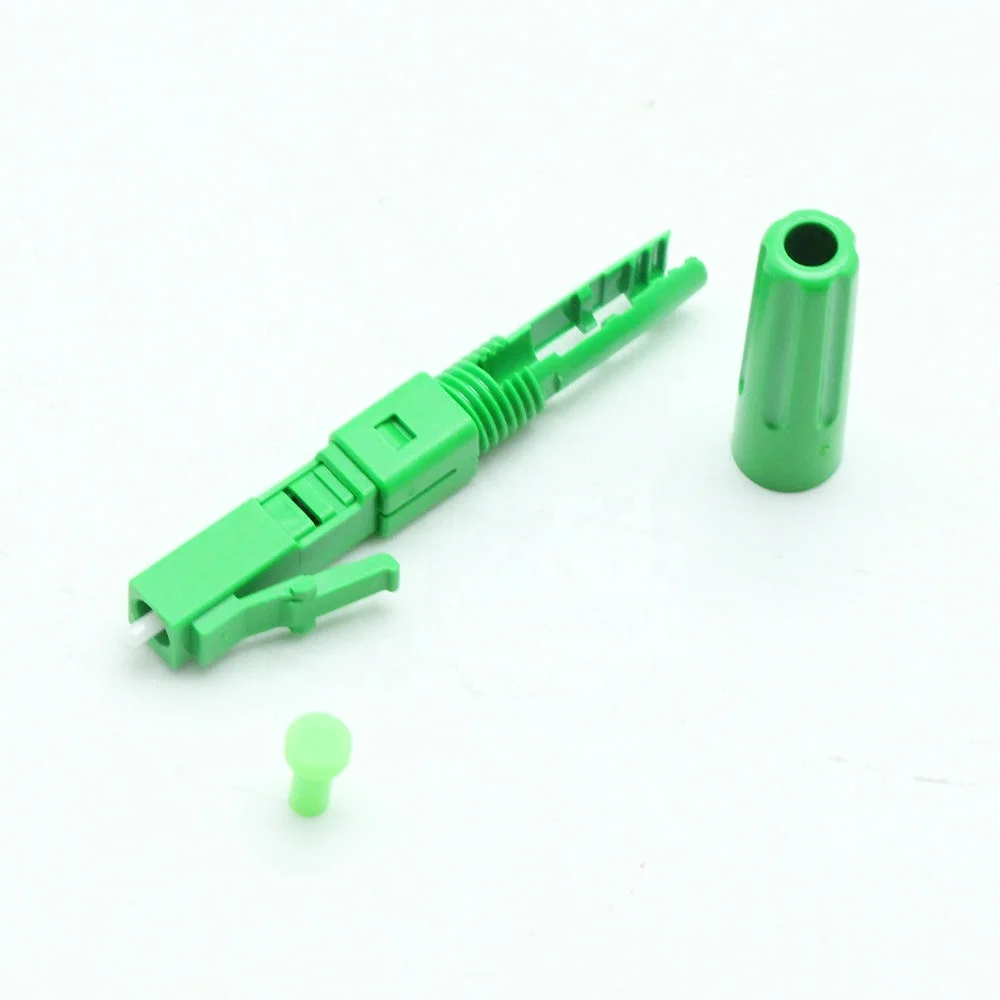

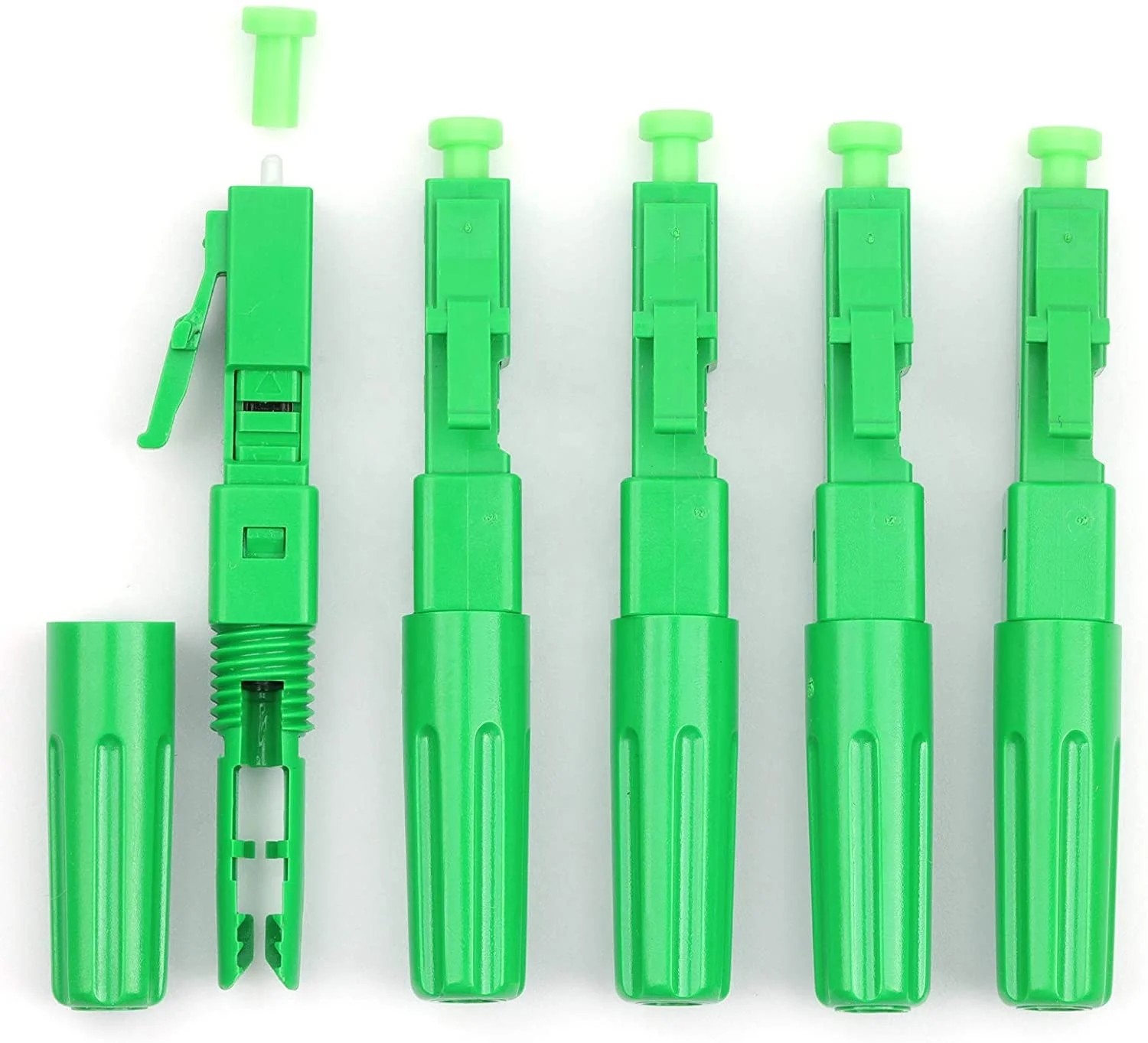

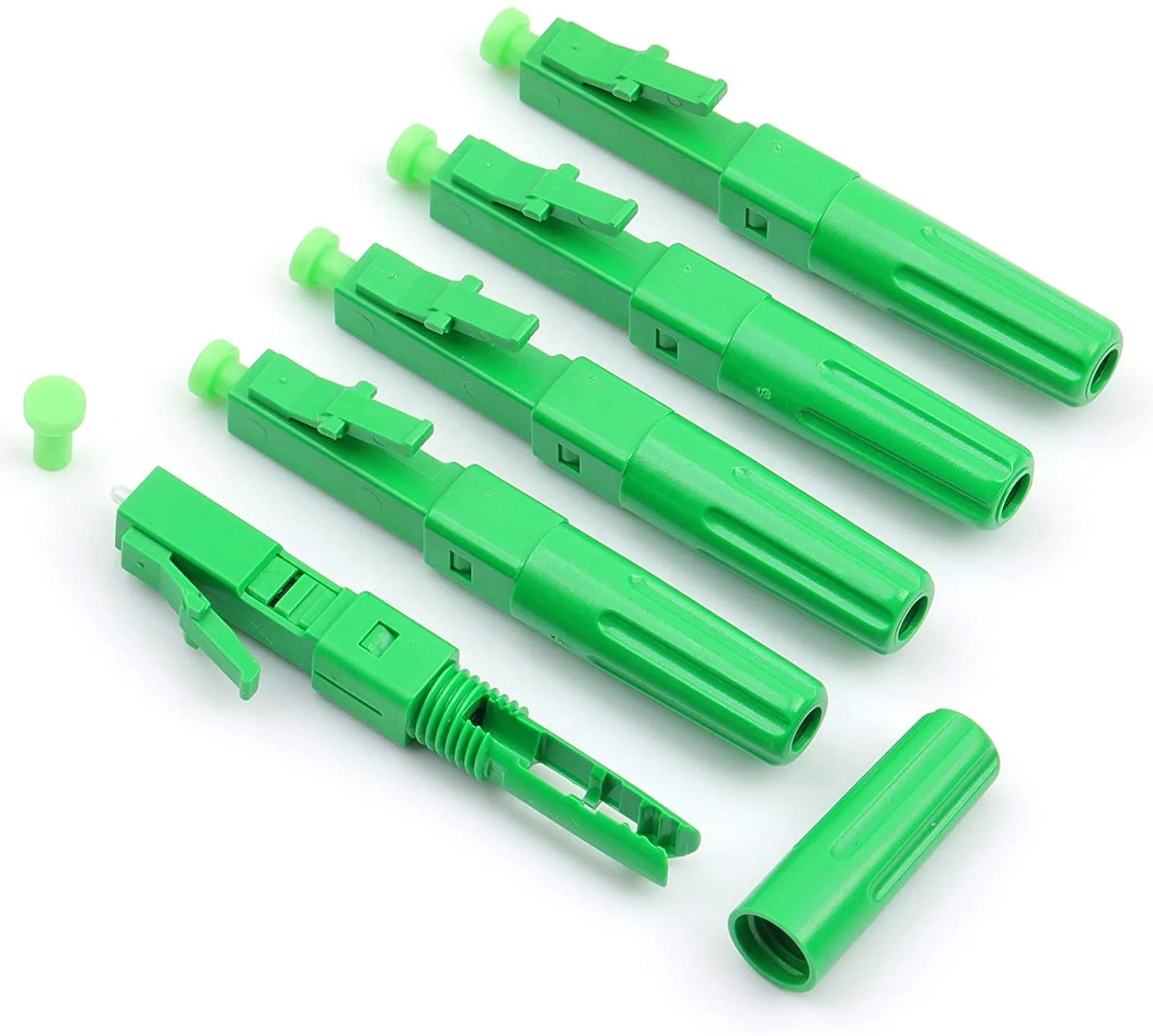

Hot Sale ELC925T Field Assembly FTTH Quick Connector For Telecommunication LC APC Fiber Optic Fast Connector
- Category: >>>
- Supplier: Jiangsu Unikit Optical Technologies Co. Ltd.
Share on (1600426889134):
Product Overview
Description
Product Description
High Reliability Optical Passive Components Field Assembly LC Fast Connector
New Design
Universal Type

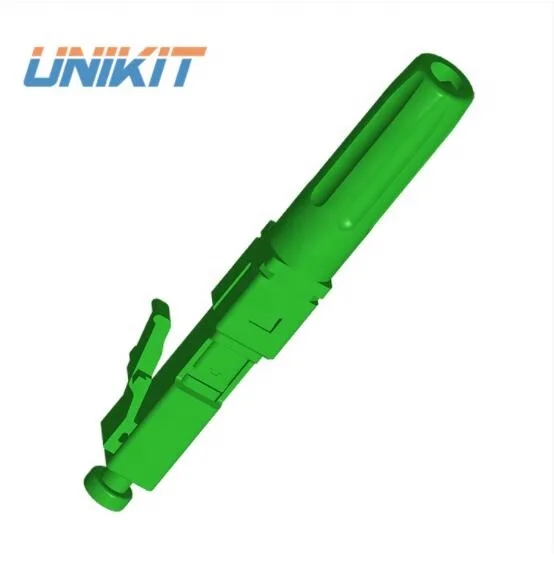

ELC925T-APC
1). Low insertion loss, high return loss;
2). Reliable optical performance;
3). Good connection stability;
4). Convenient for field installation;
5). Installs fast, Operates easy ;
6). Low cost & Reliability
Specification
◆Product Length: 45mm
◆Fiber: SM/ G657 Bending Insensitive; MM OM3, OM4
◆Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
◆Operating Temperature: -40℃～+80℃
◆Application: FTTH
Item | Parameter |
Model Number | ELC925T-APC |
Brand Name | UNIKIT/OEM |
Use | FTTH |
Connection Type | LC FTTH Cable Connector |
Applicable Cable | 2.0*3.0mm & 2.0*1.6mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable |
Insert Loss | AVG≤0.3dB,Max≤0.5dB |
Return Loss | ≥55dB for APC, ≥50dB for UPC |
Tensile Strength | ≥30N (Ф0.9mmRound Cable≥5N) |
Reusable Times | ≥5 times |
No. of Fiber | 1 |
Mode | SM MM(OM3, OM4) |
Assembly Time | Drop Cable≤2mins Round Cable≤4mins |
Mechanical Endurance | 500 Times |

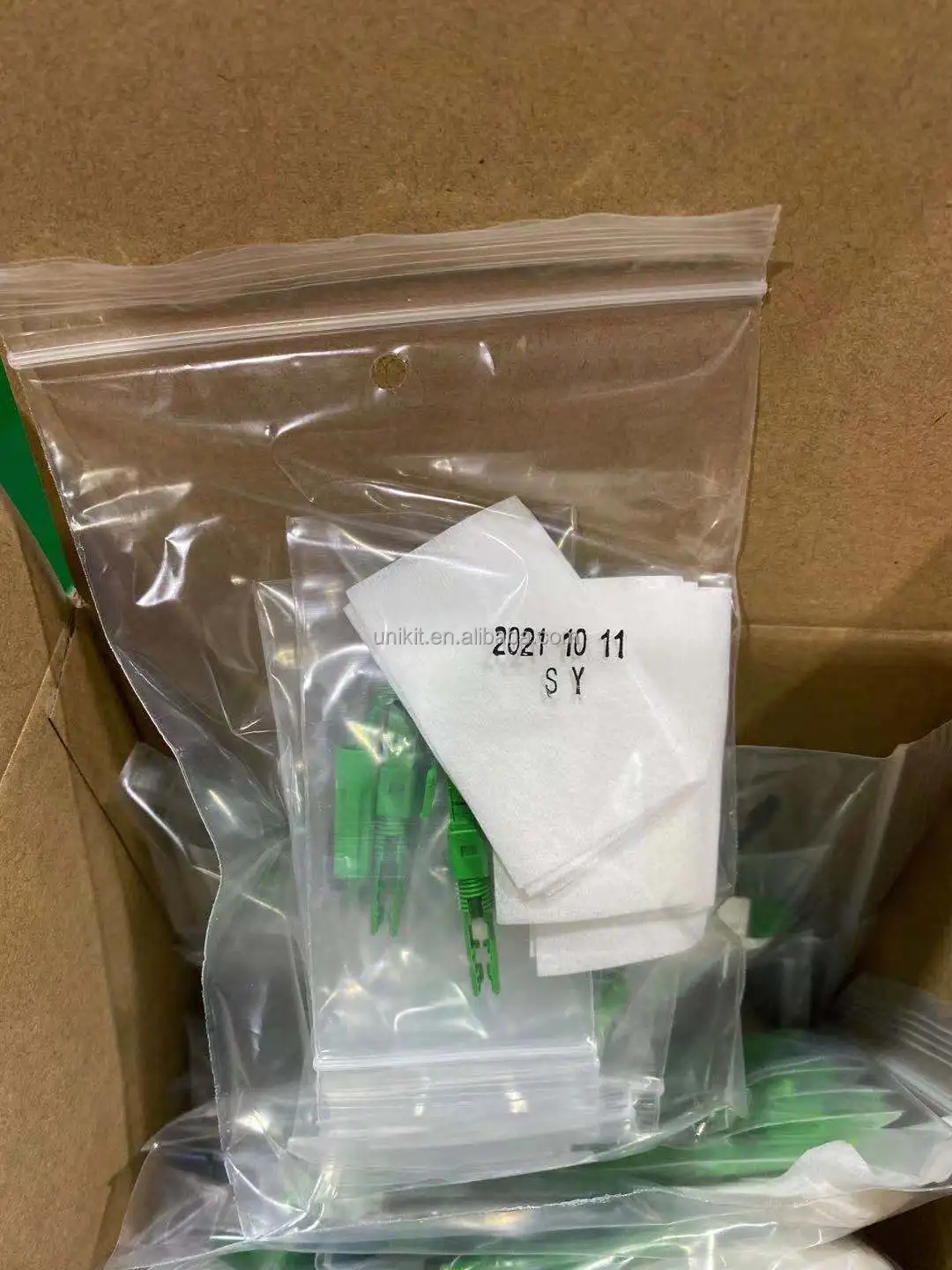

Packing & Delivery
