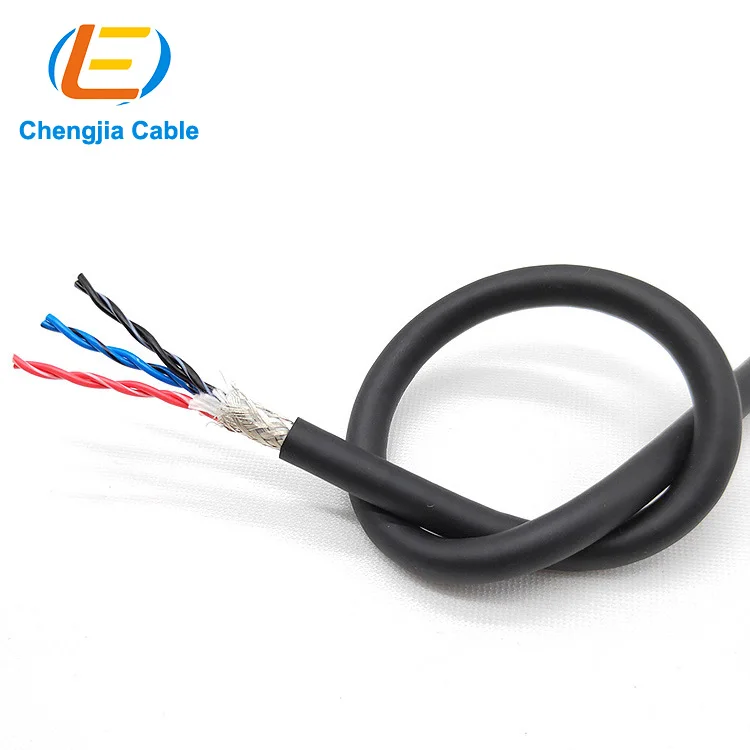

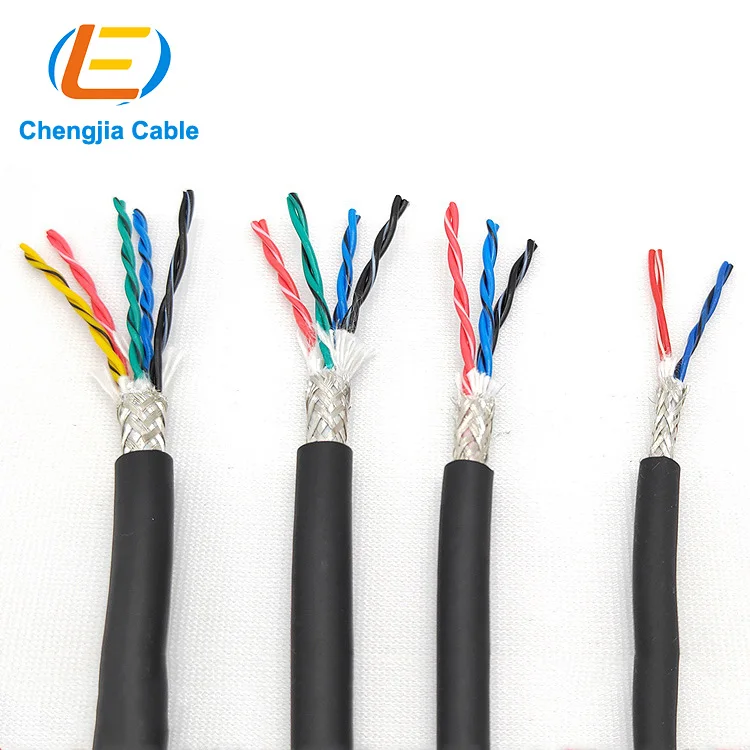

Sensor System Flexible Pvc Ferrule Marking Data Cable Chain Drag Cable
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600426889658):
Product Overview
Description

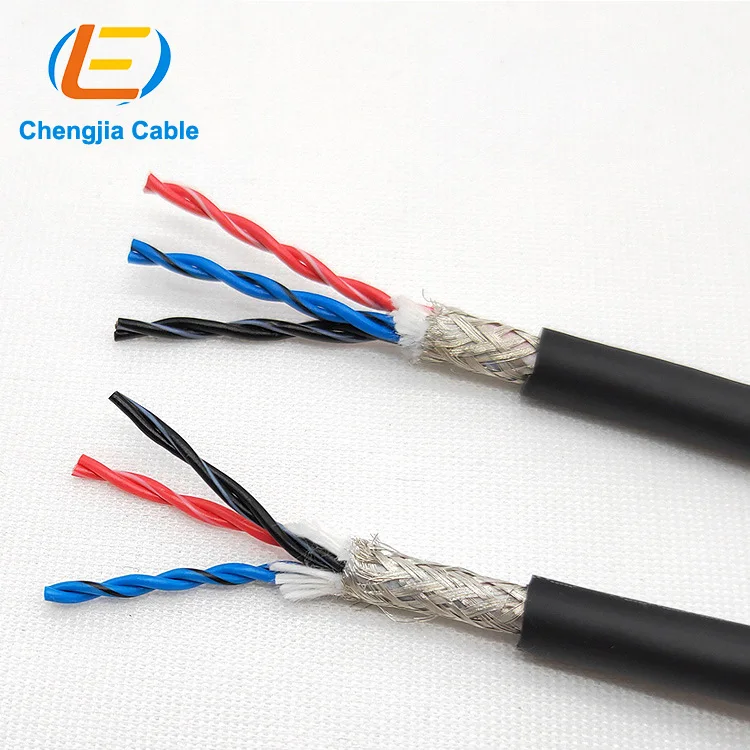

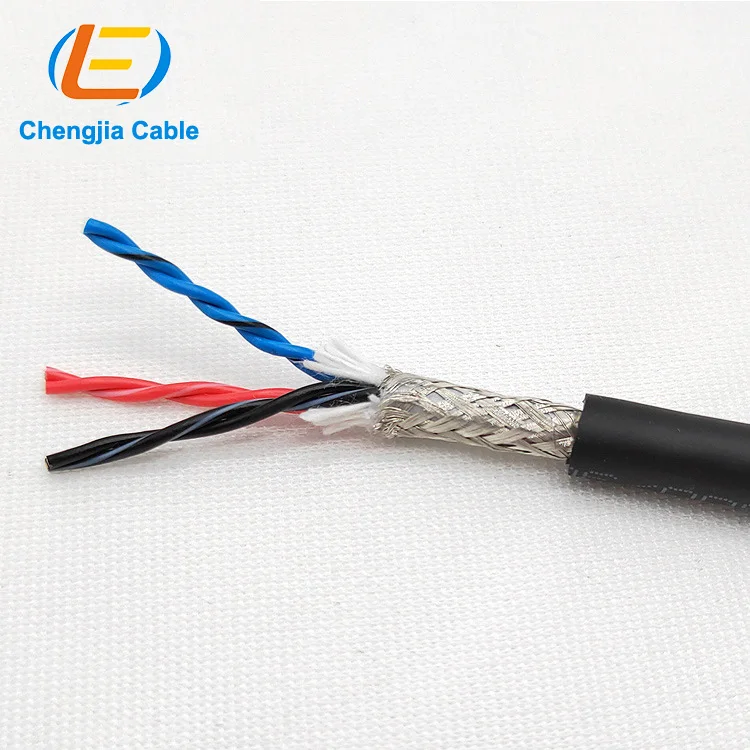

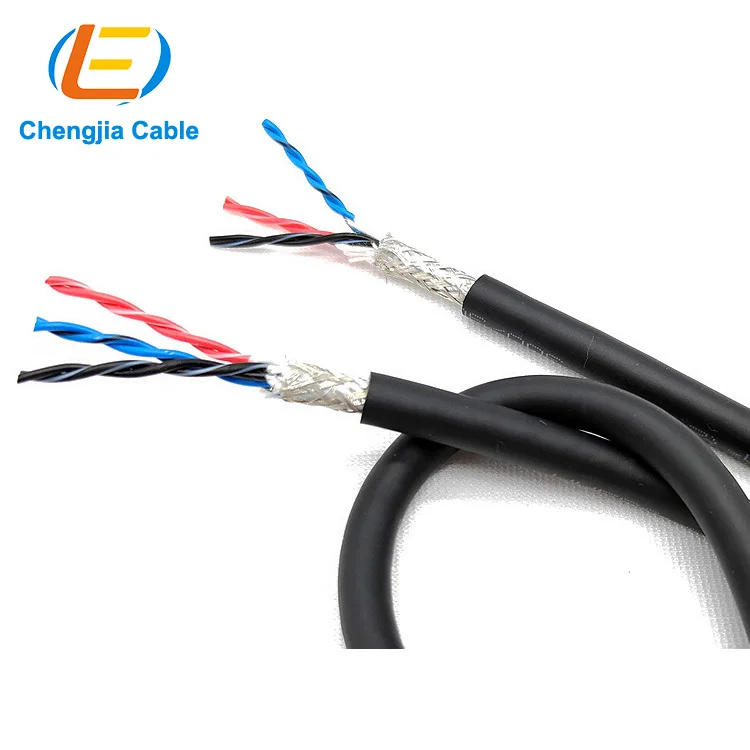

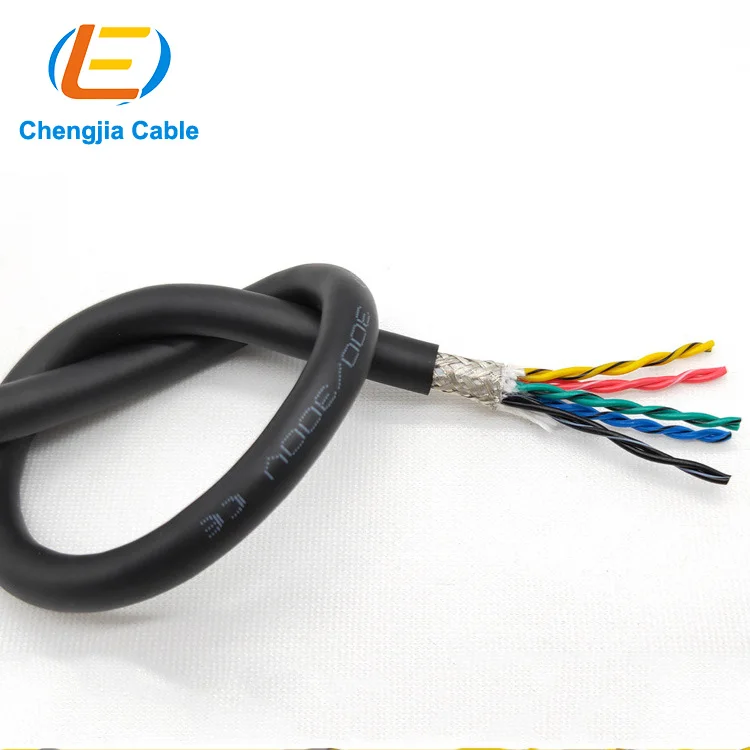

10X2X28AWG Signal Cable CE Certified Shielded Flexible Cable 300/500V Twisted Pair Cable Wire
Products Description
5 million times high-flexible PVC sheathed cable, using a special high-flexible PVC as the outer sheath, which is extremely resistant to oil and coolant, and can be used in humid environments, but cannot be used outdoors. The special structure and PVC synthetic materials make the cable Have a long working life. Mainly used for data and signal transmission in drag chain systems, using copper wire high-density braided shielding to ensure accurate data transmission and protect cables from electromagnetic interference. It is widely used in machinery, instruments, industrial electronic equipment, computers, and information transmission systems, and is suitable for any two-way communication occasions.
Product Feature
Technical Parameter
Standard | Comply with UL20276 standard, thin wire diameter design | ||||||
Conductor | adopts high-quality tinned copper stranded copper wire | ||||||
Insulation material | Modified PVC | ||||||
Core structure | Small pitch single stranding | ||||||
Core recognition | Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers | ||||||
Outer sheath | Modified PVC mate | ||||||
Color | black (other colors can be customized) | ||||||
Bending radius | Move in is more than 7.5 x d, Fixed laying is more than 6 x d, | ||||||
Nominal voltage | Uo/U 300/300 V | ||||||
Test voltage | 1500 V | ||||||
Application: | Widely used in machinery, instruments, industrial electronic equipment computers, information transmission systems, suitable for any two-way communication occasions | ||||||

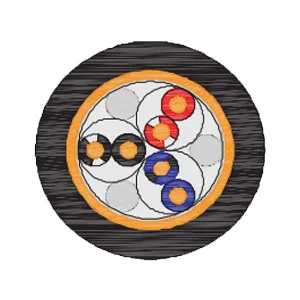

Cable Structure
Control Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PVC outer sheath
9. Black (RAL 9005) matte
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PVC outer sheath
9. Black (RAL 9005) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY506.04.0014 | 2x2x0.14 | 5.5 | Black | 150 | |||||
2 | YY506.14.0014 | 7x2x0.14 | 7.8 | Black | 150 | |||||
3 | YY506.04.0020 | 2x2x0.2 | 6.0 | Black | 95 | |||||
4 | YY506.06.0020 | 3x2x0.2 | 6.4 | Black | 95 | |||||
5 | YY506.08.0020 | 4x2x0.2 | 7.0 | Black | 95 | |||||
6 | YY506.10.0020 | 5x2x0.2 | 7.5 | Black | 95 | |||||
7 | YY506.12.0020 | 6x2x0.2 | 8.2 | Black | 95 | |||||
8 | YY506.14.0020 | 7x2x0.2 | 8.5 | Black | 95 | |||||
9 | YY506.04.0020 | 2x2x0.3 | 6.2 | Black | 71.2 | |||||
10 | YY506.06.0030 | 3x2x0.3 | 6.6 | Black | 71.2 | |||||
11 | YY506.08.0030 | 4x2x0.3 | 7.5 | Black | 71.2 | |||||
12 | YY506.10.0030 | 5x2x0.3 | 7.8 | Black | 71.2 | |||||
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
